Bartscher E500D LPR User manual

E500D LPR
110512

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2019-08-15
Original operation manual

Beschreibung

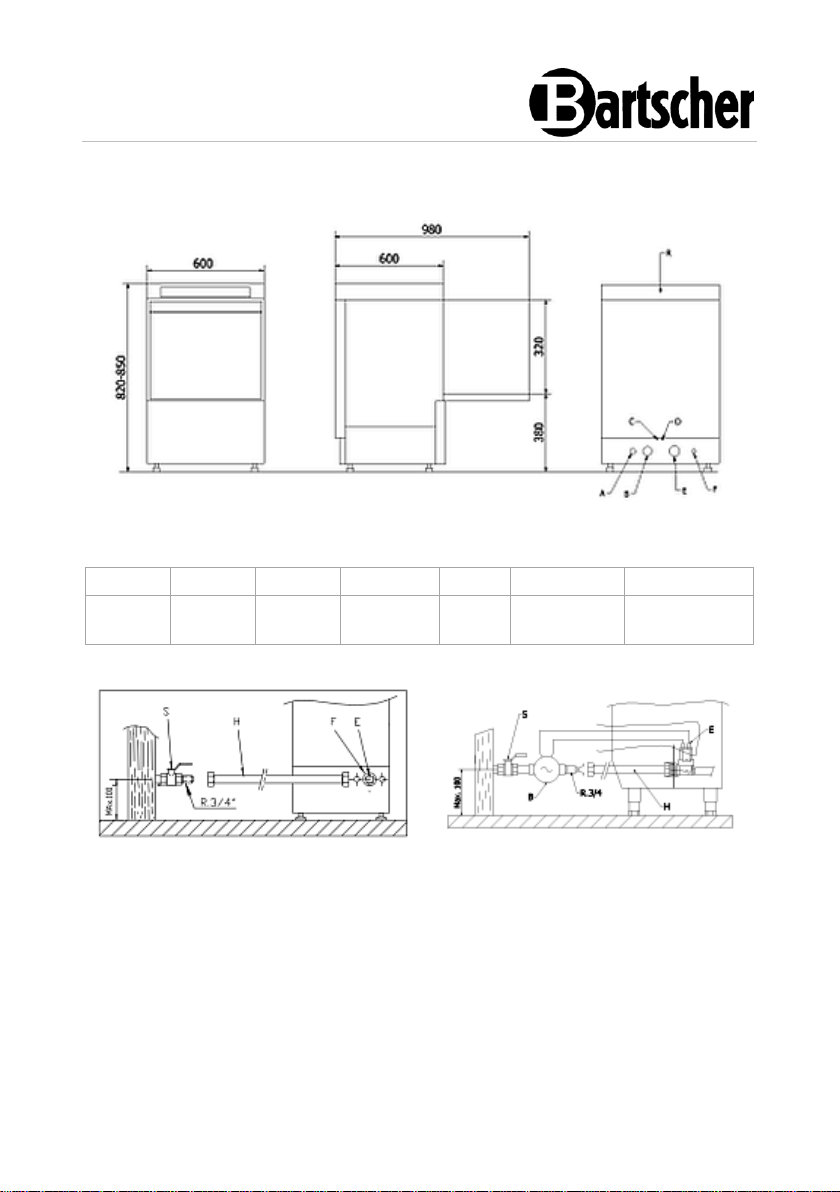

Dimensions / supply lines (mm)
Fig. 1
A
B
C
D
E
F
R
Current
Water
Rinsing
agent
Cleaning
agent
Drain
Potential
equalization
Connection
strip
Fig. 2
Fig. 3

Fig. 4
Fig. 5
EN

110512 1 / 32
1Safety............................................................................................................2
1.1 Explanation of signal words.....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended use............................................................................................5
1.4 Unintended Use.......................................................................................5
2General information.......................................................................................6
2.1 Liability and warranty...............................................................................6
2.2 Copyright protection.................................................................................6
2.3 Declaration of conformity.........................................................................6
3Transport, packaging and storage.................................................................7
3.1 Delivery Check.........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical data...............................................................................................8
4.1 List of components of the appliance.........................................................8
4.2 Technical specifications...........................................................................9
4.3 Functions of the appliance.....................................................................10
5Installation Instructions................................................................................11
5.1 Unpacking..............................................................................................11
5.2 Positioning.............................................................................................12
5.3 Electrical Connection.............................................................................12
5.4 Water Connection..................................................................................13
5.5 Discharge Pump ....................................................................................15
5.6 Cleaning Agent Dosing Pump................................................................15
5.7 Rinsing Agent Dosing Pump..................................................................15
6Operation and Maintenance Instructions.....................................................16
6.1 Operation............................................................................................... 16
6.2 Cleaning and Maintenance....................................................................20
6.3 Indications and Tips...............................................................................22
7Possible Malfunctions..................................................................................23
8Disposal....................................................................................................... 28

Safety
2 / 32 110512
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheits hinweise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsb estimmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Ger äts für das In¬stallations-, Bedienungs-, W artungs- und Reinigungsp ersonal jederzeit z ugänglich auf¬be wahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of signal words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
110512 3 / 32
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 32 110512
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
Operating Personnel
•The appliance may only be operated by a qualified personnel and trained
specialist personnel.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your
own.
•Do not introduce any changes in the appliance nor modify it.

Safety
110512 5 / 32
EN
1.3 Intended use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Washing dishes, glasses, pots, pans, etc.
The appliance is intended for professional use only.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Washing other unsuitable objects.

General information
6 / 32 110512
EN
2 General information
2.1 Liability and warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, packaging and storage
110512 7 / 32
EN
3 Transport, packaging and storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical data
8 / 32 110512
EN
4 Technical data
4.1 List of components of the appliance
Fig. 6

Technical data
110512 9 / 32
EN
Description for Fig. 6
1. Control panel
2. Wash-tank
3. Dishwasher basket
4. Housing
5. Height-adjustable feet (4 pcs.)
6. Handle
7. Appliance door
8. Appliance door lock
9. Upper rinse arm
10.Upper wash arm
11.Lower rinse arm
12.Lower wash arm
13.Valve
14.Wash baskets guide rail
4.2 Technical specifications
E500D LPR
Name:
Dishwasher E500D LPR
Art. No.:
110512
Material:
Stainless steel
Basket dimensions (W x D x H), in mm:
500 x 500
Max. glass height, in mm:
280
Run time, in seconds:
60 / 90 / 180
Max. output / hour, baskets:
60
Number of wash programs:
3
Tank volume, in litres:
25
Water consumption at 2 bars, in litres:
2,7
Water pressure, in bar:
2 - 4
Water supply:
G 3/4
Water outlet, øin mm:
20
Tank heating, in kW:
2,8
Boiler heating, in kW:
2,8
Power supply:
3.4 kW / 230 V / 250 Hz
Dimensions (W x D x H) in mm:
735 x 655 x 1000
Weight in kg:
71
We reserve the right to implement technical modifications!

Technical data
10 / 32 110512
EN
Version / Characteristics
•Discharge pump
•Cleaning agent dosing pump
•Rinsing agent dosing pump
•Booster pump
•Double-walled door
•Safety thermostat
•Door contact switch
•Appliance connection: ready to plug in
•ON/OFF switch
•Indicator light: ON/OFF, heating
•TERMOSTOP electronic system
•Boiler and tank temperature indicator
•Max. water intake temperature: 60°C
•Check valve
•The set includes: 1 glasses basket, 1 cutlery basket, 1 water supply hose
4.3 Functions of the appliance
The dishwasher is intended for washing suitable dishes, kitchen pots, pans, cutlery,
etc.
The TERMOSTOP electronic system provides for perfect temperature of additional
rinsing.

Installation Instructions
110512 11 / 32
EN
5 Installation Instructions
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs or fitting may be performed
by authorised technical service only and in compliance with the applicable
national law.
5.1 Unpacking
•The appliance may be moved with the use of a fork lift or similar equipment only
to avoid damaging the appliance's structure. First, deliver the appliance to the
final installation location and unpack it there.
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing packaging materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels affixed to the
appliance.

Installation Instructions
12 / 32 110512
EN
5.2 Positioning
ATTENTION!
Before the appliance’s installation, carefully check the conditions of
the location in which the appliance is to be set to exclude any
subsequent damages which may appear during operation.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•The appliance should be installed only in a room, in which ambient temperature
falls in the range of 5°C –40°C.
•The appliance is equipped with height-
adjustable feet.
•To level the appliance, screw the feet out to
the required height.
•Correct levelling is necessary to ensure
optimum performance of the appliance.
Fig. 7
5.3 Electrical Connection
•Verify if the technical specification of the appliance (see the rating plate)
correspond to the local electricity grid.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•The appliance is ready for installation and equipped with a power cord of 1.3 m
in length with a plug.

Installation Instructions
110512 13 / 32
EN
•A multipolar switch with at least 3 mm opening should be connected near the
device, and should be easily accessible. This device is designed for switching
the appliance off in the case of installation, repair, cleaning or maintenance work
conducted on the appliance. This switch must be equipped with fuses adjusted
for the rated voltage of the appliance. A properly selected magnetic thermal
switch may be an alternative to the above mentioned switch.
•The appliance must be properly connected to the equipotent bonding circuit; see
F, Fig. 1.
The manufacturer accepts no liability for any possible bodily injuries nor
property damages relating to the appliance that stem from non-compliance
with instructions and incorrect installation.
5.4 Water Connection
Use only hoses supplied with the appliance (never use second-hand hoses).
Before connecting the appliance to the water supply system, the analysis of water
quality should be performed. Manufacturer recommends the following parameters of
water quality:
Water
temperature (T):
max. 60 °C
Total water
hardness
5 °fH (French hardness
degree scale)
pH value:
6.5–7.5
7 °eH (English hardness
degree scale)
Physical
contamination:
Ø < 0.08 mm
9 °dH (German hardness
degree scale)
Chlorides:
max. 150 mg/l
Conductivity:
400 μS/cm
CI:
0.2–0.5 mg/l
If the water hardness exceeds 9 °dH (German hardness degree scale), the use of
water softener is required.
Furthermore, when checking the water quality, the pressure of water supply system
must be taken into account. This parameter determines the correct operation of the
appliance.

Installation Instructions
14 / 32 110512
EN
Water pressure should correspond to the following values:
Water
pressure
MIN.
MAX.
bar
kPa
kg/cm2
psi
bar
kPa
kg/cm2
psi
2
200
2.03
29
4
400
4.07
58.01
If the water pressure is above the recommended value, it is required to install the
reducing valve between the water supply system and the water connection of the
appliance (Fig. 2 at the beginning of the operation manual).
Fig. 2. Direct connection of the hose to the water supply installation.
If the water pressure is below the recommended value, it is required to install a
booster pump between the water supply system and the water connection of the
appliance (Fig. 3).
Fig. 3 Connection of the booster pump
The appliance is equipped with the booster pump.
S
Shut-off valve
H
Water hose
E
Solenoid valve
B
Booster pump
F
Filter
To properly install the appliance, please follow the instructions below:
–water connection must be equipped with a shut-off valve to block the
water supply;
–pressure in the water supply system must be within the range of
recommended values;
–to optimise operation, the recommended water intake temperature
should fall within the range of values given in table below:
Cold water
Hot water
5°C –25°C / 41°F –95°F
40°C –60°C / 122°F –140°F
–when using warm water, the water temperature may not exceed the
values of 60°C / 140°F;
–the appliance must be equipped with a threaded connection (¾").

Installation Instructions
110512 15 / 32
EN
5.5 Discharge Pump
The appliance is equipped with the discharge pump that, when properly set,
provides for discharging water after washing.
In such a case, the height of 680 mm cannot be exceeded (Fig. 1, Fig. 4).
Fig. 4 Setting of the drain height through the drain pump.
5.6 Cleaning Agent Dosing Pump
The appliance is equipped with the cleaning agent dosing pump. Thanks to this
dosing device the appropriate quantity of cleaning agent is added to the wash-tank
each time.
Located at the rear of the appliance, the hose with marking for cleaning agent (D,
Fig. 1) should be introduced to the tank with cleaning agent.
Operation: the cleaning agent dosing pump is activated when the appliance
collects water during washing or filling process.
Setting: the quantity of cleaning agent should be set during the installation at the
cleaning agent dosing pump, so that the user may use all washing features in an
optimum way from the very beginning.
The hose in the cleaning agent dosing pump must be replaced annually.
ATTENTION!
Use ONLY liquid leaning agent, designed for professional use, which is
suitable for using in high temperatures and shows little foaming
properties.
KlarsKl
5.7 Rinsing Agent Dosing Pump
The appliance is equipped with the rinsing agent dosing pump. Thanks to this
dosing device, the appropriate quantity of rinsing agent is added to the wash-tank
each time.
Located at the rear of the appliance, the hose with marking for rinsing agent (C, Fig.
1) should be introduced to the tank with rinsing agent.
The hoses are transparent, thus the introduced chemical compounds are always
visible.
Operation: Thanks to this dosing device, the liquid rinsing agent is supplied
whenever a drop in pressure is detected during rinsing. This happens when the
filling valve is closed. As an outcome, underpressure is generated, which causes
the liquid to be sucked by the rinsing agent dosing device.
Setting: this dosing device should be set up during the installation, because only
this way the user may use all washing features in an optimum way from the very

Operation and Maintenance Instructions
16 / 32 110512
EN
beginning. The setting must be properly adjusted depending on the selected rinsing
agent and hardness of the available water.
NOTE:
A selection of the rinsing agent and setting of the rinsing agent dosing
pump should be ordered with a qualified technician who has experience
with chemical products, to achieve the most efficient washing effects.
6 Operation and Maintenance Instructions
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs or fitting may be performed
by authorised technical service only and in compliance with the applicable
national law.
6.1 Operation
•Przed pierwszym u życiem w yczyścić urządzeni e i wyposażenie zg odnie ze ws kazówkami za wartymi w pu nkcie 6 „Czyszc zenie”. Ma ke sure no water enters electric ins tallation and co nnection b ox. Następnie dokła dnie osusz yć urządzenie i elementy wypos ażenia.
•Setzen Sie die Boden-A bdeckung in das Bec kenei n.T hec over acts as a spac erbet ween the heating elem ent andl eft-over foo d tray.
•Carefully insert the con nection box with the heating element at the back edge of th e appliance. A pin in bottom par tof th ec onnection bo xm uste nter a hole in the main applia nce. This way the connec tion box is properly mou nted.
Preparing the Appliance
1. Before use, clean the appliance, observing instructions in section 6 “Cleaning”.
2. Dry the appliance thoroughly.
