Bartscher PRO 150137 User manual
„Bartscher PRO“
150137
Original-Gebrauchsanleitung
V1/0916
- 21 -
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 22
1.1 Key to symbols..................................................................................................... 22
1.2 Safety instructions................................................................................................ 23
1.3 Proper use............................................................................................................ 26
2. General information................................................................................................ 27
2.1 Liability and Warrantees....................................................................................... 27
2.2 Copyright protection ............................................................................................. 27
2.3 Declaration of conformity...................................................................................... 27
3. Transport, packaging and storage......................................................................... 28
3.1 Delivery check...................................................................................................... 28
3.2 Packaging............................................................................................................. 28
3.3 Storage................................................................................................................. 28
4. Technical data ......................................................................................................... 29
4.1 Technical specification ......................................................................................... 29
4.2 About the juice extractor....................................................................................... 29

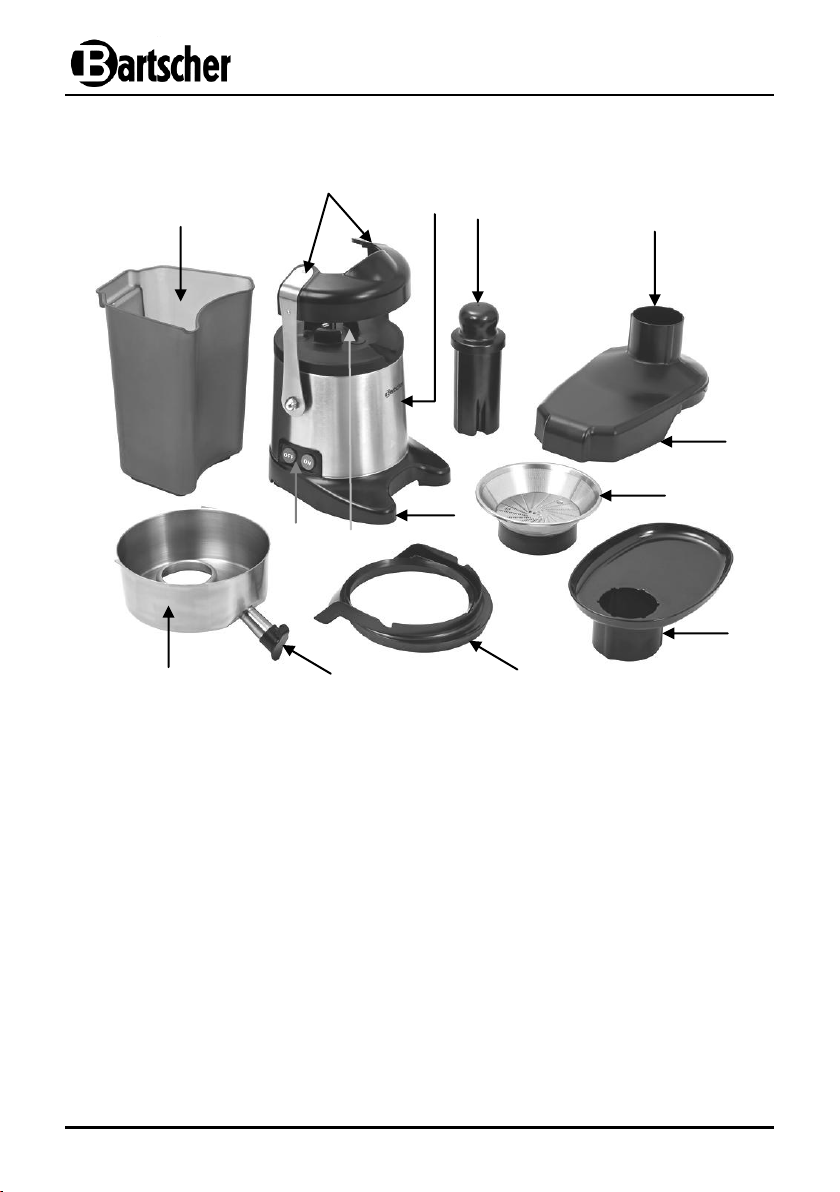

4.3 Overview of parts ................................................................................................. 30
5. Installation and operation....................................................................................... 31
5.1 Assembly.............................................................................................................. 31
5.2 Installation............................................................................................................ 33
5.3 Operation.............................................................................................................. 34
6. Cleaning................................................................................................................... 37
7. Possible Malfunctions ............................................................................................ 39
8. Waste disposal........................................................................................................ 40
Bartscher GmbH
Franz-Kleine-Str. 28
33154 Salzkotten phone: +49 (0) 5258 971-0
Germany fax: +49 (0) 5258 971-120
GB/UK
- 22 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.
- 23 -
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions
The device is not intended for use by individuals (including
children) with physical or mental disabilities, insufficient
experience, and/or insufficient knowledge unless such persons
are under the care of a person responsible for their safety or
have received instructions regarding appropriate use of the
device.
Children should be observed to ensure that they are not playing
with the device.
Never leave the device unattended when in use.
Only use the device indoors.
This device may only be operated in technically proper and safe
condition.
Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
- 24 -
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions
below.
Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step on
or trip over the cable.
The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
Do not lay the power cable over carpets or other inflammable
materials. Do not cover the cable. Keep away the cable from
operating range.
Check the power cord regularly for damage. Do not use the
device if the power cord is damaged. If this cable is damaged, it
must be replaced by customer service or a qualified electrician in
order to avoid dangers.
The supply cable must be disconnected from the socket
only by pulling the plug.
- 25 -
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
Do not use any acid agents and make sure no water ingresses
the device.
Never operate the device with moist hands or standing on wet
floor.
Remove the plug from its socket:
-when the device is not used,
-in case of anomalies during operation,
-before cleaning.
WARNING! Danger of injury!
To avoid injury, follow the safety instructions below.
During the device operation, never place hands, spoons or
any other kitchen utensils in the feed chute. They may get
caught by the sieve, resulting in cuts, broken bones or other
physical injuries.
The knives in the sieve are very sharp. To avoid injury, do not
touch them with bare hands.
Do not touch any moving parts of the device.
After switching off the device, the motor remains rotating for
a few seconds. The device can be opened and its elements
removed only after coming to a complete stop.
- 26 -
CAUTION!
To avoid possible damage to the device, follow the
instructions below.
To avoid damage to the motor base or other parts of the device,
do not move or shake the device when in operation.
Do not use the device if any part is damaged or has visible
cracks.
Never clean the motor base or power cable under running water
or any other fluids, clean these parts only with a moist cloth and
make sure that no liquids get inside the motor housing or inside
the plug. Never clean the motor base in the dishwasher.
1.3 Proper use
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The juice extractor is designed only for producing fruit and vegetable juices.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.
- 27 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-violation of advice concerning operation and cleaning;
-use other than designed;
-alterations made by user;
-use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.
- 28 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
NOTE!
If you liked to dispose the packing, consider the regulations applicable in
your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-do not store outdoors,
-keep it dry and dust-free,
-do not expose it to aggressive media,
-do not expose it to direct sunlight,
-avoid mechanical shocks and vibration,
-in case of longer storage (> 3 months) make sure you check
the state of the packaging and the parts regularly, if required
refresh or renew.
- 29 -
4. Technical data
4.1 Technical specification
Name
Juice extractor ”Bartscher PRO”
Code-No.
150137
Body material:
Stainless steel, plastic
Construction:
XXL feed chute, Ø83 mm
Rotation / min: max 3.000
Micro perforated stainless steel sieve
for perfect taste of fruit
Capacity of pulp container: 7 litres
Safety switch
Thermal motor safety
Power:
0.7 kW / 220-240 V 50/60 Hz
Dimensions:
W 260 x D 430 x H 530 mm
Weight:
12.8 kg
We reserve the right to make technical changes!
4.2 About the juice extractor
With the electric juice extractor ”Bartscher PRO“you can professionally produce juice
from fruits and vegetables.
The lid with the integrated, very lagged XXL feed chute with a diameter of 83 mm,
significantly improves the process of preparation.
The big 7 liter pulp container lets you squeeze a lot of juice without interruption. When
the pulp container fills up, just remove it and empty it without a need to disassemble the
device.
The lid of the juice extractor is held by the locking arm
with housing, which allows –if the device is correctly
assembled –to close the motor circuit thanks to the
integrated safety switch. Only then it is possible to switch
the device on. The safety switch immediately stops the
motor, when the locking arm with housing is released.
The device is equipped with the overheating protection. When the device overheats
from being used for too long or from being overloaded, it is switched off automatically,
and after cooling off (ca. 15 minutes) it is switches on again.
- 30 -
4.3 Overview of parts
1
Pulp container
8
Motor drive
2
Locking arm with housing
9
Control elements
3
Motor base
10
Sieve
4
Plunger
11
Feed chute tray
5
Feed chute
12
Adapter ring
6
Lid
13
Juice extraction nozzle with closure
7
Base with rubber feet
14
Juice bowl
5
1
9
3
14
6
13
12
2
4
10
11
7
8
- 31 -
Control elements
5. Installation and operation
5.1 Assembly
Unpack the device and remove the packaging materials.
CAUTION!
Do not remove the identification plate or the warning signs from the device.
Before use, clean the device according to the guidance in point 6 ”Cleaning“.
Assemble the device according to the drawing on page 30 and the description
below.
➊
➋
Place the motor base (3) on a dry,
flat surface and ensure easy access
to the control elements (9).
Press the motor base (3) towards the
surface until the base rubber feet (7)
cling tightly to the surface.
Place the juice bowl (14) onto the motor
base (3) and position the juice extraction
nozzle with the closure (13) above the
groove in the base (7).
ON switch (green)
OFF switch (red)
- 32 -
➌
➍
Place the adapter ring (12) at the rim of
the juice bowl (14).
Remember to position the pulp spout at
the opposite side of the juice extraction
nozzle with the closure (13).
Tilt the sieve (10) position it above the
juice bowl (14) and place it on the motor
drive (8) by turning slightly to interlock the
pin at the motor base with the groove at
the bottom of the sieve (10).

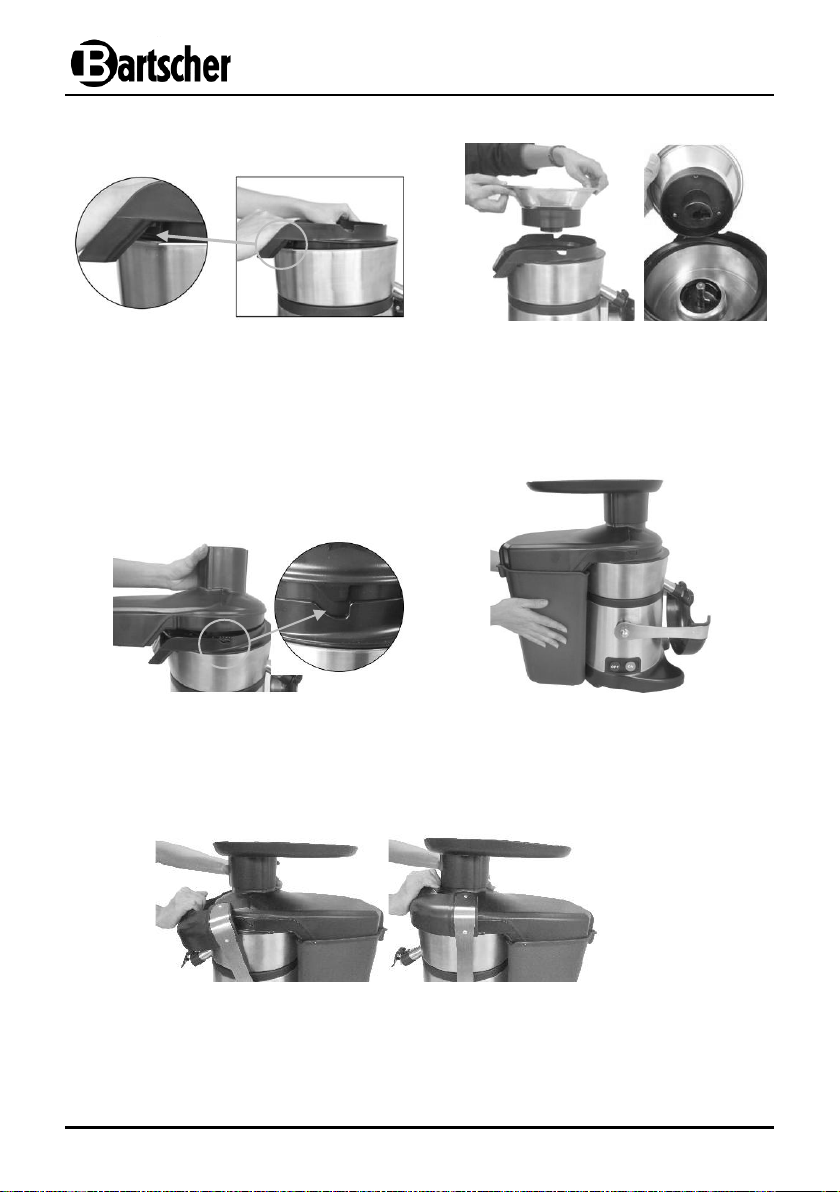

➎
➏
Then, place the lid (6) and remember
to properly interlock the protrusions in
the lid (6) with the grooves in the
adapter ring (12).
Place the feed chute tray (11) on the feed
chute (5). Position the pulp container (1)
below the lid (6). For easy cleaning, line
the pulp container with the plastic bag.
➐
Finally, push the locking arm with housing (2) above the lid (6) until they click.
As a result, the connection with the safety switch is established.
- 33 -
CAUTION!
The device may operate only when all the elements have been correctly
assembled and the locking arm has been interlocked with the safety switch
on the lid.
5.2 Installation
Positioning
Put the device on an even, stable, dry and waterproof surface which is resistant to
high temperature.
Never place the device at the edge of a table to avoid tilting or falling.
The operating surface must be easily accessible and large enough. In order to assure
comfortable operation and proper air circulation leave at least 15 cm of space on the
sides and back and 50 cm on the front and top from the walls, cabinets, etc.
Never put the device in a moist or wet area.
Never place the device on an inflammable surface.
Do not place the device near open flame, electric heaters or other heat source.
Place the device so that the plug is easily accessible so as to quickly disconneet the
device if the need arises.
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid
specification should be compared with that of the device
(see rating plate). Connect the device only in case of
compliance!
Connect the device only to properly installed single
socket with protective terminal.
The electrical circuit in the socket must be secured to at least 16A. Only connect the
device directly to the wall socket; do not use any extension cords or power strips.
- 34 -
5.3 Operation
Preparing fruits and vegetables
CAUTION!
Before extracting the juice, wash fruits and vegetables thoroughly to remove
any pollutants and plant protection products.
For the top performance and best taste use only fresh fruit and vegetables.
The best foods for the juice extractor are apples, pineapples, oranges, grapes,
melons, carrots, celery, beetroots and tomatoes.
Thanks to the particularly big feed chute the juice can be extracted from the whole
fruits or vegetables, whereas certain types require additional processing in the form
of e.g. peeling, removing seeds, cutting. While preparing fruits and vegetables take
into account the instructions and data included in the table below.
Thin-skinned fruit and vegetables do not require peeling. You can clean them
gently with a clean sponge to remove any dirt or wax coating.
Thick skins from e.g. lemons, oranges or pineapples must be removed.
Fruits with large seeds and stones, such as mango and papaya and other stone
fruits, should have them removed to avoid damage to sieve knives.
Seeds from some fruits can have a bitter taste. Remove the seeds before
extraction of juice from such fruits.
Cut large fruits and vegetables into smaller pieces. Cone-shaped vegetables and
fruits, such as carrots, should be inserted with the thin end first.
Some food cannot be processed in the juice extractor due to hardness (eg. coconuts).
Fruits / vegetables
Processing
Apples
-
Carrots
-
Beetroots
-
Strawberries
remove stems
Grapes
remove stems
Bananas
peel
- 35 -
Fruits / vegetables
Processing
Mango
peel, remove stones
Pineapple
peel and cut into pieces
Citrus fruits (oranges,
lemons, mandarins,
grapefruits)
peel
Melons
peel and cut into pieces
Celery roots
cut into pieces of ca. 6 -7 cm
Cucumbers
peel and cut into pieces of ca. 15 cm
Tomatoes
-
Fennel
cut into pieces of ca. 6 -7 cm
Sweet/sour cherries
remove stones
Apricots
remove stones
Peaches
remove stones
Plums
remove stones
Tips and recommendations
When preparing juice from different kinds of fruits and vegetables, it can be helpful
to combine them based on their characteristics and in various configurations.
For example, when juicing apples and oranges, first juice the soft fruit (oranges) then
the hard one (apples). This helps make the best juice possible.
When extracting juice from fresh herbs, e.g. mint or parsley, insert them into the juice
extractor between pieces of fruits and vegetables to achieve the best effect . If there is
only a small amount of herbs, insert them together with pieces of fruits or vegetables.
Fruits containing starches (banana, papaya, fig, avocado, mango etc.) are difficult to
juice (the generated mousse can clog the sieve). Such fruits may be prepared in a
food processor or blender. However, if a given juice flavour requires banana taste,
insert bananas into the juice extractor as the first or second piece of fruit. Mixing with
other fruit juices will help the banana nectar to flow more easily, but may sometimes
result in foaming.
Small fruits such as grapes or strawberries should be juiced in bunches, not
individually. This will provide best juicing results.
- 36 -
Remember that red beets will colour all other fruits and vegetables. Always juice
beets after finishing all other juices to avoid undesired colouring.
Apple juice quickly turns brown when exposed to air. Add just a hint of lemon juice to it.
Juice should be served right after squeezing, as with time it will lose taste and
nutritional value.
Never insert ice cubes or frozen fruits to the juice extractor.
Extracting juice from fruits and vegetables
CAUTION!
Never operate the juice extractor when the accessories are properly
mounted but no food products have been inserted.
Place the proper juice jug under the juice extraction nozzle.
Plug the device into the single, grounded socket.
Press the green switch.
Fill the feed chute tray with the ready fruit and vegetables and slowly, by small
portions, push with the plunger in the feed chute in the cover.
Slide the plunger, with a gentle push, on the feed chute. To maximize the juice
extraction, move the plunger down slowly. If pushed too hard the juice amount
will be reduced, and the device may be damaged.
WARNING! Hazard of injury!
Do not push the fruit or vegetables with your fingers.
Always use the plunger provided!
The juice extracted from fruit or vegetables flows through the juice extraction
nozzle and is collected in the jug. The pulp is separated and accumulated in the
pulp container.
Add fruit or vegetables until the juice bowl or the pulp container is full.
Remember to always place the jug under the juice extraction nozzle when extracting
the juice. When the jug is full and needs to be removed, close the juice extraction
nozzle and reopen it when the jug is replaced.
- 37 -
Watch the pulp container filling level. When the container is full switch off the
device and empty the container.
CAUTION!
The overfilled pulp container may cause the device to malfunction.
If the pulp flowing out reaches the motor body it may cause damage.
Always watch and regularly empty the pulp container!
When the juice is extracted from all prepared food leave the device on for a few
more seconds to allow the last drops of juice leave the device.
When the juice extraction is completed switch off the extractor with the red switch.
Wait a few seconds until the motor stops completely. Only then unplug the device
(remove the plug from the socket!) and disassemble for cleaning.
WARNING!
Remember to keep the device unplugged if not in use,
or in cleaning, or when removing or placing its parts.
6. Cleaning
WARNING!
Disconnect the device from the power supply
(unplug!) before cleaning.
Never clean the device with use of water jet!
Be careful and do not let the water into the device.
Cleaning
oAlways clean the device after its use.
oTo clean the device immediately after its use, disassemble it in the following order:
remove the pulp container and empty it,
pull the locking arm out from the lid ,
- 38 -
remove the feed chute tray from the feed chute,
detach the lid from the adapter ring and remove it,
carefully take out the sieve from the juice bowl,
remove the adapter ring from the juice bowl,
remove the juice bowl from the motor base.
oWash thoroughly the juice bowl, adapter ring, lid, feed chute tray, pulp container and
plunger under running water with a mild cleaning agent. Next, rinse with clean water.
oPlace the sieve under running water and clean the outside of the sieve using the
appropriate plastic brush. Next, clean the inside of the sieve by brushing it counter
clockwise to remove the pulp.
Tip: if the fruit pulp sticks to the sieve or dried out, soak the sieve in the hot water
for 5 to 10 minutes.
oTo ensure that all pulp that could block the sieve have been removed, examine the
sieve under a light source.
WARNING! Danger of injury!
The knives in the sieve are very sharp.
To avoid injury, do not touch them with bare hands.
oBefore reassembly, carefully wipe down all the cleaned parts or leave them to dry
thoroughly.
CAUTION!
Never immerse the motor base in running water or any other liquids,
do not wash it under running water or in the dishwasher.
oWipe the motor base and power cable with a soft, moist cloth. Make sure that no
liquids get inside the motor housing or inside the plug. Wipe dry the device
thoroughly with a soft, dry cloth.
oDo not use any harsh cleaning agents, abrasive cleaners, acetone, alcohol, etc.,
as they may damage the surface of the device.
Storage
oIf the device is not used for any lengthy period, clean it according to the
aforementioned description and store it in dry, clean place protected against
cold, sun and children. Do not place any have objects on the device.
- 39 -
7. Possible Malfunctions
In case of malfunction, disconnect the device from its power source. Before contacting
the service or sales agent, verify - based on the table below - whether it is possible to
eliminate disruption in operation.
Problem
Possible cause
Solution
The juice
extractor does
not start after
switching on
Plug improperly connected.
Inactive safety switch,
check the position of the
locking arm.
Pull the plug and reconnect it
to its socket properly.
Follow the instructions of the
section 5.1 “Assembly”.
Strange noise
during the
operation
Incorrectly assembled juice
extractor.
A part of the device is
damaged.
Follow the instructions of the
section 5.1 “Assembly”.
Contact the sales agent.
The device
vibrates
The pulp container is full.
Due to the sticking pulp,
the sieve cannot keep
proper balance.
Empty the pulp container.
Switch the device off and
clean the sieve (follow the
instructions of section 6
“Cleaning”).
The motor
appears to
struggle during
operation
The pulp container is full.
Empty the pulp container.
Pulp is sticking to the lid.
Switch the device off releasing
the locking arm, remove the
lid and remove the pulp.
Follow the instructions of
section 6 “Cleaning”.
Reduce the pace of juicing –
move the plunger slower in
the feed chute.
The sieve is clogged by the
pulp/pulp after processing
a bigger quantity of fibrous
fruits/vegetables.
Stop the extraction, switch the
device off and disassemble it
according to the instructions
of section 6 “Cleaning” and
clean the sieve and the lid, if
necessary.
