Base aire AirWerx 90 User manual

Tel: [phone]
Web: www.baseaire.com
E-mail: [email protected]

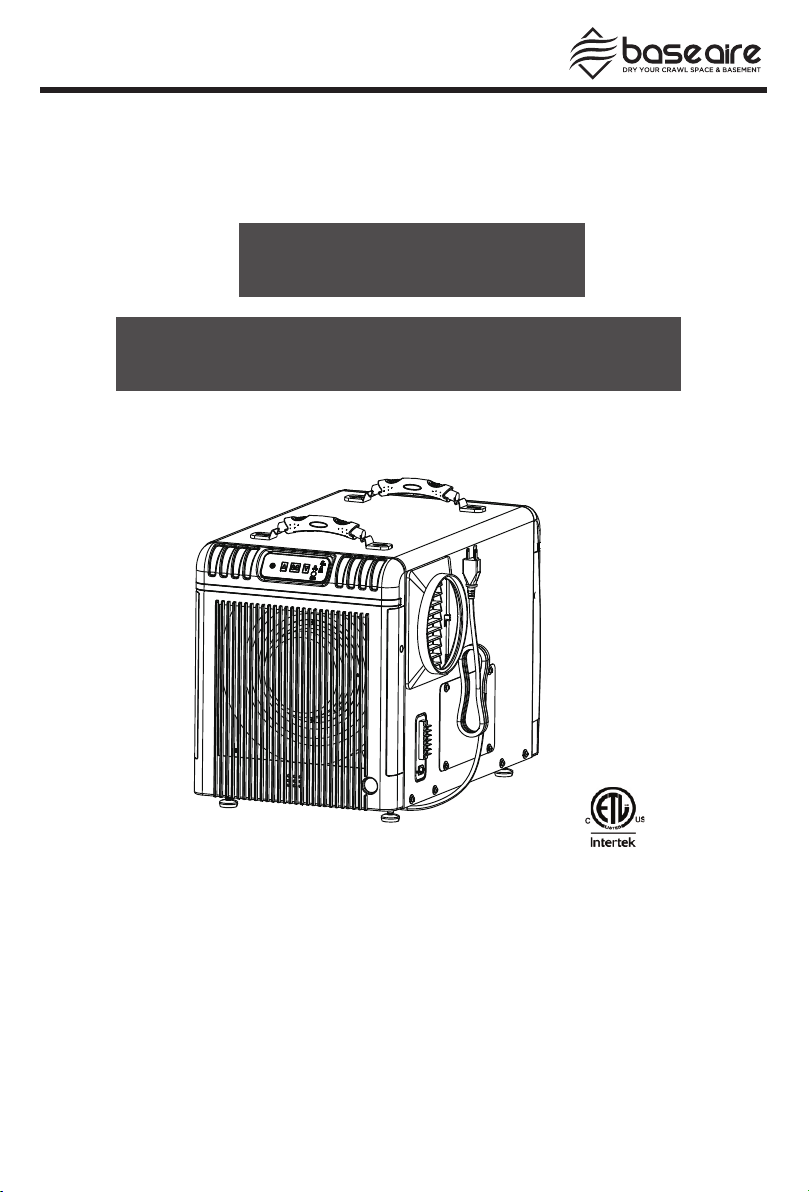

Installation & Operations Manual
AirWerx 90
Patented
Specifications subject to change without notice.

Table of Contents
Warranty Registration
Safety Notes
Identification
Electrical Supply
Principle of Operation
Installation
Key Functions
Indicator Lights
Remote Control
Operating Instructions
Diagram
Maintenance
Dehumidifier Storage
Ducted Applications
Troubleshooting
Spare Parts
Warranty Information
2
2
3
3
3
3
5
6
6
7
8
8
9
9
10
11
12
1
......................................
...................................................
...................................................
..............................................
.......................................
......................................................
.................................................
...............................................
...............................................
......................................
.........................................................
...................................................
.......................................
.........................................
..............................................
....................................................
........................................

Warranty Registration
Congratulations on purchasing a new AirWerx 90 Dehumidifier. Your new dehumidifier comes with an
extensive warranty plan. To register, simply fill in and return the warranty card provided in your
dehumidifier box.
Be sure to note your dehumidifier serial number as you will need it for registration.
Safety Notes
The AirWerx Series Dehumidifier must always be connected using a grounded electrical connection
(as required for all electrical appliances ). If non-grounded wiring is used, all Iiability reverts to the
owner and the warranty is voided.
Do not insert your fingers or any object into the inlet or discharge.
To ensure proper operation, neither the inlet nor discharge should be positioned against a wall. The
inlet requires a minimum of 12" clearance and the discharge requires a minimum of 36" clearance.
AirWerx Dehumidifiers should only be maintained and repaired by a qualified technician.
AirWerx Dehumidifiers are only intended for operation when oriented with the unit sitting on its feet
and level. Operating the unit in any other orientation could allow water to flood electrical
components.
If there is a chance that water flooded the dehumidifier, it should be opened and allowed to dry
thoroughly before reconnecting to electrical power and restarting.
Always unplug dehumidifier before moving.
The best option for proper diffusion of air throughout the room is to have the discharge blowing away
from a wall and the inlet pulling air in parallel to a wall.
All work on the dehumidifier should be done with the unit "off" and unplugged.
Do not stand on the machine or use it as a device to hang clothes.
Do not use water to clean the exterior. To clean unit, unplug from power, then use a damp cloth to
wipe the exterior.
2

Identification
For future reference, write down the model, serial number, and date of purchase for your dehumidifier.
This is extremely helpful if you need to seek assistance in the future. The data label on the side of
your unit has the key characteristics of your specific unit.
Serial Number: ______________ Date of Purchase: _____________
For additional questions concerning your dehumidifier, the following options are available:
Model number: AirWerx 90
· Contact your installing contractor
· E-mail: [e-mail]
Electrical Supply
3
Power Supply: 115 V, 60 Hz AC, Single Phase
Outlet Requirement: 3-Prong, GFI
Circuit Protector: 15 Amp
To reduce the risk of injury:
1. Disconnect electrical power before servicing.
WARNING: 240 Volts AC may cause serious injury from electric shock.
2. Only plug unit into grounded electrical circuit.
3. Do not use an extension cord.
4. Do not use a plug adapter.
Principle of Operation
The AirWerx Series Dehumidifier utilizes its integral humidistat to monitor the conditioned space. When
the relative humidity goes above the selected set point, the dehumidifier will energize. Air is drawn
across an evaporator coil, which is cooler than the dew point of air. This means moisture will condense
out of the air. The air is then reheated through the condenser coil and distributed back into the room.
Installation
WARNING: Do not install your dehumidifier in a corrosive environment. Some liquid vapor barriers
dry via "solvent evaporation". Always make sure that barrier is completely dry and area is throughly
ventilated before installing dehumidifier.
The area to be controlled should be sealed with a vapor barrier. If the unit is installed in a crawlspace,
all vents should be sealed.

4
NOTE: Do not place directly on vapor barrier. Elevation is required to allow the condensate water to
drain via gravity.
If the unit is handled in such a manner that the compressor did not remain in the upright position, you
will need to place it on a level surface and wait a minimum of 2 hours before turning the unit "on".
Step #1: Place dehumidifier on a level surface.
Step #2: Set Up Drain Line
The drain line should be routed to a suitable drain on the outside. It must flow down to the drain without
any loops, dips, or valleys.
1. Cut a piece of 3/4" OD PVC that is approx. 6" long.
2. Insert PVC into a 3/4" elbow, then attach to a 3/4" OD length of PVC to drain.
(Note: Keep the length of PVC drain pipe to a minimum).
3. Insert the open end of the tubing into the 3/4" pipe so that it does not extend into the elbow fitting. For
proper flow, a minimum downward slope of 1" per 10' run is required. ( Note: If a proper downward
angle is not possible, then it is recommended to use an AirWerx 90 which includes an integrated pump
or utilize an external condensate pump).
5. Always test the drain before leaving the installation area.
4. Support the PVC tubing so that it maintains a smooth downward flow to drain.
Recommended Drain Option-Transition to PVC Pipe
Drain Tube - 12 inches Long. 12mm OD.
Step #3: Plug unit into 15 amp grounded circuit.

Key Functions
5
2.Arrow Buttons
Use this button to turn the dehumidifier on and off. Press once to turn the machine on. You will
hear two beeps and the light will illuminate green. Press the power button a second time and
you will hear one beep as the machine shuts down. Note that there is a one minute fan delay on
shutdown.
1.Power Key
Use the up and down arrow buttons to set the desired humidity setpoint on the display screen.
The setpoint can be any number between 35-90%. Creating a setpoint means that when the
indoor humidity is lower than the setpoint, the machine will stop automatically. Conversely,
when the indoor humidity is higher than the set level, the unit will operate. NOTE: The humidity
levels displayed are approximate only (+/-5%)
3.Continuous Mode
successfully switched into continuous mode. The display screen will show "CO".
would like to switch back to normal humidistat operation, simply move the setpoint above 35%.
To switch into continuous mode, simply use the down arrow to set the humidity below 35%. The
Cont. light should illuminate green on the display board to indicate that you have
When set to continuous, the dehumidifier will run constantly, regardless of the humidity level. To
stop the machine, turn the unit off or switch back to normal humidistat operation. If you
4.Central Control
This mode is not applicable on the AirWerx 90.
5.Auxillary Terminals A5/a6
The A5/A6 on the terminal strip can be used as a safety switch for external condensate pumps.
It should be set to N/O (normally open) at the dehumidifier. If an E4 error occurs, switch the
wiring to N/C (normally closed).

Indicator Lights
6
AirWerx Dehumidifiers can be controlled using an optional remote accessory. The AirWerx Remote
Control connects to your Airwerx Series Dehumidifier via a 25' CAT 5 cable. The remote control
contains an integrated sensor which gives you multiple options for remotely controlling your unit, in
addition to monitoring the conditions surrounding the dehumidifier.
One application for the remote control is to install the dehumidifier in one room with the conditioned
air ducted into a second room that contains the remote. For example, the dehumidifier could be
installed in a laundry room and ducted into a living room. The remote would then be mounted in the
living room so the remote sensor can control the humidity and provide easy controls for the user.
Another useful application for the remote control is if the dehumidifier is in area that's difficult to
access on a regular basis. For instance, if your dehumidifier is installed in your crawl space, the
remote could be mounted in your living space or garage. This provides you with an easy way to
monitor the dehumidifier.
NOTE: Symbols indicated below will only appear when the dehunidifier is powered on.
Remote Control Instructions
1.Humidity Display Screen
The display screen has two functions:
2.Power Indicator Light
3.Continuous Mode/autodefrost Light
This light indicates that the unit is properly powered on and ready to operate. Always make
sure the unit is "off" prior to performing any service.
When this light iluminates green, it indicates that the dehumidifer is set to continuous
operation mode.
1. When the unit is powered on, it shows the humidity of the space.
2. While setting the desired humidity level, the screen wil show the set humidity. After a brief
delay,the display will revert to current humidity level.
When the light glows red, it means the unit is in auto defrost mode and clearing the
evaporator coil of any ice buildup.
When the compressor light glows red, it indicates the compressor has been initiated but is
currenty warming up.
Once the compressor light switches to green, it indicates the compressor is in working
status.
4.Compressor Light

Operating Instructions
Press the power key to turn the machine on.
NOTE: Do not disconnect the power cord to force the unit to stop. Always use the power button.
Press the power key again and the machine will stop. Note the fan will continue to operate for 1
minute after the unit has turned off.
During normal operation, the AirWerx 90 will automatically drain by the force of gravity. If you want to
move or store the machine, wait at least 10 minutes to allow the machine to completely defrost, then
lean unit gently towards drain to ensure that it is completely drained.
Use the up and down arrow keys to adjust your desired setpoint ( typically 50-55%) .
1. Start the machine
2. Adjust Settings
3. Stop the Machine
4. Water Drainage
7
Press the on/off button and the machine will
start running (one beep). Press the button
again to the turn the machine off.
Use the Up and Down arrow buttons to adjust
the humidity level.
1.On/off (power)button
2.Up Button▲ / Down Button
Use the Mode button to switch between
dehumidification and a ducted application.
3.Mode
The symbol on the display board indicates
the sensor on the remote control is being
utilized.
The symbol on the display board indicates the sensor on the dehumidifier is being utilized.
4.Temperature
Press the temperature button to display the current temperature on the screen. Press the
button again to turn off the display.
M
T
DRA IN PUMP
MODE
LCD M ONITOR
CONTINUOUSTEMPERATURE
DOW N BUTTONUP BU TTON
ON/OFF
Press this button to switch the unit into continuous mode.
Use this button if the unit will not be in use for an extended period of time. Pressing the drain
pump button will remove
water from the pump reservoir, so the unit can be safely moved or stored.
THIS FUNCTION IS ONLY AVAIL .ABLE ON THE AirWex 90 model.
5.Continuous
6.Drain Pump
c
P
Cont. will appear on the display to indicate continuous mode.
NOTE: Symbols indicated above will only appear when the dehumidifier is powered on.

8
Airwerx 90 Diagram
Front View
Back View
Maintenance
WARNING: Always unplug the unit before doing any maintenance.
Cleaning the machine body
Use a soft damp cloth to clean the exterior of unit. Do not use any soap or solvents.
1. Unplug the unit.
2. Slide out the filter.
3. Clean the filter mesh by vacuuming or washing with warm
water ( no soap or solvents).
4. Be sure filter is completely dry
before restarting the unit.
Coil Maintenance
·Once per year, clean the coils with an approved coil cleaner.
·Coil cleaner should be a self-rinsing, foaming cleaner such as WEB® Coil
Cleaner.
Cleaning the filter
Power cord
Inlet End Cap
Unit Cover Handle
Air Intlet Grille
Drain Hose
Control panel
Discharge End Cap
Remote control
Air Outlet Grille
Unit Cover
Power cord

9
Dehumidifier Storage
If the unit will be stored for an extended period of time, complete the following steps:
1. Turn off the unit and allow to dry.
2. Wrap and secure the power cord.
3. Cover the filter mesh.
4. Store in a clean, dry space.

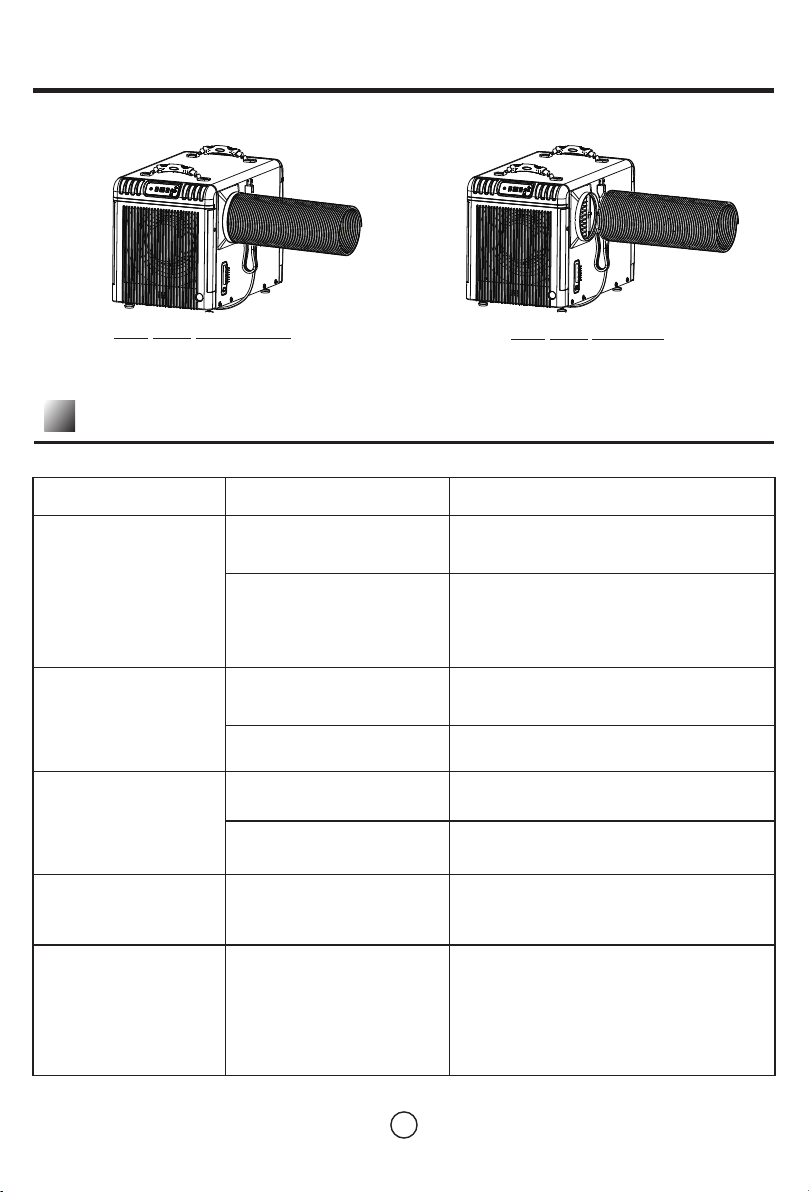

Ducted Applications
Ducting the dehumidifier allows the unit to be in one room while conditioning an adjacent room. The
inlet/ return collar ( optional accessory, PN: W-103) is designed for 12" flex ducting while the supply
grille is designed for 6" flex ducting.
Be sure to secure the ducting with tie wrap. Also, keep in mind, that the supply ducting can be
screwed into an adapter if necessary.
Ducting Installation
·Maximum total length of duct run= 10’
·To connect 12"return ducting. it may be helpful to:
2. Connect duct to inlet grille.
3. Reconnect inlet grille to end cap.
Note: The supply duct adapter is standard on all units. Return duct is an optional accessory.
·Maximum length if only ducting inlet or outlet= 6'
1. Remove inlet grille from end cap.
Installing Duct Adapter
To install adapter, line duct up
with holes on the side of unit
push up from the base of the
adapter.
Removing Duct Adapter
If it is necessary to remove the
adapter, place hand at bottom of the
adapter and use your fingers to pull
out and down. This will remove the
cover hooks from the machine.
Electrical Access
·Unscrew the 4 screws on the side panel to access the
control board.

10
Troubleshooting
SolutionCause
Symptom
Power Supply Verify that there is power to the outlet and
that the plug is properly installed in outlet.
Room Temperature Over
105℉ (Display HI) or Below
33.8℉ (Display LO)
The unit id outside the operating
temperature range. Modify the room
conditions so the temperature is between
33.8-104℉ and operation will commence.
Trouble Code: HI or LO
Clean the filter mesh according to
instructions listed in manual.
Clear the blockage from inlet or outlet.
Air Filter is Clogged
Air Inlet or Outlet is Blocked.
Machine Won’t Run
Low Air Flow
Trouble Code: E1
Loud Noise
Filter Mesh is Blocked
E1=Humidity Sensor Issues
Room Temperature Over
104℉ or Below33.8℉
( Display LO)
Machine Is Not level Move the dehumidifier to flat, firm ground.
Clean the filter mesh according to
instructions listed in manual.
Check to ensure that wire is connected at
both ends. If no issues are visible, the
sensor may be faulty.
The unit is outside the operating
temperature range. Modify the room
conditions so the temperature is between
33.8°-104℉ and operation will commence.
If room conditions are within temperature
range, replace the defective sensor.
Flex Duct Installation
Rotate the flex duct counter-clockwise.
Flex Duct Removal
Rotate flex duct clockwise or remove wire tie.

AirWerx 90 Spare Parts
All AirWerx Models-Parts
Part# Description
A-100 Remote Control Package (cable+remote)
A-101
A-102
A-103
A-108
A-109
A-110
A-915
AirWerx 90-Parts
Part# Description
Remote Control
Remote Control Cable, 26’
Return Duct Collar Accessory
Main Control Board
Display Board
RH/Temperature Sensor
A-916
A-917
A-918
A-919
A-900
A-901
A-902
Prefilter
Filter Assembly (Cassette+Prefilter)
MERV- 8 Filter
HEPA Filter
Carbon Filter
Fan Motor
Complete Fan Assembly
Fan Capacitor
AirWerx 90-Filters
Part# Description
11
A-106 Duct Kit Assembly ( W-103+ W-100)
A-107 Flexible Supply Duct, 72"
A-903
A-904
A-905
Compressor
Compressor Capacitor
Coil Assembly
A-906 Hot Gas Bypass Coil
Condensate Pump Assembly
A-907
A-908
A-909
A-910
A-913
RH/Temperature Sensor Cable
Display cable
CAT 5 Prot Internal Cable
Foot, adjustable

1. Once receive the goods, customers must log in www.baseaire.com to fill out the warranty Registration form
and submit to BaseAire company. We will receive your purchasing and installation information and save it.
6. After parts are repaired or replaced by BaseAire, the original warranty period continues to applies until meet
its deadline. No extensions to the original warranty period.
3. If customer cannot return unit to certified repair center, all costs associated with freight shipment are borne by
the customer. In addition, all duties related to freight shipments, including but not limited to palletizing, wrapping,
labeling and pickup are associated with customer.
2. Removal and re-installation of unit is the sole responsibility of owner.
1 YEAR ( FROM DATE OF PURCHASE): BaseAire warrants the dehumidifier will operate free of defects in
workmanship and materials. At its discretion, BaseAire will repair or replace any malfunctioning components,
free of charge (excluding transportation costs)
BaseAire Warranty Steps:
4. If shipped, customer is responsible for all risk of loss or damage.
If no warranty registration is sent to us, warranty period will begin the day the shipment left the warehouse.
Please be sure to record serial # and date of installation. You will need this information to receive the RA
number.
4. Customers can pick up the unit after repair at their own expense for shipping. Units will have a rigorous
testing before sending it back to customers.
3. After the unit has been received by BaseAire (whether at a repair center or the warehouse), BaseAire will
have an initial inspection If it is determined to be invalid warranty claim (see exclusions below), customers have
to pay for all associated repair costs and shipping costs for units repair.
All warranty benefits apply to the original owner only. Warranty cannot be transferred or assigned.
5 YEARS (FROM DATE OF PURCHASE): BaseAire warrants the compressor, condenser, and evaporator will
operate free of any defects in material or workmanship. At its discretion, BaseAire will repair or replace the
defective parts. This does not include labor, transportation, or refrigerant.
2. If warranty service is necessary, customers must contact BaseAire Tech Support by [e-mail] or
local technical service phone to receive a Return Authorization (RA number). Once an RA has been issued,
customers should bring the unit to a certified repair center. BaseAire will arrange the shipping to bring the unit
back to the BaseAire warehouse (at the expense of the customers) if customers are not available.
Limited Warranty
3 YEARS (FROM DATE OF PURCHASE): BaseAire warrants the refrigeration circuit (compressor, condenser
and evaporator) will operate free of defects in material or workmanship. At its discretion, BaseAire will replace
defective parts, including factory labor or refrigerant. This does not include transportation.
1. Customer must provide normal care and maintenance (including, but not limited to cleaning filters, coils and
pumps)
CUSTOMER RESPONSIBILITIES: In order to take advantage of the warranty service, the customer must do the
following:
5. If the unit can no longer be fixed, and it is in the warranty period and determined to be valid claim, we will ship
the customer a new unit within the same year warranty from the date of replacement.
12

Limited Warranty Exclusions
EXCLUSIONS:
● FIRE
DAMAGE DUE TO THE FOLLOWING IS NOT COVERED UNDER WARRANTY
1. ACTS OF NATURE- INCLUDING BUT NOT LIMITED TO:
● FLOODING
● HURRICANE STORM DAMAGE
2. IMPROPER USAGE-INCLUDING BUT NOT LIMITED TO:
● POOL/SPA/TUB APPLICATIONS
● MISUSE, ABUSE OR TAMPERING WHETHER INTENTIONAL OR ACCIDENTAL
● MPROPER VOLTAGE
● FAILURE TO FOLLOW INSTRUCTIONS
● LACK OF NORMAL CARE
3. CORROSION
4. FREEZING
5. ANY ADDITIONAL COSTS DUE TO CHANGES IN LAWS OR BUILDING CODES
● IMPROPER INSTALLATION OR DESIGN
7 ANY COSTS DUE TO LOST PROFIT OR DELAY
8. DAMAGE TO PROPERTY
9. CAUSE BEYOND CONTROL
10. CONSUMABLE PARTS INCLUDING BUT NOT LIMITED TO:
6. FREIGHT CHARGES
● WATER DAMAGE
● VALVES
● BATTERIES
● RUBBER PARTS
11. DIRECT, INDIRECT, COLLATERAL OR INCONSEQUENTIAL DAMAGES OF ANY KIND
THE WARRANTIES AND LIABILITIES SET FORTH ARE IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED IN LAW OR IN FACT, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. BaseAire's total liability, regardless of
nature of claim shall not exceed original purchase exceed original purchase price of the product, if a product
or component is replaced while under warranty, the applicable warranty period shall not be extended beyond
the original warranty time period.
Any dishonesty or fraud in connection with BaseAire warranty thoroughly voids all warranty policies.
BaseAire expressly reserves the right to pursue legal action in the event of dishonesty, fraud, or attempted
fraud.
● POWER CORDS
The foregoing shall constitute the total liability of seller in the case of defective performance of all or any of
the equipment or services provided to buyer. Buyer agrees to accept and hereby accepts the foregoing as the
sole and exclusive remedy for any breach or alleged breach of warranty by seller.
● FILTERS
● SWITCHES
13

Scan QR Code to Register Warranty
