MIRAGE

SHOWER DOOR &TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLineTM reserves the rights to alter, modify or redesign products at any time without prior

notice. For the latest up-to-date technical drawings, manuals or any other details please refer

to the support.BathAuthority.com web page.

Please read these instructions carefully before installing. If you have any questions regarding

installation, please call our technical support specialists Monday through Friday 9:00 AM – 5:00

PM EST at Phone: 1-866-731-2244, Fax:1-866-227-1533 or e-mail our technical support group

at [email protected].

For more information on DreamLine Shower Doors and Tub Doors please visit www.BathAuthority.com

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 2

Preparation

1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed

parts are included in the package by marking all the components on the “Detailed Diagram of

Shower Door Components”. Examine boxes and packages for shipping damage. If the unit has

been damaged, has a finishing defect, or is missing parts, please contact our customer support

department within 5 business days of the delivery date. Please note that DreamLineTM will not

replace any damaged products or missing parts free of charge after 5 business days or if the

product has been installed. Feel free to contact DreamLineTM if you have any questions.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine is

not responsible for code compliance standards for your project and will not accept any

returns.

3. If this unit is going to be installed in a new construction, install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code)

plumber for all plumbing installation.

4. Prior to installation, ensure that the installation surface is leveled and solid and will be able to

support the total weight of the unit. Also, make sure the walls are at right angles. Irregular

installation surface level or improper angle of side walls will result in serious problems for your

installation. Please, note that some adjustments and drilling might be necessary during the

installation process.

5. This unit must be installed against finished walls and floor.

6. Please, NOTE! This door does not have out-of-plumb adjustment. Make sure your walls are

vertical and your shower base or threshold is leveled.

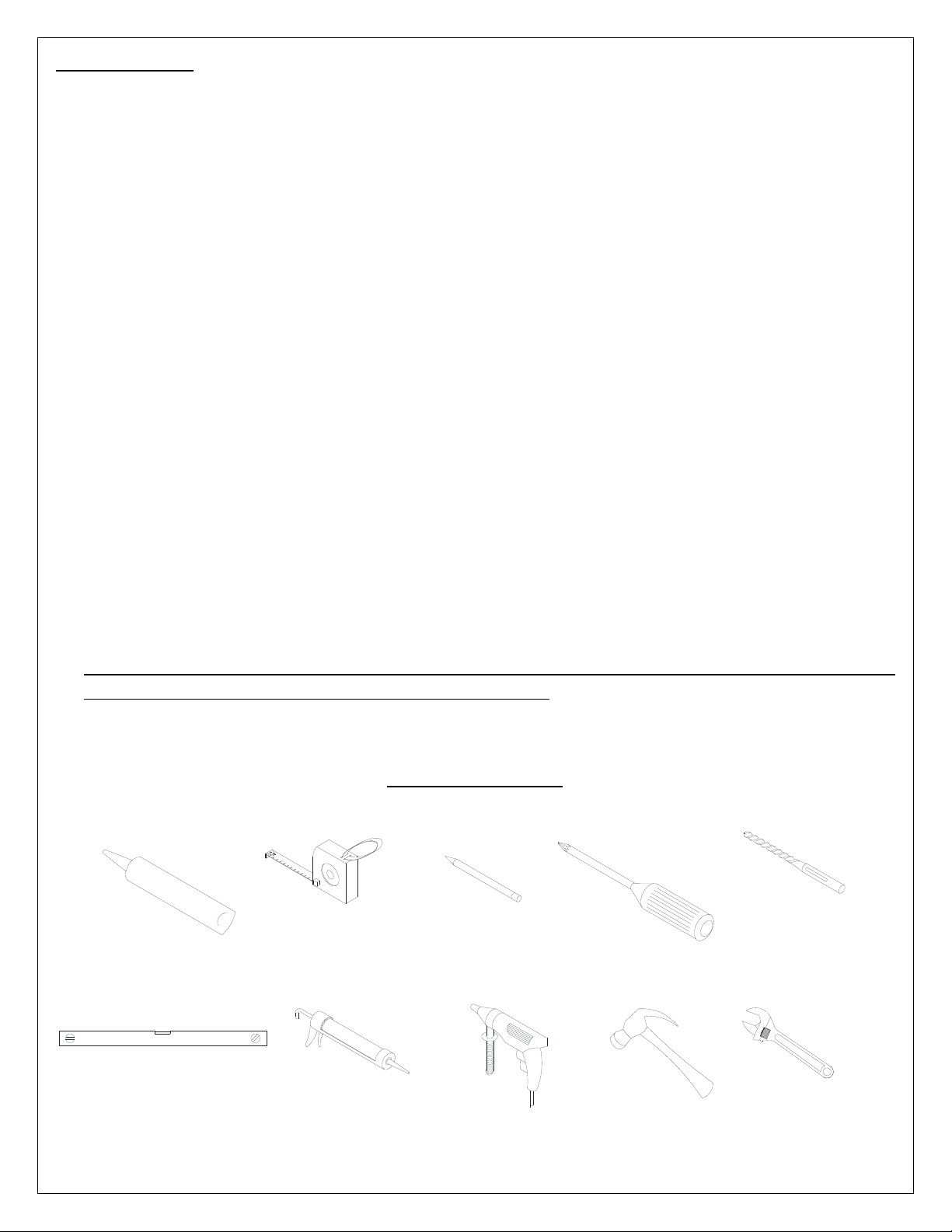

Tools Required

Caulk Tape

Measure Pencil Screwdriver

Phillips

Level Gun

Caulk Drill

Electric Hammer Wrench

Drill bit

(Ø 5/16")

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 3

Detailed Diagram of Shower/Tub Door Components

Parts List

01 Stationary glass A 1pc 11 Stopper block 1pc

02 Glass door 1pc 12 Wall bracket 2pcs

03 Guide rail 1pc 13 Single side strip 1pc

04 Handle 1pc 14 Bumper strip 1pc

05 Support bar 1pc 15 Seal gasket 1pc

06 Wall anchor 6pcs 16 Countersunk screw ST4.2×40 1pc

07 Round head screw ST4.2×55 6pcs 17 Shelf bracket (without nut) 4pcs

08 Guide rail connector 1pair 18 Shelf bracket (with nut) 2pcs

09 Sliding bracket assembly 1pc 19 Glass shelf 2pcs

10 Roller assembly 2pcs 20 Stationary glass B 1pc

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using parts diagram

and part list in your manual as a reference. Before discarding the carton, check for small hardware

bags that tend to fall to the bottom of the box. If any parts are damaged or missing, please contact

DreamLineTM for replacement.

NOTE: Retain these installation instructions for future reference.

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 4

Sliding Bracket Assembly

A Face Plate 1pc F Head screw M4×10 2pcs

B Back Plate 1pc G Head screw M6×16 2pcs

C Slider 1pc H Head screw M6×8 1pc

D 1/16” PVC gasket 2pcs I 1/8” wool strip 4pcs

E 1/16” PVC washer 2pcs J Plastic bulkhead 8pcs

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 5

Shower/Tub Door Installation

NOTE: The installation of this door requires

two installers.

NOTE: The door can be installed on the

shower base, tub or custom threshold.

1. Measure the distance between two walls.

This distance is marked as “W”.

See Fig. 1 for details.

Fig. 1

2. Your Guide rail (03) has been precut for your

Shower model opening width: 60”.

If W-width of your wall-to-wall opening is equal

to 60” it is unnecessary to cut the Guide rail and

you can continue to Step#3.

If W-width of your wall-to-wall opening is less

than 60” you will need to cut the Guide rail from

one side.

The length to cut off will be D:

D=Subtract W from 60”

See Fig. 2 for details.

Fig. 2

FOR EXAMPLE

If your wall opening W=59”. Your shower

model is 60”.

D=60”-59”=1”,

You have to cut 1” off from the rail.

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 6

3. Fasten the Guide rail connector (08) to one

of the sides of the Guide rail (03).

Slide in two Roller assemblies (10) from the

other end of the Guide rail. Fasten another

Guide rail connector to the other side of

the Guide rail.

Position the Guide rail on base or threshold

and trace through predrilled holes of Guide

rail connector flange to mark wall. Drill the

holes using Ø 5/16” drill bit and insert the

Wall anchor (06).

Apply a layer of waterproof silicone to the

bottom side of the Guide rail. Place the

Guide rail back on base or threshold and

secure it with the Round head screw

ST4.2×55 (07).

See Fig. 3 for details.

Fig. 3

4. View of the installed Guide rail (03) with the

Guide rail connectors (08).

See Fig. 4 for details.

Fig. 4

Ø 5/16

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 7

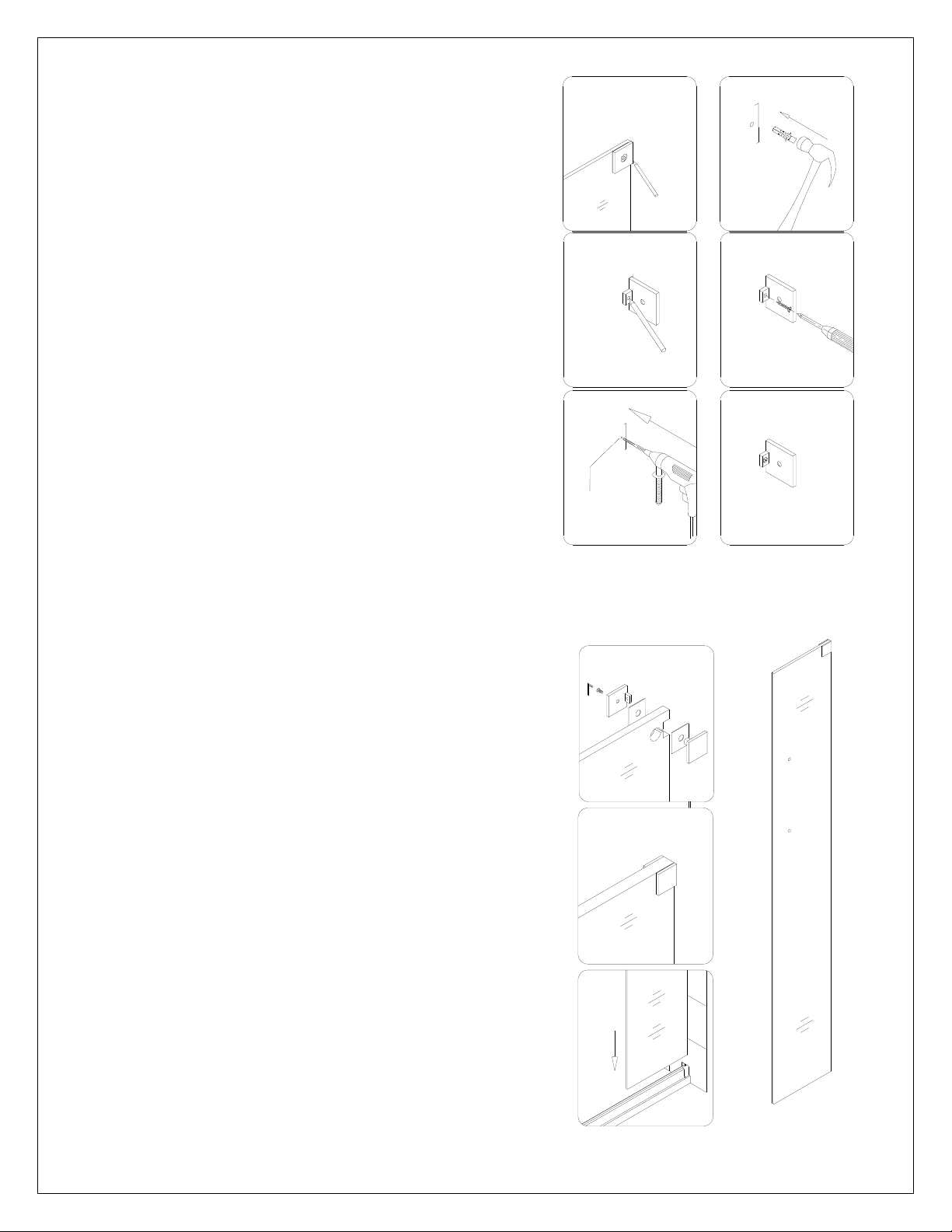

5. Mount the Wall bracket (12) to Stationary

glass A (01).

Slide the glass into the channel of the Guide

rail (03).

See Fig. 5 for details.

Fig. 5

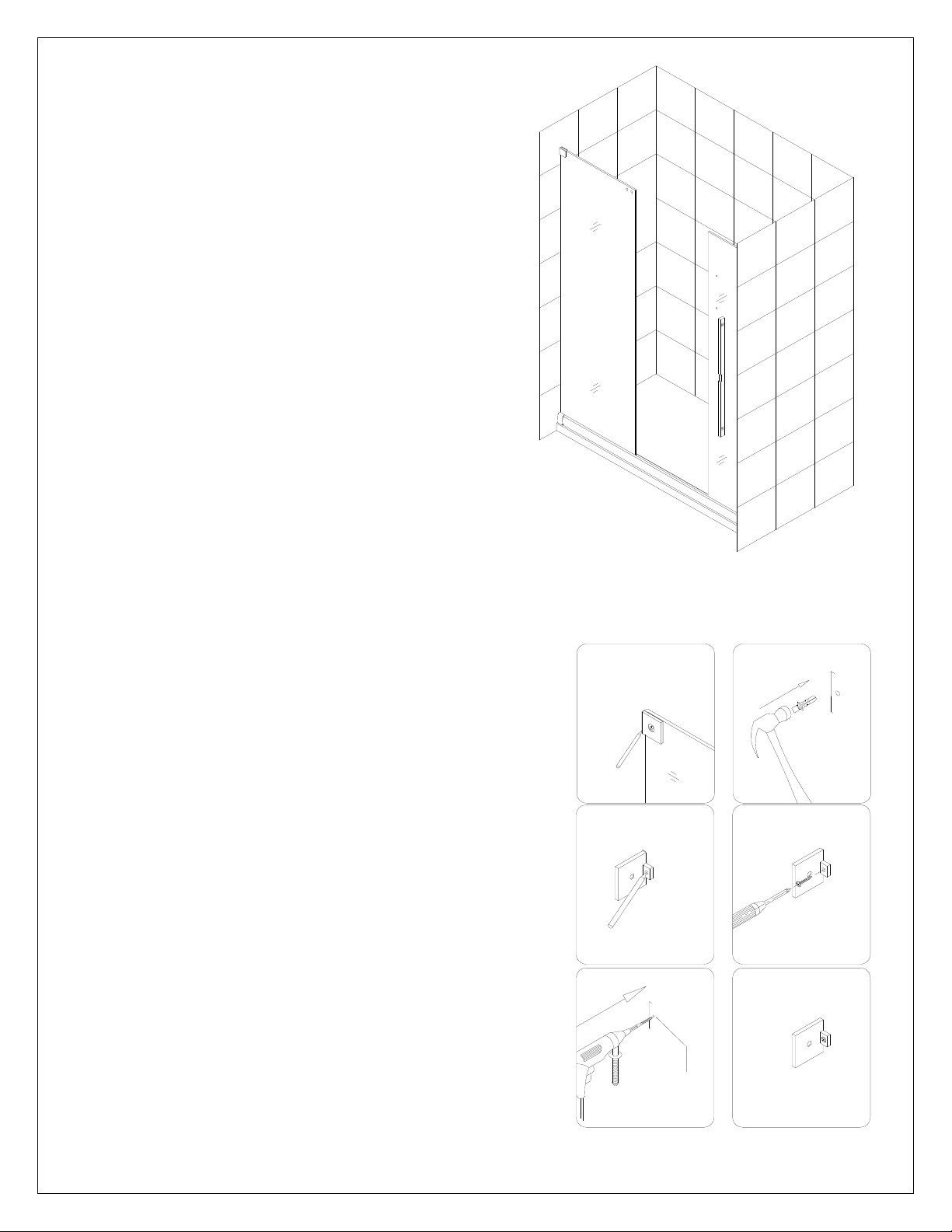

6. Butt up Stationary glass A (01) against the wall

and level it vertically.

See Fig. 6 for details.

Fig. 6

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 8

7. Outline the position of the Wall bracket (12) on the

wall. Set Stationary glass A (01) aside. Remove the

Wall bracket from Stationary glass A and by

replacing it to the outlined position mark the hole

on the wall.

Drill the hole using Ø 5/16” drill bit, insert the Wall

anchor (06) and fasten the Wall bracket to the wall

with the Round head screw ST4.2×55 (07).

Put Stationary glass A back into position and tight

it up to the Wall Bracket.

See Fig. 7 for details.

Fig. 7

8. Mount the Wall Bracket (12) on Stationary glass B

(20).

Slide the glass into the channel on the other side of

the Guide rail (03).

See Fig. 8 for details.

Fig. 8

Ø 5/16”

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 9

9. Butt up Stationary glass B (20) against the wall

and level it vertically.

See fig. 9 for details.

Fig. 9

10. Outline the position of the Wall bracket (12) on the

wall. Set Stationary glass B (20) aside. Remove the

Wall bracket from Stationary glass B and by

replacing it to the outlined position mark the hole on

the wall.

Drill the hole using Ø 5/16” drill bit, insert the Wall

anchor (06) and fasten the Wall bracket to the wall

with the Round head screw ST4.2×55 (07).

Put Stationary glass B back into position and tight it

up to the Wall Bracket.

See Fig. 10 for details.

Fig. 10

Ø 5/16”

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 10

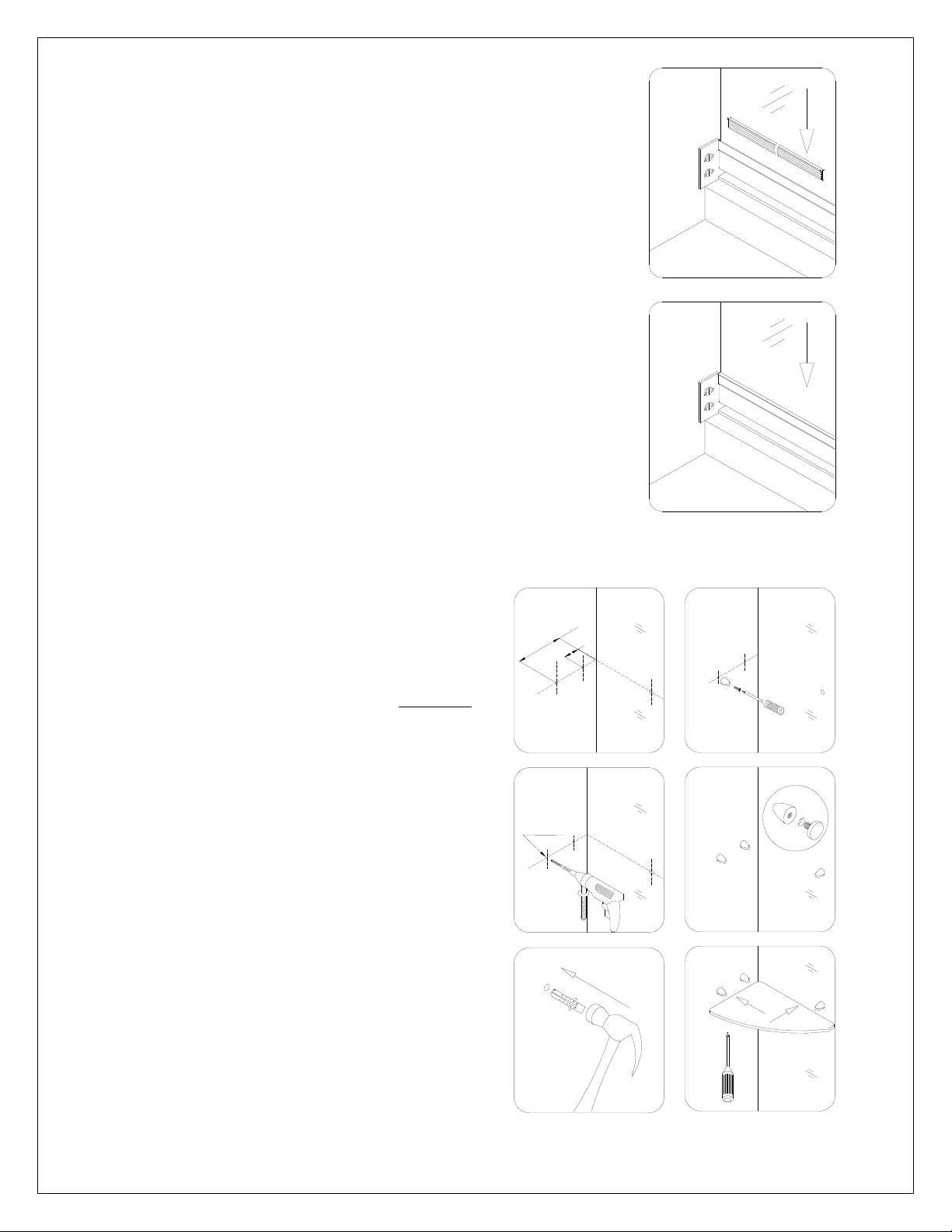

11. Push the Single side strip (13) between the groove of the

Guide rail (03) and both Stationary glasses A & B using

wooden shims or other piece of wood.

See fig. 11 for details.

Fig. 11

12. Glass shelves (19) are installed to Stationary

glass B (20).

Mark the Glass shelf position on the wall.

According to the measurements in Fig. 12.1,

mark drill holes for the shelf brackets.

Drill the holes using Ø 5/16” drill bit and insert

the Wall anchors (06).

Attach the Shelf brackets without nut (17) to

the wall with Countersunk screw ST4.2×40

(16) and attach Shelf brackets with nut (18)

to Stationary glass B.

Insert the Glass shelf into the Shelf brackets

and tighten the screws at the bottom of the

brackets.

Start installation with top Glass shelf and

repeat this step to install the bottom Glass

shelf.

See Fig. 12 and Fig. 13 for details.

Fig. 12

23/8"

10"

Ø 5/16”

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 11

Fig. 13

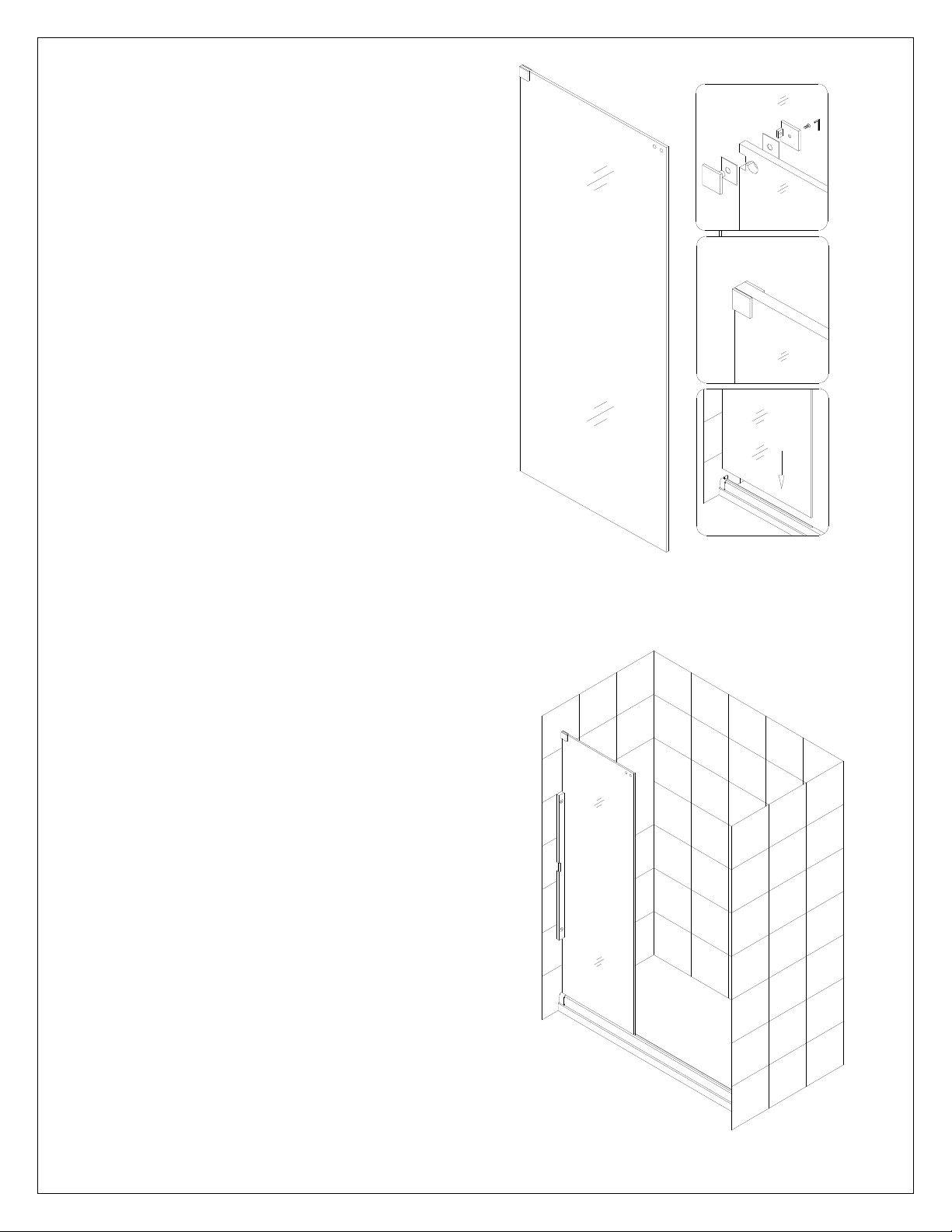

NOTE: Please refer to Sliding bracket assembly (09) diagram

on Page 4.

13. Disassemble the Sliding bracket assembly.

Mount the Face Plate (A) and Back Plate (B) on the top of

Stationary glass A (01) with the Head screw M6×16 (G).

Use PVC gasket (D) and PVC washer (E) in between glass and

metal parts.

NOTE: Use only hand tools. Do not over tighten the screws.

See Fig. 14 and Fig. 15 for details.

Fig. 14

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 12

Fig. 15

14. Install the Stopper block (11) on the bottom of

the Glass door (02).

See fig. 16 for details.

Fig. 16

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 13

15. Bring the Glass door (02) inside the shower.

Remove nuts from the Roller assembly (10)

bolts and spread the rollers against the

installation holes on the Glass door. Fasten

the Roller assembly to the Glass door

through the predrilled holes.

NOTE: Steps 15 and Steps 16 require

second person to hold Glass door. The

Glass door will not stay by itself until you

finish the Step 16.

See Fig. 17 for details

Fig. 17

NOTE: Please refer to Sliding bracket assembly (09) diagram on

Page 4.

16. Place the Slider (C) over the top edge of the Glass door (02) and

put the Sliding bracket assembly together using Head screw M4

×10 (F).

NOTE: Sliding bracket assembly (09) can be installed for either

left or right hand configurations. These directions are written

for right-hand configuration; See Page 17 for left hand

configuration.

See Fig. 18 and Fig. 19 for details.

Fig. 18

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 14

Fig. 19

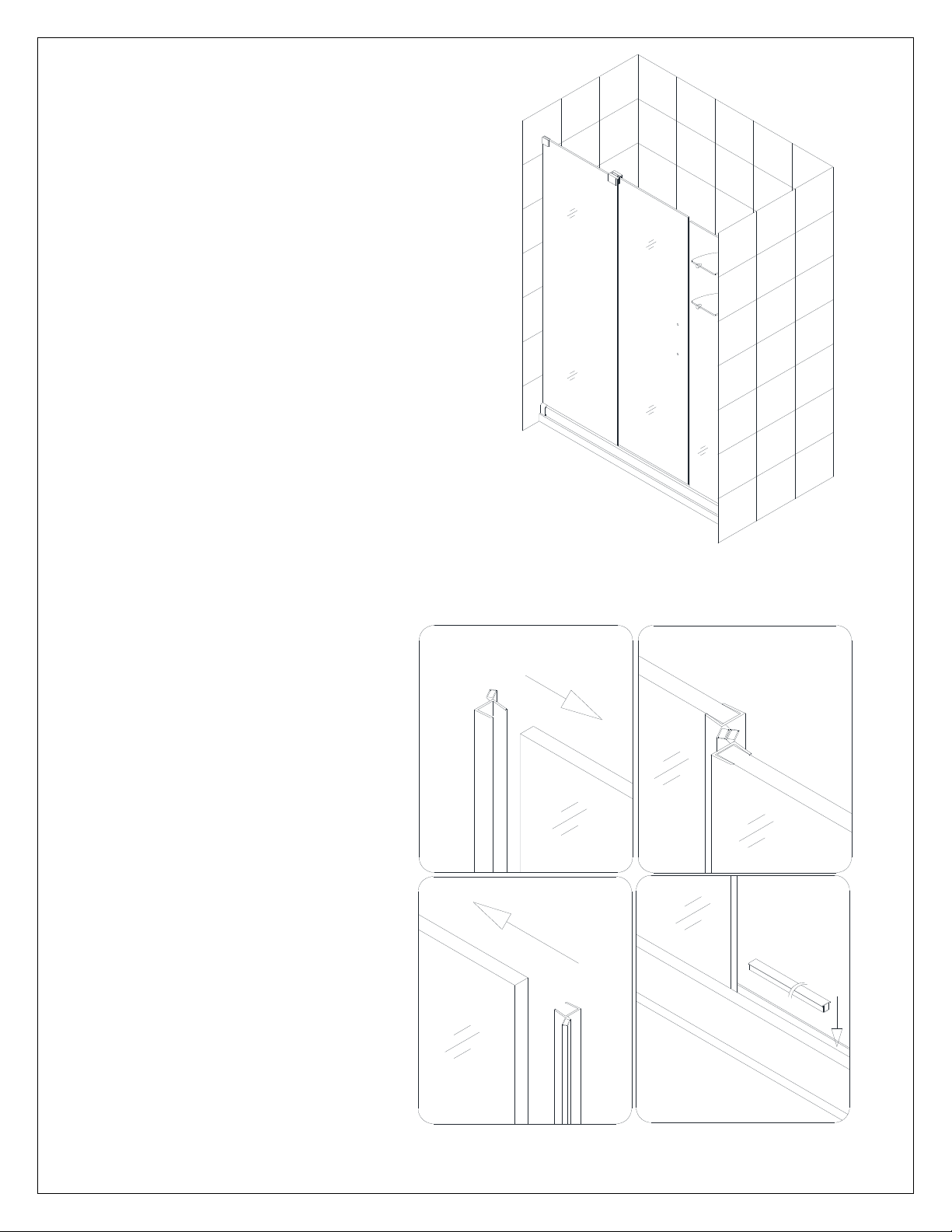

17. Press the Magnetic strip (14) on

the vertical edge of the Glass door

(02) and Stationary glass B (20).

Push the Seal gasket (15) into the

channel of the Guide rail (03).

See Fig. 20 for details.

Fig. 20

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 15

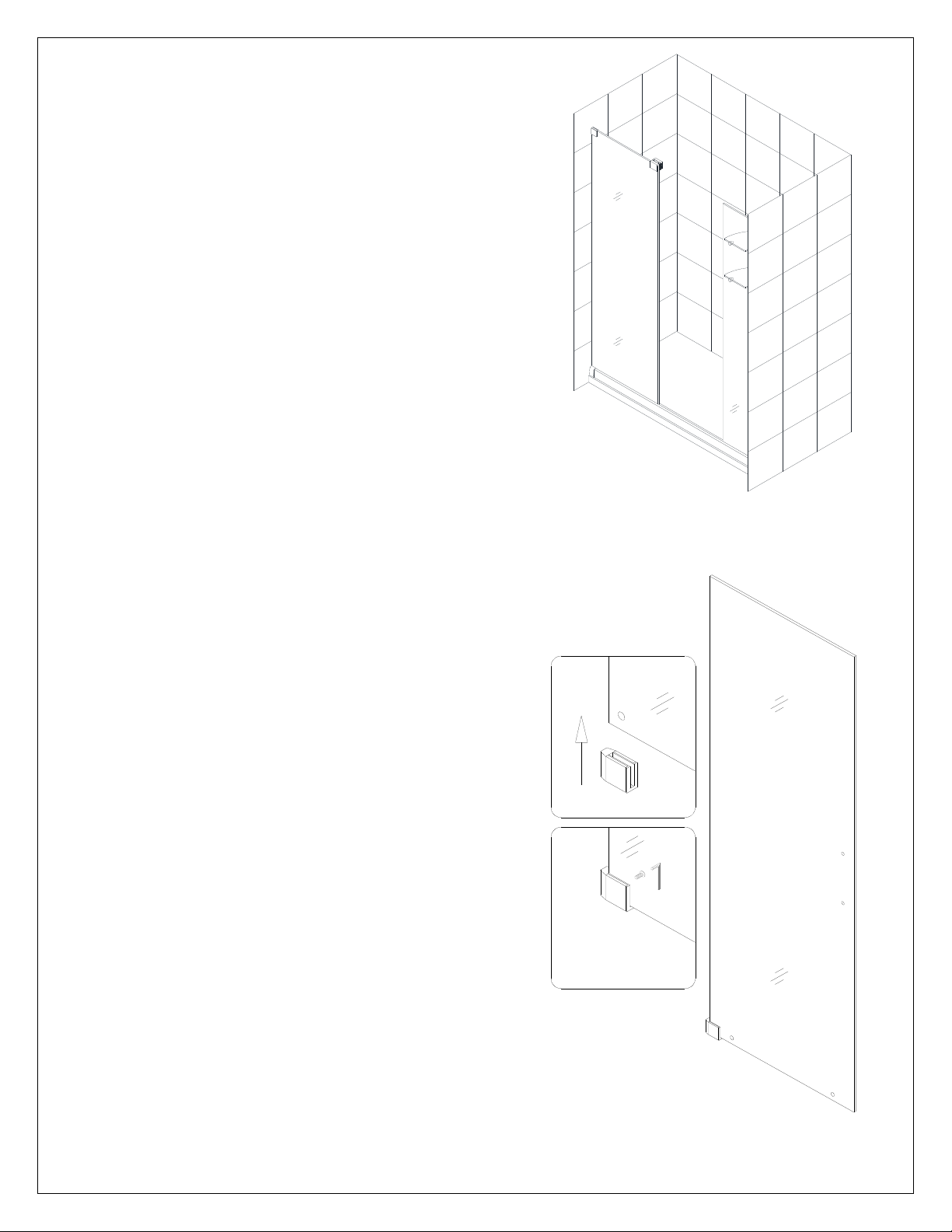

18. Install the Handle (04) onto the Glass door (02).

See fig. 21 for details.

Fig. 21

19. Locate the Support bar (05) and temporarily fasten

it to the Sliding bracket assembly (09) with the

Head screw M6×8(H). 

Adjust the bar to a proper position and level it

horizontally. Hold it firmly and outline the wall

bracket of the Support bar to mark wall with

position.

Remove the Support bar and detach its wall bracket.

Place the wall bracket of the Support bar against its

outlined position on the wall and mark the hole for

drilling.

Drill the hole using Ø 5/16” drill bit, insert the Wall

anchor (06) and fasten the Support bar’s wall

bracket to the wall with the Countersunk screw

ST4.2×40 (16).

Attach the Support bar back to its wall bracket and

Sliding Bracket assembly and tighten the screws to

secure the glass.

See Fig. 22 for details.

Fig. 22

Ø 5/16"

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 16

20. Apply the sealant along the connection of

Stationary glasses A and B with the wall inside

the shower, as well as between the Guide rail (03)

and the threshold outside the shower.

See Fig. 23 and Fig. 24 for details.

Fig. 23

Fig. 24

caulk

“MIRAGE – 60” Rev. 2 Ver. 5 07/2013 17

NOTICE: The above installation steps are given for

the right-hand configuration.

For left-hand configuration door, please reverse

Stationary glass A and B and attach the Sliding

bracket assembly (12) to Stationary glass A.

See Fig. 25 for details.

Fig. 25

Product Maintenance

To ensure long lasting life for your acrylic back walls, wipe them off after each use with a soft

cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never

use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

To ensure long lasting life for your glass shower products, wipe them off after each use with a

soft cloth. Rinse and wipe off the glass using either soft cloth or squeegee to prevent soap

buildup. Never use abrasive cleaners and cleaning products that contain scouring agents as

this may scratch the surface. Never use bristle brushes or abrasive sponges.

To ensure a long lasting hardware finish, wipe off the metal parts after each use with a soft

cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If

accidentally used, rinse the surface as soon as possible to prevent finish peeling or corrosion.

After cleaning the shiny finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless

steel surfaces at least once a week. When applying stainless steel cleaner or polish, work with

(not against/across) the grain. Never use an abrasive sponge or cloth, steel wool or wired

brushes.

DREAMLINE™EXCLUSIVELIMITEDWARRANTYASOFMAY6,2013

Thiswarrantyextendsonlytotheoriginalowner/end‐userforhouseholduseonlyandisnottransferabletoasubsequentowner.Thiswarrantyextendsforadesignatedperiodoftime,so

longasitremainsinuseinitsoriginalplaceofinstallation.ThiswarrantyappliesonlytoDreamLineproductspurchasedfromanauthorizeddealerinUnitedStatesorCanada.Proofof

purchase(originalsalesreceipt)fromtheoriginalconsumerpurchasemustbeprovidedwithallwarrantyclaims.

INNOEVENTSHALLTHELIABILITYOFDREAMLINEEXCEEDTHEPURCHASEPRICEOFTHEUNIT.

DreamLineproductsmustbeinstalledbyafullyinsuredandlicensedprofessional.InstallationofDreamLineproductbyanyoneotherthanfullyinsuredlicensedprofessionalsshallVOIDTHE

WARRANTY.DreamLinerecommendsthatsuchlicensedprofessionalshaveexperienceintheinstallationofbathroomproducts.Installationofcertainproducts,including,without

limitation,glassproducts(i.e.,showerandtubdoors)byaninexperiencedinstallermayresultinglassbreakageand,consequently,causepersonalinjuryordeath.



PARTSONLYWARRANTY

Thiswarrantyisextensiveinthatitcoversreplacementofalldefects.LABORCHARGESAND/ORDAMAGEINCURREDININSTALLATION,REPAIR,ORREPLACEMENT,ASWELLASANYOTHER

KINDOFLOSSORDAMAGEAREEXCLUDED



COMMERCIALUSEANDOTHEREXCLUSIONS

Thiswarrantyexcludesallindustrial,commercialandbusinessusage,whosepurchasersareherebyextendedaone(1)yearlimitedwarrantyfromthedateofpurchaseforshowerandtub

doors,athree(3)monthlimitedwarrantyfromthedateofpurchaseforvanitiesandsinks,withallothertermsofthiswarrantyapplyingexceptthedurationofthewarranty.

DREAMLINEJETTEDANDSTEAMSHOWERCABINS,DREAMLINESHOWERCOLUMNSANDDREAMLINESHOWERSEATSARENOTINTENDEDFORCOMMERCIALUSEANDTHEREISNO

WARRANTYEXTENDEDFORTHESEPRODUCTSFORCOMMERCIALUSE.

DreamLineherebydisclaimsallwarrantiesforproductssoldasdealerorstoredisplays.DreamLineherebydisclaimsallwarrantiesforproductsusedoutsideoftheUnitedStatesorCanada

whetherexpressedorimplied,includingbutnotlimitedtotheimpliedwarrantiesofmerchantabilityandfitnessforaparticularpurpose.



WARRANTYTERMS

DreamLinewill,atitselection,repairorreplacetheproductfoundbyDreamLineinitssolejudgment,tobedefectivewithinthewarrantyperiodundernormalresidentialuseand

maintenance.Thereplacementofaproductislimitedtosupplyingareplacementproductorpart(sameasexistingorifnotavailable,comparableproduct).DreamLinewarrantyobligation

shallbedischargedupontenderofparts,replacementorrepairoftheproduct.Purchaser’srefusaltoacceptthetenderterminatesallwarrantyobligationsandVOIDSTHEWARRANTY.Cost

offreightforreturningproductstoDreamLineforrepairsorreplacementunderthislimitedwarrantyaretheresponsibilityofthecustomer.Costoffreightassociatedwithshippingof

replacementproductorpartstothecustomermaybechargedtocustomer.Anyproductreplacedorrepairedduringthewarrantyperiodwillbecoveredonlyfortheremainingperiodofthe

originalwarranty.InnoeventwillDreamLinebeliableforcostsofrepairorreplacementofanyinstallationmaterial,includingbutnotlimitedtotiles,marble,etc.

DREAMLINEISNOTRESPONSIBLEFORINSTALLATION,REMOVALORREINSTALLATIONCOSTSOFANYPRODUCTREQUIRINGWARRANTYSERVICES.

AnymodificationoralterationofanyDreamLineproductswillvoidthewarranty.DreamLineproductinstallationsandrepairsmustbeperformedbyeitheraDreamLineauthorizedagentora

licensed,insuredandexperiencedprofessionalcontractor‐installationorrepairsperformedbyanyotherpartyshallvoidthewarranty.Thiswarrantyshallnotapplytobreakageordamages

causedbynormalwearandtear,fault,carelessness,abuse,misuse,misapplication,impropermaintenance,alterationormodificationoftheunit,aswellaschemicalornaturalcorrosion,

accident,fire,flood,actofGodoranyothercasualty.Impropercareandcleaningwillvoidthewarranty.Useofcleanerscontainingabrasivecleansers,ammonia,bleach,acids,waxes,

alcohol,solventsorotherproductsnotrecommendedforchromeorsimilarfinish,glassoracrylicwillvoidthewarranty.Foradditionalproductmaintenanceinstructionspleasereferto

productinstallationmanual.DreamLineisnotresponsibleforanyissuesarisinginconnectionwitherrorsoromissionsininformationprovidedonDreamLine’swebsites.Thewarrantydoes

notextendtoanynon‐DreamLineplumbingorcomponentsinstalledbyinstallers,endusersorbyanypartyotherthanDreamLine.



THEFOREGOINGWARRANTIESAREINLIEUOFALLOTHERWARRANTIES,EXPRESSEDORIMPLIED,INCLUDINGBUTNOTLIMITEDTOTHEIMPLIEDWARRANTIESOFMERCHANTABILITY

ANDFITNESSFORAPARTICULARPURPOSE.BATHAUTHORITYLLC(“DREAMLINE”)AND/ORSELLERDISCLAIMSALLLIABILITYFORSPECIAL,INCIDENTALORCONSEQUENTIALDAMAGES.

DREAMLINEISNOTLIABLEFORPERSONALINJURIESORDEATHTOANYPERSONORFORANYDIRECT,SPECIAL,INCIDENTALORCONSEQUENTIALDAMAGE,LOSSOFUSE,LOSSOFTIME,

LOSSOFPROFITS,INCONVENIENCE,INCIDENTALEXPENSES,LABORORMATERIALCHARGES,ORANYOTHERCOSTSRESULTINGFROMTHEUSEOFITSPRODUCTSORPERTAININGTOTHE

APPLICATIONOFTHEPRESENTWARRANTY,ORRESULTINGFROMTHEREMOVALORREPLACEMENTOFANYPRODUCTORELEMENTORPARTCOVEREDBYTHISWARRANTY.



PRODUCTWARRANTYPERIODS

DreamLineisnotresponsibleforproductcodecomplianceorforverifyingbuildingcoderestrictionsoninstallationoruseandanysuchcomplianceisexcludedfromthiswarranty.DreamLine

reservestherighttomodifythiswarrantyatanytime‐suchwarrantymodificationswillnotalterthewarrantyapplicableatthetimeofsaleoftheproductsinquestion.Thewarrantyterms

forspecificproductsforconsumer(non‐industrial,non‐commercial,non‐businessuseonly)are:

SHOWERBACKWALL,SHOWERCABINS(JETTED&STEAM)

DreamLinewarrantsshowerbackwallsandshowercabinstobefreefromdefectsinworkmanshipforaperiodofone(1)yearfrominitialdateofpurchasebytheowner/end‐user,contractor

orbuilderfromanauthorizeddealer.

SHOWER&TUBDOORS,SHOWERENCLOSURES

DreamLinewarrantsshowerdoors,tubdoorsandshowerenclosurestobefreefromdefectsinworkmanshipandmaterialsundernormalresidentialuseforaperiodoffive(5)yearsfrom

theinitialdateofpurchasebytheowner/end‐user,contractororbuilderfromanauthorizeddealer.Warrantyforplasticstripsshallbelimitedtoone(1)year.WarrantyforanypartinOil

RubbedBronzefinishshallbelimitedtoone(1)year.

SHOWERBASES

DreamLinewarrantsshowerbasestobefreefromdefectsinworkmanshipandmaterialsundernormalresidentialuseforaslongastheoriginalconsumerpurchaserownstheirhomein

whichtheirproductisinstalled.

SHOWERCOLUMNS

DreamLinewarrantsshowercolumnstobefreefromdefectsinworkmanshipandmaterialsundernormalresidentialuseforaperiodofone(1)yearfromtheinitialdateofpurchasebythe

owner/end‐user,contractororbuilderfromanauthorizeddealer.

SHOWERSEATS

DreamLinewarrantsshowerseatstobefreefromdefectsinworkmanshipandmaterialsundernormalresidentialuseforaperiodofone(1)yearfromtheinitialdateofpurchasebythe

owner/end‐user,contractororbuilderfromanauthorizeddealer.WarrantyshallbeVOIDiftheshowerseatisnotprofessionallyinstalledonaproperlyreinforcedwall.

VANITIESANDVESSELSINKS

DreamLinewarrantsbathroomvanitiesandvesselsinkstobefreefromdefectsinworkmanshipandmaterialsundernormalresidentialuseforaperiodofone(1)yearfromtheinitialdate

ofpurchasebytheowner/end‐user,contractororbuilderfromanauthorizeddealer.

STATELAWSANDTHISWARRANTY

Somestates/provincesdonotallowlimitationsonhowlonganimpliedwarrantylasts,ortheexclusionorlimitationofspecial,incidentalorconsequentialdamages,sotheselimitationsand

exclusionsmaynotapplytoyou.Thiswarrantygivesyouspecificlegalrights.Youmayalsohaveotherrights,whichvaryfromstate/provincetostate/province.



WARRANTYSERVICE
