Bauhn ASP-4500Z User manual
INSTRUCTION MANUAL
Model Number: ASP-4500Z
4.5” Dual SIM Smartphone
After Sales Support
Telephone: 1300 886 649
Email: [email protected]
Contents
Warranty Details 3
Welcome 4
General Safety Instructions 5
Product Overview 8
Getting Started
• Before first use, Inserting the SIM card(s) and battery, Charging 10
• Buttons, Switch on/off, Turn on/off the screen 11
• Linking with your Google account 12
• SIM management 13
Operation
• Entering your PIN, Screen operation 14

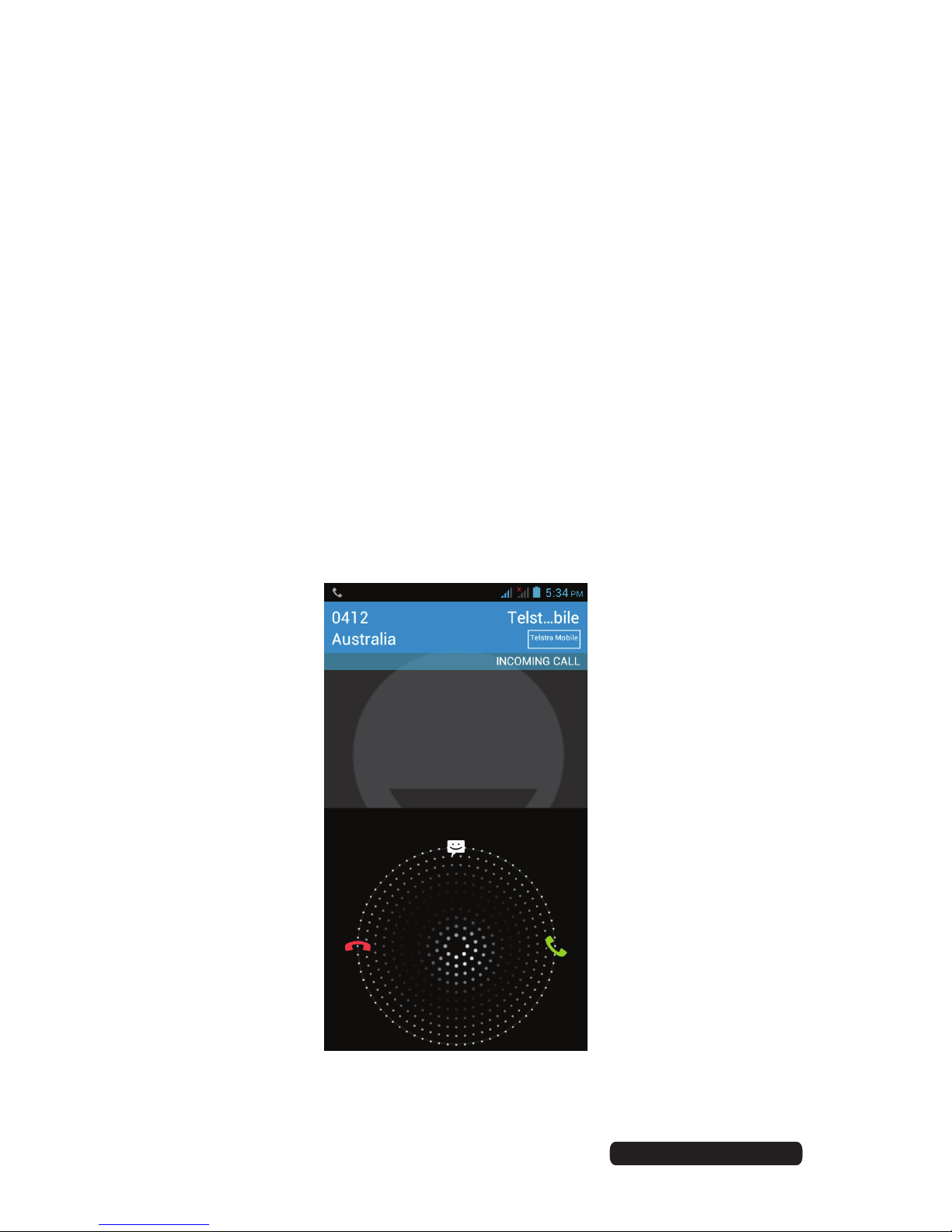

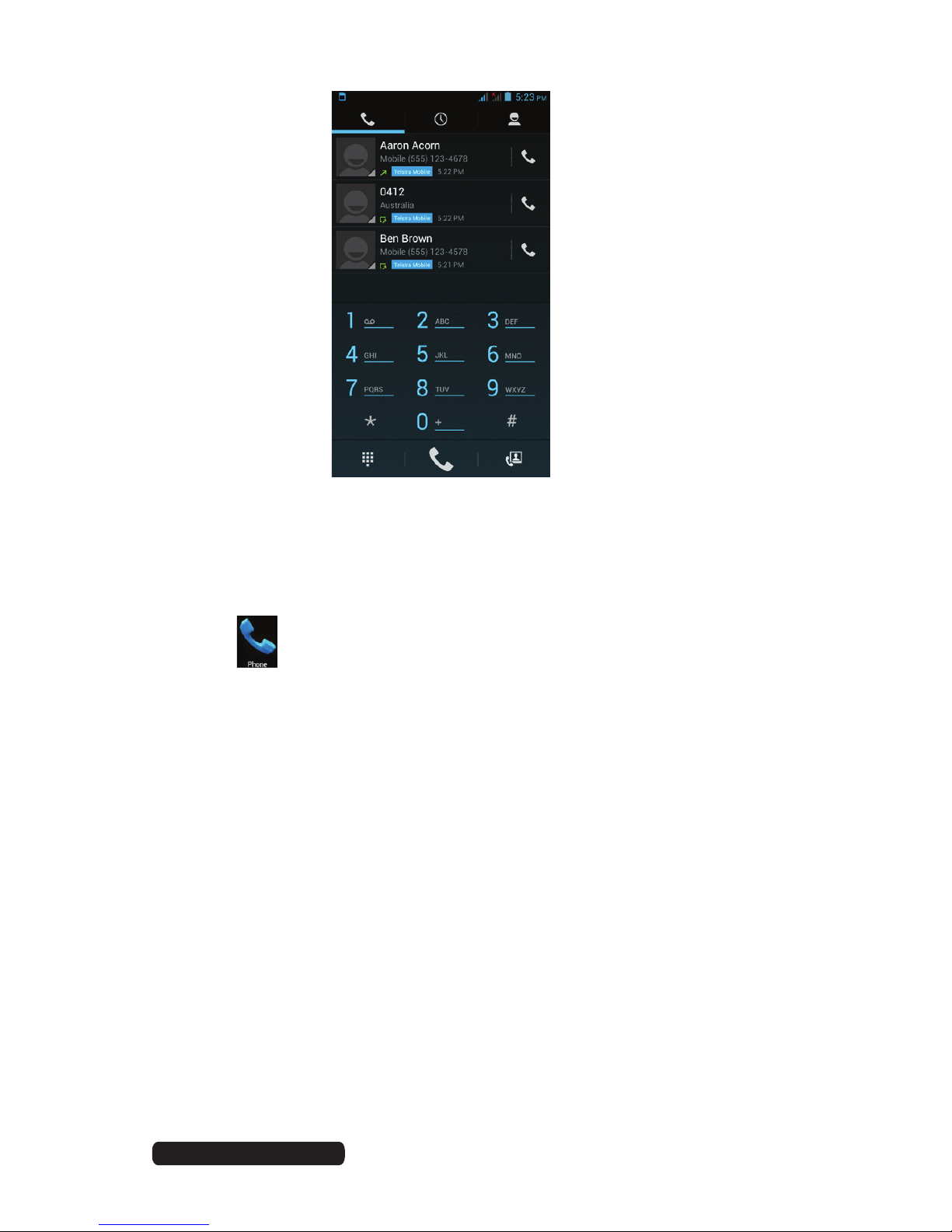

• Phone calls 17
• Contacts 22
• Messaging 23
• Applications and widgets 24
• Add and manage desktop icons 25
• Connect with computer 27
• Browser 28
• Screen compatibility, Background applications 29
• Get and install applications 30
• Uninstall applications, Play Store and calendar error messages 31
Settings
• Wireless and networks 32
• Bluetooth, Micro SD card (TF card) 35
• Device 36
• Personalisation 38
• System 42
• Camera 43
• Radio, Downloaded files management, Special notice 44
Specifications 45
Repair and Refurbished Goods or Parts Notice 46
3
Warranty Details
The product is guaranteed to be free from defects in workmanship
and parts for a period of 12 months from the date of purchase.
Defects that occur within this warranty period, under normal use
and care, will be repaired, replaced or refunded at our discretion,
solely at our option with no charge for parts and labour. The benefits
conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under
the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major
failure.
4.5” Dual SIM Smartphone
4
Congratulations on choosing to buy a BAUHN®product.
All products brought to you by BAUHN®are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service and satisfaction,
are backed by our comprehensive 1 Year Warranty. We hope you will enjoy using your
purchase for many years to come.
Welcome
5
Read this manual thoroughly before first use and keep it in a safe place for future reference,
along with the completed warranty card, purchase receipt and carton. The safety precautions
enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.
Handling and maintenance
• Water: Ensure that this product does not get wet, protect it from water splashes, rain,
excessive humidity and sweat. Contact with water will cause the phone to short-circuit, cor-
rode or cause electric shock. Do not use it where it can fall into water (such as near a pool,
pond, bath etc.). Do not use it with wet hands. Do not immerse it in water. Do not turn it on
if it is wet. Do not try to dry it in a microwave oven.
• Handling: To avoid damaging the phone, battery or charger, do not drop it or shake it vigorously
as this may cause device or battery failure, fire or explosion.
• Repair: This device is a high precision electronic product. It contains no user-serviceable
parts inside. Do not try to dismantle, modify or repair the device or charger yourself. Any
modifications could void your warranty.
Usage environment
• Environment: Do not use this product where it is excessively hot, cold, dusty or humid, or
where it is exposed to strong magnetic fields or long periods of sunshine. Exposure to very
low or very high temperatures may cause device or battery failure, fire or explosion.
• Heat sources: Do not leave the product near any heat sources, stoves, ovens or other
appliances (including amplifiers) that produce heat.
• Interference: Do not use the phone near other electronic devices that use radio frequency
signals. Avoid using it within a 15cm range of a pacemaker (if you have a pacemaker, do
not carry the phone in a breast pocket).
Safety
• Road safety: Obey all local laws and regulations on the use of mobile devices in the
area where you drive. Give full attention to driving and the road. Keep your hands free to
operate the vehicle at all times; use hands-free operation or an earpiece if phone usage
is required.
• Health facilities: Observe relevant rules or regulations regarding mobile phone use in health
facilities. Turn off the phone in the vicinity of medical devices and wherever directed to do so
by posted signs. Mobile phone radiation may interfere with pacemakers, hearing aids and
other medical equipment.
• Aircraft: Turn off the smartphone when boarding an airplane in order to avoid interference
with aircraft radio signals.
• Magnetic equipment: Stay away from magnetic equipment to avoid the risk of interfering
with or erasing the information stored on the device.
• Volume: Always select the appropriate volume when using the music or video function.
The volume should not be too loud when using earphones.
• Explosive environments: Turn off the phone in blasting areas and in any potentially
explosive environment (such as at a petrol station or other refuelling points).
• Back-up: To avoid loss of data, we recommend always backing up any important
information, especially before upgrading the hardware. We assume no liability for any
damage and/or data loss due to lack of back-up.
• Flashlight: Do not use the flashlight close to the eyes of people or pets.
Accessories
• Accessories: Only use the device with the Micro USB cable and battery charger supplied.
Use of other accessories not recommended in this manual may cause damage to the unit
and void your warranty.
• Battery charger: Only use the charger provided. Do not use the phone while it is charging.
Do not drop or cause an impact to the charger.
General Safety Instructions
6
General Safety Instructions (Cont.)
Wi-Fi Wireless Fidelity
BT Bluetooth
TF card Trans Flash (also named Micro SD)
SIM card Mobile service card
• Battery handling: Do not expose the battery to high temperatures. Take care when
handling a charged battery, particularly when placing it inside your pocket, purse or
other container with metal objects.
• Power cord: Do not bend or damage the cable of the battery charger.
• Damage: Do not use the charger if the cable or plug are damaged. In case of damage,
contact the after sales support line for advice.
• Disconnect: Grip the plug when disconnecting the charger; do not pull on the cord.
• Memory card: Always handle the phone’s memory card(s) with care. Protect the card(s)
from static electricity and strong shocks.
Usage conditions and restrictions
• Packaging: Plastic packaging materials can present a suffocation hazard for young
children and babies. Keep all packaging materials out of children’s reach to ensure they
do not play with these.
• Personal usage: Do not use this product for anything other than its intended purpose,
and only use it as described in this manual.
• Restricted usage: The equipment is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the
equipment by a person responsible for their safety.
• Children: This phone is not a toy. Keep the phone, battery and charger away from
young children. Supervise young children when the phone is going to be used by or near
young children.
• Cleaning: Clean the housing of the device lightly with a dry cotton cloth. Do not use
alcohol, thinners, benzene or any other chemical cleaning solutions.
• Lost phone: We recommend you inform your telecommunications service provider to
block your SIM card(s) when your phone is lost. You may also want to ask them to block
the phone’s IMEI number(s), these are printed on a label inside the phone underneath
the battery. (Alternatively, the number(s) will be included on a label with the packaging.)
Please note down these numbers so you have them handy in case your phone is lost.
• Disposal: When discarding this device, observe local regulations and dispose of it
appropriately for recycling. Never dispose of the battery in a fire. Contact your local
authorities for advice on facilities.
• Noncompliance: We accept no liability for any damage caused by noncompliance with
these instructions or any other improper use or mishandling.
Abbreviations / Terminology
8
Product Overview
1 Power Button
2 Micro USB Socket
3 Options / Settings
4 Home
5 Back / Return
6 Front Camera
7 Light Sensors
8 Earpiece
9 3.5mm Hands Free Socket
10 Rear Camera
11 Flash
12 Micro SD Card Slot
13 Battery Bay
14 Loud Speaker
2
3
67 8
4520
18
17
21
9
Product Overview (Cont.)
15 SIM 1 Bay (WCDMA/GSM)
16 SIM 2 Bay (GSM)
17 Cover Removal Groove
18 Microphone
19 Volume Up/Down
20 Search
21 Notification Bar
19
12
13
14
16
15
1011
1
9
10
Before first use
• Unpack the product but keep all packaging materials until you have made sure your new
3G Smartphone is undamaged and in good working order. Plastic wrapping can be a
suffocation hazard for babies and young children, so ensure all packaging materials are
out of their reach.
• Unwind the USB cable and battery charging adaptor and inspect them for damage. Do
not use the cables or the charger if any part is damaged. In case of damage, contact
our after sales support line for advice on examination, repair or return of the damaged
product
• Read this manual to familiarise yourself with all the features and operating principles
of your new 3G Smartphone. Pay particular attention to the safety instructions on the
previous pages.
Inserting the SIM card(s) and battery
• Place you finger in the small recess in the corner of the mobile phone and with you
fingernail, carefully prise it open and lift off the back cover.
• If the battery is in place, remove it.
• Insert your SIM card(s) into the dedicated bays. Bay number (1) supports GSM and
WCDMA; bay number (2) supports GSM only. If required, insert a micro SD card into its
dedicated space.
• Once the SIM and SD cards are securely in place, insert the battery (supplied) into the
phone, making sure to align the pins with the contacts.
• Reinstall the back cover. It will lock into place.
NOTE: Some SIM cards require a PIN number to be entered before use (see page 14 for
details). This PIN may be printed on the SIM card packaging, or you may have to
contact your service provider for the number.
Charging
The battery has been partially charged at the factory. To perform all functions, we recommend
you fully recharge it as follows:
• To charge the device with the battery charger, plug the large end of the USB cable into
the charging adaptor and the smaller end into the micro USB port on the 3G Smartphone.
Plug the charger into your mains power supply.
• To charge the device using the USB cable and computer, plug the large end of the
USB cable into a USB port on your computer and the smaller end into the micro USB
port on the 3G Smartphone. Ensure your computer is turned on.
Getting Started
11
Getting Started (Cont.)
• When the phone indicates a full charge (the battery status icon is located in the top right
corner of the display), disconnect the charger or USB cable.
• Follow one of these charging procedures whenever your 3G Smartphone indicates a low
battery charge.
Switch on/off
Power button
• Long press to turn on.
• When in power-on state, press to turn on or off the screen.
• When in power-on state, long press to display the power off menu.
NOTE: If phone becomes unresponsive, remove and reinsert the battery
Switch on
• While in power-off state, press and hold the power button for 2 seconds and the device
will start up.
Switch off
• Press and hold the power button for 2 seconds: an options list will appear on the screen.
• Choose to switch off the device.
Turn on/off the screen
The screen will automatically turn off when in idle time
• After a period of inactivity the screen will automatically turn off to save battery power.
This can be set using the “Sleep” setting from the display menu in the device settings
menu.
• If after a long time in sleep state the screen does not turn on, remove then reinsert the
battery. Then press the power button to turn on again.
Turn on the screen
• If the screen is off, press the power button to turn it back on.
Volume
• To adjust the ringer volume, press the Volume Up or Volume Down buttons on the right
side of the 3G Smartphone to the desired level. While adjusting the ringer volume, a
window will appear on the screen displaying the volume levels.
12
Getting Started (Cont.)
Linking with your Google account
When you turn on the phone for the first time, you can sign in to your Google Account so
you can synchronise Gmail/Google Mail, Calendar and Contacts between your phone and
the web. You also need to sign into a Google Account to use Google Apps such as Google
Talk™ and Play Store.
• On your phone go to “Settings” and tap ‘Add Account’>’Google’>’Existing’.
• Tap “Sign in”, enter your user name and password and then tap “Sign in”. After signing
in, all emails, contacts, and calendar events on your Google Account will automatically
synchronise with your phone.
NOTE: Tap “Create” if you do not have a Google Account yet.
Google Account password
If you cannot remember your Google Account password, follow the steps below to retrieve it:
• On your computer, open your browser and go to http://google.com/accounts.
• On the right side of the page, tap “I cannot access my account”.
• In the “Please select your issue” section, select “I forgot my password”.
• Tap “Reset your password now”, and then follow the procedure on how to recover your
password.
NOTE: See pages 34-37 for more on using your phone to access Gmail, Google Calendar,
Play Store etc.
13
Getting Started (Cont.)
SIM management
This 3G Smartphone can be used with two SIM cards: SIM1 and SIM2. Bay number
(1) supports GSM and WCDMA; bay number (2) supports GSM only. When you have
two SIM cards inserted, you can choose to use either SIM1 or SIM2, or both of them.
Unless you have determined use of one particular SIM card as your default card in the
settings, you will be prompted to choose an appropriate SIM card every time you want
to make a call, send a message or connect to the internet.
SIM Information
Tap the check box to choose enable or disable a SIM card, or tap a SIM card to change
its information.
Default SIM
You could choose the default SIM card for your voice calls, video calls, messages or
connection.
General settings
You could change roaming settings or associate contacts with a specific SIM.
14
Operation
Entering your PIN
If you want to use a SIM card that is preset with a PIN (personal identification number), you
will have to enter the PIN to proceed. Just follow the prompts to enter the SIM PIN and then
tap “OK”.
Screen operation
Click / Short Press When using the on-screen keyboard, opening an application or
selecting items
Long Press Press and hold for several seconds on an item (such as a text
box or web page link) to display the action or submenu for an
item, if available.
Slide or
Rapid Slide
Sliding or fast sliding means vertical or horizontal drag action.
Drag When dragging, you must hold the icon with your finger and
keep pressure until it reaches destination.
Display Rotation For most of the screens, the content will change between
landscape and portrait mode, according to the device
orientation.
Unlocking the main screen
• Press and hold on the lock icon and several
options will pop up. Drag the lock to the
right side to unlock the screen; drag it to
the left side to enter camera function.
• After unlocking the screen, you will see the
last item you had open or the main screen,
which has five windows or pages. You can
view the pages by dragging your finger left
and right across the screen.
• To return quickly to the main screen, press
the Home button.
15
Operation (Cont.)
Icons Description
From left to right: Wi-Fi Signal Status, SIM
Signal Status, Battery Status, Current Time
(depends on current applications).
Click to display a list of all applications and
widgets.
Click to search for a file or application
on the 3G Smartphone, or to search the
internet.
Screen buttons
There are four buttons at the bottom of the screen. No matter what functions you are using,
you can return to the last page or main screen by using these buttons.
Button Name Description
Back
Go to the last page (even in another
application). When returned to the main
screen, you cannot go to the last page
again.
Home One key to return to the main page (the
middle page among the five pages).
Recent applications Display a list of recently used
applications / background applications.
Search Search for applications on your phone
16
Operation (Cont.)
Notifications
The notification bar shows you at a quick glance the status of your phone. It can be
expanded to show more information and quick access to settings.
Notification icons inform you of the receipt of new messages, calendar events, set alarms
and ongoing settings for things such as active call forwarding or the current call status.
Below is a description of their meanings. Click on the column box to open the notification
list.
Expanding and closing the notifications panel
• To expand the notifications bar to see all the options, place your finger on the
notification bar then swipe/drag in a downward motion.
• To hide the notification bar, press the back button.
File being downloaded Bluetooth
Play Store No SD card
Connected with PC Wi-Fi connected
GSM signal Common notification
Alarm clock on Micro SD space not enough
Uploading/downloading To-do events
Download finished Charging
Data Synchronisation 3G
17
Operation (Cont.)
Phone calls
Making a call
You can make a phone call a number of different ways.
Calling using the dialler
• Tap (call/phone) at the bottom of the screen to enter the dialler screen.
• In dialler mode, when you input a number, you have two options to make a call.
1. Directly tap “Call” on the keyboard and then choose which SIM card you want to use
(if you have two SIM cards inserted).
2. Slide to the right to choose the number in your call history.
NOTE: * If you have only one SIM card inserted, you cannot use another SIM card to make a
call. When one SIM card is used for a call, the other is temporarily unavailable.
* See page 21 for call setting options.
Calling a phone number in a text message
While viewing a text message, you can place a call to a number that is in the body of the
message.
• Tap the message with the phone number.
• Tap the number you want to call on the “Select action” screen. The dialler screen then
opens with the phone number automatically filled in and ready to be dialled.
• To place the call, tap “Call” (and select the SIM card you want to use, if appropriate).
Calling a phone number in contacts
• To call a number from your contacts, enter the contacts list and select the contact, then
tap the “Call” icon behind the number you want to call.
Making an emergency call
• Dial the appropriate emergency number (000 or 112 in Australia), and then tap “Call”.
• If your phone is locked with a pass code, you may still be able to make an emergency call.
On the “Enter pass code” screen, tap “Emergency call”, then enter the emergency number
and tap the red button.
18
Operation (Cont.)
Incoming phone calls
• Receiving a phone call from a contact: When you receive a phone call from a contact,
the incoming call screen appears, displaying the caller ID icon, name and phone number
of the calling party.
• When you receive a phone call from someone else (whose contact details are not
stored in your contacts), only the default caller ID icon and phone number will appear on
the incoming call screen.
Answering a call
Slide the “Call” icon across the screen to answer an incoming call.
Rejecting a call
Slide to the “End call” icon to reject.
Muting the ring sound
To mute the ring sound without rejecting the call, press the Volume Down button or Power
button. You can also mute the ring sound by first tapping “Menu”, then “Mute”.
In-call options
When a call is in progress, you can still operate key options. Tap the available buttons to put
a call on hold, dial another contact for a phone conference, mute the phone microphone,
and more.
NOTE: When the phone is dialling, only the “End call” and “Speaker on” icons are available.
19
Operation (Cont.)
Muting the microphone
• Tap “Mute” to turn the microphone on or off. When the microphone is turned off, the
“Mute” icon appears in the status bar.
Putting a call on hold
• Tap “Hold” to put the call on hold. When you put a call on hold, the “Hold call” icon
appears in the status bar. Tap “Unhold” to resume the call.
Turning the speakerphone on/off
• When you are on a call, tap “Speaker” to toggle between turning the speakerphone
on or off. The “Speakerphone” icon appears in the status bar when the speakerphone
is on.
• WARNING! Protect your hearing! Do not hold the phone against your ear when the
loudspeaker is turned on.
Ending a call
You have two options to end a call:
•Tap“Endcall”.
•Ifyouareusingawiredheadset,pressandholdthebuttontoendthecall.
Video calls
Use this function when you want to see as well as hear the person you are phoning, if that
person’s mobile phone supports this function.
NOTE: Not all mobile phones and networks support video calling. Contact your service
provider for details. Video calling may incur extra charges.
20
Operation (Cont.)
Call log tab
Enter the dial number and slide to the right to the call log. Then select to:
• Tap the name or number in the list to phone the contact.
• Tap the contact icon of a name or number in the list to display the options menu where
you can choose from the following options: “View contact information” (if the number
is stored in your contacts list), “Edit number before call”, “Send text message”, or
“Remove from call log”.
Phone settings
You can adjust the phone settings of your phone such as your voice mail number, or enable
additional call services from your network service provider.
To open the phone settings menu, select SIM1 or SIM2 as appropriate, then tab “Home” >
“Menu” and then tap “Settings” > “Call settings”.
Options Description
Fixed dialling numbers Restrict outgoing calls to a fixed set of num-
bers. To enable this feature you must know your
SIM card’s PIN 2 code.
Voice mail Specify another voice mail number aside from
the voice mail number on your SIM card.
Auto answer 1 ring, 2 ring, 3 ring, Never Answer (default)
Call forwarding Select how you want your phone to handle
calls when busy, unanswered and unreachable.
You can also set call forwarding options for all
incoming calls.
Call barring Select barring outgoing or incoming calls.
Contact your network service provider(s) to
activate this function.
Additional call settings Enable or disable operator services such as caller
ID and call waiting.
Table of contents
Other Bauhn Cell Phone manuals
