Bauhn A16DS-0222 User manual

Product Overview
Troubleshooting
Setup

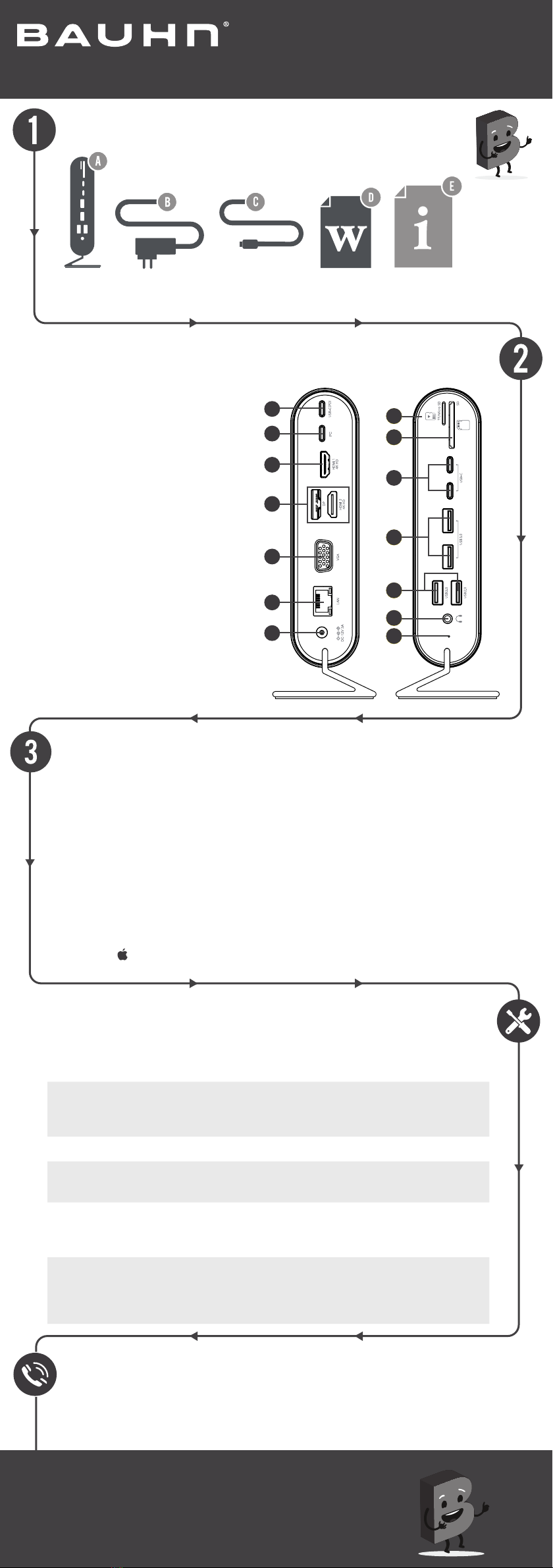

Have you got everything?
User Guide
Model: A16DS-0222
16 in 1 Docking Station
A. 16 in 1 Docking Station
B. Power Adaptor
C. USB-C to USB-C Cable
1. USB-C PD port (100W Max)
2. USB-C PC port
3. HDMI 1 output port
(supports up to 4K@30Hz resolution,
Full HD@60Hz resolution)
4. HDMI 2 + DisplayPort (DP) output port
(supports up to 4K@30Hz resolution,
Full HD@60Hz resolution)
5. VGA output port
(supports Full HD@60Hz resolution)
6. LAN port (10/100/1000M)
7. DC IN port
8. TF/Micro SD card slot
(supports up to 1TB)
9. SD card slot
(supports up to 1TB)
10. USB-C ports
11. USB 3.0 ports
12. USB 2.0 ports
13. Earphone output port
14. Power LED indicator
• Connect the supplied power adaptor to the DC IN port of the device and the other end to
a power outlet.
• The power LED indicator will light up blue.
• Connect the supplied USB-C to USB-C cable to the USB-C PC port on the device and the
other end to your PC/laptop.
• Connect an external device to the desired port using the appropriate cable.
• Connect a PD charger (not included) to the USB-C PD port to charge your device. Supports
up to 100W. The PC output power will be 8W less than the PD input port.
• Note: to avoid data loss, do not connect the device to or disconnect from the power
adaptor during data transfer.
Detect a Display
• If connected to another display and it is not showing in settings, please refer to the below.
For Windows
• Select Start > Settings > System > Display > Multiple Displays > Detect
For MacOS
• Select > System Preferences > Displays.
• Select “Detect Display” (you may need to press the Option button)
Give us a call
What? You mean this User Guide didn’t have ALL the answers? Speak to us!
We’d love to help you get up and running as quickly as possible.
Call our After Sales Support on 1300 002 534.
Operating hours: Monday-Friday, 8:30am-6pm; Saturday, 9am-6pm AEST
Power LED
indicator does not
light up
• Ensure the supplied power adaptor is securely connected to the DC IN
port of the device and the other end to a power outlet.
No output from the
USB/USB-C ports
• Check that the USB/USB-C cable is connected securely to the USB/
USB-C port and/or try a different USB port.
• Ensure the power adaptor is securely connected to the DC IN port of
the device and the other to a power outlet.
No display output • Ensure the device supports the video output.
No output for HDMI
2 and DP output
ports
• The HDMI 2 and DP output ports can only connect to 1 display device.
Please unplug one device if both ports are plugged in.
HDMI or DP
output ports
cannot display 4K
resolution
• If the VGA output is connected to a display, the HDMI and DP output
ports will sync with the VGA output which supports FHD resolution.
Device cannot
charge
• Please check that the PD charger (not included) is securely connected
to the USB-C PD port securely and the power outlet is turned on.
• The PC output power will be 8W less than the PD input. Please try
another PD charger.
• Check that the device supports PD charging.
Well done, you made it.
Now sit back and relax... your device is automatically
covered by a 1-year warranty.
How nice!
Enjoy using your device!
D. Warranty Certicate
E. User Guide
8
9
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Specications
AC adaptor input AC 100-240V, 50Hz, 1.0A
AC adaptor output 12VDC, 3A
HDMI/DP output Supports up to 4K (3840x2160@30Hz),
Full HD (1920 x 1080@60Hz)
VGA output Supports up to Full HD (1920x1080@60Hz)
PD Input 100W Max.
PC Output 92W Max. (8W less than PD input)
USB 3.0 output 5VDC, 1.5A Max.
USB 2.0 output 5VDC, 0.5A Max.
Card reader Supports up to 1TB
Weight 400g (approx)
Dimensions (W x H x D) 90 x 170 x 55mm
GENERAL SAFETY WARNINGS
General Safety Warnings
For the safety of yourself and others, follow all instructions and take notice of all the warnings.
When adhered to, these safety precautions can reduce the risk of fire, electric shock and injury.
This product complies with Australian Safety standard AS/NZS 62368.1 to ensure the safety of the product.
The RCM is a visible indication of a product’s compliance with all applicable ACMA
regulatory arrangements, including all technical and record-keeping requirements.
Electrical Safety and Cord Handling
• Voltage: Before installing this product, make
sure your outlet voltage corresponds to the
voltage stated on the products rating label.
• Protect from moisture: To reduce the risk
of fire or electric shock, do not expose this
product to rain or moisture; do not use
it anywhere near water; do not touch the
power plug with wet hands.
• Power outlet: Do not plug several devices
into the same outlet. Doing so may cause
the outlet to overheat and start a fire. Make
sure the outlet is readily accessible during
operation.
• Disconnect: Where the mains plug or an
appliance coupler is used as the disconnect
device, the disconnect device must remain
readily operable.
• Power plug: Make sure the plug is properly
installed before inserting it fully into the
outlet. A loose or improperly inserted power
plug may cause a fire.
• Protect the cord: Do not bend, twist or kink
the power cord excessively. Do not allow
anything to rest on or roll over the power
cord. Doing so may cause a fire or an electric
shock. Do not run the power cord near
heat-producing appliances such as radiators,
stoves or irons. The excessive heat could
melt the insulation and expose live wires,
resulting in fire or electric shock.
• Damage: Do not use a damaged power
cord, plug or loose outlet. Doing so may
cause an electric shock.
• Disconnect: Always grasp the plug when
disconnecting the power cord. Pulling the
cord can damage the internal wire and may
cause a fire.
• Terminals: Terminals are HAZARDOUS
LIVE and the external wiring connected to
these terminals requires installation by an
instructed person or the use of ready-made
leads or cords.
• Lightning storms: Unplug this product
during lightning storms or when unused
for long periods of time. Not doing so may
result in fire or electric shock.
Usage Conditions and Restrictions
• Adjustments: Follow the instructions in this
user guide when installing and adjusting
the product. Only adjust those controls that
are covered in this user guide as improper
adjustment of other controls may result in
damage. If this happens, unplug the product
and have it serviced by appropriately
qualified personnel, or phone the after sales
support line for advice.
• Ventilation: Do not cover the ventilation
openings with items such as newspapers,
tablecloths, curtains etc. as this could
impede ventilation.
• Smoke or odour: If you notice any unusual
odours or smoke around the product,
immediately disconnect the product from
the outlet and contact the service centre.
Failure to do so may result in fire or electric
shock.
• When not in use: When not using the
product for long periods of time, disconnect
the power cord from the wall outlet. Dust
could accumulate over time on the product
and cause it to generate heat and ignite,
or deteriorate insulation, which in turn may
result in an electrical fire.
• Moving: When moving the product, be sure
to turn it off and unplug it from the wall outlet.
Moving the product with the power cord
connected to the outlet may cause damage to the
cord, resulting in fire or electric shock.
• Packaging: This product has been packaged to
protect it against transportation damage. Unpack
the product and keep the original packaging
carton and materials in a safe place. It will help
prevent any damage if the product needs to be
transported in the future, and you can use it to
store the product when it is not in use.
Installation and Location
• Location: Make sure the location for the product
is well ventilated, and away from damp and cold,
protected from overheating and away from direct
sunlight, away from moisture drips or splashes and
protected from excessive dust or grease.
• Wall-mounting: We assume no liability for any
eventual damage to the product or injury to
yourself if you mount the product on your own.
• Heat: Do not place the product near heat sources
(eg. radiators, stoves, electrical equipment,
amplifiers).
• Water: Do not place containers with liquids (eg.
vases) or with small metallic objects on top of the
product. If liquid enters the product it may result
in short-circuit, fire or electric shock.
• Fire or explosion: Do not use or store flammable
or combustible materials near the product. Doing
so may result in fire or explosion. Do not place any
naked flame sources (eg. lit candles, cigarettes) on
the product.
• Ventilation: Install the product at a minimum 10cm
distance around all sides from a wall or unit to
ensure sufficient ventilation. If the temperature
inside the product rises, it may result in fire.
• Climate: If moving the product from one location
to another, for example from a cold environment
to a warm one, allow sufficient time for the
product to acclimatise to the new location before
switching on. In tropical climates keep the air
surrounding the product sufficiently dry to avoid
condensation.
• Usage restriction: This product is not intended for
use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been
given supervision or instructions concerning use
of the product by a person responsible for their
safety.
• Children: Supervise young children to ensure they
do not play with the product.
Cleaning and Maintenance
• Unplug: To reduce the risk of fire and electric
shock, unplug the product before cleaning it.
• Cleaning: Only use a soft, dry cloth for cleaning
the product; do not use a damp cloth. Never clean
with industrial strength polish, wax, benzene, paint
thinner, air freshener, lubricant, detergent or other
chemicals. Wipe off any moisture, dirt or dust on
the power plug pins with a clean, dry cloth.
• Repair: If the product requires repair, contact
the after sales support line; never disassemble
or modify the product or attempt to service it
yourself.
• Service: Refer all servicing to qualified service
personnel. Servicing is required when the product
has been damaged, such as when the power
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the product,
when the product has been exposed to rain or
moisture, does not operate normally, or has been
dropped.
System Compatibility: Windows 10,8,7, Vista, Mac OS X 10.6 or higher version, Linux 2.6.14 or higher
version. To view the full list of compatibility please visit bauhn.com.au/16-in-1-docking-station-02feb/
