Baumatic BTD1 User manual

BTD1
Fully integrated air-
vented tumble dryer

USER MANUAL FOR YOUR BAUMATIC
BTD1
Fully integrated air-vented
tumble dryer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
GS 23/05/13
2

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 10
Product and aperture dimensions 8
Product specifications 8
Electrical details 9
Controlpanel 9-10
Drying program guidance 10 – 11
Carelabels 11
Selecting a drying program 12
Pausing a drying cycle 12
Maintenance and cleaning 13 - 14
Indailyuse 13
Control panel and tumble dryer cabinet 13
The tumble dryer drum 13
Door 13
Thefilter 14
Installation 15 - 20
Installing the appliance into a kitchen unit 15 - 16
Reversing the dryer door 17 - 18
Fitting the décor door 19
Powersupply 19-20
Troubleshooting 21 - 22
Technicaldata 23
Contact details 27

Environmental note
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your tumble dryer.
oIf you notice that the special mains cable is damaged. The
appliance must not be used. The same applies if you notice
that the worktop, control panel or base area is damaged. As this
could allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe window of the porthole door may become hot during use.
oThe machine should be allowed to cool before cleaning the filter.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
oIf you stop the tumble dryer before the end of a drying cycle
ensure all items are quickly spread out so that heat is dissipated.
5

6
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations.
oAdequate venting must be provided to avoid back flow of gases
into the room from appliances burning other fuels including open
fires.
oExhaust gas must not be discharged into a flue used for
exhausting fumes from appliances burning gas or other fuels.
oDo not allow the venting hose (where applicable) or filter to
become blocked.
During Use
oIt is recommended that the appliance is turned off after the
machine is used.
oThis appliance is only designed to dry normal domestic
washloads. If you use your tumble dryer in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oNo attempt should be made to alter or modify the specifications
of this appliance.
oYou should not dry garments that have been in contact with
flammable materials.
oYour tumble dryer should not be used for dry cleaning.
oDo not dry unwashed items in the tumble dryer.
oDo not allow fluff to accumulate around the tumble dryer.
oIf you use either dyes or bleaching agents inside this machine,
then you should consult with the manufacturer of these products
to make sure they are suitable for use in your tumble dryer.
Baumatic cannot be held responsible for any damage that may
result.
oFabric softeners should be used as specified in the
manufacturer’s instructions.

7
oItems soiled with substances such as cooking oil, acetone,
alcohol, petrol, kerosene, spot removers, turpentine, waxes and
wax removers should be washed in hot water with extra
detergent before being dried.
oRemove all objects from pockets of clothes such as lighters and
matches.
oDO NOT place items in the dryer if anything other than a water
solution has been used in the cleaning process.
oDO NOT attempt to dry dripping wet items.
Child Safety
oThis appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
oChildren should be supervised to ensure they do not play with
the appliance.
oIt could be possible for a child or pet to gain access to the
tumble dryer through the porthole door. Therefore please check
the drum before using the appliance.
oAny packaging that is removed from the machine should be kept
away from children.

Specifications

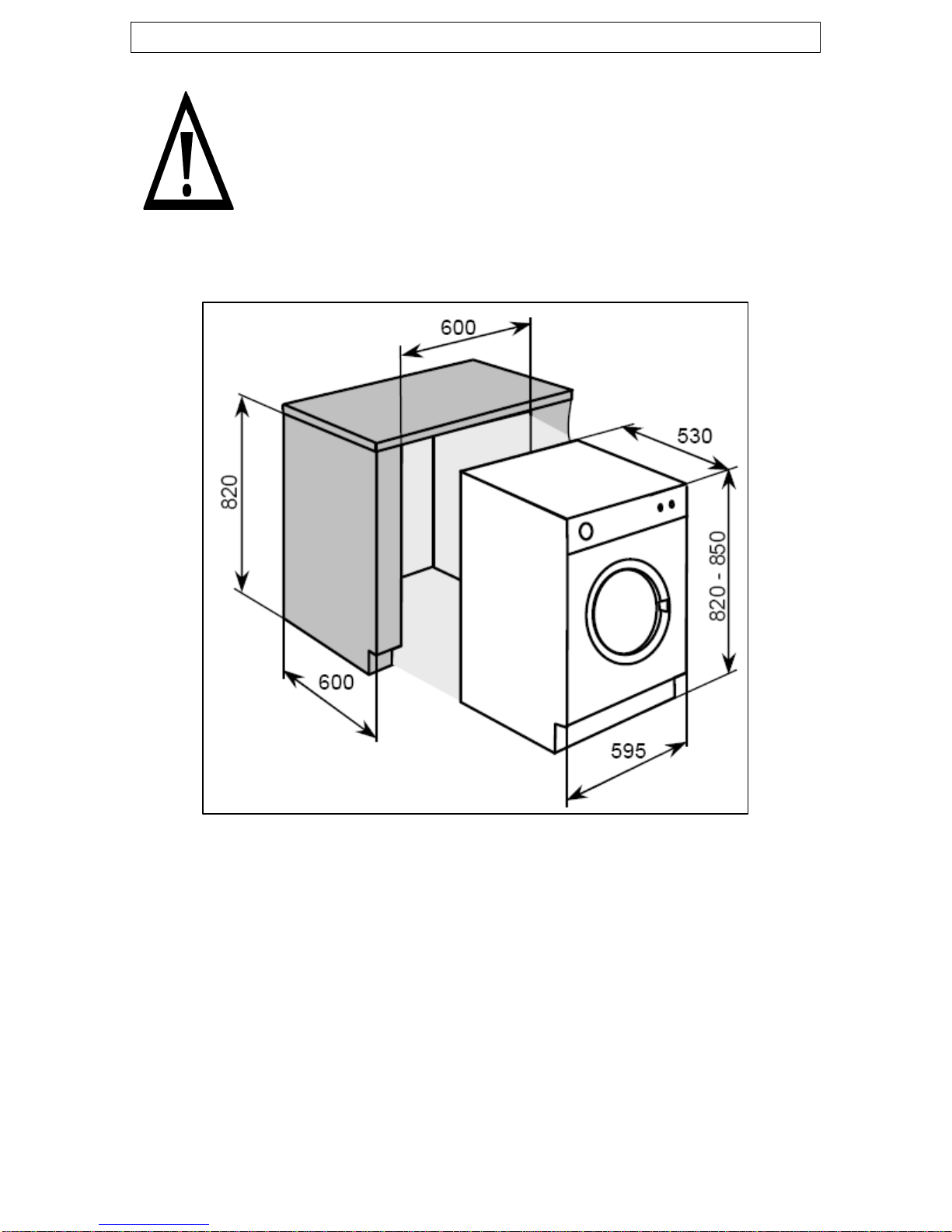

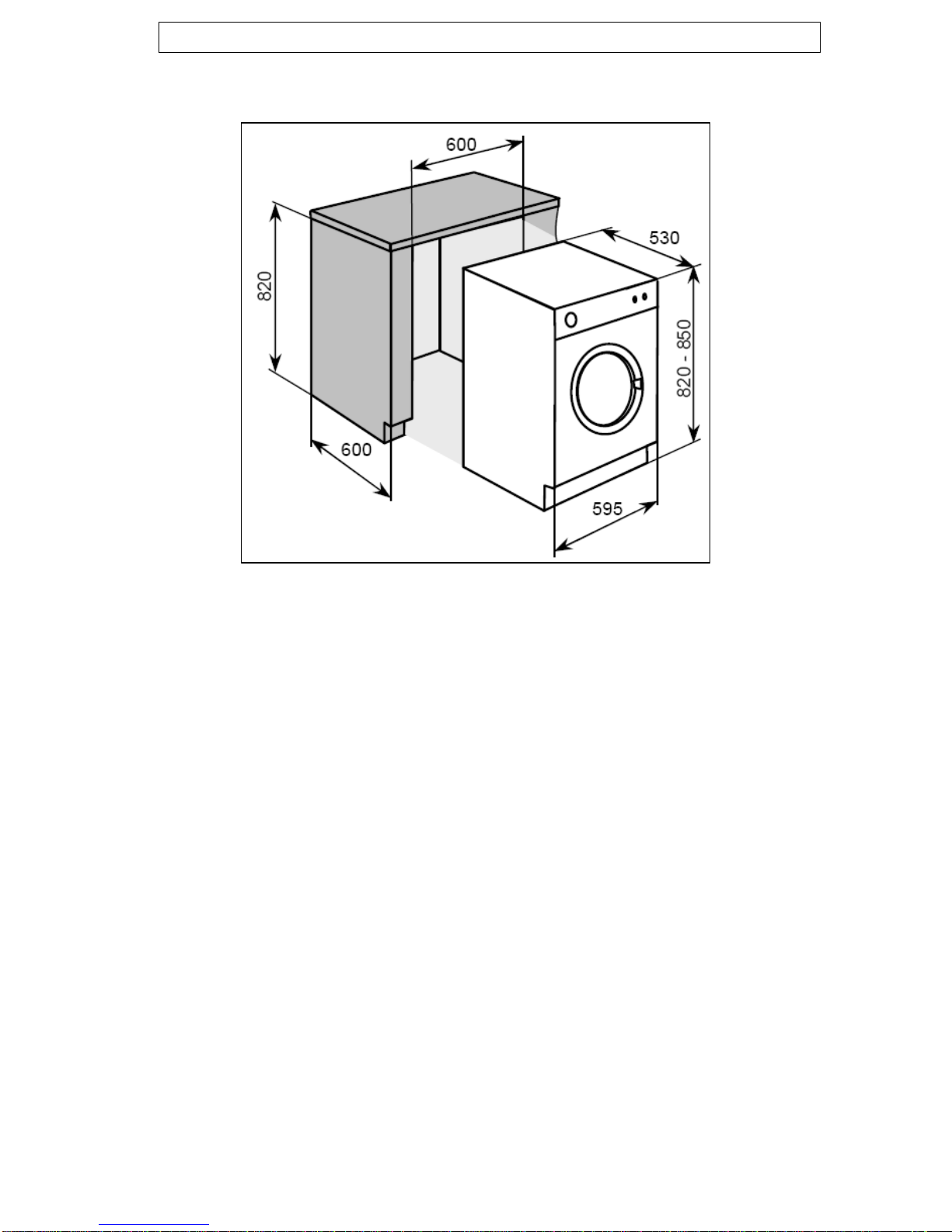

Product and aperture dimensions
Appliance dimensions Aperture dimensions
Height: 820 - 850 mm Height: 820 mm (min)
(excluding décor strip)
Width: 595 mm Width: 600 mm
Depth: 530 mm Depth: 600 mm
Product specifications
oCapacity: 6 kg
o6 drying programs
oAdjustable heat input
oMinute minder up to 140 minutes
oReverse tumble action
o180° door opening
o300 mm porthole diameter
oRemovable fluff filter
oGalvanized drum
oSafety lock
oAnti crease function
oVenting hose
oAdjustable feet
oEnergy efficiency class:C
8

Electrical details
Rated voltage: 220 - 240 Vac 50 Hz
Electrical connection rating: 2.70 kW
Supply connection: 13A
Control panel
A Drying time selection knob
B Program suggestion display
C Heat selection button
D Start button
Drying time selection knob
oTurning the control knob allows you to select the drying time
according to your laundry.
9

Program suggestion display
oThe control panel shows recommendations of drying times and
temperatures for certain types of laundry. The suggestions are
as follows:
Laundry Temperature setting
Drying time
(mins)
Cotton dry 115
Cotton damp dry 60 – 100
Heavy synthetics 20 – 40
Light synthetics 20 – 40
Linens 80 – 120
Polyester cotton 40 - 60
Heat selection button
oPress this button to select the temperature that you require for a
particular wash program.
Low heat
High heat
Start button
oOnce a drying program has been selected, this button should be
pressed to start the drying cycle.
Drying program guidance
oCheck the wash care labels of the garments that you want to
dry, to make sure that they are suitable for drying in a tumble
dryer.
oThe maximum amount of clothing that can be dried in your
appliance in a single drying cycle is 6kg. If the tumble dryer is
overloaded, then the drying performance will be affected and
clothing may come out creased.
oIf you have taken the clothes you want to dry out of a washing
machine with an inadequate spin cycle, roll the clothes in a towel
to remove the excess water.
oIMPORTANT: Do not dry clothes that are dripping wet.
10

oOnly dry garments of the same fabric type in a single drying
program. If heavy and light fabrics are dried in the same drying
cycle, then you will get uneven drying performance.
oWhen drying larger garments such as sheets, it is advisable not
to place more than two garments in the appliance at once. You
should stop the dryer before the completion of a program to
redistribute the load.
oDelicate items such as tights and stockings should be placed
inside a pillowcase before drying.
oDO NOT dry clothes containing foam rubber (latex foam), shower
caps, waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads in the appliance.
oDO NOT dry one item at a time as the garment will roll up and
increase the drying time.
oIMPORTANT: If the clothes become dry before the cycle
has finished, the thermostat will automatically switch off
the heater to prevent over-drying the garments. This will
save energy although the drum will still rotate.
oThere is an automatic 12 minute cool down period at the end of
every cycle, during which the heater switches off. This helps to
minimise creasing.
Care labels
oYou may find the following symbols on the care labels of your
garments. These indicate how to dry the item correctly.
Tumble drying beneficial
Do not tumble dry
Dry flat
11

12
Selecting a drying program
oOpen the tumble dryer door.
oLoad the clothes loosely into the drum. Items such as sheets
should be loaded corner-first.
oClose the door and dry your hands thoroughly.
oSelect the desired drying temperature using the heat selection
button (C). Use the program suggestion display (B) as a guide.
oCheck that the drying time selection dial (A) is in the “0”
position before you adjust it to the required drying time.
Each drying cycle automatically includes a final cooling down
period (cycle) of about 12 minutes. This should be accounted
for when setting a drying time.
oPress the start button (D) and the drum will begin rotating.
oThe tumble dryer will stop when the timer automatically reaches
the “0” position.
Pausing a drying cycle
oIt is possible to remove your clothes or redistribute the load
before the cycle has finished.
oTo stop the machine in the middle of a program, simply open the
door. The drum will stop rotating automatically.
oIMPORTANT: Care should be taken when interrupting a
drying cycle as garments may be hot to touch.
oThe program will continue when the door is closed again and the
start button (D) is pressed.
oTo lengthen or shorten the program when it is in progress, turn
the drying time selection dial (A) to the required time.

13
Maintenance and cleaning
In daily use
oThe filter should be cleaned after each drying cycle.
oLeave the porthole door ajar for a short while after a drying cycle
has completed. This should help to prevent stagnant smells and
to protect the door seal.
oWe suggest that you disconnect the appliance from your mains
supply, when it is not in use.
Control panel and tumble dryer cabinet.
IMPORTANT: Do not use any abrasive cleaner or household polish on
either the control panel or operating parts.
oWipe over the control panel and the external surface of the
machine using a brand new damp cloth with warm water.
The tumble dryer drum
The drum of your tumble dryer is constructed from galvanized steel.
However if there are objects that can rust placed inside the drum, then
it is possible for the drum to become stained.
IMPORTANT: Do not use a descaling agent, iron/steel wool or
scouring agents to clean the drum of your appliance.
Door
oYou should regularly check to see if any deposits have formed,
or there are any foreign bodies in the rubber door gasket. This
sits inside the opening of the porthole door.

The filter
oIt is important to remove fluff from the filter after each drying
cycle.
oYou should disconnect the appliance from the mains supply
before cleaning the filter.
oThe filter is located inside the doorway rim at the bottom, as
shown in the above diagram.
oTo remove the filter, pull it upwards.
oRemove any thread or fluff by hand or with a soft brush.
oSlide the filter back into position.
oWash the filter occasionally in a detergent solution and with a
soft bush to remove all small particles. Do not use an abrasive
cleaning product on the filter.
14

Installation
IMPORTANT: THIS INSTALLATION MUST BE
COMPLETED BY A SUITABLY QUALIFIED PERSON.
BAUMATIC ONLY SANCTION THE INSTALLATION
GIVEN IN THIS INSTRUCTION MANUAL. YOU
SHOULD KEEP THE TRANSIT PACKAGING, IN CASE
YOU NEED TO TRANSPORT THE MACHINE IN THE
FUTURE.
Installing the appliance into a kitchen unit
oYou should ensure that the size of the aperture is the same as
the dimensions given in the above diagram.
oYour dryer is provided with a vent hose which will extend to
approximately 2.4 metres. It is strongly recommended that this
is vented through the wall with the attachment provided.
oThe position of the hole for the vent (100 mm diameter) should
be directly behind the tumble dryer as shown in the diagram on
the next page.
15

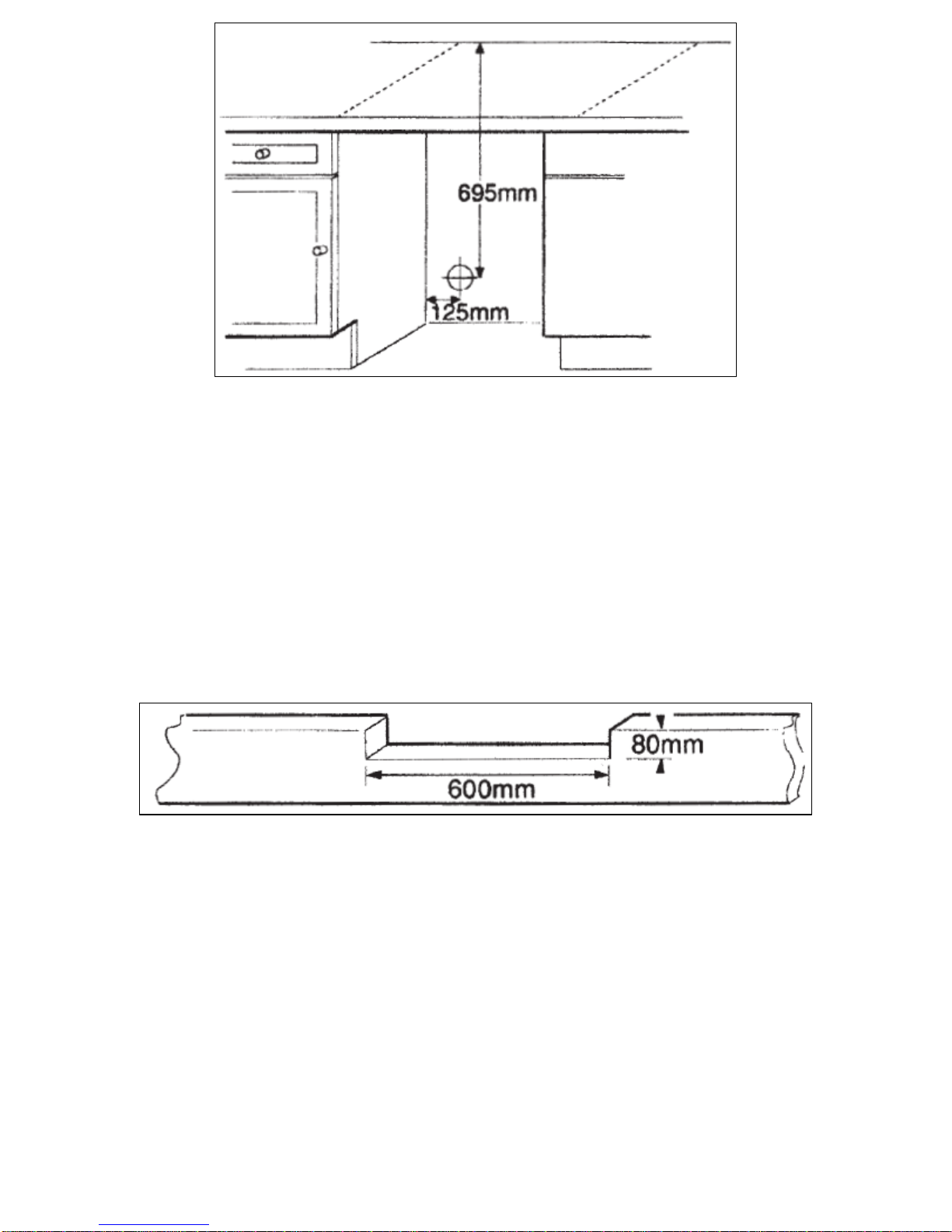

oThe vent hole should be positioned 125 mm in from the left
adjacent kitchen unit and 695 mm below the work surface
above.
oIf the vent through the wall is to be positioned anywhere else
other than behind the dryer, the vent hose should be located at
floor level and through an adjacent side panel to a suitable
position.
oThe plinth must be cut-out to accommodate the air vent grill at
the bottom front of the tumble dryer. The cut-out size required is
shown in the diagram below.
oIMPORTANT: The air vent at the front of the appliance
must never be covered or blocked in any way as this will
cause the dryer to overheat.
16

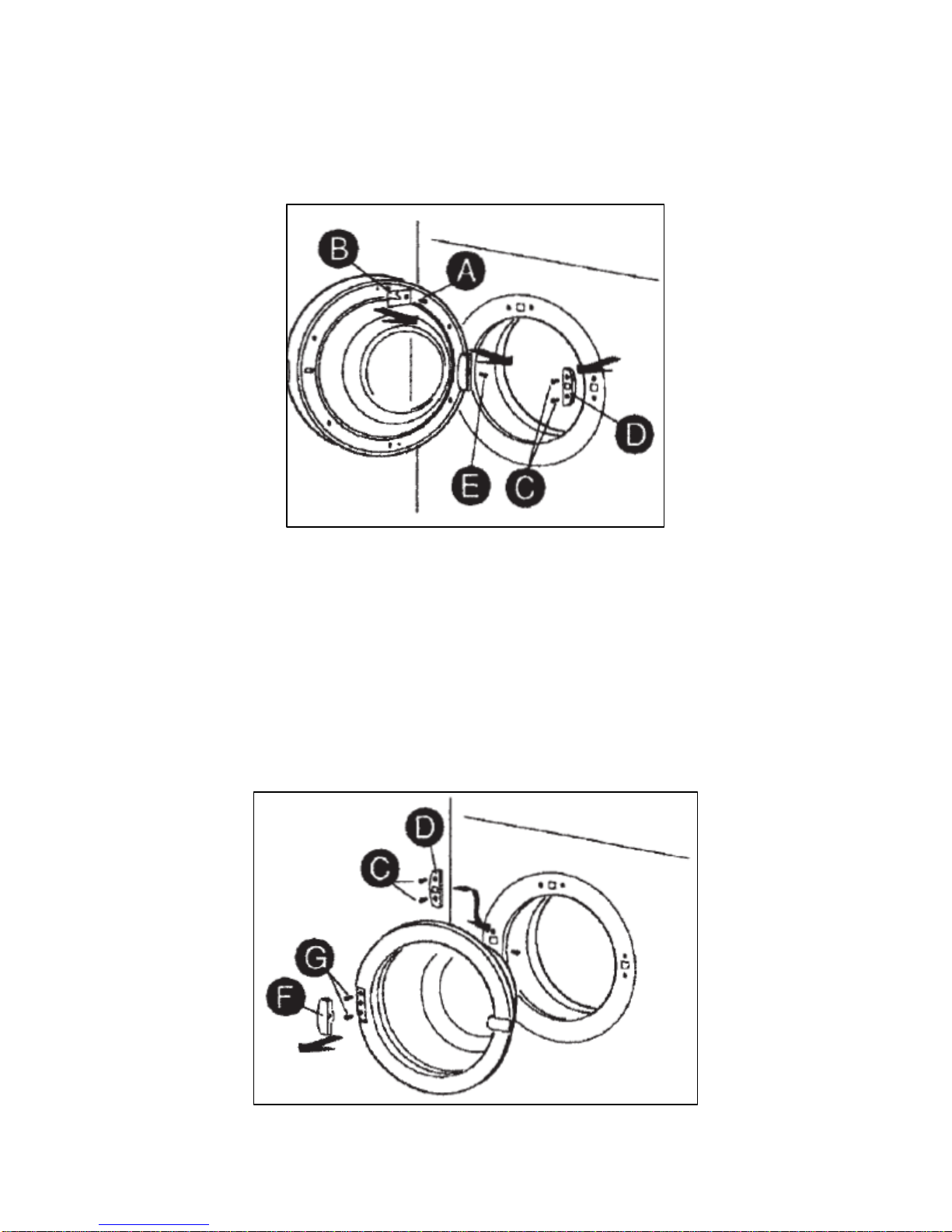

Reversing the dryer door
IMPORTANT: The appliance must be disconnected from the
mains supply before carrying out this procedure.
oThe tumble dryer’s door can be positioned to open either to the
right or the left.
oOpen the dryer door.
oUndo the screw (A), remove the switch strike (B) and replace
the screw.
oRemove the screws (C) and latch plate (D).
oRemove the hinge cover screw (E).
oClose the door.
17

oPull the hinge cover (F) forwards to remove it.
oRemove the two outer screws (G). Remove the door.
oFit the latch plate (D) with screws (C).
oReverse the door and place against the dryer’s doorway so that
it is in the closed position.
oRefit the screws (G) and hinge cover (F).
oOpen the door.
oFit screw (E) to secure the hinge cover.
oRemove the screw (A) at the top of the door and refit strike (B)
as shown in the above drawing.
18

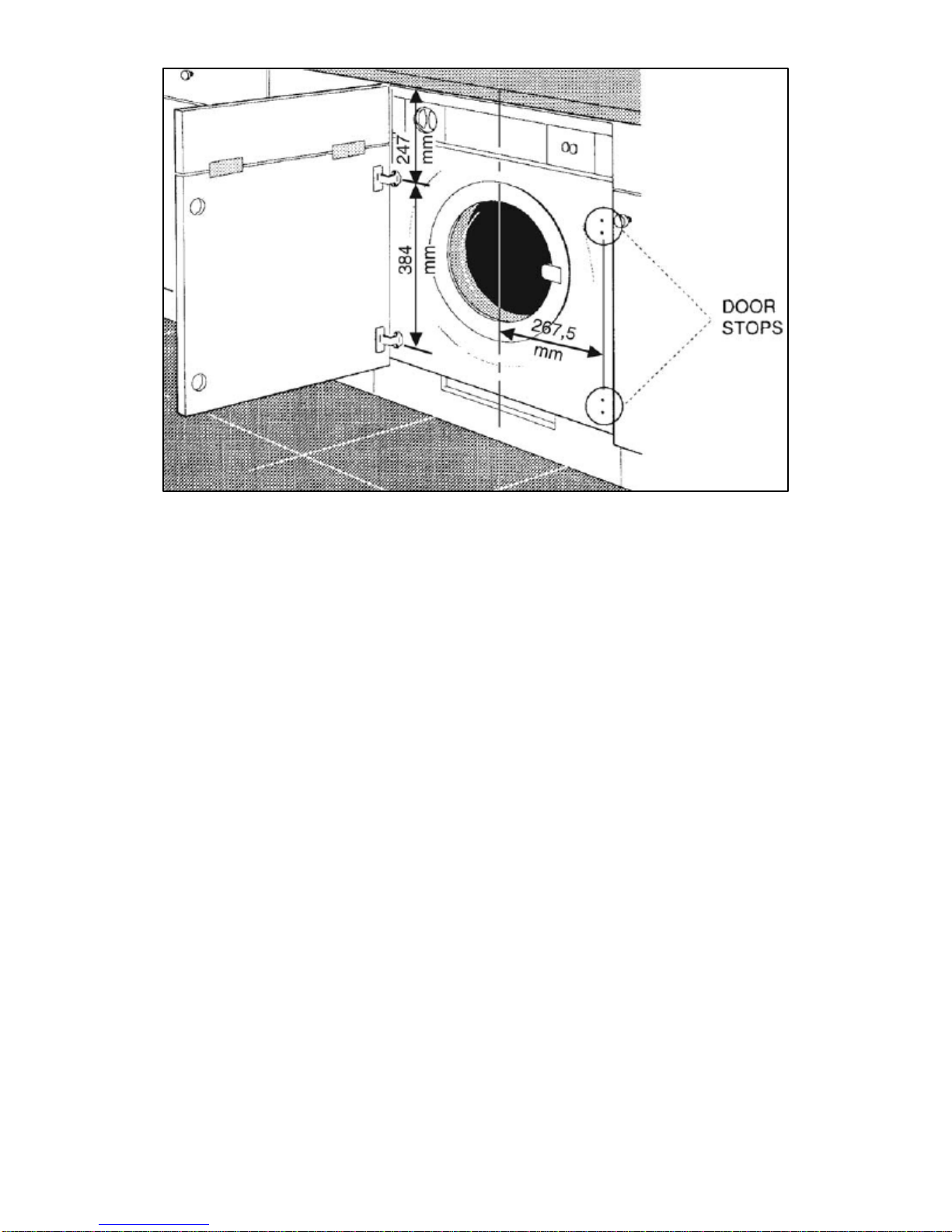

Fitting the décor door
oThe hinges can be fastened through the pre-drilled holes on
either the left or right hand side with the door stops being fitted
on the other side.
oThe décor door and dryer door must be hinged on the same side.
The décor door must not be sliding or lockable.
oPLEASE NOTE: The drawing above shows a décor door
incorporating a false drawer front.
19

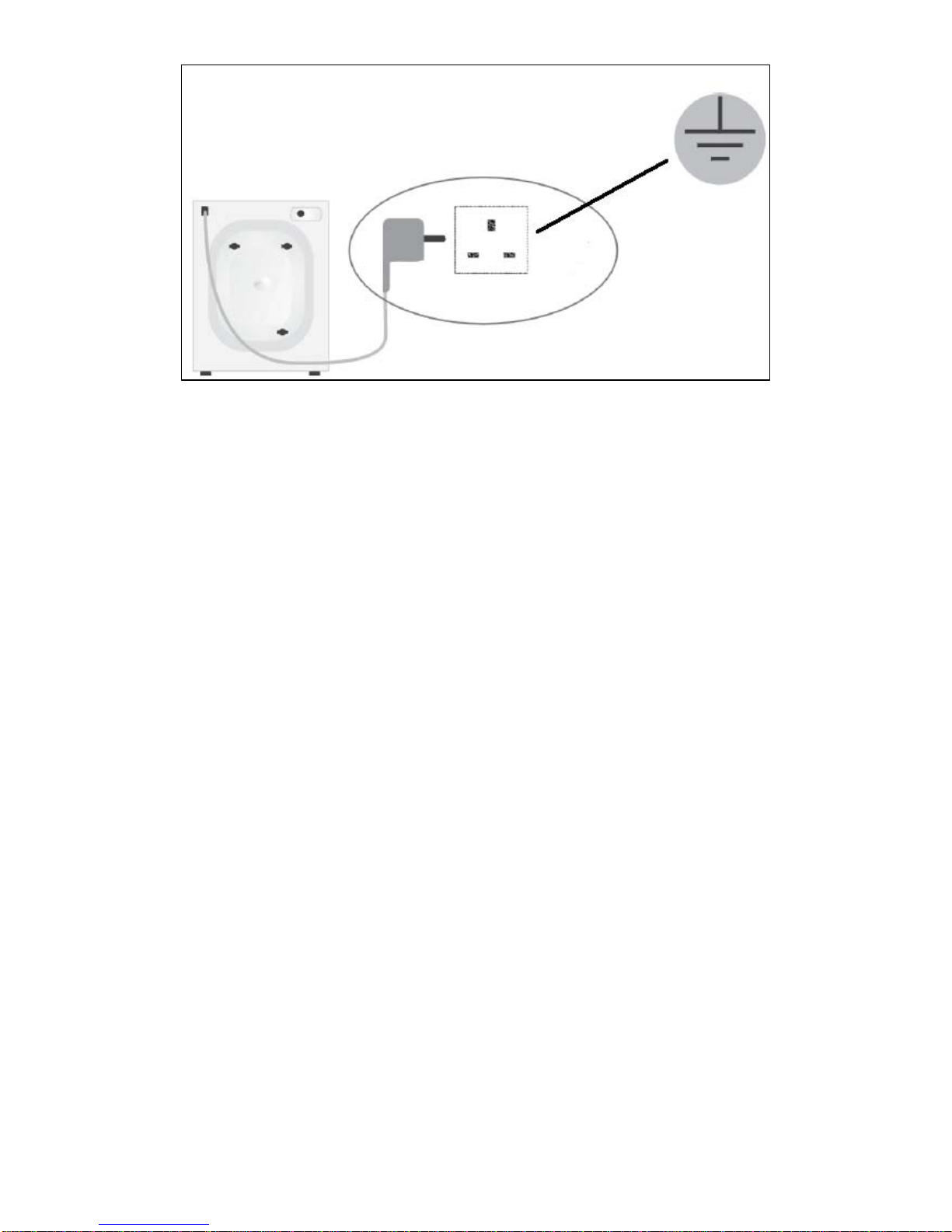

Power supply
oIMPORTANT: As your appliance is a built in product, the
electrical socket or mains switch must still be accessible
once the appliance is installed.
oConsult the rating plate, located on the back of the appliance
BEFORE making the electrical connections. Ensure that the
voltage reaching the plug is the same as that on the rating plate.
oDO NOT REMOVE THE RATING PLATE AS THE
INFORMATION ON IT IS IMPORTANT.
oThe moulded plug that is supplied with the appliance must be
placed into an earthed and insulated socket.
oThe special mains cable and plug assembly must only be
replaced with a genuine part from the Baumatic Spares
department or our appointed service agent.
oIMPORTANT: We do not recommend that this appliance is
connected to an extension lead.
20
