Baumatic BR110 User manual

He
BR110
102 Litres
Built under freezer

USER MANUAL FOR YOUR BAUMATIC
BR110, 102 Litres
Built under freezer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference. for
you or any person not familiar with the operation of the appliance.
JW 11/01/13
2

Contents
Environmentalnote 4
Important safety information 5 – 6
Specifications of your freezer 7 – 8
Dimensions 7
Descriptionoftheappliance 8
Using your Baumatic freezer 9 -11
Beforeswitchingon 9
Duringfirstuse 9
Switching on the appliance and setting the thermostat 10
ControlPanel 11
The freezer compartment 11-14
Tipsonfreezing 12
Makingicecubes 12
Freezing fresh food with fast freeze 13
Saving energy when using your freezer 13-14
Cleaning and maintenance 15-16
Defrosting the freezer compartment 15-16
Installation 17-25
Electrical connection 17-18
Positioning 18
Reversing the door of your appliance 19-20
Aperturedimensions 21
Adjusting the plinth/kickboard 21-22
Fitting the furniture door to the appliance 23-26
Troubleshooting 27-28
Baumatic consumables 29
Technicaldata 30
Contactdetails 31
3

Environmental note
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
4

Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be carried
out by a qualified electrician or competent person.
Use of the appliance
oYour appliance is only designed to be used in the
home. It is suitable for freezing and storing frozen
food. If it is used for any other purpose or it is not
used correctly, then Baumatic Ltd. will accept no
liability for any damage that might be caused.
oAltering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
oCheck the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your supplier.
Refrigerant
oYour appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
oDo not place any objects on top of the appliance,
as this may damage the table top.
5

Child safety
oPackaging material should be kept away from
children.
6
oChildren should not be allowed to touch the
controls or play with the appliance.
General safety
oDo not pull on the power supply cable to remove the plug from
your mains supply socket.
oDo not pull out or insert the plug with wet hands.
oDo not attempt to use your appliance outdoors or
any place where it is likely to come into contact with
the elements.
oBefore cleaning the appliance or performing maintenance work,
ensure that the appliance has been disconnected from your
mains supply.
oNever allow the back coils of the appliance to come into contact
with the wall surface.
oAlways ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
oNever block the ventilation openings of the appliance, either on
the inside or its exterior.
oIt is vital to keep your appliance well ventilated,
so that there is proper air flow between the
bottom of the unit and the plinth/kick plate which
it is sitting on.
oDo not place electrical devices inside of the appliance, such as
mixers and electric ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Customer Care Department.

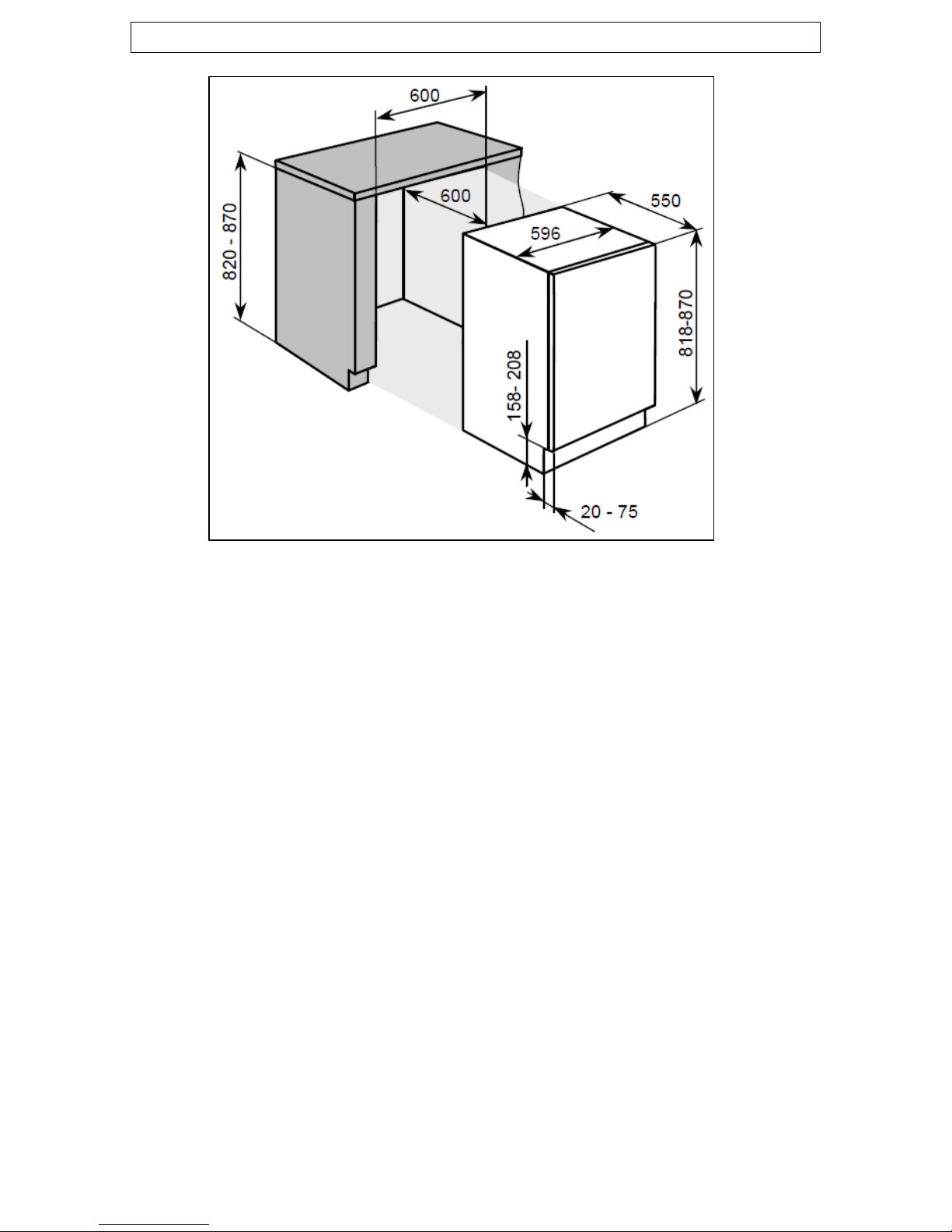

Specifications of your freezer
Dimensions of appliance Dimensions of aperture*
Height: 820 – 870 mm
Height: 818 - 870 mm Width: 600 mm
Width: 596 mm Depth: 600 mm (min)
Depth: 550 mm
oFreezer star rating ****
oManual defrost
oAdjustable thermostat
oTemperature rise warning indicator
oFast freeze switch
oFast freeze indicator light
o3 Transparent freezer drawers
oReversible door
oDoor on door fittings
oAdjustable feet
oIce cube tray
Cubic capacities
oGross capacity: 102 litres
oNet capacity: 100 litres
Energy efficiency class
Energy class: A+
7

IMPORTANT: When you install your appliance it is important to bear
in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should
check the rating plate. The rating plate is located on the front left edge
of the inside of the fridge. You will need to open the door of your
appliance to be able to find it.
The rating plate will indicate the ambient temperature range that your
appliance will function correctly within.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

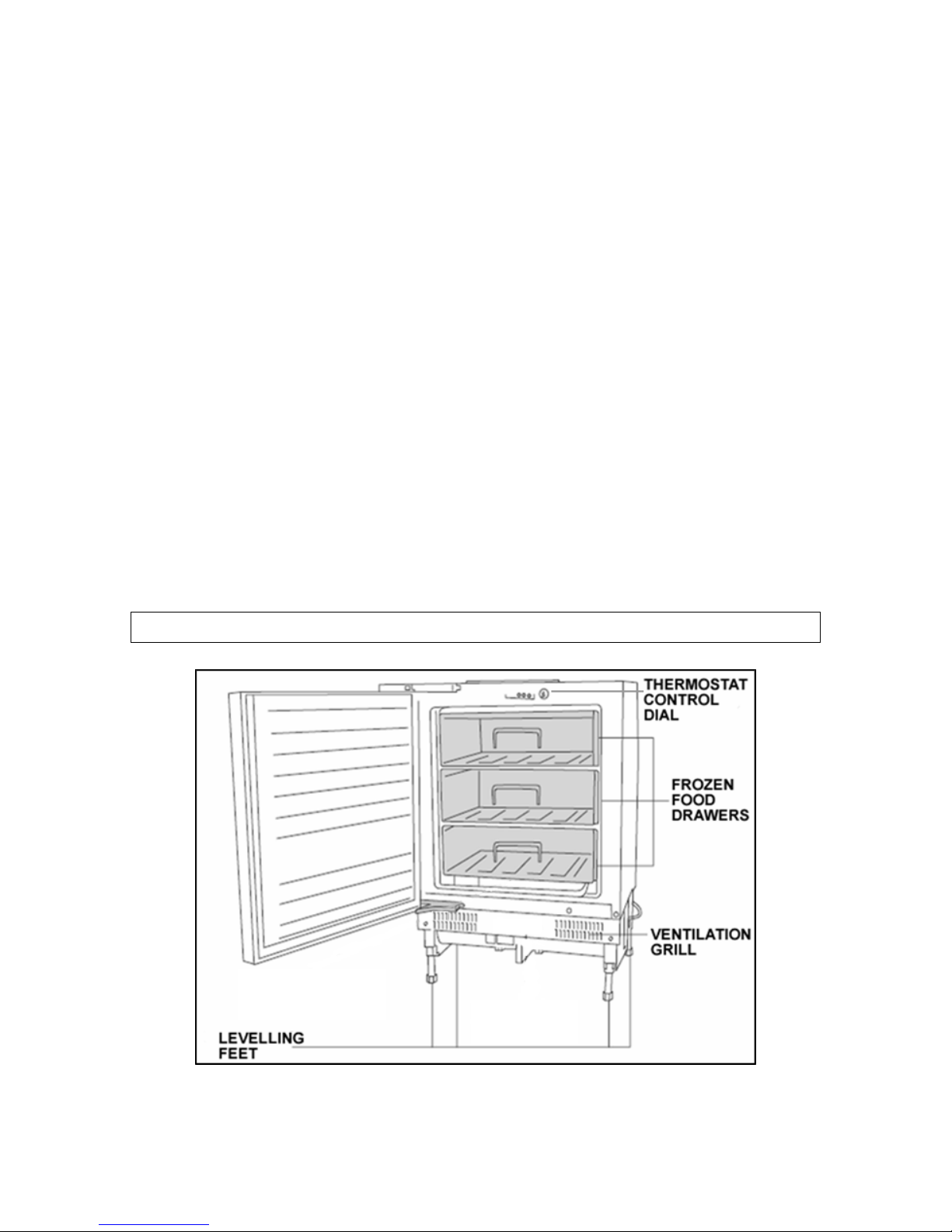

Description of the appliance
NOTE: Image is for reference only and may slightly differ from
your product.
8

Using your Baumatic freezer
Before switching on
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
oAfter delivery, wait for eight hours before connecting the
appliance to your mains supply. This will allow any refrigerant
gasses that may have been disturbed during the transportation
process to settle.
oThe outside of the appliance and the removable accessories
contained within it, should be cleaned with a solution of liquid
detergent and water.
oThe interior of the appliance should be cleaned
with a solution of sodium bicarbonate dissolved in
lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning
process has been completed.
oThere can be an odour when you first switch on the appliance. It
will lessen as the appliance starts to cool.
During first use
oYou should set the thermostat dial to its maximum setting for 24
hours after switching on the appliance for the first time.
oWhen you first switch on the appliance, the compressor will run
continuously for approximately 24 hours or until the freezer
reaches a cool enough temperature.
oDuring this period of time, you should try not to open the door
frequently or place a large amount of food within the appliance.
oYou should then adjust the thermostat dial down to its normal
operating position.
oIf the unit is switched off or unplugged, you must allow at least 5
minutes before restarting the appliance on the thermostat or
connecting it to your mains supply.
9

Switching on the appliance and setting the thermostat
You switch on your appliance by connecting it to your mains supply
and setting the thermostat. The thermostat control knob is located at
the top of the appliance.
oThe thermostat automatically regulates the temperature inside the
freezer, depending on what number you have turned the
thermostat control knob to:-
oPosition <0> means that the appliance will not cool. However the
light will still function.
oPosition <1> will give you a higher temperature inside the freezer.
oPosition <5> will give you a lower temperature inside the freezer.
oIdeally the thermostat should be set to position between <3>.
oThe freezer can cool down to -18 degrees centigrade and lower.
oIMPORTANT: The ambient temperature of the room, the
temperature of food and the amount of food that has been
placed in the appliance and how often the door is opened,
will all affect the temperature being maintained by the
appliance.
oOn the maximum setting (position <5>), your freezer will work
harder to maintain a lower temperature and will increase the
energy usage. There is no need to run your appliance on this
setting for prolonged periods.
10

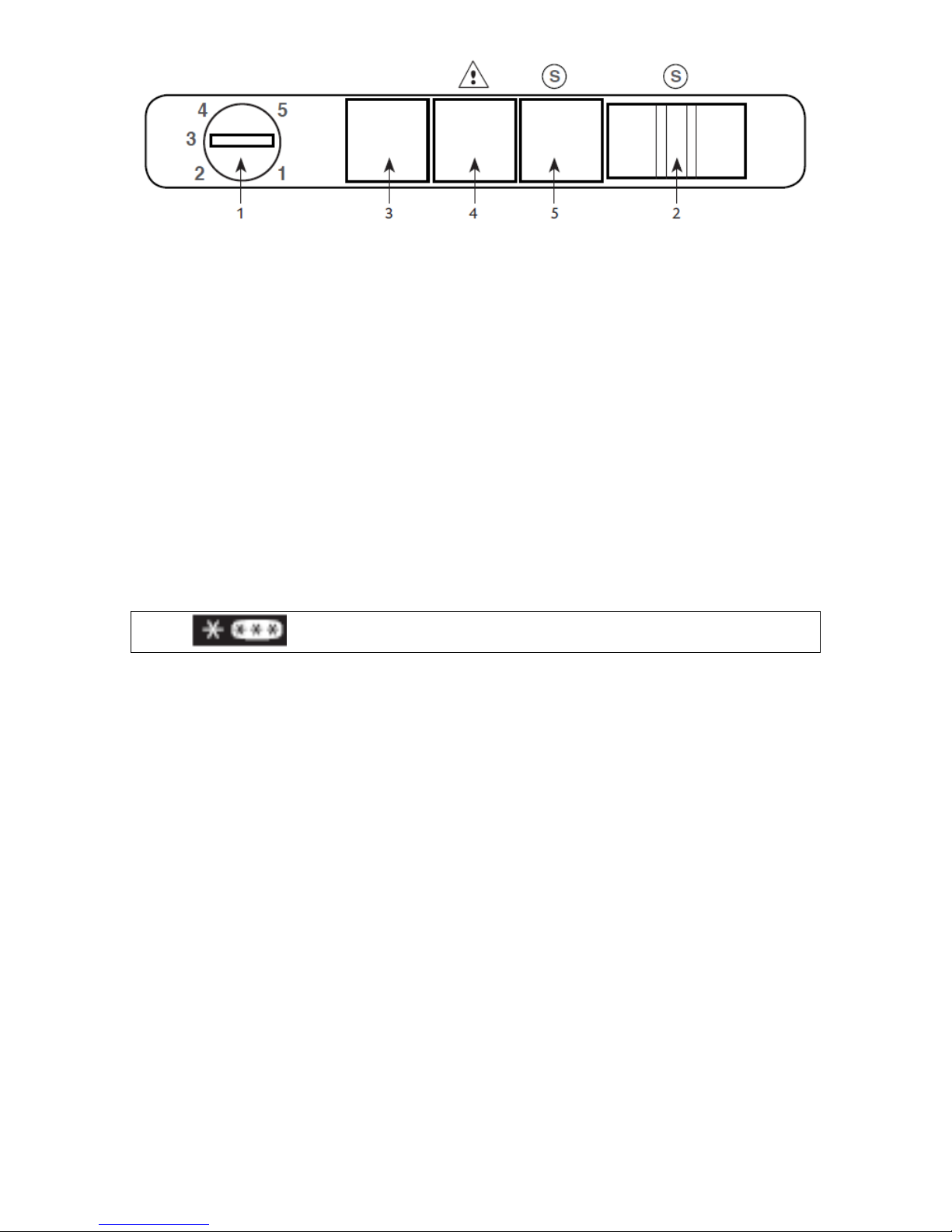

Control panel
1. Thermostat control dial.
2. Super freeze switch
3. Power indicator light
4. Temperature warning light
5. Fast freeze indicator light
oPower light (Green) - will light up as soon as the appliance is
connected to your mains supply.
oFast freeze light (Yellow) - will light up when the fast freeze
switch has been activated.
oTemperature rise warning light (Red) - will light up when the
appliance detects a rise in temperature that could affect the
contents of your freezer.
The freezer compartment
oThe freezer compartment temperature must have already reached -
18 degrees centigrade (or lower) before you attempt to store food
that is already frozen or freezing fresh food.
oThe freezer compartment is only able to freeze a certain quantity of
food at one time. You should not attempt to freeze more than 4.5
kilograms of fresh food within a 24 hour period.
oWarm food should be allowed to cool down before you attempt to
freeze it. If you place warm food in the freezer, then the increased
humidity will cause quicker ice formation and increase the amount
of power that the appliance uses.
oThe guidance of the food manufacturer should be followed, in
regard to the maximum storage time.
oThawed foods must not be frozen for a second time.
11
oDo not open the freezer door too often or leave the door open for
long periods of time, as this will increase the temperature inside of
the appliance and will increase the energy usage.

Tips on freezing
oFreezer bags, polythene wraps, aluminium foil (extra thick) and
special cans for frozen foods are suitable packaging for storing
frozen goods in.
oTape, rubber bands or plastic clips are suitable for sealing bags and
wrappings.
oBefore sealing a suitable bag, you should compress the
air out of it, as this will help the food to freeze more
easily.
oFlat packages freeze more easily.
oIf you are freezing liquid, then do not fill the container to the brim.
Liquids will expand when being frozen.
12
oDo not place bottles (glass or tin) containing
liquids (especially sparkling liquids) into the
freezer as they could cause the bottle to burst
during freezing.
Making ice cubes
oFill the ice cube tray with water and place it in the freezer
compartment.
oAfter the water is completely frozen and turned to ice, you can twist
the ice cube tray (as shown in the drawing below) to dispense the
ice.

Freezing with fast freeze
This function should be used whilst you are freezing fresh food, it will
ensure that a powerful supply of cold air enters the freezer
compartment.
13
oPress the fast freeze switch (2) and the freezer will start to run
continuously at its maximum setting.
oThe yellow fast freeze light (5) will come on when the fast freeze
setting has been switched on.
oThere is no need to adjust the thermostat knob.
oThe freezer temperature will decrease and the appliance will get to
its lowest temperature.
oPlace the food that is to be frozen inside the freezer.
oOnce the food is frozen, you should switch off the fast freeze
setting. DO NOT SWITCH OFF THE FAST FREEZE SETTING
UNTIL THE FOOD IS FULLY FROZEN.
oThe orange fast freeze light will go out and your appliance will
return to normal operation.
IMPORTANT: DO NOT LEAVE THE APPLIANCE RUNNING IN FAST
FREEZE MODE FOR LONGER THAN 24 HOURS AT A TIME.
Saving energy when using your freezer
Installing:
oInstall the appliance in a cool position. If it is placed in direct
sunlight or next to an oven or other heat source, the energy
consumption can increase substantially.
oEnsure the appliance is installed with the correct ventilation
requirements. Restricting ventilation can increase the energy
consumption by 15%.

14
Cleaning and Maintenance:
oOccasionally clean the condenser coils (if present) at the back of
the appliance to maintain a high performance level.
oDefrost the appliance regularly. A build up of thick ice decreases
the efficiency of the appliance. You should defrost whenever the
frost reaches 5 mm thickness.
oClean the door gasket with warm water or a neutral detergent
that leaves no residue. A tight-sealing door gasket is critical to
the efficiency of your appliance.
Usage:
oDo not open the door repeatedly or more frequently than you
have to.
oDo not set the thermostat too low. A change of just one degree
can effect the energy consumption by 5%. Use a thermometer to
check the temperature.
oThe freezer should operate at -15 to -18 degrees Celsius.
oAllow food to sufficiently cool before putting it in the appliance
(but don’t let it sit at room temperature for too long).
oIn the freezer, food packages should be scattered and never
grouped or stacked together until they are completely frozen.
oIf you are going away for a long period of time, turn off the
appliance, empty and clean it and leave the door ajar.
oIf you have a second appliance that is not used, make sure that
it is stored with the power off and the door left ajar until it is
actually required.
Disposing:
oIf you're going to throw out your old freezer, see if there's a
chlorofluorocarbons (CFCs) recycler in your area. The
government department which looks after the environment in
your area may be able to help you.

Cleaning and maintenance
WARNING: PLEASE ENSURE THAT YOUR
APPLIANCE IS DISCONNECTED FROM
YOUR MAINS SUPPLY BEFORE
ATTEMPTING TO CLEAN IT.
15
oDo not clean the appliance by pouring water onto it
or spraying water over it.
oThe freezer should be cleaned periodically, using a
solution of bicarbonate of soda and lukewarm water.
oClean the accessories separately with soap and water.
Do not clean them in a dishwasher.
oDo not use abrasive products, detergents or soaps.
oAfter washing the appliance, wipe over the area that you have
cleaned with a damp cloth and then dry it thoroughly.
oWhen cleaning is complete, dry your hands and then reconnect
the plug to your mains supply.
Defrosting the freezer compartment
The frost in the freezer compartment should be removed periodically.
You can use a plastic scraper to keep down the amount of frost that
builds.
IMPORTANT: The freezer should be defrosted at least twice a
year. The number of times that you need to defrost it, will
depend on the setting of your thermostat and how much food
you freeze and store in the freezer.
oThe day before you defrost, turn the thermostat dial to position
<5>, this will make sure that the food contained in the freezer is
frozen properly.

16
oWhilst defrosting the appliance, the food should be removed from
the freezer and wrapped in several layers of paper and stored in a
cool place. The foods rise in temperature will shorten its storage life
and therefore the food should be used within a relatively short
period of time.
oDO NOT PLACE FOOD BACK IN THE FREEZER ONCE IT HAS
STARTED TO THAW.
oSet the thermostat knob to position <0> and disconnect the
appliance from your mains supply.
oLeave the door to the freezer open. You can place a bowl of warm
water inside the freezer to speed up the defrost process.
oYou can use a sponge to mop up the defrost water that will run into
the bottom of the freezer.
oIMPORTANT: You should place some old towels on the flooring
that is immediately in front of the appliance. In case any defrost
water comes out of the freezer and onto the floor.
oOnce all the ice that has built up has melted, then the inside of the
freezer should be dried thoroughly. Failure to do this will result in
immediate ice build when the appliance is switched back on.
oWith dry hands, reconnect your appliance to your mains supply. Set
the thermostat knob to position <5> for a 24 hour period, before
returning it to the normal setting of <3>.
oYou should not attempt to freeze fresh food inside the freezer until
this 24 hour time period has elapsed.
oDo not defrost the appliance with other electrical devices
(e.g. hair dryer). Do not use sharp metal objects to remove
the ice on the freezer, as this could cause damage to the
refrigerant system.

Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found on the front left edge of the
inside of the freezer.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR FREEZER IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
We recommend that the appliance is connected by a
qualified electrician, who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E. and local regulations.
oYour freezer comes supplied with a 13 amp plug fitted. If in
future you need to change the fuse in this plug, then a 13 amp
ASTA approved (BS 1362) fuse must be used.
oThe wiring in the mains lead is coloured as follows:
Brown Live
Blue Neutral
Green and yellow Earth
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
The brown wire must be connected to the terminal marked “L”
(live), or coloured red.
The blue wire must be connected to the terminal marked “N”
(neutral), or coloured black.
The green and yellow wire must be connected to the terminal
marked “E” (earth), or by the earth symbol, or coloured green
and yellow.
oWhen the connection is completed, no stray strands or cut wire
should be present. The cord clamp must be secured over the
outer sheath.
17

Positioning
oIt is advisable that your appliance is only installed in a location
where the ambient temperature of the room, corresponds with
the climate classification that is stated on the rating plate of your
appliance. Your appliance may not function correctly if the
ambient temperature falls outside of the following ranges.
Climate classification
Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N +16 to +32 degrees centigrade
ST +16 to +38 degrees centigrade
T +16 to +43 degrees centigrade
oYour appliance should not be located in direct sunlight or
exposed to continuous heat or extremes of temperature (e.g.
next to a radiator or boiler).
oThe door should be able to open completely and freely.
oThe appliance should be situated so you can easily access the
food that is stored in it.
oYou should check whether there is an electrical socket available,
which will be accessible after your appliance is installed.
18

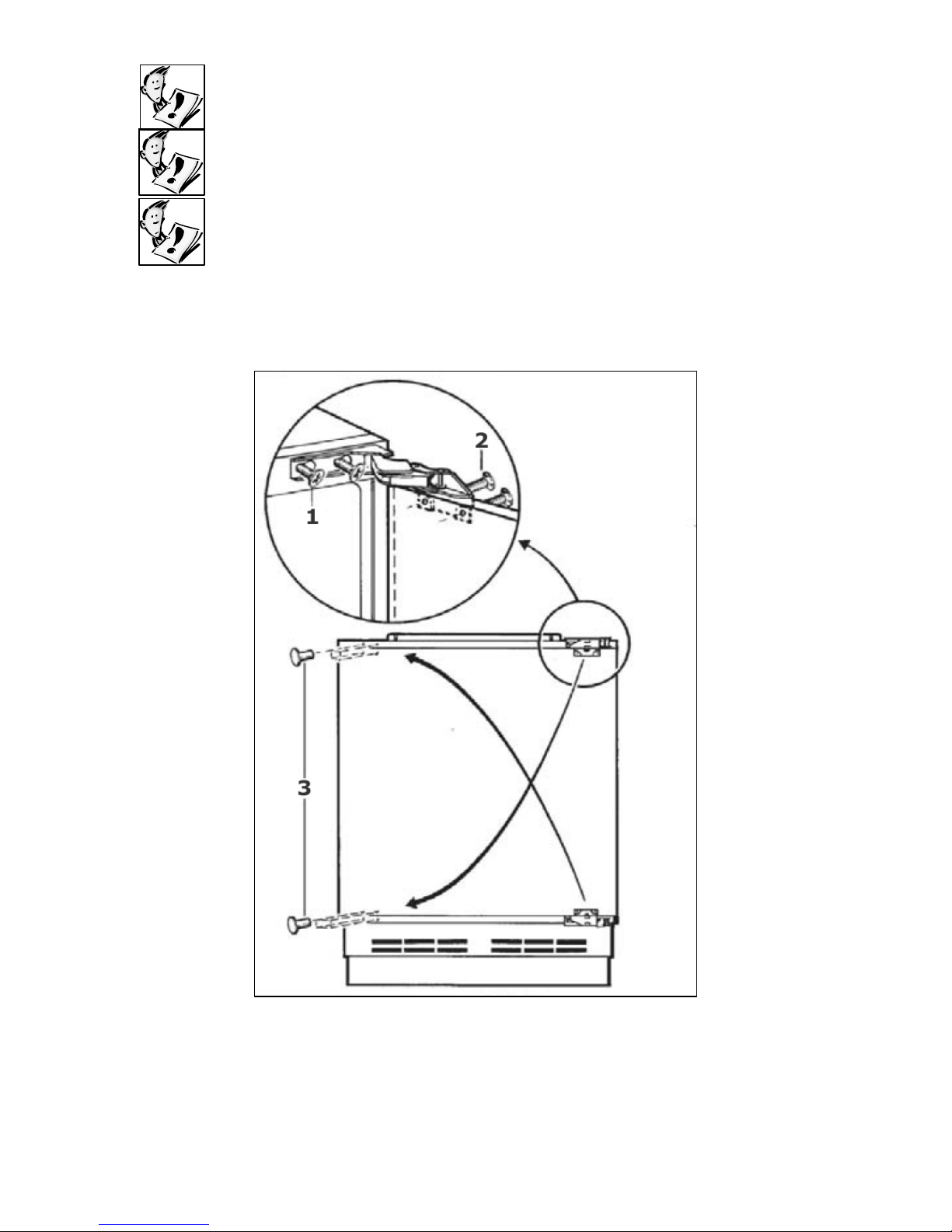

Reversing the door of your appliance
This procedure MUST be completed before the furniture door
is attached.
Any parts that you remove from the appliance whilst reversing
the door, should be retained for later use.
WARNING- Take care when opening the hinges, they
are sprung loaded and there is the risk of injury if they
close on your hand.
Tools required:-
oPhillips screwdriver
oFlat bladed screwdriver
19
n the appliance and then
carefully remove the appliance door.
oor on a cushioned surface, so that damage
oSlacken the retaining screws (1) o
oPlace the appliance d
does not occur to it.

20
Lever off the cover caps (3).
se screws should be
partially tightened but not fully tightened.
top and bottom hinge (as shown in the diagram
on page 18).
ten the
retaining screws (1) and the door retaining screws (2).
oles that are now exposed on
the right hand side of the cabinet.
ouling, after you have completed the door reversal
rocess.
will be a gap
etween it and the inside of the door.
oThe seal must adhere properly all the way around the door.
ot adhering to the cabinet properly, then you
should either:-
s
adhere to the cabinet properly, all the way around the door.
or
will allow you to
manipulate the seal into the correct position.
NOT BE RECTIFIED UNDER
HE GUARANTEE FREE OF CHARGE.
o
oInsert the retaining screws (1) into the opposite side of the
appliance from their original position. The
oRemove the door retaining screws (2) and then reverse the
position of the
oReattach the appliance door and then fully re-tigh
oInsert the cover caps (3) into the h
IMPORTANT: Check that the door opens and shuts correctly,
without f
p
After the door has been reversed, you should check
the door seal of the appliance. The seal should not
be creased or crushed; otherwise there
b
oIf the seal is n
1. Use a warm damp cloth and manipulate the seal until it doe
2. Use a hair dryer on its lowest heat setting and lightly heat the
areas of the door seal that are not adhering correctly. The
heat will make the seal more pliable and this
IMPORTANT: DO NOT HEAT THE DOOR SEAL ON ANYTHING BUT
THE LOWEST HEAT SETTING, OR HEAT THE SEAL FOR A LONG
PERIOD OF TIME. OTHERWISE DAMAGE MAY BE CAUSED TO
THE DOOR SEAL, WHICH WOULD
T
