Baumatic TITAN2 User manual

s
TITAN2 Stainless steel
side by side frost free
fridge/freezer
Get user manuals: See SafeManuals.com

USER MANUAL FOR YOUR BAUMATIC
TITAN2 Stainless steel side by side
541 litre frost free fridge/freezer
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
DD 11/04/07
2
Get user manuals: See SafeManuals.com

Contents
Environmental note 4
Important safety information 5 – 6
Specifications of your fridge freezer 7
Dimensions of the appliance 7
Energy efficiency class 7
Cubiccapacities 7
Specifications of your appliance 7
Descriptionoftheappliance 8
Description of the product features 9-10
Using your Baumatic fridge freezer 11
Beforeswitchingon 11
Duringfirstuse 11
Controlpanel 12
Turning on the appliance 13
Setting the thermostat in the freezer 13
Setting the thermostat in the fridge 13-14
Turning on the super freezer option 14
Turning on the super refrigerator option 15
Arranging and storing food in the fridge section 15-16
The freezer compartment 17
Freezingfreshfood 17
Tipsonfreezing 18
Activating the child lock 18
The dispenser 19
Before first use 19
Usingthedispenser 19-20
The ice maker 20
Dispenser and ice maker warnings 21
Lockingtheicemaker 21
Removing and replacing the ice cube storage case 22
Water filter change icon 22
Important user information 22
Cleaning and maintenance 23-25
Defrosting the freezer compartment 25-26
Replacing the light bulb 26-27
Installation 28
Electricalconnection 28
Positioning 29
Installation preparation 30
Removing the freezer door 30-31
Removing the fridge door 32
Replacing the freezer door 33-34
Replacing the fridge door 34-35
The water inlet hose and water filter 35
Connecting the water inlet hose and water filter 35-38
Levelling the appliance and adjusting the doors 39
Fitting the front cover 39
Replacing the water filter 40
Troubleshooting 40-41
Baumatic Ltd. conditions of guarantee 42
Contact details 43
3
Get user manuals: See SafeManuals.com

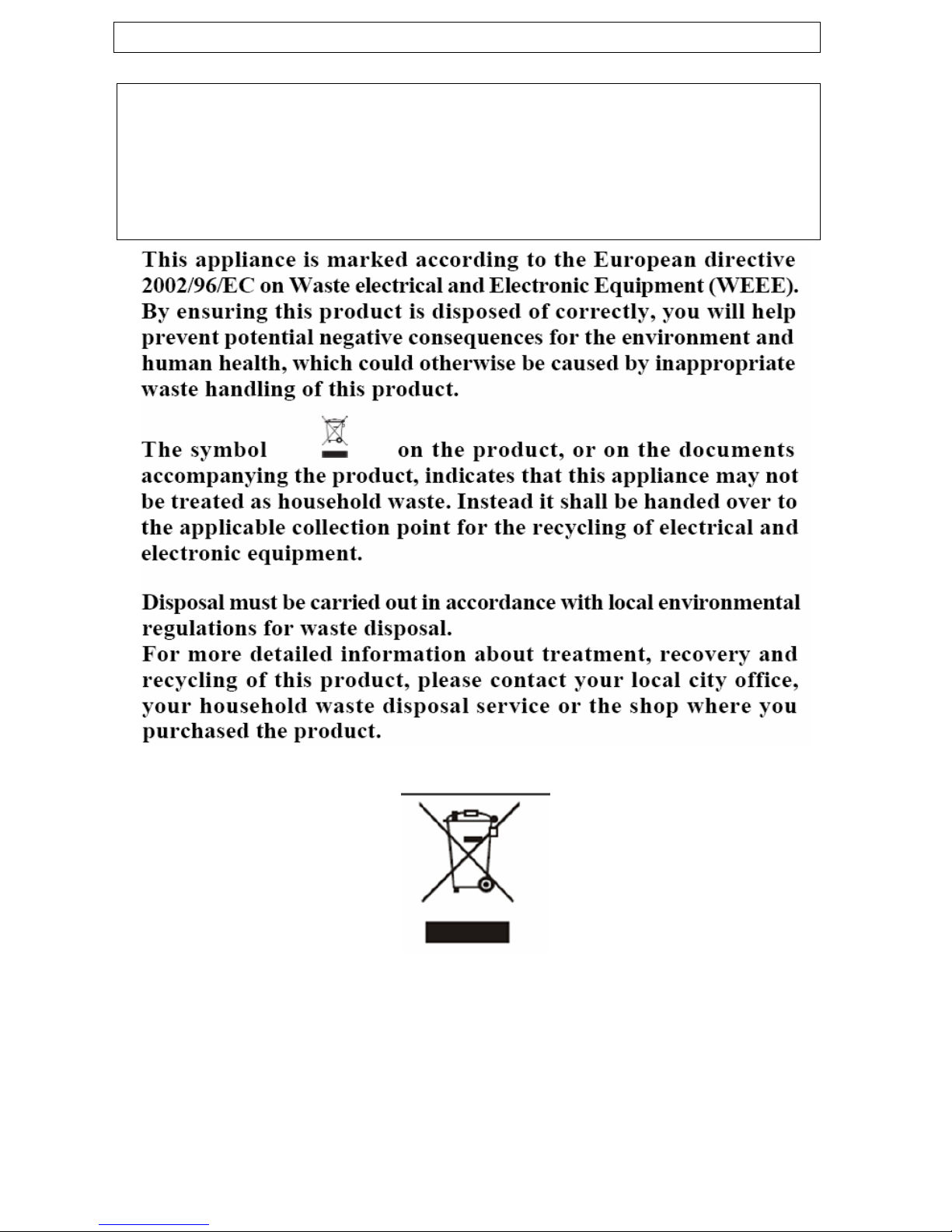

Environmental note
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4
Get user manuals: See SafeManuals.com

Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Technical
Department.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
Use of the appliance
oYour appliance is only designed to be used in the
home. It is suitable for storing food that needs to
be chilled and refrigerated. If it is used for any
other purpose or it is not used correctly, then
Baumatic Ltd. will accept no liability for any
damage that is caused.
oAltering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
oCheck the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
oYour appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
5
oDo not place any objects on top of the appliance,
as this may damage the table top.
Get user manuals: See SafeManuals.com

Child safety
oPackaging material should be kept away from
children.
oChildren should not be allowed to touch the
controls or play with the appliance.
General safety
oDo not pull on the power supply cable to remove the plug from
your mains supply socket.
oDo not pull out or insert the plug with wet hands.
6
oDo not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
oBefore cleaning the appliance or performing
maintenance work, ensure that the appliance has been
disconnected from your mains supply.
oNever allow the back coils of the appliance to come into contact
with the wall surface.
oAlways ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
oNever block the ventilation openings of the appliance, either on
the inside or its exterior.
oIt is vital to keep your appliance well ventilated,
so that there is proper air flow between the
bottom of the unit and the plinth/kick plate
which it is sitting on.
oDo not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Baumatic Service Department.
Get user manuals: See SafeManuals.com

7
Specifications of your fridge freezer
Congratulations on purchasing a Baumatic fridge freezer
Dimensions of your appliance
oHeight: 1790 mm
oWidth: 900 mm
oDepth: 730 mm
Energy efficiency class
oEnergy class: A
Cubic capacities
oGross capacity (fridge): 357 litres
oGross capacity (freezer): 184 litres
oNet capacity (fridge): 334 litres
oNet capacity (freezer): 170 litres
Specifications of the appliance
oFrost free fridge and freezer
oMulti airflow cooling system
oDigital control panel
oIce maker
oWater dispenser
oDeodorizer
oAnti-bacterial surface
o4 Safety glass shelves
oMeat drawer
oFolding wine tray
o2 Salad crispers
o2 Egg racks
oButter compartment
o3 General racks
o2 Bottle racks
o4 Freezer shelves
o6 Freezer storage compartments
o2 Removable plastic drawers
oIce cube tray
oDoor storage
IMPORTANT: When you install your appliance it is important to bear
in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should
check the rating plate. The rating plate is located on the front left edge
of the inside of the fridge section. You will need to open the door of
your appliance to be able to find it. The rating plate will indicate the
ambient temperature range that your appliance will function correctly
within.
Get user manuals: See SafeManuals.com

Description of the appliance
Freezer section
1) Door storage compartments
2) Freezer shelves (x 4)
3) Dried foods compartment
4) Meat storage compartment
Fridge section
5) Refrigerator shelves (x 4)
6) Movable egg container
7) Salad/vegetable drawer
8) Fruit drawer
9) Dairy compartment
10) Door storage compartments
12) Wine rack
8
Get user manuals: See SafeManuals.com

9
Description of the product features
Shelves
oThe shelves may be placed in any of the guide slots within the
interior of the appliance. They are protected from sliding out.
oTo remove a shelf: Take off all of the items that are stored on
the shelf that you want to remove. Then lift the front of the shelf
and carefully pull it out of the grooves.
Freezer section door storage compartments
oThe top door storage compartment should not have ice cream or
foods that are going to be stored for a long period of time put in
it.
oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE
SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS
THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.
Dried foods compartment
oFor storage of dried foods (such as dried herbs, dried vegetables
etc).
Meat storage compartment
oFor storage of meat and fish (we would recommend that they
are stored in a foil cover or a vinyl wrap).
Fridge section door storage compartments
oThe door liner holds various shelves, which are suitable for
storing eggs, cheese, butter and yogurt. As well as smaller
packages, tubes, cans etc.
oThe lower shelves should be used for storing reasonably sized
bottles.
oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE
SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS
THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.
Movable egg container
oThis case can be placed on any shelf, depending on how the food
in your fridge is arranged.
Get user manuals: See SafeManuals.com

10
Salad/vegetable drawer
oFor storing salad and vegetables, the drawer is designed to keep
the contents fresh for as long as possible.
Fruit drawer
oFor storing fruits, the drawer is designed to keep the contents
fresh for as long as possible.
oCare should be taken when storing tropical fruit (bananas and
pineapples etc) and tomatoes. As these types of items can easily
deteriorate in a lower temperature.
Dispenser
oWill dispense chilled water, cubed ice or crushed ice.

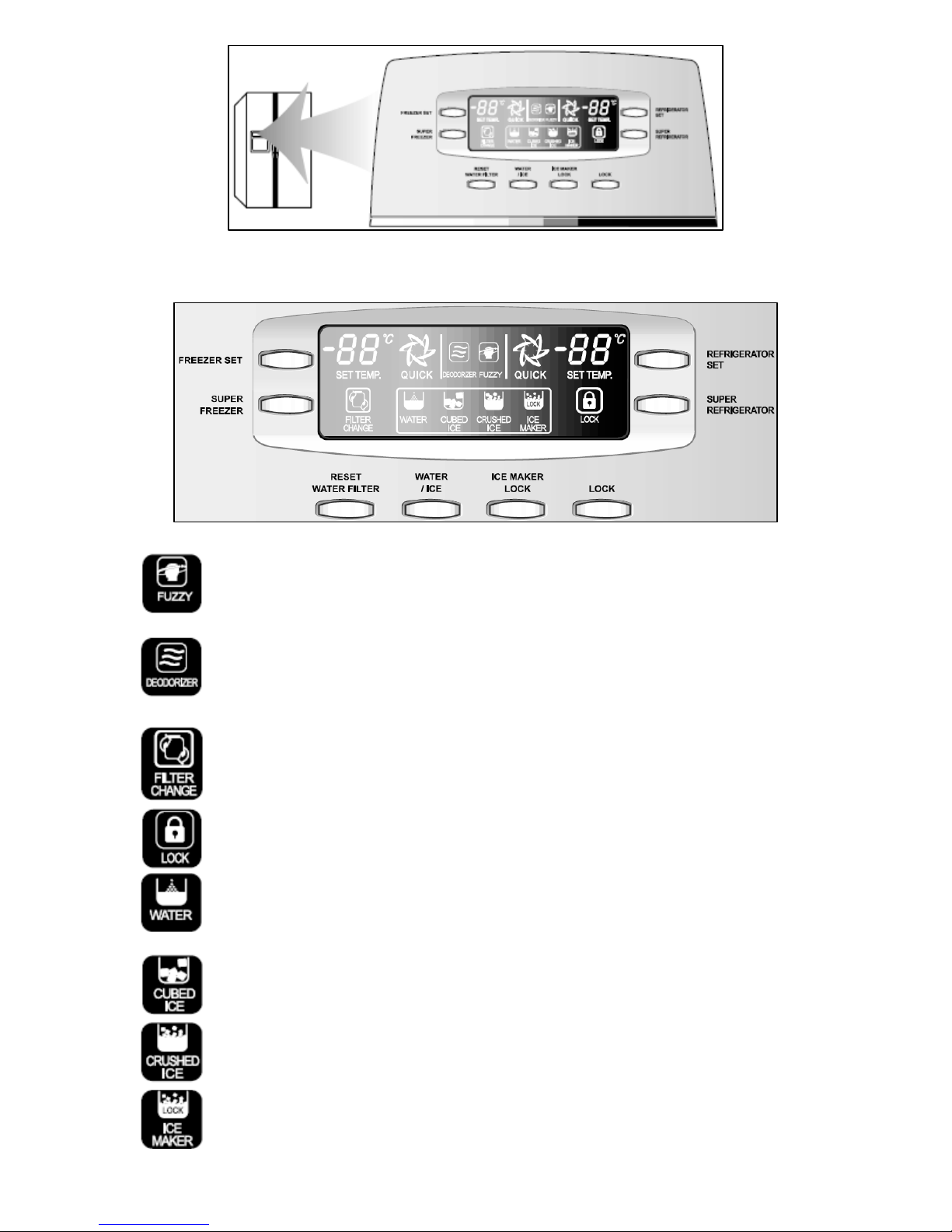

Digital control panel
oShows the temperature that the fridge and freezer are set at.
oShows what option the water dispenser is set at.
oShows whether the child lock is engaged.
oShows whether the water filter needs changing.
Deodorizer
oAn antibiotic deodorizer that keeps food fresher, prevents the
growth of bacteria and helps to remove odours from the
appliance.
Get user manuals: See SafeManuals.com

Using your Baumatic fridge freezer
Before switching on
oMake sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
oAfter delivery, wait for eight hours before connecting the
appliance to your mains supply. This means that any refrigerant
gasses that may have been disturbed during the transportation
process are allowed to settle.
oThe outside of the appliance and the removable accessories
contained within it, should be cleaned with a solution of liquid
detergent and water.
oThe interior of the appliance should be cleaned
with a solution of sodium bicarbonate dissolved in
lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning
process has been completed.
oThere can be an odour when you first switch on the appliance. It
will lessen as the appliance starts to cool.
During first use
oWhen you first switch on the appliance, the compressor will run
continuously for approximately 24 hours or until the fridge
freezer reaches a cool enough temperature.
oDuring this period of time, you should try not to open the door
frequently or place a large amount of food within the appliance.
oIf the unit is switched off or unplugged, you must allow at least 5
minutes before restarting the appliance on the thermostat or
reconnecting it to your mains supply.
11
Get user manuals: See SafeManuals.com

Control panel
The control panel is located in the front of the freezer door, above the
dispenser.
This should always be displayed when the appliance is
connected to the mains supply. It shows that the digital
control system is operating the appliance.
12
This should always be displayed when the appliance is
connected to the mains supply. It shows that the deodorizer is
operating correctly.
This will light when the water filter needs to be replaced.
This will light to show that the child lock is engaged.
A rectangle will show around this icon, when the dispenser is
set to the chilled water option.
A rectangle will show around this icon, when the dispenser is
set to the cubed ice option.
A rectangle will show around this icon, when the dispenser is
set to the crushed ice option.
This will light to show that the dispenser has been set to not
dispense ice.
Get user manuals: See SafeManuals.com

Turning on the appliance
oYou switch on your appliance by connecting it to your mains
supply.
Setting the thermostat in the freezer
oPress the FREEZER SET button to set the temperature in the
freezer section.
oThe temperature that you have selected will show in the digital
display next to the FREEZER SET button.

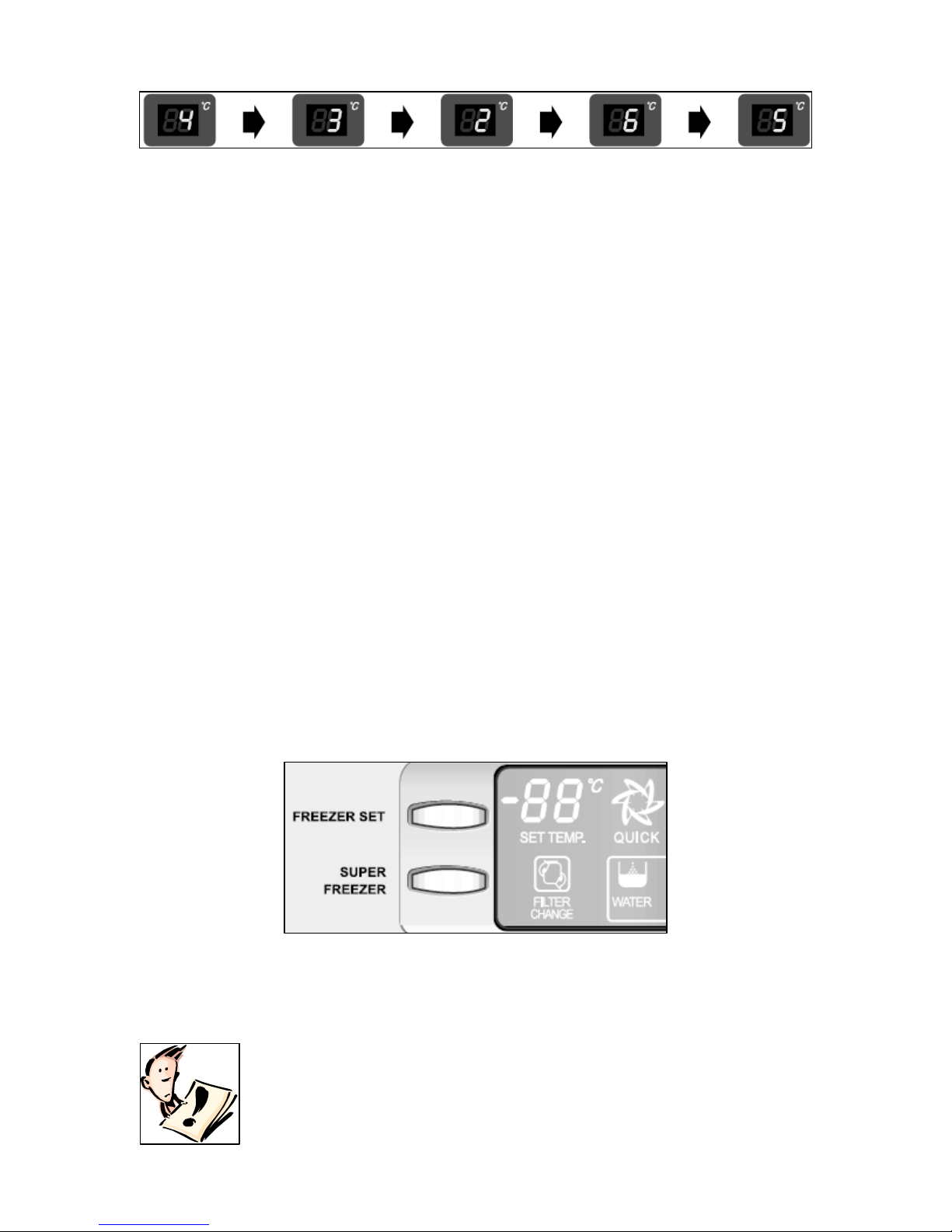

oThe temperature shown in the display will count through in the
sequence shown below:-
oWe would recommend that the freezer section is set to a
minimum temperature of -18°C.
oWhen the desired temperature appears on the digital display,
release the FREEZER SET button, after a few seconds the
temperature will be selected.
oOn the maximum setting (-22°C), the freezer section will work
harder to maintain a lower temperature. There is no need to run
your appliance on this setting for prolonged periods and you
should return the temperature setting to (-18°C).
Setting the thermostat in the fridge
oPress the REFRIGERATOR SET button to set the temperature in
the fridge section.
oThe temperature that you have selected will show in the digital
display next to the REFRIGERATOR SET button.
13
Get user manuals: See SafeManuals.com

oThe temperature shown in the display will count through in the
sequence shown below:-
oWe would recommend that the fridge section is set to a
minimum temperature of 5°C.
oWhen the desired temperature appears on the digital display,
release the REFRIGERATOR SET button, after a few seconds
the temperature will be selected.
oOn the maximum setting (2°C), the fridge section will work
harder to maintain a lower temperature. There is no need to run
your appliance on this setting for prolonged periods and you
should return the temperature setting to (4°C or 5°C).
oIMPORTANT: The ambient temperature of the room, the
temperature of food and the amount of food that has been
placed in the fridge freezer and how often the door is opened,
will all affect the temperature being maintained by the appliance.
Turning on the super freezer option
This setting should be used before and whilst you are freezing fresh
food, it will ensure that a powerful supply of cold air enters the freezer
compartment.
oPress the SUPER FREEZER button to turn on the super freezer
option.
oThe QUICK symbol will light to confirm that the super freezer
option has been switched on.
IMPORTANT: This mode should only be used prior to
and when freezing fresh food. You should not run
the appliance in super freezer mode for prolonged
periods. After the food is frozen press the SUPER
FREEZER button again to switch off this option.
14
Get user manuals: See SafeManuals.com

Turning on the super refrigerator option
This setting should be used if you want to chill something quickly, it
will ensure that a powerful supply of cold air enters the fridge
compartment.
oPress the SUPER REFRIGERATOR button to turn on the super
refrigerator option.
oThe QUICK symbol will light to confirm that the super
refrigerator option has been switched on.
IMPORTANT: You should not run the appliance in
super refrigerator mode for prolonged periods. After
the food is chilled press the SUPER REFRIGERATOR
button again to switch off this option.
Arranging and storing food in the fridge section
oWarm food or evaporating liquids should not be stored in your
refrigerator, as this will increase the humidity inside of the
appliance.
oAll foods should be wrapped or covered, this is particularly
important if the food has a strong flavour. You should use
polythene bags or sheets, aluminium foil, wax paper. Liquids
should be stored in covered containers or bottles.
oTo maximise the space inside of the fridge section, any excessive
packaging on the food should be removed.
oQuickly perishable food should be stored at the back of the
refrigerator, which is the coldest part of the appliance.
oNo food items should be allowed to come into contact with the
back wall of the refrigerator.
15
Get user manuals: See SafeManuals.com

16
oMake sure that you arrange food in such a way that the door can
close completely. Particular attention should be given to bottles
that may protrude when placed on shelves inside the main
section of the refrigerator.
oSome organic solutions, such as the oils in lemon/orange peel
and acid in butter, can cause damage to the plastic parts
contained inside of the refrigerator.
oDo not open the refrigerator door too often or leave the door
open for long periods of time, as this will increase the
temperature inside of the appliance.
oMeat should be wrapped in polythene bags and then placed on
the glass shelf above the vegetable drawer. (Meat should only
be stored in this manner for one or two days at the most).
oCold dishes/cooked food should be covered and can be placed
on any shelf or in the chiller case.
oSalad and vegetables should be cleaned thoroughly and placed
in the salad/vegetable drawers.
oFruit should be cleaned thoroughly and placed in the fruit
drawer.
oCheese and butter should be placed in airtight containers, or
they can be wrapped in aluminium foil or polythene bags. As
much air as possible should be removed from the bags.
oMilk bottles should have a cap on them and be stored on the
bottle shelves that sit in the door.
oGarlic, potatoes, onions and bananas should only be
stored in a refrigerator IF they are stored in airtight
containers.
Get user manuals: See SafeManuals.com

The freezer compartment
The freezer compartment is suitable for storing and freezing food.
oThe freezer compartment temperature must have already
reached -18 degrees centigrade (or lower) before you attempt to
store food that is already frozen or freezing fresh food.
oThe freezer compartment is only able to freeze a certain quantity
of fresh food at one time. The maximum amount of fresh food
(in kilograms) that can be frozen in a 24 hour period is listed on
the rating plate.
oWarm food should be allowed to cool down before you attempt
to freeze it. If you place warm food in the freezer compartment,
then the increased humidity will cause quicker ice formation and
increase the amount of power that the appliance uses.
oThe guidance of the food manufacturer should be followed, in
regard to the maximum storage time.
oThawed foods must not be frozen for a second time.
Freezing fresh food
oTo freeze the maximum quantity of fresh food
specified above, you should press the SUPER
FREEZER button 24 hours prior to attempting
freezing.
oTo freeze smaller quantities of fresh food, you
should press the SUPER FREEZER button a
few hours prior to attempting freezing.
oFresh food should be packed into airtight containers
or packaging. This will help to make sure that the
food doesn’t dry out or lose its flavour. It will also
ensure that flavour does not transfer from other
foods.
oDo not allow fresh food to touch items that
are already frozen.
17
oAfter 24 hours you should check that the
fresh food is satisfactorily frozen. If it is then
you should press the SUPER FREEZER
button again to return the appliance to
normal operation.
Get user manuals: See SafeManuals.com

Tips on freezing
oFreezer bags, polythene wraps, aluminium foil (extra thick) and
special cans for frozen foods are suitable packaging for storing
frozen goods in.
oTape, rubber bands or plastic clips are
suitable for sealing bags and wrappings.
oBefore sealing a suitable bag, you should
compress the air out of it, as this will help
the food to freeze more easily.
oFlat packages freeze more easily.
oIf you are freezing liquid, then do not fill the
container to the brim. Liquids will expand
when being frozen.
oDo not place bottles (glass or tin)
containing liquids (especially sparkling
liquids) into the freezer as this could
cause the bottle to burst during
freezing.
Activating the child lock
Your appliance is fitted with a lock that will prevent a child from
changing the temperature settings or any other settings that can be
activated from the control panel.
oPress the lock button once and the child lock will activate. The
lock icon will light on the display.
oTo switch off the child lock, press and hold the lock button for
longer than one second. The lock icon on the display will go out.
18
Get user manuals: See SafeManuals.com

The dispenser
When your fridge/freezer is first connected to your mains supply, it will
automatically select chilled water mode and the water symbol will
light.
Before first use
You should not attempt to dispense ice for 24 hours after
the appliance is first connected to your mains supply.
oOnce the fridge and freezer sections have cooled sufficiently
place a cup against the PUSH pad in the dispenser and pour out
a couple of glasses of water.
oIMPORTANT: These first couple of glasses should not be drunk
and the water should be poured down the sink.
Using the dispenser
oThe dispenser can produce chilled water, cubed ice and crushed
ice.
oPress the WATER/ICE button until a rectangular line shows
around what you want the dispenser to produce.
19
Get user manuals: See SafeManuals.com

20
oPlace a cup against the pad in the dispenser and push it, after a
few seconds it will dispense water, cubed ice or crushed ice.
What comes out of the dispenser will depend on what option you
selected before pushing the pad.
oYou should place the glass directly underneath the water/ice
chute and not rest it on the base of the dispenser. Otherwise
water/ice can spill or splash.
oWhen the dispenser is producing ice, you should remove the
cup/glass from the dispenser chute when it is half full, otherwise
you may get ice overflowing or the dispenser outlet could
become blocked.
oShortly after ice has come out, you will hear a snapping sound
which is a shut off valve operating, this stops further ice from
being dispensed.
o1 hour after you have dispensed cubed or crushed ice, the
selection mode will return to chilled water automatically.
The ice maker
o7-8 times a day, the ice maker will automatically produce
approximately 10 ice cubes.
oThese ice cubes will be stored in the ice cube storage case (see
page 8 for the location of this).
oIf the ice storage case becomes full, then the automatic ice
making operation will stop.
oIt is normal for there to be banging sounds, whilst the ice is
being deposited into the ice cube storage case.
oIf you use the dispenser several times in quick succession, then
the ice cube storage case may empty. You will then need to wait
approximately 24 hours for the ice maker to refill it.
Get user manuals: See SafeManuals.com
