Baumatic BHC925SS User manual

1
BHC925SS 90 cm
Front touch control
ceramic hob

User Manual for your Baumatic
BHC925SS
90 cm Front touch control 5 hyperspeed
zone ceramic hob.
2
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 23/03/10

3
Contents
Environmental note 4
Important safety information 5 – 8
Specifications 8 - 10
Product and aperture dimensions 8
Product specifications 8
Standardaccessories 9
Electricaldetails 9
Ceramichobsurfacelayout 9
Control panel layout 10
Cooking zone indicators and neon’s 10
Usingtheceramichob 11 - 23
Before first use 11
Touchcontrols 11
Turningthehobon 11
Turning on a zone and setting a power level 12
Turning on the multi circuit zones 12 - 13
Turning off the outer circuit of a multi circuit zone 13 - 14
Turning off a zone gradually 14
Turning off a zone instantly 14
Turningthehoboff 15
Residualheatindicator 15
Lockingthehobtop 16
Safety cut-off 16 - 17
Automatic pre-heating 17 – 18
Increasing the power level during automatic pre-heating 18
Switching off automatic pre-heating 19
Thepausefunction 19
Therecallfunction 20
The hob timer (countdown mode) 20 - 21
The hob timer (switching a zone off) 21
The hob timer (switching multiple zones off) 22
Hobguidelines 22-23
Cleaning and maintenance 24 - 25
Cleaning the ceramic hob top 24
Aftereachuse 24
Cleaning table 24
Using a ceramic hob scraper 25
Using a specialist ceramic hob cleaner 25
Installation 25 - 31
Positioning 26
Unpacking the appliance 26
Installing the appliance 27 – 28
Electricalconnection 29
Connecting the mains supply cable 29 – 30
Replacing the mains supply cable 30 - 31
My appliance isn’t working correctly 31 – 32
Contact details 33

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
all packaging material with due regard for the
environment.
oPlease discard

5
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
ooklet, please contact the Baumatic Advice Line.
ehold use and for
ambient temperature of the
scolouration at
of this temperature limit, will be the liability of
Guarantee. The foregoing does not
t of Baumatic Ltd.
ld not use this appliance to store items on or as a work
kept away
atic service
b
General Information
This appliance is designed for domestic houso
the cooking and frying of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention
the owner.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
affect your statutory rights.
oThe use of this appliance for any other purpose or in any other
environment without the express agreemen
will invalidate any warranty or liability claim.
oYou shou
surface.
oNo modifications to the appliance are permitted by Baumatic Ltd.
oYou should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be
from the appliance, as they may fuse to the surface.
oRepairs may only be carried out by Baum
engineers or their authorised service agent.

6
hild Safety
any time.During and after use, all
surfaces will become hot.
se ensure that they are kept under close supervision
at all times.
uld only be allowed to utilise the appliance
when supervised.
eneral Safety
C
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at
oIf it is necessary for younger family members to be in the
kitchen, plea
oOlder children sho
G
The appliance should only be installed and connected by a
suitably qualified person.
Care should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
If you notice any scratches, splits or cracks in the ceramic glass,
you should immediately switch off the appliance and disconnect
it from your mains supply. Otherwise there is the risk of electric
shock occurring.
uring use D
Any film or stickers that are present on the hob surface when it
is delivered should be removed before use.
Care should be used when utilising the appliance, otherwise
there is a risk of burns being caused.
t with the hob surface when it is hot or any hot
cookware.
ng with fat and oil the appliance should
not be left unattended.
oYou should not allow the electrical connection cables to come
into contac
oIf fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooki
Make sure that all of the cooking zones are switched off after
use.

7
leaning
Cleaning of the hob should be carried out on a regular basis.
appliance, it
should be disconnected from the mains and cool.
using this appliance and when
following the cleaning procedure.
other high pressure
cleaning equipment to clean the appliance.
section of this booklet that refers to
stallation.
aresult of improper
use or installation of this appliance.
eclaration of conformity
This appliance complies with the following European Directives:
89 EMC Directive inclusive of
9/109/EEC dated 25/01/1992 Materials that can touch food.
ce
must be used by a trained person for domestic purposes only.
o avoid damaging your appliance
The ceramic glass can be damaged by objects falling onto it.
ic glass edge can be damaged by knocks from
cookware.
es
may scratch the ceramic surface if they are dragged across it.
C
o
oIMPORTANT: Before attempting to clean the
oGreat care should be taken whilst
oYou should not use a steam jet or any
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions. Please see
the specific
in
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as
D
-73/23/EEC dated 19/02/1973 Low Voltage Directive.
-89/336/EEC dated 03/05/19
Amending Directive 92/31/EEC.
-93/68/EEC dated 22/07/1993 CE Marking Directive.
-8
oThe manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This applian
T
o
oThe ceram
oCast iron and cast aluminium cookware with damaged bas

oPans should be lifted on and off the hob surface and not
dragged.
oCooking zones should not be switched on without cookware
placed on them. Also the cookware should not be empty.

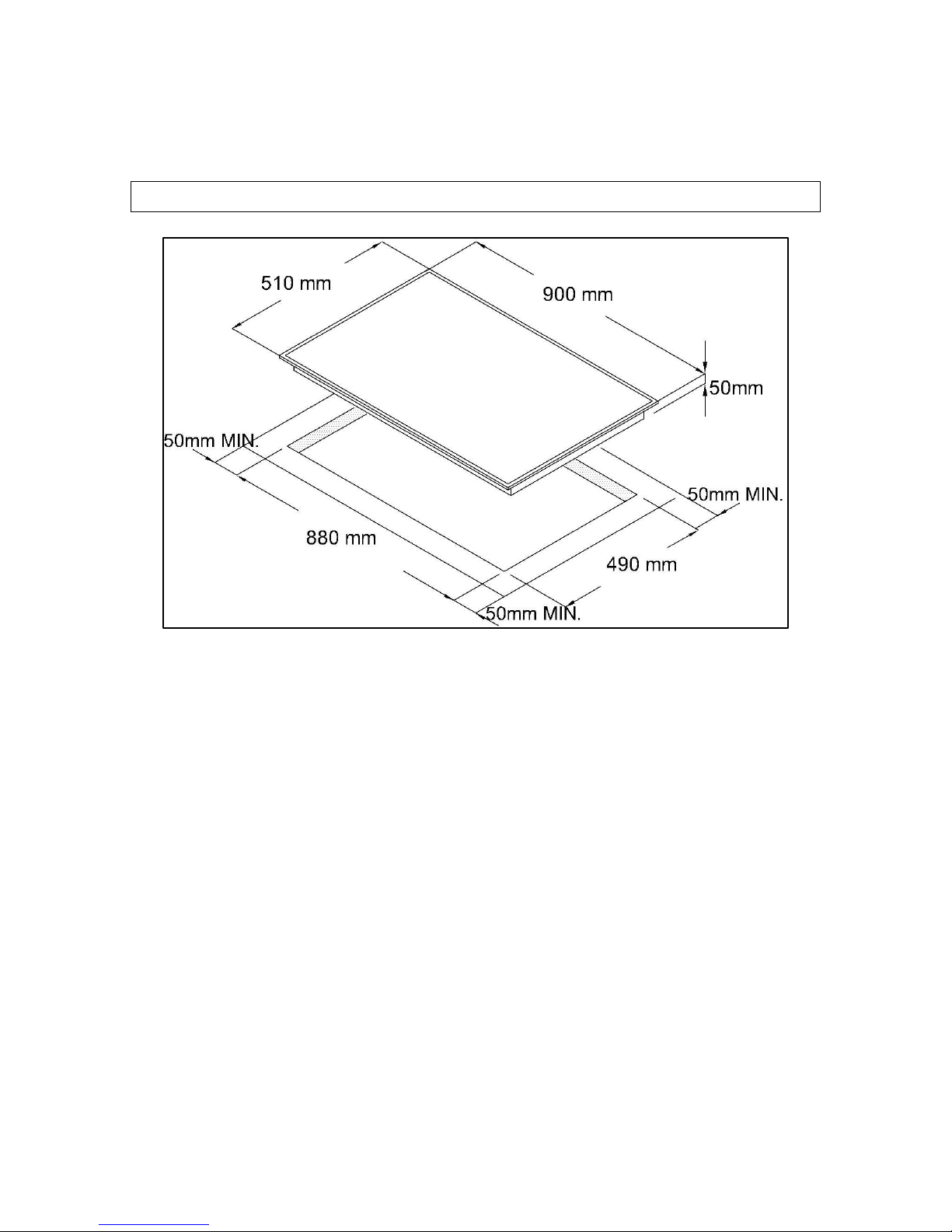

Specifications
Product dimensions: Aperture dimensions:
Height: 510 mm Height: 490 mm
Width: 900 mm Width: 880 mm
Depth: 50 mm
Product specifications:
o1 x 0.70/1.70 kW double hyperspeed zone (diametre 120/180
mm)
o1 x 1.05/1.96/2.70 kW triple hyperspeed zone (diametre
140/210/270 mm)
o1 x 1.80 kW hyperspeed zone (diametre 180 mm)
o1 x 1.50 kW hyperspeed zone (diametre 160 mm)
o1 x 1.20 kW hyperspeed zone (diametre 140 mm)
oFront touch control operation
o5 individual residual heat indicators
oTimer
oSafety lock
oWrap around designer frame
oPause function
oRecall function
8
oAutomatic pre-heating

Standard accessories
oCeramic hob scraper
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 40 A (double pole switched fused
outlet with 3mm contact gap)
Max Rated Inputs: 8.90 kW
Mains Supply Lead: 3 core x 6 mm² (not supplied)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this information before you install your appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

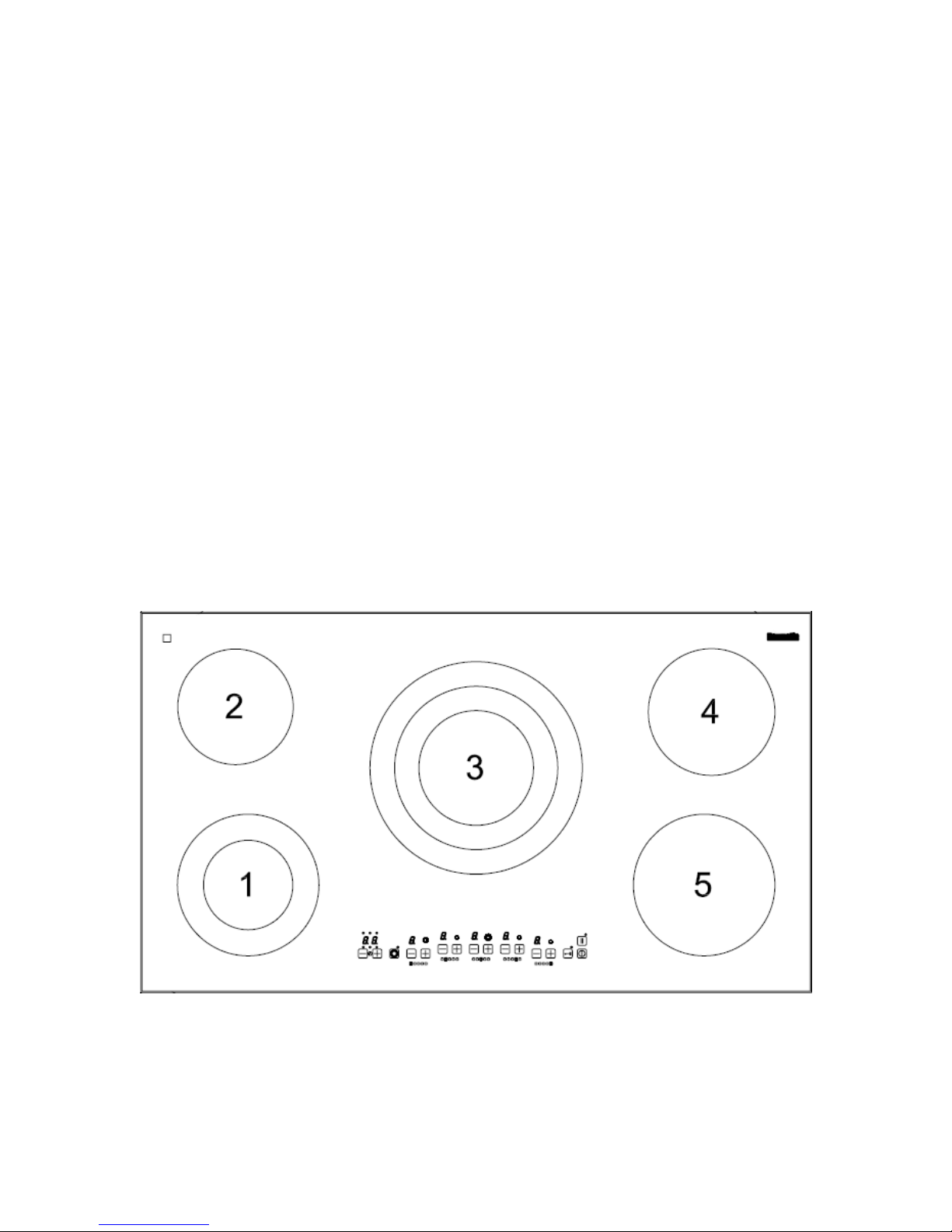

Ceramic hob surface layout
1) 0.70/1.70 kW double hyperspeed zone (diametre 120/180 mm)
2) 1.20 kW hyperspeed zone (diametre 140 mm)
3) 1.05/1.96/2.70 kW triple hyperspeed zone (diametre
140/210/270 mm)
4) 1.50 kW hyperspeed zone (diametre 160 mm)
5) 1.80 kW hyperspeed zone (diametre 180 mm)
9

Control panel layout
1. ON/OFF button

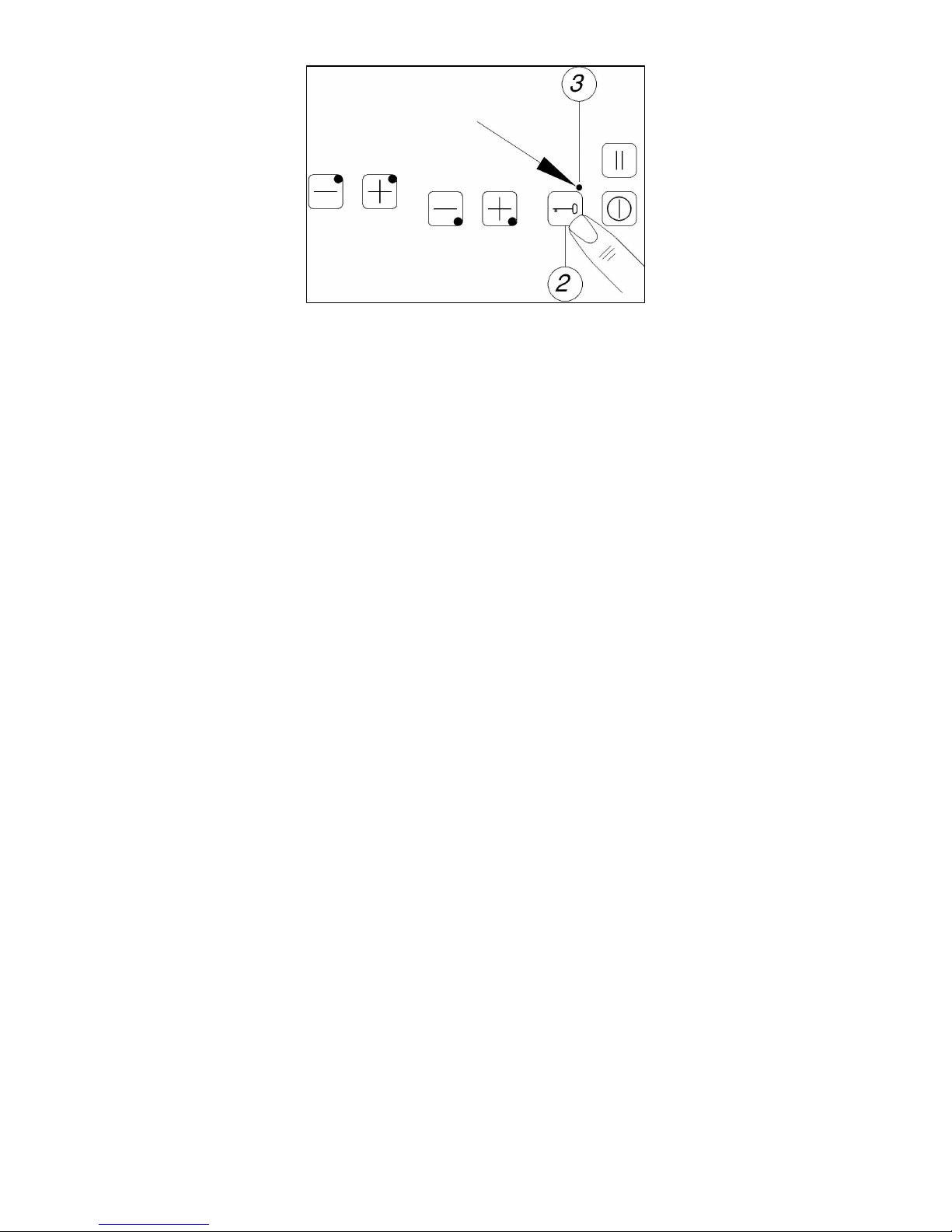

2. Safety lock button
3. Safety lock neon
4. Minus button
5. Plus button
6. Cooking zone indicator
7. Cooking zone display (single/dual/triple circuit)
8. Multi circuit ON/OFF button
9. Multi circuit indicator neon

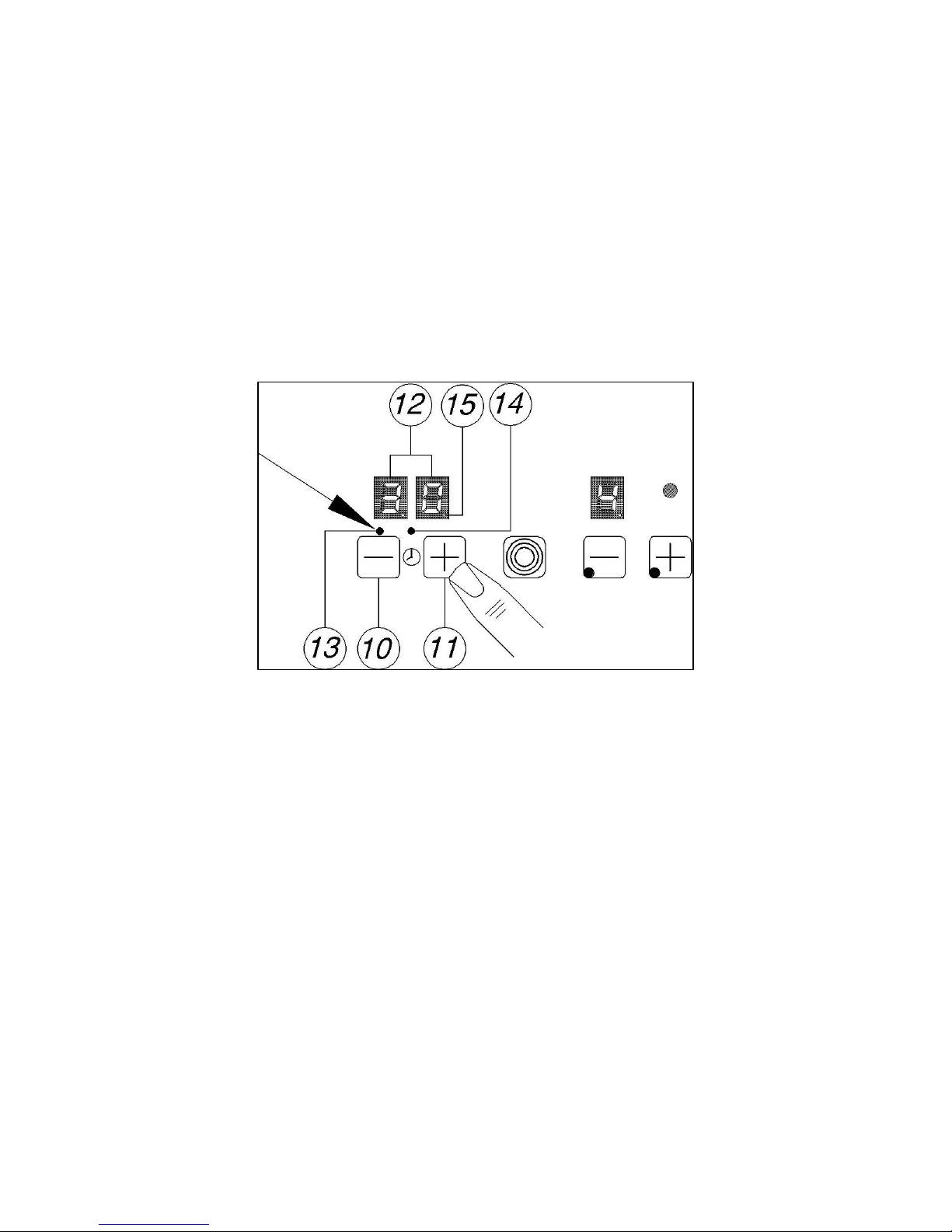

10. Timer minus button
11. Timer plus button
12. Timer display
13. Timer indicator neon
14. Egg timer indicator neon
15. Timer display decimal point
16. Pause/recall button
17. Pause/recall indicator neon
Cooking zone controls and indicators
10

Using the ceramic hob
Before first use
IMPORTANT: You should clean the ceramic hob surface (see
“Cleaning and maintenance” section).
oYou should switch on one cooking zone at a time, for 5 minutes
at the maximum setting. This will help to eliminate any new
smell that exists and evaporate any humidity that has formed on
the heating elements during transit.
oDo not burn off more than one zone at once.
oYou should not burn off a zone without there being a saucepan,
half filled with cold water on it.
Touch controls
oAll operations are performed by means of the touch controls that
can be found on the control panel.
oEach touch control has a visual display that corresponds to it.
oEvery time you press a touch control, an acoustic signal will
sound.

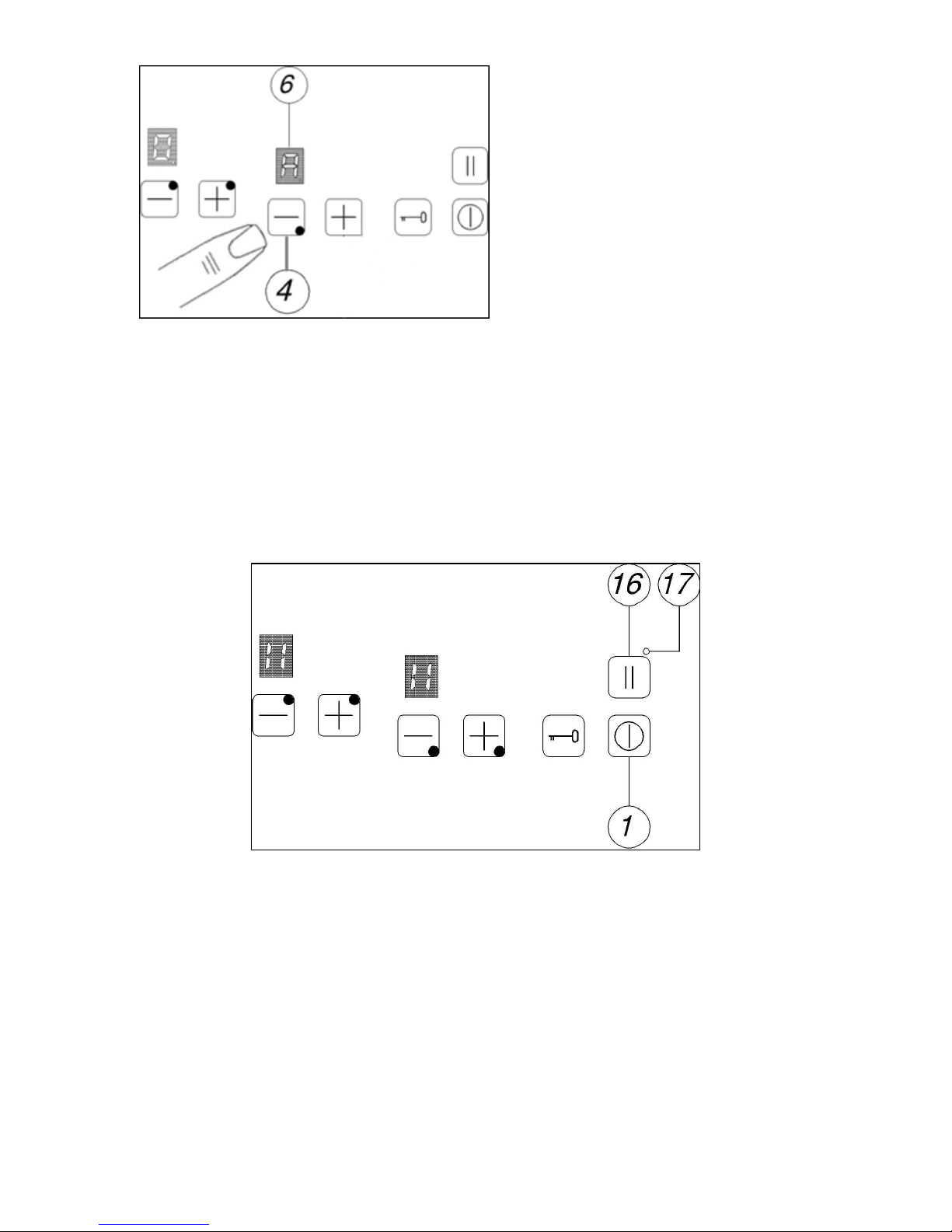

Turning the hob on

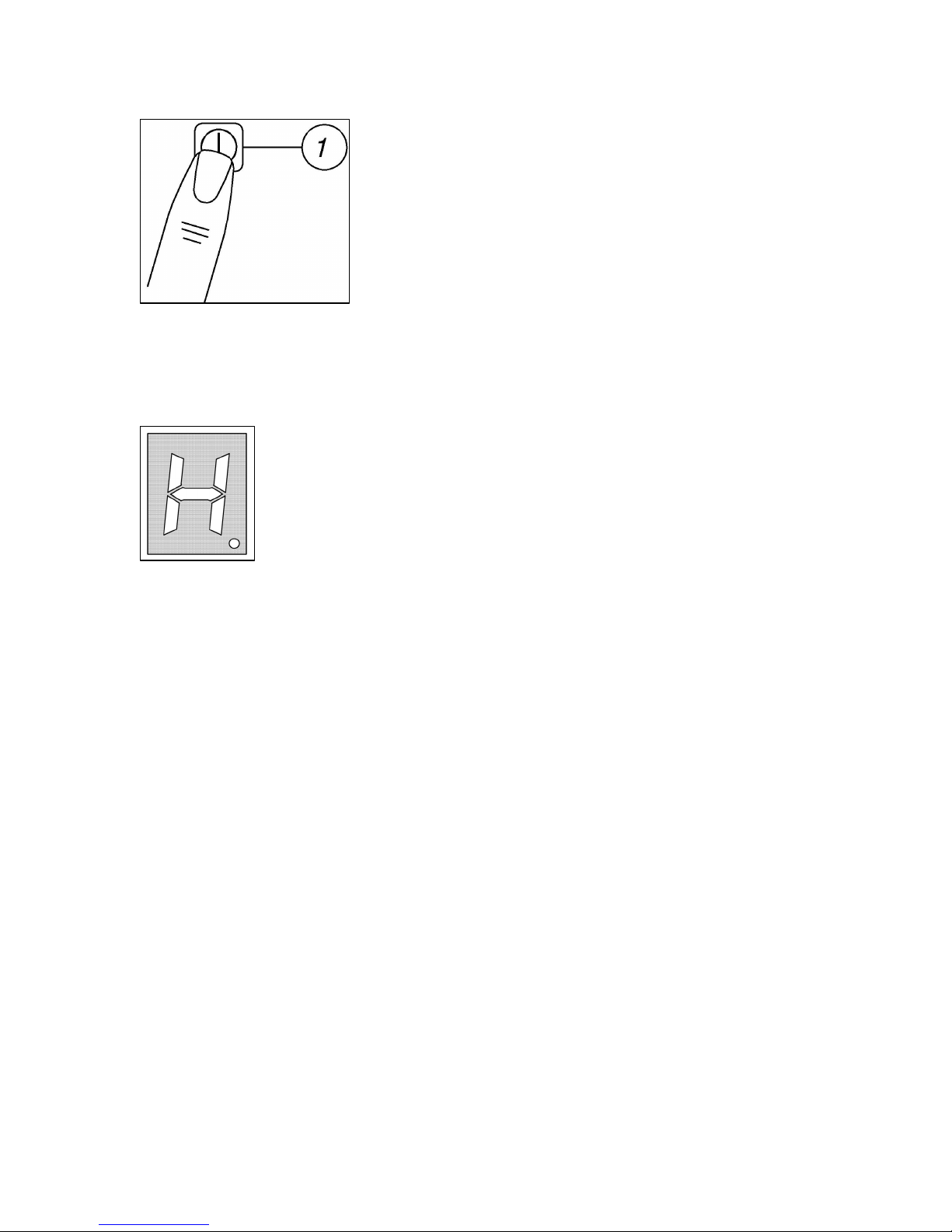

oPress the ON/OFF button (1)
oThe cooking zone indicators (6) will all read “0”.
oThe decimal point symbols (7) will come on.
11

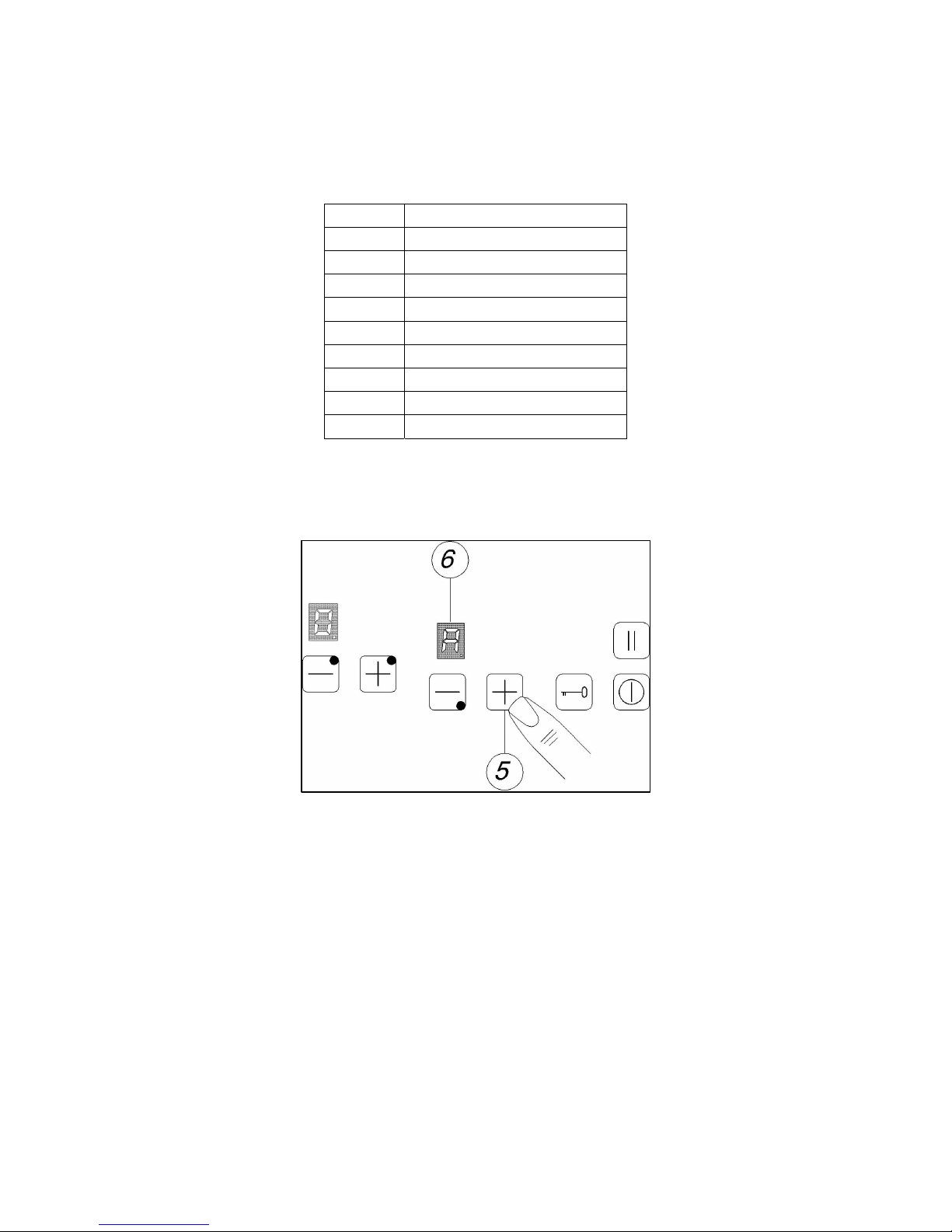

Turning on a zone and setting a power level
IMPORTANT: A zone must be selected within 10 seconds of turning
the hob on.

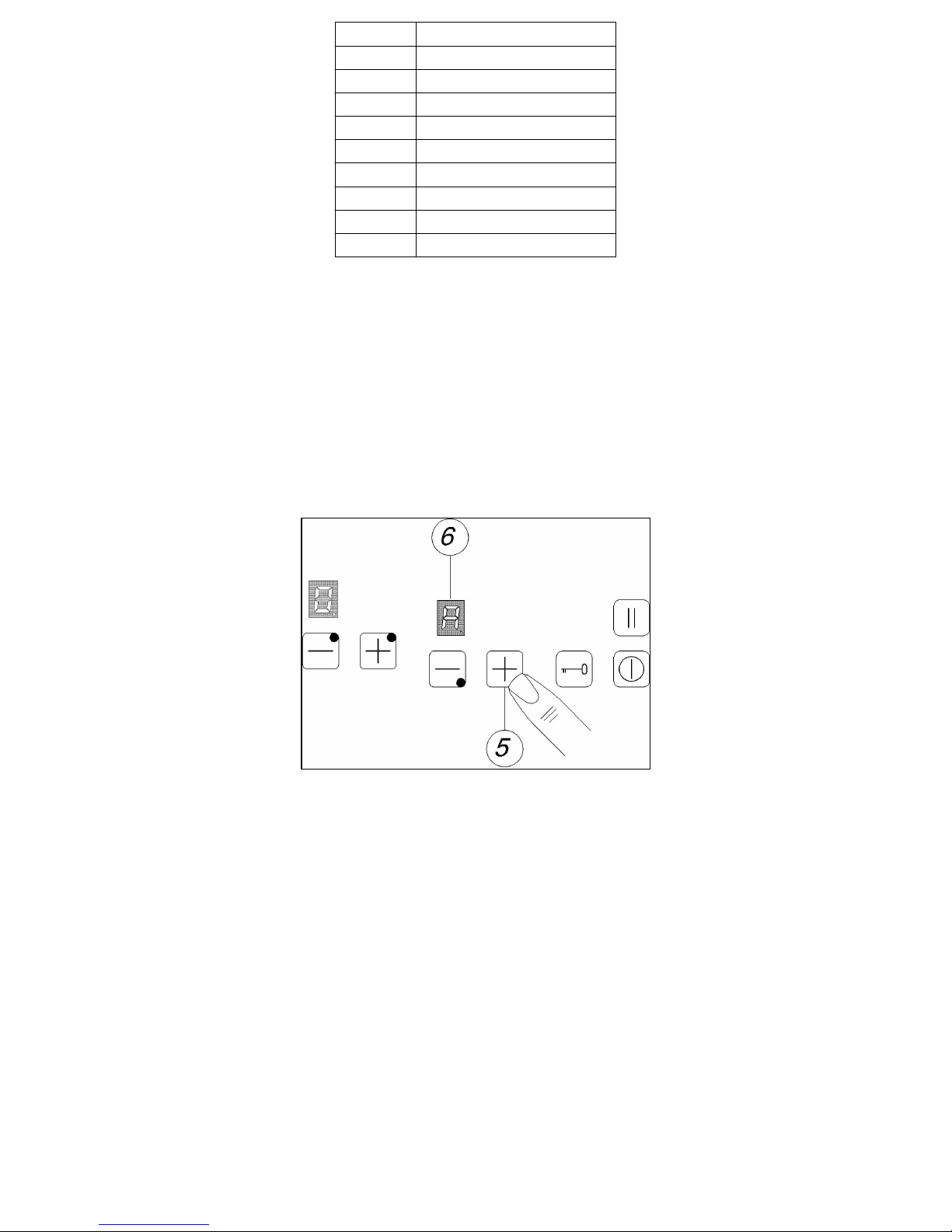

oPress the plus button (5) of the zone that you want to use. The
preset hob zone level is setting number 4.

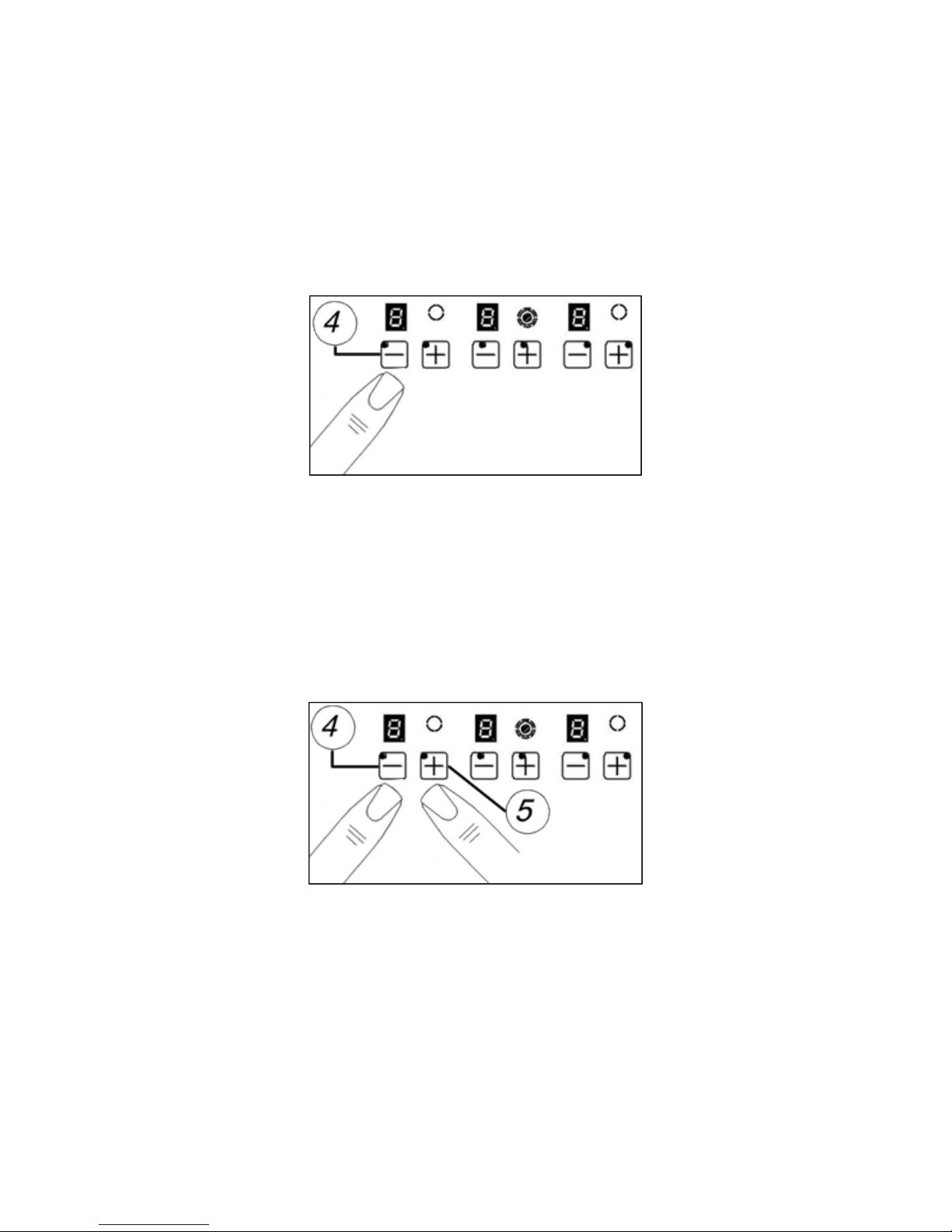

oAdjust the zone between power levels 1 and 9, using the plus
(5) and minus (4) buttons. By holding down either of these
buttons, the value on the zone indicator (6) will adjust up or
down every 0.3 seconds.

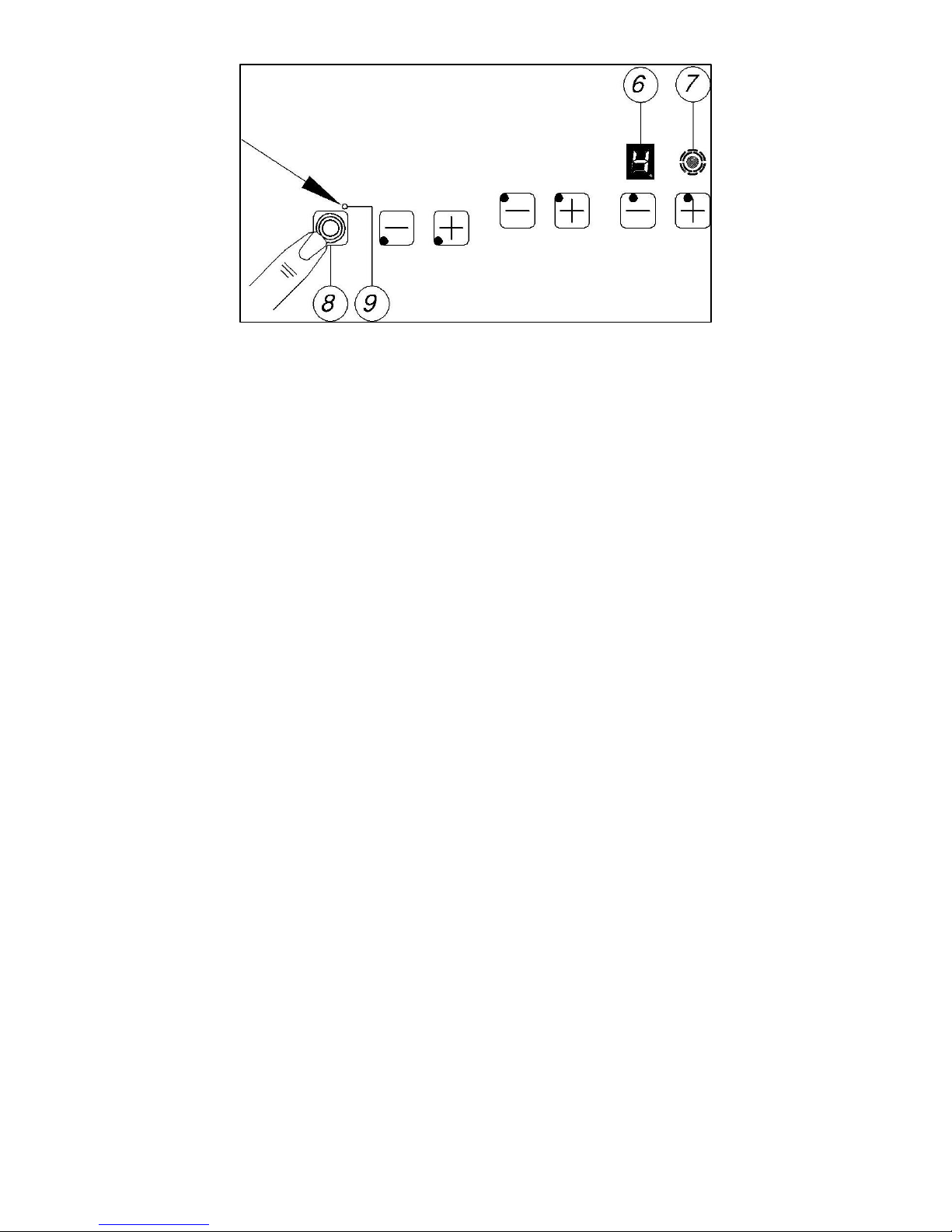

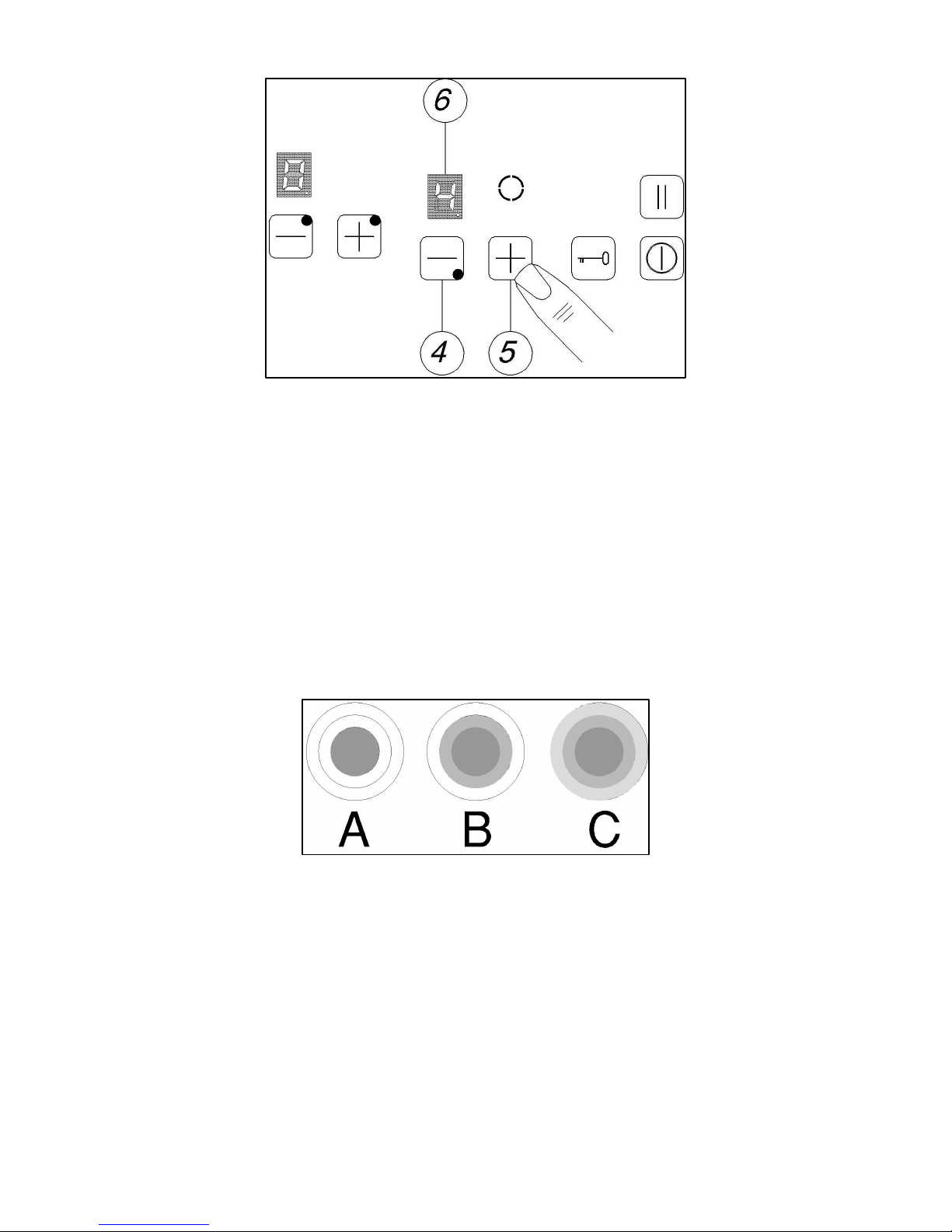

Turning on the multi circuit zones
Your hob has two multi circuit zones that you can use, the double
hyperspeed zone has two cooking areas that you can use, a central
section and an outer section. You can use the central section (A)
independently or both sections (B) at once.
The triple hyperspeed zone has three cooking areas that you can use,
a central section, an inner section and an outer section. You can use
the central section (A), the central and inner section (B) or all three
sections at once (C).
12

oPress the plus button (5) for the zone that you want to use. The
preset hob zone level is setting number 4.
oAdjust the zone between power levels 1 and 9, using the plus
(5) and minus (4) buttons.
oThe central section is switched on.
oPress the multi circuit ON/OFF button (8), the multi circuit
indicator neon (9) will flash to indicate that either the double or
triple hyperspeed zone needs to be selected.
oPress the minus (4) or plus (5) button of the multi circuit zone
that you already have switched on.
oThe outer circuit will then activate. The relevant cooking zone
display (7) will show that the inner and outer ring(s) are now in
use.
oTo switch on the outer zone of the triple multi circuit, you will
need to press the multi circuit ON/OFF button (8) again and
select the zone using the minus (4) or plus (5) button.
Turning off the outer circuit of a multi circuit zone
oThe outer circuit of a multi circuit zone must be switched on.
oPress the multi circuit ON/OFF button (8), the multi circuit
indicator neon (9) will flash to indicate that either the double or
triple hyperspeed zone needs to be selected.
oTo select the relevant multi circuit zone you should press the
minus (4) or plus (5) button of the zone that you want to use.
13

oThe outer circuit will then switch off.
oFor the triple zone, if you have all three zones in use, you will
need to follow this procedure twice.
oIf you switch the hob off using the ON/OFF button (1) whilst one
of the multi circuit zones has the inner and outer zone switched
on. The next time you use that zone, both circuits will be in use
when you switch the zone on.
Turning off a zone gradually
oPress the minus button (4) of the zone that you want to switch
off, until the number in the cooking zone indicator reaches “0”.
After 3 seconds, the zone will switch off automatically.
oAn “H” will show in the cooking zone indicator (6). (See the
section on the “residual heat indicator” on page 15).
Turning off a zone instantly
oPress the minus button (4) and the plus button (5)
simultaneously.
oThe zone will switch off immediately.
oAn “H” will show in the cooking zone indicator (6). (See the
section on the “residual heat indicator” on page 15).
14

Turning the hob off
Once you have switched off all of the cooking zones, you should turn
off the hob.
oPress the ON/OFF button (1).
It is possible to turn the hob off at any time by pressing the ON/OFF
button (1).
Residual heat indicator
oAfter a zone is switched off, the corresponding
cooking zone indicator (6) will show the letter “H”.
This means that the temperature of the zone is
over 60°C and is therefore high enough to cause
injury.
oIf you switch off the appliance using the ON/OFF button (1) then
the “H” will remain in the cooking zone indicator (6) whilst the
temperature of the zone remains above 60°C.
oWhen the temperature of the zone falls below 60°C, then the
letter “H” will go out.
oIMPORTANT: If the letter “H” is shown in a cooking zone
indicator and there is a power cut, the residual heat indicator will
not re-appear when power is restored to the appliance, even if
the temperature of a zone is above 60°C.
oIT IS STILL POSSIBLE TO BURN YOURSELF ON A HOB
ZONE, EVEN WHEN THE TEMPERATURE OF IT HAS
DROPPED BELOW 60°C.
15

Locking the hob top
oThe whole hob top can be locked by pressing the safety lock
button (2) whilst the appliance is turned on.
oThe safety lock neon (3) will light to show that the safety lock
feature has been switched on.
oWhen the safety lock feature is activated, it will disable any of
the other buttons on the control panel, except the ON/OFF
button (1).
oTo disable the safety lock feature, you should press the safety
lock button (2) again. The safety lock neon (3) will go out and
you are then able to adjust the power of any zone on the hob
top.
oIMPORTANT: If the appliance is switched off whilst the safety
lock feature is activated, then it will still be activated the next
time that you turn the appliance on. Therefore before you can
turn on a zone and set it to a power level, you will need to
deactivate the safety lock by pressing the safety lock button (2).
Safety cut-off
oIf one or more of the cooking zones are accidentally left on, a
safety cut off will activate after a certain period of time. The
length of time depends on the power level that a zone or zones
have been set on.
16

LEVEL TIME LIMIT
1 8 hours 40 minutes
2 6 hours 42 minutes
3 5 hours 18 minutes
4 4 hours 20 minutes
5 3 hours 32 minutes
6 2 hours 50 minutes
7 2 hours 19 minutes
8 1 hour 53 minutes
9 1 hours 30 minutes
oIf the safety cut off has activated, the symbol “H” will appear in
the cooking zone indicator (6) that applies to the cooking zone
that has been left on. To reset the appliance, you should press
the ON/OFF button (1).
oIf the plus (5) or minus (4) buttons are pressed, then the
length of time before the safety cut-out will activate is reset.
Automatic pre-heating
oThis feature will set a cooking zone to maximum power and will
then automatically set the cooking zone to a power level that
you have selected after a certain period of time.
oUse the minus button (4) to select power level 9, and then use
the plus button (5) to select power level 9. An “A” symbol will
appear in the cooking zone indicator (6).
oPress the minus button (4) until the cooking zone indicator (6)
shows the desired power level, then release the minus button.
oWhen the minus button (4) is released, the power level that you
have selected will appear on the cooking zone indicator (6),
alternating with the symbol “A”.
17

oOnce the automatic pre-heating time period is over, the hob will
beep once and only the actual power level will show on the
cooking zone indicator (6).
oThe period of time that a zone will automatically pre-heat for
before dropping to the actual power level, is shown in the table
below:-
LEVEL TIME LIMIT
1 50 seconds
2 1 minute 30 seconds
3 2 minutes 30 seconds
4 3 minutes 40 seconds
5 6 minutes 20 seconds
6 9 minutes
7 2 minutes 30 seconds
8 4 minutes
9 N/A
Increasing the power level during automatic pre-heating
oIf a zone is already within automatic pre-heating mode and you
wish to adjust the power level.
oIncrease the power level by pressing the plus button (5).
oThe pre-heating time will be adjusted. It will take into account the
amount of time that has already elapsed.
18

Switching off automatic pre-heating
oIf a zone is already within
automatic pre-heating mode,
it is possible to cancel it. The
“A” symbol needs to be
displayed in the cooking zone
indicator (6).
oPress the minus button (4) and the automatic pre-heating mode
will be cancelled. You can use the hob in normal operation once
more.
oIMPORTANT: Please note that switching off the automatic pre-
heating will not switch off the zone, it will still be necessary for you
to do this manually.
The pause function
oWhen one or more cooking zones are activated, it is possible to
interrupt the heating process by pressing the pause button (16).
oAll of the cooking zone indicators (6) will show the symbol
shown in the picture above. The pause indicator neon (17) will
also come on.
oTo exit pause mode, press the pause button (16) again and then
any other button on the hob.
19

The recall function
oIf you have accidentally turned off the hob using the ON/OFF
button (1). Then you can recall the power levels and zones that
you had in use for a short period of time afterwards by using the
recall function.
oSwitch the appliance back on using the ON/OFF button (1). If it
is possible to use the recall function, the recall indicator neon
(17) will flash.
oPress the recall button (16) and the previous settings will be
recovered.
The hob timer (countdown mode)
oTo activate the timer, press the timer plus (11) and timer minus
(10) buttons simultaneously. Numbers will appear in the timer
display (12).
oSet the time that you wish the timer to countdown for, using the
timer plus (11) and timer minus (10) buttons.
oShortly after you release the timer plus and minus buttons, the
countdown will begin. The egg timer indicator neon (14) will
flash.
oAt the end of the countdown period, an acoustic signal will
sound. To cancel the acoustic signal, press the timer minus (10)
or plus (11) buttons.
oIMPORTANT: If you have any cooking zones in use, then they
will remain on after the countdown period has elapsed. You must
still turn the zones off manually.
20
