Baumatic P619SS-ANZ User manual

1
P619SS-ANZ 60 cm Built in fan
oven
P629BS-ANZ/P629SS-ANZ
P639BS-ANZ/P639SS-ANZ 60
cm Built in multifunction oven

2
User Manual for our Baumatic
P619SS-ANZ
60 cm 4 Function fan oven
P629BS-ANZ/P629SS-ANZ
60 cm 7 Function multifunction oven
P639BS-ANZ/P639SS-ANZ
60 cm 9 Function multifunction oven
NOTE : This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance
GS 10/05/12

3
Contents
Environmental note 4
Important safet information 5 – 7
Specifications 8 - 14
P619SS-ANZ 8 - 9
P629BS-ANZ/P629SS-ANZ 9 – 10
P639BS-ANZ/P639SS-ANZ 11 - 12
Cooling fan 12
Control panel 13 - 14
Oven programmer/timer di play 14
Setting and using the oven programmer/timer – P619SS-ANZ 15
Selecting manual operation mode 15
Setting the minute minder function 15
Setting and using the oven programmer/timer – P629BS-ANZ/
P629SS-ANZ/P639BS-ANZ/P639SS-ANZ 16 – 20
Selecting manual operation mode 16
Setting the time of day 16
The oven timer 16
Setting the minute minder function 16 - 17
Setting the duration function 17
Setting the end cook function 18
Setting the tart and end time function 19
Adju ting the audible ignal 20
Selecting a cooking function and temperature 20 – 26
Before fir t u e 20
Selecting manual operation mode 21
Selecting an oven function 21
P619SS-ANZ oven function 21 - 22
P629BS-ANZ/P629SS-ANZ oven function 22
P639BS-ANZ/P639SS-ANZ oven function 23
Thermo tat control knob 24
Oven operating light 24
Cooking guideline 24 - 25
Warning 25 - 26
Shelf level 26
Cleaning and maintenance 26 - 29
Removable oven roof liner (P629BS-ANZ/P629SS-ANZ/P639BS-ANZ/
P639SS-ANZ only) 27
Replacing the oven bulb 27 - 28
Removing the oven door for cleaning 28 - 29
Installation 29 - 31
Electrical connection 29
In talling the oven into the kitchen cabinet 30
Po itioning the appliance 30
Ventilation requirement 30 - 31
M appliance isn’t working correctl 32 - 34
Contact details 35

4
Environmental note
oThe packaging material that Baumatic u e are environmentally
friendly and can be recycled.
oPlea e di card all packaging material with due regard for the
environment.

5
IMPORTANT SAFETY INFORMATION
Your afety i of the utmo t importance to Baumatic.
Plea e make ure that you read thi in truction booklet
before attempting to in tall or u e the appliance. If you
are un ure of any of the information contained in thi
booklet, plea e contact the Retailer where you
purcha ed your unit from.
General Information
oThi appliance i de igned for dome tic hou ehold u e and can
be built into a tandard kitchen cabinet or hou ing unit.
oIMPORTANT: The adjacent furniture or housing and all
materials used in the installation must be able to withstand a
minimum temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
oCertain type of vinyl or laminate kitchen furniture are
particularly prone to heat damage or di colouration at
temperature below the guideline given above.
oAny damage cau ed by the appliance being in talled in
contravention of thi temperature limit, or by placing adjacent
cabinet material clo er than 4mm to the appliance, will be the
liability of the owner
oThe u e of thi appliance for any other purpo e or in any other
environment without the expre agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYour new appliance i guaranteed again t electrical or
mechanical defect , ubject to certain exclu ion that are noted
in the Condition Of Guarantee. The foregoing doe not affect
your tatutory right .
oRepairs may only be carried out by authorised service
agents
Warning and safet instructions
oThi appliance complie with all current European afety
legi lation. Baumatic do wi h to empha i e that thi compliance
doe not remove the fact that the appliance urface will
become hot during use and retain heat after operation

6
Child Safet
oBaumatic trongly recommend that babie and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
oIf it i nece ary for younger family member to be in the
kitchen, plea e en ure that they are kept under clo e upervi ion
at all time .
General Safet
oDo not place heavy object on the oven door or lean on the
oven door when it i open, a thi can cau e damage to the oven
door hinge .
oDo not leave heated oil or fat unattended, a thi i a fire ri k.
oDo not place pan or baking tray directly on the ba e of the
oven cavity, or line it with aluminium foil.
oDo not allow electrical fitting or cable to come into contact
with area on the appliance that get hot.
oDo not u e the appliance to heat the room it i located in or to
dry clothing.
oDo not in tall the appliance next to curtain or oft furni hing .
oDo not attempt to lift or move cooking appliance by u ing the
oven door or handle, a thi may cau e damage to the appliance
or re ult in injury to the per on lifting the appliance.
Cleaning
oCleaning of the oven hould be carried out on a regular ba i .
oGreat care hould be taken whil t u ing thi appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.

7
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions
oBaumatic Ltd declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance
oHeat, team and moi ture will be created during u e of the
appliance, take care to avoid injury and en ure that the room i
adequately ventilated. If the appliance i going to be u ed for
prolonged period of time, then additional ventilation may be
required.
oPlea e con ult with your qualified in taller if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformit
Thi appliance complie with the following European Directive :
-2006/95/EC regarding “low voltage”
-2004/108/EC regarding “electromagnetic di turbance ”
-Regulation (EC) N° 1935/2004 regarding “material in contact
with food”
oThe above directive comply with 93/68/EEC regarding CE
marking.
oThe manufacturer declare that the oven i built u ing certified
material and require the appliance to be in talled in
accordance with the tandard currently in force. Thi appliance
mu t be u ed by a trained per on for dome tic purpo e only.

8
Specifications
P619SS-ANZ

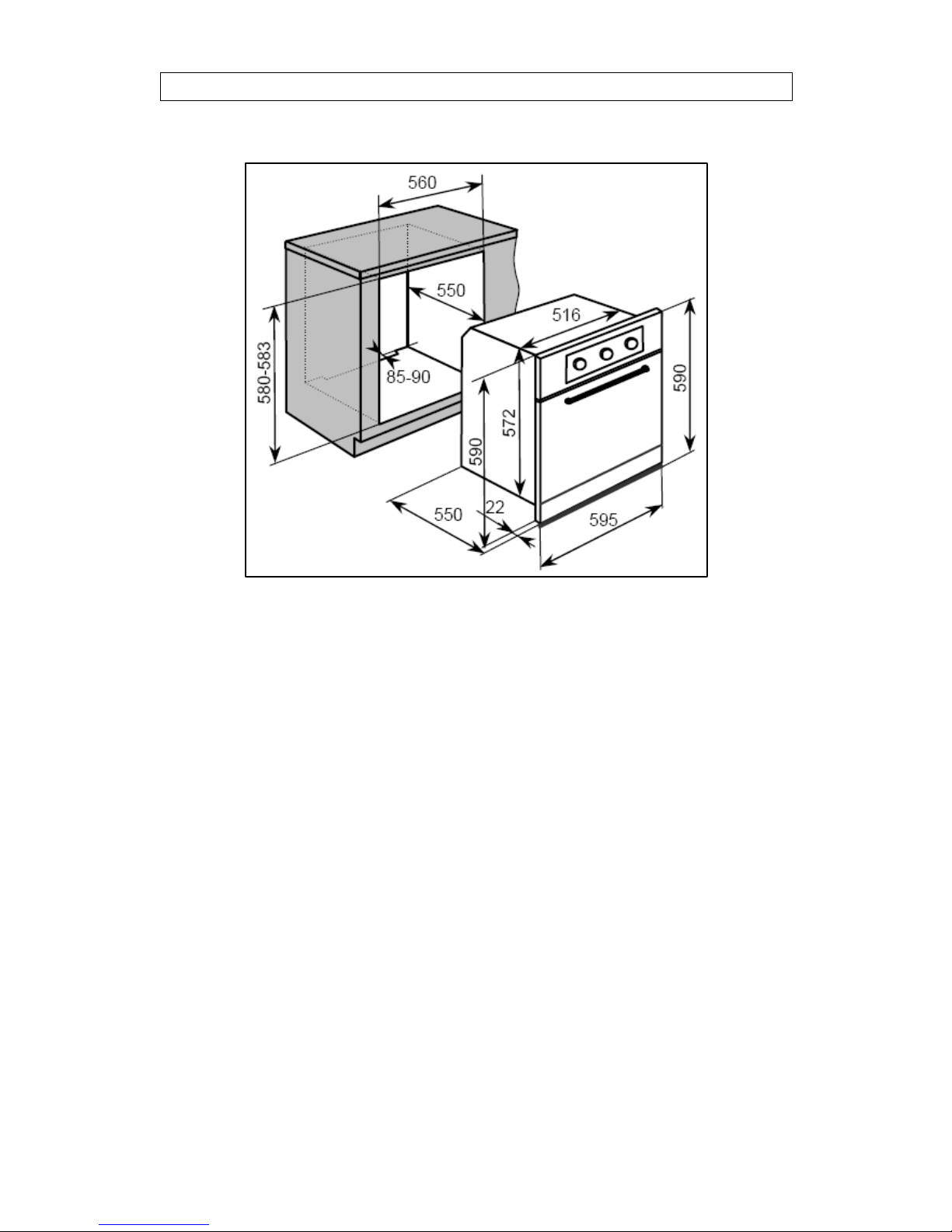

Product dimensions
Height: 590 mm
Width: 595 mm
Depth: 550 mm

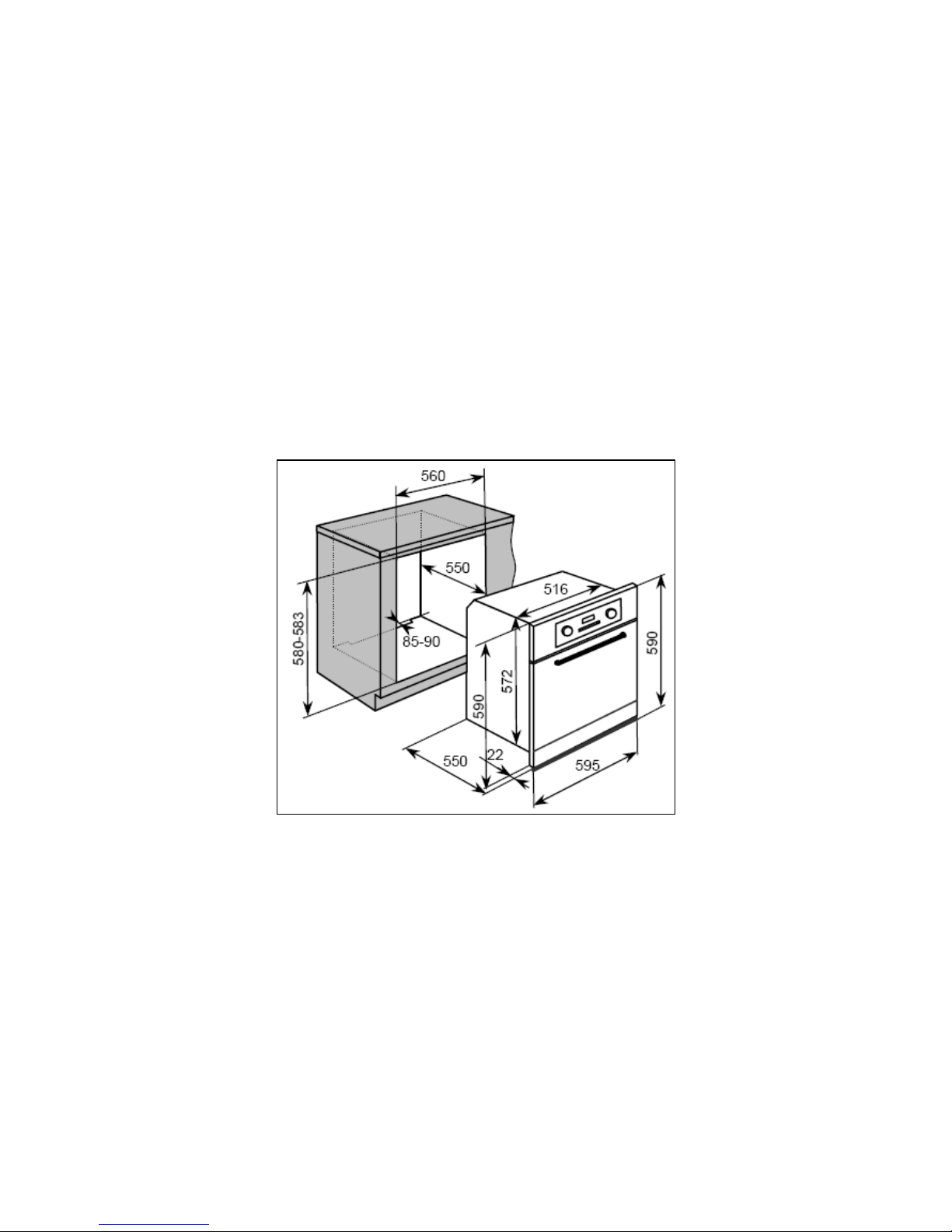

Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 550 mm
Product specifications
o4 oven function
oEnergy efficiency cla : A
oGro oven capacity: 59 litre
oNet oven capacity: 50 litre
oOven light
oMinute minder
oCooling fan
oThermo tatically controlled grill
oDouble-glazed removable door
oMark re i tant coating
Standard accessories
oEnamelled baking tray with handle
o2 x Safety helve
oTrivet

9
oRemovable ide rack
Optional extras
oTEL2KIT Tele copic runner kit
oSCL7KIT Stay-clean liner kit
oBPS2 Pizza tone
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 13 A (double pole witched fu ed
outlet with 3mm contact gap)
Max Rated Inputs: 2.35 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C crew type pygmy
P629BS-ANZ/P629SS-ANZ
Product dimensions
Height: 590 mm
Width: 595 mm
Depth: 550 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 550 mm
Product specifications
o7 oven function
oEnergy efficiency cla : A
oGro oven capacity: 59 litre
oNet oven capacity: 50 litre

10
oOven light
oLED full programmer
oCooling fan
oThermo tatically controlled grill
oTriple-glazed removable door
oMark re i tant coating (P629SS-ANZ onl )
Standard accessories
oEnamelled baking tray with handle
o2 x Safety helve
oTrivet
oRemovable ide rack
oRemovable roof liner
oTele copic runner - 1 level
Optional extras
oTEL2KIT Tele copic runner kit
oSCL7KIT Stay-clean liner kit
oBPS2 Pizza tone
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 13 A (double pole witched fu ed
outlet with 3mm contact gap)
Max Rated Inputs: 2.40 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C crew type pygmy

11
P639BS-ANZ/P639SS-ANZ
Product dimensions
Height: 590 mm
Width: 595 mm
Depth: 550 mm
Aperture dimensions
Height: 580 – 583 mm
Width: 560 mm
Depth: 550 mm
Product specifications
o9 oven function
oEnergy efficiency cla : A
oGro oven capacity: 59 litre
oNet oven capacity: 50 litre
oOven light
oLED full programmer
oCooling fan
oThermo tatically controlled grill
oTriple-glazed removable door
oMark re i tant coating (P639SS-ANZ onl )
Standard accessories
oEnamelled baking tray with handle
o2 x Safety helve
oTrivet
oDeep baking tray
oRemovable ide rack
oRemovable roof liner

12
oBPS2 Pizza tone
oTele copic runner – 2 level
Optional extras
oSCL7KIT Stay-clean liner kit
Electrical details
Rated Voltage: 220 - 240 Vac 50 Hz
Supply Connection: 13 A (double pole witched fu ed
outlet with 3mm contact gap)
Max Rated Inputs: 3.35 kW
Mains Supply Lead: 3 x 1.5mm²
Oven Light Bulb: 25 W/300°C crew type pygmy
Cooling fan
oA tangential cooling fan i fitted in ide of the e appliance , to
make the internal temperature of the oven table and the
external urface temperature lower.
oAfter you have fini hed cooking and witched off the oven, the
cooling fan will continue to run for a period of time afterward .
The length of time will depend on how long the oven ha been
witched on for and at how high a temperature.
For future reference plea e record the following information which can
be found on the rating plate and the date of purcha e which can be
found on your ale invoice. The rating plate for your oven can be
located by opening the oven door and looking on the right hand ide of
the oven cha i .
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

13
0
50
100
150
200
250
Control Panel
P619SS-ANZ
1) Oven function elector knob
2) Power indicator light
3) Minute minder/manual operation control knob
4) Oven operating light
5) Thermo tat control knob
P629BS-ANZ/P629SS-ANZ

14
P639BS-ANZ/P639SS-ANZ
1) Oven function elector knob
2) LED di play
3) Thermo tat control knob
4) Power indicator light
5) Oven operating light
6) Timer minute minder button
7) Timer duration button
8) Timer end cook button
9) Timer manual operation button
10) Timer minu button
11) Timer plu button
Oven programmer/timer displa (P629BS-ANZ/P629SS-
ANZ/P639BS-ANZ/P639SS-ANZ)
12) Auto function ymbol
13) Minute minder ymbol
14) Manual operation ymbol.
0
50
100
150
200
250

15
Setting and using the oven programmer/timer –
P619SS-ANZ
Selecting manual operation mode
Before you can select a cooking function or set a temperature,
you must set the appliance into manual operation mode
oTurn the manual operation control knob (3) anti-clockwi e, o
that it point to the word ON.
Setting the minute minder function
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected You can set a
period of time using the minute minder function and an alarm
will sound when this period of time has elapsed
oThe minute minder can be u ed independently of an oven
cooking function for a time period of up to 120 minute .
oTo et the timer, turn the minute minder control knob (3)
clockwi e to the required countdown time.
oDO NOT turn the minute minder control knob (3) pa t the 120
minute marking.
oDO NOT turn the minute minder control knob (3) anti-clockwi e
pa t the word ON.
oThe time period that ha been et will expire when the control
knob reache zero, a brief audible ignal will ound and the oven
will witch off.
Before you next use the oven, you MUST turn the
minute minder control knob (3) anti-clockwise, so
that it points at the word ON Otherwise the oven
will not work

16
Setting and using the oven programmer/timer –
P629BS-ANZ/P619SS-ANZ/P639BS-ANZ/P639SS-ANZ
Selecting manual operation mode
After your appliance is connected to your mains supply for the
first time, the numbers on the timer display will flash Before
you can select a cooking function or set a temperature, you
must set the appliance into “manual operation” mode
oTo elect manual operation mode, pre the manual operation
button (9) on the control panel.
Setting the time of da
After setting your oven for manual operation, you should also
set the time of day
oAfter pre ing the manual operation button (9), u e the minu
button (10) and plu button (11) to adju t the time that
appear in the di play. After getting the di play to the correct
time, relea e the minu and plu button . After a few econd
the time will fix in the di play and you will be able to u e your
oven.
The oven timer
oOnly the minute minder can be u ed with the defro t oven
function. None of the other timer mode will work with the
defro t function.
Setting the minute minder function
You are able to set the minute minder at any time, regardless
of whether an oven function has been selected You can set a
period of time using the minute minder function and an alarm
will sound when that period of time has elapsed
oPre the minute minder button (6), the di play will how a
value of 00:00. Set the period of time that you wi h the minute
minder to countdown for, by u ing the minu (10) and plu
(11) button .
oOnce the di play ha got to your de ired countdown time, let go
of the minu and plu button . The minute minder ymbol (13)
will appear on the timer di play.
oOnce a countdown time ha been et, it i po ible to horten or
lengthen the time by u ing the minu or plu button .
oAn alarm will ound when the countdown time ha elap ed. The
alarm can be ilenced by pre ing the minute minder button.

17
oImportant: The oven will continue to heat once the alarm has
been silenced. If you have finished coo ing, then you should turn
the oven function selector and thermostat control nob to 0.
Setting the duration function
This function will allow you to set a countdown time similar to
the minute minder function However the oven will no longer
continue to heat, once the countdown period has elapsed
oU e the thermo tat control knob (3) to et the temperature that
you require. The manual operation ymbol (14) will appear on
the di play.
oU e the oven function elector knob (1) to elect the mode of
cooking that you require.
oIt i then po ible to et the duration of the cooking time that
you require.
oPre the duration button (7) and the di play will how a value
of 00:00. Set the period of time that you wi h the duration
function to countdown for, by u ing the minu (10) and plu
(11) button .
oOnce the di play ha got to your de ired countdown time, let go
of the minu and plu button . The countdown will tart
immediately and the word AUTO will appear on the timer di play.
oOnce a countdown time ha been et, it i po ible to horten or
lengthen the time by u ing the minu or plu button .
oAn alarm will ound when the countdown time ha elap ed and
the oven will witch off. The word AUTO will fla h and the
heating ymbol will di appear. The alarm can be ilenced by
pre ing the duration button.
oYou will need to return the oven to manual operation mode, once
the duration function ha been u ed. To do thi you hould pre
the “manual operation” button, the word AUTO will di appear
from the di play and the manual operation ymbol will appear
in tead.
oImportant: If you do not turn the thermostat control nob and
oven function selector nob to 0, then the appliance will continue
to operate as soon as you press the manual operation button.

18
Setting the end cook function
This function is similar to the duration function, however
instead of selecting a period of time that you wish the oven to
switch off after You select the time of day that you wish the
oven to switch off at
oU e the thermo tat control knob (3) to et the temperature that
you require. The manual operation ymbol (14) will appear on
the di play.
oU e the oven function elector knob (1) to elect the mode of
cooking that you require.
oPre the end cook button (8) and the di play will how the
current time of day. Set the time of day that you wi h the oven
to top cooking at by u ing the minu (10) and plu (11)
button . The timer will calculate how long the cooking time will
be, ba ed on the time of day that you have elected and how it
on the di play.
oOnce the di play ha got to the time of day that you want the
oven to top cooking at, let go of the minu and plu button .
The countdown will tart immediately and the word AUTO will
appear on the timer di play.
oWhen the time i et, it can be modified by pre ing the minu
and plu button .
oWhen the time of day reache the end of cooking time that you
et, the oven will witch off and an alarm will ound. The word
AUTO will fla h and the heating ymbol will di appear. The
alarm can be ilenced by pre ing the “end cook” button.
oYou will need to return the oven to manual operation mode, once
the end cook function ha been u ed. To do thi you hould
pre the manual operation button, the word AUTO will
di appear from the di play and the manual operation ymbol will
appear in tead.
oImportant: If you do not turn the thermostat control nob and
oven function selector nob to 0, then the appliance will continue
to operate as soon as you press the “manual operation” button.

19
Setting the start and end time function
This function will allow you to set a time in the future that the
oven switches on at and a time that the oven will switch off at
oU e the thermo tat control knob (3) to et the temperature that
you require. The manual operation ymbol (14) will appear on
the di play.
oU e the oven function elector knob (1) to elect the mode of
cooking that you require.
oPre the duration button (7) and the di play will how a value
of 00:00. Set the period of time that you wi h to cook for, by
u ing the minu (10) and plu (11) button . The word AUTO
will appear on the timer di play.
oImmediately pre the end cook button (8) and the timer
di play will how a calculated end of cooking time. Set the time
of day that you want the oven to witch off at, u ing the minu
and plu button .
oThe oven will calculate what time it need to witch on at, o
that your food will cook for the length of time that you elected.
It will automatically witch it elf on, once it reache the time of
day that it ha calculated.
oWhen the time of day reache the end of cooking time that you
et, the oven will witch off and an alarm will ound. The word
AUTO will fla h and the heating ymbol will di appear. The alarm
can be ilenced by pre ing the end cook or duration button.
oYou will need to return the oven to manual operation mode, once
the tart and end time function ha been u ed. To do thi you
hould pre the manual operation button, the word AUTO will
di appear from the di play and the manual operation ymbol will
appear in tead.
oImportant: If you do not turn the thermostat control nob and
oven function selector nob to 0, then the appliance will continue
to operate as soon as you press the manual operation button.

20
Adjusting the audible signal
oThe audible ignal ha three different etting , low, medium and
high.
oTo adju t the level of the audible ignal, make ure that the
timer i in manual mode. Then pre and hold the minu button
and you will hear the current level that i et.
oPre the minu button again and the audible ignal will adju t to
the next level.
oWhen the required level of audible ignal i reached, relea e the
minu button and it will be et.
Selecting a cooking function and temperature
Before first use
oTo remove any re idue from the oven that may have been left
from the manufacturing proce , you hould elect the fan oven
function and et the thermo tat to it maximum temperature
etting.
oIt i perfectly normal for a mell to be produced during thi
proce .
oYou hould make ure that any window in the room are left
open during thi proce .
oIt i advi able for you not to remain in the room whil t the
burning off proce i taking place.
oYou hould leave the oven on maximum etting for 30 – 40
minute .
oAfter the oven cavity ha cooled, it hould then be cleaned with
warm oapy water, u ing either a ponge or oft cloth. No
abra ive cleaner hould be u ed.
oOuter part of the oven hould be cleaned with warm oapy
water, u ing either a ponge or oft cloth. No abra ive cleaner
hould be u ed.
oWe would recommend that an appropriate tainle teel cleaner
and poli h i regularly u ed on the tainle teel urface of thi
appliance.
