Baumer Hubner HENQ 1100 User manual

HENQ 1100
Encoder Analyzer
Operation Instruction
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN

TABLE OF CONTENTS
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
TABLE OF CONTENTS
1. GENERAL NOTES.................................................................................................................1
2. INTRODUCTION ....................................................................................................................2
3. TECHNICAL DATA ................................................................................................................3
3.1 Technical data for the HENQ 1100 .................................................................................3
3.2 Technical data for the connected encoder......................................................................3
4. INSTRUMENT FUNCTIONS ..................................................................................................4
5. SETUP....................................................................................................................................5
5.1 Connecting the encoder .................................................................................................5
5.2 Evaluation of sinewave signals.......................................................................................5
5.3 Connecting the supply voltage for the HENQ 1100 ........................................................5
5.4 HENQ 1100 with accumulator option..............................................................................5
5.5 Entering the encoder data (menu )..........................................................................6
5.6 Measuring the encoder supply (menu )...................................................................6
5.7 Checking the signal levels (menu ) .........................................................................7
5.8 Display measurements as text (menu )...................................................................7
5.9 Display measurements as graphics (menu ) ...........................................................8
6. CONNECTIONS .....................................................................................................................9
6.1 Connections on the device .............................................................................................9
6.1.1 Device left side..................................................................................................9
6.1.2 Device right side ...............................................................................................9
6.2 Power supply of the encoder ........................................................................................10
6.2.1 Encoder supply from the HENQ 1100 .............................................................10
6.2.2 External power supply for the encoder ...........................................................10
6.3 Assignments ................................................................................................................. 11
6.3.1 Device left side................................................................................................11
6.3.1.1 Encoder connection ..............................................................................11
6.3.2 Device right side .............................................................................................12
6.3.2.1 Output ...................................................................................................12
6.3.2.2 PC/laptop interface ...............................................................................13

TABLE OF CONTENTS
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
7. OPERATION ........................................................................................................................14
7.1 Menu structure - Navigation .........................................................................................14
7.1.1 Navigation within the menu ......................................................................14
7.2 Menu description ..........................................................................................................15
7.2.1 Parameter setting (menu ) .......................................................................15
7.2.1.1 Settingsoftheglitchlter......................................................................17
7.2.1.2 Submenu „ENCODER“ .........................................................................18
7.2.2 Display measurements as graphics (menu ) ...........................................19
7.2.3 Display measurements as text (menu ) ...................................................20
7.2.4 Checking the signal level (menu )............................................................21
7.2.5 Measuring the encoder supply (menu ) ...................................................22
7.2.6 Error messages...............................................................................................23
8. PC PROGRAMM..................................................................................................................24
8.1 System requirements / Installation ...............................................................................24
8.2 Register „Settings“........................................................................................................25
8.3 Register „Speed & Position“ .........................................................................................27
8.4 Register „Pulses & Levels“ ...........................................................................................28
8.5 Register „Power“...........................................................................................................29
9. TABLE OF FIGURES...........................................................................................................30

GENERAL NOTES
1/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
1. GENERAL NOTES
Symbol guide
Warning
Disregarding could result in serious injury, death or damage to property
)Attention
Disregarding could result in damage to property or damage/malfunction of the
HENQ 1100
iInformation
Additional information and recommendations
The Baumer Hübner ENcoder Quality measurement system HENQ 1100 is a precision de-
vice which must be handled with care by skilled personnel only.
EU Declaration of Conformity meeting to the European Directives.
We grant a 2-year warranty in accordance with the regulations of the ZVEI (Central Associ-
ation of the German Electrical Industry).
In the event of queries or subsequent deliveries, the data on the device type label must be
quoted, especially the type designation and the serial number.
iWarranty seal
Damaging the warranty seal on the HENQ 1100 invalidates warranty.
The storage temperature range of the encoder is between -15...+70 °C (caused by packing).
Disposal (environmental protection)
Do not dispose of electrical and electronic equipment in household waste. The
product contains valuable raw materials for recycling. Whenever possible, waste
electrical and electronic equipment should be disposed locally at the authorized
collection point. If necessary, Baumer gives customers the opportunity to dispose
of Baumer products professionally. For further information see www.baumer.com.

INTRODUCTION
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 2/32
2. INTRODUCTION
The Baumer Hübner ENcoder Quality Measurement System HENQ 1100 is a hand-held
instrument for the testing of incremental encoders that produce HTL/TTL or SinCos signals.
Fast signal processing also facilitates the detection of sporadic errors, such as those caused
by interference in the signal leads or short voltage drop-outs in the power supply. The angu-
lar position and speed are in addition displayed continuously.
As well as Baumer Hübner incremental encoders, encoders from other manufacturers that
put out TTL/HTL or sin/cos signals can also be connected.
Power is fed to the encoder either via the HENQ 1100 or externally. So the encoder can be
run separately, disconnected from its normal supply, or one can tap into a system that is
running.
The operation of the instrument is carried out through the built-in user friendly keypad and a
4-line LCD with background lighting.
The memory makes it possible to collect measurements from several encoders and evaluate
them.
It is possible to connect a laptop or PC via the integrated RS-485 interface (optional RS-232
or USB-RS-485-converter).
Then a Windows measurement application enables a continuous display and recording of
current data, including any errors in the encoder or its wiring. Statistical evaluation is also
possible.
User-denedprolescanbeusedtoprogramvariousthresholdsasparameters,forinstan-
ce: permissible phase shift, permissible pulse/pause ratio.
Errors are signaled not only visually, through the LCD, but also acoustically, by a built-in
buzzer.

TECHNICAL DATA
3/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
3. TECHNICAL DATA
3.1 Technical data for the HENQ 1100
Voltage supply: 9...30 VDC
Currentconsumption: ≤500mA
Permissible ambient temperature: -10 °C...+50 °C
Input: D-SUB connector (female) 15-pin
Output: D-SUB connector (male) 15-pin
RS485 connector (female) 9-pin
Option: RS232 connector (female) 9-pin
Accumulator as option
Accumulator voltage: 12 V nominal
Subthreshold warning: 10 V
Charging time: 5 hours
Operating time (load-dependent): ~5 hours
3.2 Technical data for the connected encoder
Outputfrequency: ≤250kHz
Power supply: U1= UB - 1 V or by the HENQ 1100
U2= 5 V
Current consumption with encoder
power supplied by the HENQ 1100 1): ≤300mA
External supply voltage: U1= UREG1 or with measuring signal looped
through U2= UREG2
Current consumption with external
supply voltage and encoder signal
looped through 1): ≤500mA
1) Limited by polymer fuse

INSTRUMENT FUNCTIONS
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 4/32
4. INSTRUMENT FUNCTIONS
Continuous monitoring and display of
• the speed, angular position, and position of the zero pulse
• the phase shift between K1 and K2 (or A and B)
• the pulse/pause ratio for K1 and K2 (or A and B)
• the voltage range of the encoder output signals 1)
• the supply voltage and current drawn by the encoder, with the power consumption
calculated from these values
Continuous error monitoring
• eliminationofsignaldisturbancesthroughadaptiveltering
• comparision of the nominal/actual number of pulses per turn 2)
• errors in connection with the zero pulse
• check of the quadrature coding by evaluation of the track signals and the zero pulse
Individual error messages
• Windows applications software for the PC, for graphical display and statistical evalua-
tion of the measurements
• Recording of measurements and error messages in a logbook on the PC
Fig.1: Data display via measurement programm, see
section 8, page 24.
Display in plain text:
• Angular position
• Zero pulse position
relative to the switching
on position
• Speed
• Voltage and current
• Error messages
1) Not available for sine encoders
2) Only if a zero pulse is available

SETUP
5/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
5. SETUP
5.1 Connecting the encoder

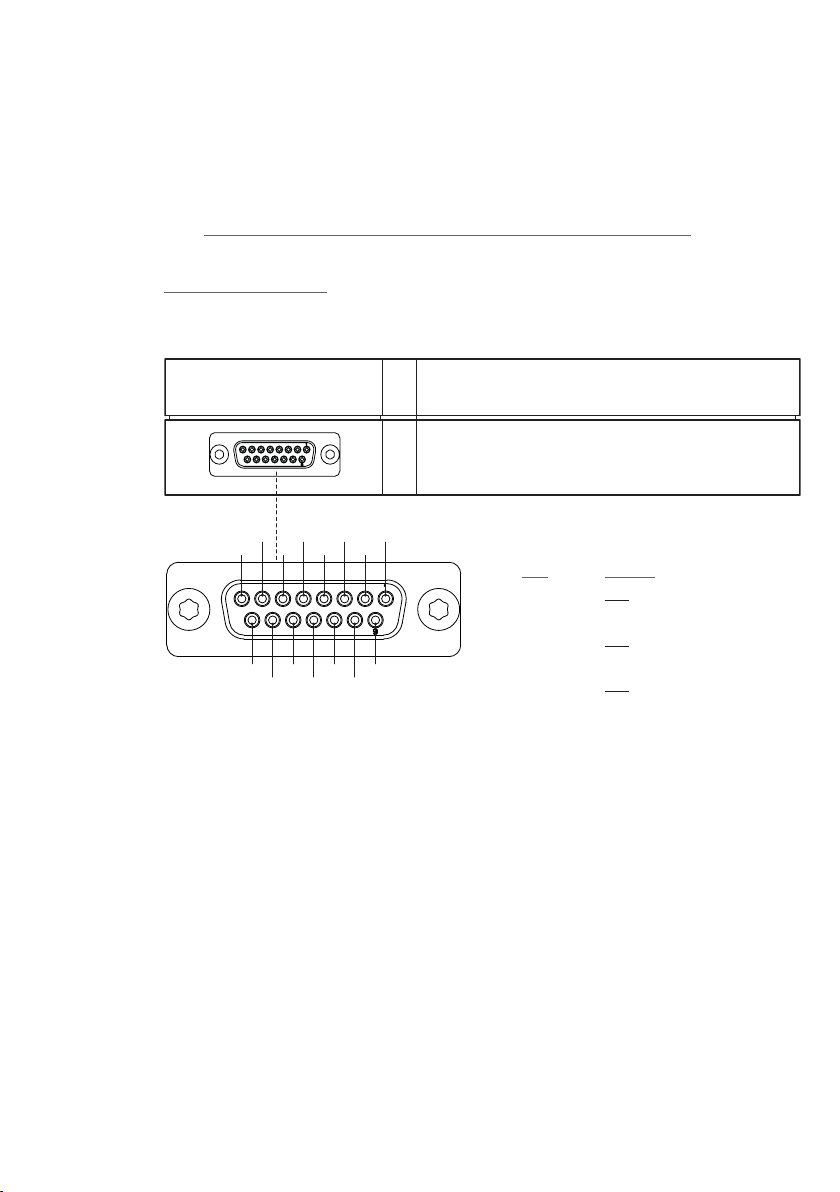

Theincrementalencoderisconnectedtothe15-poleSUB-Dsocketthatisttedonthe
left side of the HENQ 1100, see section 6.3.1, page 11. Please note that, in the interest
of functional reliability, you should only wire up those pins in the encoder plug that are
actually required for the particular encoder (applies in particular to the pins for the supply
voltage 5 V oder 9...30 V).
As an option, prefabricated cables with plug connectors are available for the various
types of encoder.
These cables have open cable ends on the encoder side.
5.2 Evaluation of sinewave signals
Evaluation of the signals from sinewave encoders can only be performed to a limited
extent, since the differential signals from the encoder are converted into TTL signals. It is
therefore not possible to check the levels.
The output from the HENQ 1100 is always a simulated TTL source, so that it is not pos-
sible to make a daisy-chain signal loop.
5.3 Connecting the supply voltage for the HENQ 1100
For proper operation, the HENQ 1100 requires a supply voltage of 9...30 V. The supply
must be able to carry a current load of at least 500 mA.
The connection is made through a 2-pole round socket on the right side of the instrument
with the inner conductor as positive pole, see section 6.1.2, page 9.
The encoder power is supplied either from the the HENQ 1100, see section 6.2.1, page
10, or from the frequency inverter or the control system, see section 6.2.2, page 10.
The selection is made in menu
INT/EXT ( INT : HENQ 1100, EXT : Controller).
5.4 HENQ 1100 with accumulator option
TheHENQ1100canoptionallybettedwithanaccumulator(12Vblockaccumulatorwith
integrated charging circuitry) that enables operation independently of the electrical supply
for up to 5 hours.
If, during this operation, the accumulator voltage falls below the permissible level of approx.
12 V, then the device will produce a “Low Battery Voltage” warning.
If the device is then not switched off, and the accumulator voltage continues to drop, then
the protection against complete discharge of the accumulator is activated, which will auto-
matically switch off the device.
It will then only be possible to switch on the device again when the accumulator has been
recharged. To fully recharge the accumulator, it is recommended that the HENQ 1100 is
attached to the plug-in power supply for about 5 hours. Charging will automatically be ended
as soon as the accumulator is fully recharged, and the voltage indicator (Menu ) will
show about 13 V.

SETUP
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 6/32
Inordertoincreasetheoperatingtime,aHENQ1100thatisttedwiththeaccumulatorop-
tion can be switched off by the On/Off switch.
If the HENQ 1100 is connected to the plug-in power supply, then the On/Off switch changes
it from charging mode (no display indication, display lighting is inactive) to measurement
mode and back again. On a HENQ 1100 without the accumulator option, the On/Off switch
has no function.
The accumulator is not charged up in measurement mode.
In accumulator operation, the encoder can still be supplied from the HENQ 1100, whereby
thecurrentconsumptionoftheencoderwilldecisivelyinuencetheoperatingtime.
5.5 Entering the encoder data (menu )
The HENQ 1100 makes provision for the attachment of any encoder with TTL (RS422),
HTL or SinCos output signals.
The encoder data are entered in menu as follows:
If the device is used in conjunction with encoders from Baumer Hübner, then the appro-
priate type (
1 - 40 ) can be selected in the menu item ENCODER , siehe Fig.5, page 16.
BecauseofthelargenumberofBaumerHübnerencodertypes,theeldforselectionis
restricted to the most common models available at present. When the encoder type has
been selected, the parameters MaxSpeed , inv.Sig. , ZeroPuls , with K2 , RefLevel
and Pulse-No are displayed for checking.
If your encoder is not present in the selection menu, select ‘
0 ’ (User Setting), see Fig.6,
page 16, in the menu item
ENCODER . Then you can set the encoder parameters th-
rough the menu items inv.Sig. , ZeroPuls , with K2 , RefLevel and Pulse-No , see
Fig.4, page 16 and Fig.6, page 16, individually by hand.
Itisalsopossibletoedittheencoderdatabasebyusingthe”cong“key,seeFig.7,
page 18. In the following submenu, the parameters encoder name
############# ,
MaxSpeed , inv.Sig. , ZeroPuls , with K2 , RefLevel and Pulse-No can be set
individually.
5.6 Measuring the encoder supply (menu )
After connecting up a incremental encoder, it is recommended to check the supply to the
encoder, see section 7.2.5, page 22.
For this purpose, the HENQ 1100 offers the option in menu of displaying the supply
voltages present at the encoder connection (5 V and 9...30 V), the current drawn (in mA)
and the power consumption (in mW).
This makes it easy to detect wiring errors, such as a short-circuit or cable break, or an
encoder fault.
The current drawn by the output driver that is integrated in the HENQ 1100 is shown in
the last line of the display. This will only be non-zero if the encoder signals provided by
the HENQ 1100 are passed on to a control system, see section 6.2.2, page 10.

SETUP
7/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
5.7 Checking the signal levels (menu )
The signal levels of the encoder can be checked in this menu.
Evaluation of the signals from sinewave encoders can only be performed to a limited
extent, since the differential signals from the encoder are converted into TTL signals. It is
therefore not necessary to check the levels.
At standstill, the momentary HIGH (H) and LOW (L) levels of the encoder signals will be
displayed.Ifthelevelisundenedorthereisnocorrespondingsignal(openinput),then
the ‘
? ’ symbol will appear.
When the encoder is rotating, correct signal levels will be acknowledged by a ‘ √ ’ mark.
5.8 Display measurements as text (menu )
In menu the following measurements are displayed as text, see also section 7.2.3,
page 20:
Display 1: Speed in revolutions per minute (
+00072 rpm )
For encoders that provide two signals in quadrature (K1 and K2, with a 90° phase shift),
the mathematical sign determines the direction of rotation. For encoders with a single K1
signal output, only the magnitude is shown.
Display 2: Pulse/pause ratio of the K1 signal (
K1=50:50 )
Therstgureindicatesthedurationofthehighlevelasapercentageoftheentirecycle.
ThesecondgureindicatesthedurationofthelowleveloftheK1signal,asapercenta-
ge.
Display 3: Pulse/pause ratio of the K2 signal (
K2=48:52 )
Therstgureindicatesthedurationofthehighlevelasapercentageoftheentirecycle.
Thesecondgureindicatesthedurationofthelowlevel,asapercentage.
)Please note:
Principle limitations mean that the pulse/pause ratio will be affected during rapid
acceleration.
Display 4: Angular position (
A=29.0° )
Display of the angular position, in degrees.
Display 5: Phase shift between K1 und K2 (
P=089° )
The displayed value is the phase shift (in degrees) between the rising edge of the K1
signal and the rising edge of the K2 signal.
)Please note:
If the pulse/pause ratio of the encoder signals K1 and/or K2 is other than 50:50,
then there will be different values measured for the phase shift between K1 and K2,
depending on the rotating direction.
Principle limitations also mean that the calculation of the phase shift will be affected
during rapid acceleration.

SETUP
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 8/32
Display 6: Position of the reference signal ( Z=282° )
This value gives the position (in degrees) of the reference signal relative to the position
of the encoder after the supply voltage for the HENQ 1100 is switched on or the encoder
changed.
5.9 Display measurements as graphics (menu )
A bar graph display is used for online presentation of the measured values.
The values indicated are, see also section 7.2.2, page 19:
Column 1:
The speed value ( shown at left, next to plain text with mathematical sign).
The scaling is made so that the highest bar corresponds to the value for the menu item
MaxSpeed set in menu .
Column 3 and 4:
This value gives the position and the position of the reference signal relative to the
position of the encoder after the supply voltage for the HENQ 1100 is switched on or the
encoder changed.
The lowest bar corresponds to 0° and the highest corresponds to 360°.
Column 6 and 7:
The pulse/pause ratio of the encoder signals K1 and/or K2, whereby the middle of the
bar corresponds to a 50:50 ratio. The highest or lowest value, respectively, refers to the
maximum error
MS_Error as set up in menu (for example 30:70 resp. 70:30).
Column 9:
The phase shift of K1 relative to the rising edge of K2, whereby the middle of the bar
corresponds to 90°.
In menu the maximum permitted phase shift can be set up in the menu item
PhaseErr .
The lowest bar corresponds to a [90° -
PhaseErr ] and the highest corresponds to a
[90° +
PhaseErr ].
Ifareferencesignalisavailable,itsrstappearanceisacknowledgedby
K0=OK! .
If the reference signal fails then even once, this will be detected and signaled by K0=ERR .

CONNECTIONS / CONNECTIONS ON THE DEVICE
9/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
6. CONNECTIONS
6.1 Connections on the device
Unused inputs must be left open!
Do not connect to ground, supply or a signal, or attach a cable.
6.1.1 Device left side
D-SUB connector
(female) 15-pin
Encoder connection,
see section 6.3 .1.1.
D-SUB connector (male)15-pin
Output,
see section 6.3.2.1.
RS485
(optionally: RS232)
for PC or laptop,
see section 6.3.2.2.
Power supply
6.1.2 Device right side

CONNECTIONS / POWER SUPPLY OF THE ENCODER
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 10/32
6.2 Power supply of the encoder
The encoder power is supplied either from the HENQ 1100 (
INT ), see section 6.2.1, or
from the frequency inverter or the control system (
EXT ), see section 6.2.2.
The selection is made in menu , menu item
INT / EXT , see Fig.3, page 16.
6.2 .1 Encoder supply from the HENQ 1100
6.2.2 External power supply for the encoder
U1= UB - 1 V or U2= 5 V
U1= UREG1 or U2= UREG2 UREG1 = 9…30 V or UREG2 = 5 V
RS485
(opionally: RS232)
RS485
(opionally: RS232)
USB ⇔RS485
USB ⇔RS485
Power supply
UB = 9...30 V
Power supply
UB = 9...30 V
Controller
Measured values
displayed on the
PC, see section 8,
page 24.
Measured values displayed on
the PC, see section 8, page
24.

CONNECTIONS / ASSIGNMENTS
11/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
6.3 Assignments
6.3.1 Device left side
6.3.1.1 Encoder connection
)The output signals of the HENQ 1100 are always differential!
It is not possible to make a daisy-chain signal loop with sinewave signals.
View device left side
Input D-SUB connector (female) 15-pin, see section 6.1.1, page 9.
8
1514131211 10 9
7654321
Pin Signal
1K1 (A+)
2K1 (A-)
3K2 (B+)
4K2 (B-)
5K0 (R+)
6K0 (R-)
7dnu
8dnu
9U1= 9...30 V
10 U1= 9...30 V
11 U2= 5 V
12 U2= 5 V
13 GND
14 GND
15 GND
dnu Do not use
GND Ground

CONNECTIONS / ASSIGNMENTS
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 12/32
6.3.2 Device right side
6.3.2 .1 Output
)The output signals of the HENQ 1100 are always differential!
It is not possible to make a daisy-chain signal loop with sinewave signals.
View device right side
Output D-SUB connector 15-pin, see section 6.1.2, page 9.
+
_
1
91011 12131415
2345678
Pin Signal
1K1 (A+)
2K1 (A-)
3K2 (B+)
4K2 (B-)
5K0 (R+)
6K0 (R-)
7dnu
8dnu
9UREG1 = 9...30 V (from control unit)
10 UREG1 = 9...30 V (from control unit)
11 UREG2 = 5 V (from control unit)
12 UREG2 = 5 V (from control unit)
13 GND
14 GND
15 GND
Power
supply
dnu Do not use
GND Ground

CONNECTIONS / ASSIGNMENTS
13/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
+
_
5
9876
4321
RS485 connector (female):
Pin Signal
1B (D-)
2A (D+)
3B (D-)
8A (D+)
RS232 connector (female, option):
Pin Signal
2RX
3TX
5GND
7RTS
Power
supply
6.3.2.2 PC/laptop interface
View device right side
Output RS485 connector (female) (option RS232 connector (female)), see
section 6.1.2, page 9.

OPERATION / MENU STRUCTURE - NAVIGATION
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 14/32
7. OPERATION
7.1 Menu structure - Navigation
OK oder
OK oder
oder
Enter
Direction keys
Conrmationkey OK
Enter Enter key
Eingabefeld
Display
Key On resp. Off - only
On
Off
for units equipped with
accumulator, siehe
section 5.4, page 5.
Select item with the up/down keys
Open submenu with OK key or right key
Conrmvalueandexitthesubmenu
with the OK key or left key
Set the values for
MS-Error , PhaseErr
and ENCODER with the up and down keys.
Select the other parameters in addition
with right key and/or Enter key. Enter
alphanumericalvaluesviatheinputeld.
F1 up to F5
Menu keys
Cancel with Esc key Esc
7.1.1 Navigation within the menu

OPERATION / MENU DESCRIPTION
15/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
7.2 Menu description
7.2.1 Parameter setting (menu )
The HENQ 1100 makes provision for the attachment of any encoder with TTL
(RS422), HTL or SinCos output signals.
The encoder data are entered in menu as follows:
If the device is used in conjunction with encoders from Baumer Hübner, then the
appropriate type (
1 - 40 ) can be selected in the menu item ENCODER , see Fig.5, page
16.BecauseofthelargenumberofBaumerHübnerencodertypes,theeldfor
selection is restricted to the most common models available at present. When the
encoder type has been selected, the parameters MaxSpeed , inv.Sig. , Zero-
Puls , with K2 , RefLevel and Pulse-No are displayed for checking.
If your encoder is not present in the selection menu, select ‘
0 ’ (User Setting, see
Fig.6, page 16) in the menu item ENCODER . Then you can set the encoder para-
meters through the menu items inv.Sig. , ZeroPuls , with K2 , RefLevel and
Pulse-No , seee Fig.4, page 16 + Fig.5, page 16, individually by hand.
Itisalsopossibletoedittheencoderdatabasebyusingthe”cong“key,see
Fig.7, page 18. In the following submenu, the parameters encoder name
############# , MaxSpeed , inv.Sig. , ZeroPuls , with K2 , RefLevel and
Pulse-No can be set individually.
Fig.2: Display menu picture 1
Errors : on / off
off
: Error messages will be disabled (for
error search).
MaxSpeed : #####
Maximum speed
Glitch : #
0≤ # ≤7Settingsoftheglitchlterseesec-
tion 7.2.1.1.
MS_Error : ##:##
Pulse/pause error: setting the max. deviation.

OPERATION / MENU DESCRIPTION
MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN 16/32
Fig.3: Display menu picture 2
Fig.4: Display menu picture 3
PhaseErr : ##
Threshold value for the phase shift
Output : on / off
The output driver can be switched off if
required
INT/EXT : INT / EXT
INT
= Encoder power supplied via HENQ
1100
EXT = External supply for the encoder
Backlite : on / off
Background lighting on/off
inv.Sig. : yes / no
Inverted signals yes/no
ZeroPuls : yes / no
Reference signal yes/no
with K2 : yes / no
K2 yes/no
Fig.5: Display menu picture 4a
Fig.6: Display menu picture 4b
RefLevel : TTL / HTL / SIN
Reference level and level for output driver
(TTL→TTL;HTL→HTL;SIN→TTL)
If „ RefLevel = SIN “ is selected, the output
simulates a TTL source.
Pulse-No : #####
Number of pulses
ENCODER : #
Encoder database ( # = 1 - 40 :predened
BaumerHübnerencodertypes; # = 0 : user
setting)
Submenu ENCODER see section 7.2.1.2.
HOG 10 DN 1024I
Encoder name from encoder database, see
Fig.5.
User Setting
Encoder name user setting, see Fig.6.

OPERATION / MENU DESCRIPTION
17/32 MB112EN - 11185046, 19A1, Baumer_HENQ1100_OI_EN
7.2.1.1 Settings of the glitch lter
Filter parameter t
IN
K1 (A)
K2 (B)
OUT
K1 (A)
K2 (B)
# = 0 : off
After the comparator the signals will be direc-
ted straight to the output
# = 1 : on
Pulse, smaller than als t = 750 ns will be
disabled
# = 2 : on
Pulse, smaller than t = 1.25 µs will be disa-
bled
# = 3 : on
Pulse, smaller than t = 1.75 µs will be disa-
bled
# = 4 : on
Pulse, smaller than t = 2.25 µs will be disa-
bled
# = 5 : on
Pulse, smaller than t = 2.75 µs will be disa-
bled
# = 6 : on
Pulse, smaller than t = 3.25 µs will be disa-
bled
# = 7 : on
Pulse, smaller than t = 3.75 µs will be disa-
bled
