Baxi 807 Instructions for use

5113198/01
INSTALLER AND OWNER GUIDE
This guide is intended to help you install and care for your electric heater. Please read
carefully before installing and using your heater. However, if further information is
required, our Baxi Fires Division Technical Helpline will be pleased to help.
Telephone [phone] (National call rates apply in the United Kingdom)
In the Republic of Ireland telephone [phone].
Important: Please keep your guide in a safe place for future reference
Model 807
Electric Heater
Fitted with one of the following fascia
Adage,
Alisa,
Anthem,
Dream,
Eternal,
Manor,
Ocean,
Ultimate or
Victorian.
© Baxi Heating U.K. Ltd.

Safety First.
Baxi Fires Division fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
At the heart of every Baxi Fires Division heater.
All Baxi Fires Division heaters are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
CUSTOMER CARE
Thank you for choosing Baxi Fires Division
All Baxi Fires Division heaters are designed to meet the most stringent quality,
performance and safety requirements to provide our customers with many years of
trouble free service. This guide aims to improve your understanding and appreciation of
your new heater, by providing simple and informative instructions to enable you to
install it and to ensure that you benefit from the excellent performance and features it
has to offer.
If you require further assistance, the Baxi Fires Division Technical Helpline will be
pleased to help.
Please telephone [phone] (local rates apply in the United Kingdom).
In the Republic of Ireland telephone [phone].
FOR OTHER USEFUL TELEPHONE NUMBERS SEE THE LAST PAGE OF THIS GUIDE
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER AND OWNER GUIDE

HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Unpacking the Dream heater.
This heater has a fascia which is heavy (13.35 kG).
To avoid damage it is packed in a separate box within the main box.
When unpacking it is important that the box containing the fascia is removed before the
main body of the heater. This is to prevent the main box tipping over and causing
damage or injury.
Important safety instructions.
!The lifting weights of the heater parts are listed below: -
Heater Heat engine (kG) Complete Fascia (kG) Spacer (kG)
Adage 6.8 2.16 2.3#
Alisa 7.2 0.62 1.2
Anthem 7.2 0.62 2.3
Dream 6.8 13.35 ---
Eternal 6.8 3.45 2.3
Manor 6.8 4.3 2.3*
Ocean 6.8 2.16 2.3*
Ultimate 6.8 4.3 2.3*
Victorian 6.8 5.56 2.3
* A Spacer is not supplied with the heater, but is available as an optional extra
Please contact your dealer quoting Part number 05801T1.
# The Adage blue does not include a spacer frame with the product, but is
available as an optional extra. Please contact your dealer quoting part number
05801T1.
!
One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!
Avoid upper body/top heavy bending. Always bend from the knees rather than the
waist. Do not lean forward or sideways whilst handling the heater.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!
Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
Page 3
INSTALLER AND OWNER GUIDE

!Use gloves to provide additional grip.
!Always use assistance if required.
Always
! Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
! Always make sure the electrical socket is accessible and located adjacent to, but
not above the heater.
! Always disconnect the heater from the electrical supply before carrying out
cleaning, maintenance or replacing the light bulb.
! Always
make sure the heater is firmly secured to prevent it from being tipped over.
! Always use a fireguard when young children and infirm persons can come into
contact with the heater.
! Always use genuine Baxi Fires Division spares.
Never
! Never leave children unsupervised in a room where the heater is ON and
unguarded.
! Never obstruct or cover the fan outlet or force items into heater openings.
! Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
! Never use aerosols or steam cleaners on or around the heater.
! Never route the mains supply cable under carpet etc.
! Never install the heater close to curtains or combustible materials.
! Never use the heater to dry clothes etc.
! Never sit or stand on the heater.
FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in doubt,
seek help from a competent person
Do I need any tools?
1. You will need two screwdrivers: -
1 off Pozidrive / Phillips / cross head
screwdriver. This should have a number 2 size
end. If you are unsure about the size of the end simply make sure that the end fits into
the screws supplied with the heater. If the end is too small then the end will spin and
damage the screw.
1 off Flat end
screwdriver. The end should fit into the slot head screws supplied with
Page 4
INSTALLER AND OWNER GUIDE

the heater.
2. For drilling into brickwork you will need an electric hammer drill and appropriate
size drill bit for the wall plugs supplied (See figure 4).
Where can I fit the heater?
This heater can be fitted into fireplaces or surrounds where the following dimensions
are available.
Width 390mm - 450 mm (15.35 inches - 17.72 inches)
Height 555mm - 590 mm (21.9 inches - 23.2 inches)
Depth At least 75mm (At least 3 inches)
There should be at least 30mm (1.2 inches) clearance between the top of the fascia and
anything such as a shelf, fireplace surround or mantel etc. This will allow the fascia to
be lifted off or removed during servicing. To check this gently place the fascia against
the surface to which it is to be fixed. Measure the distance from the top of the fascia.
Using the 75mm (3 inch) spacer kit supplied, the Adage (Not Adage blue), Anthem and
Victorian heaters can also be used where a fireplace opening or fireplace surround
opening are not available i.e. a flat wall. The Dream
heater does not have the 75mm (3
inch spacer) and cannot be used against flat walls unless it is fitted to a rebated
surround or suite.
A 75mm spacer kit is available for the Adage blue, Manor, Ocean and Ultimate models
as an optional extra. Please contact your dealer quoting Part number 05801T1.
Important electrical safety.
The heater must not
be located in front of or under an electrical socket, the socket must
always be accessible in order to disconnect the heater from the electrical supply for
maintenance and cleaning.
Important! This heater must be earthed.
!
The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3 core
cable.
! The wires in the cable are coloured in accordance with the following code: -
Live =Brown Neutral = Blue Earth = Green /Yellow
! The mains supply must be safely routed from the heater to an electrical socket.
Moving the cable guide.
At the base of the heater you will find an electric cable which runs through a
rectangular plastic cable guide. As supplied the cable guide is fitted into the rectangular
Page 5
INSTALLER AND OWNER GUIDE

cutout on the right side of the heater. If required, the
cable guide can be removed and put in the
rectangular slot in the centre or left hand side of the
heater. For removal and fitting please see the
following sections.
Removing the cable guide
1. Before removing the cable guide please note that
the wider part of the cable guide is on the outer edge
of the base (See figure 1- Item 1).
2. To remove the cable guide push and lift the tab on
the bottom of the cable guide. The bottom of the
cable guide will open (See figure 1- Item 2).
3. Lift the electric cable clear of the cable guide.
4. Hold the bottom of the cable guide close to the
heater then gently pull the cable guide away from
the rectangular slot (See figure 1- Item 3).
Fitting the cable guide.
When fitting the cable guide please remember that
the wider part of the cable guide has to be fitted
against the outer edge of the base (See figure 1- Item
1).
1. Gently pinch the sides of the cable guide (See
figure 1 - Item 4) and push the cable guide into the
required rectangular slot.
2. Place the electrical cable into the guide and close
the top of the cable guide.
If the mains cable is damaged, to avoid a hazard it
must be replaced by a Baxi Fires Division authorised
service agent, or similarly qualified person (See the
last page of this guide for useful telephone
numbers).
All external wiring between the heater and the
electrical supply shall comply with current IEE
regulations.
Removing the fascia
Eternal, Manor, Ultimate and Victorian heaters.
1. Remove the two fascia securing screws (See figure 2). Remove the front fascia by
Page 6
INSTALLER AND OWNER GUIDE

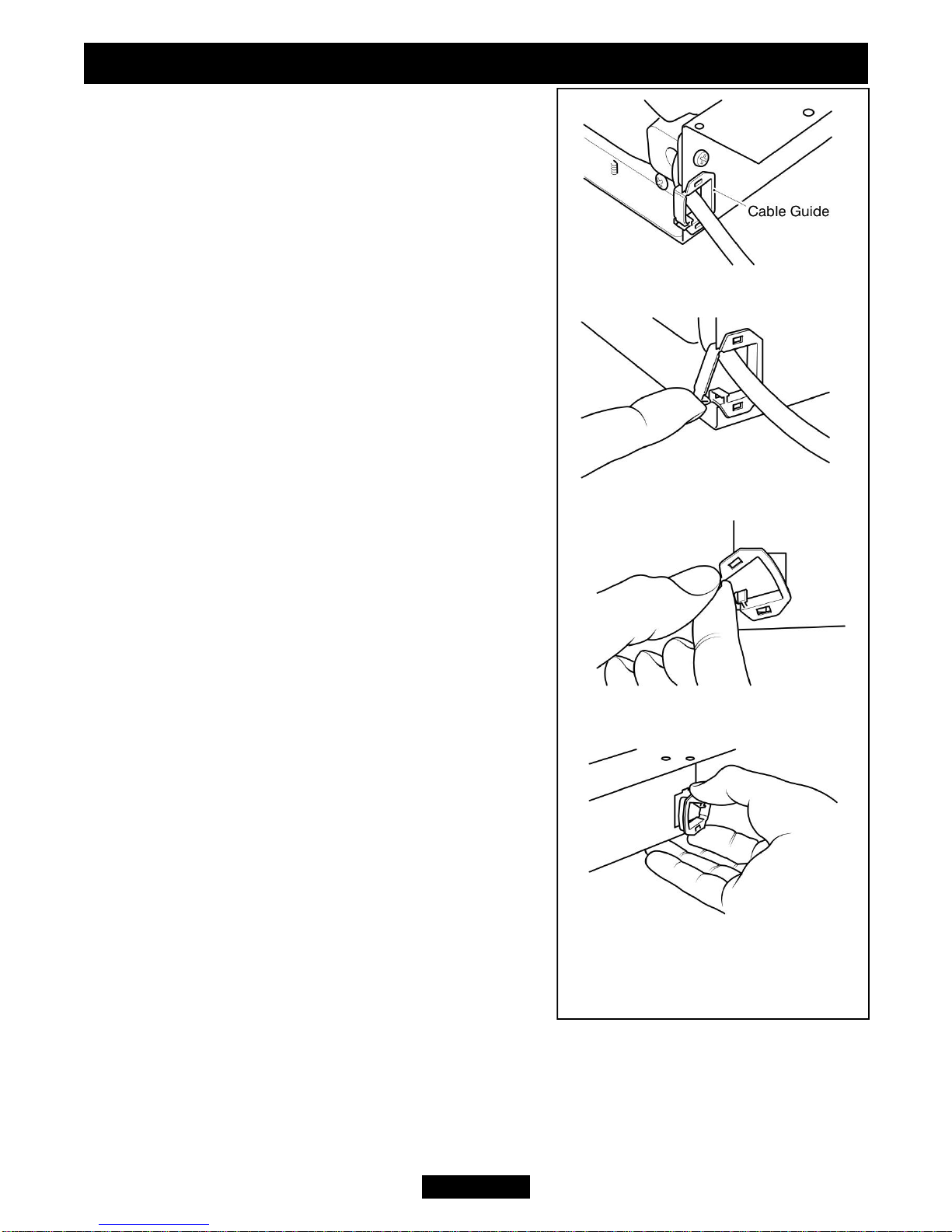

Figure 1. Removing and
positioning the cable guide.
Item 1
Item 2
Item 3
Item 4

gently pulling the base of the fascia forward whilst lifting
clear of the support brackets at the top of the heater (See
figure 2).
2. Keep the fascia in a safe place while installing the heater
Adage, and Ocean heaters.

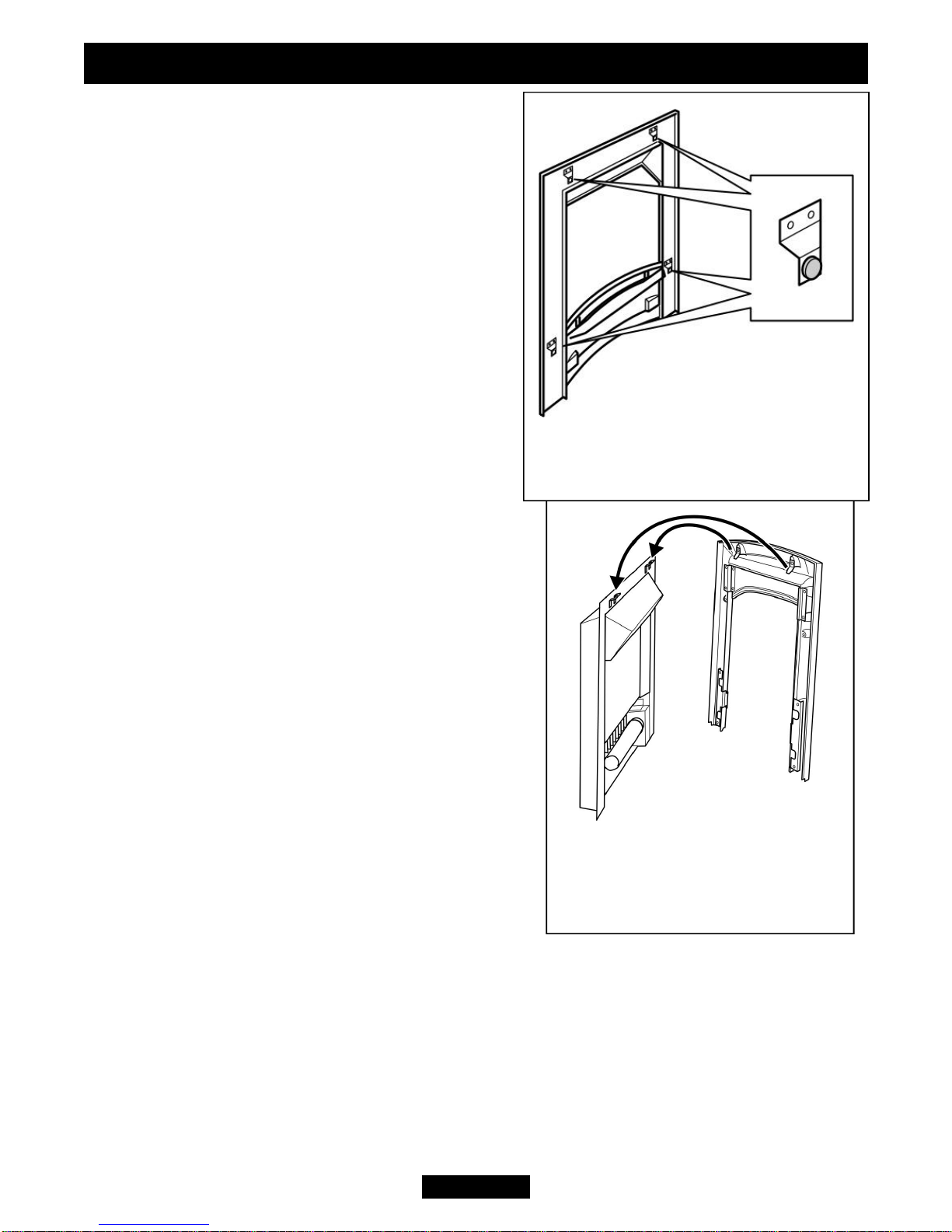

1. Very strong magnets attach the
fascia to the heater. Support the
rear of the heater and gently pull
the fascia forward (See figure 3).
2. Keep the fascia in a safe place
while installing the heater.
Alisa, Anthem and Dream
heaters.
The fascia is supplied in separate
packaging within the main box.
Heater fixing.
All fixings supplied with the
heater have been identified in
figure 4.
Page 7
INSTALLER AND OWNER GUIDE
Figure 3. Removal of
Adage and Ocean
fascia.

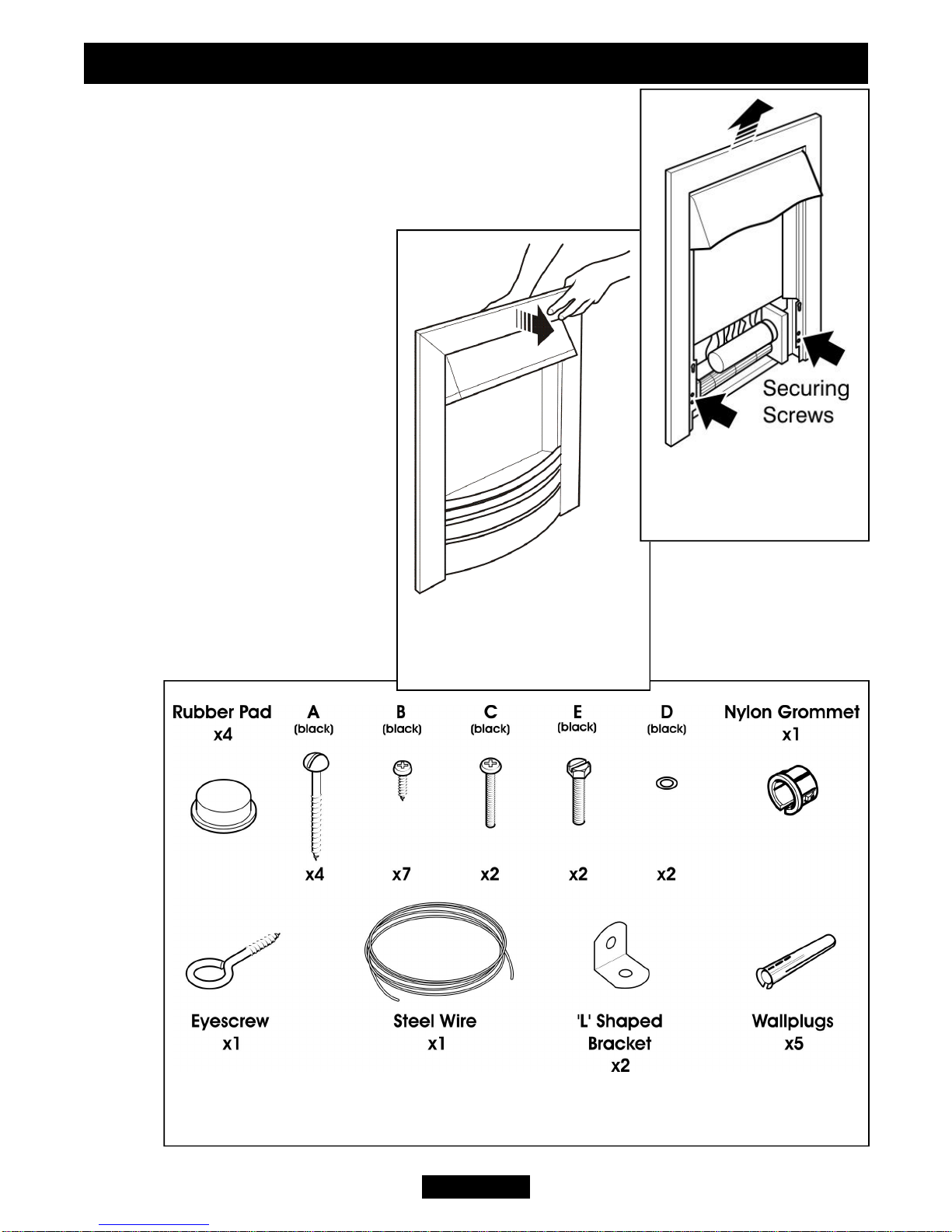

Figure 2. Removing
Eternal, Ultimate and
Victorian fascia.
Figure 4. Loose parts identification (Depending upon model, certain parts
may not be included or required)

The heater must be fixed into position to prevent it from being tipped over
The following fixing options are available:
Screw Fixing
Wire Fixing
Spacer Frame (As supplied with Adage(Not Adage blue), Alisa, Anthem,
Eternal and Victorian heaters or available as an optional extra for the Adage blue,
Manor, Ocean and Ultimate models).
If fitting the heater into a fireplace or surround opening, try the heater in the opening to
ensure that it will fit.
If fitting the heater onto a decorative hearth surface such as marble or tile it is advisable
to protect the hearth surface. Do not drag the heater across the surface of the hearth as
this may scratch the hearth surface.
Method A - Screw fixing.

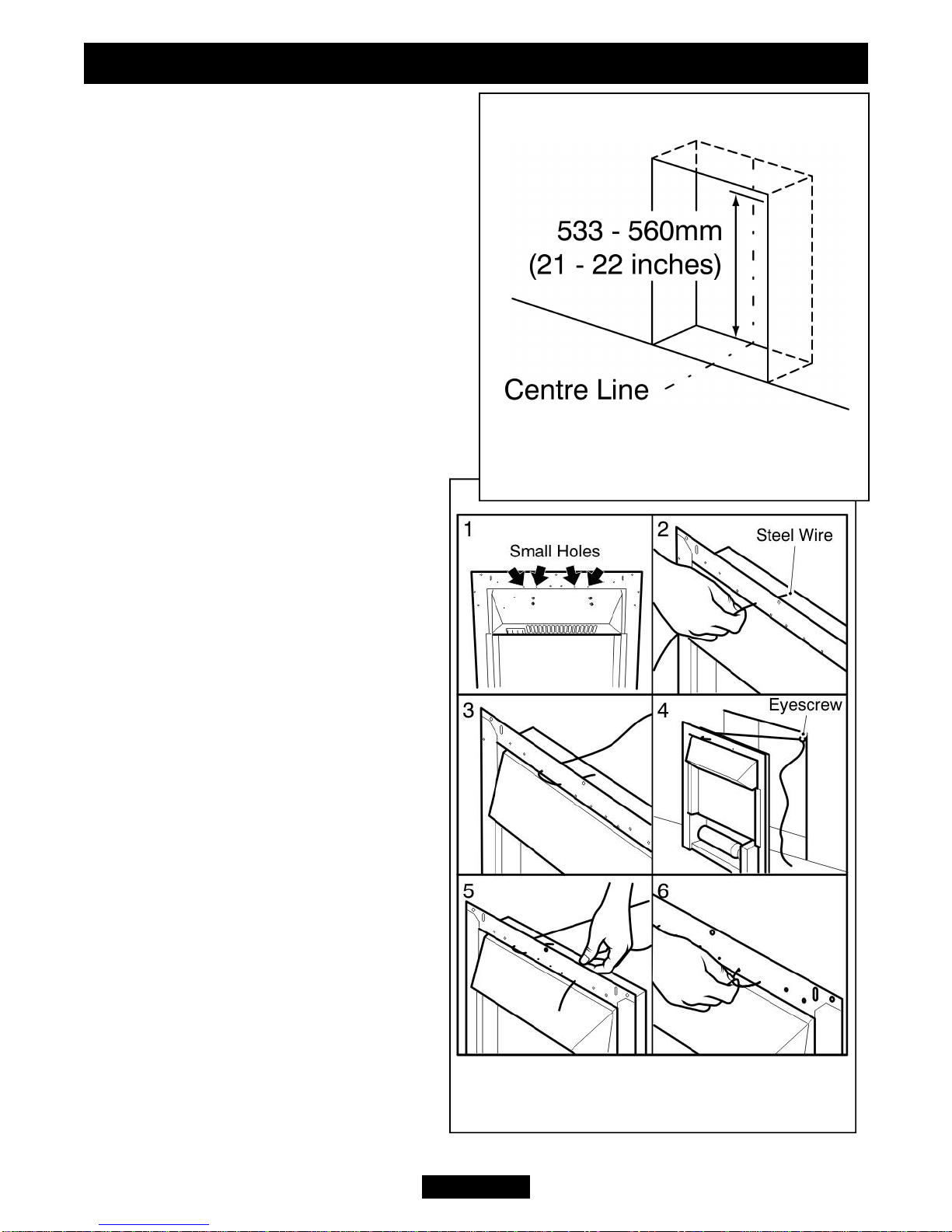

Note - If fixing to marble it is recommended that
Method B - ‘Wire fixing’ is used. Drilling marble
without the correct tools and experience may result in
the marble cracking.
1. Place the heater into the fireplace or surround
opening. Make sure that the heater is in the middle of
the surround or fireplace.

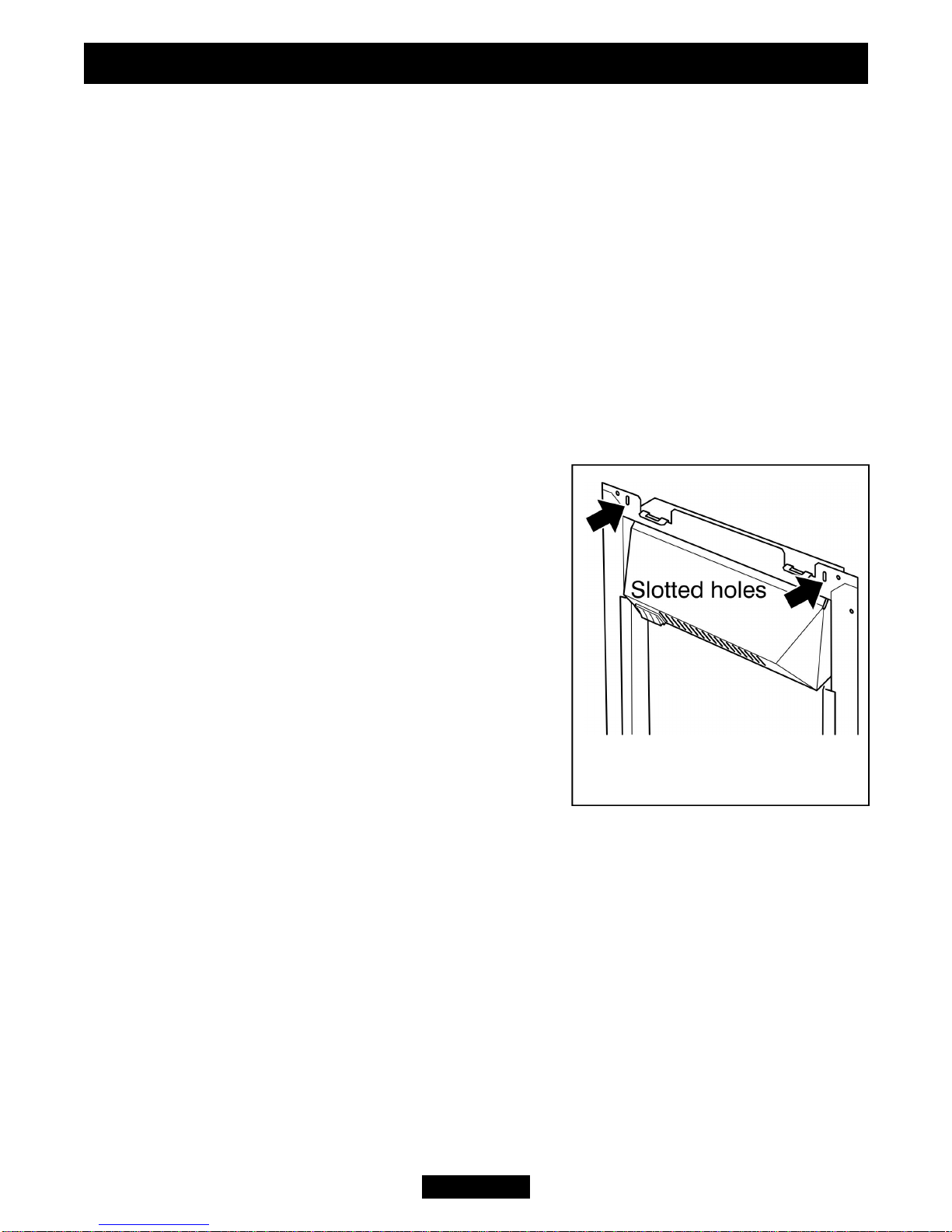

2. There are two slotted holes in the top of the heater
(See figure 5). Mark through the slotted holes so that
their position is clear when the heater is removed.
3. Remove the heater
4. Drill an appropriate size hole in each of the marked
positions. Insert wall plugs into the drilled holes.
5.
Place the heater so that the slotted holes are in line with the wall plugs in the fixing
surface.
6. Screw and secure the heater with two ‘A’ screws (See figure 4).
Method B - Wire fix.
This method of fixing needs a fireplace opening and is recommended when fixing the
heater to a marble surround or where the wall or brickwork is in poor condition.
1.
The fixing kit supplied with the heater includes a steel wire and eyescrew (See figure
4). These can be used to secure the heater to the back of a fireplace opening.
2.
Mark the eyescrew position on the centre line at the back of the fireplace opening and
at a height of 533-560mm (21 inches - 22 inches) (See figure 6).
Page 8
INSTALLER AND OWNER GUIDE
Figure 5. Slots for screw
fixing.

3. Drill an appropriate size hole in the
marked position.
4. Insert a wall plug into the drilled hole.
5. Screw the eyescrew into the wall plug.
6. Position the heater in front of the
fireplace opening.
7. At the top of the heater there are four
small holes, two each side of the heater
(See figure 7- Item 1). From the front of the
heater, thread about 50mm ( 2 inches) of the
steel wire into the inside small hole on the
left side of the heater (See figure 7 - item
2).
8. Thread the other end of the wire through
the remaining small hole on the left hand
side of the heater. Continue to push the
wire through this hole until there is only
a small loop of wire at the front of the
heater (See figure 7 - item 3).
9. At the back of the heater there will be
a long piece and a short piece of wire
coming through the two holes. Hold the
short piece and give the long piece a
gentle tug. This will secure the steel
wire. Take the long piece and thread this
through the eyescrew in the back of the
fireplace opening (See figure 7 - item 4).
10. From the back of the heater thread
the long piece of steel wire through the
outer small hole on the right hand side
of the heater (See figure 7 - item 5).
11. Locate the heater in the fireplace
opening, then from the front of the
heater, gently pull the steel wire on the
right hand side to gather up the excess
until the heater is secure. Thread the
wire through the remaining small hole to
lock the wire and heater in place (See
figure 7 - item 6).
Page 9
INSTALLER AND OWNER GUIDE
Figure 7. Steel wire fixing (Detail at top of
heater may differ from that shown)
Figure 6. Eyescrew position.

Method C - Spacer Frame
(A spacer frame is NOT available for the
Dream heater and is available as an
optional extra for the Adage blue, Manor,
Ocean and Ultimate models)
This spacer frame is for use during installations
where a chimney recess or rebated fire
surround are not available. For your safety the
frame and heater must be securely fixed to the
rear wall.
Fitting the spacer frame for models
supplied with a wooden spacer frame.
1. There are three ‘L’ shape brackets supplied
with the heater (See figure 4). To fix the
brackets to the spacer frame there are three
‘B’ screws (See figure 4). The spacer frame
has a stepped outer. The rear of the spacer is
the narrow side - when positioned against the
wall or fixing surface the steps should widen
as they come closer to you. Position and
screw the ‘L’ shaped brackets to the rear of
the spacer frame as shown in figure 8.
2. Position the spacer frame against the wall
or front of the opening. Make sure
that the spacer frame is central to the
fireplace surround or is in the correct
position against the wall. Mark
through the rear holes in the brackets
so that their position is clear when
the spacer frame is removed.
3. Remove the spacer frame.
4. Drill appropriate sized holes in the
marked position.
5. Insert a wall plug into the drilled
holes.
6. Place the spacer frame so that the
holes in the brackets are in line with
the wall plugs in the fixing surface.
Page 10
INSTALLER AND OWNER GUIDE

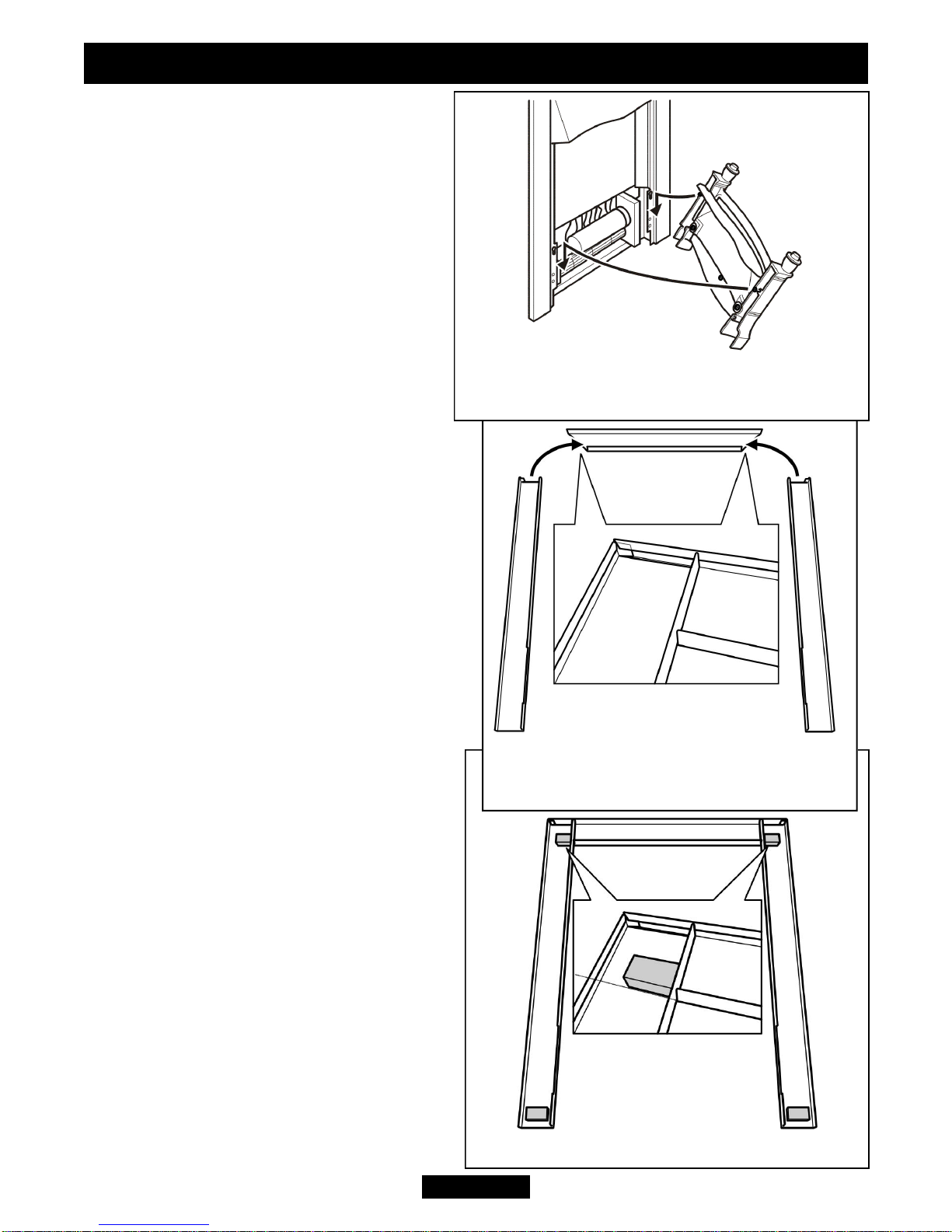

Figure 10. Fixing the Heater to the spacer frame.
Figure 9. Locating the electric cable
into the spacer frame.
Figure 8. Bracket positions

If the electric cable is to go to the left or right of the heater then stand the heater in front
of the spacer frame. Pass the electrical cable underneath the spacer frame and locate it
into the cutout in the centre of the spacer frame (See figure 9).
7. Screw and secure the spacer frame with three ‘A’ screws (See figure 4).
8. Place the heater centrally against the spacer frame. The heater has holes in its left
side, right side and top. Secure the heater to the spacer frame through the four hole
positions as in figure 10 using four ‘B’ screws (See
figure 4).
Fitting the spacer frame for models supplied
with a metal spacer frame.
1. Fit the four self adhesive rubber pads to the rear
of the spacer frame. They should be located on the
rear of the vertical legs as in figure 11.
2. Position the spacer frame against the wall.
Ensure that the spacer frame is central to the
fireplace.
3. The top rear flange of the spacer frame has two
screw locations. Mark the positions of the two
screw locations on the rear wall (See figure 12).
4. Remove the spacer frame from the fireplace
and place away from the work area.
5. Drill the screw locations using a no. 12
masonry drill bit.
6. Insert the two fibre wall plugs provided into
the holes
7. Insert a screw into each hole and screw in
until there is approximately 6mm of screw
protruding from the wall.
Preparing the heater for installation.
1. Remove the decorative front surround from the
heater.
2. Using the four screws provided, fix the heater to
the spacer frame.
3. There is a supply cable slot on both sides of the
spacer frame. It is located at the base. Decide which
side to pass the supply cable through. The nylon
grommet supplied has a slot along its length. Fit the
grommet to the mains cable with the flange edge
Page 11
INSTALLER AND OWNER GUIDE

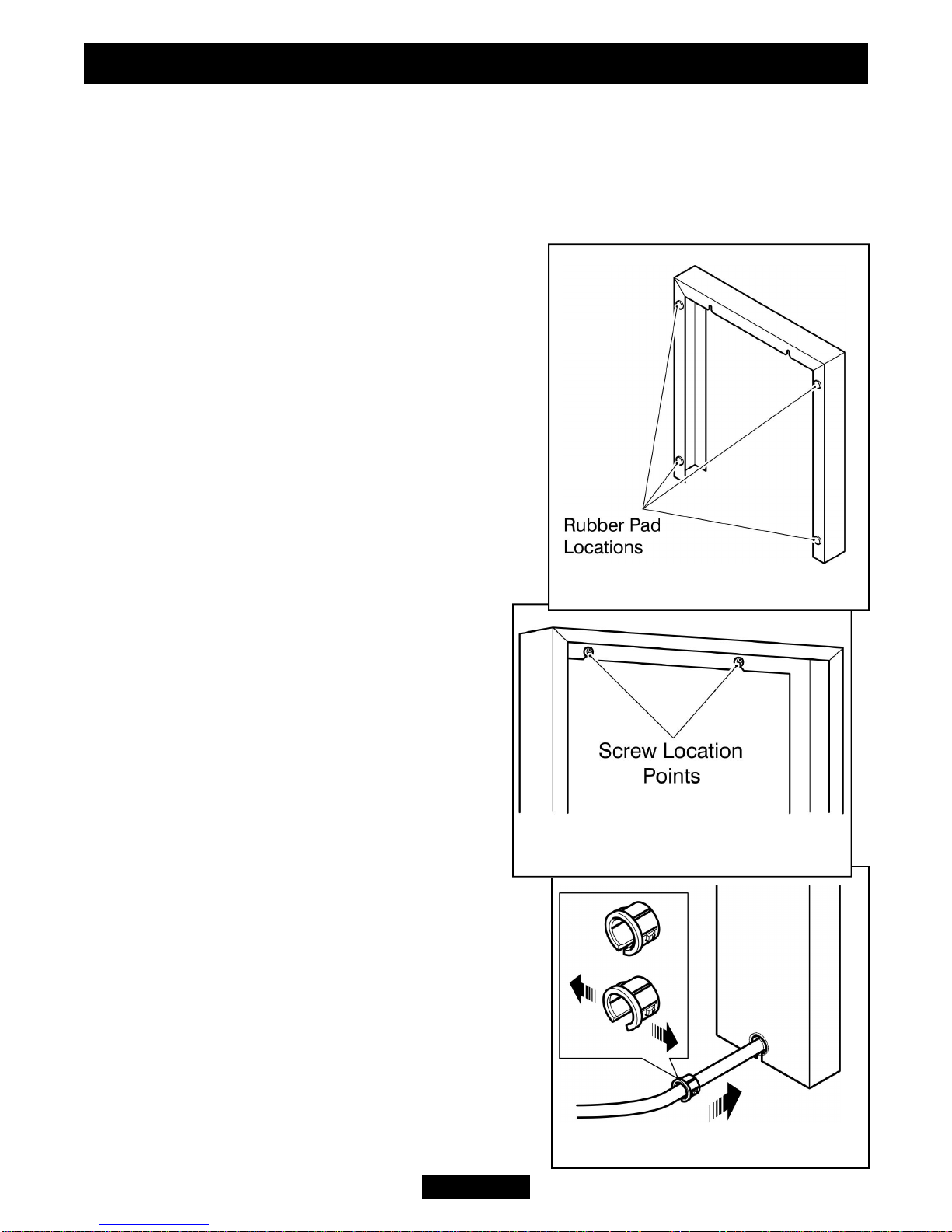

Figure 13. Bracket positions
Figure 11. Rubber pad locations
Figure 12. Bracket positions

positioned away from the fire (See figure 13).
4. Position the supply cable in the spacer frame slot
5. Slide the nylon grommet along the supply cable towards the heater. When the
grommet reaches the slot, push it into the slot up to its flange (See figure 13).
Fitting the heater.
1.
Locate the spacer frame and heater over the screw heads ensuring a tight fit. If the fit
is loose, remove the spacer frame and heater from the wall. Tighten the wall screws
slightly and reposition the spacer frame and heater.
Setting the position of the light bulb shroud.
What is the light bulb shroud?
The light bulb shroud (See figure 14) is the coloured
tube that sits around the light bulb.
What is it for?
The light bulb shroud can be rotated to give different
light effects. If you look at the light bulb shroud you
will see a dark area. This dark area is there to reduce
the amount of light from the light bulb to the areas
which it faces. The slots are there to give a white or
brighter light.
How will I know which position to set the light
bulb shroud?
! Positioning the dark area of the shroud underneath the light bulb will reduce the
amount of light onto the hearth or floor surface.
!
Positioning the dark area to the rear of the light bulb will reduce the amount of light
to the flame effect at the rear of the heater.
A good start point is to have the light bulb shroud dark area facing the front of the
heater. If the light effect is not to your liking then the firefront can be removed and
adjustments made to the shroud after the heater is fitted (On the Adage and Ocean
heaters it will be necessary to remove the whole fascia).
How do I set the position of the light bulb shroud?
Hold the right hand side of the light bulb shroud and rotate it in a downward direction.
Never rotate the light bulb shroud in an upward direction as you may be unscrewing the
light bulb at the same time (See figure 14).
Page 12
INSTALLER AND OWNER GUIDE

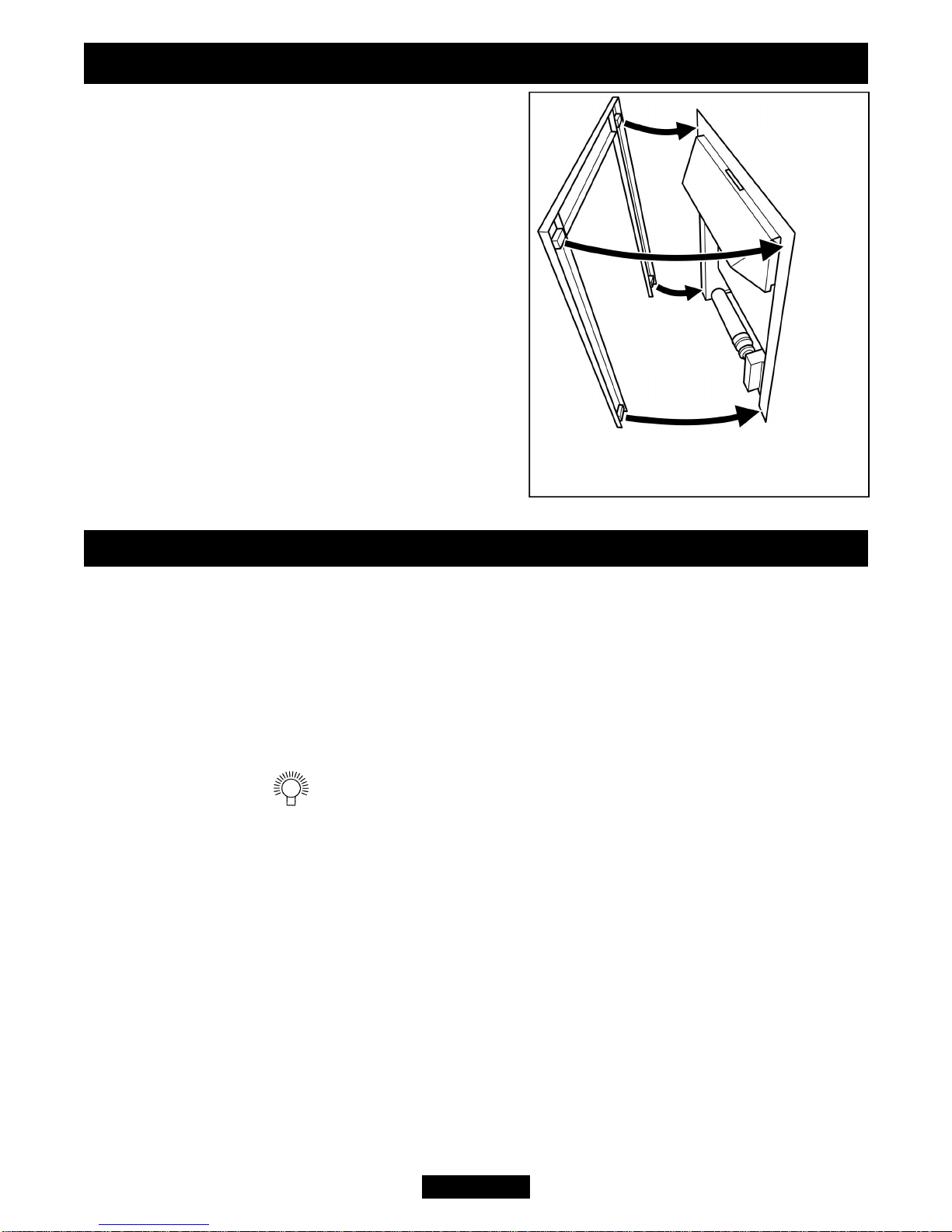

Figure 14. Shroud rotation

Fitting the Fascia
(The coal pieces supplied are a natural
material. Occasionally it will be necessary to
reduce the size of the coal pieces. To do this
place them inside a plastic bag, place on a
suitable hard surface and tap gently with a
small hammer or similar tool).
Fitting the Adage and Ocean fascia.
1. Removing the fascia may have moved the
magnets used to fix the fascia to the heater.
There should be a magnet on each of the four
raised tabs on the rear of the fascia (See figure
15).
2. Locate the fascia onto the heater. Ensure that
the sides of the fascia sit on the floor / hearth.
3. Place the loose fuel effect pieces onto the fuel
support (a glove is provided with the coal pack). It
is not necessary to use all the fuel effect pieces
supplied.
Fitting the Eternal, Manor, Ultimate and
Victorian fascia.
1. Hook the brackets on the rear of the fascia over
the brackets on the heater (See figure 16).
2. Secure with the two screws removed previously
(See figure 2)
3. (On Victorian models screw the brass firefront
columns supplied with the firefront into the top of
the firefront). Locate the firefront onto the fascia
(See figure 17). Please note that on the Manor
model the firefront has hooks that locate over the
top of the ‘keyhole’ brackets on the fascia.
4. On the Eternal, Manor and Ultimate models place the ash pan in position.
5.
Place the loose coals onto the fuel support (a glove is provided with the coal pack). It
is not necessary to use all the coal supplied.
Fitting the Dream fascia.
1.
Fit the fascia to the heater by hooking the brackets on the rear of the fascia over the
brackets on the heater (See figure 16).
Page 13
INSTALLER AND OWNER GUIDE
Figure 16. Fitting the facia. The
Fascia shown is the ‘Dream’ The
Eternal, Manor, Ultimate and
Victorian fit in the same way.
Figure 15. Magnet locations for
Adage and Ocean models

2. Secure the fascia to the heater with 2
off screws 'C' and 2 off washers 'D' (See
figure 4) through the holes in the lower
side legs of the fascia.
3. Hook the firefront on to the fascia as
in figure 17.
4. Position the ash pan cover beneath the
firefront.
5. Place the loose coals onto the top of
the fuel support (a glove is provided with
the coal pack). It is not necessary to use
all the coal supplied.
Fitting the Alisa and Anthem fascia.
The Alisa and Anthem fascia consist of three
parts. Two sides and a top. These are held in
place with four magnets.
1. Lay the three fascia parts face down on a
flat surface as in figure 18. Each side trim
has a small tab at the top. Position the tab to
the outside upper edge (See figure 18).
2. Locate the left-hand-side-trim tab into the
slot / fold along the upper edge of the top
trim (See figure 18).
3. Locate the right-hand-side-trim tab into
the slot / fold along the upper edge of the
top trim (See figure 18).
4. Locate the four magnets on the side
trims as in figure 19. Note that bottom
edge of the the upper magnets are in line
with the bottom of the top trim.
5. Lift the trims at the top outer edges.
This will keep the trims together. Locate
the trims to the heater as in figure 20.
6. Place the firefront centrally against the
front of the heater
7. Place the loose pebbles on top of the
fuel support. It is not necessary to use all
the pebbles supplied.
Page 14
INSTALLER AND OWNER GUIDE
Figure 19. (Alisa and Anthem fascia only).
Figure 17. Firefront location (Firefront may
differ from that shown)
Figure 18. (Alisa and Anthem fascia
only).

Important Note:
The pebbles and coals are for decorative
purposes only. There is a choke risk to young
children. Make sure they cannot gain access to
them.
USING THE HEATER
Important Safety
Never cover the heater or obstruct the openings at the base of the heater, this could
cause overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located below the hood on the left hand side of
the heater.
Switch 1 = OMain On - Off
In the On position only the fuel effect operates
Switch 2 = I1kW fan heat setting and fuel effect
Switch 3 = II 2kW fan heat setting and fuel effect
The switches are connected on the inside, so when switch 1 is turned off, all switches
turn off.
Page 15
INSTALLER AND OWNER GUIDE
Figure 20. (Alisa and Anthem
fascia only).

CLEANING AND MAINTAINING THE HEATER
How do I clean my heater?
The heater fascia and glass parts need only to be wiped clean with a dry soft cloth, do
not use polishes or abrasive materials. The Adage, Alisa, Anthem and Ocean heaters
may have finger prints on the fascia surface. These can be removed by applying a small
amount of ‘baby oil’ to a lint free non-abrasive cloth and wiping the surface. Use a
clean cloth to remove the oil.
I have a problem with my heater!
Important Safety
Before undertaking maintenance or replacing the light bulb always disconnect the
heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool completely.
1. My heater is on but there is no light.
This is possibly a light bulb failure. Remove the light bulb as detailed below and check
it in a table lamp that is known to work. If it does not work in the table lamp then
replace it as below.
The light bulb fitted to this heater is a long life compact fluorescent type, but due to the
indeterminate life span and ease of replacement, it is specifically excluded from the
guarantee.
To replace the light bulb.
1. To gain access to the light bulb, remove the loose coals / pebbles from the fuel
support and place them onto an old newspaper or plastic bag. This will prevent them
from marking the surface.
2. Remove the firefront, (On the Adage and Ocean heaters it will be necessary to
remove the whole fascia), see figure 2 & 3 and the section headed “ Removing the
fascia”.
3. Note the position of the dark area on the light bulb shroud. Remove the light bulb
shroud by sliding it to the left.
4. Replace the light bulb with an 18 - 20 Watt (maximum) Edison screw, compact
fluorescent light bulb eg. ‘Philips Ecotone’. Do not use standard tungsten light bulbs
due to the excessive heat.
5.
Refit the light bulb shroud into the position noted earlier. Refit the firefront / fascia
and refit the coals.
2. My heater is on but there is no light or heat.
The first thing to do is check the wall socket. To do this plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance that
Page 16
INSTALLER AND OWNER GUIDE

the problem lies with the 13Amp fuse in the heater plug. If either fuse or socket is
suspected, have them checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and allowed
to cool for 15 minutes and the obstruction removed before restarting.
4. I Have a problem that is different to those in the previous examples 1- 3.
Following is a list of useful telephone numbers
For general advice about your heater:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your heater to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
! Your Post Code
! Type of Heater (Electric or gas)
!
Model, Name and serial number (This information can be found on a small label
attached to the inside lower left of the heater. To see this you will have to remove
the firefront (On the Adage and Ocean heaters it will be necessary to remove the
whole front fascia)
! The fault, problem or request.
What should I do when I’m ready to dispose of my heater?
At the end of the products serviceable life it should be disposed of thoughtfully and
safely in accordance with local authority regulations. The plug should be removed from
the mains cable and the mains cable cut from the heater.
Page 17
INSTALLER AND OWNER GUIDE
