Bayside Furnishings SON3N1CGT User manual

1
Date 2015-08-27 Rev. 3 Factory: FOCIDI (10944)
E
3-in-1TM Gaming Theater TV Stand
ITM. / ART. 947732
Model # SON3N1CGT
U.S. Patent 8,561,551 and other Patent Pending
ASSEMBLY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-877-494-2536 (English, French and Spanish)
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
(In US, Canada, and Mexico only)
Or visit our website www.baysidefurnishings.com
Or e-mail your request to [e-mail]
On-line Video Instruction Guides
Go to http://vig.sellpoints.com to view step-by-step instructional
videos for assembling and installing your product. Enter the
following product number on the website under Bayside brand.
LOT NUMBER:
DATE PURCHASED: / /
TV
TV
SON3N1CGT

ITM. / ART. 947732
2
E
MANUFACTURER: Bayside Furnishings
®
CATALOG: 3-in-1
TM
Gaming Theater TV Stand (SON3N1CGT)
DATE OF MANUFACTURE: August 2015
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
FITS UP TO MOST 165.1 cm / 65 in FLAT PANEL TVs
MAXIMUM LOAD 61.2 kg / 135 lb
MAXIMUM LOAD 6.9 kg / 15.2 lb
MAXIMUM LOAD 22.7 kg / 50 lb
MAXIMUM LOAD 13.7 kg / 30.2 lb
MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION, TIPS
and
TRICKS
FITS UP TO MOST 165.1 cm / 65 in FLAT PANEL TVs
WITHOUT SWIVELING FLOATER
MAXIMUM LOAD 61.2 kg / 135 lb
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT.
TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT
WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT
PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT
LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
PLACE TV BEHIND THE STOPPER
This product is sold with one set of Tipping Restraint Hardware K
it. You must install the
Tipping Restraint Hardware between the wall and the TV console
to prevent any accidents or
damages
. When properly installed, this restraint can provide protection against the
unexpected tipping of the unit due to small tremors, bumps or climbing. The restraint is only
a deterrent and is not a substitute for proper adult supervision. Use of tip-
over restraints may
only reduce, but not eliminate, the risk of tip-over.

ITM. / ART. 947732
3
E
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
A- Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Metal Frame (1)
D- Drawer Box (1) E- Left Leg (1) F- Right Leg (1)
G- Lower Spine (1) H- Upper Spine (1) I- Top Glass (1)
J- Glass Shelf (1) K- Swiveling Bracket (1) L- Mounting Frame (1)
M- Monitor Bracket (2) N- SSS Spine (1) O- Sensor/Sound shelf (1) P- Cable Wheel (2)
(AA) Suction Cup (BB) Bolt (CC) Bolt (DD) Bolt
(12+1 extra) (8+1 extra) (18+1 extra) (16+1 extra)
MR
ML

ITM. / ART. 947732
4
E
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
(EE) Lock Washer (38+1 extra) (FF) Flat Washer (38+1 extra) (GG) Concrete Anchor (4)
(HH) Lag Bolt (4) (II) Large Flat Washer (4+1 extra) (JJ) Spine End Cap (1)
(KK) Handle and Bolts (2) (LL) Acrylic Stopper (1) Small
Allen Wrench (2)
Large Allen Wrench (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (1)
(Inside Plastic Bag)

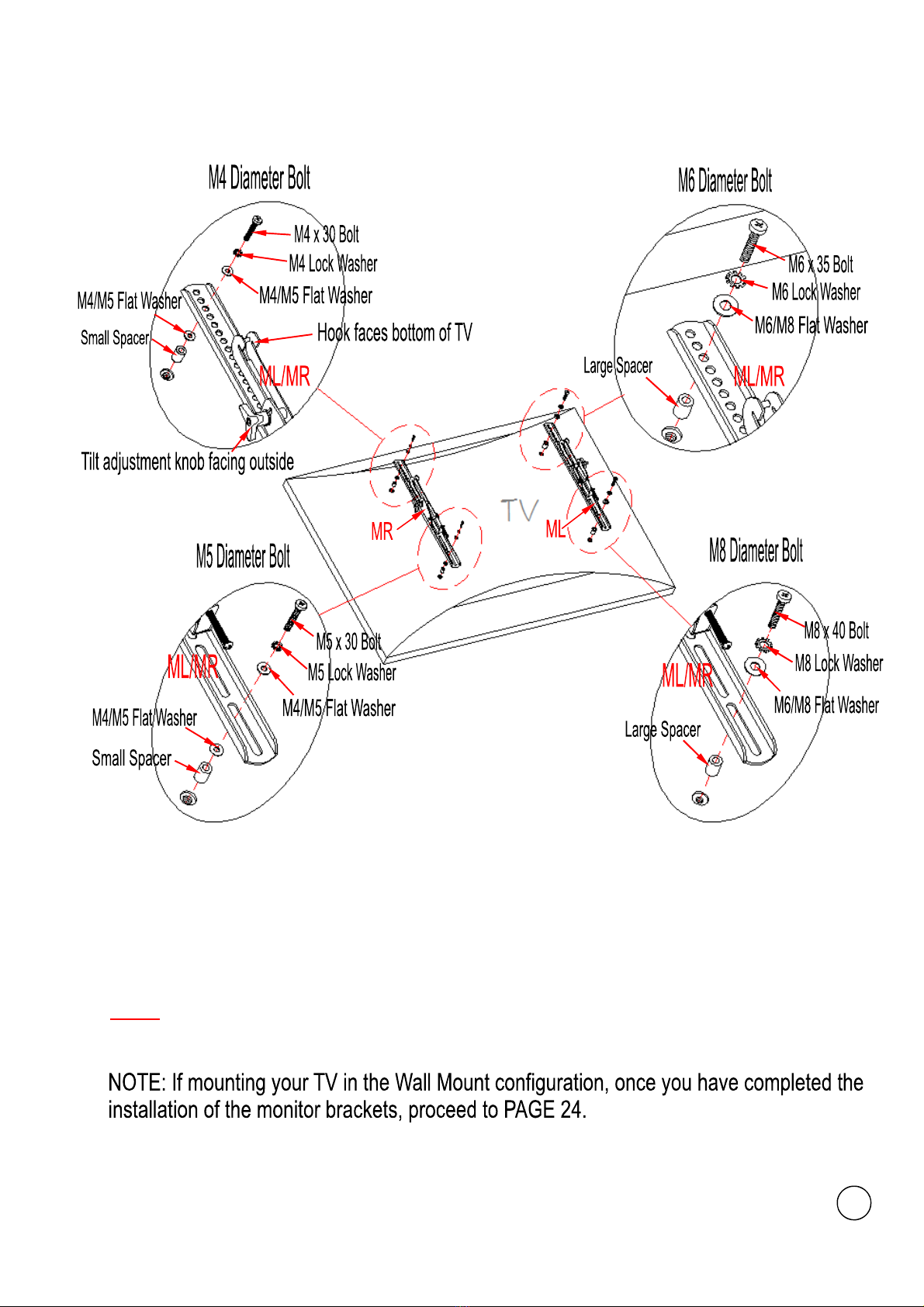

TV Mounting Kit
M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 x 12 Bolt (4) M5 x 30 Bolt (4)
M6 x 12 Bolt (4) M6 x 35 Bolt (4) M8 x 16 Bolt (4) M8 x 40 Bolt (4)
M4 Lock Washer (4) M5 Lock Washer (4) M6 Lock Washer (4) M8 Lock Washer (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)
Tools required: Allen wrench (provided) and Phillips screwdriver (not provided).

ITM. / ART. 947732
5
E
G
C
BA
G
A/B/C
DD
EE
FF
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once
assembled, go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.

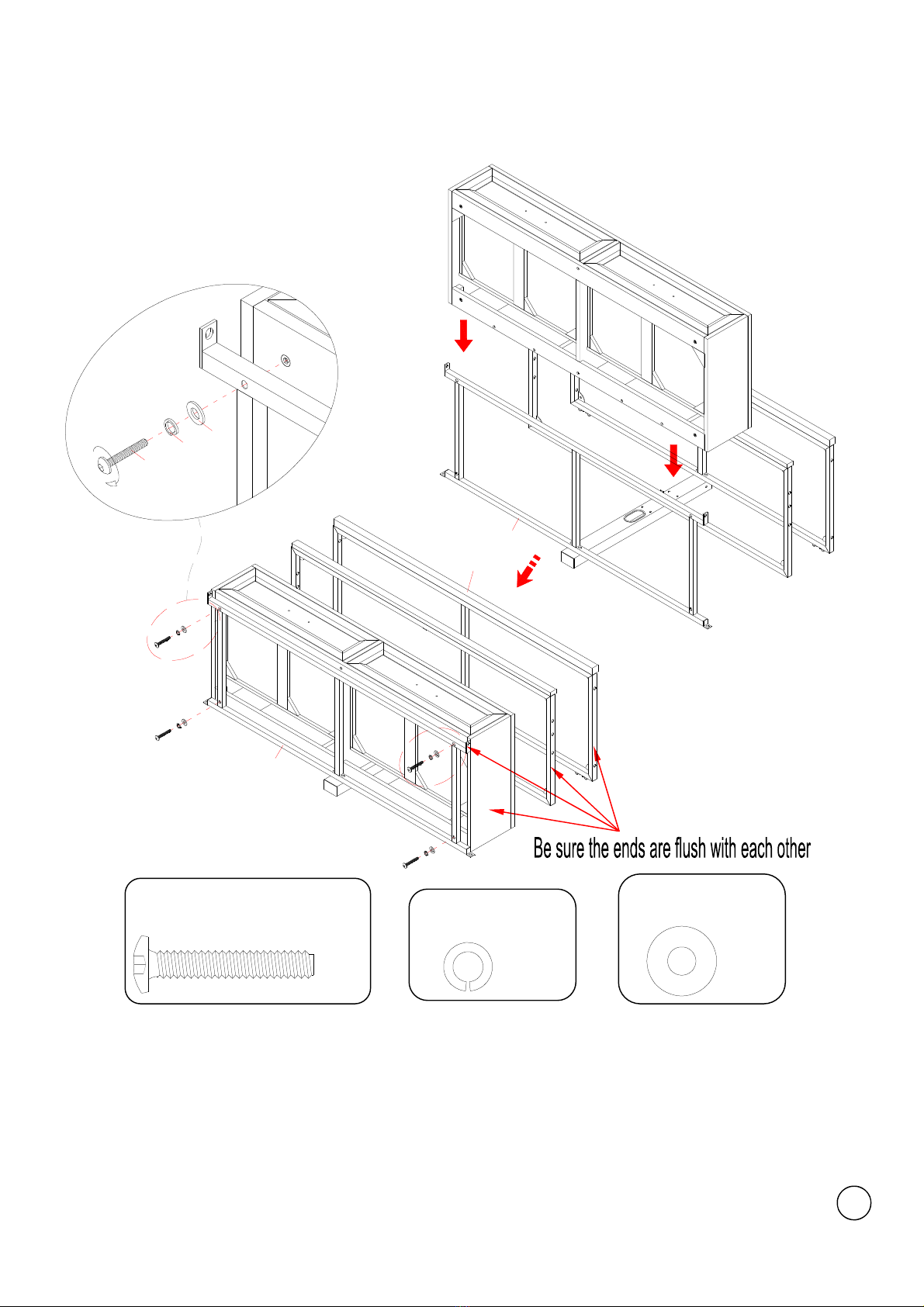

2. Locate the Lower Spine (G) and set back face down on a scratch free surface, as shown.
3. Align and attach three Shelf Frames (A, B and C) to the Spine (G) respectively, as shown.
Insert the Bolts (DD) with Lock Washers (EE) and Flat Washers (FF) through the back rails of
shelf frames and screw into the Spine (G). Make sure that the inside corner plates on the shelf
frames will face up when the unit is turned upright.
NOTE: The Middle Shelf Frame (B) is adjustable. Choose the upper hole sets to increase the
bottom space.
Lock Washer
(6 used in this step)
EE
Flat Washer
(6 used in this step)
FF
Bolt
(6 used in this step)
DD

ITM. / ART. 947732
6
E
Assembly Instructions
4. Set the Drawer Box (D) onto the Spine (G) with the drawer face facing up and attach it to the
Bottom Metal Frame (C). As shown. Insert four Bolts (DD) with the Washers (EE and FF)
through the drilled holes on Bottom Metal Frame (C) and screw into the threaded inserts
underneath the Drawer Box (D). DO NOT tighten the bolts in this step.
Lock Washer
(4 used in this step)
EE
Flat Washer
(4 used in this step)
FF
D
C
C
D
DDEEFF
D
C
A
Bolt
(4 used in this step)
DD

ITM. / ART. 947732
7
E
Assembly Instructions
5. Align and attach Left Leg (E) to the Upper Shelf Frames (A and B) using three Bolts (DD) with
the Washers (EE and FF) from inside the Shelf Frames through the drilled holes on side rails
and screw into the Left Leg. DO NOT tighten the bolts.
6. Secure the Left Leg (E) to the Bottom Metal Frame (C) by using one Bolt (CC) with the
Washers (EE and FF) through the front end bracket and screw into place. As shown.
7. Repeat the same procedure to attach the Right Leg (F) on the other side.
Lock Washer
(8 used in this step)
EE
Flat Washer
(8 used in this step)
FF
Bolt
(2 used in this step)
CC
Bolt
(6 used in this step)
DD
A
B
C
E
F
E/F A/B
CC
EE
FF
DD
EE
FF
E/F
C

ITM. / ART. 947732
8
E
Assembly Instructions
8. Stand the unit upright.
9. Fasten the Legs (E and F) to the Bottom Metal Frame (C) with two Bolts (CC) and two
Washers (EE and FF). As shown.
10.Go back and tighten all the bolts with the enclosed small Allen wrench.
Flat Washer
(2 used in this step)
FF
Lock Washer
(2 used in this step)
EE
Bolt
(2 used in this step)
CC
D
C
AE
F
E/F C
D
CC
EE
FF
G

ITM. / ART. 947732
9
E
Assembly Instructions

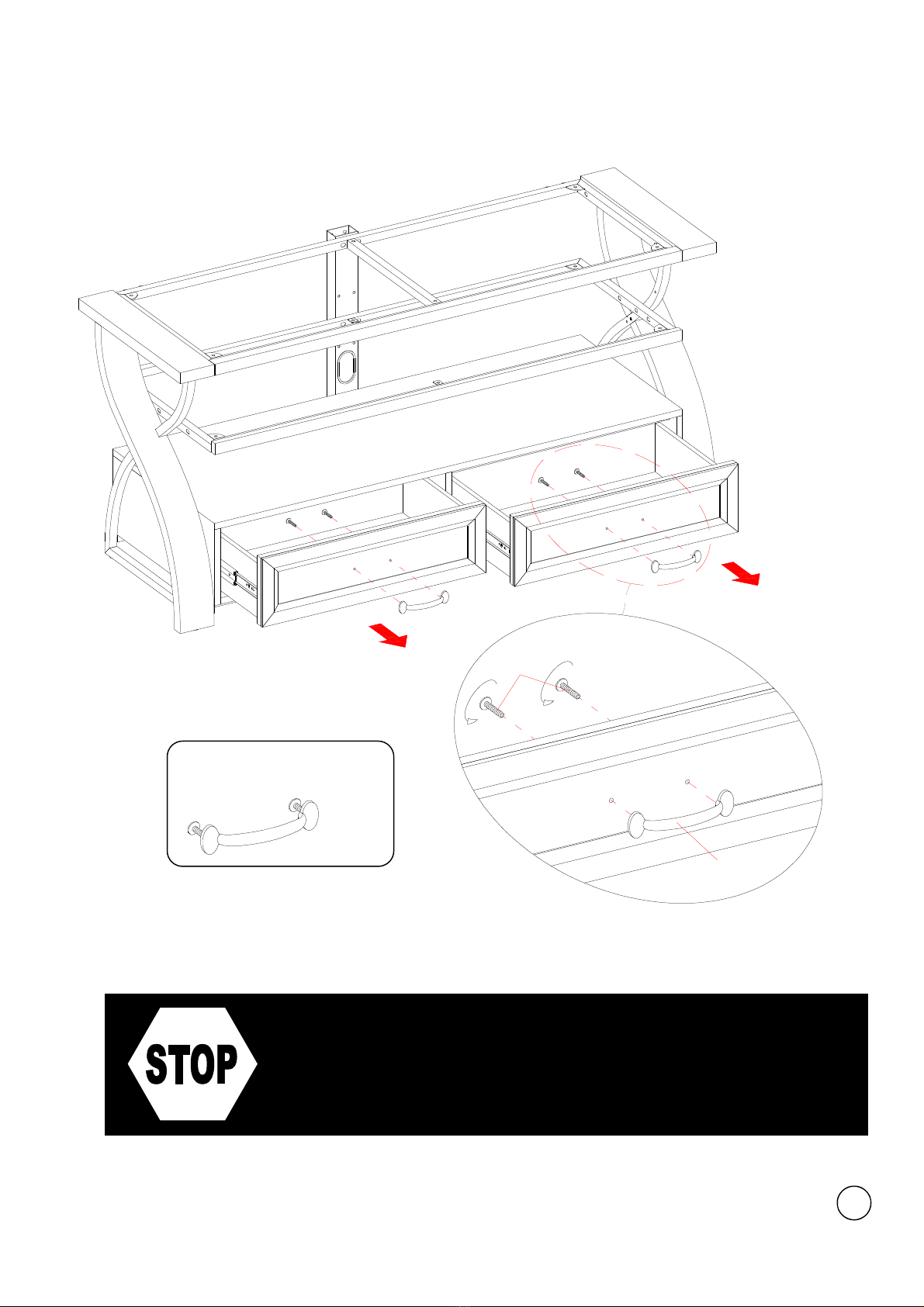

11.Remove the bolts in Handles (KK), then use the bolts to attach the handle to the outside of
each drawer. As shown.
KK
KK
D
E
F
Handle and Bolts
(2 used in this step)
KK
If you choose Table
-
top
Console
configuration, continue to the next step.
If mounting TV with the Floating Swivel
Mount, skip ahead to PAGE 14.

ITM. / ART. 947732
10
E
A
D
G
JJ
G
E
F
P
CC
G
Assembly Instructions for Table-top Console

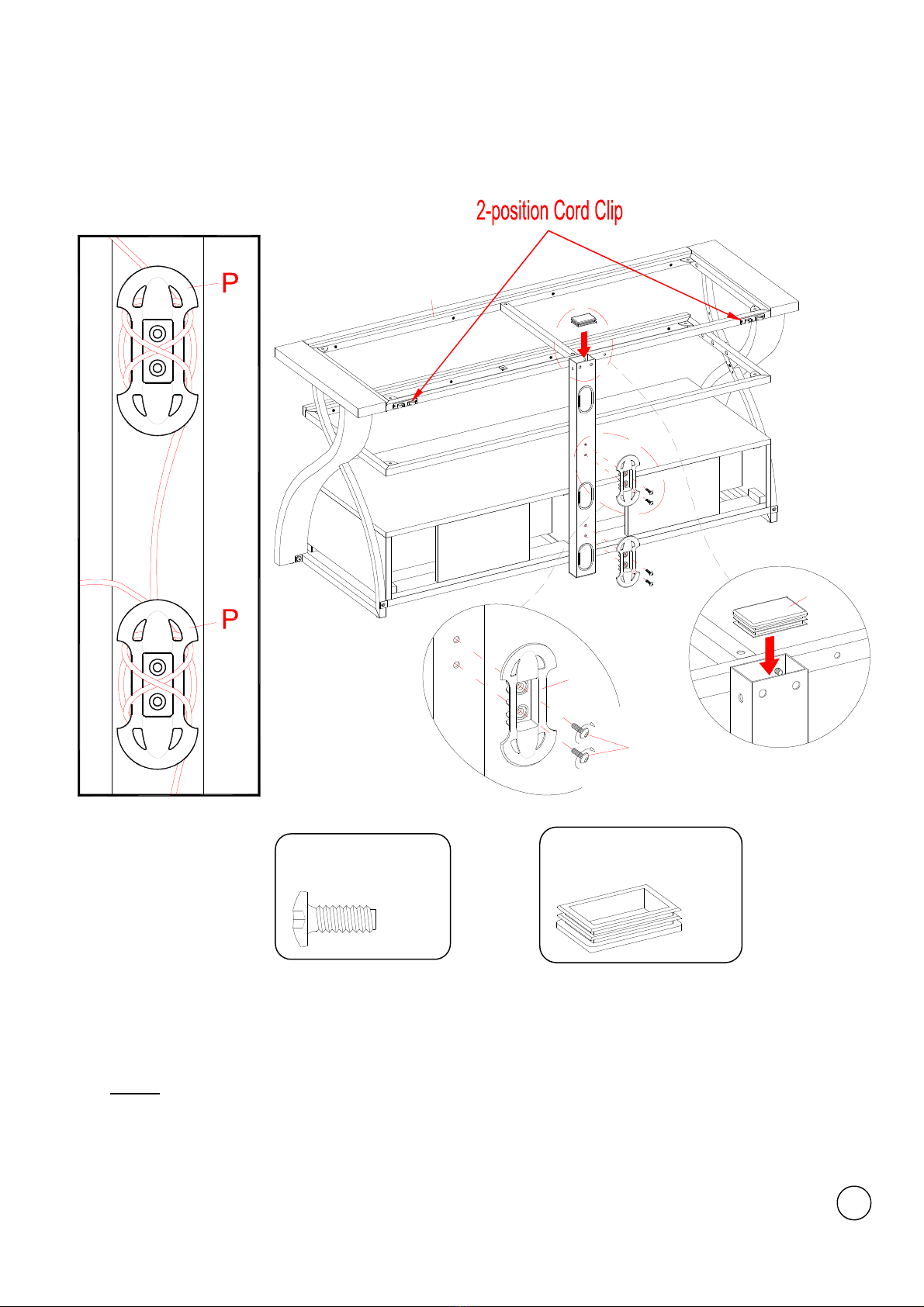

12.Plug the Plastic End Cap (JJ) onto the top of Lower Spine (G).
13.Attach 2 Cable Wheels (P) to the backside of Lower Spine (G) with four Bolts (CC).
NOTE: You can use the Cable Wheels to help keep your entertainment center’s cables and
cords organized.
Plastic End Cap
(1 used in this step)
JJ
Bolt
(4 used in this step)
CC

ITM. / ART. 947732
11
E
Assembly Instructions for Table-top Console
14.Put the Suction Cups (AA) firmly into the top holes and inside corner plates on the Upper Shelf
Frames (A and B). As shown.
Tip: If a suction cup resists insertion, try pressing down on the middle of the cup with the Allen
Wrench while twisting it clockwise into the hole.
15.Place the Glass Shelves (I and J), with the black side of glass down, onto the Suction Cups
(AA) on Upper Shelf Frames (A and B) respectively, as shown above. Push all glass shelves
all the way back against the Spine. Also, be sure to press down evenly and firmly each glass
onto the Suction Cups to make sure they securely rest onto the Suction Cups.
NOTE: If a glass shelf is scratched, you can minimize the damage by using a BLACK marker
and filling in scratched area from underneath.
Suction Cup
(12 used in this step)
AA
AA
I /J
A/B
I
J
A
B

ITM. / ART. 947732
12
E
Assembly Instructions for Table-top Console

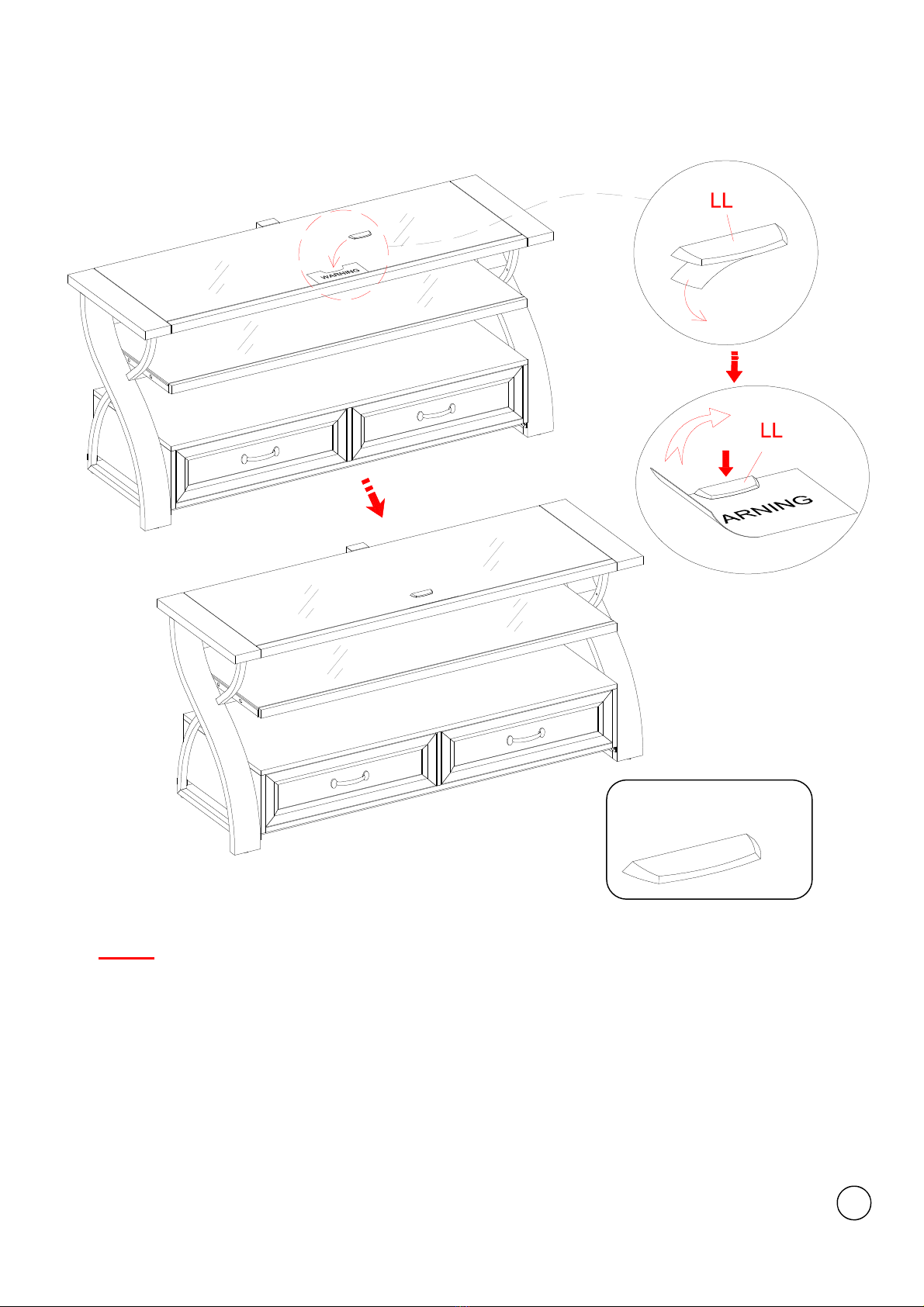

NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your
flat panel television directly on the console.
16.Remove the paper backing of Acrylic Stopper (LL), then properly align the Acrylic Stopper into
the cut-out on the acrylic stopper template on the front of the Top Glass (I). Press down on the
Acrylic Stopper to help adhesion.
17.Carefully remove the acrylic stopper template from the Top Glass (I).
I
I
I
Acrylic Stopper
(1 used in this step)
LL

ITM. / ART. 947732
13
E
Assembly Instructions for Table-top Console
Tools required: Allen wrench (provided), Phillips screwdriver, mallet, power drill, and 9.5 mm drill bit.
18.Position the assembled unit at the desired location against a wall. If necessary, adjust the
pre-attached Floor Levelers at the bottom of both Legs (E and F) to level the unit. Now, follow
the instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach
the tip-over restraint to the Spine and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO
THE WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
19.The console is now ready for use. Be sure to position your Flat Panel TV in the center of the
console.
NOTE: If you choose the Tilting Wall Mount configuration, proceed to PAGE 24.
E/F
E
F
TV

ITM. / ART. 947732
14
E
20.Insert the bottom section of Upper Spine (H) onto the Lower Spine (G) and secure it in place
with four Bolts (CC) and four Washers (EE and FF).
Assembly Instructions for
Floating Swivel Mount
Flat Washer
(4 used in this step)
FF
Lock Washer
(4 used in this step)
EE
Bolt
(4 used in this step)
CC
G
H
G
H
CC
EE
FF
CC
EE
FF
FF
EE
CC
G
H

ITM. / ART. 947732
15
E
Assembly Instructions for Floating Swivel Mount
21.Fasten the Swiveling Bracket (K) to the top of Upper Spine (H) with six Bolts (CC) and six
Washers (EE and FF). Make sure that the pivoting bolt head faces up. Tightening the bolts
with the enclosed small Allen wrench.
NOTE: The Spine can provide two height options for your TV set. Refer to your TV size and
adjust the Swiveling Bracket at your desired height to offer optimum viewing.
Flat Washer
(6 used in this step)
FF
Lock Washer
(6 used in this step)
EE
Bolt
(6 used in this step)
CC
K
CC EE FF
CC
EE
FF
H
K
CC
EE
FF
CC EE FF
H

ITM. / ART. 947732
16
E
Assembly Instructions for Floating Swivel Mount

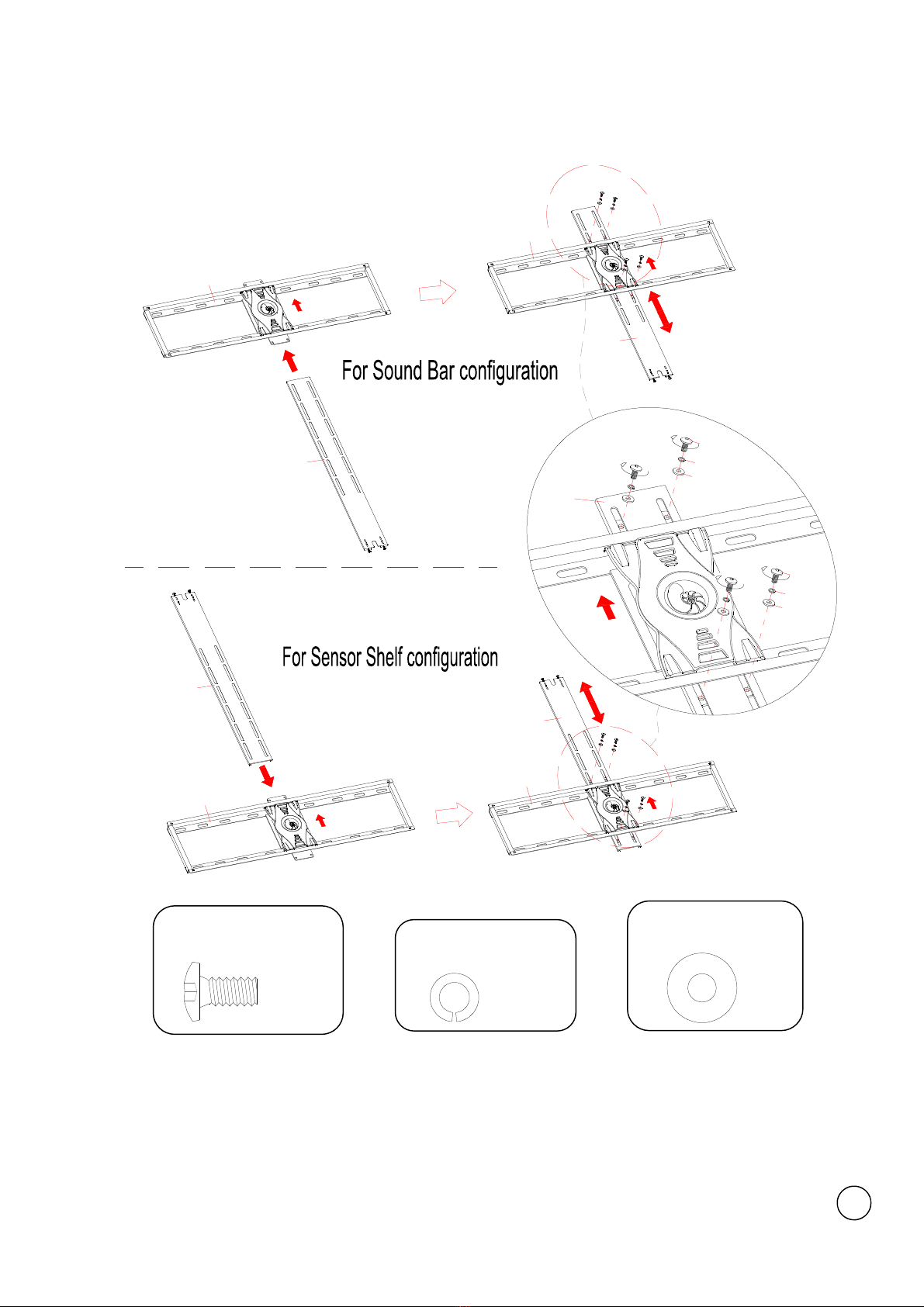

22.The Sensor/Sound Shelf (O) provides two options: position above the TV or below the TV.
Depending on the option you prefer, slide the SSS Spine (N) onto the Mounting Frame (L)
properly. Adjust the height of SSS Spine so that it will be the correct distance above or below
your TV and attach it in place using four Bolts (BB) and four Washers (EE and FF).
Flat Washer
(4 used in this step)
FF
Lock Washer
(4 used in this step)
EE
Bolt
(4 used in this step)
BB
N
L
N
L
N
EE
FF
BB
EE
FF
BB
N
L
N
L
L
UP

ITM. / ART. 947732
17
E
EE
FF BB
H
L
K
N
BACK
L
H
K
EE
FF BB
FF
BB
EE
FF BB
EE
L
N
K
H
Assembly Instructions for Floating Swivel Mount
23.Hold and attach the flat side of the Mounting Frame (L) onto the Swiveling Bracket (K) using
four Bolts (BB) and four Washers (EE and FF). Make sure that the recess holes on the
Mounting Frame are at the bottom.
Flat Washer
(4 used in this step)
FF
Lock Washer
(4 used in this step)
EE
Bolt
(4 used in this step)
BB

ITM. / ART. 947732
18
E
Assembly Instructions for Floating Swivel Mount
24.Pick up the Sensor/Sound Shelf (O) and securely fit the back tabs into the small slots of the
SSS Spine (N). Tighten both Lock Bolts which are pre-attached on the SSS Spine with a
Phillips screwdriver until they hit the back tabs of Sensor/Sound Shelf.
N
L
L
N
O
O
NN
O
O
N
ON
O
H
H

ITM. / ART. 947732
19
E
Mounting Monitor Brackets to a television with a flat back
NOTE: For televisions with a curved or recessed back proceed directly to next page.
25.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
26.Follow the appropriate diagram above to attach Monitor Brackets (ML/MR) to the back of your
TV with the selected fasteners. Make sure that the Monitor Brackets are centered and level
with each other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE : Lean the TV up against a wall or other solid surface when attaching with the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent
damage to the TV.

ITM. / ART. 947732
20
E
Mounting Monitor Brackets to a television with a curved / recess back
27.Determine the correct diameter of the bolt your TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If
you are unable to find the correct bolt consult a local hardware store.
28.Follow the appropriate diagram above to attach Monitor Brackets (ML/MR) to the back of your
TV with the selected fasteners. Make sure that the Monitor Brackets are centered and level
with each other. Secure the bolts with a Phillips screwdriver. DO NOT over tighten the bolts.
NOTE : Lean the TV up against a wall or other solid surface when attaching with the Monitor
Brackets. DO NOT place the TV face down on the glass as this may cause permanent
damage to the TV.
