Bazzaz ZFi User manual

INSTALLATION INSTRUCTIONS
YAMAHA FJ-09 | 2015
F794 | T794

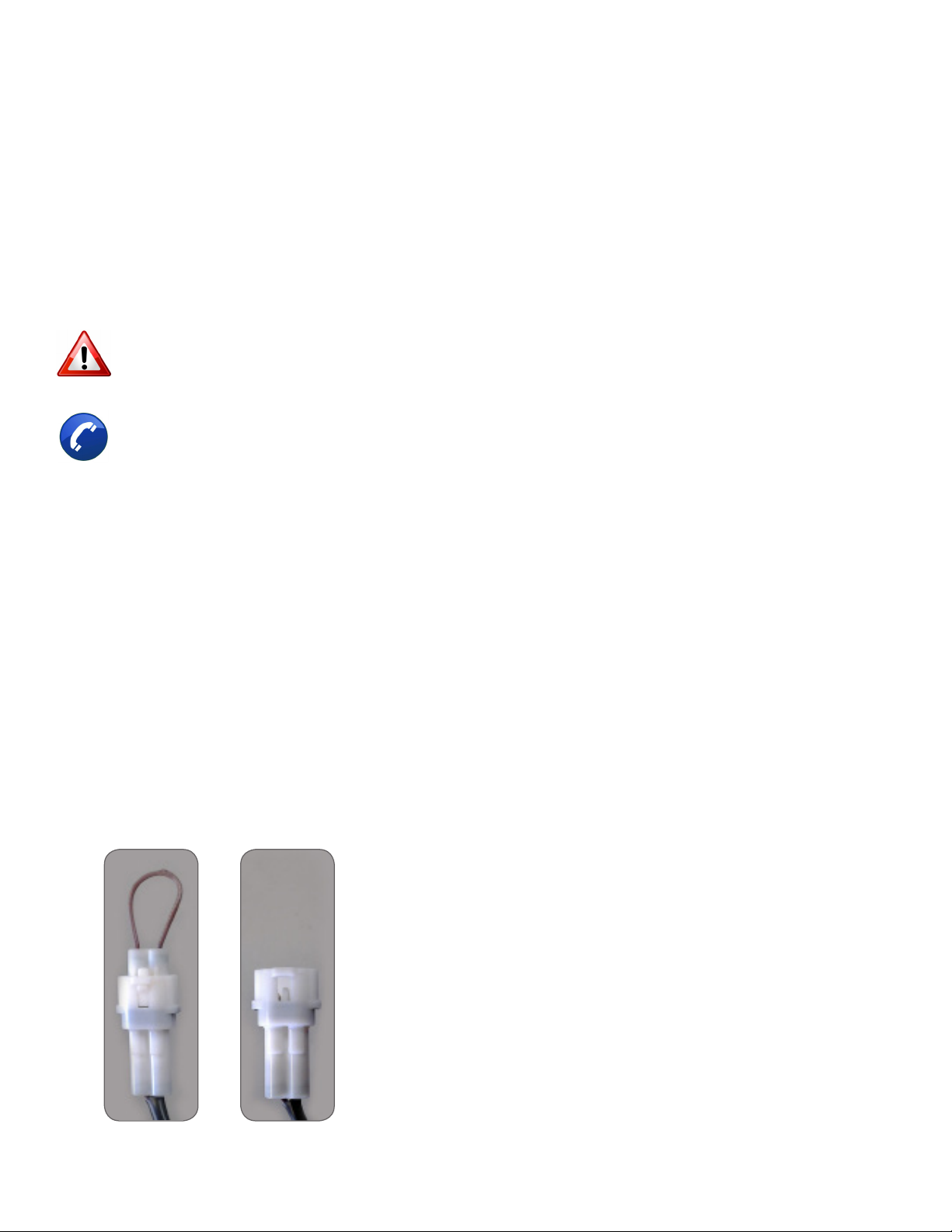

WARNINGS > USING
• Use only in race or other closed-course applications and never on public roads.
• Z-Fi products are not certied by the California Air Resource Board (CARB) for
use on CA highways.
WARNINGS > INSTALLING
• We strongly suggest that an experienced technician install this product.
• Read through all instructions before beginning installation.
• This document is intended for use by qualied technicians.
• This is not a replacement for the factory Engine Control Unit (ECU).
• Refer to a factory service manual for more specic stock component
identication/location information and removal/assembly procedures.
GETTING HELP
• Factory support is available in the US at 909-597-8300.
• For fastest support outside of the US, nd your local importer at bazzaz.net.
1>READ
UNLEASH.
THE SMARTEST PERFORMANCE TUNING TECHNOLOGY
R
FUEL + QS + TRACTION CONTROL
FUEL MANAGEMENT

INCLUDED PARTS

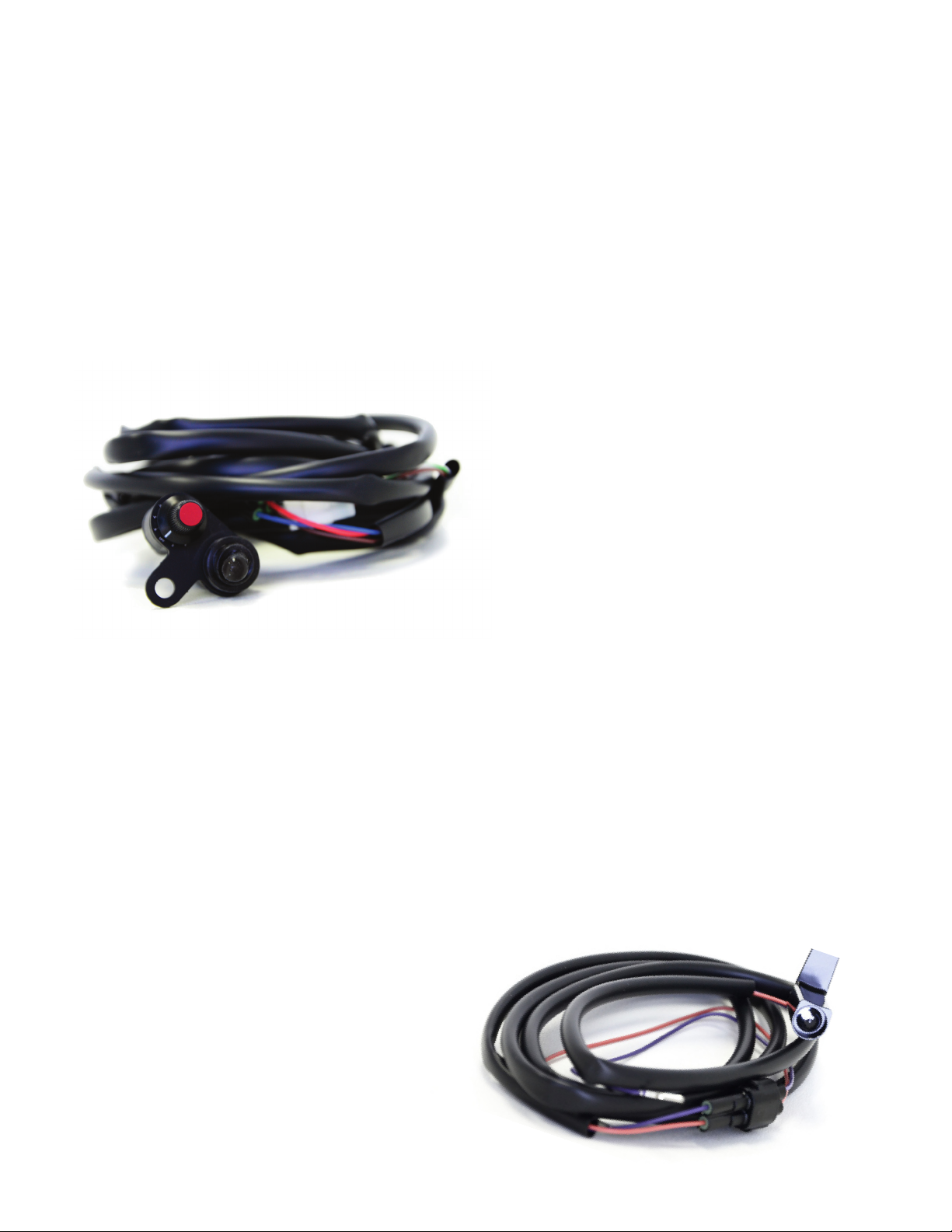

1. Z-Fi/Z-Fi TC control unit
2. Fuel harness
3. Coil harness (For Z-Fi TC only)
4. Shift Switch and mounting hardware (For Z-Fi TC only)
5. Scotchlok (4)
6. Speed Amplier
7. USB cable
8. Swingarm stickers
9. Velcro
2>IDENTIFY
FUEL HARNESS
1
COIL HARNESS (Z-FI TC ONLY)
1. Main
2. +12v SW Power
3. Z-AFM
4. Map Select
5. Ground
6. CKPS
7. Neutral
8. Speed
9. Injector1
2
3
45
6
7
8
9
1. Main
2. TC Adjust Switch
3. Shift Switch
4. Coils
10. Download Bazzaz software from bazzaz.net/index.php/software-overview
10. Injector 2
11. Injector 3
12. TPS
10
12
11
1
2
3
4

2. Connect the Bazzaz fuel harness and begin to route the harness towards the
engine compartment along the left hand side of the bike.
3>REMOVE
4>SECURE
1. Mount the Bazzaz control unit using the supplied Velcro within the tail section
beneath the passenger seat.
1. Rider seat
2. Fuel tank
3. Airbox
4. Both side fairings
+12V SW
POWER
GROUND
INJECTORS
CKPS
TPS SPEED
NEUTRAL

5>CONNECT

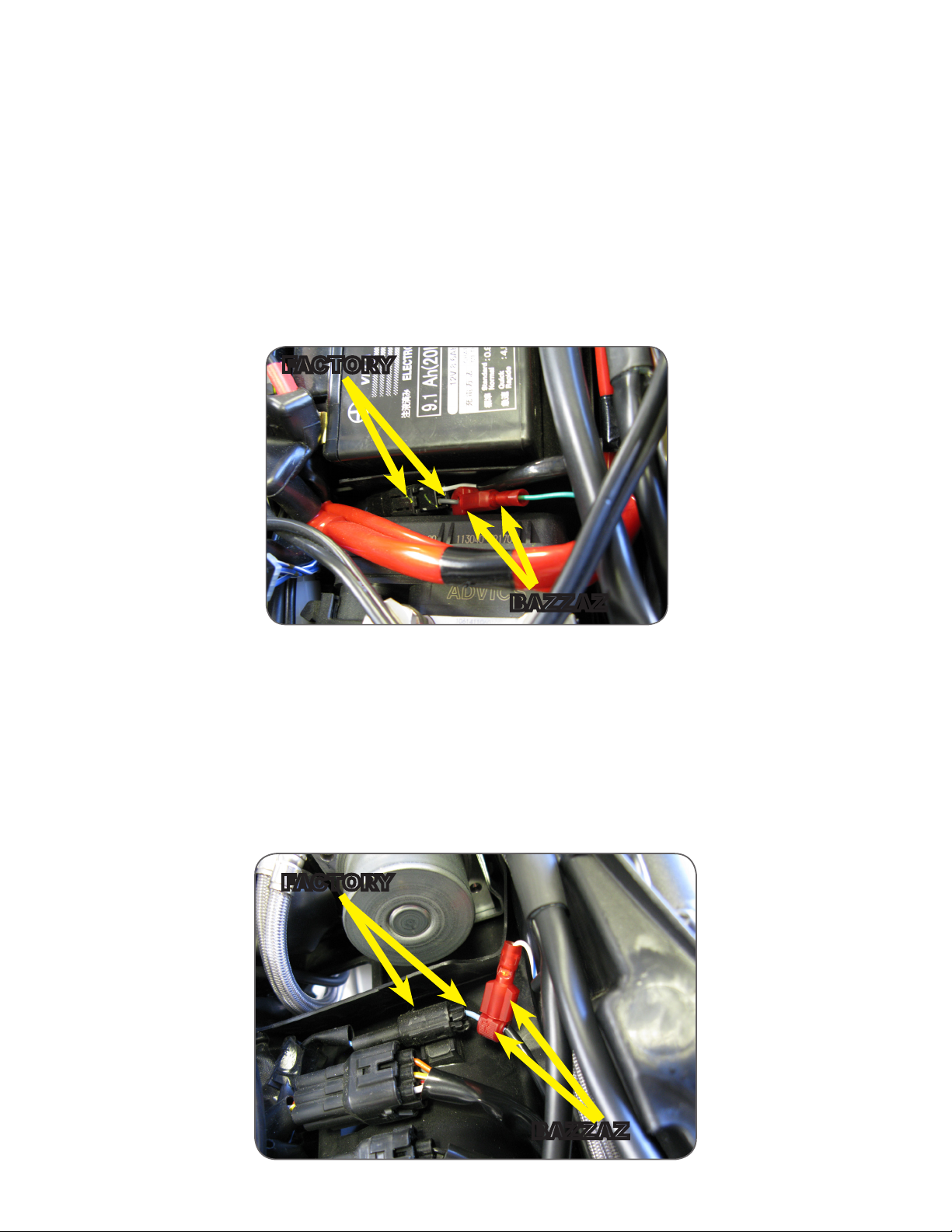

1. Locate the factory two pin CKPS connector, which can be found near the front of
the battery.
2. Separate the factory dark grey wire, and use the supplied scotchlok to crimp onto
the dark grey wire.
3. Connect the Bazzaz CKPS connector.
5.1
BAZZAZ
FACTORY
1. Locate the factory neutral connector, which can be found in front of the ABS
module mounted to the black plastic under tray.
2. Use the supplied scotchlok to crimp onto the factory light blue wire.
3. Connect the Bazzaz neutral connector.
5.2
BAZZAZ
FACTORY

5.3

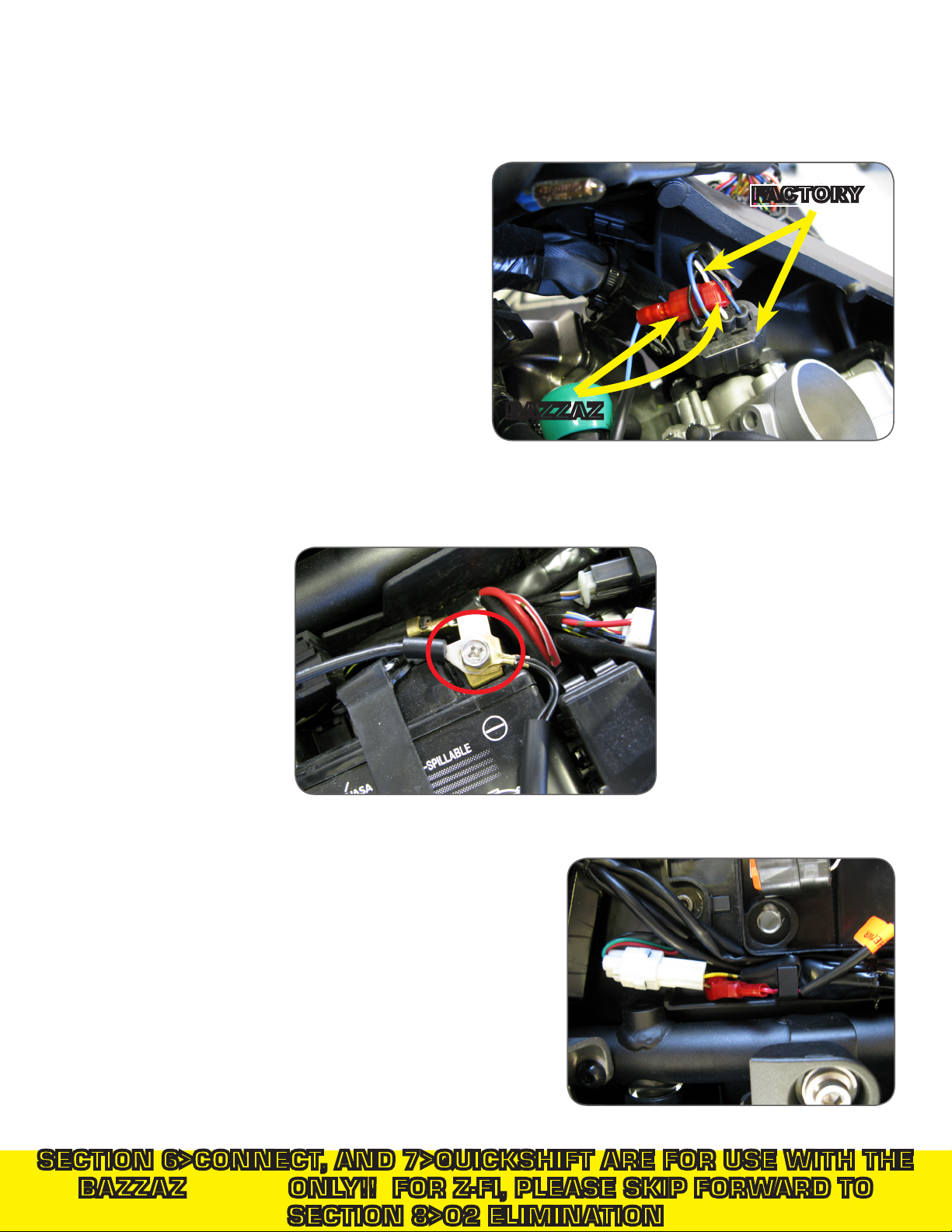

1. Locate the factory two pin white rear wheel speed sensor connector, which can be
found on the right hand side of the bike near the factory neutral sensor.
2. Disconnect the factory speed sensor connector.
3. Install the Bazzaz speed amplier inline.
4. Connect the Bazzaz speed amplier to the Bazzaz speed connector on the Bazzaz
fuel harness.
5.4

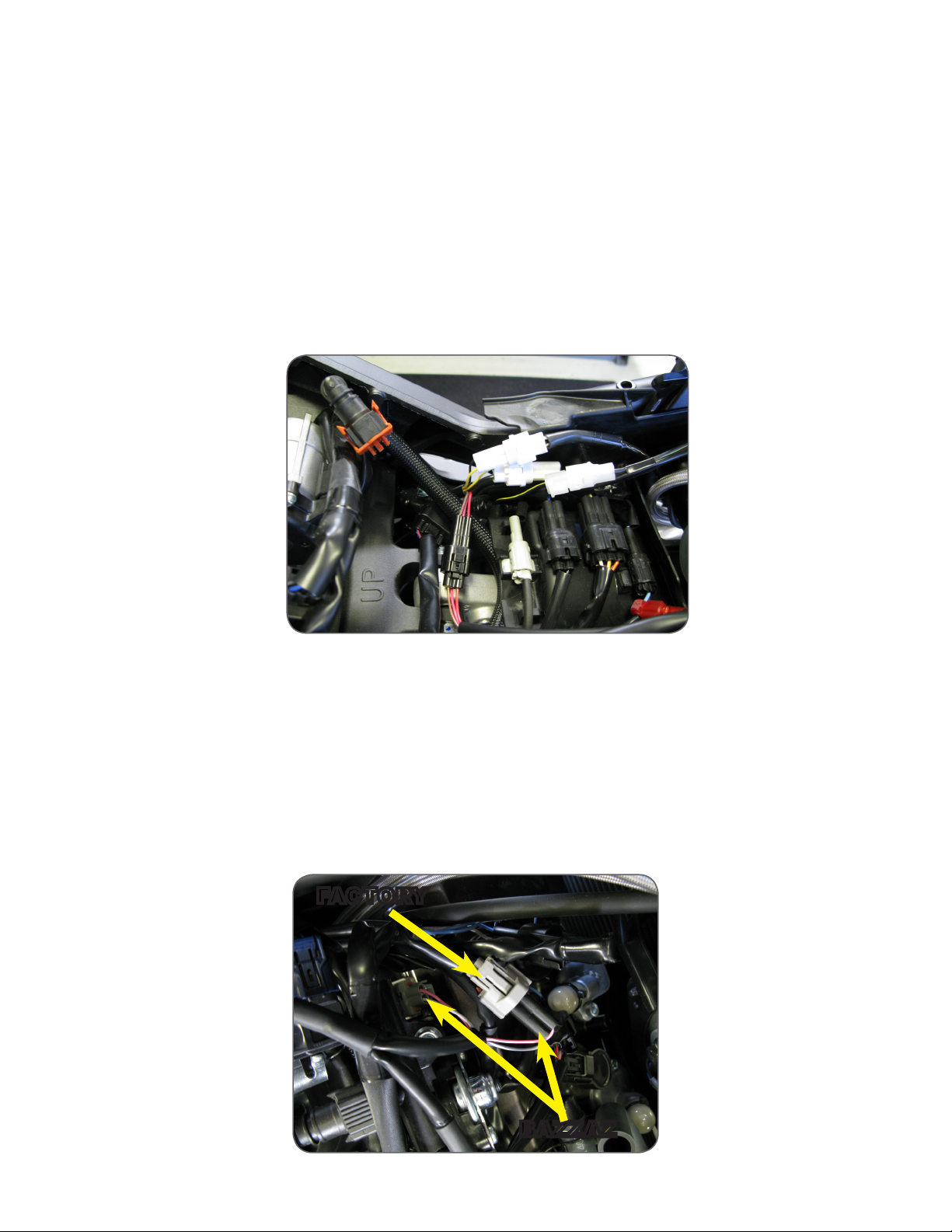

1. Route the remaining Bazzaz injector connectors towards the front of the
throttle bodies.
2. Locate and disconnect the factory injector connector.
3. Install the Bazzaz injector connectors inline.
4. Repeat steps 1-3 for the next two injectors from left to right.
BAZZAZ
FACTORY
5>CONNECT (CONT.)
