Chapter 1: Introduction
Thank you for purchasing MX315010;Nmotherboard, a reliable motherboard
produced under our consistently stringent quality control. It delivers excellent
performance with robust design conforming to our commitment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 contains the conguration
guide to BIOS setup.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on our website without further notice.
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
1.1 Package Contents
MX315010;NMotherboard (Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
1 x Regular I/O Shield
1 x Low Prole I/O Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Intel®
Celeron® N3150/60 SoC 6W TDP processor
Core
Number 4
Max Speed 2.08 GHz (N3150) / 2.24 GHz (N3160)
L2 Cache 2MB
Chipset SoC
BIOS AMI®64Mb SPI BIOS
Expansion
Slot
PCI 1 x PCIe x1 slot
Mini-PCIe 1 (full/half size)
mSATA 1
Memory
Technology Dual Channel DDR3L 1333/1600 MHz SDRAM
Max. 8GB
Socket 2 x SO-DIMM
Graphics
Controller Intel®Gen8 Intel®Graphics DX 11.1, OGL4.2
VRAM Shared Memory up to 512MB
LVDS Dual channel 24-bit, max resolution 1920 x
1200@60Hz
HDMI Supports HDMI 1.4b
Multi Display 3 independant
Ethernet
Ethernet 10/100/1000 Mbps
Controller 2 x Intel®i211-AT
Connector 2 x RJ-45
SATA
Max Data
Transfer
Rate
SATA3 (6.0Gb/s)
Rear I/O
VGA 0
DVI 0
HDMI 1
DisplayPort 2
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
Serial 0
PS/2 0

7
Internal
Connector
USB
3 x USB 3.0 (1 x 2.00 pitch header, 1 x
Vertical Type A)
2 x USB 2.0 (1 x 2.54 pitch header)
LVDS/
Inverter 1/1
VGA 0
Serial 1 x RS-232/422/485, 3 x RS-232 (4 x 2.00
pitch header)
SATA 1 x SATA3 (6.0Gb/s)
mPCIe 1
Parallel 1
mSATA 1
IrDA 0
GPIO 4 x GPI + 4 x GPO
SATA PWR
Output Con 1
Speaker
Header 0
Watchdog
Timer Interval 1, 2…255 Sec
Power
Requirements
Input PWR 12V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8
1.3 Motherboard Layout
mSATA
LAN1
LVDS 1
1
DDR3 (Support DDR3L Only)
PWR_JP1
1
DC_JACK1
mini PCIe
DDR3 (Support DDR3L Only)
BUZZ1
BIOS
Chip
SPEAKER1
1
1
SPDIF1
PCIE1
1
LPC1
1
HD_AUDIO1
ATX12V1
CPU_FAN1 CHA_FAN1
1
LPT1
SATA_PWR1
USB3_H_0_1
USB3_H_2
1
SPI 1
CLRMOS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
PWR_COM2
1
PWR_COM1
CMOS
Battery
DP1
DP2
HDMI1
LAN2
USB 3.0
T: USB1
B: USB0
USB 3.0
T: USB3
B: USB2
LOUT1
MIC1
SATA3_1
1
USB2_3
1
BLT_PWR1
BLT_PWM1
1
CI1
1
CI2
1
JGPIO_SET1
1
JGPIO_PWR1
1
1
JGPIO1
13 1 2
11
1
9
3
2
4
5
6
7
8
10
16
17 1 4
15
18
20
21
19
22
23
24
25
26
COM1
COM2
COM3
1
COM4
1
11

9
1 : 4-pin ATX Power Input/Output Connector
2 : GPIO Default Setting
3 : Chassis Intrusion Headers
4 : Digital Input/Output Power Select
5 : Digital Input/Output Pin Header
6 : 4-Pin Chassis FAN Connector (+12V)
7 : 4-Pin CPU FAN Connector (+12V)
8 : SATA Power Connector
9 : SPI Connector
10 : COM1, 2, 3, 4 Headers
11 : Printer Port Header
12 : System Panel Header
13 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
14 : Clear CMOS Header
15 : ATX/AT Mode Select
16 : Vertical Type A USB3.0 Port
17 : USB3.0 Header
18 : SPDIF Header
19 : 3W Audio AMP Output Wafer
20 : LPC Header
21 : SATA3 Connector
22 : USB2.0 Header
23 : Front Panel Audio Header
24 : LVDS Panel Connector
25 : Inverter Power Control Wafer (BLT_PWR1)
26 : Backlight Control Level (BLT_PWM1)

10

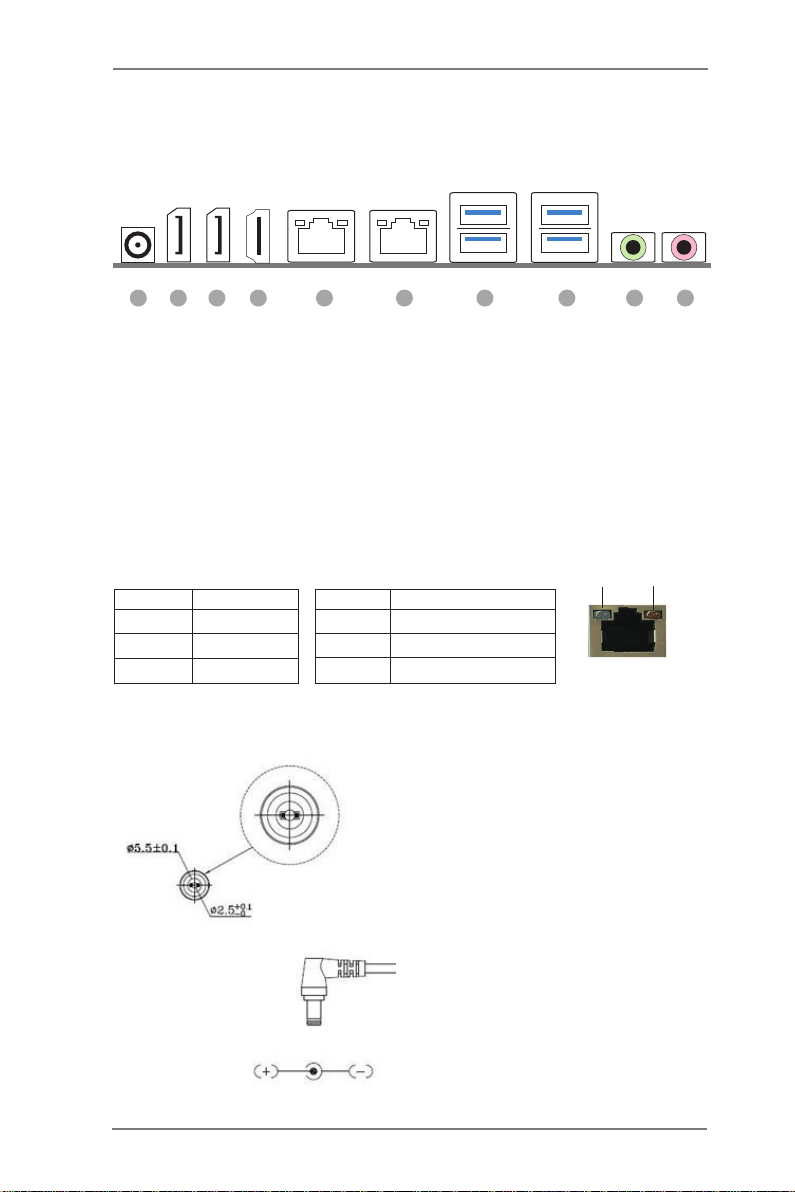

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
The outside diameter for the DC plug needs to be 5.5mm, with the polarity shown below:
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Orange 1Gbps connection
1 DC Jack
2 DisplayPort (DP1)
3 DisplayPort (DP2)
4 HDMI Port (HDMI1)
5 LAN RJ-45 Port (LAN1)*
6 LAN RJ-45 Port (LAN2)*
7 USB 3.0 Ports (USB3_0_1)
8 USB 3.0 Ports (USB3_2_3)
9 Line out (Green)
10 Microphone (Pink)
ACT/LINK
LED
SPEED
LED
LAN Port
8
762 4 109 1 53

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12

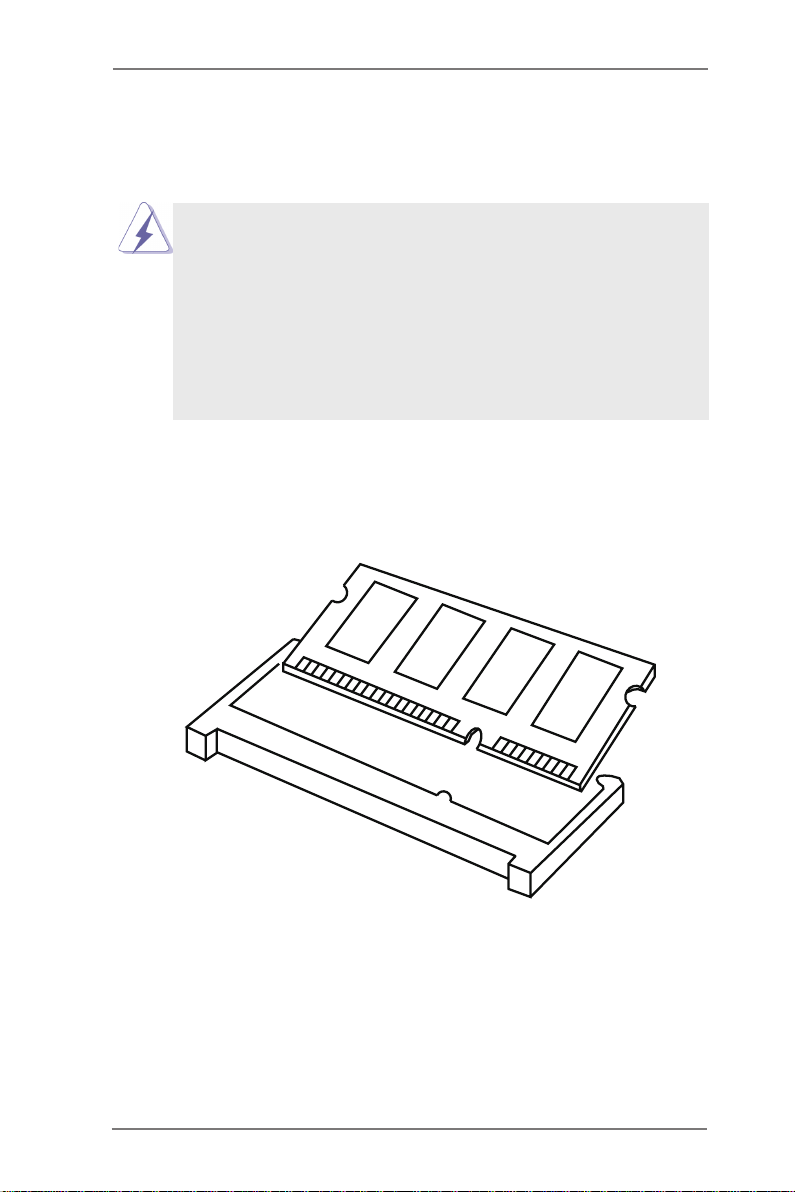

2.3 Installation of Memory Modules (SO-DIMM)
MX3150N/MX3160N motherboard provides two 204-pin DDR3 (Double Data Rate 3)
SO-DIMM slots, which support Dual Channel DDR3L (low voltage).
1. If you install one memory module only, please install it on DDR3_A1.
2. It is not allowed to install a DDR or DDR2 memory module into a
DDR3 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe, mini-SATA and PCI Express
Slots)
There is 1 mini-PCIe slot, 1 mini-SATA slot and 1 PCI Express slot on this mother-
board.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini
cards.
mini-SATA slot:
MINI_SATA1 (mini-SATA slot; full size) is used for mSATA cards.
PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.8, No. 14)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, and time will be cleared only if the
CMOS battery is removed.
Clear CMOSDefault
Digital Input / Output Power Select 1-2: +12V
(3-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 4)
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 15)
Backlight Control Level (CON_LBKLT_CTL) 1-2: +3V
(3-pin BLT_PWM1) 2-3: +5V
(see p.8, No. 26)
COM Port Pin9 PWR Setting Jumpers 1-2: +12V
(6-pin PWR_COM1, for COM Port1) 3-4: RI#
(6-pin PWR_COM2, for COM Port2) 5-6: +5V
(see p.8, No. 13)

15
GPIO Default Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8 No. 2)

16
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA3 Connector This Serial ATA3
(SATA3_1: see p.8, No. 21) (SATA3) connector supports
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Connector There is one USB 2.0
(9-pin USB2_3) connector on this
(see p.8 No. 22) motherboard. This USB 2.0
connector can support two USB
ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 12) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
DUMMY
GND GND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
GN D
RESET#
PWRBTN#
PLED-
PLED+
GN D
HDLED-
HDLED+
1
GN D

17
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 19)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 23) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 6) match the black wire to the
ground pin.
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
1SPK L- 2SPK L+ 3SPK R+ 4SPK R-
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND

18
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
ATX Power Input/Output Connector Please connect a DC
(Input 12V) 12V power supply to this
(4-pin ATX12V1) connector.
(see p.8 No. 1) 1-2: GND
3-4: DC Input
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 7) match the black wire to the
ground pin.
4
2
3
1
Printer Port Header
(25-pin LPT1)
(see p.8 No. 11)
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
1
AFD#
ERROR#
PINIT#
GN D
SLIN#
STB#
SPD0
SPD1
SPD3
SPD2
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 24)
PIN Signal Name PIN Signal Name
2 VDD_+5V 1 VDD_+3.3V
4 VDD_+5V 3 VDD_+3.3V
6 DDC_DATA 5 DDC_CLK
8 GND 7 GND
10 LVDS_A0+ 9 LVDS_A1+
12 LVDS_A0- 11 LVDS_A1-
14 GND 13 GND
16 LVDS_A2+ 15 LVDS_A3+
18 LVDS_A2- 17 LVDS_A3-
20 GND 19 GND
22 LVDS_B0+ 21 LVDS_B1+
24 LVDS_B0- 23 LVDS_B1-
26 GND 25 GND
28 LVDS_B2+ 27 LVDS_B3+
30 LVDS_B2- 29 LVDS_B3-
32 GND 31 GND
34 LVDS_A_CLK+ 33 LVDS_B_CLK+
36 LVDS_A_CLK- 35 LVDS_B_CLK-
38 GND 37 GND
40 VDD_+12V 39 VDD_+12V
1
39
40
2

19
SATA Power Connector
(SATA_PWR1)
(see p.8 No. 8)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 3) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
COM1, 2, 3, 4 Headers
(9-pin COM1/COM2/COM3/COM4: see p.8, No. 10)
LPC Header This connector supports a
(19-pin LPC1) Trusted Platform Module (TPM)
(see p.8, No. 20) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below table for the pin denition.
In addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup utility > Advanced Screen > Super
IO Conguration. You may refer to page 27 for details.
COM1 Port Pin Denition
1
Signal
GND
1
2
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
9DDCD#7TTXD
5GND 3RRTS# 1
RI#
10 RRXD 8DDTR# 6DDSR# 4
CCTS# 2
DUMMY
1
GND
GND
S_PWRDWN#
LAD2
SMB_CLK_MAIN
PCICLK
PCIRST#
LAD3
+3 V
LAD0
GND
FRAME
SMB_DATA_MAIN
LAD1
SERIRQ#
GND +3 VSB
48MHz +5 V
PIN RS232 RS422 RS485
1
RI#+5V/+12V
N/A
N/A
3
RTS N/A
N/A
4
CTS N/A
N/A
5GND GND GND
6 DSR
N/A
N/A
7
TXD TX+ RTX+
8
DTR RX-
N/A
9
DCD TX- RTX-
2 RXD RX+
N/A

20
SPDIF Header
(3-pin SPDIF1: see p.8, No. 18)
USB 3.0 Connector There is one USB 3.0
(9-pin USB3_H_0_1) connector on this
(see p.8 No. 17) motherboard. This USB 3.0
connector can support two USB
ports.
NC
B
B
B
B
B
B
Vertical Type A USB3.0 Port There is one Vertical Type A
(USB3_H_2) USB 3.0 port on this
(see p.8 No. 16) motherboard.
SPI Connector
(7-pin SPI1: see p.8, No. 9)
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
2GND 4CLK 6SPI_MOSI 8NC
1+1.8V 3SPI_CS0# 5SPI_MISO 7SPI_HOLD#
Digital Input/Output Pin Header
(12-pin JGPIO1: see p.8, No. 5)
PIN Signal Name PIN Signal Name
1 SIO_GP24 2 SIO_GP20
3 SIO_GP25 4 SIO_GP21
5 SIO_GP26 6 SIO_GP22
7 SIO_GP27 8 SIO_GP23
9 SMB_CLK 10 SMB_DATA
11 JGPIO_PWR 12 GND
Inverter Power Control Wafer
(5-pin BLT_PWR1: see p.8, No. 25)
PIN Signal Name
1 +12_BL
2 GND
3 CON_LBKLT_EN
4 CON_LBKLT_CTL
5 +5V_BL
1
