BCM Advanced Research FX815ELT User manual

Advanced
Socket 370
Motherboard
FX815ELT
User’s Manual
http://www.bcmcom.com

Declaration
D
De ec cl la ar ra at ti io on n
Rights:
No part of this manual, including but not limited to the products and software described in it,
may be reproduced, transmitted, transcribes, stored in a retrieval system, or translated in any
form or by any means without the expressed written permission from the manufacturer.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies and are used only for identification or
explanation purposes without intent to infringe.
 Intel, MMX and Pentium are registered trademarks of Intel Corporation.
 Microsoft and Windows are registered trademarks of Microsoft Corporation.
 Whizpro and WHIZPROBIOS are registered trademarks of Whizpro Software, Inc.
 Winbond is registered trademark of Winbond Corporation
Responsibility:
This manual is provided “As-Is” with no warranties of any kind, either expressed or implied,
including, but not limited to the implied warranties or conditions of this product’s fitness for
any particular purpose. In no event shall we be liable for any loss of profits, loss of business,
loss of data, interruption of business, or indirect, special, incidental, or consequential
damages of any kind, even the possibility of such damages arising from any defect or error in
this manual or product. We reserve the right to modify and update the user manual without
prior notice.
WARNING: Replace your system’s CMOS RAM battery only with the identical CR-2032
3V Lithium-Ion coin cell (or equivalent) battery type to avoid risk of personal injury or
physical damage to your equipment. Always dispose of used batteries according to the
manufacturer’s instructions, or as required by the local ordinance (where applicable).
References:
This manual is created and written by BCM Technical Team, but not limited, to the
information from the FX815ELT External Production Specifications, and FX815ELT
Specifications. If any comments, suggestions, or errors for this manual, please e-mail to
[e-mail].

Compliance & Certificate
C
Co om mp pl li ia an nc ce e & & C Ce er rt ti if fi ic ca at te e
ISO 9001 Certificate:
This device was produced in our plant with advanced quality system certified by DNV QA
Ltd. in according to ISO 9001. This Certificate is valid for:
DESIGN & MANUFACTURE OF MOTHERBOARD AND PERSONAL COMPUTERS.
CE Declaration:
CE marking is a visible declaration by the manufacturer or his authorized representatives that
the electrical equipment to which it relates satisfies all the provisions of the 1994
Regulations.
FCC Compliance:
FCC stands for Federal Communications Commission.
This product complies with FCC Rules Part 15 and has been tested, and complied with the
EMI rules by a certified body. In normal operation, there shall be no harmful interference
caused by this device nor shall this device accept any interference received, including
interference that may cause undesired operation of this product.
Year 2000 Compliance:
This product is test to be qualified to bear the NSTL Year 2000 Compliant logo. Year 2000
problem is mainly a problem of computer software (OS), and the hardware issue. With the
support of BIOS on motherboard, the Y2K problem can be thoroughly conquered.

Easy Installation
E
Ea as sy y I In ns st ta al ll la at ti io on n
Easy Installation Steps
The following “Easy Installation” steps are for users accustomed
to the assembly of a computer system. For those individuals
requiring more specific information, please refer to the more
detailed descriptions located within the latter chapters of this
manual.
Note: You must keep your power cable unplugged until the
following installation steps are completed.
Getting Started
Touch a grounded metal surface to release static electricity
stored in your body before unpacking your motherboard. For
details please refer to Precaution section in Chapter 3.
Install the CPU by correctly aligning the CPU with the socket
370 as noted in the motherboard diagram. Once aligned, press
down on the CPU gently but firmly and lock it. Next, install the
3.3 volt un-buffered SDRAM into the 168 pin DIMM slots.
Please see Sec. 3.4.
Plug in any peripheral card(s) that you want to be included in the
setup. Please see Sec. 3.5.
Plug in all cables included in the package except for the power
cord. Please see Sec. 3.6.
Please recheck all steps to ensure no mistakes have been made
and then plug in the power cord and turn on the power to enter
the BIOS setup, Chapter 4.

Table of Contents
Declaration............................................................................................................... 2
Compliance & Certificate ....................................................................................... 3
Easy Installation...................................................................................................... 4
1. Introduction ......................................................................................................... 6
1.1 How To Use This Manual ................................................................................ 6
1.2 Check Your Device Items ................................................................................ 6
2. Features ............................................................................................................... 7
2.1 Features Of The Motherboard ......................................................................... 7
3. Installation ........................................................................................................... 9
3.1 Motherboard Layout & Main Parts................................................................... 9
3.2 Connectors and Jumpers ..............................................................................12
3.3 CPU (Central Processing Unit)...................................................................... 13
3.4 System Memory (DRAM)............................................................................... 14
3.5 Expansion Slots ............................................................................................. 15
3.6 Connectors, Headers, and Ports ................................................................... 16
4. BIOS Setup ........................................................................................................ 21
4.1 BIOS Setup.................................................................................................... 21
4.2 Main Setup Menu...........................................................................................22
4.3 General Configuration Menu ......................................................................... 23
4.4 Advanced Configuration Menu ......................................................................25
4.5 System Specific Setup................................................................................... 27
4.6 Primary IDE Drives ........................................................................................28
4.7 Secondary IDE Drives ................................................................................... 29
4.8 Peripherals Setup Menu ................................................................................30
4.9 Power Management Setup Menu ..................................................................31
4.10 PCI /PnP Configurations Menu....................................................................34
4.11 Hardware Monitor ........................................................................................ 35
4.12 Restore Default Settings..............................................................................36
4.13 Exit ............................................................................................................... 36
5. Troubleshooting................................................................................................37
5.1 General Troubleshooting Tips ....................................................................... 37

Introduction
1
1. . I In nt tr ro od du uc ct ti io on n
1.1 How To Use This Manual
This manual provides information necessary for Original
Equipment Manufactures (OEMs) and home users to build a
ATX compatible system using Intel Socket 370 CPU
motherboard. Follow the installation procedure presented
on the Easy Installation Page and refer to the section
number following each step if you require more detailed
instructions.
USER MANUAL
1.2 Check Your Device Items
The standard package should contain the following items. If
you find any of these items be missing or damaged, please
contact your retailer.
 1 FX815ELT motherboard
 1 IDE ribbon cable (80-pin for ATA100)
 1 floppy ribbon cable
 1 CD with drivers for FX815ELT Motherboard and all
of the components
 1 Users Manual (In Driver CD)
 1 Quick Start Guide
CHECK ITEMS

Features
2
2. . F Fe ea at tu ur re es s
2.1 Features Of The Motherboard
This product is based on the Flex ATX form factor. It features the advanced
multimedia function and provides support for business PC maker. This motherboard
incorporates Intel 815 chipset. Providing features such as integrated 2D/3D AGP VGA
controller with AGP In-Line Memory Module, TV Out interface, Ultra DMA 33/66 IDE
interface, ACPI Power Management, 10/100Mbps LAN, USB, IEEE 1394 connectivity,
and soft sound support.
Processor
 Single Intel Socket-370 mechanism for Intel Flip-Chip PGA Celeron or Intel Flip-Chip
PGA Pentium III/ Tualatin Processor
 Supports 100/133 MHz FSB
Core Logic Chipset
 Intel 815E Chipset includes GMCH (Graphics and Memory Controller Hub Rev. B
Chipset), ICH2 (I/O Controller Hub) and FWH (Firm Ware Hub)
System Memory
 Two 168-pin DIMM sockets up to 512MB
 Supports up to 2 double sided DIMMs
Graphics Support
 230MHz RAMDAC; Integrated Hardware Motion Compensation (30 frames per sec.)
 Desktop display modes up to 1600 x 1200 x 8 @ 75Hz refresh rate
 1 VGA output port
 1 TV Out (Composite and S Video)
PCI Bus Master IDE Controller
 2 IDE Connectors (support up to 4 IDE devices)
 Supports Ultra DMA: 33MB/s, 66MB/s, and 100MB/s
LAN Support (Optional)
 ICH2 integrated with LAN controller. With 82562ET (10/100 LAN)

Features
Integrated I/O
 Winbond W83627HF AW super I/O controller
 1 Parallel Port (SPP/ECP/EPP/ECP+EPP)
 2 Serial Port (16C550 Fast UART Compatible – 115kbps)
 1 PS/2 Mouse Port
 1 PS/2 Keyboard Port
 1 Floppy connector
 4 Standard USB Ports (2 from the header connector and 2 from the back ports)
 2 Fan connectors
 Hardware Monitor Capability (optional)
 2 IEEE 1394 Ports (1 from the header connector)
System BIOS
 4Mb Flash device in FWH
 PC-99 and PnP (Plug ‘n Play) compatible
 Supports ACPI (Advanced Configuration and Power Interface), and APM (Advanced
Power Management)
 Supports to boot from CD-ROM, SCSI, IDE, FDD, ZIP, and LS-120
Green Features
 Power Management APM version 1.2
 Intelligent Power Management fully supported by Windows 2000 with On-Now and
supports all wake-up states (S1 thru S5)
 WOL (Wake On LAN), and WOR (Wake On Ring).
Sound System
 AC97 Revision v. 2.1 integrated in ICH2.
 2 Audio Phone Jacks (Line-Out, Mic-In).
 Includes CD-In.
Expansion Slots
 1 PCI slot
Mechanical
 This motherboard complies with the Flex ATX Form Factor specification and has a four
layers with dimensions of 6.79.” x 7.25”

Installation
3
3. . I In ns st ta al ll la at ti io on n

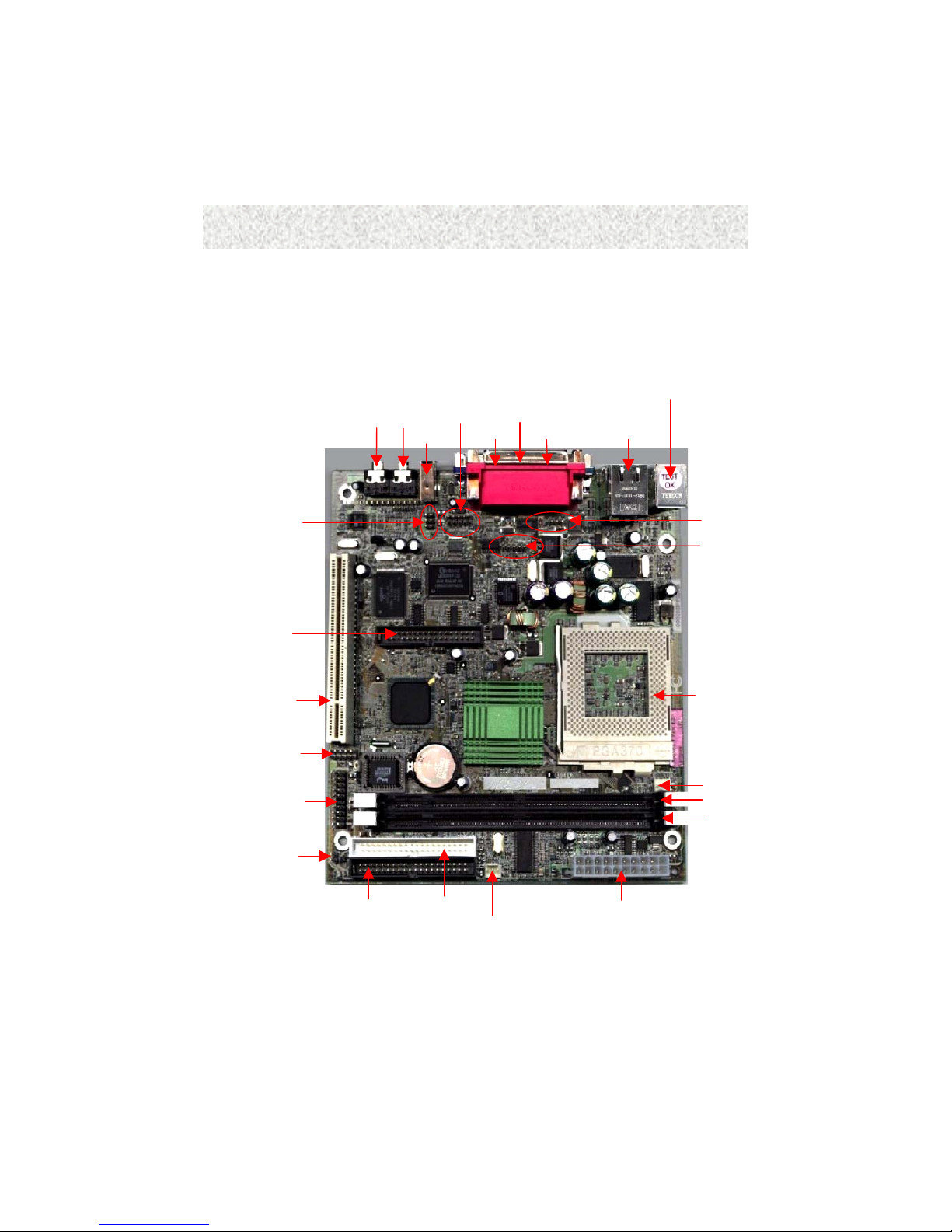

3.1 Motherboard Layout & Main Parts
Printer
COM 1
VGA
LAN
USB
Keyboard/Mouse
1394
Mic-In Line-Out
ATX Power
Secondary
IDE
Primary
IDE
Front Panel
Connector
Front USB
PCI Slot
System Fan
Floppy
COM 2
Front 1394
WOR
CPU Socket
CPU Fan
DIMM 1
DIMM 2
TV Out
LAN LED

Installation
Significant Parts List
Expansion Slots
CPU Refer to Sec. 3.3
System Memory Refer to Sec. 3.4
Expansion Slots Refer to Sec. 3.5
Front Panel Connectors/Back Panel Ports
IrDA Connector (Part of Front Panel Header) Refer to Sec. 3.6.5
Power Switch Connector (Part of Front Panel Header) Refer to Sec. 3.6.5
Reset Switch Connector (Part of Front Panel Header) Refer to Sec. 3.6.5
HDD LED Connector (Part of Front Panel Header) Refer to Sec. 3.6.5
Power LED Connector (Part of Front Panel Header) Refer to Sec. 3.6.5

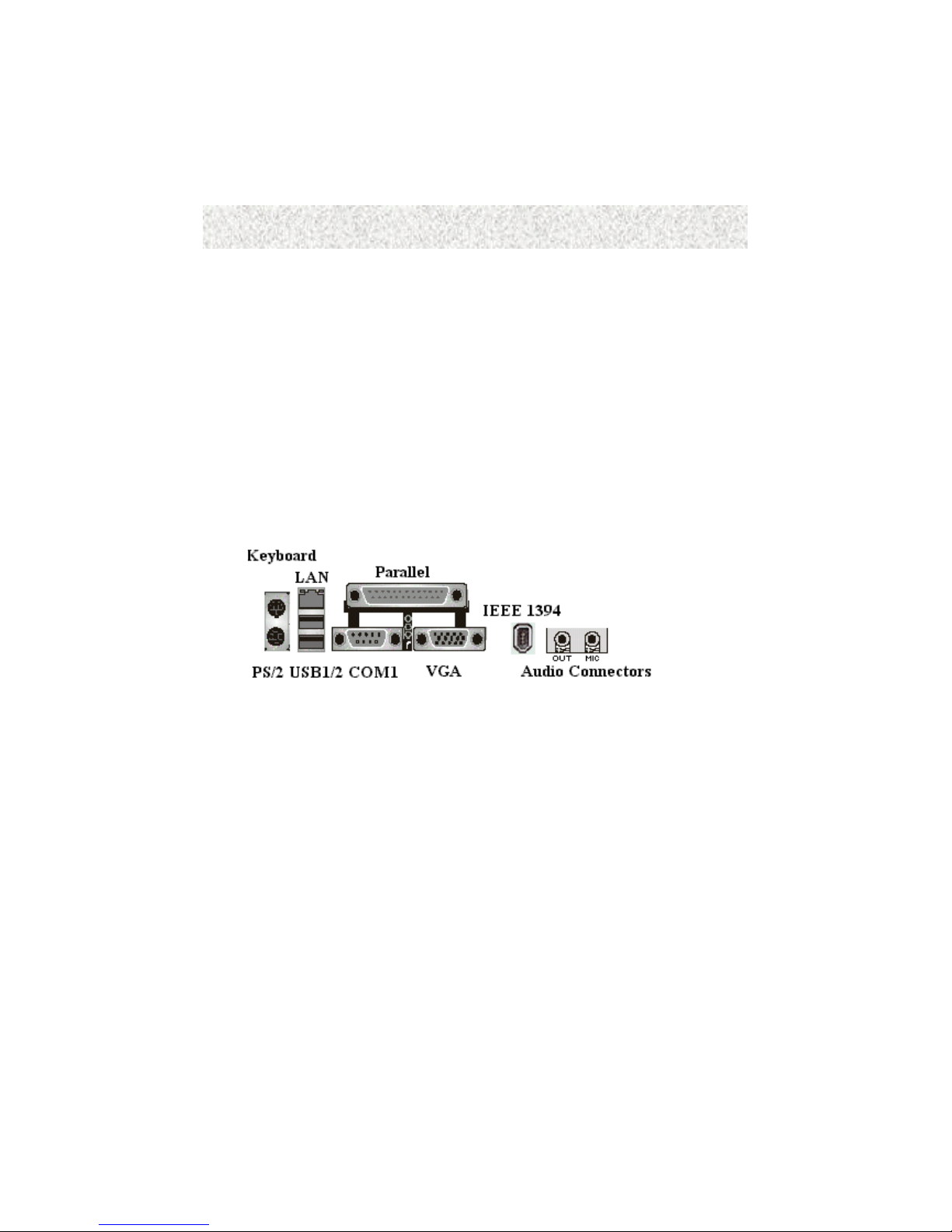

Keyboard/Mouse Ports Refer to Sec. 3.6.6
USB/LAN Ports Refer to Sec. 3.6.6
Printer/VGA/Serial Ports Refer to Sec. 3.6.6
Sound Ports Refer to Sec. 3.6.6
IEEE 1394 Port 1 Refer to Sec. 3.6.6
Connectors and Header
Primary IDE Connector Refer to Sec. 3.6.1
Secondary IDE Connector Refer to Sec. 3.6.2
Floppy Connector Refer to Sec. 3.6.3
Power Connector Refer to Sec. 3.6.4
CD-In (CD-ROM) Connector Refer to Sec. 3.6.7
WOR (Wake On Ring) Connector Refer to Sec. 3.6.7
CPU Fan Connector Refer to Sec. 3.6.7
System 2 Connector Refer to Sec. 3.6.7
Front USB Connector Refer to Sec. 3.6.7
Serial Port 2 Connector Refer to Sec. 3.6.7
IEEE 1394 Port 2 Connector Refer to Sec. 3.6.7
TV-Out Connector Refer to Sec. 3.6.7

Installation
Precaution Before Start
Static Electricity Damage:
Static electricity can easily damage your motherboard. Observing a
few basic precautions can help safeguard against damage that could
result in expensive repairs. Follow the simple measures below to
protect your equipment from static electricity damage.
1. Keep the motherboard and other system components in their anti-static packaging until you
are ready to install them.
2. Touch a grounded surface before you remove any system component from its protective
anti-static packaging. Unpacking and installation should be done on a grounded, anti-static
mat. The operator should be wearing an anti-static wristband, grounded at the same points
as the anti-static mat.
3. After removing the motherboard from its original packaging, only place it on a grounded,
anti-static surface component side up. Immediately inspect the board for damage. Due to
shifting during shipping, it is suggested that the installer press down on the entire socket ICs
to ensure they are properly seated. Do this only with the board placed on a firm flat surface.
4. During configuration and installation touch a grounded surface frequently to discharge any
static electrical charge that may have built up in your body. The best precaution is to wear a
grounded wrist strap. Avoid touching the components when handling the motherboard or a
peripheral card. Handle the motherboard and peripheral cards either by the edges or by the
peripheral card case-mounting bracket.
Misplaced Jumper Damage:
There are critical headers used for connectors or power sources. These
are clearly marked separately from the jumpers listed in Motherboard
Layout. Incorrect setting jumpers and connectors may lead to damage
to your motherboard. Please pay special attention not to connect these
headers in wrong directions

Installation
3.2 Connectors and Jumpers
This motherboard requires jumper setting for some features. The following graphic shows you
how to set a proper jumper setting.
PIN 1 PIN 1
Note: In the following pages, the triangle ▲mark stands for pin 1 of the connector or header.
Connectors/Jumpers List
J1: Mic-In J2: Line-Out
J3: PS/2 Keyboard/Mouse Connector J4: VGA Connector
J5: 1394 Connector (back site) J6: COM 1 Connector
J7: USB/Lan Connector (Act LED -> Green,
100Mb -> orange)
J8: Mic-In + Line-In Pin Header
J9: Line-Out Pin Header J10: CD-In Connector
J11: Parallel Port Connector J12: 1394 Pin Header (front site)
J13: COM 2 Pin Header (key pin 10) J14: LANLED 3 Pin Header
J15: TV-Out Pin Header (S-VIDEO + AV-OUT) J16: PCI slot
J17: Floppy Connector J18: CPU socket
J19: Front Side USB J20: Front side Panel
J21: WOR Pin Header J22: CPU Fan Header
J23: DIMM-1 socket J24: DIMM-2 socket
J25: Secondary IDE Connector J26: ATX Power Connector
J27: Primary IDE Connector J28: System Fan Header
JP1: Clear CMOS/Password JP2: FWH protection

Installation
3.3 CPU (Central Processing Unit)
This motherboard supports a Flip-Chip PGA 370 Intel Celeron/Pentium III FC-PGA family
processor. To complete CPU installation, please install CPU to socket firmly, presented in Sec.
3.3.1.
3.3.1 CPU installation
Please follow the below steps to install your CPU.
Step 1: Pull the handling bar of the socket upward to the other end to loosen the socket’s
openings.
Step 2: Place the CPU on the middle of the socket, orienting its beveled corner to line up with
the socket’s beveled corner. Make sure the pins of the CPU fit evenly to the socket
openings.
Step 1 Step 2
Step 3: Press the handling bar downward to fasten the CPU to the socket.
Warning: It is strongly recommended that a heatsink and CPU cooling fan be used to prevent the
CPU from overheating. Applying a thermal of jelly between the CPU and the
heatsink/fan will further cool the CPU.
Handling Bar

Installation
3.4 System Memory (DRAM)
3.4.1 DIMM (Dual Inline Memory Module)
The motherboard features two 168-pin DIMM sockets, share memory module. If you have only
one DIMM RAM, note that you must insert it into DIMM 1. You can configure the system
memory size from 16MB to 512MB in a variety of ways by using different combinations of the
three 168-pin DIMMs.
3.4.2 Installation Procedure
Step1: Make sure Pin 1 of the DIMM match
with pin 1 of the DIMM socket.
Step2: Insert the DIMM module into the DIMM
socket vertically. After inserting the
DIMM module completely into the
socket, push up on the socket latches
securing the DIMM into place. If the pin
1 of the DIMM module does not line up with pin 1 of the socket, the DIMM module will
not be inserted correctly into the socket.
Be careful not to misfit the DIMM into DIMM socket in wrong direction. This module can be
inserted into the socket only one way. To release the memory module, push both latches down
and carefully rock the module forward and backward while slowly lifting it upward.
3.4.3 DIMM Combinations
Each DIMM socket can be inserted with 8MB, 16MB, 32MB, 64MB, 128MB, and 256MB. For
example, the following figure shows you one way to insert your DIMMs.
16MB 64MB
32MB 256MB
DIMM 1
Select
Empty 16MB 64MB
32MB 256MB
DIMM 2
128MB
128MB
Select DIMM 1: 32MB
DIMM 2: 64MB
Total
32+64=96MB
Select 1 out of 5 Choices (16MB, 32MB, 64MB, 128MB, and 256MB) in DIMM 1. Then, repeat
again in DIMM 2 for 6 choices (Empty, 16 MB, 32 MB, 64 MB, 128MB, and 256MB).

Installation
3.5 Expansion Slot
This motherboard contains 1 32-bit PCI expansion slot.
PCI Expansion Slot
PCI expansion slot accept PCI bus master cards and are fully supported by the PCI 2.2
specification.

Installation
HDD LED
RESET
PWR/SLEEP
PWR
KEY
IrDA
SMBUS
SPK
3.6 Connectors, Headers, and Ports
This motherboard contains IDE, floppy, power connector, front panel, and additional connectors.
3.6.1 Primary IDE Connector (J27, 39-pin block, Black)
This connector supports two primary channel IDE devices as well as the LS120 floppy, Zip, CD-
ROM, and DVD-ROM drives via a ribbon cable. When two IDE devices are installed using the
primary IDE connector, make sure that the second IDE device is set to slave mode as indicated in
the device’s manual.
3.6.2 Secondary IDE Connector (J25, 39-pin block, White)
This connector supports two secondary channel IDE devices as well as the LS120 floppy, Zip,
CD-ROM, and DVD-ROM drives via a ribbon cable. When two IDE devices are installed using
the secondary IDE connector, make sure that the second IDE device is adjusted to slave mode as
indicated in the device’s manual.
Warning: When you connect a ribbon cable to these ports, you must orient the cable
connector so that the PIN 1 edge of the cable is at the PIN 1 edge of the on-board
connector.
3.6.3 Floppy Drive Connector (J17, 33-pin block)
The FDC sub-system can control three types of floppy drives (1.2, 1.44, and 2.88 MB) and/or
compatible tape drives. The floppy disk interface includes 48mA current support and inputs on
the drive interface.
3.6.4 ATX Power Connector (J26, 20-pin block)
This connector supports one standard ATX power supply. When connecting, make sure the lock
key matches the hook attached on a power supply cable. The power cord should be unplugged
when you connect it.
3.6.5 Front Panel Connectors (J20, 20-pin block)
Front Panel includes connectors for the following six I/O
connectors: Power Switch, Power LED, Reset, IrDA and
HDD LED.
IrDA Connector (Pins 8, 10)
The motherboard offers an IrDA infrared connector that supports third party infrared modules.
The case must reserve space for the IR module if you want to use the IrDA function. This option
supports wireless transmission and reception of infrared data. The module mounts in a small
opening on the system case that supports this feature. The efficient distance is 100cm and the
transfer rate is 115,200 bits/s.
Reset Switch Connector (Pins 1, and 3)
This connector supports the front panel case-mounted reset button. It is advised that the reset
switch be used for rebooting the system in order to extend the life of the system’s power supply.
HDD LED Connector (Pins 5, and 7)

Installation
The motherboard supports one 2-pin connector for connecting to front Panel Hard Disk activity
LED indicator.
Power Switch Connector (Pins 17, and 19)
This connector supports the ATX case-mounted Power Switch, which in turn supports System
Suspend function. When the BIOS sets the Power Button function to “Suspend”, the system can
be set to the suspended mode once you push the power switch for no longer than 4 seconds. If the
power switch is pushed down for over 4 seconds, the system will be totally powered off. When
this BIOS setting sets to “Instant-off”, then Power Switch function work as a regular power
switch.
Power LED Connector (Pins 2, 4 and 6)
This connector can be connected to a 2-color LED that will light green (On) or blink (Sleep) when
the computer is in “Sleep” or “Normal” operation.
Speaker Connector (Pins 14, 16, 18 and 20)
For external system speaker connection
3.6.6 Back Panel Connectors
PS/2 Keyboard and Mouse Ports (J3)
The motherboard offers 1 PS/2 Keyboard Port and 1 PS/2 Mouse Port.
USB (Universal Serial Bus) Ports and LAN (Local Area Network) Port (J7)
The motherboard has two USB ports and a LAN port (optional). USB devices provide a more
convenient operating environment and improve data transferring capacity. True Plug & Play.
This new bus technology will support over 127 different peripherals through a hub. This also
supports combination of both low and high speed devices (version 1.1) The LAN port (optional)
(using RJ-45) provided to hook the system up on a local network or with a DSL (Digital
Subscriber Line), or a Cable modem internet boxes.
Parallel Port (J11)
The motherboard includes a parallel port (SPP, EPP, and ECP compatible). The parallel port is
capable of being disabled or remapped to either the secondary LPT address or the primary LPT
address through BIOS if another parallel port is installed.

Installation
COM1 Port (J6)
The motherboard has one serial port. The electrical characteristics are compliant with the EIA-
232-D Serial Communications Specifications. The serial port may be disabled through the BIOS.
Line-Out (J2)
The motherboard also provides external sound system through an user accessible stereo jack
connector soldered to the PWA. This jack allow the connection of self-amplified speakers.
Mic-In (J1)
The motherboard also provides external sound system through an user accessible stereo jack
connector soldered to the PWA. This jack allow the connection Mic-In voice input.
VGA Port (J4)
This product integrates the AGP function via a VGA port. The monitor hooks up here.
IEEE 1394 Port (J5)
This connector is use for connecting a 1394 device.
3.6.7 Additional Connectors and Headers
Front USB Connector (J19, 10-pin)
The motherboard offers you to hook up front USB ports via chassis. It is always enabled.
Clear Password Header (JP1, 3-pin)
Clear CMOS. By closing JP1, pins 1 and 2 will clear the CMOS. By closing JP1, pins 2 and 3
will clear password. Under the normal operation, leave JP1, all pin open.
WOR (Wake On Ring) Connector (J21, 2-pin)
This connector is used for resuming from either the APM sleep mode or the ACPI S1 state. It
requires only one call to access the computer. In addition, it detects incoming call similarly for
external and internal modems. It also requires modem interrupt to be unmasked for correct
operation.
System FAN Header (J28, 3-pin)
This connector is used for chassis fan or power fan if needed.
CPU FAN Header (J22, 3-pin)
This connector is used for chassis fan or power fan if needed.
Serial Port 2 Connector (J13, 9-pin)
This connector is for second serial port.
CD-In Header (J10, 4-pin)
A connector is available for audio input from CD-ROM drives.
Line-In/Mic In Header (J5, 5-pin)

Installation
A connector is available for audio input from Line-In, Mic-In Header.
Line-Out Header (J9, 5-pin)
A connector is available for audio output.
BIOS Lock Header (JP2, 4-pin)
When 1,2 close, boot block protection enable, 3,4 close all block protection enable. Default is 2,3
for all un-protect.
IEEE 1394 Header (J12, 6-pins)
A second IEEE 1394 pin header for 1394 cable connection.
TV-Out Header (J15, 5-pins, Optional)
A TV-Out pin header for TV-Out cable connection.

Installation
Are You Ready To Turn On The System?
Check Again
1. Is the CPU installed exactly and firmly into the socket (Sec. 3.3)?
2. Are all the DRAM modules installed properly (Sec. 3.4)?
3. Are all the add-in peripheral seated and configured properly (Sec. 3.5)?
4. Are you sure that all the connectors (described in Sec. 3.6) have been connected to their
related devices (Sec. 3.6)?
Yes, I have checked and assured the above steps!
Now get ready to turn on your device by following the steps below.
1. Mount your motherboard to the chassis frame and close the case cover.
2. Connect the power supply cord into inlet of the system case.
3. Connect the power supply cord into an outlet of power supply.
4. Connect Monitor signal cable to the system VGA port and the monitor power cord to power
outlet.
5. Now turn on the monitor and system power.
After Power On, the power LED on the front panel of the system case will light. For ATX power
supplies, the system LED will light when the ATX power switch is pressed.
The system will then do a power-on-self-test, and additional messages will appear on screen. If the
screen blinks or the tests stop more than 30 seconds, the system may have failed the power-on-
self-test. If so, please recheck the above steps or call your retailer for assistance.
If the power-on-self-test goes well, hold down <F2> key on the keyboard to enter BIOS Setup.
Next, follow the instructions in the next chapter: BIOS SETUP.
