1. General information
1.1 Information on the operating manual
This operating manual contains important information on
proper usage of the device. Read this operating manual
carefully before installing and starting up the pressure
measuring device.
Adhere to the safety notes and operating instructions which
are given in the operating manual. Additionally applicable
regulations regarding occupational safety, accident preven-
tion as well as national installation standards and engineer-
ing rules must be complied with!
This operating manual is part of the device, must be kept
nearest its location, always accessible to all employees.
This operating manual is copyrighted. The contents of this
operating manual reflect the version available at the time of
printing. It has been issued to our best knowledge. BD
SENSORS is not liable for any incorrect statements and their
effects. – Technical modifications reserved –
1.2 Symbols used
DANGER! – dangerous situation, which may result in
death or serious injuries
WARNING! – potentially dangerous situation, which
may result in death or serious injuries
CAUTION! – potentially dangerous situation, which may
result in minor injuries
!CAUTION! – potentially dangerous situation, which may
result in physical damage
NOTE – tips and information to ensure a failure-free
operation
1.3 Target group
WARNING! To avoid operator hazards and damages of
the device, the following instructions have to be worked
out by qualified technical personnel.
1.4 Limitation of liability
By non-observance of the operating manual, inappropriate
use, modification or damage, no liability is assumed and
warranty claims will be excluded.
1.5 Intended use
- The hydrostatic probes LMK 457 and LMK 458 have
been designed especially for shipbuilding and offshore
applications with rough environmental and operation
conditions. The probes are suitable for level measure-
ment of fluids or pasty media (no solids and frozen me-
dia) in open tanks, containers, or reservoirs. As medium
all fluids can be used which are compatible with the ma-
terials of housing, sealing and cable. Based on a rugged
and reliable capacitive ceramic sensor the probe is
qualified for measuring small filling heights with high ac-
curacy. Typical areas of use are ballast tanks, fuel and
oil tanks as well as ser-vice and waste water tanks. The
probes as standard complies with the requirements of
Germanischer Lloyd (GL) and Det Norske Veritas
(DNV). The certificates are available for download on
our homepage: http:// www.bdsensors.com/products
/download/certificates
- It is the operator's responsibility to check and verify the
suitability of the device for the intended application. If
any doubts remain, please contact our sales department
in order to ensure proper usage. BD SENSORS is not
liable for any incorrect selections and their effects!
- The hydrostatic probe has to be used according to the
area of application specified above! In addition it has to
be ensured, that this medium is compatible with the me-
dia wetted parts.
- The technical data listed in the current data sheet are
engaging. If the data sheet is not available, please order
or download it from our homepage.
(http://www.bdsensors.com)
WARNING! – Danger through improper usage!
1.6 Package contents
Please verify that all listed parts are undamaged included in
the delivery and check for consistency specified in your
order:
- hydrostatic probe
- mounting instructions
2. Product identification
The device can be identified by its manufacturing label. It
provides the most important data. By the ordering code the
product can be clearly identified.

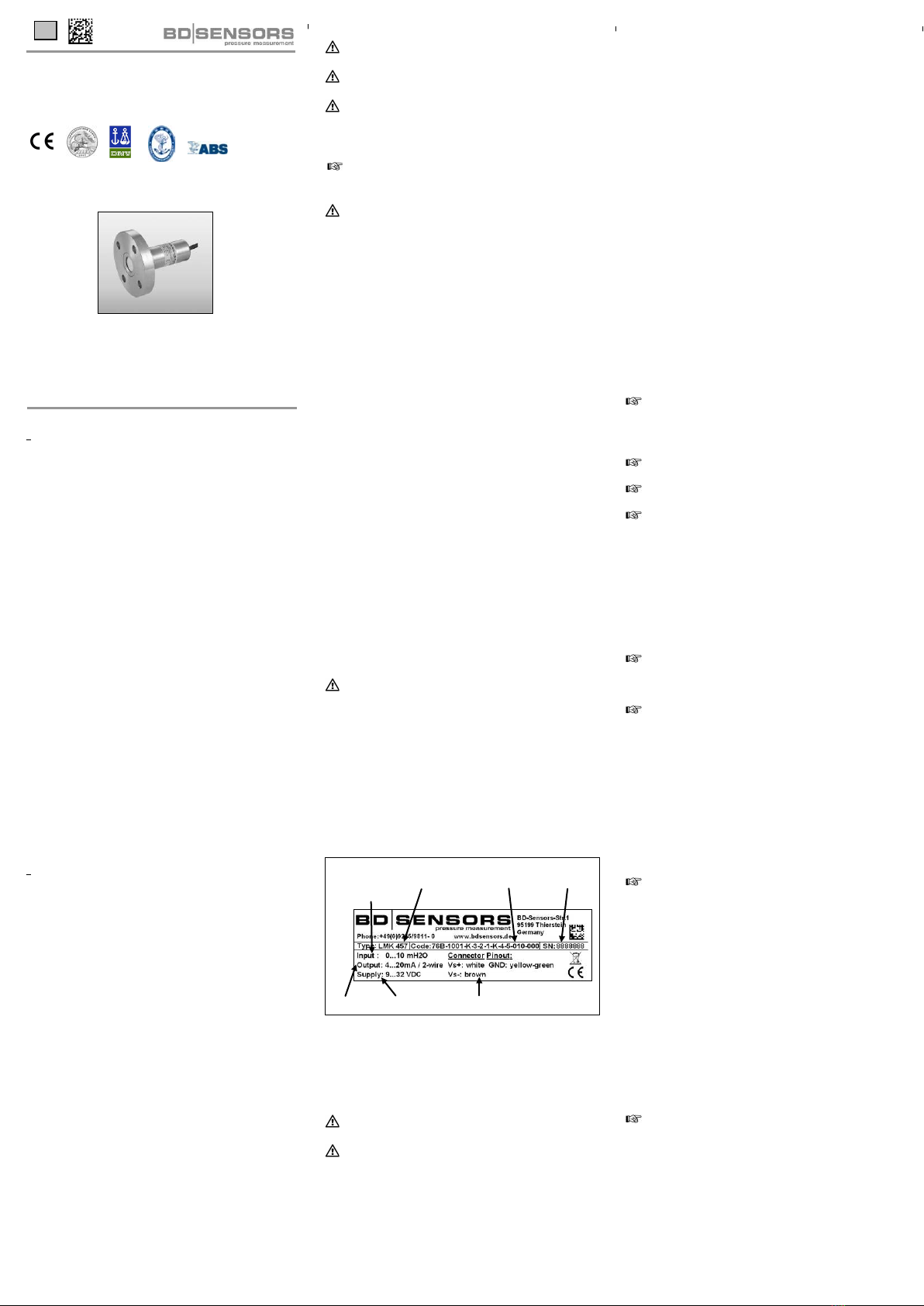

Fig. 1 manufacturing label
!The manufacturing label must not be removed from the
device!
3. Mechanical installation
3.1 Mounting and safety instructions
WARNING! Install the device only when depressurized
and currentless!
WARNING! This device may only be installed by
qualified technical personnel who has read and under-
stood the operating manual!
!Handle this high-sensitive electronic precision
measuring device with care, both in packed and
unpacked condition!
!There are no modifications/changes to be made on the
device.
!Do not throw the package/device!
!To avoid damaging the diaphragm, remove packaging
and possibly protective cap directly before starting
assembly. The possibly delivered protective cap has to
be stored! Place this protective cap on the pressure port
again immediately after disassembling.
!Handle the unprotected diaphragm very carefully - it is
very sensitive and may be easily damaged.
!Do not use any force when installing the device to
prevent damage of the device and the plant!
!When placing the probe into operation or after mainte-
nance work, the probe has to be submerged slowly into
the medium! A rough immersion into the medium can
damage or destroy the diaphragm.
!For installations outdoor and in damp areas following
these instructions:
- Choose an assembly position, which allows the
flow-off of splashed water and condensation.
- Turn the outgoing cable downwards. If the cable
has to be turned upwards, then point it downward
so the moisture can drain.
- Install the device in such a way that it is protected
from direct solar irradiation. Direct solar irradiation
can lead to the permissible operating temperature
being overstepped in the worst case. By this the
operability of the device can be affected or dam-
aged. If the internal pressure increases due to so-
lar irradiation, measurement errors may be caused.
Take note for screw-in and flange transmitter that no
inadmissibly high mechanical stresses occur at the
pressure port as a result of the installation, since this
may cause a shifting of the characteristic curve or to the
demage.
In hydraulic systems, position the device in such a way
that the pressure port points upward (ventilation).
Provide a cooling line when using the device in steam
piping.
If installing the device outdoor and there is any danger
of lightning or overpressure we suggest putting a
overpressure protection unit between the supply/switch
cabinet and the device to prevent damage.
3.2 General installation steps
- Carefully remove the pressure measuring device from
the package and dispose of the package properly.
- Go ahead as detailed in the specific instructions below.
3.3 Installation steps for probe
- Install the device according to your demands.
Usually, the probe is delivered without mounting acces-
sories. But BD SENSORS offers different accessories
on request e.g. mounting clamp, terminal clamp or
mounting flange.
Do not use freely suspended probes with an FEP cable
if effects due to highly charging processes are ex-
pected.
3.4 Installation steps for flange transmitter
- Please ensure that the mounting thread is clean and
free of damage.
- Check to ensure that the O-ring fits properly in the
groove.
- Screw in the mounting thread of the transmitter in the
transmitter flange, by hand.
- Next, tighten it by an open-end wrench. (approx. 25 Nm)
- Install the flange according to your demands.
If a new transmitter flange is needed, it can be ordered
from BD SENSORS.
3.5 Installation steps for screw-in transmitter
- Please ensure that the mounting thread is clean and
free of damage.
- Check to ensure that the O-ring fits properly in the
groove.
- Ensure that the sealing surface of the taking part e.g.
welding socket is perfectly smooth and clean.
- Screw the device in the corresponding thread by hand.
- Next, tighten it by an open-end wrench. (approx. 25 Nm)
3.6 Removing the protection cap (for probe)
For the protection of the diaphragm, some of the probes
have a plugged-on protection cap. If the device shall be used
in high-viscosity media such as sludge, a removal of the cap
before start-up is necessary. Thus, the sensor becomes
flush and the medium will attain quickly to the diaphragm.
If it is necessary for your application to remove the
protection cap, this has to be done with utmost care. To
prevent a damage of the diaphragm, please follow the
instructions below.
Removal by hand
- Hold the probe in a way that the protection cap points
upwards.
- Hold the probe with one hand on the sensor section (1).
- Remove the protection cap (2) with the other hand.
ordering
code
connector pinout
type
designation
supply
nominal
pressure
range
signal
serial
number
LMK 457
LMK 458 / LMK 458H

FS Schiff_E_150915

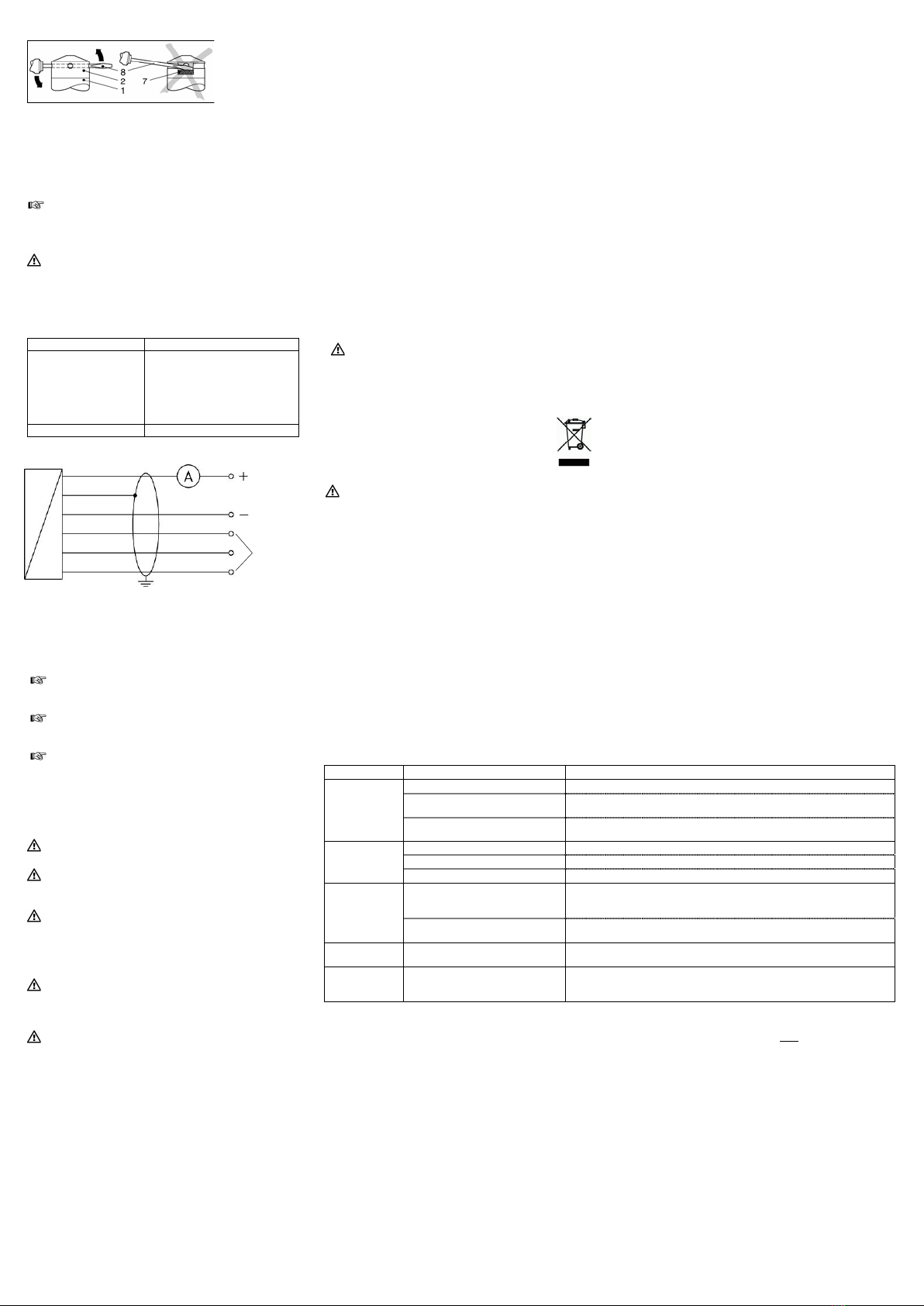

Removal with a tool (recommended)
- Hold the probe in a way that the protection cap points
upwards.
- Slide a small tool such as a screwdriver (8) straight
through two opposite drill holes in the protective cap (2).
- Lever it off by moving up the handle of the screwdriver.
Make sure that the sensor (7) under the protection cap
will not be damaged!
4. Electrical Installation
WARNING! Install the device only when depressurized
and currentless!
Establish the electrical connection of the device according to
the technical data shown on the manufacturing label, the
following table and the wiring diagram.
Pin configuration:
Wiring diagram:
!A minimum static bending radius has to be complied
with. For static installation use the 10-fold cable diame-
ter, for dynamic applications use the 20-fold diameter.
!Prevent the damage or removal of the PTFE filter which
is fixed over the end of the air tube on devices with
cable outlet and integrated air tube.
For the electrical connection a shielded and twisted
multicore cable has to be used; if a cable extension is
necessary, also a shielded cable has to be used.
If a transition is desired from a probe cable with gauge
tube to a cable without gauge tube, then we recom-
mend our terminal box KL 1 or KL 2.
Devices with TPE-cable
- Application in water with a temperature >70°C de-
stroys the cable
- Applications at media temperatures >70°C have to be
clarified with BD|SENSORS in advance
5. Initial start-up
WARNING! Before start-up, the user has to check for
proper installation and for any visible defects.
WARNING! The device can be started and operated by
authorized personnel only, who have read and under-
stood the operating manual!
WARNING! The device has to be used within the
technical specifications, only (compare the data in the
data sheet)!
6. Placing out of service
WARNING! When dismantling the device, it must
always be done in the depressurized and currentless
condition! Check also if the medium has to be drained
off before dismantling!
WARNING! Depending on the medium, it may cause
danger for the user. Comply therefore with adequate
precautions for purification.
7. Maintenance
In principle, this device is maintenance-free. If desired, the
housing of the device can be cleaned when switched of
using a damp cloth and non-aggressive cleaning solutions.
With certain media, however, the diaphragm may be polluted
or coated with deposit. It is recommended to define corre-
sponding service intervals for control. After placing the
device out of service correctly, the diaphragm can usually be
cleaned carefully with a non-aggressive cleaning solution
and a soft brush or sponge. If the diaphragm is calcified, it is
recommended to send the device to BD SENSORS for
decalcification. Please read therefore the chapter “Ser-
vice/Repair” below.
!An incorrect cleaning can cause irreparable damages
on diaphragm. Never use spiky objects or pressured air
for cleaning the diaphragm.
8. Service / Repair
8.1 Recalibration
During the life-time of a probe, the value of offset and span
may shift. As a consequence, a deviating signal value in
reference to the nominal pressure range starting point or end
point may be transmitted. If one of these two phenomena
occurs after prolonged use, a recalibration is recommended
to ensure furthermore high accuracy.
8.2 Return
Before every return of your device, whether for recalibration,
decalcification, modifications or repair, it has to be cleaned
carefully and packed shatter-proofed. You have to enclose a
notice of return with detailed defect description when
sending the device. If your device came in contact with
harmful substances, a declaration of decontamination is
additionally required. Appropriate forms can be downloaded
from our homepage www.bdsensors.com. Should you
dispatch a device without a declaration of decontamination
and if there are any doubts in our service department
regarding the used medium, repair will not be started until an
acceptable declaration is sent.
If the device came in contact with hazardous
substances, certain precautions have to be
complied with for purification!
9. Disposal
The device must be disposed according to the
European Directives 2002/96/EG and
2003/108/EG (on waste electrical and electronic
equipment) Waste of electrical and electronic
equipment may not be disposed by domestic
refuse!
WARNING! Depending on the measuring medium,
deposit on the device may cause danger for the user
and the environment. Comply with adequate precau-
tions for purification and dispose of it properly.
10. Warranty conditions
The warranty conditions are subject to the legal warranty
period of 24 months from the date of delivery. In case of
improper use, modifications of or damages to the device, we
do not accept warranty claims. Damaged diaphragms will
also not be accepted. Furthermore, defects due to normal
wear are not subject to warranty services.
11. Declaration of conformity / CE
The delivered device fulfils all legal requirements. The
applied directives, harmonised standards and documents are
listed in the EC declaration of conformity, which is available
online at: http://www.bdsensors.com.
Additionally, the operational safety is confirmed by the CE
sign on the manufacturing label.
12. Error handling
Abb.
Fig. 2 removal of protection cap
Electrical connection cable colours (DIN 47100)
Supply +
Supply −
optionally (only Pt 100):
Supply T+
Supply T–
Supply T–
wh (white)
bn (brown)
ye (yellow)
gy (grey)
pk (pink)
Shield
ye/gn (yellow / green)
Malfunction Possible cause Error detection / corrective
no output
signal
wrong connected inspect the connection
line break inspect all line connections necessary to supply the device (including
the connector plugs)
defective amperemeter (signal
input)
inspect the amperemeter (fine-wire fuse) or the analogue input of the
PLC
analogue
output signal
too low
load resistance too high verify the value of the load resistance
supply voltage too low verify the output voltage of the power supply
defective energy supply inspect the power supply and the applied supply voltage at the device
small shift of
output signal
diaphragm is highly contaminated careful cleaning with non-aggressive cleaning solution and a soft brush or sponge; incorrect cleaning can cause irreparable damages on
diaphragm or seals
diaphragm is calcified or coated
with deposit
if possible, it is recommended to send the device to BD SENSORS for
decalcification or cleaning
large shift of
output signal
diaphragm is damaged (caused
by overpressure or manually)
check the diaphragm; if it is damaged, please send the device to
BD SENSORS for repair
wrong or no
output signal manually, thermical or chemically damaged cable
check the cable; a possible consequence of a damaged cable is pitting
corrosion on the stainless steel housing; if you determine this please
return the device to BD SENSORS for repair
If you detect an error, please try to eliminate it by using this table or send the device to our service address for repair.
!Improper action and opening can damage the device. Therefore repairs on the device may only be executed by the
manufacturer!
supply V
S
+
supply VS−
supply T+
supply T−
supply T−
V
S
only
Pt 100
p
I
