DESCRIPTION
The PGL Low Pressure Calibration Pump is designed to manually generate up to
400 mbar (6 psi) for quick and accurate calibration of pressure gauges, transducers
and other pressure measurement instruments.
Standard Accessories
The standard accessories are as follows:
Pressure connectors:
oG 1/8" male with 60° internal cone to G1/8’’
including an o-ring (10.1 mm x 1.6 mm NBR 70).
Pre-installed in PGL.
oG 6/4" nipple to G 1/8’’
including an o-ring (10.1 mm x 1.6 mm NBR 70).
Delivered as a replacement for the pre-installed connector
A set of seals (o-rings), type: 10.1 mm x 1.6 mm NBR 70
(Nitrile Butadiene Rubber, Shore A70, black)
Guarantee leaflet
This Instruction Manual
Optional Accessories
The optional accessories are as follows:
ITEM
ORDER CODE
Carrying case
8003310
Service Seal kit
8003085
Bag of additional connectors:
oG 1/8" male with 60° internal cone to G1/8’’
incl. an o-ring (10.1 mm x 1.6 mm NBR 70).
oG 6/4" nipple to G 1/8’’
incl. an o-ring (10.1 mm x 1.6 mm NBR 70).
8003090
Tube of grease
0005180

2

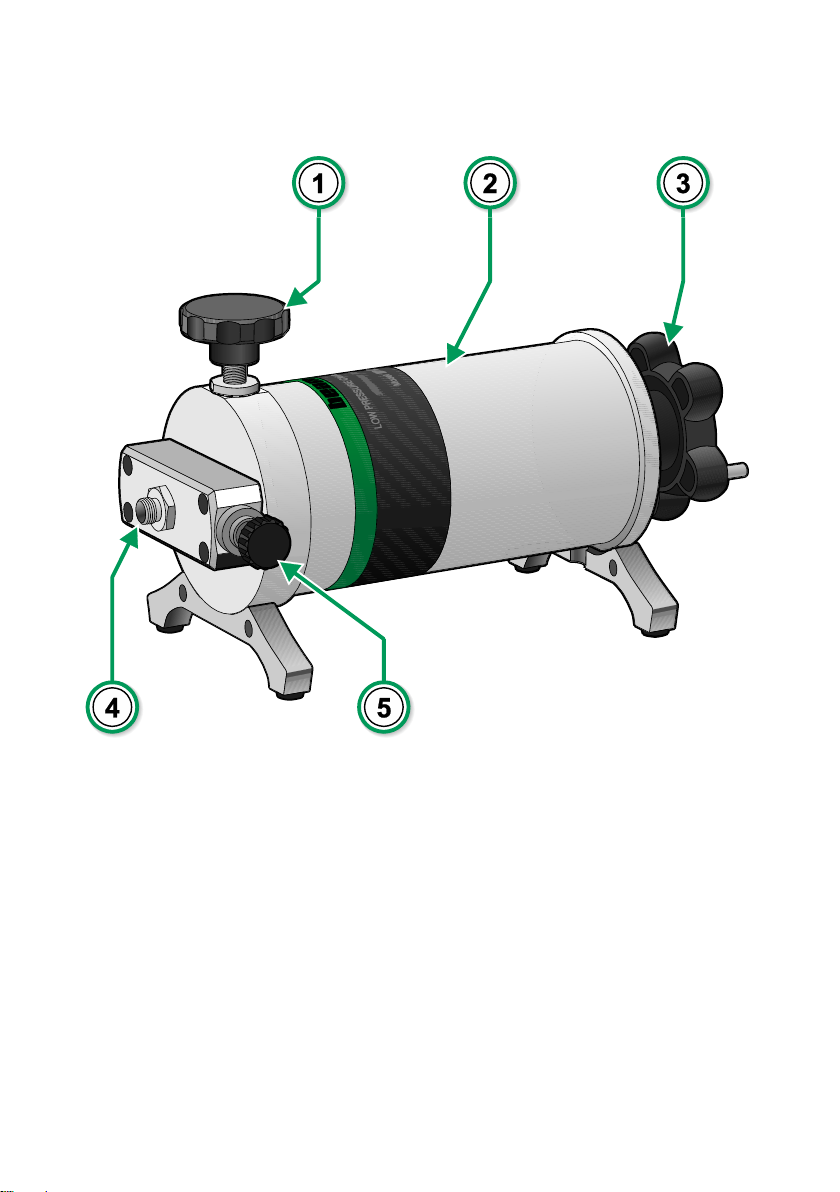

Connections and Parts

Fine Adjust handwheel (clockwise to increase pressure).

Cylinder

Coarse Adjust handwheel (clockwise to increase pressure).

Pressure connector. Default: G 1/8" male with 60° internal cone.

Release valve (clockwise to close/ counterclockwise to open).

3
Connection Diagram
Atmosphere
Fine Adjust
Coarse Adjust
Pressure con-
nector
Release Valve
Calibrator
(reference)
Instrument to be calibrated (DUT)
OPERATION
Positive Pressure Calibration
1. Open Release valve .
Rotate the the Fine Adjust handwheel to mid position.
Rotate the Coarse Adjust handwheel counterclockwise to maximum
2. Connect the calibrator (pressure module, reference) and the instrument to
be calibrated (Device Under Test, DUT) to Pressure connector using a
Beamex Pressure Measurement Hose or similar.
3. Close Release valve and check that the measurement system is not
leaking. See Leak Tests on page 7.
4. Increase the pressure close to the next calibration point by rotating the
Coarse Adjust handwheel clockwise.
5. Advance to calibration point by rotating the Fine Adjust handwheel .
6. Continue to next calibration point by repeating stages 4 and 5 until you reach
the calibration point with the highest pressure.
7. Decrease the pressure close to the next calibration point by rotating the
Coarse Adjust handwheel counterclockwise.
8. Advance to calibration point by rotating the Fine Adjust handwheel .
9. Continue to next calibration point by repeating stages 7 and 8 until all cali-
bration points are done.
10. Start another calibration run from stage 4 onwards or end calibration by
opening Release valve .

4
Negative Pressure (Vacuum) Calibration
11. Open Release valve .
Rotate the the Fine Adjust handwheel to mid position.
Rotate the Coarse Adjust handwheel clockwise to maximum
12. Connect the calibrator (pressure module, reference) and the instrument to
be calibrated (Device Under Test, DUT) to Pressure connector using a
Beamex Pressure Measurement Hose or similar.
13. Close Release valve and check that the measurement system is not
leaking. See Leak Tests on page 7.
14. Decrease the pressure close to the next calibration point by rotating the
Coarse Adjust handwheel counterclockwise.
15. Advance to calibration point by rotating the Fine Adjust handwheel .
16. Continue to next calibration point by repeating stages 14 and 15 until you
reach the calibration point with the deppest vacuum.
17. Increase the pressure close to the next calibration point by rotating the
Coarse Adjust handwheel clockwise.
18. Advance to calibration point by rotating the Fine Adjust handwheel .
19. Continue to next calibration point by repeating stages 17 and 18 until all
calibration points are done.
20. Start another calibration run from stage 14 onwards or end calibration by
opening Release valve .

5
Keep in Mind
The operating principle of the PGL pump is based on an adjustable volume. When
changing the volume in a closed pressure system, it causes the pressure to change.
The PGL has certain range in the volume adjustment and the effect of that to the
pressure change in the system depends directly on the total volume of the system:
For a system with very large volume, the PLG can only make small pressure
adjustment, and you may not reach the max pressure specified for PGL.
For a system with very small volume the PGL can adjust the pressure sig-
nificantly more, even over the max safety pressure. Please take this into
account when using PGL and don’t exceed the safety pressure 4bar / 60psi
in any circumstances.
Immediately after a pressure change, the pressure may change slightly due to the
stretching/shrinking of the pressure measurement hose. Thermodynamic effects may
also cause pressure variation. In that case, adjust the pressure back to required value
using the Fine Adjust handwheel.
Do not exceed the max. operating pressure of the pump and the hose. Also observe
the pressure limit set by environmental conditions.
Ensure that there always is a reliable pressure indicator connected to the pump when
the pump is used.
If there is a strong counterforce while operating the pump, but no pressure change is
indicated, stop using the pump and locate the fault. Always keep a reliable indicator
connected to the measurement system.
If the pump fails to indicate a pressure change, check to assure that the connections
between the pump, the hose end and the attached instrument(s) are tight and retry
pumping. Also check to assure that possible unused connectors are properly
plugged.
If a pressure increase still cannot be obtained, it’s possible that one or more of the
seals in the Pump is leaking and needs to be replaced.
Do not use the pump if the functionality of the pump is not normal. Locate the
fault before you continue using the pump.
A full list of warnings is at the end of this manual.

6
TROUBLESHOOTING/MAINTENANCE
Hard to Adjust Using Coarse Adjust Valve 
CAUSES
SOLUTIONS
Release valve is not closed.
Close the release valve .
The Coarse Adjust Valve's o-ring is
broken or loose.
Replace the o-ring.
Hard to Fine Adjust Using Fine Adjust Valve 
CAUSES
SOLUTIONS
The connections are not tightened.
Tighten all connections.
The Fine Adjust Valve's 0-ring is
aged or frayed.
Replace the o-ring.
The thread surface is not smooth.
Apply Teflon®tape.
The connector types do not match.
Use proper adapter.
Hard to Turn the Valves
CAUSES
SOLUTIONS
Release valve closed too tight after
the previous calibration.
Do not close release valve too
tightly.
The new pump does not run smooth.
The new pump needs time to run in.
Lack of lubrication in threads.
Lubricate the thread.
Seal Replacement
Depending on the frequency of use, the seals will eventually need replacing. The
replacement seals are part of an optional Service kit and the kit includes instructions
for replacing/fitting the seals.

7
Leak Tests
If you want to test the pump and the connected measurement system, do as follows:
If you do not already have a calibration measurement system connected to the pump,
connect an accurate enough pressure measurement instrument, e.g. a Beamex
400mC pressure module to the pump.
You'll also need a clock to measure time.
Leak Test for Positive Pressure
Increase pressure using constant change rate up to pump's full scale positive pres-
sure (400 mbar / 6 psi). Start your clock.
After five minutes, record the pressure indication, p5.
After ten minutes, record the pressure indication, p10.
Calculate the leak, Lp, using this equation:
5
105
pppp
L 
If Lpis less than 0.01 (1 %), the system is leak free.
Leak Test for Negative Pressure (Vacuum)
Decrease pressure using constant change rate down to pump's full scale negative
pressure (-400 mbar / 40 kPa / -6.0 psi). Start your clock.
After five minutes, record the pressure indication, pv5.
After ten minutes, record the pressure indication, pv10.
Calculate the leak, Lv, using this equation: Lv= pv5 - pv10 [kPa].
If Lvis less than 1 kPa (approx. 0.14 psi), the system is leak free.

8
SPECIFICATIONS
Weight 1.38 kg 3.04 lb
Dimensions Height 133 mm approx. 5.2"
Width 251 mm approx. 9.9"
Depth 117 mm approx. 4.6"
Pressure range -400 mbar to +400 mbar / -6 psi to +6 psi
Safety Pressure < 4 bar / < 60 psi
Pressure media Clean air
Temperature 0 ... 50 °C
Humidity < 95 %RH
Adjusting sensitivity 1 Pa / 0.01 mbar / 0.004 inH2O / 15×10-5 psi
Output connectors
G 1/8" male with 60° internal cone, for Beamex
pressure measurement hose, pre-installed.
G 6/4" nipple delivered as an optional connector to replace the one meant
for Beamex pressure measurement hose

WARNINGS
Read the instruction manual carefullyprior to setting up and using the pressure
pump.
Only personnel with good experience and knowledge of pressure media, pres-
sure instruments and connections are allowed towork with the pressure pump.
Incorrect use may result in damage to the pump, the instrument connected to
the pump and/or personal injury.
Use eye shields. The use of a relief valve for over-pressure protection is rec-
ommended. If a relief valve is used, remember to occasionally check its func-
tionality.
Do not connect the pump to an external pressure source.
Vent external systems before connecting to the pump.
Ensure that all connectionsare made correctlyand that the hoses and connect-
ors are free of impurities and undamaged. Do not use faulty hoses or connect-
ors.
Use only measuring hoses provided by Beamex or other reliable suppliers. Ob-
serve the effect of the operational conditions to the maximum pressure allowed
in the hose.
The environmental conditions (ambient pressure and temperature) may restrict
the allowable maximum pressure to a lower level than the pump and the hose
enable.
Always depressurize PGLwhen it is left on its own.
Avoid possible damage when suddenly apply pressure to low pressure and
small chamber gauges.
Do not exceed the safety pressure limit (4 bar / < 60 psi).
Compressed air may cause problem in explosive or corruptive environment.
Do not over tighten connectors to avoid any damage.
Store the pump in the dry and non-corruptive environment.
If the pump is accidentally dropped, it may be damaged. Do not use the pump
before it is inspected at Beamex’s service.
Do not use PGLin any other way than as described in this manual.
Any safety problems or damages caused by incorrect operation, are beyond
Beamex's responsibility.

BEAMEX OY AB
Ristisuonraitti 10
FIN-68600 PIETARSAARI
FINLAND
Phone +358 - 10 5505000
Fax +358 - 10 5505404
E-mail [e-mail]
[email protected]m
Internet http://www.beamex.com
Beamex Inc
2152 NW Parkway
Suite A
Marietta, GA 30067
U.S.A.
Phone [phone],
[phone]
Fax [phone]
E-mail [e-mail]
Beamex Limited
Newtown Grange Farm Business Park
Desford Road
NEWTOWN UNTHANK
Leicestershire LE9 9FL
United Kingdom
Phone [phone]
Fax [phone]
E-mail [e-mail]
Representative:
