BEAMEX PGL User manual

PGL
Calibration Pump (±400 mbar)
Dear User,
We have made every effort to ensure the accuracy of the contents of this User
Manual. Should any errors be detected, we would greatly appreciate to receive
suggestions to improve the quality of the contents of this User Manual.
For more detailed technical data about the Beamex PGL Calibration Pump
(±400 mbar), please contact the manufacturer.
© Beamex 2023
Beamex Oy Ab
Ristisuonraitti 10
FIN-68600 Pietarsaari
Finland
Tel:
E-mail:
Website:
[phone]
[email protected]
[email protected]
https://www.beamex.com
8804300 / PGLuEng / Version 1.0

Table of Contents
Prologue...........................................................................................3
Typographical Conventions........................................................................3
Unpacking and Inspection..........................................................................4
Feedback....................................................................................................5
Safety Precautions and Warnings.................................................6
Specifications.................................................................................. 7
About the PGL.................................................................................9
Operating Instructions..................................................................11
Positive Pressure Calibration...................................................................11
Negative Pressure (Vacuum) Calibration.................................................12
Important to Consider...............................................................................13
Troubleshooting............................................................................ 14
Maintenance...................................................................................15
Cleaning Instructions................................................................................15
Replacing the Seals.................................................................................15
Service Related to Coarse Adjust............................................................16

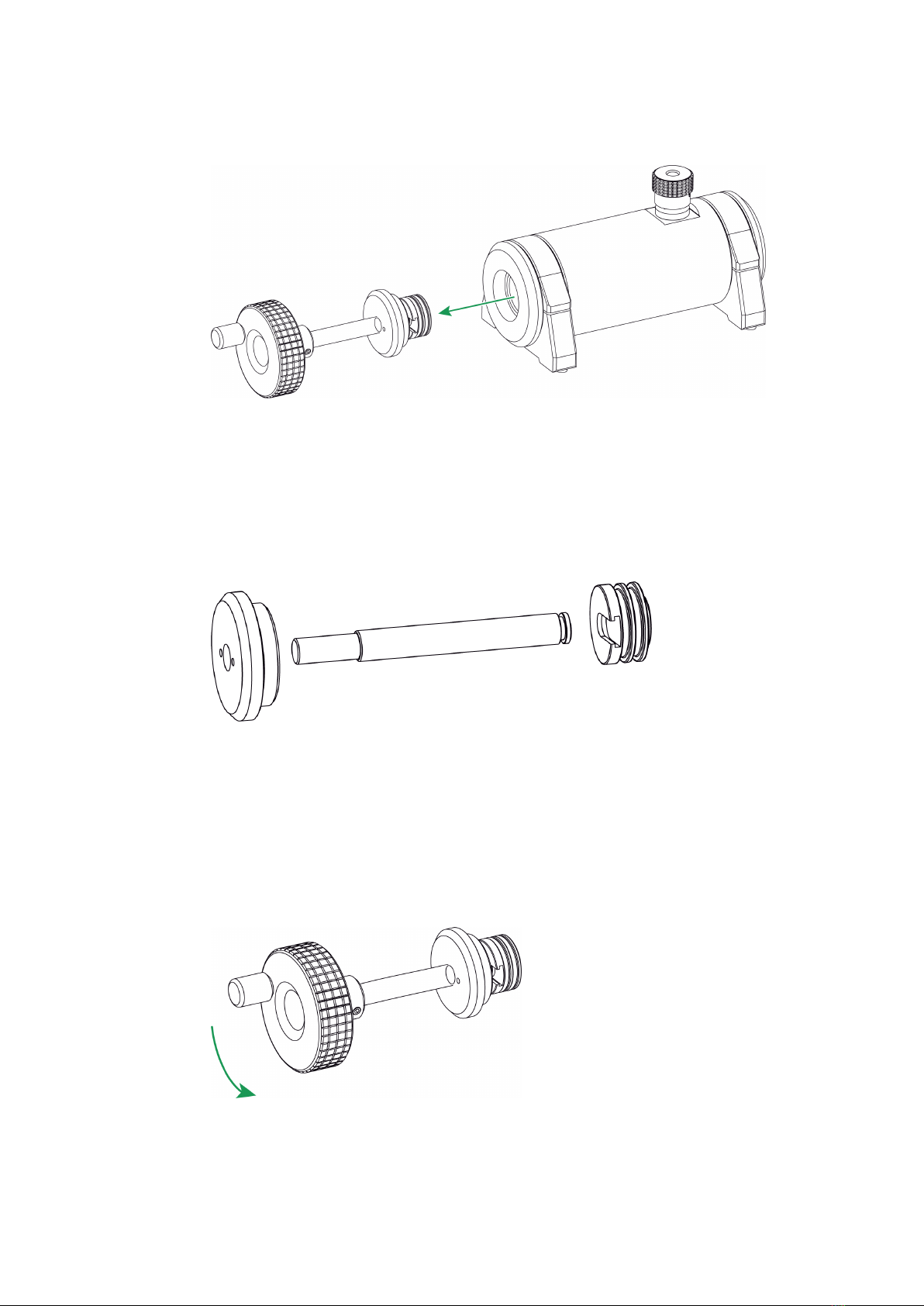

Replacing the Piston, Piston Seals or other Parts.......................... 16
Replacing the Coarse Adjust Handwheel........................................18
Service Related to Fine Adjust................................................................ 19
Replacing the Support Leg...................................................................... 22

Prologue - 3
Prologue
Thank you for buying the Beamex PGL Calibration Pump.
The Beamex PGL Calibration Pump can be used to generate accurate and
stable reference pressure for low pressure calibrations on range ±400 mbar /
±160 iwc. The innovative design and material choices minimize the impact of
environmental temperature changes during calibration. The pressure can be
adjusted with screw-operated coarse and fine adjustment. Use it together with
the Beamex high-quality 40 bar pressure hoses to ensure accuracy.
Typographical Conventions
The following typographical conventions apply to the PGL User Manual:
Bold text is, among others, used in the following situations:
• References to User Manual topics and parts
•PGL keywords, i.e. terms shown in the user interface
Note: This is a note. Notes typically inform you of something useful
concerning the current topic.
Caution: This is a caution. Whenever you see a caution, read it
carefully and take it seriously. By not observing cautions, you may
damage the pump.
Warning: This is a warning. Whenever you see a warning, read it
carefully and take it seriously. By not observing warnings, you may -at
worst- damage the pump and/or get personal injury.

Prologue - 4
Unpacking and Inspection
At the factory, each new PGL Calibration Pump passes a careful inspection.
The receiver should, however, inspect the unit for any damage that may have
occurred during transportation. If there are signs of obvious mechanical damage
and/or the package contents are incomplete, contact the purchasing sales office
as soon as possible.
The PGL is available in two different configurations with different delivery
contents:
PGL Calibration Pump (±400 mbar / ±160 iwc), pump only (9010090)
•PGL Calibration Pump
• User Manual
• 4 mm Hex Wrench
• Opening Tool for maintenance
• Warranty Terms
PGL Calibration Pump (±400 mbar / ±160 iwc), complete kit (9010095)
•PGL Calibration Pump
• 40 bar / 600 psi Pressure T-hose
• Hard Case
• User Manual
• 4 mm Hex Wrench
• Opening Tool for maintenance
• Warranty Terms
Options, Accessories and Spare Parts
• Hard Case for PGL (8003311)
•PGL Seal service kit (8003710)
•PGL Coarse Adjust Handwheel (8003715)
•PGL Coarse Adjust service kit (8003720)
•PGL Fine Adjust service kit (8003725)
•PGL Support Leg (8003730)
Up-to-date spare parts are available at https://shop.beamex.com/

Prologue - 5
Feedback
We constantly want to improve our products and services. Therefore we’d like
to know your opinion regarding the product you use. Please spend a moment of
your valuable time to give us feedback about the product.
Beamex Oy Ab
Quality Feedback
Ristisuonraitti 10
FIN-68600 Pietarsaari
Address:
FINLAND
E-mail: [email protected]
Website: https://www.beamex.com

Safety Precautions and Warnings - 6
Safety Precautions and Warnings
Warning: Read the User Manual carefully prior to setting up and
using the pressure pump. Do not use the PGL in any other way than
as described in this User Manual. Do not connect the pump to an
external pressure source.
Warning: Only personnel with good experience and knowledge of
pressure media, pressure instruments and connections are allowed to
work with the pressure pump. Incorrect use may cause damage to the
pump, the instrument connected to the pump and/or personal injury.
Warning: Use eye shields. The use of a relief valve for overpressure
protection is recommended. If a relief valve is used, remember to
occasionally check its functionality.
Warning: Vent external systems before connecting to the pump.
Ensure that all connections are made correctly and that the hoses and
connectors are undamaged and free of impurities. Do not use faulty
hoses or connectors. Use only measuring hoses provided by Beamex
or other reliable suppliers. Observe the effect of the operational
conditions to the maximum pressure allowed in the hose.
Warning: Always depressurize the PGL when it is left on its own.
Avoid possible damage when suddenly applying pressure to low
pressure and small chamber gauges. Do not exceed the safety
pressure limit (4 bar / < 60 psi). The environmental conditions
(ambient pressure and temperature) may restrict the allowed
maximum pressure to a lower level than the pump and the hose
enable.
Warning: Compressed air may cause problem in explosive or
corruptive environments. In order to avoid any damage, do not
overtighten the connectors.
Warning: Store the pump in a dry and non-corruptive environment. If
the pump is accidentally dropped, it may be damaged. Do not use the
pump before it is inspected at Beamex’s service.
Warning: Any safety problems or damages caused by incorrect
operation, are beyond Beamex's responsibility.

Specifications - 7
Specifications
Specification PGL
Pressure Range1-400 to +400 mbar / -160 to 160 iwc
Adjusting Sensitivity < ±0.05 mbar / 0.02 iwc2
Pressure change after
1 min waiting time and
readjustment3
< 0.3 mbar / min / 0.12 iwc / min
Wetted Parts Stainless steel, nitrile rubber, polyacetal
Dimensions See technical drawing: Figure 1: Technical
Drawing
Weight ~1.8 kg / 4.0 lbs
Pressure Port G1/8" (ISO228/1) female port with pressure
fitting (Bx G1/8" male) for Beamex 40 bar
pressure hose
Pressure Media Air
Storage Temperature -20 to 60°C / -4 to 140°F
Operating Temperature 0 to 50°C / 32 to 122°F
Humidity < 95%RH
1Depending on the volume of the test setup. With smaller volumes (max. 20 ml / 0.68
fl.oz) you can also operate in the following pressure ranges: -0.7 to 3.0 bar / -281 to
1204.4 iwc.
2Into a volume of max. 20 ml / 0.68 fl.oz.
3In stable conditions and a volume of max. 20 ml / 0.68 fl.oz.

Specifications - 8
Note: Please notice that the specifications are only valid with the
Beamex 40 bar pressure T-hose.
Note: If the device has been stored in a different environment, it
should be stabilized to the new environment before use.

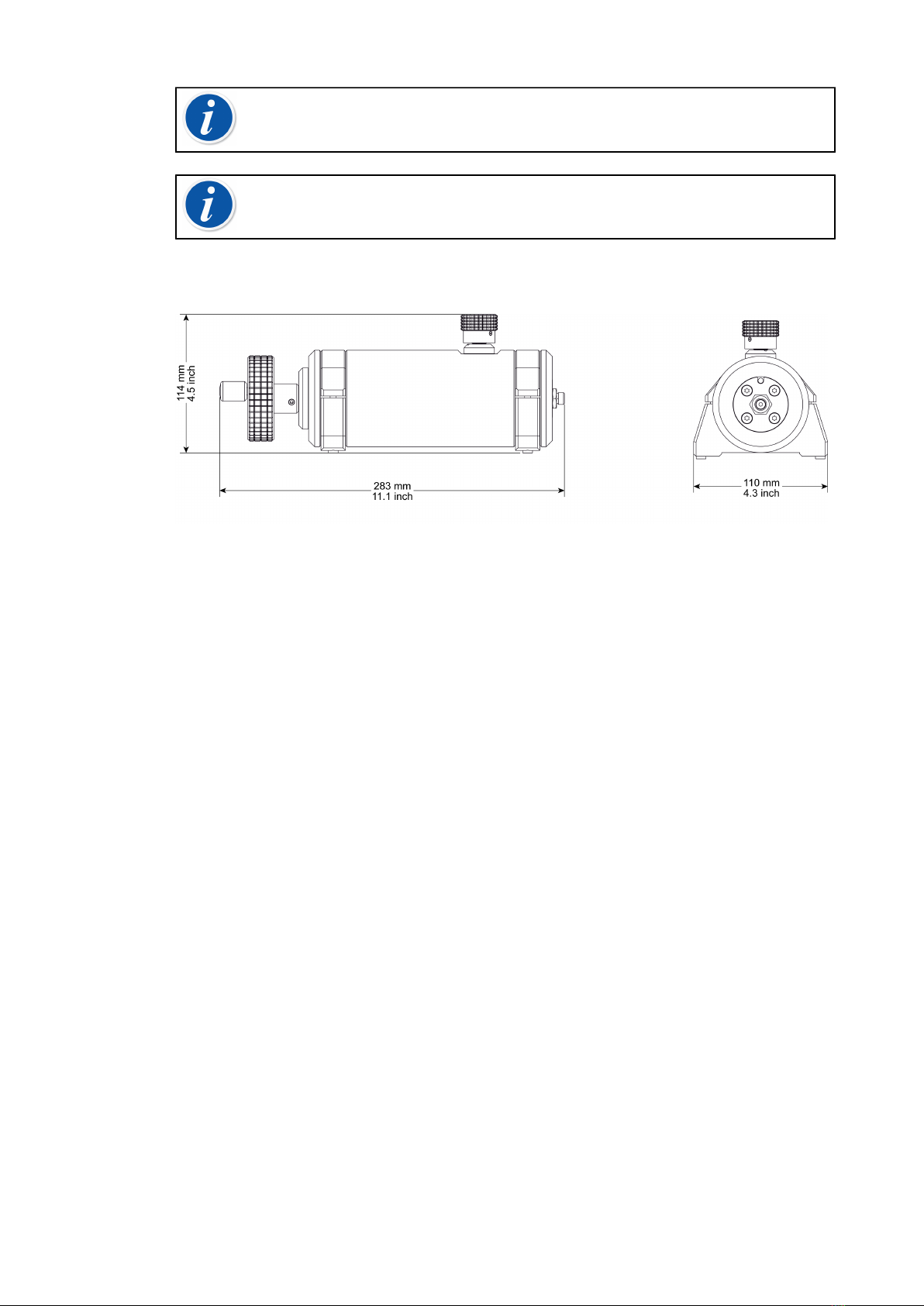

Figure 1: Technical Drawing

About the PGL - 9
About the PGL

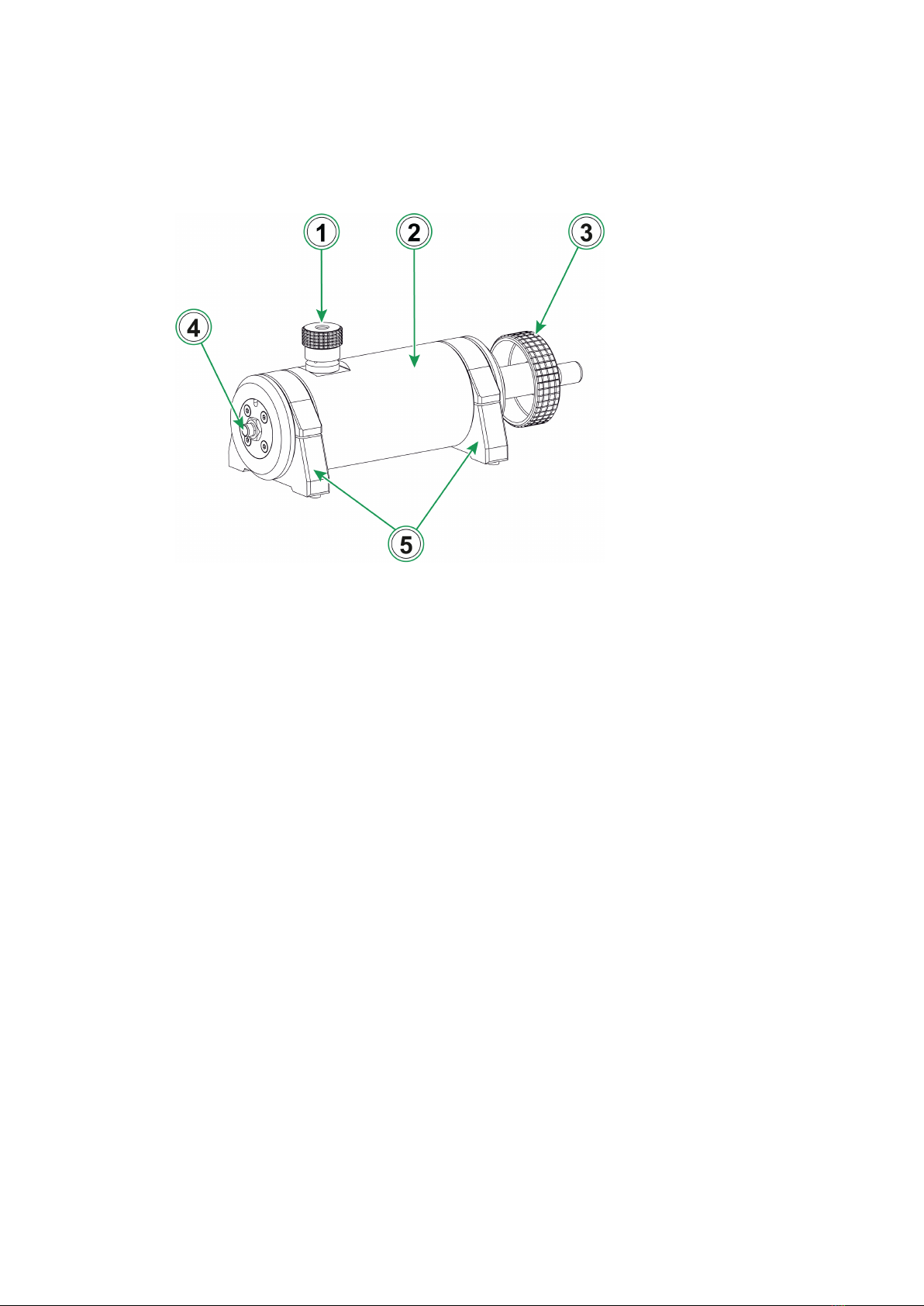

Figure 2: PGL Parts
1. Combined Fine Adjust Knob and Release Valve (clockwise to increase and
counterclockwise to decrease pressure and vent)
2. Cylinder
3. Coarse Adjust Handwheel (clockwise to increase pressure)
4. Pressure output fitting. Default: Bx G 1/8" male for the Beamex 40 bar
pressure hose
5. Support legs. (By loosening the screws of both legs, it is possible to
readjust the cylinder so that the Fine Adjust Knob is located on the left
or right side of the pump, whichever feels more convenient in terms of
usability)

About the PGL - 10

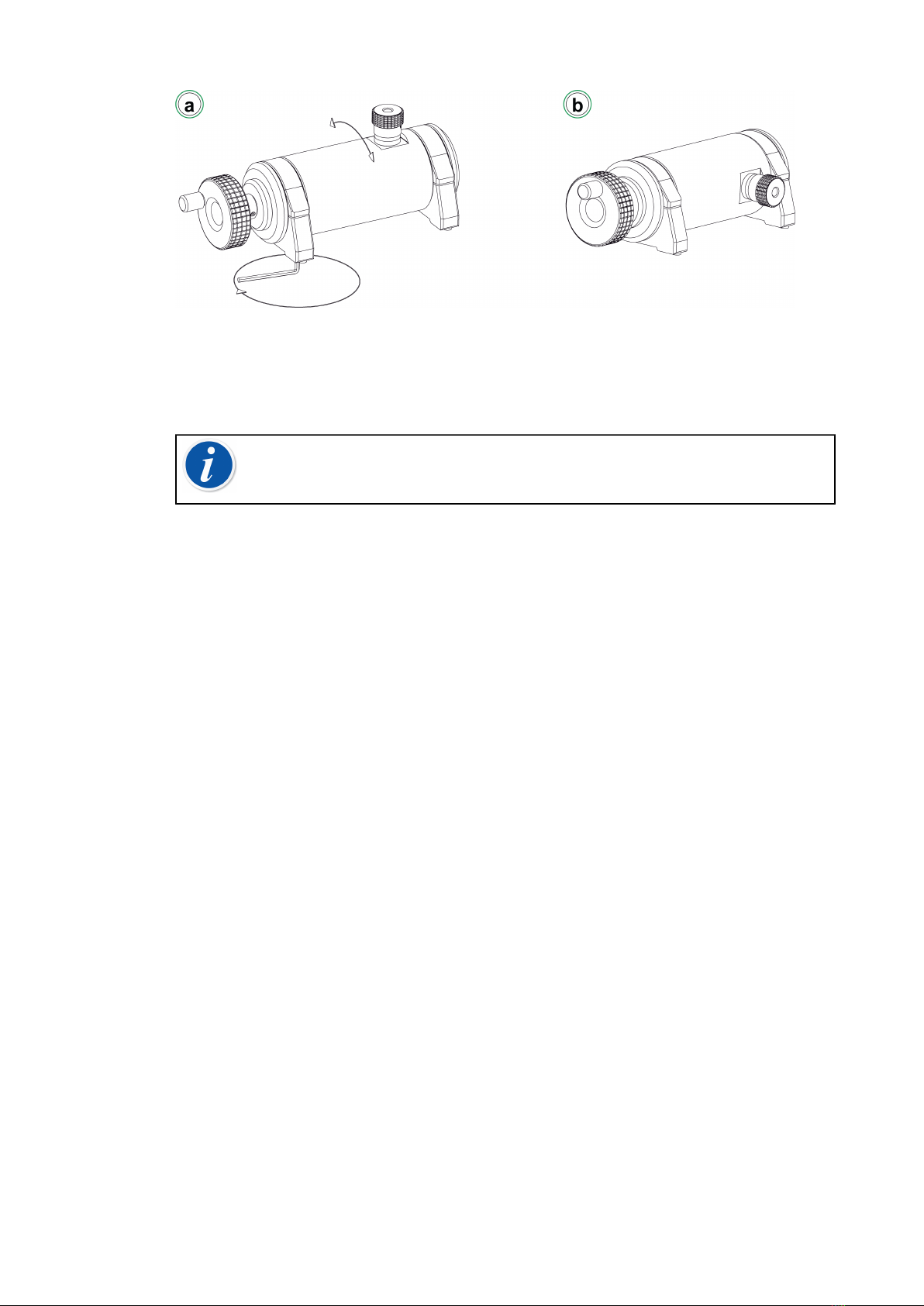

Figure 3: Readjust the Cylinder to Achieve a More Ergonomic Way of
Working
Note: Vent the pump by turning the Fine Adjust Knob
counterclockwise until the threads become visible and then rotate 1-3
rounds more.

Operating Instructions - 11
Operating Instructions
Positive Pressure Calibration
1. Open the Release Valve by turning the Fine Adjust Knob
counterclockwise to the maximum or until 2-3 threads are visible. Rotate
the Coarse Adjust Handwheel counterclockwise to the maximum.
2. Close the Release Valve by turning the Fine Adjust Knob clockwise to the
middle position.
3. Connect the calibrator (pressure measurement module) and the instrument
to be calibrated (device to be tested) to the pressure output fitting using
the Beamex 40 bar pressure T-hose or similar. If needed, compensate the
small pressure offset by turning the Fine Adjust Knob counterclockwise
until the output pressure is 0 barg / 0 iwcg.
4. Increase the pressure close to the next calibration point by rotating the
Coarse Adjust Handwheel clockwise.
5. Advance to the calibration point by turning the Fine Adjust Knob. Wait for
a while (about 1 minute) and fine-tune the output pressure back to the set
point.
6. Continue to the next calibration point by repeating steps 4 and 5 in this
instruction until you reach the calibration point with the highest pressure.
7. Decrease the pressure close to the next calibration point by rotating the
Coarse Adjust Handwheel counterclockwise. Alternatively, open the
release valve if it was your final set point.
8. Advance to the calibration point by turning the Fine Adjust Knob. Wait for
a while (about 1 minute) and fine-tune the output pressure back to the set
point.
9. Continue to the next calibration point by repeating steps 7 and 8 in this
instruction until all calibration points are done.
10. Begin another calibration run by starting from step 4 in this instruction or
end calibration by opening the Release Valve.

Operating Instructions - 12
Negative Pressure (Vacuum) Calibration
1. Open the Release Valve. Rotate the Coarse Adjust Handwheel clockwise
to the maximum.
2. Close the Release Valve and set the Fine Adjust Knob to the middle
position.
3. Connect the calibrator (pressure module, reference) and the instrument
to be calibrated (device to be tested) to the pressure output fitting using
the Beamex low pressure hose (max 40 bar) or similar. If needed,
compensate the small pressure offset by turning the Fine Adjust Knob
counterclockwise until the output pressure is 0 barg / 0 iwcg.
4. Decrease the pressure close to the next calibration point by rotating the
Coarse Adjust Handwheel counterclockwise.
5. Advance to the calibration point by turning the Fine Adjust Knob. Wait for
a while (about 1 minute) and fine-tune the output pressure back to the set
point.
6. Continue to the next calibration point by repeating steps 4 and 5 in this
instruction until you reach the calibration point with the deepest vacuum.
7. Increase the pressure close to the next calibration point by rotating the
Coarse Adjust Handwheel clockwise. Alternatively, open the release valve
if it was your final set point.
8. Advance to the calibration point by turning the Fine Adjust Knob. Wait for
a while (about 1 minute) and fine-tune the output pressure back to the set
point.
9. Continue to the next calibration point by repeating steps 7 and 8 in this
instruction until all calibration points are done.
10. Begin another calibration run by starting from step 4 in this instruction or
end calibration by opening the Release Valve.
Note: If the small pressure increase that occurs when the pressure
hose is connected needs to be compensated, just turn the Fine Adjust
Knob slightly counterclockwise until the pressure reading is 0 mbarg /
0 iwcg.

Operating Instructions - 13
Important to Consider
The operating principle of the PGL pump is based on an adjustable volume.
When changing the volume in a closed pressure system, it causes the pressure
to change. The PGL has a certain range in the volume adjustment and the
effect of that on the pressure change in the system depends directly on the total
volume of the system:
• For a system with a very large volume, the PGL can only make small
pressure adjustments and you may not reach the maximum pressure
specified for the PGL.
• For a system with a very small volume, the PGL can adjust the pressure
significantly more, even over the maximum safety pressure. Please take this
into account when using the PGL and don’t exceed the safety pressure 4
bar / 60 psi in any circumstances.
Immediately after a pressure change, the pressure may change slightly due to
the thermodynamic effects. In that case, adjust the pressure back to required
value using the Fine Adjust Knob.
Ensure that there is always a reliable pressure indicator connected to the pump
when the pump is being used.
If there is a strong counterforce while operating the pump, but no pressure
change is indicated, stop using the pump and locate the error. Always keep a
reliable indicator connected to the measurement system.
If the pump fails to indicate a pressure change, make sure that the connections
between the pump, the hose end and the attached instrument(s) are tight and
then retry pumping. Also check that possible unused connectors are properly
plugged.
If a pressure increase still cannot be obtained, it’s possible that one or more of
the seals in the pump is leaking and needs to be replaced.
Avoid making calibrations in direct sunlight as it may heat up the setup and
cause pressure fluctuation and unstable pressure readings.
Do not use the pump if the functionality of the pump is not normal. Locate
the error before you continue using the pump.
A full list of warnings is included in this User Manual.

Troubleshooting - 14
Troubleshooting
The System is not Holding the Set Pressure.
Indication Solution
The calibrator or the external pressure
measuring device indicates that there
is a leak in the system.
Check that all pressure connections
are tight and that they are not leaking.
Difficulties Operating the Coarse Adjust
Indication Solution
The Release Valve is not closed. Close the Release Valve.
The Coarse Adjust piston's seals are
broken.
Replace the seals.
Difficulties Operating the Fine Adjust
Indication Solution
The connections are not tightened. Tighten all connections.
The fitting types do not match. Use the correct fitting.

Maintenance - 15
Maintenance
Cleaning Instructions
If any parts of the PGL require cleaning, use a cloth damped with an alcohol-
based solvent. Alternatively, use a low concentration of hydrogen peroxide or a
mild solution of soapy water. Never use strong detergents.
Replacing the Seals
PGL Seal service kit (8003710)
Seals are located in the Coarse (1) and Fine Adjust pistons (2), under the
output fitting (4) and under the end flange of the output fitting (3).
Figure 4: Seals
How to replace the seals of the Coarse Adjust piston is described in chapter
Service Related to Coarse Adjust.
How to replace the seals of the Fine Adjust piston is described in chapter
Service Related to Fine Adjust.
To replace the seal under the output fitting, unscrew the fitting with a 16 mm
wrench and replace the old seal with a new one. Reassemble in reverse order.
To replace the seal under the end flange of the output fitting, unscrew
the screws with a TX20 wrench and replace the old seal with a new one.
Reassemble in reverse order.

Maintenance - 16
Note: When reassembling, please make sure the venting hole on the
end flange is pointing upwards.
Service Related to Coarse Adjust
Replacing the Piston, Piston Seals or other Parts
PGL Seal service kit (8003710)
PGL Coarse Adjust service kit (8003720)
1. Rotate the Coarse Adjust Handwheel counterclockwise to the maximum.
It is important that the piston is located as close as possible to the body end
cap of the Coarse Adjust not to damage the cylinder when removing the
subassembly from the pump.
Figure 5: Disassembly of the Coarse Adjust Handwheel
2. Take the opening tool from the service kit and install its tips into the small
holes located on the outer surface of the body end cap.
3. Rotate counterclockwise to loosen the body end cap.

Maintenance - 17
4. Rotate the body end cap outwards with your hand. When it is fully open,
gently pull the Coarse Adjust subassembly out.
Figure 6: Removal of the Coarse Adjust Subassembly
5. Replace the seals only or replace all parts with new ones included in the
service kit. Remove the handwheel and install it on the new adjustment rod.
Figure 7: Coarse Adjust Parts
6. When all parts are assembled, rotate the Coarse Adjust Handwheel
counterclockwise to the maximum until the piston is locked to the body
end cap.
Figure 8: Coarse Adjust Subassembly

Maintenance - 18
7. Install the subassembly and the body end cap in their places on the threads
at the end of the cylinder. Gently rotate the body end cap inwards with your
hand.

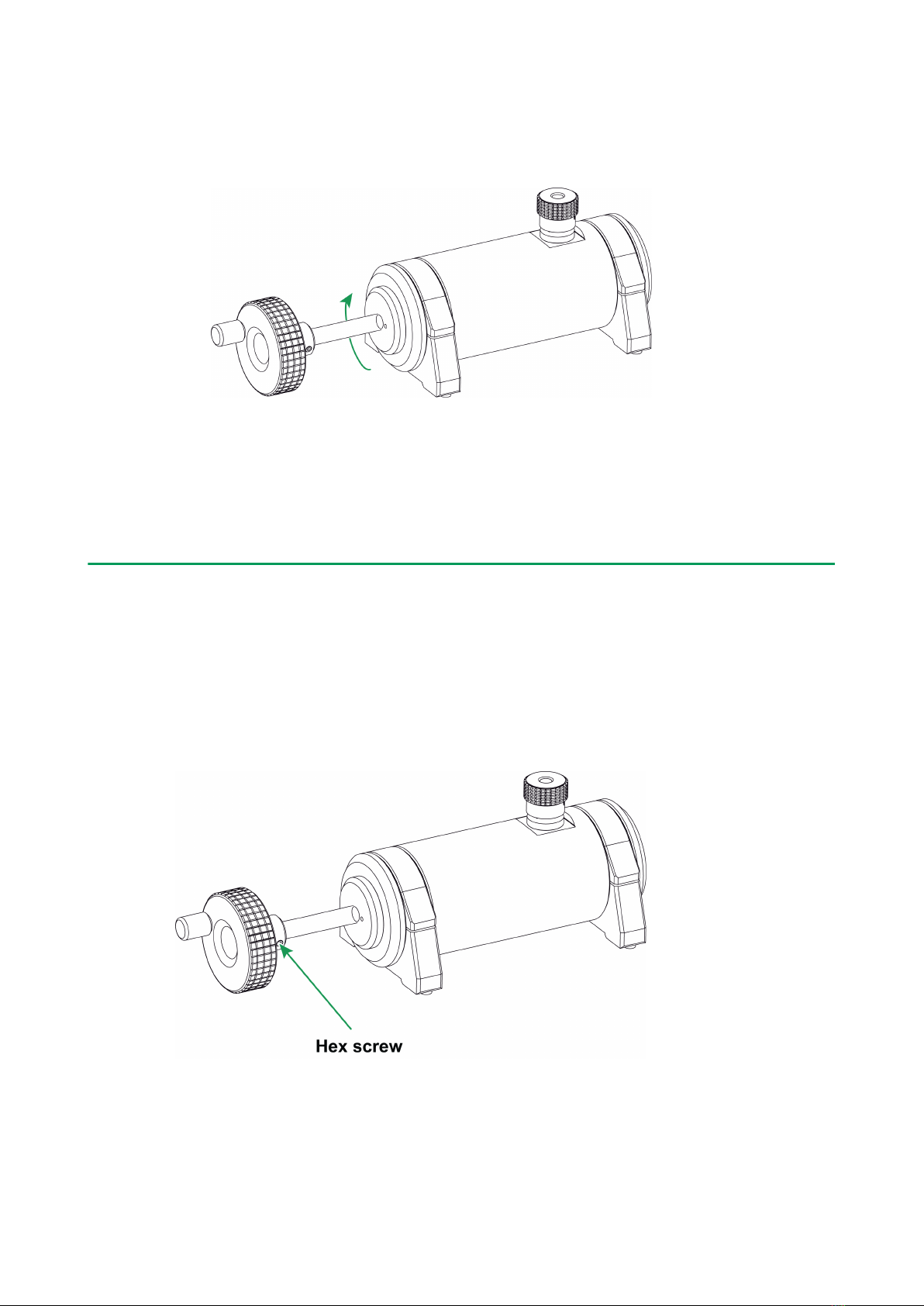

Figure 9: Reassembly of the Coarse Adjust Subassembly
8. Tighten the body end cap with the opening tool.
Replacing the Coarse Adjust Handwheel
PGL Coarse Adjust Handwheel (8003715)
1. Loosen the small hex screw located at the bottom of the handwheel.
2. Replace the old handwheel with a new one and tighten the hex screw.
Figure 10: Replacing the Coarse Adjust Handwheel

Maintenance - 19
Service Related to Fine Adjust
PGL Seal service kit (8003710)
PGL Fine Adjust service kit (8003725)
1. Rotate the Fine Adjust Knob counterclockwise to the maximum. It is
important that the piston is located as close as possible to the body end
cap of the Fine Adjust not to damage the cylinder when removing the
subassembly from the pump.

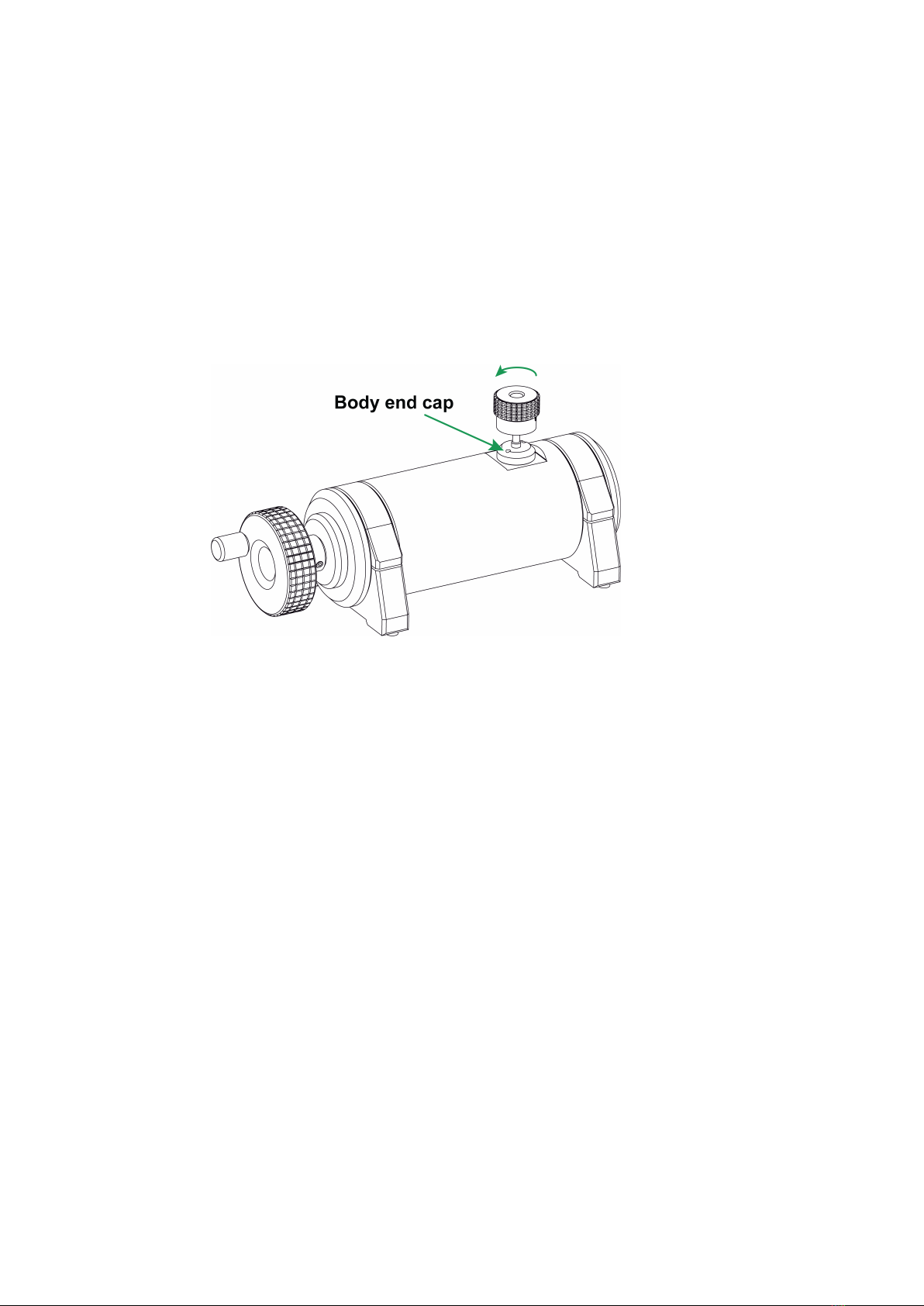

Figure 11: Disassembly of the Fine Adjust Subassembly
2. Take the opening tool from the service kit and install its tips into the small
holes located on the outer surface of the body end cap of the Fine Adjust.
3. Rotate counterclockwise to loosen the body end cap.

Maintenance - 20
4. Rotate the body end cap outwards with your hand. When it is fully open,
gently pull the Fine Adjust subassembly out.
Figure 12: Removal of the Fine Adjust Subassembly
5. Replace the seals only or replace all parts with new ones included in the
service kit.
Figure 13: The Fine Adjust Subassembly
