BEC 4700A User manual

Quick Start Guide
BEC 4700A / 4700AZ
(4G/LTE) Wireless Outdoor Router

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
1
Package Contents
✓BEC Outdoor Router x 1
✓M25 Cable Gland x 2
✓2.4G Wi-Fi Antennas x 2
✓This Quick Guide x 1
✓Outdoor LAN Cable x 1
✓5G Wi-Fi Antennas x 4
✓Gigabit PoE Injector x 1
✓Grounding Wire x 1
✓The Mounting Kit x 1
❖PLEASE READ THE QUICK START GUIDE AND FOLLOW THE
STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU
INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.
IF YOU NEED MORE INFORMATION ON THIS SOFTWARE
CONFIGURATION, PLEASE REFER TO THE USER MANUAL.
❖INDUSTRIAL SIM IS RECOMMEND! (BEC 4700AZ)

Quick Start Guide
2
Hardware Overiew (BEC 4700AZ)
PORT & LED
MEANING
1
WIFI Antenna
Connectors
(2.4GHz)
Screw the supplied 2.4GHz antennas onto the antenna connectors on both sides.
2
RESET
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
3
SIM Card Slot
Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
* Power off the BEC 4700AZ before inserting or removing the SIM card(s)
4
2.4GHz WIFI LED
Green
Wireless connection established
Blinking
Data being transmitted / received
5
5GHz WIFI LED
Green
Wireless connection established
Blinking
Data being transmitted / received
6
8
4
9
4
10
1
1
5
7
11
11
11
11
2
3
4

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
3
PORT & LED
MEANING
6
LTE LED
(Received
Signal Strength
Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green Flashing Quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange Flashing Quickly
RSSI from -99 to -81 dBm. Fair signal condition
Orange Flashing Slowly
RSSI less than -99 dBm. Poor signal condition
Orange
No signal and the 4G LTE module is in service
Off
No LTE module or LTE module fails
7
Power LED
Green
System is up and ready
Red
Boot failure
8
Internet LED
Green
IP connected; WAN connection is ready
Red
IP request failed
Off
Either in bridged mode or WAN connection is not available
9
Gb Ethernet
WAN
Use an outdoor Ethernet cable to connect to an internet device.
Note: The Ethernet WAN port is a configurable LAN/WAN port, which automatically becomes an
Ethernet WAN port when the internet interface is being configured in the GUI.
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
10
Gb Ethernet
LAN/PoE
LAN & PoE interface. Connect to the supplied 802.3at Gb PoE injector to provide
power & data
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
11
WIFI Antenna
Connectors
(5GHz)
Screw the supplied Wi-Fi antennas onto those 4 antenna connectors.

Quick Start Guide
4
Hardware Overiew (BEC 4700A)
PORT & LED
MEANING
1
WIFI Antenna
Connectors
(2.4GHz)
Screw the supplied 2.4GHz antennas onto the antenna connectors on both sides.
2
RESET
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
3
2.4GHz WIFI LED
Green
Wireless connection established
Blinking
Data being transmitted / received
4
5GHz WIFI LED
Green
Wireless connection established
Blinking
Data being transmitted / received
5
6
4
7
4
8
1
4
2
3
1
9
9
9
9

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
5
PORT & LED
MEANING
5
Power LED
Green
System is up and ready
Red
Boot failure
6
Internet LED
Green
IP connected; WAN connection is ready
Red
IP request failed
Off
Either in bridged mode or WAN connection is not available
7
Gb Ethernet
LAN
Use an outdoor Ethernet cable to connect to an Ethernet equipment.
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
8
Gb Ethernet
WAN/PoE IN
WAN & PoE interface. Connect to the supplied 802.3at Gb PoE injector to provide
power & data.
Green
Transmission speed is at Gigabit speed (1000Mbps)
Orange
Transmission speed is at 10/100Mbps
Blinking
Data being transmitted/received
9
WIFI Antenna
Connectors
(5GHz)
Screw the supplied Wi-Fi antennas onto those 4 antenna connectors.

Quick Start Guide
6
Mounting Kit Installation

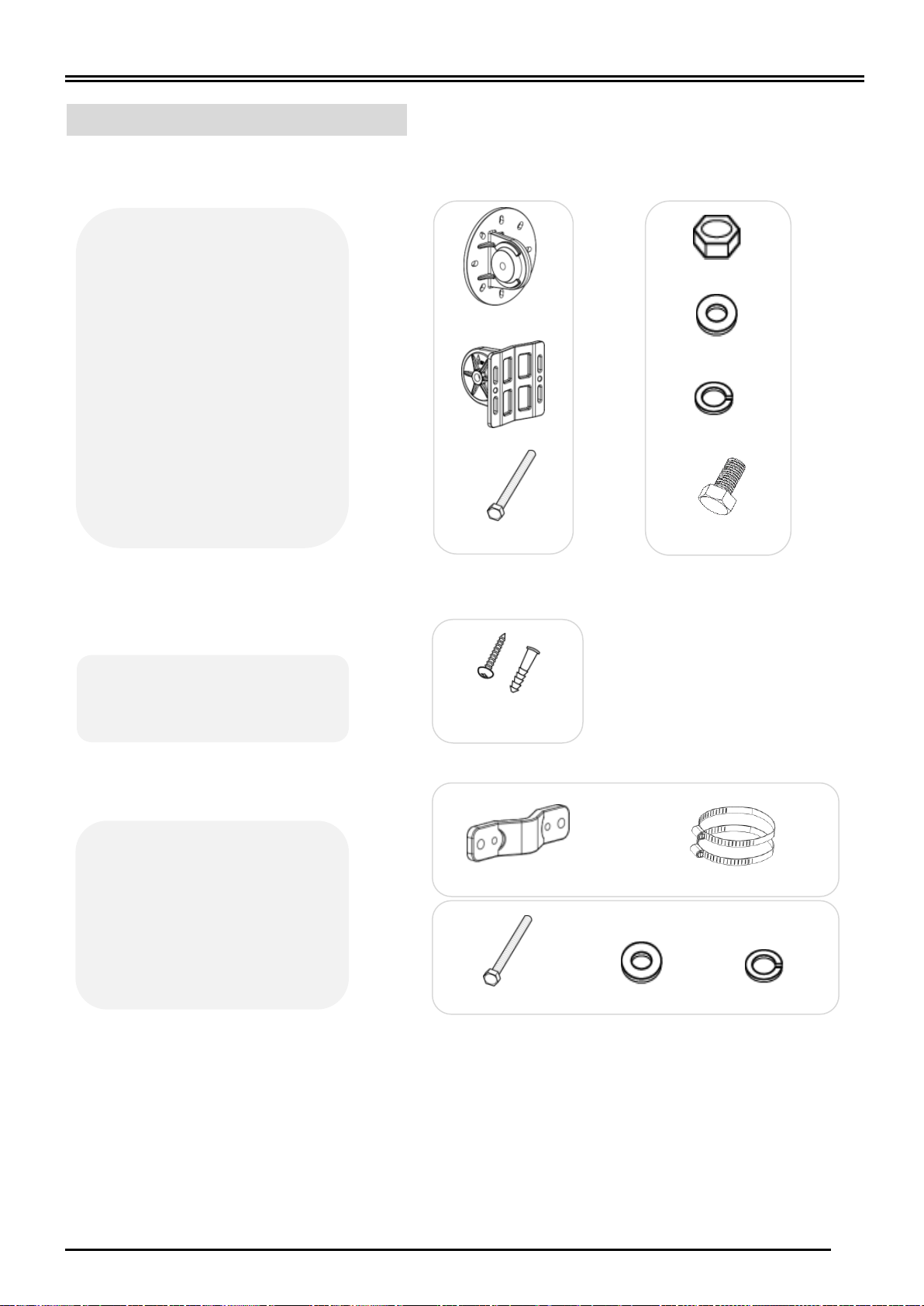

Mounting Kit includes:
1. Articulation Pole x 1
2. T-formed Bracket x 1
3. M8x40 Screw Bolt x 1
4. M8 Nut x 1
5. M8 Washer x 1
6. M6 Washer x 4
7. M8 Spring Washer x 1
8. M6 Spring Washer x 4
9. M6x16 Screw x 4
For Wall Mount Installation, you will
need:
10. Wood Screw x 4
11. Wood / Gyprock x 4
For Pole Mount Installation, you
will need:
12. W-Bar x 1
13. Stainless Hose Clamp x 2
14. M6 x 60 Screw Bolt x 2
15. M6 Washer x 2
16. Spring Washer x 2
T-form Bracket x 1
Articulation Pole x 1
M8x40 Screw Bolt x 1
Wood Screw x 4
Wood / Gyprock Plug x 4
Spring Washer M6 x 2
M6 Washer x 2
M6 x 16 Screw x 4
M8 Nut x 1
Spring Washer M8 x 1
Spring Washer M6 x 4
M8 Washer x 1
M6 Washer x 4
M6 x 60 Screw Bolt x 2
W-Bar x 1
Stainless Hose Clamp 1”~3” x 2

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
7

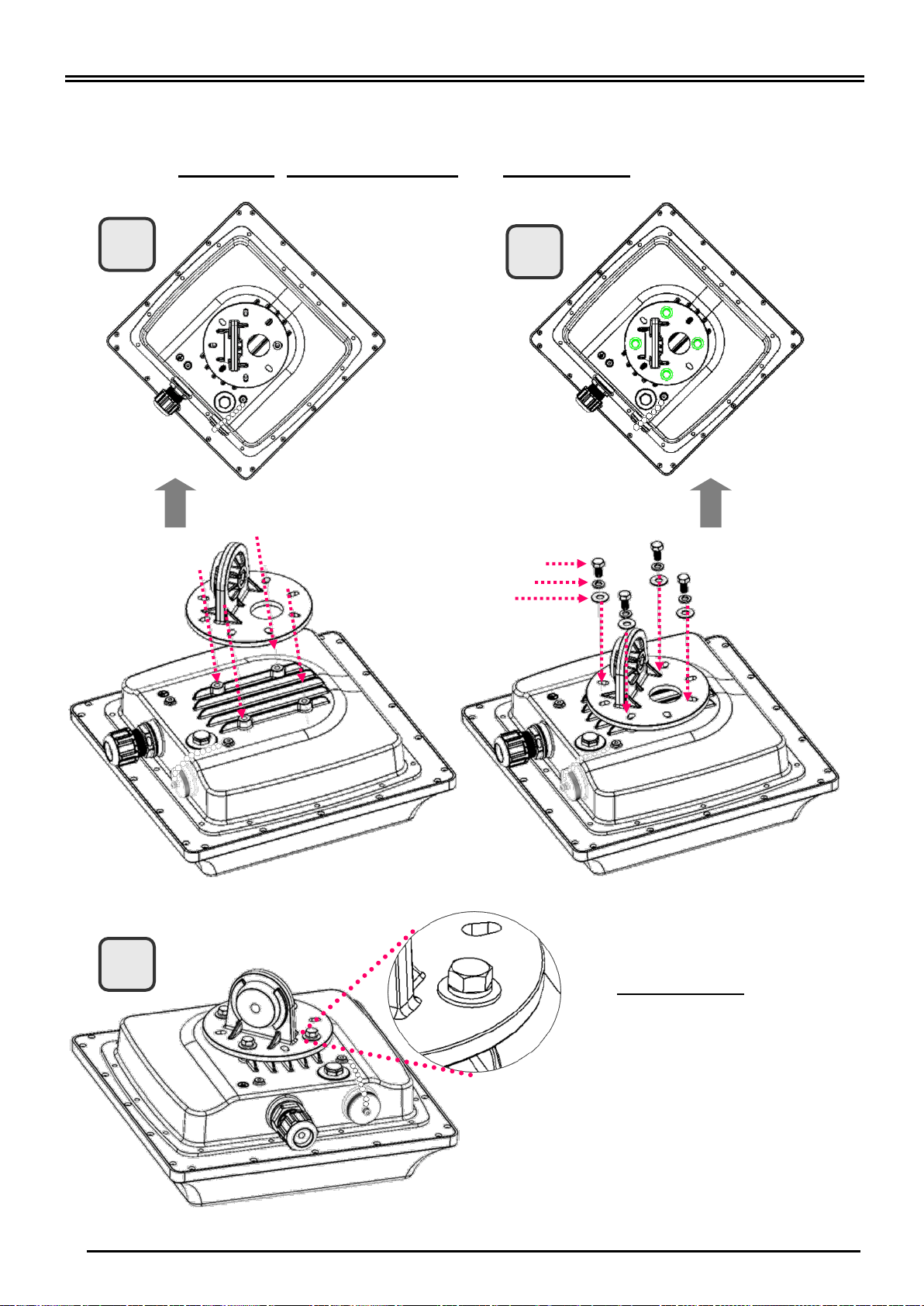

1. Attach the Articulation Pole to the Enclosure
Attach the articulation pole to the back of the BEC 4700A/4700AZ ODU enclosure using the
supplied M6 screws, M6 spring washers and M6x16 screws which are included in the
mounting kit.
Tool Advice :
Use #10 HEX. Wrench to
tighten or loosen the
bolt(s).
1
Wo
od /
Gy
pro
ck
Plu
g
Wo
od /
Gy
pro
ck
Plu
g
2
3
M6 Washer
M6 Spring Washer
n21
a11
rT-formed Bracket
M6x16 Screw

Quick Start Guide
8
Note: The flexible mounting kit can be adjusted in multiple angles to align with the base station
for higher efficiency.
45∘
45
∘
45
∘
45∘

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
9
2. Wall or Pole Mount Installation
Mounting on Wall
Fix the T-formed Bracket to the wall by using wood screws and Gyprock plugs.
Mounting on a Pole between 1.5” to 2” (38.1~50.8mm)
Attach the T-formed Bracket and the W-bar to the pole then use M6x60 bolts, M6 spring
washers and M6 washers to fix the mounting kit onto the pole.
T-formed Bracket
Wood Screw
Wood / Gyprock Plug
1
1
2
1
3
1
1
1
3
2
M6x60 Screw Bolts
M6 Spring Washer
M6 Washer
W-bar
1
1
2
1
3
4
(a)
(b)
(a) The accept pole diameter is
from 1.5” to 2”. If the diameter is
larger than 2”, it can cause a
failure fast. If diameter is smaller
than 1.5”, the clamping force
might be insufficient in holding
the device to the pole.
(b) To minimize bolts
crosstalk, the bolt should
gradually increase the bolt
load on both sides.

Quick Start Guide
10
Mounting on a Pole between 1” to 3” (25.4~76.2mm)
1.
3. Attach the BEC 4700A/AZ Enclosure to the Pole

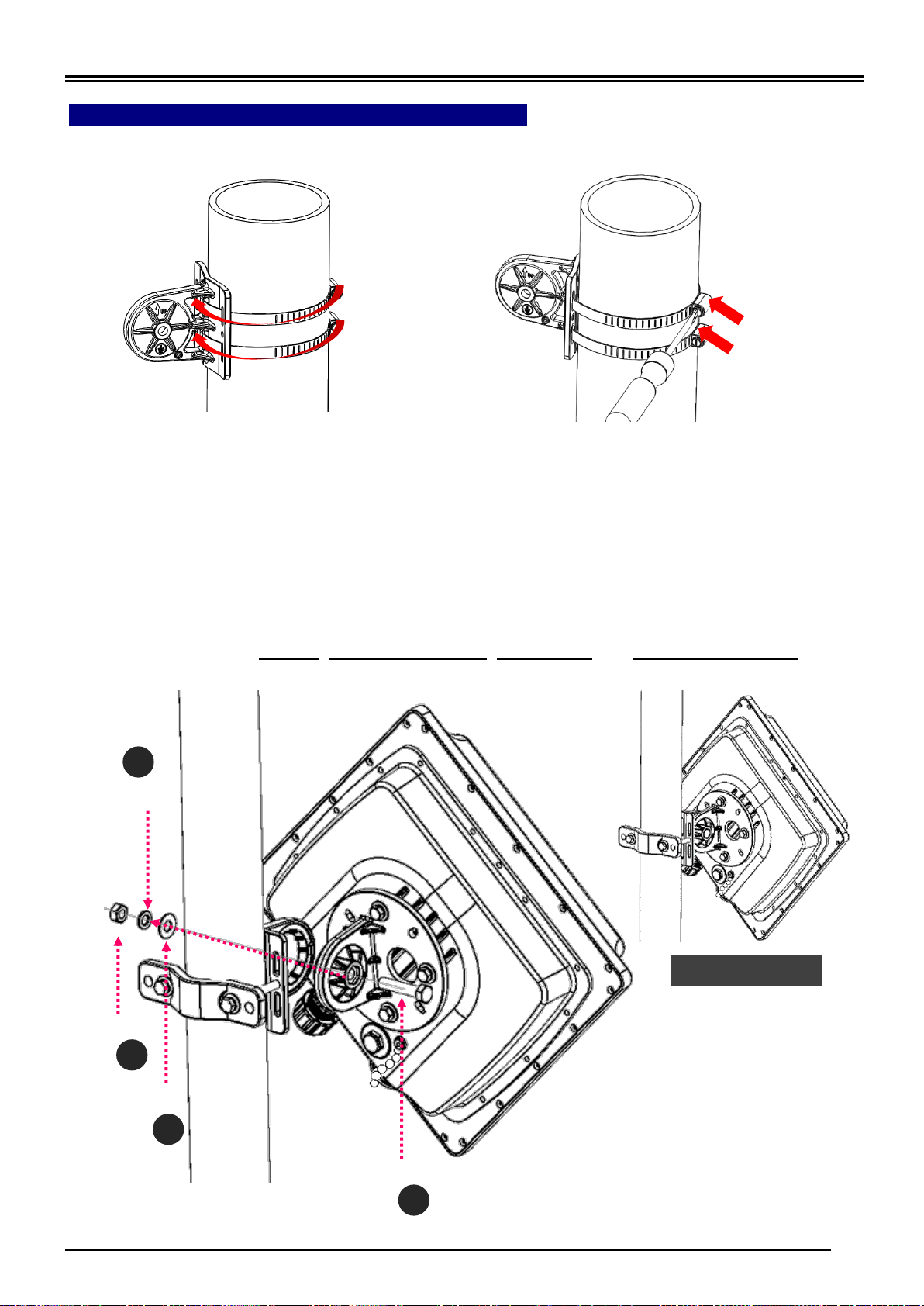

Attach the articulation pole (the BEC 4700A/AZ ODU enclosure) to the T-formed bracket
using the supplied M8 nut, M8 spring washer, M8 washer and M8x40 screw bolts.
Fix the T-formed Bracket to the pole by using the
supplied stainless hose clamps. Use a flat-head
screwdriver to turn the head of the screw
clockwise to tighten it.
Use the stainless hose clamps
through the T-formed Bracket.
Assembled
3
1
M8 Washer
4
1
M8 Nut
2
1
M8 Spring Washer
1
1
M8x40 Screw Bolts

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
11

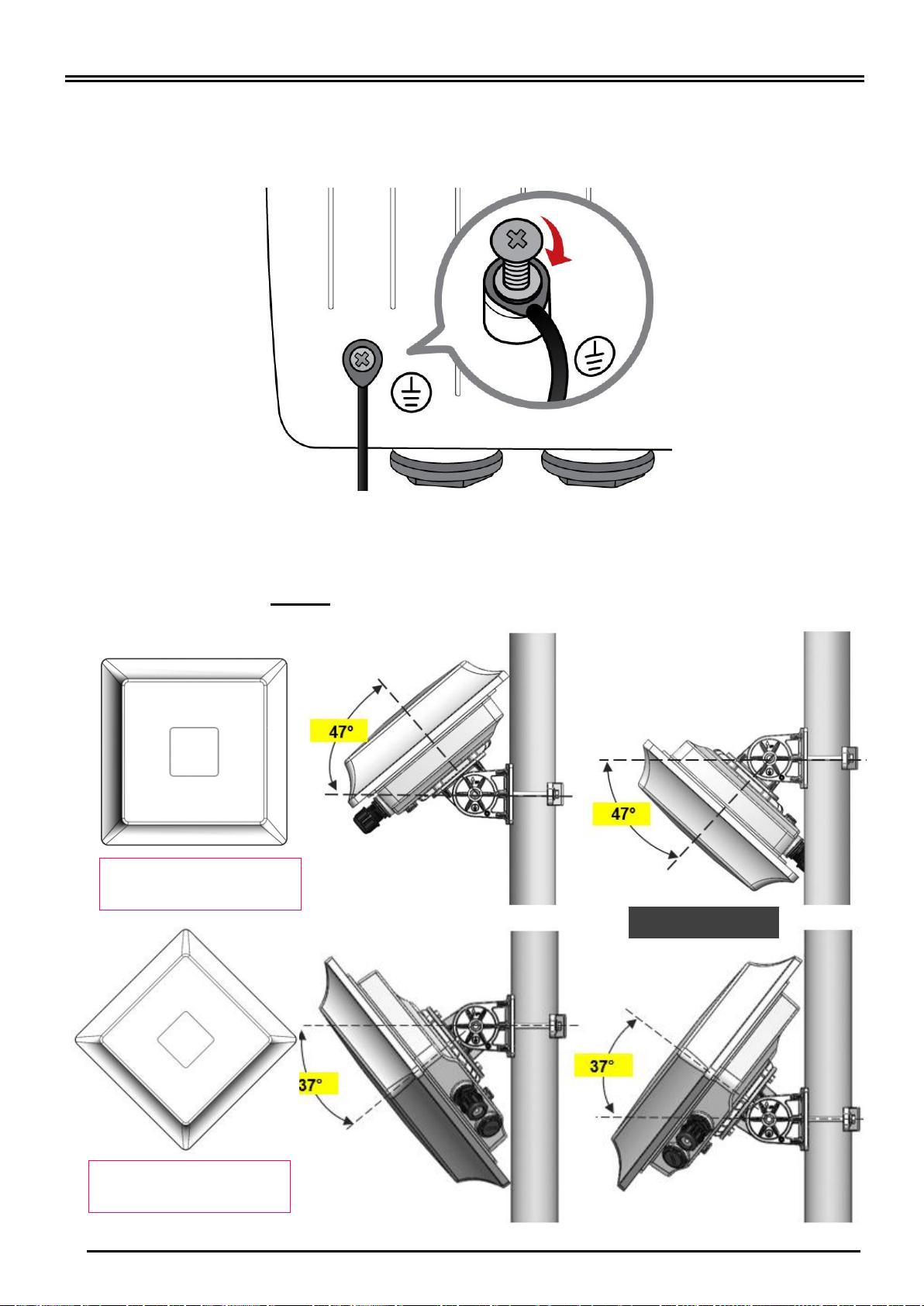

4. Proper Grounding to Complete the Installation
Attach the grounding wire to the BEC 4700A/AZ and tighten the screw.
5. Position Adjustment
Adjust the BEC 4700A/AZ ODU until it reaches the desire elevation and depression
angle, then tight the M8 nut (see Attach the BEC 4700A/AZ Enclosure to the Pole for
more information)

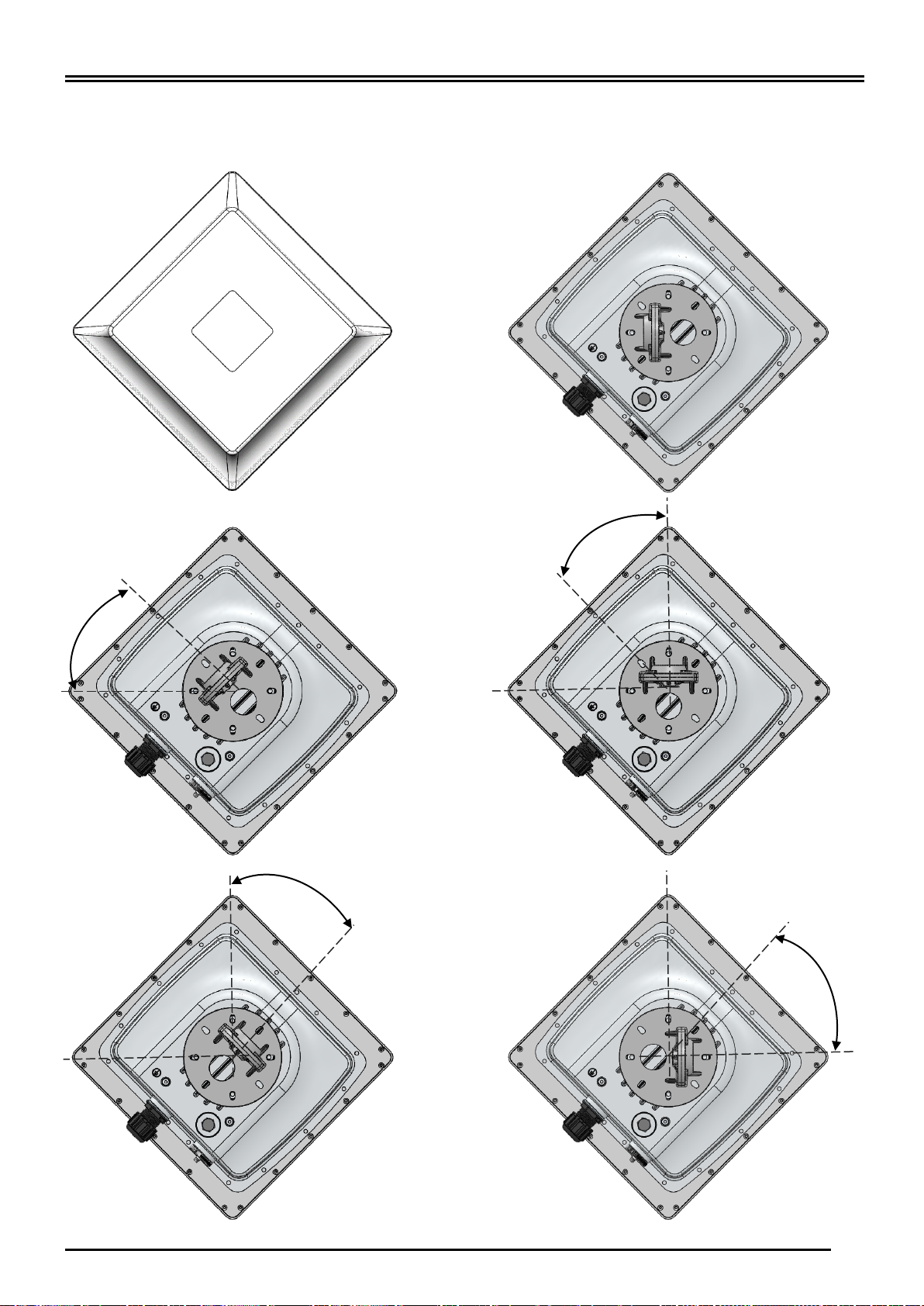

Max. upward angle: 47∘
Max. downward angle: 47∘
Completed
Max. upward angle: 37∘
Max. downward angle: 37∘

Quick Start Guide
12
Power Up and Initial Configuration of Your 4700A/AZ
This section will instruct you on how to power up your BEC 4700A or BEC 4700AZ and perform
setup configuration to get an internet connection.
1. Power up your BEC 4700A/AZ router
Step 1: Assemble M25 cable gland
Step 2: Unscrew the ethernet port for WAN/PoE IN on 4700A or LAN(PoE) on 4700AZ,
then insert the supplied outdoor Ethernet cable (RJ-45) through M25 cable gland, A to D, to
the 4700A/4700AZ.
BEC 4700A (Wi-Fi AP)
BEC 4700AZ (LTE & Wi-Fi AP)
WAN / PoE IN
LAN / PoE IN
Sealing Nut
Clamping
Claw
Rubber
Ring
Gland Body

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
13
Step 3:
3.1: Slide ○ A, ○ B , and ○ C (sealing nut, claw, and rubber ring) over the Ethernet cable
first
3.2. Slide and clip ○ B over ○ C (claw over the rubber ring)
3.3. Slide ○ D (gland body) over the Ethernet cable
3.4. Insert Step 3.2 (○ B +○ C) into ○ D, claw and rubber ring into the gland body
3.5: Secure Step 3.4 to ○ A, tighten by rotating sealing nut clockwise to the gland body
Sealing
Nut
Claw
Rubber
Ring
Gland
Body

Quick Start Guide
14
Step 4:

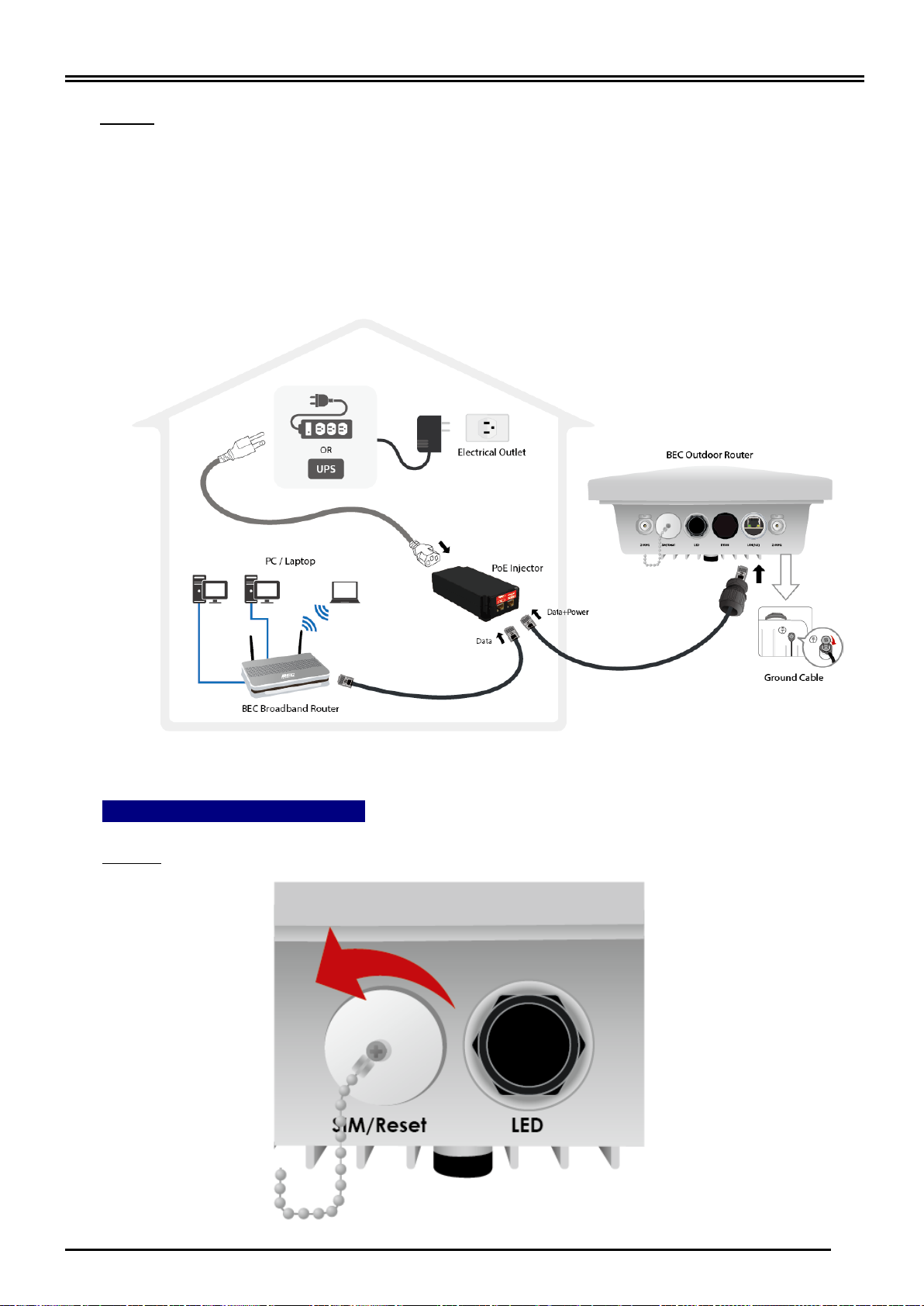

Powering via PoE Injector: Insert the other end of outdoor Ethernet cable (RJ-45) to the
supplied Gigabit PoE injector Data+Power port. Use another Ethernet cable (RJ-45) and
connect directly to the Data port on the injector and the other end of cable to a switch or
broadband router.
IMPORTANT: It is recommended to put the Gigabit PoE Injector on an UPS or Surge Protector. Use the
supplied grounding wire to ground your BEC 4700A / 4700AZ ODU is REQUIRED!
Powering via a PoE Switch: To connect the other of RJ-45 cable from the 4700A/ 4700AZ
PoE_IN port to a PoE switch.
2. Set up Your Internet Connection
BEC 4700AZ (LTE & Wi-Fi AP)
Step 1: Unscrew the cap of SIM card slot.

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
15
Step 2: Slide the SIM card with the mental contacts (gold plate) facing down to the SIM slot
then push it all the way in until you hear the clicking sound.
It is recommended to use an industrial-grade SIM card.
Step 3: Screw the cap back tightly.
Please power off the device before inserting or removing the SIM card.

Quick Start Guide
16
Step 4: Login to your BEC 4700AZ the 4G/LTE Wireless Outdoor Router
The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the
attached PC to this router is in the same subnet and has an IP address in the range between
192.168.1.1 ~ 192.168.1.253.

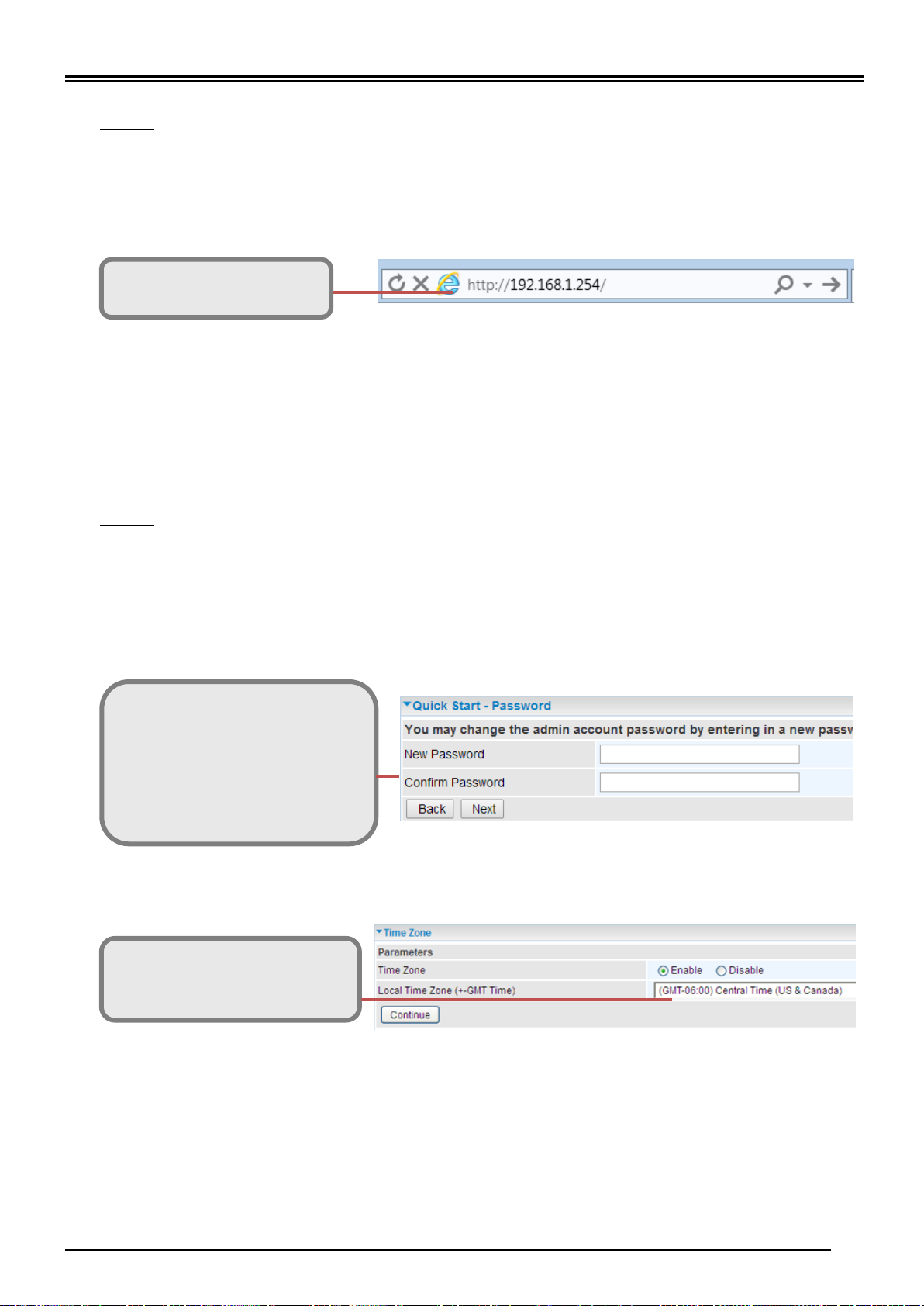

Open a web browser and type http://192.168.1.254 in the URL address bar.
The login prompt will appear. Input the default username (admin) and password (admin) for
Account type, Administrator. *This username / password may vary by different Internet Service Providers.
Please see the relevant sections of user manual for detailed instructions on how to
configure your BEC 4700AZ outdoor router.

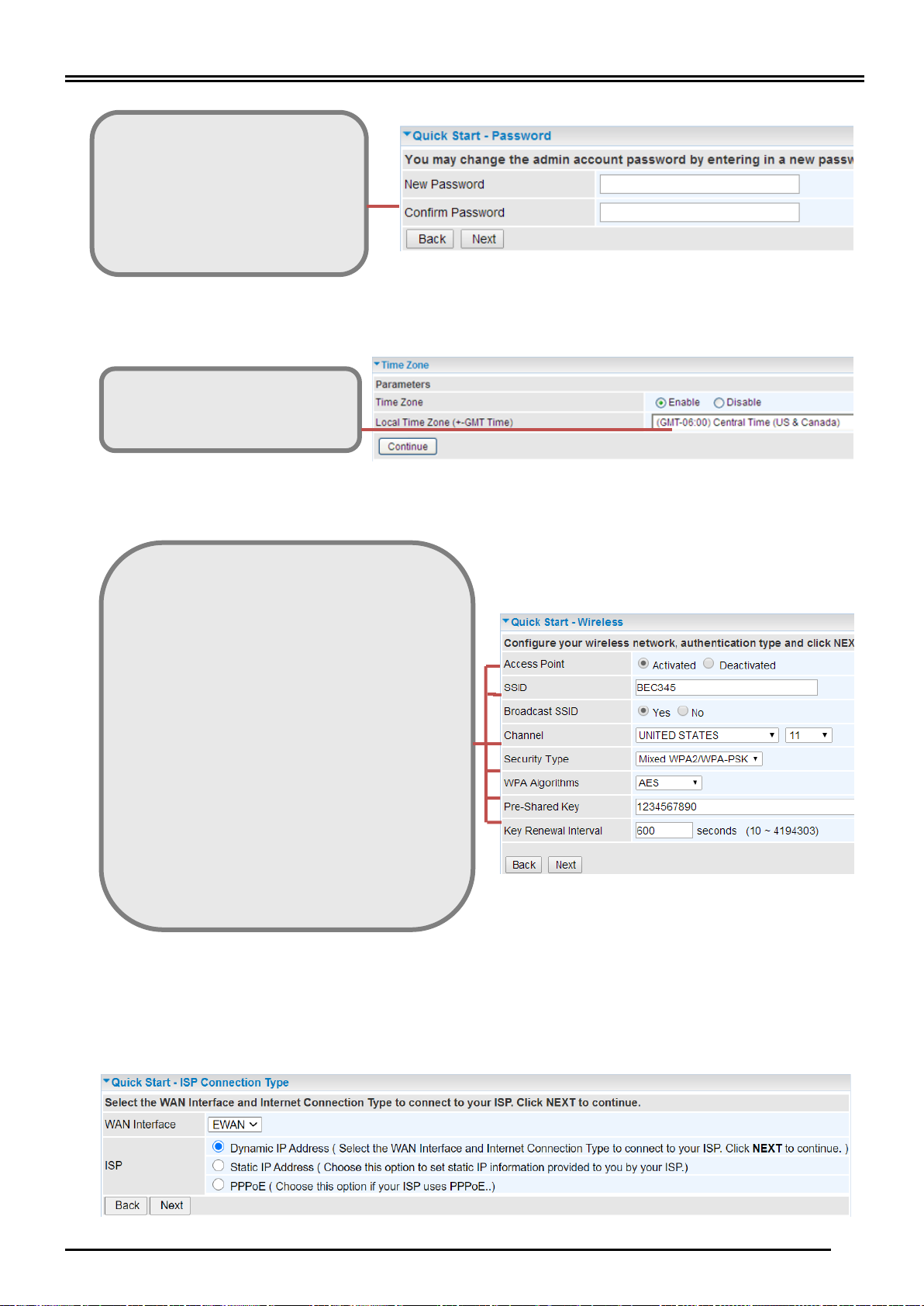

Step 5: Use the Quick Start wizard for fast Internet connection setups.
5.1 Change administration password: Setup a new password for “admin”
account for
device management. The default password is “admin”. Click Continue to go
on to the next step.
*The password may vary by different Internet Service Providers.
5.2 Time Zone Configuration: Enable and select your Time Zone then click
Continue to go on to the next step
5.3 Internet Connection Setup: Fill out all relevant parameters provided by your ISP.
5.4 Saving Configuration Settings: The Setup Wizard has completed. Click BACK to
make changes or correct mistakes. Click NEXT to save settings. If the Internet connection is
not ready, please double check your WAN settings again.
Time Zone: select your time zone
Next Step: click Next
New Password: assign a new,
unique password
Confirm Password: re-enter the
new password again
Next Step: click Next
URL Address bar: type
http://192.168.1.254

BEC 4700A / 4700AZ (4G/LTE) Wireless Outdoor Router
17
2. Set up Your Internet Connection
BEC 4700A (Wi-Fi AP)
Step 1: After you have powered up your BEC 4700A device, connect the 4700A to your
internet box/router or a fiber line, such a DSL / broadband / mobile router / network switch or
FTTH, using a RJ-45 Ethernet cable.
Step 2: Login to your BEC 4700A the Wireless Outdoor Router
The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the
attached PC to this router is in the same subnet and has an IP address in the range between
192.168.1.1 ~ 192.168.1.253.
Open a web browser and type http://192.168.1.254 in the URL address bar.
The login prompt will appear. Input the default username (admin) and password (admin) for
Account type, Administrator. *This username / password may vary by different Internet Service Providers.
Please see the relevant sections of user manual for detailed instructions on how to
configure your BEC 4700A outdoor router.
Step 3: Use the Quick Start wizard for fast Internet connection setups.
3.1 Change administration password: Setup a new password for “admin” account for
device management. The default password is “admin”. Click Continue to go on to the
next step. *The password may vary by different Internet Service Providers.
URL Address bar: type
http://192.168.1.254

Quick Start Guide
18
3.2 Time Zone Configuration: Enable and select your Time Zone then click
Continue to go on to the next step
3.3 Configure 2.4GHz and/or 5GHz Local Wireless Connection
3.4 Internet Connection Setup: Select Dynamic IP Address if you want 4700A pull a
network IP address directly from your internet box. If select PPPoE, fill out the information
provided by your ISP in all relevant parameters.
Time Zone: select your time zone
Next Step: click Next
New Password: assign a new,
unique password
Confirm Password: re-enter the
new password again
Next Step: click Next
Access Point: select Activated
SSID: Assign a unique name
Channel: pick from 1~11
Security Type: select a mode
-Disable (No security)
-WPA
-WPA2 (Most secure one)
-WPA / WPA2 (auto detect WPA mode with wireless
clients)
-WEP (Less secure one)
Pre-Shared Key: key for wireless authentication
-WPA / WAPA2 Share Key: Assign a key between 8
~ 63 characters.
-WEP: select Open System, use default WEP Key 1
then assign 26 Hex codes
Next Step: click Next
