Beckhoff PS1111-2403-0002 Operator's manual

Documentation | EN
PS1111-2403-0002
Power supply 24 V DC, 3.8 A, 1-phase
2020-11-10 | Version: 1.0

Table of contents
PS1111-2403-0002 3Version: 1.0
Table of contents
1 Overview.....................................................................................................................................................5
2 Foreword ....................................................................................................................................................6
2.1 Notes on the documentation..............................................................................................................6
2.2 Safety instructions .............................................................................................................................7
2.3 Terminology and abbreviations .........................................................................................................9
3 Technical data, mounting, wiring...........................................................................................................10
3.1 AC input...........................................................................................................................................10
3.2 DC input...........................................................................................................................................11
3.3 Input inrush current..........................................................................................................................12
3.4 Output..............................................................................................................................................13
3.5 Hold-up time ....................................................................................................................................14
3.6 Efficiency and losses .......................................................................................................................15
3.7 Functional wiring diagram................................................................................................................16
3.8 Front side and operating elements ..................................................................................................17
3.9 Terminals and wiring .......................................................................................................................18
3.10 Lifetime expectancy.........................................................................................................................19
3.11 MTBF...............................................................................................................................................19
3.12 EMC.................................................................................................................................................20
3.13 Environment ....................................................................................................................................21
3.14 Protective functions and safety features..........................................................................................22
3.15 Dielectric strength............................................................................................................................23
3.16 Declaration of conformity and approvals .........................................................................................24
3.17 Dimensions and weight ...................................................................................................................25
4 Application notes.....................................................................................................................................26
4.1 Charging batteries ...........................................................................................................................26
4.2 Series connection ............................................................................................................................26
4.3 Parallel use to increase power ........................................................................................................26
4.4 Operation on two phases.................................................................................................................26
4.5 Use in a tightly sealed enclosure.....................................................................................................27
5 Appendix ..................................................................................................................................................28
5.1 Documentation issue status ............................................................................................................28
5.2 Support and Service ........................................................................................................................29

Table of contents
PS1111-2403-00024 Version: 1.0

Overview
PS1111-2403-0002 5Version: 1.0
1 Overview
PS1111-2403-0002 | Power supply 24V, 3.8A, 1-phase
• 100-240V wide-range input
• Width only 36mm
• No PE connection required
• Efficiency of up to 93.8%
• Low no-load power losses
• Full power between -10°C and +60°C
• Push-in terminals
The PS1111-2403-0002 is a 1-phase 24V power supply with an output current of 3.8A and an output power
of 90W.
On the input side, the device has a wide-range input and an input inrush current limitation.
The output operates according to the UI characteristic curve and switches to the safe hiccup mode in case of
overload/short-circuit.
The power supply is part of the PS1000 family and has a width of 36 mm. A DC OK LED monitors the status
of the output voltage. The power supply unit is designed in protection class II and does not require a
protective conductor on the primary side.
Overview of technical data *)
Overview of technical data PS1111-2403-0002
Output voltage DC 24V
(Nominal factory setting 24.1V)
Adjustment range 24 - 28V
Output current 3.8 - 3.2A (below +60°C)
2.8 - 2.4A (at +70°C)
Linear load reduction between +60°C and +70°C
Input voltage AC AC 100-240V ±10%
Mains frequency 50-60Hz ±6%
Input current AC 1.45 / 0.95A at 120 / 230Vac
Power factor 0.58 / 0.45 at 120 / 230Vac
Efficiency 92.1 / 93.8% at 120 / 230Vac
Temperature range -10°C to +70°C
Dimensions (W x H x D) 36x90x91mm
(without DIN rail)
Weight 270g
Approvals/markings CE
cULus
*) All values typical for 24V, 3.8A, 230Vac, 50Hz, +25°C ambient temperature and after a warm-up time of
five minutes, unless otherwise stated.

Foreword
PS1111-2403-00026 Version: 1.0
2 Foreword
2.1 Notes on the documentation
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to
others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a
patent, utility model or design.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under
development.
We reserve the right to revise and change the documentation at any time and without prior announcement.
No claims for the modification of products that have already been supplied may be made on the basis of the
data, diagrams and descriptions in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, EtherCATG®, EtherCATG10®, EtherCATP®, SafetyoverEtherCAT®,
TwinSAFE®, XFC®, XTS® and XPlanar® are registered trademarks of and licensed by Beckhoff Automation
GmbH. Other designations used in this publication may be trademarks whose use by third parties for their
own purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and
patents: EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding
applications or registrations in various other countries.
Intended audience
This description is only intended for the use of trained specialists in control and automation engineering who
are familiar with the applicable national standards.
It is essential that the documentation and the following notes and explanations are followed when installing
and commissioning these components.
It is the duty of the technical personnel to use the documentation published at the respective time of each
installation and commissioning.
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.

Foreword
PS1111-2403-0002 7Version: 1.0
2.2 Safety instructions
Description of instructions
In this documentation the following instructions are used.
These instructions must be read carefully and followed without fail!
DANGER
Serious risk of injury!
Failure to follow this safety instruction directly endangers the life and health of persons.
WARNING
Risk of injury!
Failure to follow this safety instruction endangers the life and health of persons.
CAUTION
Personal injuries!
Failure to follow this safety instruction can lead to injuries to persons.
NOTE
Damage to environment/equipment or data loss
Failure to follow this instruction can lead to environmental damage, equipment damage or data loss.
Tip or pointer
This symbol indicates information that contributes to better understanding.
Intended use
This device is designed for installation in a housing and is intended for general professional use, for example
in industrial control systems or office, communication and measuring equipment.
Do not use this power supply in installations where a malfunction could cause serious injury or danger to
human life.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are
familiar with the applicable national standards.
Safety regulations
Please note the following safety instructions and explanations!
Product-specific safety instructions can be found on following pages or in the areas mounting, wiring,
commissioning etc.

Foreword
PS1111-2403-00028 Version: 1.0
Safety instructions and installation requirements for the PS1111-2403-0002 power supply
DANGER
Danger of electric shock, fire, injuries, injuries resulting in death!
• Do not use the power supply without proper grounding (protective conductor). Use the terminal at the in-
put terminal strip for the earth connection, not one of the screws on the housing.
• Switch off the power supply before working on the device. Provide protection against unintentional re-
connection.
• Ensure proper wiring by following all local and national regulations.
• Do not modify or attempt to repair the device.
• Do not open the device, as high voltages are present inside.
• Avoid foreign bodies entering the housing.
• Do not use the device in damp locations or in areas where moisture or condensation is likely to occur.
• Do not touch the device when it is switched on or immediately after it has been switched off. Hot sur-
faces can cause burns.
Further notes on installation requirements
• This device contains no parts that require maintenance. If an internal fuse trips, this is due to an
internal defect.
• If any damage or malfunction occurs during installation or operation, turn off the power supply
immediately and return the device to the factory for inspection.
• Install the device in a housing that provides protection against electrical, mechanical and fire
hazards
• Install the device on a DIN rail according to EN 60715, with the input terminals at the bottom of
the device.
• The device is designed for areas with a degree of pollution 2 in controlled environments. No con-
densation or frost is allowed.
• The device housing offers IP20 protection. The housing offers no protection against spilled liq-
uids.
• The device insulation is designed to withstand pulse voltages of overvoltage category III accord-
ing to IEC 60664-1.
• The device is designed to meet the requirements of protection class II according to IEC 61140.
• The device is suitable for supply from TN, TT or IT networks. The continuous voltage between
the input terminal and the PE potential must not exceed 300Vac.
• An isolating device must be provided for the device input.
• The device is designed for convection cooling and does not require an external fan. The air flow
must not be obstructed, and the ventilation grille must not be covered!
• The device is designed for altitudes up to 5000m (16400ft). Above 2000m (6560ft) the overvolt-
age category is reduced to level II, and a reduction of the output current is required.
• Observe the following minimum installation distances: 40 mm at the top, 20 mm at the bottom, 0
mm left and right. Increase the distance from 0 to 15 mm if the adjacent device is a heat source.
• The device is designed, tested and approved for junction circuits up to 20A without an additional
protective device. If an external fuse is used, do not use circuit breakers with lower characteristic
than 6A B or 4A C in order to avoid unwanted tripping of the circuit breaker.
• The maximum ambient air temperature is +70°C (+158°F). The operating temperature corre-
sponds to the ambient or ambient air temperature, per definition at 2 cm below the device.
• The device is designed for operation in the relative humidity range between 5% and 95%.

Foreword
PS1111-2403-0002 9Version: 1.0
2.3 Terminology and abbreviations
PE and the earthing
symbol
PE is the abbreviation for "protective earth" and has the same meaning as the
earthing symbol
Earth, ground This document uses the term “earth” which is the same as the U.S. term “ground”.
T.b.d. Still to be defined, value or description will follow in due course.
AC 230V A value preceded by "AC" or "DC" represents a nominal voltage or a nominal
voltage range. The nominal voltage or the nominal voltage range may be provided
with tolerances. (e.g. AC 230V ±10%). The calculated total range then indicates
the working range of the device.
Example:
DC 12V refers to a 12V battery, regardless of whether it is fully charged
(13.7Vdc) or discharged (10Vdc).
230Vac A value followed by the unit Vac or Vdc is an instantaneous value that does not
contain any additional tolerances.
50Hz vs. 60Hz Unless otherwise specified, AC 100V and AC 230V parameters are valid at a
mains frequency of 50Hz. AC 120V parameters are valid for a mains frequency of
60Hz.
may A keyword indicating a choice without implied preference.
shall A keyword indicating a mandatory requirement.
should A keyword indicating a choice with a clearly preferred method of implementation.

Technical data, mounting, wiring
PS1111-2403-000210 Version: 1.0
3 Technical data, mounting, wiring
3.1 AC input
AC input
AC input Nom. AC 100-240V Suitable for TN, TT and IT networks
AC input range Min. 90-264Vac Continuous operation
Min. 264-300Vac For up to 500ms max.
Permissible voltage L or N to earth Max. 300Vac Continuous according to IEC 60664-1
Input frequency Nom. 50-60Hz ±6%
Turn-on voltage Typ. 75Vac Static, see Fig. Input voltage range
Shut-down voltage Typ. 54Vac Static, see Fig. Input voltage range
External input protection See recommendations in chapter Safety and installation requirements [}8]
AC input AC100V AC120V AC230V
Input current Typ. 1.69A 1.45A 0.95A At 24V, 3.8A, see Fig. Input current over output current;
Power factor Typ. 0.6 0.58 0.45 At 24V, 3.8A, see Fig. Power factor over output current
Start-up delay Typ. 50ms 50ms 50ms See Fig. Switch-on behavior definitions
Rise time Typ. 21ms 21ms 20ms At 24V, 3.8A constant current load, 0mF load capaci-
tance, see Fig. Switch-on behavior definitions
Typ. 42ms 42ms 40ms At 24V, 3.8A constant current load, 2mF load capaci-
tance, see Fig. Switch-on behavior definitions
Turn-on overshoot Max. 100mV 100mV 100mV See Fig. Switch-on behavior definitions

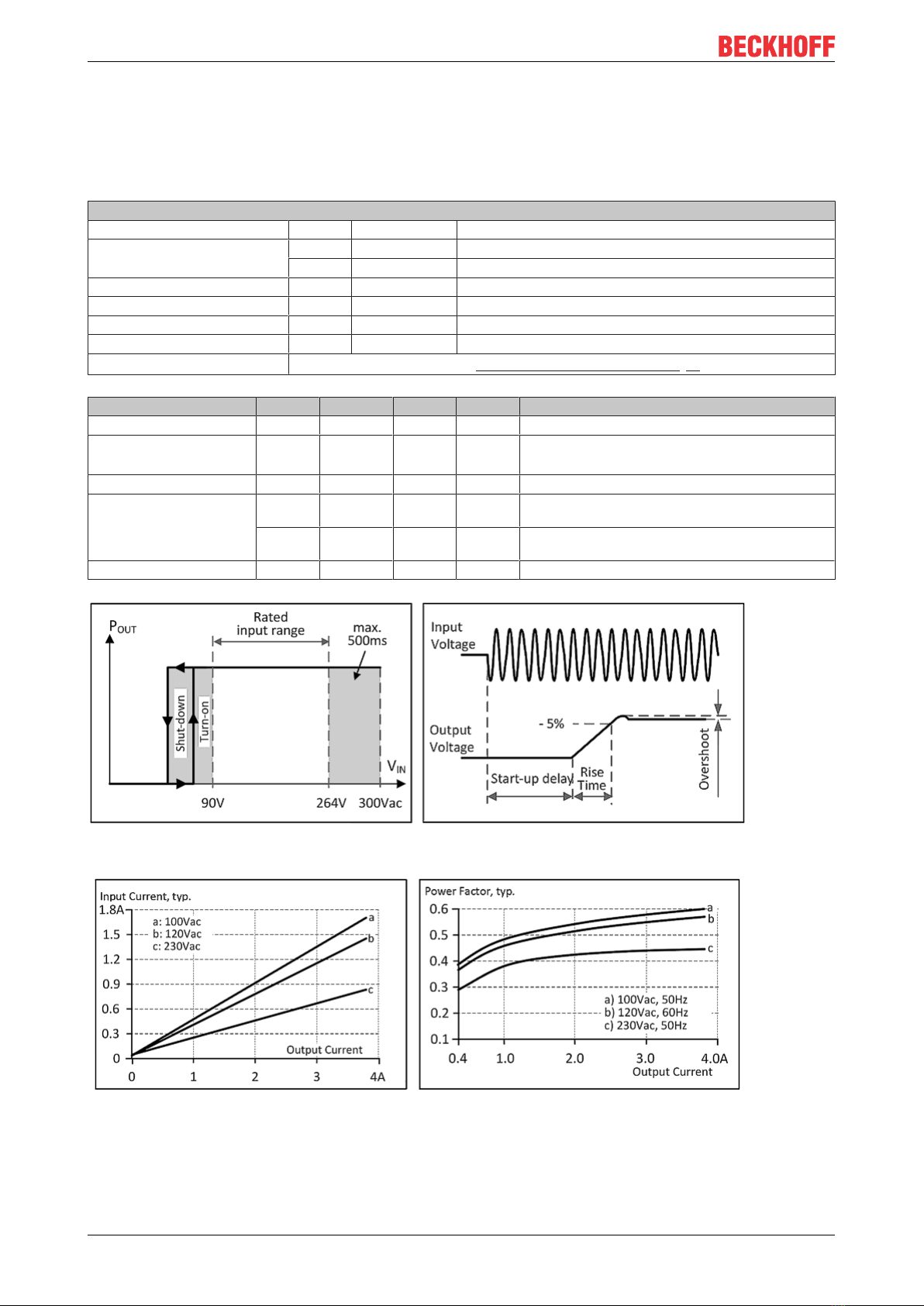

Fig.1: Input voltage range; switch-on behavior definitions
Fig.2: Input current over output current; power factor over output current

Technical data, mounting, wiring
PS1111-2403-0002 11Version: 1.0
3.2 DC input
Do not operate this power supply with DC input voltage!

Technical data, mounting, wiring
PS1111-2403-000212 Version: 1.0
3.3 Input inrush current
An NTC limits the input inrush current after the input voltage is switched on. The inrush current surge
depends on the input voltage and the ambient temperature. The output load has no influence on the value of
the inrush current surge.
The charge current of the interference suppression capacitors during the first few microseconds after
switching on is not taken into account.
AC 100V AC 120V AC 230V
Input inrush
current
Typ. 14Apeak 18Apeak 40Apeak At +40°C, cold start
Typ. 12Apeak 16Apeak 35Apeak At +25°C, cold start
Max. 17Apeak 22Apeak 48Apeak At +40°C, cold start
Max. 15Apeak 20Apeak 43Apeak At +25°C, cold start
Inrush energy Max. 0.3A2s 0.4A2s 1.7A2s At +40°C, cold start

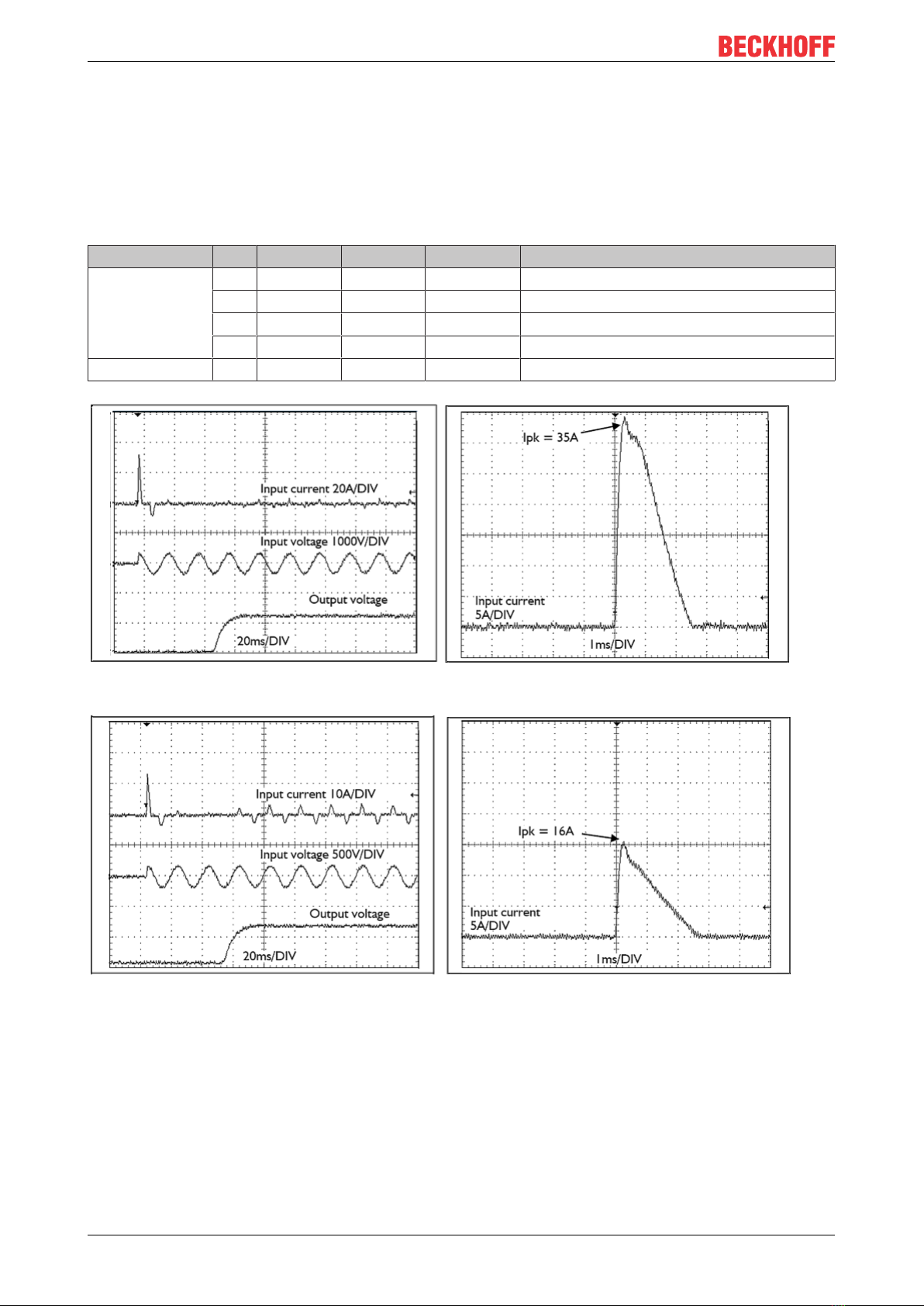

Fig.3: Switch-on behavior at nominal load, typ., 230Vac@25°C; zoom inrush current surge
Fig.4: Switch-on behavior at nominal load, typ., 120Vac@25°C; zoom inrush current surge

Technical data, mounting, wiring
PS1111-2403-0002 13Version: 1.0
3.4 Output
The output provides an SELV/PELV nominal voltage that is electrically isolated from the input voltage.
The output is designed to supply any type of load, including capacitive and inductive loads. Capacitive loads
should not exceed 5500µF with 3.8A or 7000µF with 1.9A additional current load.
In the event of severe overload (if the output voltage drops below 14V) the power supply delivers a
continuous output current for 20ms. The output is then switched off for approx. 160ms before a new start
attempt is automatically made. This cycle is repeated as long as the overload exists. The device starts
operating normally again once the overload has been rectified.
Output voltage Nom. 24V
Adjustment range Min. 24-28V Guaranteed value
Max. 29.0V This is the maximum output voltage that can occur in the end position of the po-
tentiometer in clockwise direction due to tolerances. It is not a guaranteed
value that can be achieved.
Factory settings Typ. 24.1V ±0.2%, at full load (cold device)
Line regulation Max. 10mV Between 90 and 300Vac
Load regulation Max. 100mV Between 0 and 3.8A, static value, see Fig. Output voltage over output current,
typ.
Residual ripple and ripple
voltage
Max. 100mVss Bandwidth 20Hz to 20MHz, 50Ohm
Output current Nom. 3.8A At 24V and ambient temperature below 60°C
Nom. 3.2A At 24Vand 70°C ambient temperature.
Nom. 2.8A At 28V and ambient temperature below 60°C
Nom. 2.4A At 28V and 70°C ambient temperature
Overload protection Yes Electronic protection against open circuit, overload, and short circuit. In the
event of a protection event, audible noises may occur.
Overload characteristics Continuous cur-
rent
Output voltage > 14Vdc, see Fig. Output voltage over output current, typ.
Hiccup mode Output voltage < 14Vdc, see Fig. Output voltage over output current, typ.
Overload/short circuit cur-
rent
Max. 6.7A Continuous current, see Fig. Output voltage over output current, typ.
Typ. 8.6A Intermittent current peak value for typ. 20ms
Load impedance 150mOhm, see Fig. Short circuit at the output
The discharge current of the output capacitors is not included
Max. 3.2A intermittent mean current value (rms.)
Load impedance 150mOhm, see Fig. Short circuit at the output
Output capacity Typ. 1600μF Included in the power supply
Load feedback Max. 35V The device is resistant and does not show any malfunction when a load feeds
back voltage to the power supply. It does not matter whether the power supply
is switched on or off. The absorbed energy can be calculated by means of the
built-in large-size output capacitor.
Fig.5: Output voltage over output current, typ.; short circuit at the output.

Technical data, mounting, wiring
PS1111-2403-000214 Version: 1.0
3.5 Hold-up time
The hold-up time is the time during which the output voltage of a power supply remains within the
specification after a loss of input power. The hold-up time depends on the output load.
At no load the hold-up time can be up to several seconds. During this time, the green DC OK lamp also lights
up.
AC 100V AC 120V AC 230V
Hold-up time Typ. 14ms 25ms 119ms At 24V, 3.8A
Typ. 40ms 60ms 242ms At 24V, 1.9A
Min. 11.5ms 20ms 95ms At 24V, 3.8A
Min. 32ms 48ms 194ms At 24V, 1.9A

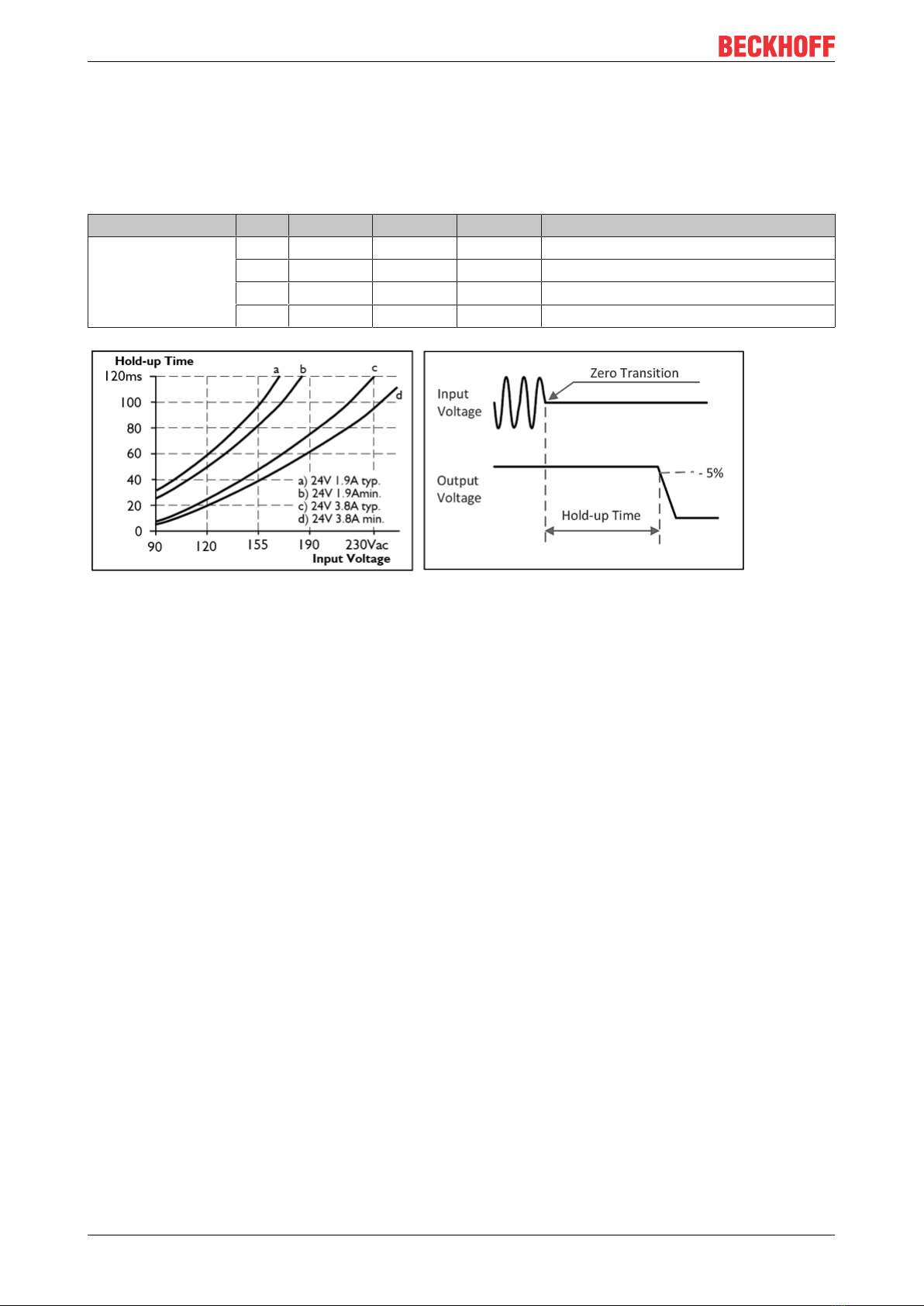

Fig.6: Hold-up time over input voltage; switch-off behavior, definitions

Technical data, mounting, wiring
PS1111-2403-0002 15Version: 1.0
3.6 Efficiency and losses
AC 100V AC 120V AC 230V
Efficiency Typ. 90.6% >92.1% 93.8% At 24V, 3.8A, full load
Average efficiency*) Typ. 90.5% 91.6% 92.0% 25% at 0.95A, 25% at 1.9A,
25% at 2.85A. 25% at 3.8A
Losses Typ. 0.3W 0.3W 0.4W At 24V, 0A (no load)
Typ. 5.0W 4.3W 3.8W At 24V, 1.9A (half load)
Typ. 9.5W 7.9W 6.0W At 24V, 3.8A (full load)
*) The average efficiency is based on assumptions for a typical application with the power supply unit
operating at 25% of the nominal load during 25% of the time, 50% of the nominal load during 25% of the
time, 75% of the nominal load during 25% of the time and 100% of the nominal load during the remaining
time.
Fig.7: Efficiency over output current; losses over output current
Fig.8: Efficiency over input voltage; losses over input voltage

Technical data, mounting, wiring
PS1111-2403-000216 Version: 1.0
3.7 Functional wiring diagram

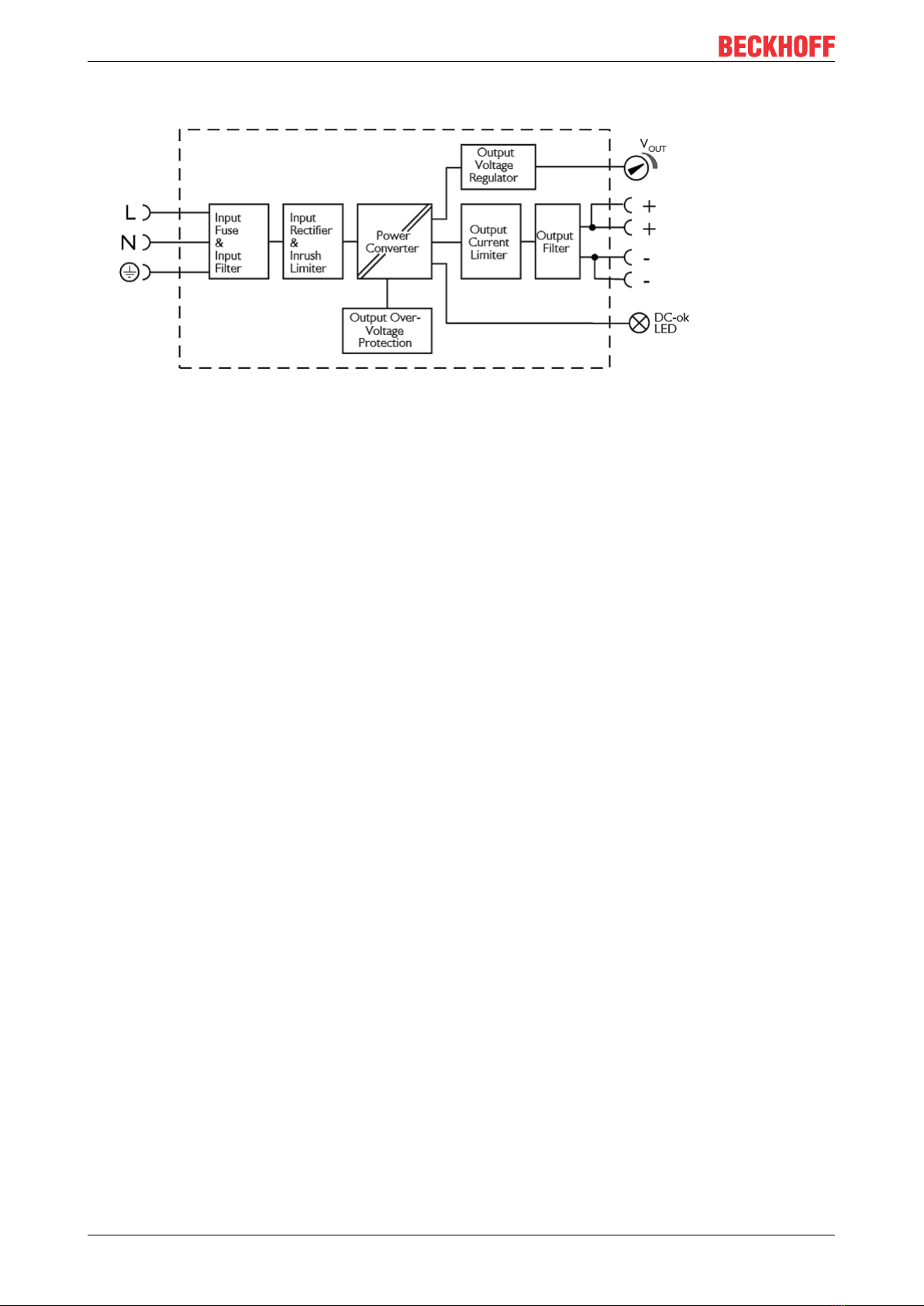

Fig.9: Functional wiring diagram

Technical data, mounting, wiring
PS1111-2403-0002 17Version: 1.0
3.8 Front side and operating elements
Fig.10: Front PS1111-2403-0002
Input terminals (push-in terminals)
Designation (A) Description
N Mains input N
L Mains input L
Output terminals (push-in terminals)
Designation (B) Description
+ two identical positive poles, positive output
- two identical negative poles, negative output
Potentiometer for the output voltage
Designation (C) Description
Potentiometer Factory setting: 24.1V
DC-OK LED
Designation (D) Description
LED green Lights up when the output voltage is above 18V.

Technical data, mounting, wiring
PS1111-2403-000218 Version: 1.0
3.9 Terminals and wiring
The terminals are designed to be finger-safe according to IP20 and are suitable for field or factory wiring.
Technical data All connections
Connection cross-section e*: max. 2.5mm²
f*: max. 2.5mm²
a*: max. 1.5mm² (d<2.3mm)
Connection cross section
(AWG)
e*: AWG 24-12
f*: AWG 24-12
a* AWG 24-12 (d<2.3mm)
Strip length 10mm / 0.4inch
e* = solid wire
f* = stranded wire
a* = with ferrule

Technical data, mounting, wiring
PS1111-2403-0002 19Version: 1.0
3.10 Lifetime expectancy
The lifetime expectancy shown in the table indicates the minimum number of operating hours (service life)
and is determined by the lifetime expectancy of the built-in electrolytic capacitors. The lifetime expectancy is
stated in operating hours and is calculated according to the specifications of the capacitor manufacturer.
Please note: The manufacturer of the electrolytic capacitors only guarantees a maximum life of up to 15
years (131,400h). Any number exceeding this value represents a calculated theoretical service life which can
be used to compare devices.
AC 100V AC 120V AC 230V
Lifetime
expectancy
39,000h 64,000h 102,000h At 24V, 3.8A and +40°C
260,000h 292,000h 309,000h At 24V, 1.9A and +40°C
91,000h 147,000h 287,000h At 24V, 3.8A and +25°C
640,000h 720,000h 815,000h At 24V, 1.9A and +25°C
3.11 MTBF
MTBF stands for Mean Time Between Failure, which is calculated from the statistical failure rate of the
components and indicates the reliability of a device. It is a statistical representation of the probability of
equipment failure and does not necessarily represent the service life of a product.
The MTBF number is a statistical representation of the probability of equipment failure. An MTBF number of
1,000,000h, for example, means that statistically, if there are 10,000 devices in use, one device will fail every
100 hours. However, it is not possible to say whether the failed device has been in operation for 50,000
hours or only 100 hours.
For these device types the MTTF value (Mean Time To Failure) is identical to the MTBF value.
AC 100V AC 120V AC 230V
MTBF SN 29500,
IEC 61709
1,174,000h 1,273,000h 1,507,000h At 24V, 3.8A and 40°C
2,251,000h 2,406,000h 2,752,000h At 24V, 3.8A and +25°C
MTBF MIL HDBK
217F
751,000h 760,000h 698,000h At 24V, 3.8A and 40°C; Ground Benign GB40
1,085,000h 1,099,000h 1,018,000h At 24V, 3.8A and 25°C; Ground Benign GB25
219,000h 224,000h 220,000h At 24V, 3.8A and 40°C; Ground Fixed GF40
288,000h 294,000h 293,000h At 24V, 3.8A and 25°C; Ground Fixed GF25

Technical data, mounting, wiring
PS1111-2403-000220 Version: 1.0
3.12 EMC
The EMC characteristics of the device make it suitable for application in industrial environments as well as in
residential, commercial and light industrial areas and small businesses.
The device complies with the following standards: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN
61000-6-4, EN 61000-3-2 and EN 61000-3-3.
This device complies with FCC Part 15. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must be able to deal with any interference received,
including interference that may cause undesired operation.
Do not use this device on an AC 100V mains supply with a load of more than 2.9A, if the application is
sensitive to a short circuit at the output, even with voltage drops during mains interruptions of less than
20ms.
EMC interference immunity
Strong transients VDE 0160 Over the entire load range 750V; 1.3ms
EMC interference emission According to the generic standards: EN 61000-6-3 and EN 61000-6-4
Conducted interference emission, input
lines
EN 55011, EN 55015, EN 55022,
FCC Part 15, CISPR 11, CISPR 22
Class B
Conducted interference emission, output
lines
IEC/CISPR 16-1-2, IEC/CISPR
16-2-1
Limit values for the DC current connection are met
Interference emission EN 55011, EN 55022, CISPR 11,
CISPR 22
Class B
Harmonic input current EN 61000-3-2 Class A requirements met
Voltage fluctuations, flicker EN 61000-3-3 Met, tested with non-pulsating constant current
loads.
Switching frequencies
Main converter 40kHz to 140kHz Input load and output voltage dependent
