USER/INSTALLATION
GUIDE
X-Series Billboard
FOR PANEL
PRINTING SIZE
SEE PAGE 16

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
2
CONTENTS
Parts List PAGE 3
Thank You / Overview PAGE 4
Dos & Don’ts PAGE 5
Typical Installation Base-unit PAGE 6
Wrench & Manual Storage PAGE 12
Operations Guide PAGE 13
Extension Installation PAGE 1
Uninstallation PAGE 21
Warranty PAGE 22
Minimum Install Requirements PAGE 23

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
3

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
4
Thank you for purchasing a Bedfin signage system
Bedfin LLC created Bedfin signage to support you in your mission and wants you to get the most from its use. The
following information will help you safely achieve the most from your Bedfin unit. Read this entire guide and
contact Bedfin LLC with questions, so you fully understand the product prior to use. If you transfer ownership or
lend the Bedfin unit to another user, make sure the User Guide and Emergency-Wrench are made available to the
user. All operators of vehicles with Bedfin signage installed must understand the dangers present when operating
during certain conditions or with an improper installation.
Closely follow the instructions and suggestions in this guide. Installing and operating Bedfin in a manner
inconsistent with this guide can be dangerous and may result in damage to property and injury or death to people.
Proper maintenance as described in this guide will ensure the Bedfin system’s long term performance.
No modifications to your vehicle should be made to accommodate the Bedfin signage system as it has been
designed for universality among different vehicle makes. If for any reason the unit will not install or operate as
described in this guide, contact Bedfin LLC for assistance. Bedfin signage installation requires the use of hand tools
only. Power assisted tools should not be used, as they may damage the hardware and could lead to product
failure. If at any time during installation any component of the system shows signs of defect, wear, or is
problematic, discontinue the installation, remove all installed components, and contact Bedfin LLC for support. Do
not attempt to repair or modify your Bedfin signage system.
Bedfin signage is not designed to restrain loads. Do not tie off, hook, or clamp anything to your unit which is not
provided by Bedfin as an accessory. Load restraining accessories are available through Bedfin.
Thank you again for choosing B dfin signag for your mission. Wh th r you ar building a busin ss, fundraising,
promoting your organization, or campaigning, B dfin LLC wish s you all th b st.
Call or mail for assistanc [phone] / k ith@b dfin.com .

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
5
Don’ts
Violation of th following may void any warranty mad by th manufactur r and may limit or liminat th manufactur r’s
liability from claims of damag , injury, or d ath as a r sult of op rating a v hicl with B dfin unit install d.
Do not install or use Bedfin units if rust is present on truck areas which are structurally significant to the Bedfin unit function.
Do not operate your vehicle with Bedfin unit installed during high winds.
Do not use automated vehicle washes with Bedfin unit installed.
Do not drive at speeds in excess of 70 miles per hour with Bedfin signage installed.
Do not drive on bumpy surfaces without reducing speed to a level which protects unit from excessive vibration.
Do not over-tighten fastening hardware during installation.
Do not strap, tie, or affix any device to Bedfin unit which is not provided by the manufacturer as an accessory.
Do not operate vehicle with Bedfin unit improperly and/or partially installed.
Do not use any hardware with Bedfin unit which did not come from the manufacturer. Parts are available through Bedfin LLC.
Do not attempt to repair damaged Bedfin unit. Contact Bedfin LLC to receive replacement parts or authorized repairs.
Do not modify Bedfin unit in any way without express written consent from Bedfin LLC.
Do not use Bedfin unit to restrain a loads. Unless used in conjunction and as directed with Bedfin load restraint products.
Do not use message board sizes or materials other than as recommended by Bedfin LLC in the User’s Guide.
Do not install Bedfin unit or operate a vehicle with Bedfin unit which has not been designed for use with that vehicle.
Do not redistribute Bedfin unit without providing other party with a full set of this documentation and Emergency-wrench.
Do not use solvents to clean Bedfin unit as it may damage the coating.
Do not clean Bedfin unit with message board installed unless advised by the message board supplier.
Do not display messages in Bedfin unit which are considered offensive, illegal, or may be in conflict with interests of Bedfin LLC.
Do not install or operate Bedfin unit on a vehicle which has been involved in a collision and/or may have weakened areas which
are structurally significant to the proper function of Bedfin unit.
Do
Failing to do th following may void any warranty mad by th B dfin LLC and limits or liminat s B dfin LLC’s liability from
claims of damag , injury, or d ath as a r sult of op rating a v hicl with B dfin unit install d.
Do read User’s Guide, and other documents provided by Bedfin LLC prior to installing and operating a vehicle with Bedfin unit.
Do inspect Bedfin unit, vehicle, and hardware for damage or fatigue regularly as described in User’s Guide.
Do inspect Bedfin unit, vehicle, and hardware for loosening regularly as described in User’s Guide.
Do store Bedfin unit properly when not used to avoid damage resulting in damage, injury, or death when back in operation.
Do report all defects to Bedfin LLC immediately to ensure proper resolution and to guard against possible safety concerns.
Do operate your vehicle in a manner consistent with the safe operation guidelines as provided by the manufacturer.
Do remove Bedfin unit regularly to clean the unit and vehicle to protect the finish and ensure long term performance.
Do carry the supplied wrench for un-installation of Bedfin unit in case driving conditions become unsafe for proper operation.
Do supply future owners of Bedfin unit with all documentation and Emergency-Wrench as provided by Bedfin LLC and check
website for updates.

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
6
Typical Installation Guid
B dfin X-S ri s (Mod l BFX66)
(oth r BFX mod ls r quir sam installation proc ss)
While one person may be able to install a Bedfin unit, to help prevent strain injuries or damage to your vehicle, it is
recommended to have the assistance of a second person. In each step, when maneuvering the Bedfin signage or
other components around your vehicle, take extra care to avoid bumping against your vehicle; your vehicle finish
and or the Bedfin unit could be damaged.
All parts and tools required for installation are included with the purchase of your Bedfin unit. Prior to installation,
ensure all necessary components have been included in your package. An illustrated contents list has been
provided. The clamps are preassembled with their hardware.
** USING POWER DRIVEN TOOLS FOR INSTALLATION IS NOT RECOMMENDED AND MAY VOID WARRANTY **
*** DRILLING IS NOT REQUIRED AND MODIFYING YOUR BEDFIN UNIT IN ANY WAY WILL VOID WARRANTY ***
**** PRIOR TO INSTALLATION OR OPERATION, READ AND FOLLOW ALL MANUALS AND DOCUMENTATION****

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
7
St p 1
Remove all contents from the packaging and verify the set is complete. Check for damage from transportation or
manufacturer defects prior to installation. An illustrated parts list has been provided as part of this guide (Page 3).
If any parts are missing or appear damaged, discontinue installation and contact Bedfin LLC for assistance.
St p 2
Remove any factory or aftermarket accessories from your truck which may prevent a solid connection between
your Bedfin unit and truck. Common equipment which may prevent Bedfin unit installation are contractor racks,
bed covers, truck boxes, canopies, and shell liners. Be sure your accessories can be removed safely and follow the
accessory manufacturer’s recommendations for removal. See page 23 for minimum requirements for Bedfin
installation.
St p 3
Clean your truck bed rails in preparation for mounting your Bedfin unit. Ensure the bed rails and head rail (Fig 7.1)
are free of debris which may damage your truck’s finish. For additional protection, you may elect to apply
protective tape to protect your bed rails (Fig 7.1) available at truck and canopy dealerships and Bedfin LLC.
FIGURE 7.1

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
8
St p 4
With your tailgate open, place the driver side base unit on the driver side bed rail with the logo gusset towards the
cab (fig .1) leaving about an inch between the gusset and the head rail.
fig 8.1
St p 5
While holding the head clamp in position (fig .2) slowly slide the base unit toward the cab until the head clamp
bar engages with the clamp tube in the logo gusset. Continue sliding the base unit towards the cab until the
rubber cushion comes in contact with the head rail. While sliding into position, take care to prevent the head
clamp assembly from coming in contact with the cab or window.
fig 8.2
- - - - - - IMPORTANT NOTE - - - - - -
While sliding the base unit into position, take care to prevent the head clamp assembly from being pushed and
coming in contact with the cab or window.

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
9
St p 6
Insert the 3/ ” bolt and 3/ ” washer provided through the hole in the clamp tube (fig 9.1) and while squeezing
base unit and head clamp assembly together, screw the bolt clockwise until the head clamp assembly pulls up
against the head rail with only slight pressure.
fig 9.1
St p 7
Loosely place three of the standard clamps and clamp pads in position along the length of the base-unit (fig 9.2).
Clamp pads should rest smooth side down. Ridges on clamp should seat in ridges in top of pad. The loops at the
back of clamp pad are not used in this application. Clamps should be positioned as close to the vertical gussets as
possible and oriented so the head of the bolt is at the top.
fig 9.2

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
10
St p 8
Begin tightening each of the three standard clamps (fig 10.1) in succession getting progressively tighter with each
cycle until fully tightened.
fig 10.1
- - - - - - IMPORTANT NOTES - - - - - -
1) The top half and bottom half of the clamp will slide closer together as the clamp is tightened. Enough room must
be left between the lower half of the clamp and the bed rail flange so the clamp can move unobstructed until fully
tightened.
2) Do not over tighten each clamp. Over tightening may strip/weaken the threads of your clamps or cause damage
to your truck.
St p 9
Once the 3 standard clamps are tight as described in step , tighten the head clamp (fig 10.2).
fig 10.2

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
11
St p 10
Gently grasp the top front of the base-unit. Rapidly push and pull repeatedly for a few cycles using gentle to
moderate force (10 - 20 pounds) to ensure the unit does not experience excessive movement at the top edge.
Repeat at the rear end of base-unit. If excessive movement is experienced, check the clamps to ensure all are
properly tightened. If this fails to correct the problem, contact Bedfin LLC for assistance.
St p 11
At rear of the vehicle, with the palm of your hand, rapidly bump the side of the Bedfin base unit near the top to
simulate small road bumps. Look for excessive vibration at the front of the unit (by cab). Additional tightening of
all the clamps until vibration can no further be reduced. Do not overtighten clamps.
St p 12
Repeat steps 4-11 on the passenger side of your truck.
CONGRATULATIONS ON COMPLETION OF YOUR INSTALLATION.

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
12
FOR USE IN CASE OF EMERGENCY, THE UNEXPECTED NEED TO UNINSTALL
BEDFIN, AND FOR ROUTINE MAINTENANCE, PLACE THE WRENCH AND THE USER
GUIDE PROVIDED IN THE VEHICLE ON WHICH THE BEDFIN UNIT IS INSTALLED. IF
YOU’VE INSTALLED BEDFIN AS A SERVICE FOR ANOTHER USER MAKE THE
WRENCH AND USER GUIDE AVAILABLE TO THE USER.
ELECTRONIC COPY OF USER GUIDE IS AVAILABLE AT WWW.BEDFIN.COM
IF YOU HAVE ANY QUESTIONS OR EXPERIENCE ANY DIFFICULTY DURING
INSTALLATION, CALL BEDFIN LLC FOR ASSISTANCE. (253) 2-4112

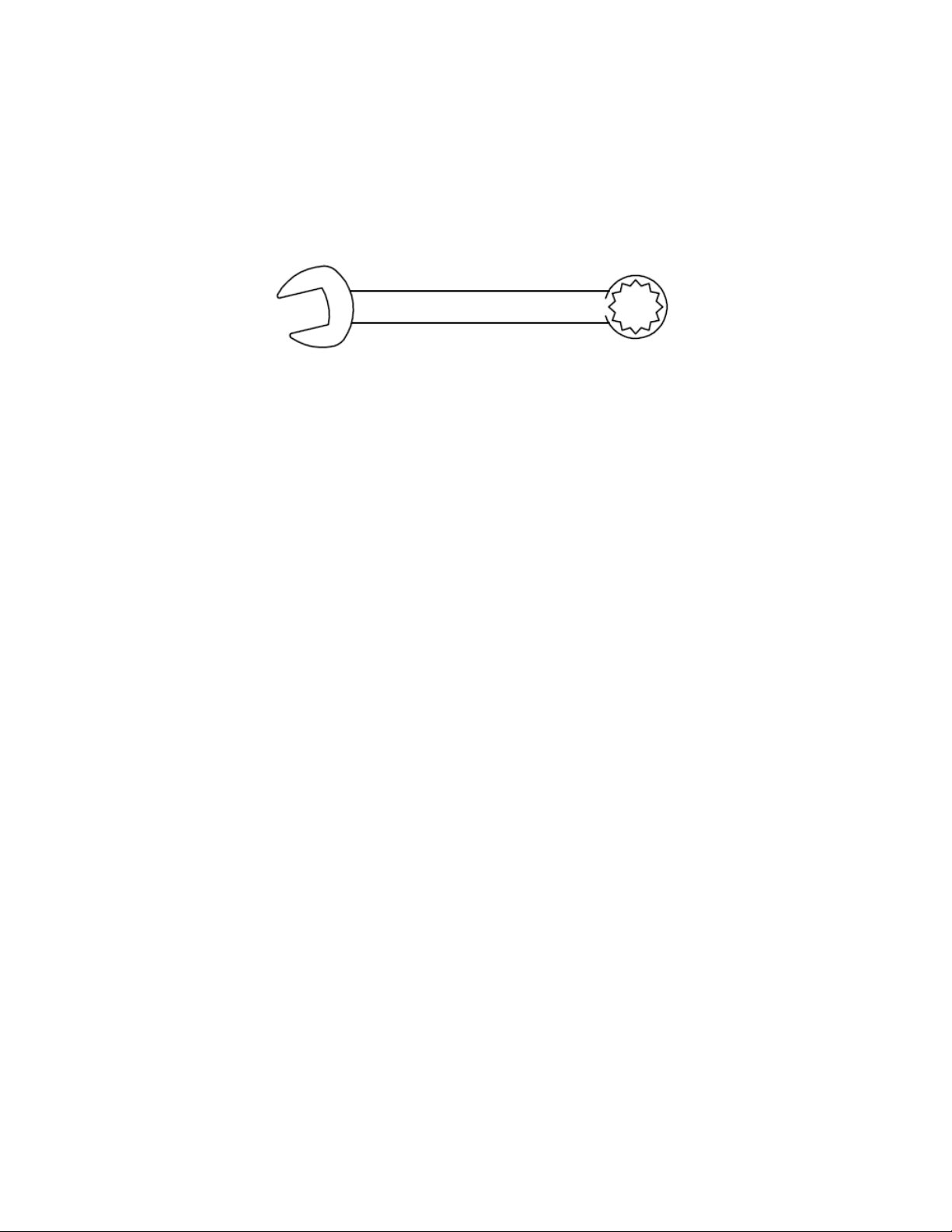

Installation/Em rg ncy wr nch
Qty 1 includ d with bas unit purchas

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
13
FIGURE 13.1
Op rations Guid
B dfin S ri s BFX
Your Bedfin unit is intended for use on suitably equipped and maintained full size pickup trucks in good operating
condition while traveling at speeds below 70 miles per hour in mild to moderate weather and on smooth surfaces.
Proper operation of your Bedfin unit as described in this guide is crucial to the safety and longevity of the system.
Operation of Bedfin in manners inconsistent with this guide and for any purposes other than as advertised by
Bedfin LLC may void warranty and may result in damage to your vehicle or other property and injury or death. If at
any time your Bedfin unit seems to be malfunctioning or fails to operate as described in this guide, discontinue use
and contact Bedfin LLC for assistance.
Loading a m ssag board
Before a message-board can be loaded into the unit, the message-board-end-gate must be unlocked and
disengaged from the base unit (Fig 13.1).

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
14
FIGURE 14.1 FIGURE 14.2
FIGURE 14.3
Pull and slide to unlock
St p 1
To unlock the message-board-end-gate, find the hand-knobs on the interior side at the rear of the base-unit, and
turn the knobs counterclockwise (Fig 14.1). This will loosen the message-board-end-gate from the base-unit. Back
the knobs off most of the way, but stop before they reach the end of the carriage bolt. If you back them off so far
they come off of the bolt, simply place the knob back on the bolt with a clockwise turn. Be sure to replace the
washer if it fell away.
St p 2
To disengage the message-Board-End-Gate, gently pull the message-board-end-gate straight back and away from
the base-unit. Once the message-board-end-gate is pulled back, gently slide it to toward the center of the bed (Fig
14.2). If you are loading the driver side unit you will need to slide it in the direction of the passenger side and do
the opposite for the passenger side. Doing this will expose the channels which restrain the message board (Fig
14.3).
St p 3
Guide the message-board into the upper and lower channels. Work slowly so as to not dent or bend your message
board (Fig 14.3).

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
15
FIGURE 15.1
St p 4
Once both top and bottom of the leading edge of the message-board are slid into the ends of the channel, feed the
rest of the message-board forward until it stops at the front of the base-unit. The message board may fail to slide
in completely due to being obstructed by the border up at the front of the base-unit. To resolve this, put some
slight pressure against the message-board surface at the front using both hands. Then push message-board
forward the rest of the way (approx. ½”).
St p 5
Replace the message-board-end-gate to its engaged position by sliding it to the far side opposite of the direction it
was slid in step 2. Then push the message-board-end-gate up against the base unit. Pinch the rear end of the
message-board with the end gate by slightly sliding the message-board-end-gate back towards the center of the
tailgate.
St p 6
While holding the message-board-end-gate in place with slight pressure, turn the hand knobs in a clockwise
position until tight. This will lock the message-board-end-gate in place, securing the message-board. There should
be no gaps between the message-board-end-gate and the end plate of the base-unit (Fig 15.1).

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
16
M ssag Board R quir m nts
Bedfin was designed for use with 5mm thick corrugated plastic sheet, such as Whitecap by Coroplast. The printing
can be provided by nearly all sign shops, however many may send the work out to a third party printer. The board
size should be as specified in the space below. If you are using an extension with your Bedfin unit, so that it fits a
larger truck, you must add the length of the extension to the length listed below. Do not use partial sheets to add
up to the full size of your unit as it may become loose while the vehicle is moving. Likewise, do not use any board
which is not properly sized as it may not be completely restrained by the borders of your Bedfin unit. If a message-
board does become unsecured from your Bedfin unit while traveling it may cause damage to property and/or
injury and death to people.
Bedfin message-board size in inches:
19.438” X 63.750”
[19-7/16” X 63-3/4”]
[Does not include additional length for extension]
Driving
Your Bedfin unit is designed to remain securely installed on your vehicle under normal driving conditions. Under
some extreme driving conditions, your Bedfin unit may be damaged and/or your vehicle may be damaged if Bedfin
is not uninstalled first. Operating with a damaged or unsecured Bedfin unit may result in damage to property
and/or injury and death to people. Avoid excessively bumpy roads, or reduce speed when avoiding such roads is
unavoidable. Large bumps, such as speed bumps and curbs are less problematic than small frequent bumps like
washboard roads and potholes. The smaller repeated bumps can cause a frequency of vibration which over time
may reduce the structural integrity of the weld joints. A good rul of thumb is, if it’s not good for your v hicl
susp nsion, it’s not good for your B dfin unit.
Saf ty ch cks
Routinely check for loosening of hardware before each trip. A quick check of each clamp, the message-board-end-
gate and visual inspection of the overall unit will help ensure you are operating with your Bedfin safely.
To check the clamps, simply grab each clamp and with moderate force, try to wiggle them from side to side. They
should not have any movement. If they do move, visually inspect them for damage and tighten the hardware if
they appear to be in good working condition.
To check the head-clamp, grab the top end of the base unit near the cab and push and pull repeatedly for a few
cycles with light to moderate force. If the base unit has considerable play, the clamp will require tightening. If
tightening does not eliminate the movement, your clamp may need to be replaced or swapped for a more suitable
style. Contact Bedfin LLC for assistance.

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
17
FIGURE 17.1

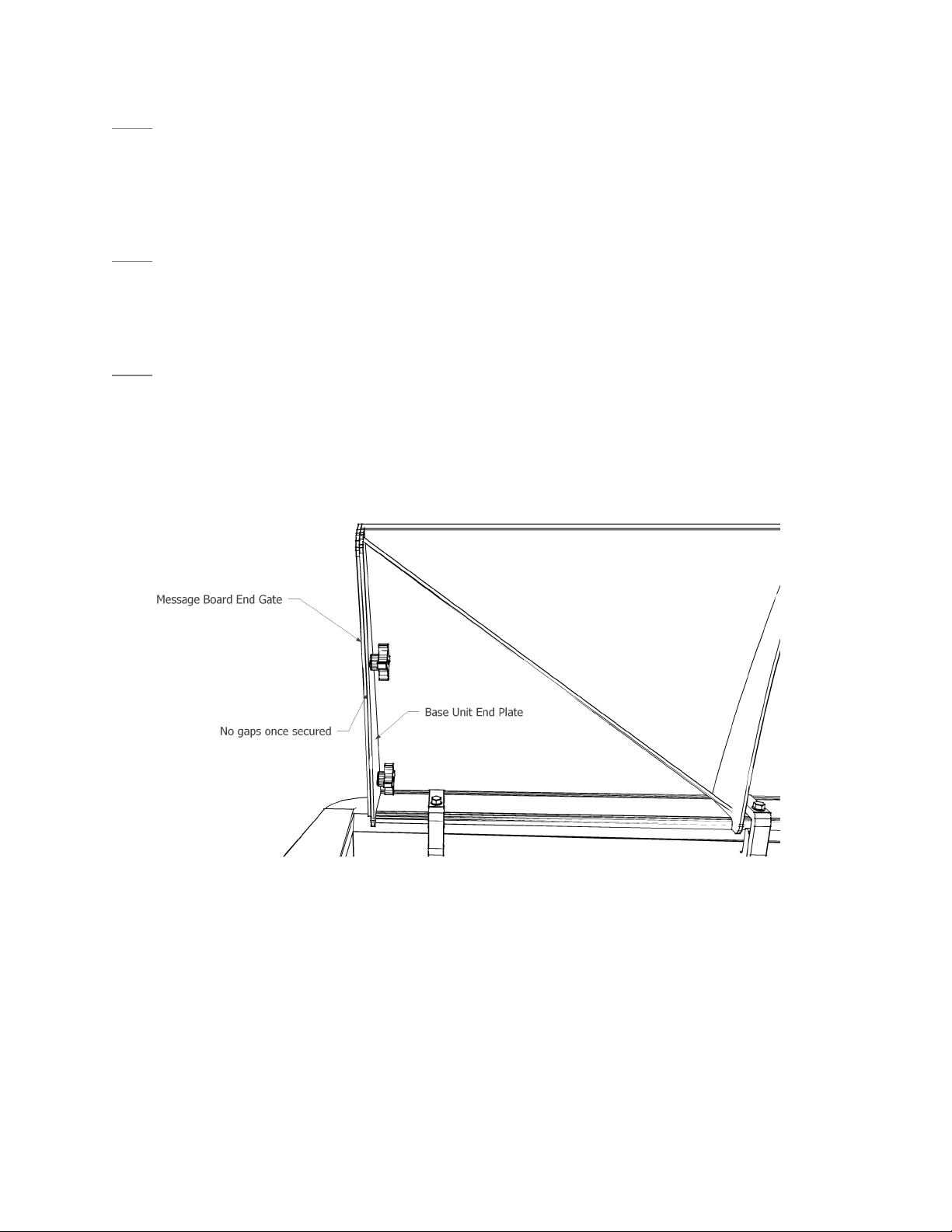

To check the message-board-end-gate, look at the surface where the message-board-end-gate meets the base unit
and look for gaps (Fig 17.1). The surfaces should not have any significant gaps. If there are gaps, then tighten the
hand knobs. The hand-knobs should be checked regularly to ensure they are hand tight. Do not over tighten, as
they do not require much torque to function properly. Over tightening may damage the threads and result in an
unsecure message-board. Replacements knobs are available through Bedfin LLC.
Cl aning
To keep your Bedfin unit looking its best and to reserve its finish, clean it regularly. The interval of cleaning will
depend on the environment in which it is used. In coastal environments frequent cleaning is important to remove
salt deposited from marine air. In inland environments, less frequent cleaning may be required to remove dust
and road debris.
First remove the printed message-boards from the Bedfin unit. The base-unit may be left on the vehicle for
cleaning, so long as the agents used are suitable for use on your vehicle. Clean the Bedfin unit using a mild soap
and soft bristled brush, soft sponge, or soft terry towel. The powder coat finish is textured and can trap dirt, so
small circular motions will work best. Do not use a high pressure water stream from a power washer, as it may cut
into the coating and cause damage to the unit. Do not use an automated car wash, as it may damage the Bedfin
unit.
Follow the supplier recommendations for cleaning your message-board. Each provider may have a different set of
instructions to ensure the image is not damaged during cleaning.
Storag
When not in use, store your Bedfin unit in its original packaging or in an environment where it will not experience
scratching or impact from other stored items. If storing for a long duration of time, it is recommended that all
components be disassembled and packaged separately to preserve finish.

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
18
Installation Guid
B dfin Ext nsion Mod l BFX30
(oth r BFX xt nsion mod ls r quir sam installation proc ss)
While one person alone may be able to install a unit, to help prevent strain injuries or damage to your vehicle, it is
recommended to have the assistance of a second person. In each step, when maneuvering the Bedfin signage or
other components around your vehicle, take extra care to avoid bumping against your vehicle; your vehicle finish
and or the signage system could be damaged.
The BFX series extension is only to be used with a BFX series base unit. Only one extension should be used per
each side of the truck. All parts required for installation are included with your purchase of the Bedfin extension.
Prior to installation, ensure all necessary components have been included in your package. An illustrated contents
list has been provided.
**************** IMPORTANT ****************
IF YOU DO NOT HAVE THE INSTALLATION/EMERGENCY UNINSTALLATION WRENCH WHICH CAME PROVIDED WITH
THE BASE UNIT, YOU WILL NEED 1 OF YOUR OWN 9/16” BOX WRENCH OR ADJUSTABLE CRESCENT WRENCH IN
ADDITION TO THE WRENCH PROVIDED IN THIS KIT. IT IS RECOMMENDED TO ALWAYS HAVE A SET OF
APPROPRIATE WRENCHES AVAILABLE WITH YOUR INSTALLED BEDFIN UNIT IN CASE AN ENEXPECTED
UNINSTALLATION IS NECESSARY.
** USING POWER DRIVEN TOOLS FOR INSTALLATION IS NOT RECOMMENDED AND MAY VOID WARRANTY **
*** DRILLING IS NOT REQUIRED AND MODIFYING YOUR BEDFIN UNIT IN ANY WAY WILL VOID WARRANTY ***
**** PRIOR TO INSTALLATION OR OPERATION, READ AND FOLLOW ALL MANUALS AND DOCUMENTATION****

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
19

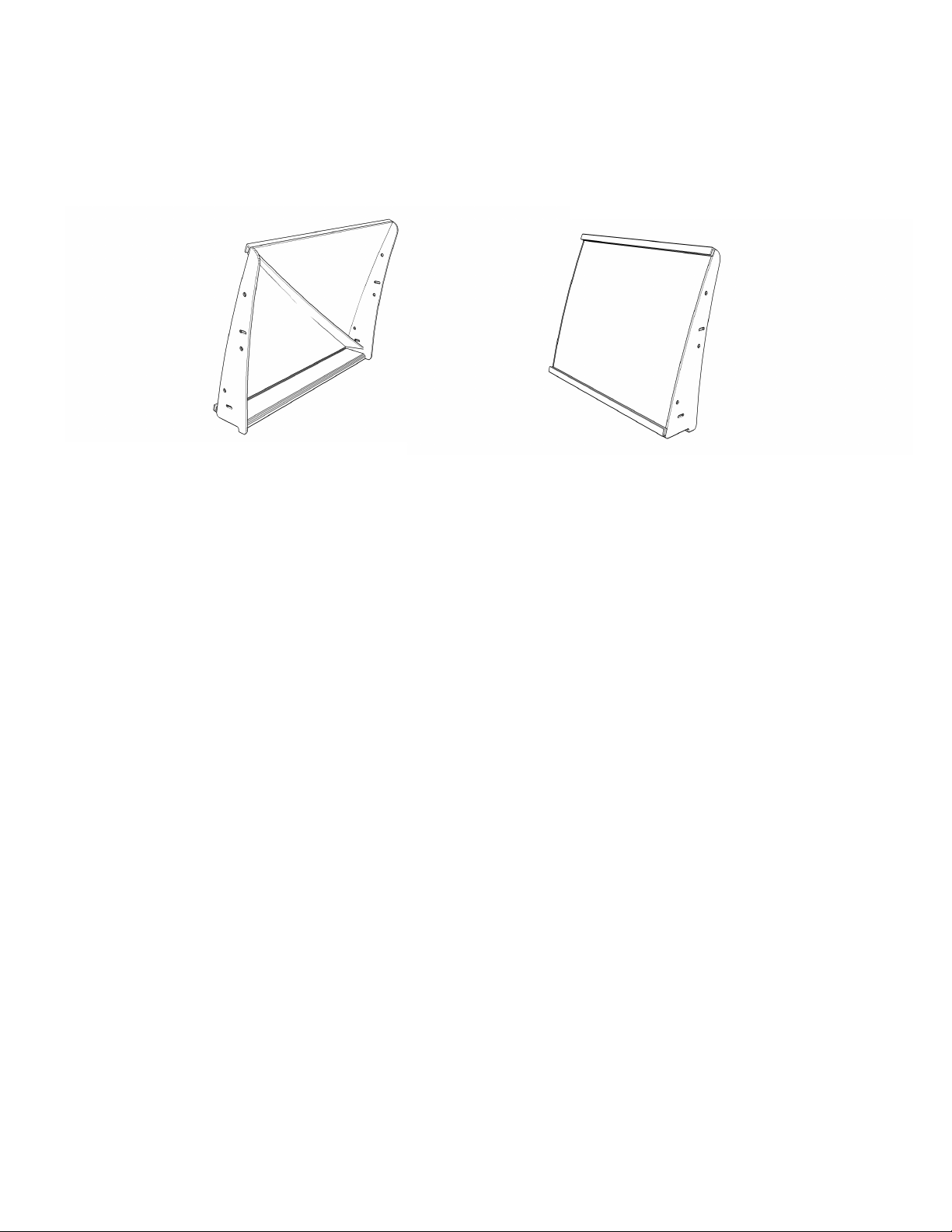

FIGURE 19.1
FIGURE 19.2
St p 1
Remove all contents from the packaging and verify the set is complete. Check for damage from transportation or
manufacturer defects prior to installation. An illustrated parts list has been provided. If any parts are missing or
appear damaged, discontinue installation and contact Bedfin LLC for assistance.
St p 2
With your Bedfin base-unit uninstalled from your truck and the message-board-end-gate removed (see Operations
Guide), lay both the driver side base-unit and the driver side extension end to end. (Fig 19.1) The extension should
be at the rear (Opposite of front end) of the base unit so the two identical vertical gussets are in contact with one
another.
- - - - - - IMPORTANT NOTE - - - - - -

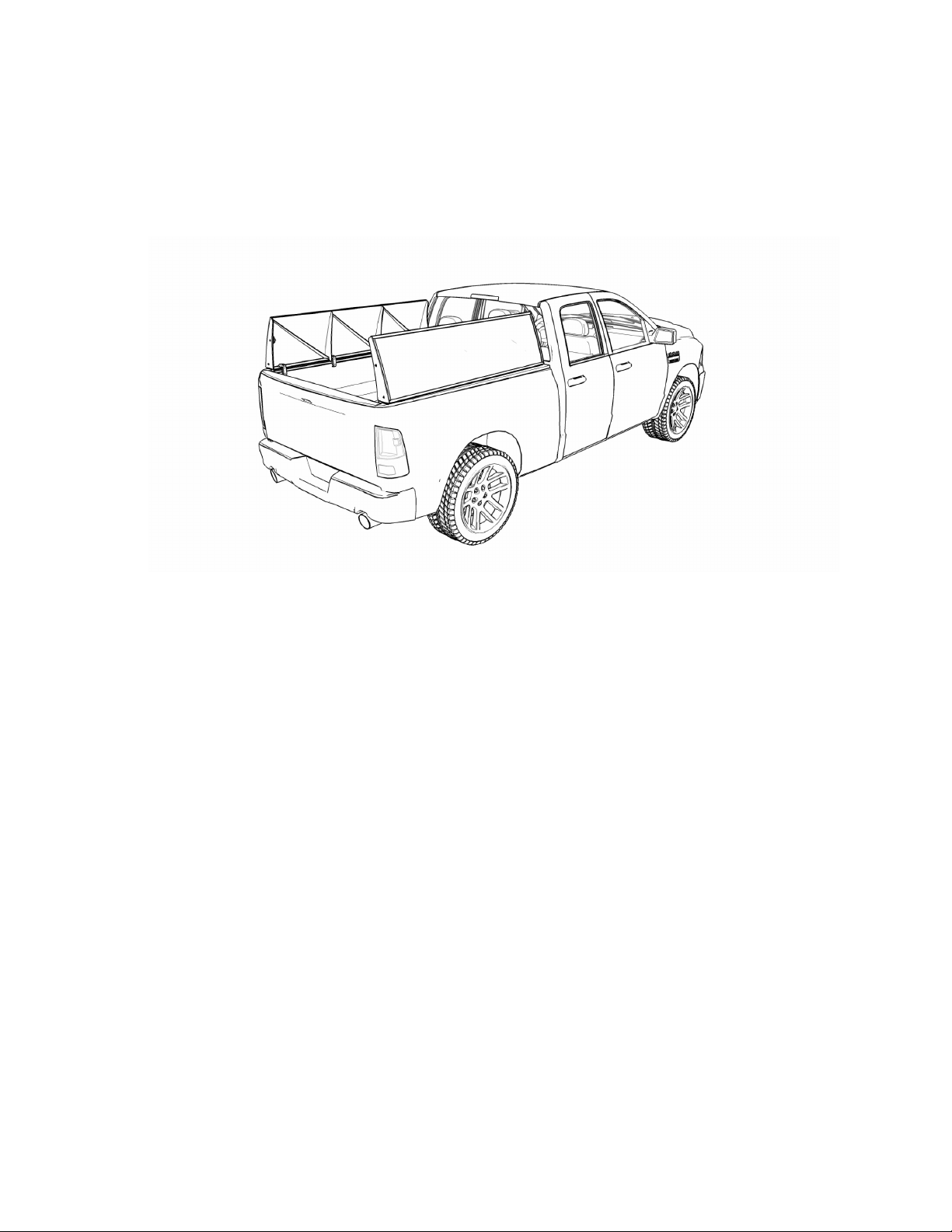

The driver side and passenger side extensions are not interchangeable. Refer to figure 9. and verify diagonal
gussets are all aligned in the same orientation.
St p 3
Place a washer on one of the bolts provided.
St p 4
With the base unit and extension aligned, feed the bolt through any one of the round holes in the vertical gussets
connecting the extension to the base-unit (Fig 19.2).

Bedfin LLC User’s Guide revision B20160427.1. Call Bedfin LLC at (253) 2-4112 for assistance.
This guide is provided based on typical installation and requirements for vehicles which Bedfin signage was designed. Every vehicle is different
in design and condition and strict attention to the vehicle limitations must be recognized and evaluated by installer and user. Bedfin accepts no
liability for units improperly installed and operated or any units installed on vehicles for which Bedfin signage is not suitable. Product support
may be provided from Bedfin LLC by phone or in other mediums without obligating Bedfin LLC to any liability for damage, injury, or death.
Comprehensive and regular inspection of Bedfin signage is the responsibility of user to ensure safe operation.
Page
20

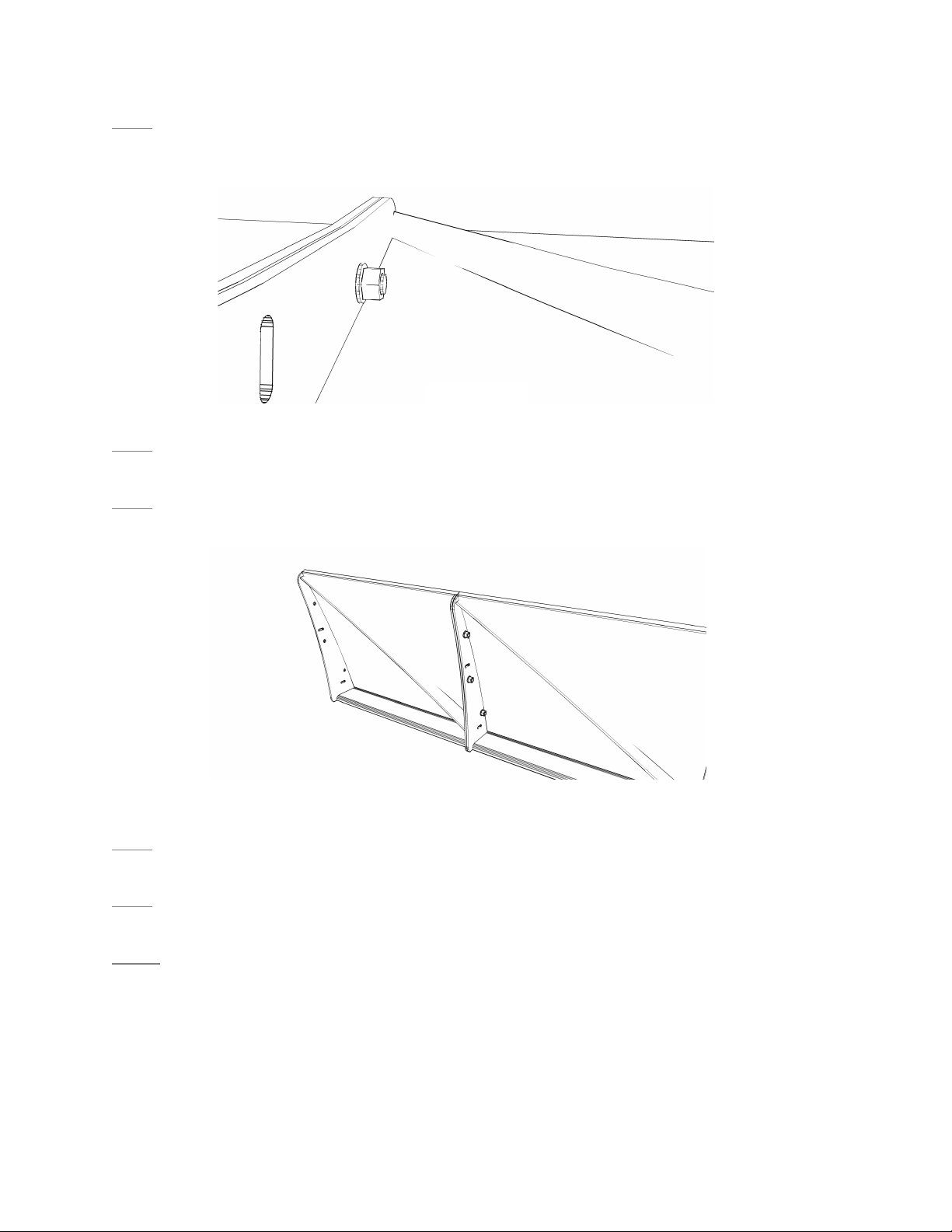

FIGURE 20.1
St p 5
While holding the bolt in place, place a washer on the end and then loosely attach a nut (Fig 20.1). Finger-tighten
only.
St p 6
Follow steps 3-5 for the two remaining round holes.
St p 7
While ensuring the base-unit and extension are perfectly aligned at the top and the bottom, lightly tighten the nuts
on each bolt using a wrench at the bolt head and a wrench on the nut (Fig 20.2).
St p 8
Repeat step 7 using more force to fully tighten each nut.
St p 9
Repeat steps 2- for passenger side extension.
St p 10
Follow the installation instructions as described for BFX66 to mount the extended unit on your truck.
- - - - - - IMPORTANT NOTE - - - - - -
When placing the three standard clamps as described in step 7 of the BFX66 installation guide, place the clamp
provided with your extension as close to the rear as you can without impeding the use of the hand knobs which
release the message-board-end-gate. Follow the tightening instructions per the BFX66 installation guide.
FIGURE 20.2
