Bedrug CJ-7 User manual

Congratulations on choosing the finest interior flooring kit available for your Jeep.
BedRug material is mold and mildew resistant, easily cleaned with water & household
cleaning chemicals and extremely resistant to most chemicals.
  Driver side wheel well, passenger
side wheel well, rear cargo area floor, tailgate piece,
hardware kit, and instruction sheet.
 Utility knife, soap, water and
rubbing alcohol.
PreParation
1. Read all instructions before beginning installation.
2. Remove rear seat and old Jeep flooring material.
3. Wash and dry the floor pan and wheel well areas thoroughly.

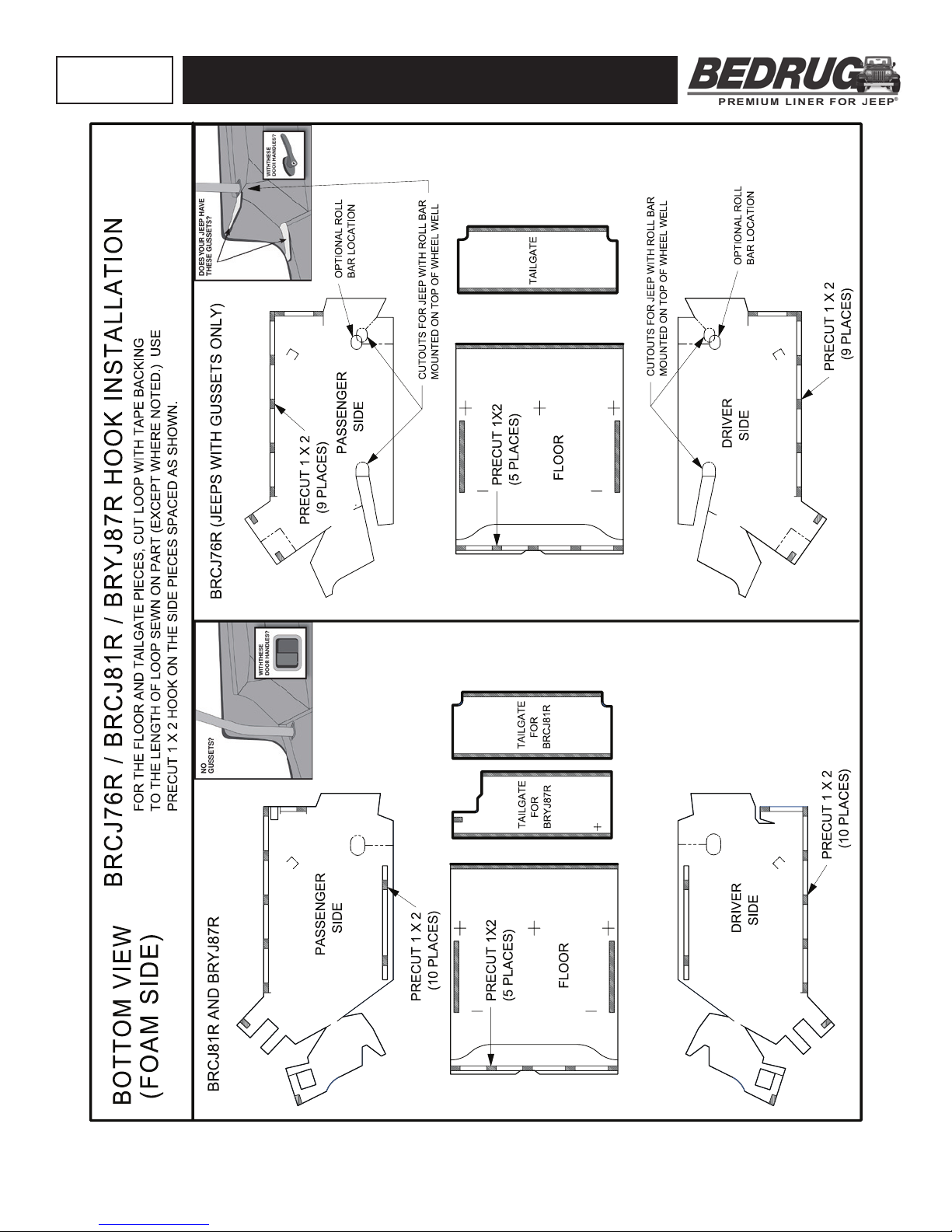

4. Cut the hook with tape backing, provided in the hardware kit, to the lengths indicated on drawing (page 5).
Place the loop onto each location. Do not remove the tape backing at this time.
(Note: Cut the longest pieces first.)
 Jeep floor should be at least 68°F (20°C) for maximum adhesion. Clean all areas with rubbing
alcohol before applying tape. When removing backing, do not touch adhesive. If both front and rear kits
were purchased be sure to install rear cargo area first. The BedRug product is designed to work with most
factory tub layouts. If the Jeep has any aftermarket accessories or custom parts such as seats brackets or
roll bars you may need to trim our product to fit.
installing tHe WHeel Wells
5. Fit driver side wheel well piece into place (Fig. 1), markings on
back of part indicate where to make cuts for roll bar, and rear seat
bracket (if equipped). Be sure to cut only markings necessary for
your Jeep. (See drawing on page 5).
6. Start at the rear of vehicle, making sure to line up bottom edge to
the floor and back edge tight to the rear flange. (Fig. 2 and Fig. 3)
Clean surface with alcohol then remove the film backing and roll
the part back into place. Firmly press the top surface to ensure
adhesive attachment.
7. If your wheel well piece has fastener along the top edge, pull down
the top of the wheel well piece to access the hook fastener. Clean
the surface with alcohol then remove the film backing and roll the
part back into place. Firmly press the top surface to ensure
adhesive attachment.
BEDRUG, INC. n635 Old Hickory Blvd, Old Hickory, TN 37138-3162 n 800-462-8435 n bedrug.com
Jeep Wrangler CJ-7/YJ BedRug
Interior Installation Instructions
CJ-7 YJ
BRCJ76R
BRCJ81R
BRYJ87R
REAR KITS:


BRCJYJRINST
Rev. 1 6/9/2014
Page 1 of 6

BEDRUG, INC. n635 Old Hickory Blvd, Old Hickory, TN 37138-3162 n 800-462-8435 n bedrug.com
installing Cargo area Floor
 For jeeps with a rear seat, trimming will be necessary to fit around seat mount and seat belt
attachment points. There are score lines on the back of the part to use as a guide.
10. With the rear seat removed, place the floor piece into position. Cut holes in floor piece if rear seat and
seat belts are present, using marks on back of part as a guide. (Fig. 7 and Fig. 8) Lift the floor piece
and pull the seat belts thru the holes.
11. Now pull up floor piece at the front side to access the hook fastener. Clean surface with alcohol then
remove the film backing from all of the locations behind the rear seat and roll the floor back into place.
Firmly press the top surface to ensure adhesive attachment. (Fig. 9 and Fig. 10)
Jeep Wrangler CJ-7/YJ Bedrug Install Instructions
CJ-7/YJ
8. Now pull back the front of the wheel well piece, clean surface with alcohol remove the tape backing
and press firmly back into place. (Fig. 4) Note: Depending on your roll bar mounting location, use
the indicator marks on the back of the wheel well piece as a guide to make cuts for the seat belt
mounts as well as flange and roll bar cutouts. (Fig. 5 and Fig. 6)
9. Repeat steps 5 thru 8 for the passenger side wheel well.




BRCJYJRINST
Rev. 1 6/9/2014
Page 2 of 6

BEDRUG, INC. n635 Old Hickory Blvd, Old Hickory, TN 37138-3162 n 800-462-8435 n bedrug.com
12. Now repeat the process for hook fastener at the sides by the wheel wells, and then at the rear
by the door opening. (Fig. 11) Note: Adjustments can be made after part is installed for proper
fit. Simply remove the piece that needs adjusting, the hook fastener will stay in place on jeep,
then reinstall as necessary.






Jeep Wrangler CJ-7/YJ Bedrug Install Instructions
CJ-7/YJ
BRCJYJRINST
Rev. 1 6/9/2014
Page 3 of 6

BEDRUG, INC. n635 Old Hickory Blvd, Old Hickory, TN 37138-3162 n 800-462-8435 n bedrug.com
installing tailgate PieCe
13. Clean surface with alcohol then remove film backing from the tailgate piece and attach to the tailgate.
Firmly rub entire surface to ensure good attachment. (Fig. 12 and 13)
 

Jeep Wrangler CJ-7/YJ Bedrug Install Instructions
CJ-7/YJ
BRCJYJRINST
Rev. 1 6/9/2014
Page 4 of 6

Jeep Wrangler CJ-7/YJ Bedrug Install Instructions
CJ-7/YJ
BEDRUG, INC. n635 Old Hickory Blvd, Old Hickory, TN 37138-3162 n 800-462-8435 n bedrug.com
BRCJYJRINST
Rev. 1 6/9/2014
Page 5 of 6

WARNING
The use of front floor mats is not recommended with BedRug or BedTred floor kits. If floor mats are used, it is
imperative to re-use the removable retention hooks from the factory carpet, installed to the manufacturer’s specifications.
Do not use floor mats or liners with BedTred Kits. Do not use floor mats or liners with BedRug Kits without retention
hooks. **Please retain these instructions for future reference in your vehicle’s glove box**
BEDRUG
®
BEDTRED
™
CLEANING INFORMATION
The mildew resistant BedRug/BedTred foam will not absorb liquids. The engineered composite surface resists stains and
deterioration from most acids, chemicals, gas and oils, etc. Therefore, by following the cleaning instructions below, your
BedRug/BedTred will remain serviceable for as long as you own your vehicle.
Cleaning your BedRug is easy:
1. A vacuum, broom, brush or compressed air can be used to remove dirt, grime, sand, mulch etc. Due to the
fact that water will not harm the product, pressure washing is also an effective way to clean a soiled
BedRug/BedTred.
2. Although most acids will not harm the BedRug/BedTred, baking soda should be applied immediately to
neutralize the acid to ensure the safety of the paint on the vehicle.
3. To clean tougher jobs such as gasoline, oil, chemicals, acid spills or leaks from your BedRug/BedTred use
detergent soap with degreaser and water, then rinse thoroughly. This detergent soap is used in most car wash
locations with pressure washing equipment. The polypropylene closed-cell foam will not absorb water and
the composite surface dries in minutes.
If you have additional questions, call BedRug Inc. customer service at 800-462-8435.
LIMITED WARRANTY
BedRug Inc. warrants BedRug and BedTred products for Jeep vehicles for three years from the original date of purchase.
Warranty is limited to the original purchaser and is not transferable. Product is warranted to be free from defects in
materials and workmanship. The warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service/installation/removal, modifications, acts of God, normal wear and tear, or other causes not
arising out of defective materials or workmanship. Consequential and incidental damages are not covered under this
warranty. Warranty does not cover labor, the cost of shipping, or cost of returning the product for warranty service or
inspection. The terms of this warranty may vary from state to state. You may have rights under specific state laws that
differ from the terms of this warranty. Proof of purchase will be required for warranty service. Product should be cleaned
before return. A return authorization number must be obtained prior to returning any product. For warranty instructions,
returns, and packaging contact BedRug Inc. Customer Service at 800-462-8435.
PRODUCT REGISTRATION
Thank you for purchasing your BedRug product! We would appreciate it if you would take a few minutes to register your
purchase. Registration allows us to provide, with your permission, important updates, service information, helpful hints
or warranty service should you ever require technical support. BedRug offers the option of returning product registration
forms electronically, rather than having to fill them out by hand. You can be assured that BedRug does not share or sell
the information you provide. Save a copy of your sales receipt. Activate your warranty by registering your product online
at http://www.bedrug.com/customer-service/product-registration.html or by scanning the QR code. You will need the 6-
digit lot and date code found on the underside of the tailgate, see label example below.
 

BRCJYJRINST
Rev. 1 6/9/2014
Page 6 of 6
