Bedrug Bedliner User manual

BedRug Bedliner Installation Instructions
Preparation
BRINST Rev. Level: 15 12/4/2009 Page 1 of 6
Part Number(s): Multiple
WARNING: IMPROPER INSTALLATION
WILL RESULT IN LINER FLYING OUT OF
THE TRUCK. FOLLOW INSTRUCTIONS
EXACTLY.
IMPORTANT: Never cut or put slits through
any seams or sewn areas of the BedRug, unless
specifically detailed in these instructions. This
will cause the seam to come completely apart.
Kit Contents
Item # Quantity Req’d. Description
1 1 BedRug floor/tailgate assy
2 1 BedRug bulkhead/sidewall assy
3 1 Hardware kit
Additional Items Required For Installation
Item # Quantity Req’d. Description
Recommended Tools
Personal & Vehicle
Protection Notes
Safety Glasses
Gloves
Special Tools Notes
Tool required to remove tie
downs (unique to vehicle)
Installation Tools Notes
Utility Knife Use to cut slits or trim
BedRug for cargo mgmt.
systems
Awl Use to locate tie down
fasteners. Holes to be placed
in BedRug
Special Chemicals Notes
Approved cleaner Rubbing Alcohol
General Applicability
Multiple
Legend
STOP: Damage to the vehicle may occur. Do not
proceed until process has been complied with.
OPERATOR SAFETY: Use caution to avoid risk of
injury.
CAUTION: A process that must be carefully observed
in order to reduce the risk of damage to the
accessory/vehicle and to ensure a quality installation.
TOOLS & EQUIPMENT: Calls out the specific tools
and equipment recommended for this process.

BedRug Bedliner Installation Instructions
Procedure
BRINST Rev. Level: 15 12/4/2009 Page 2 of 6
This document covers such items as:
•Vehicle Preparation (use of cleaners, adhesive promoters, etc.).
•Safety (rechecking torque procedure, etc.).
•BedRug installation.
1. Check Kit Content.
(a) Verify that the kit contains all the parts listed in the
Kit Contents.
2. Vehicle Preparation.
(a) Wash and Dry the Bed and Tailgate areas thoroughly.
(b) IMPORTANT: Review all instructions before
beginning installation. Truck bed should be at least
68°F (20°C) for maximum adhesion. Clean all areas
with an approved cleaner before applying tape. Do not
remove backing from any tape until ready to adhere to
the truck bed. When removing backing, do not touch
adhesive. Extra adhesive strips have been provided in
the kit for future use or if the installer deems more
fasteners are necessary for better fit/appearance.
3. Pre-assemble BedRug.
(a) Align the sides of the BedRug as shown. NOTE:
BEDRUG FLOOR IS FACE DOWN FOR THIS
OPERATION. (Fig 3-1)
(b) Once properly aligned, zip sides into place. (Fig 3-2)
4. Pre-fitting BedRug.
(a) Before preceeding with installation, verify whether or
not the bed of the vehicle has a bedrail cargo
management system installed.
(b) If a bedrail is present, trim off sections in the corners
of the bulkhead. (Fig. 4-2) If not, proceed with step 5.
Fig 4-2
Fig. 3-1
Fig. 3-2
Utility Knife

BedRug Bedliner Installation Instructions
Procedure
BRINST Rev. Level: 15 12/4/2009 Page 3 of 6

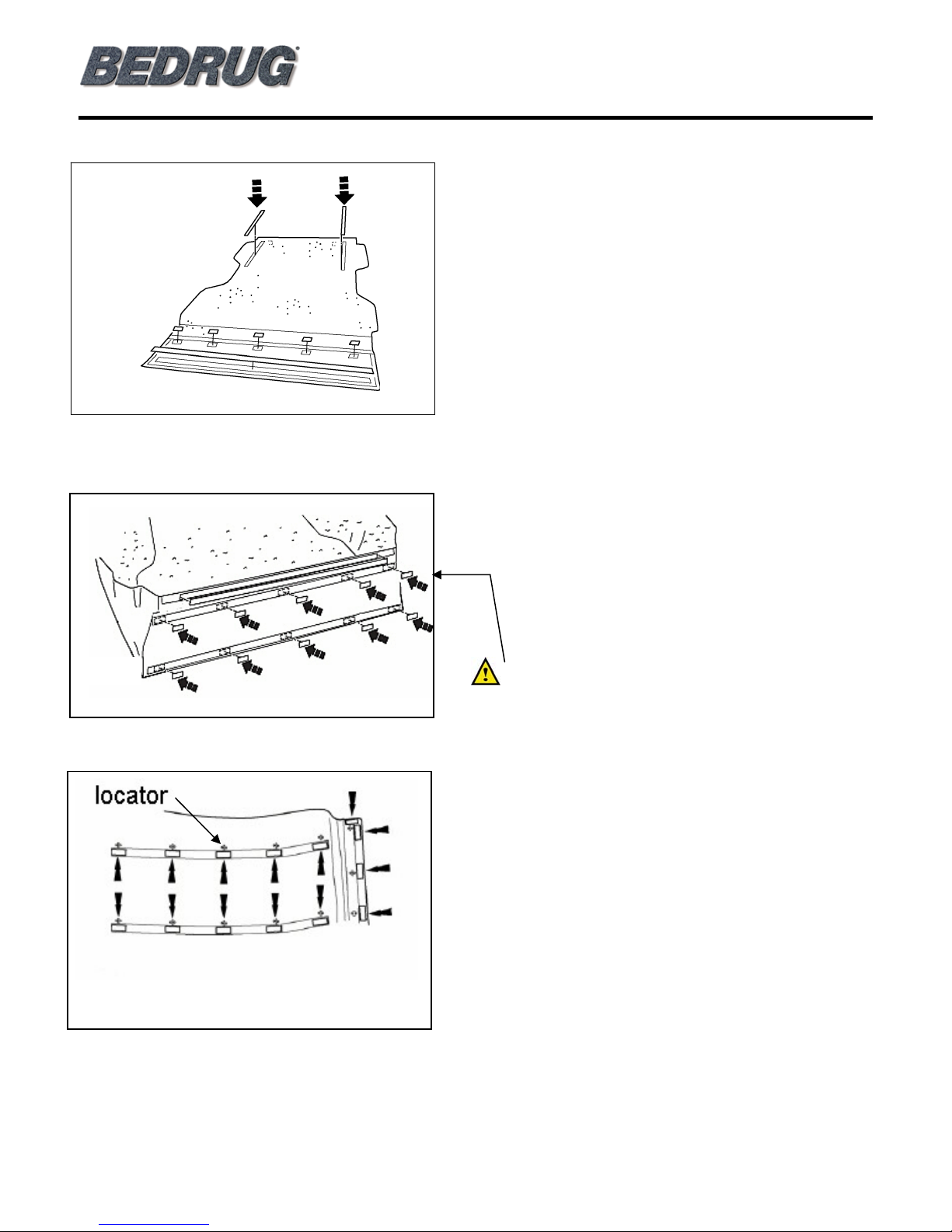

5. Installing fasteners to Bed Rug.
(a) Attach (2) 1”X 36”, 1”X 2” and 1”X 60” hook to
underside of the BedRug and tailgate. Trim 1”X 60”
strip where necessary. Do not remove adhesive
protective film at this time. (Fig 5-1)
(b) Attach 1” X 60” and 1” X 2” hook to the BedRug
bulkhead area facing the front as shown. Trim excess
from 1” X 60” strip where necessary. Do not remove
adhesive protective film at this time. (Fig. 5-2)
Middle 1” x 2” row of hook fasteners shown are not
applicable on some models.
(b) Attach 1” X 2” fasteners to the back sides of the
BedRug sidewalls as marked by locators. Do not
remove adhesive protective film at this time.
(Fig 5-3)
Fig. 5-1
Fig. 5-2
Fig. 5-3

BedRug Bedliner Installation Instructions
Procedure
BRINST Rev. Level: 15 12/4/2009 Page 4 of 6

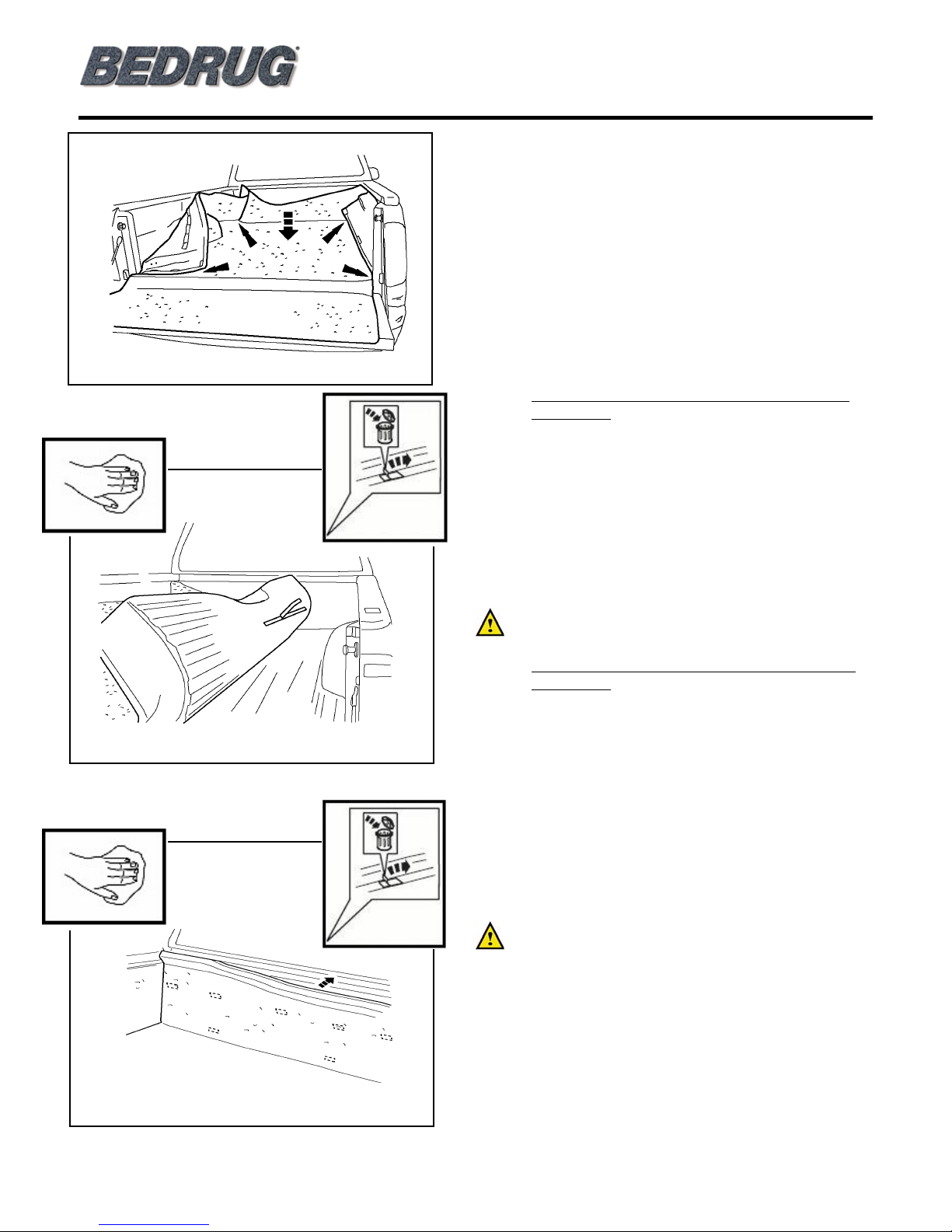

6. Installing BedRug floor and bulkhead
(a) Locate BedRug in the truck bed.
(b) Position the BedRug - front to rear and left to right by
aligning all edges and tucking corners into place. (Fig
6-1)
(c) Roll the Bed Rug floor to you, exposing the 1”x36”
fastener located on the BedRug bottom.
(d) Clean attachment area thoroughly with alcohol and
allow to dry.
(e) Remove the film. (Fig 6-2)
(f) Roll the BedRug floor and sidewalls back in place.
(g) Firmly press the Bed Rug top surface for 15 seconds
to ensure adhesive attachment.
(h) Repeat for other side
(i) Fit top edge of BedRug bulkhead to top edge of body
panel to determine best location. (Fig 6-3)
Be sure fasteners are located on a flat solid surface of
truck bed.
(j) Clean attachment areas thoroughly with alcohol and
allow to dry.
(k) Remove the film working from bottom to top and
center of part outboard.
(l) Roll the BedRug top edge back in place.
(m) Firmly press the Bed Rug top surface for 15 seconds
to ensure adhesive attachment.
7. Fitting BedRug for beds with tie-down hooks
or other optional features
Some truck beds are equipped with tie-down hooks,
load extenders and other functional equipment
located in the floor, bulkhead or sidewalls. For
these the installer must either:
(a) Cut a small slit in the appropriate area allowing the
equipment to protrude through the BedRug surface
(This will not damage the BedRug) or,
Fig. 6-2
Fig. 6-1
Fig. 6-3

BedRug Bedliner Installation Instructions
Procedure
BRINST Rev. Level: 15 12/4/2009 Page 5 of 6
(b) Remove the equipment until the BedRug installation is
complete, then reinstall the equipment on top of the
BedRug.
Do not cut through any seams or sewn lines.
TIP: It is easiest to locate fastener holes with an awl
after BedRug is positioned for best fit.
Be sure to re-torque tie down fasteners to the OEM
specifications.
8. Installing BedRug sidewalls and tailgate.
(a) Rear vertical edge of BedRug should be positioned to
match D-pillar surface. Start at front and working
rearward begin removing film from fasteners bottom
to top and from front to back. Firmly press the
BedRug sidewall for 15 seconds to ensure adhesive
attachment. Repeat for other side. (Fig 8-1)
NOTE: If using the BedRug in conjunction
with a bed extender, cut the slits (located on
back of part) of the D-pillar area to allow
access to attachment holes. (Fig 8-2)
(b) Rotate the BedRug up to access tailgate fasteners.
(c) Clean attachment areas thoroughly with alcohol and
allow to dry.
(d) Apply adhesive promoter to plastic cap. (if applicable)
(e) Remove the film and align the edge of the BedRug
tailgate section to the top edge of the tailgate.
(Fig 8-3)
Do not adhere the hook fastener to the factory plastic
tailgate cap unless a 4298 adhesive promoter pack
is included in the hardware kit. Most models are
designed to adhere to sheet metal just below plastic
tailgate cap.
(f) Roll the BedRug tailgate back in place.
(g) Firmly press the BedRug tailgate for 15 seconds to
ensure adhesive attachment.
(h) After installation is complete, tuck BedRug material
between the tailgate and truck bed.
Fig. 8-1
Fig. 8-3
Utility Knife
Fi
g
. 8-2

BedRug Bedliner Installation Instructions
Procedure
BRINST Rev. Level: 15 12/4/2009 Page 6 of 6
BEDRUG® CLEANING INFORMATION
The mildew resistant BedRug foam will not absorb liquids. The engineered polypropylene fiber top surface
resists stains and deterioration from most acids, chemicals, gas and oils, etc. Therefore, by following the
cleaning instructions below, your BedRug will remain serviceable for as long as you own your truck.
Cleaning your BedRugis easy:
1. A vacuum, broom, brush or compressed air can be used to remove dirt, grime, sand, mulch etc.
Due to the fact that water will not harm the BedRug, pressure washing is also an effective way to
clean a soiled BedRug.
2. Although most acids will not harm the BedRug, baking soda should be applied immediately to
neutralize the acid to ensure the safety of the paint on the truck.
3. To clean tougher jobs such as gasoline, oil, chemicals, acid spills or leaks from your BedRug, use a
detergent soap with degreaser and water, then rinse thoroughly. This detergent soap is used in most
car wash locations with pressure washing equipment. The BedRug polypropylene closed-cell foam
will not absorb water and the polypropylene fiber dries in minutes.
If you have additional questions, call BedRug, Inc. customer service at 800-462-8435.
Retain this cleaning information with your vehicle owner’s manual for future reference.
BedRug, Inc.
LIMITED WARRANTY
BedRug, Inc. warrants BedRug®, BedTred TM, VanRugTM, and VanTred TM, for pickup trucks and vans to be free
from defects in materials and workmanship. BedRug Bedliners will be warranted for the duration of the vehicle
ownership by the original BedRug purchaser. The terms of this warranty may vary from state to state. You may
have rights under specific state laws that differ from the terms of this warranty. Proof of purchase will be required
for warranty service. Customer modifications and/or improper return packaging of the product may void this
warranty. Product should be cleaned before return. For warranty instructions, returns and packaging contact
BedRug, Inc. Customer Service at 800-462-8435. Labor and shipping are not covered under the terms of this
agreement.
Retain this warranty information with your vehicle owner’s manual for future reference.
FOR WARRANTY SERVICE CALL 800-462-8435
