Beechcraft C23 SUNDOWNER 180 Owner's manual

PILOT'S OPERATING HANDBOOK
AND FAA APPROVED
AIRPLANE FLIGHT MANUAL
forthe
eecheraft
Sunclowner 180 C23
FAA APPROVED INNORMALAND UTILITYCATEGORY BASED
ON CAR 3. THIS DOCUMENT MUST BE CARRIED IN THE
AIRPLANE AT ALL TIMES AND BE KEPT WITHIN REACH OF
THE PILOT DURING ALL FLIGHT OPERATIONS.
THIS HANDBOOK INCLUDES THE MATERIAL REQUIRED TO
BE FURNISHED TO THE PILOT BY FAR PART 23.
Mfr's Serial No.
Registration No.
FAA Approved by:
THIS HANDBOOK SUPERSEDES ALL BEECH PUBLISHED
OWNERS MANUALS AND CHECK LISTS ISSUED FOR THIS
AIRPLANE WITH THE EXCEPTION OF FAA APPROVED
AIRPLANE FLIGHT MANUALS.
P/N 169-590008-23 P/N 169-590008-23A4
Issued: February, 1979 Revised: January, 1982

PUBLISHED BY
COMMERCIAL PUBLICATIONS
BEECH AIRCRAFT CORPORATION
WICHITA, KANSAS 67201
U. S. A.
Geechcraft --
General Avtation
ARilyNieert Company Manufacturers Associalion

C23 Sundowner 180
Pilot's Operating Handbook
and
FAA Approved
Airplane Flight Manual

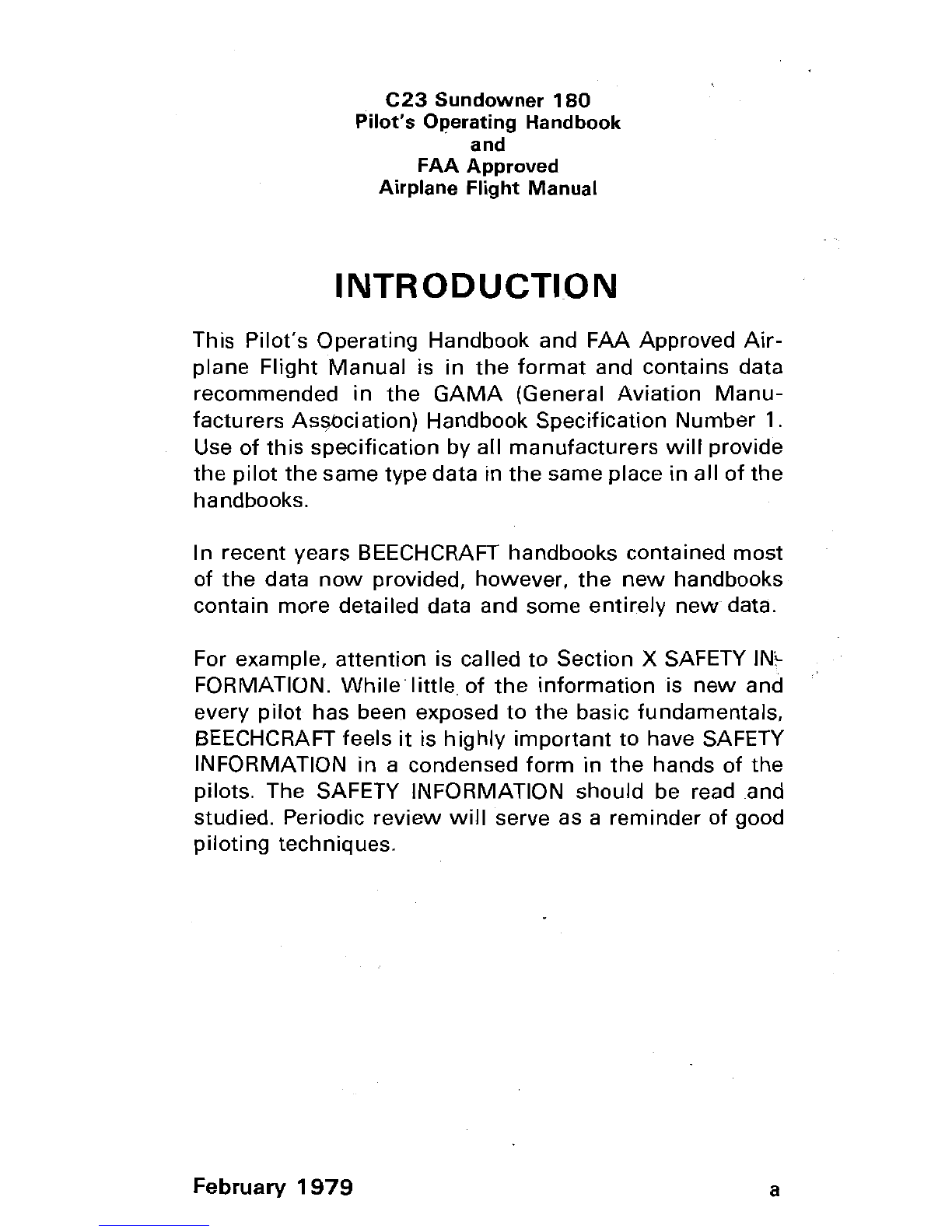

INTRODUCTION
This Pilot's Operating Handbook and FAA Approved Air-
plane Flight Manual is in the format and contains data
recommended in the GAMA (General Aviation Manu-
facturers Association) Handbook Specification Number 1.
Use of this specification by all manufacturers will provide
the pilot the same type data in the same place in all of the
handbooks.
In recent years BEECHCRAFT handbooks contained most
of the data now provided, however, the new handbooks
contain more detailed data and some entirely new data.
For example, attention is called to Section X SAFETY IN¾
FORMATION. While little of the information is new and
every pilot has been exposed to the basic fundamentals,
BEECHCRAFT feels it is highly important to have SAFETY
INFORMATION in a condensed form in the hands of the
pilots. The SAFETY INFORMATION should be read and
studied. Periodic review will serve as areminder of good
piloting techniques.
February 1979 a

Sundowner 180 C23
PILOT'S OPERATING HANDBOOK
and
FAA APPROVED AIRPLANE FLIGHT MANUAL
TABLE OF CONTENTS
SECTION 1 ................................. General
SECTION 2.............................. Limitations
SECTION 3................... Emergency Procedures
SECTION 4...................... Normal Procedures
SECTION 5 ............................. Performance
SECTION 6....... Weight and Balance/Equipment List
SECTION 7..................... Systems Description
SECTION 8.. . . . Handling, Servicing and Maintenance
SECTION 9 ............... ............ Supplements
SECTION 10 ...................... Safety Information
bFebruary 1979

SUNDOWNER 180 C23
Pilot's Operating Handbook
and
FAA Approved Airplane Flight Manual
A4....................................................................January, 1982
LOG OF REVISIONS
Page Description
Title Page Added Revision Date
Logo Page Added
Page A (A4) Updated
5-1 Revised "Table of Contents"
5-3 thru 5-6 Revised "Introduction to Performance
and Flight Planning"
5-18 Revised "Cruise Performance" chart
5-19 Shifted Material and Added
"Notes"
5-20 Shifted Material
5-21 Added New Page and Shifted
Material
5-22 Added New Page
7-1 Revised "Table of Contents"
7-3 Revised "Table of Contents"
7-5 Shifted Material
7-6 Shifted Material
7-11 Shifted Material and Revised "Flight
Instruments"
7-25 Shifted Material and Revised
"Alternator"
7-26 and Shifted Material and Revised
7-27 "External Power Receptacle"
7-28 Shifted Material and Revised
"Interior Lighting"
7-30 Shifted Material
7-31 Shifted Material
1of 2Page A

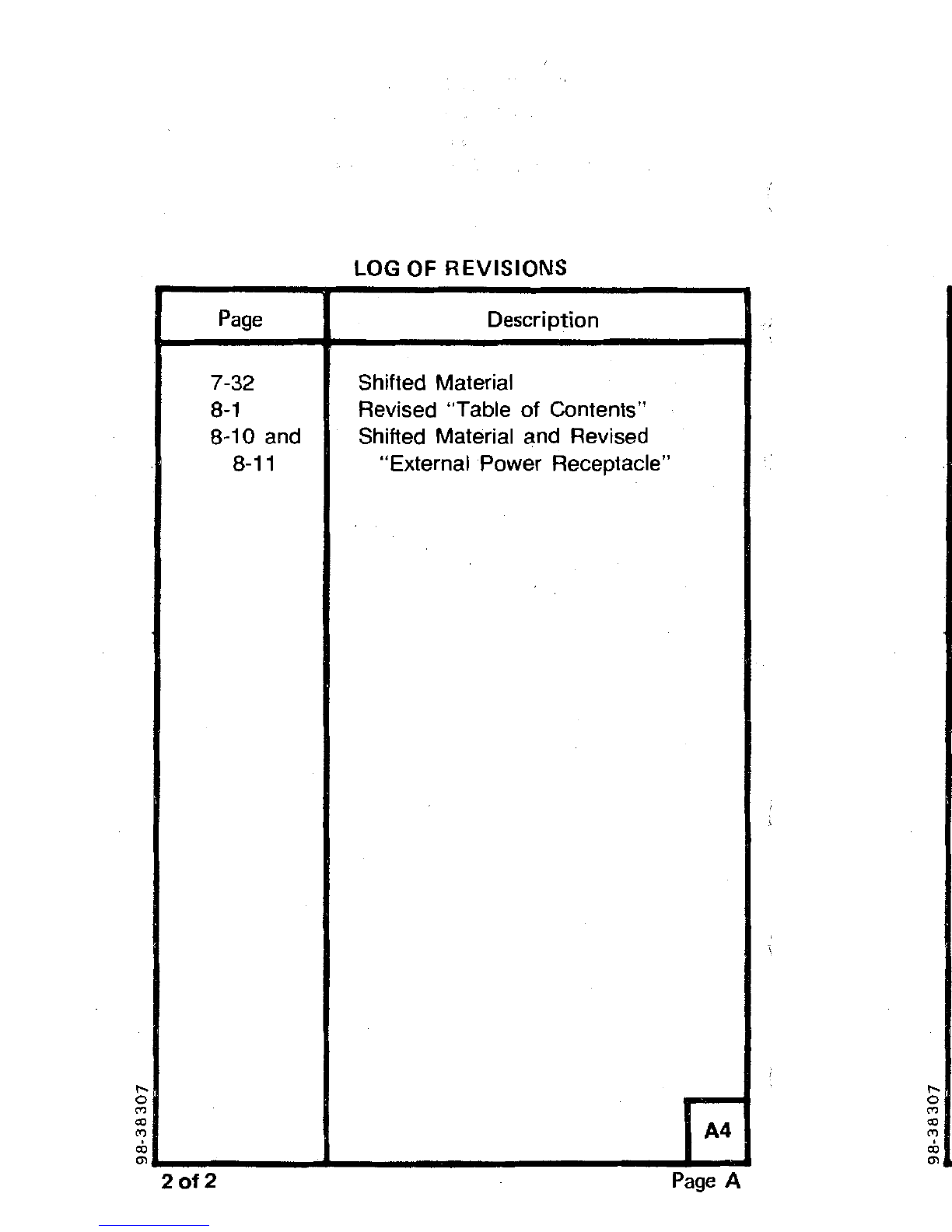

LOG OF REVISIONS
Page Description
7-32 Shifted Material
8-1 Revised "Table of Contents"
8-10 and Shifted Material and Revised
8-11 "External Power Receptacle"
2of 2Page A

SUNDOWNER180 C23
Pilot's Operating Handbook
and
FAA Approved Airplane Flight Manual
A3...................................................................... August,1980
LOG OF REVISIONS
Page Description
Title Page Added Revision Date
Page A (A3) Updated
1-4 and 1-5 Revised "Use of Handbook"
1-6 Shifted Material
1-15 Revised "Engine Controls and
Instruments"
2-5 Revised "Power Plant Limitations"
2-12 Revised "Electrical Power"
2-27 Revised "Fuel Selector Panel" Placard
2-28 Shifted Material
3-1 Revised "Table of Contents"
3-3 Revised "Emergency Airspeeds" and
Added Note
3-7 Revised "Emergency Descent"
3-8 and 3-9 Added "Starter Engaged Warning
Light Illuminated" and Revised
"Alternator Out Procedure"
3-10 and 3-11 Shifted Material
4-1 Revised "Table of Contents"
4-5 Shifted Material
4-6 Revised "Before Starting"
4-7 Shifted Material
4-8 Revised "Starting"
4-9 Revised "Before Take-off"
4-10 thru 4-12 Shifted Material
6-5 Revised "Weighing Instructions"
6-11 Revised "Weight and Balance
Responsibilities"
7-2 Revised "Table of Contents"
7-15 Revised "Shoulder Harnesses"
7-18 and 7-19 Shifted Material A3
1of 2Page A

LOG OF REVISIONS
Page Description
7-20 Revised "Starter"
7-21 and 7-23 Revised "Fuel System"
8-15 Revised "Tires"
8-34 and 8-35 Revised "Consumable Materials"
8-41 Revised "Power Plant"
10-1 Thru 10-67
BevisedSafety Section
Dated March 1981.
2of 2 Page A

Sundowner 180 C23
PILOT'S OPERATING HANDBOOK
and
FAA APPROVED AIRPLANE FLIGHT MANUAL
LOG OF REVISIONS
A2-----------................. October1979
PAGE DESCRIPTION
Title Page Update
Page A (A2) New
2-1 Update Table of Contents
2-5 Add "Fuel Additives"
2-6 Shift Material
2-7 Revise "Weight Limits" and "Center
of Gravity Limits"
2-8 Revise "Maneuver Limits"
4-1 Update Table of Contents
4-8 Revise "After Starting and Before
Taxi"
4-10 Shift Material
4-11 Revise "Descent"
4-15 Add "Noise Characteristics"
8-8 Revise "Jacking"
8-35 Revise "Consumable Materials"
Page A

Sundowner 180 C23
PILOT'S OPERATING HANDBOOK
and
FAA APPROVED AIRPLANE FLIGHT MANUAL

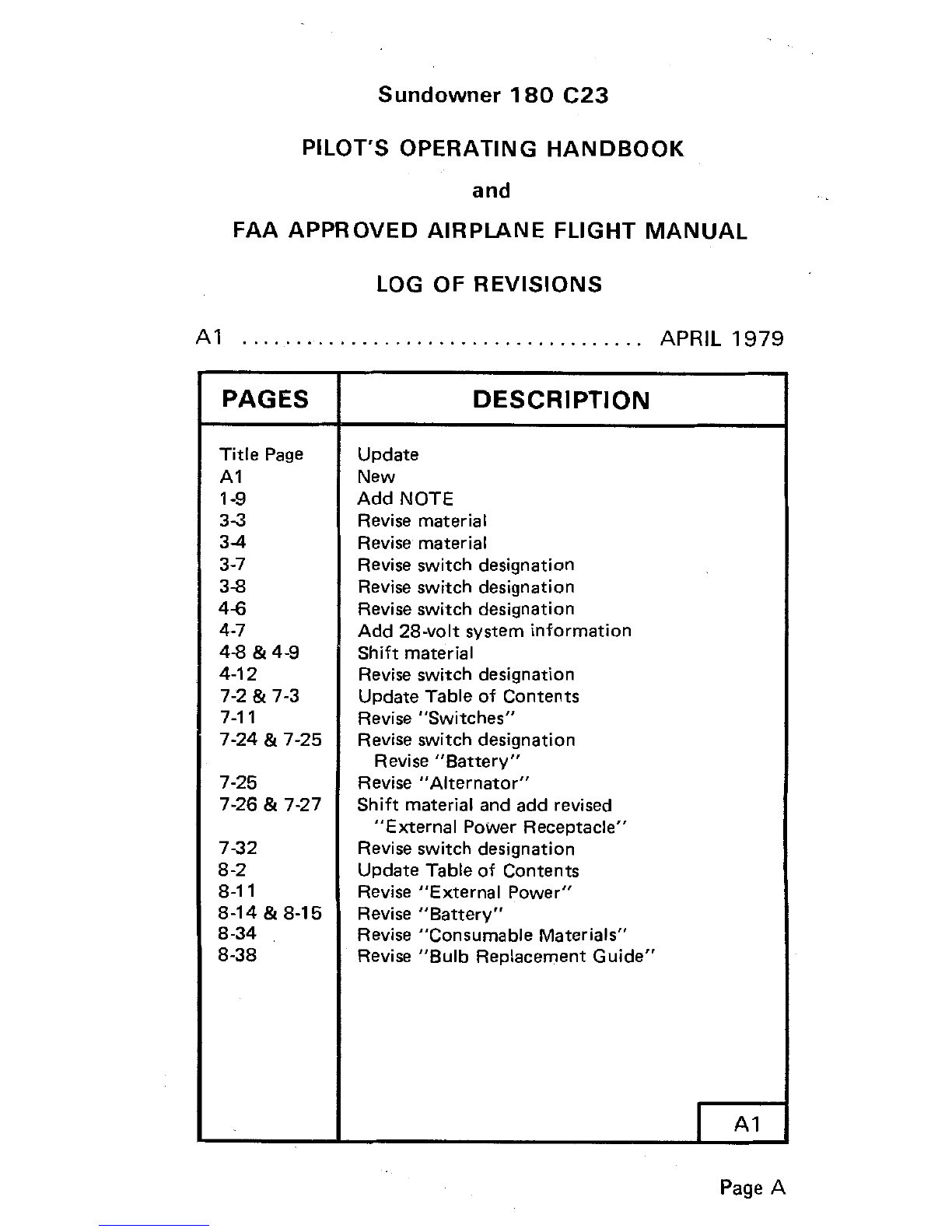

LOG OF REVISIONS
A1 ............. ........ ............ APRIL 1979
PAGES DESCRIPTION
Title Page Update
A1 New
1-9 Add NOTE
34 Revise material
34 Revise material
3-7 Revise switch designation
3-8 Revise switch designation
4-6 Revise switch designation
4-7 Add 28-volt system information
4-8 &4-9 Shift material
4-12 Revise switch designation
7-2 &7-3 Update Table of Contents
7-11 Revise "Switches"
7-24 &7-25 Revise switch designation
Revise "Battery"
7-25 Revise "Alternator"
7-26 &7-27 Shift material and add revised
"External Power Receptacle"
7-32 Revise switch designation
8-2 Update Table of Contents
8-11 Revise "External Power"
8-14 &8-15 Revise "Battery"
8-34 Revise "Consumable Materials"
8-38 Revise "Bulb Replacement Guide"
Page A

Sundowner 180 C23
PILOT'S OPERATING HANDBOOK
and
FAA APPROVED AIRPLANE FLIGHT MANUAL
LOG OF REVISIONS

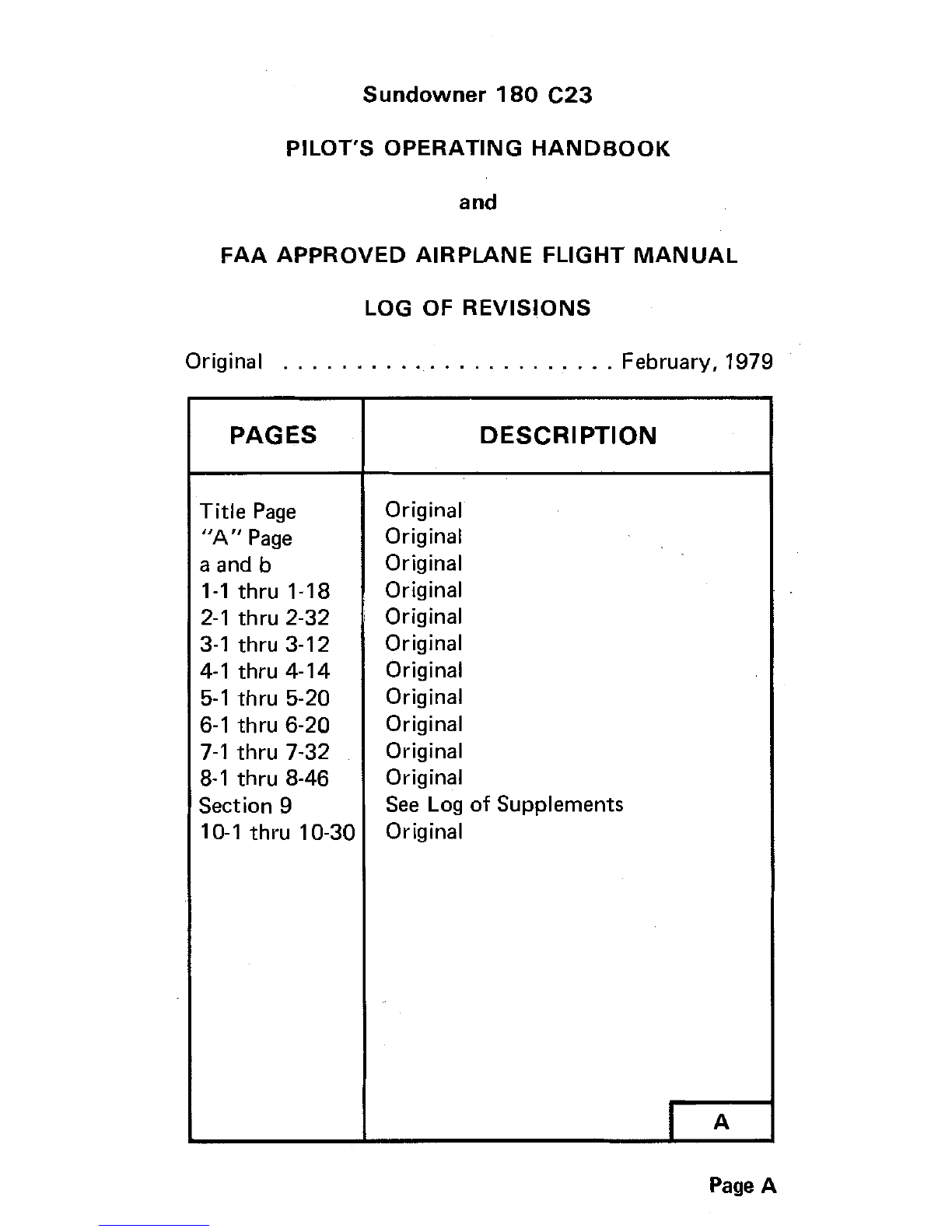

Original .......................February,1979
PAGES DESCRIPTION
Title Page Original
"A" Page Original
aand bOriginal
1-1 thru 1-18 Original
2-1 thru 2-32 Original
3-1 thru 3-12 Original
4-1 thru 4-14 Original
5-1 thru 5-20 Original
6-1 thru 6-20 Original
7-1 thru 7-32 Original
8-1 thru 8-46 Original
Section 9See Log of Supplements
10-1 thru 10-30 Original
A
Page A

BEECH CRAFT Sundowner 180
C23(An-1285anelAfter)
SECTION I
GENERAL
TABLE OF CONTENTS
SUBJECT PAGE
Thank You ...................................... 1-3
Important Notice ................................ 1-3
Use of the Handbook ............................ 1-4
Revising the Handbook .......................... 1-5
Supplernents Revision Record ...... . .. . ..... . . . . . 1-6
Vendor-Issued STC Supplements ................. 1-6
Airplane Three View ............................ 1-7
Ground Turning Clearance ....................... 1-8
Descriptive Data
Engine ...................................... 1-9
Propeller .................................... 1-9
Fuel ........................................ 1-9
Oil Capacity ................................ 1-10
February 1979 1-1

Section I BEECHCRAFT Sundowner 180
General C23 (M-1285 ánd After)
TABLE OF CONTENTS (Continued)
SUBJECT PAGE
Approved Oil Types ......................... 1-10
Maximum Certificated Weights .................. 1-11
Cabin and Entry Dimensions .................... 1-11
Baggage Space and Entry Dimensions ........... 1-11
Specific Loadings .............................. 1-11
Symbols, Abreviations and Terminology
General Airspeed ........................... 1-12
Meteorological ............................. 1-14
Power ..................................... 1-15
Engine Controls and Instruments ............ 1-15
Airplane Performance and Flight Planning ... 1-16
Weight and Balance ........................ 1-16
1-2 February 1979

BEECHCRAFT Sundowner 180 Section I
C23 (M-1285 and After) General

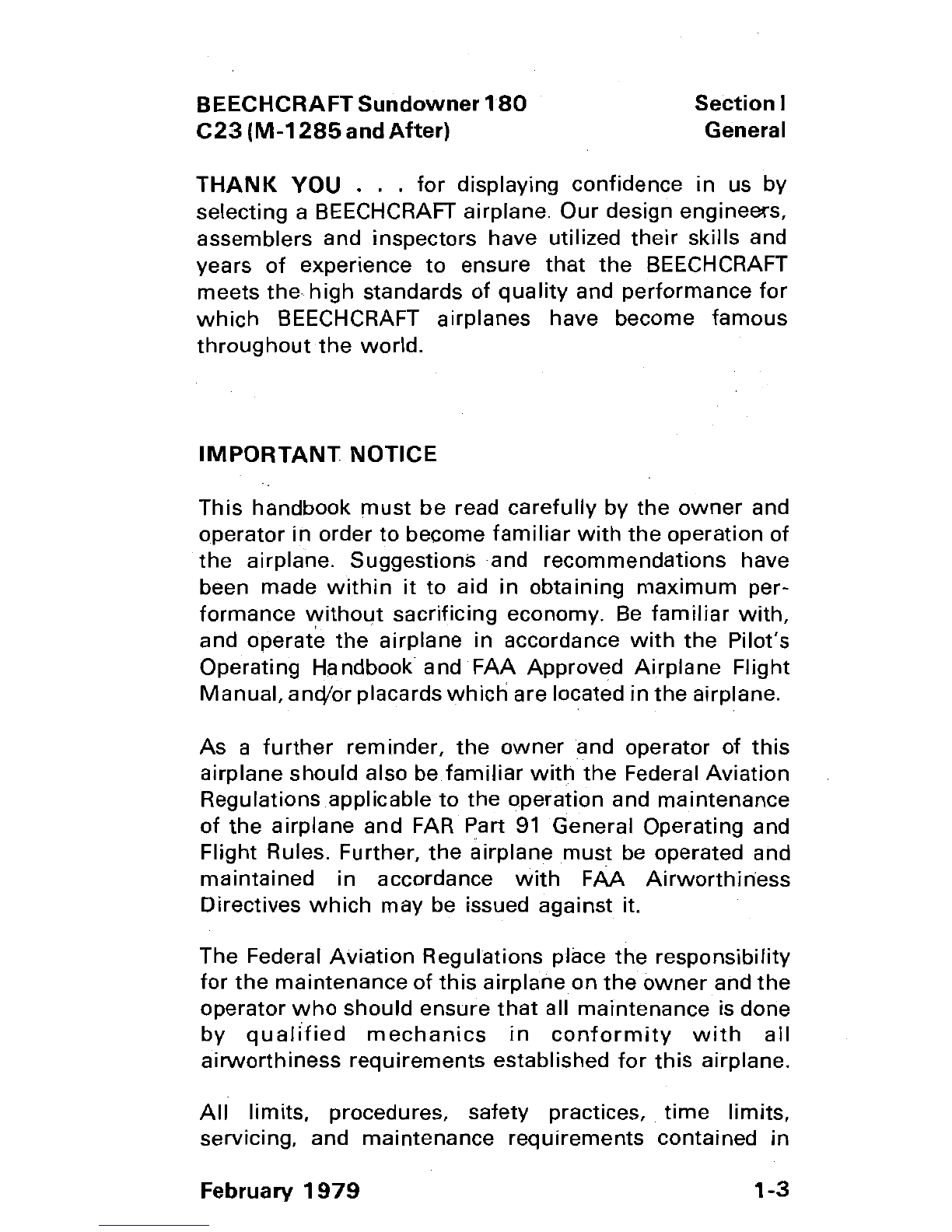

THANK YOU . . . for displaying confidence in us by
selecting a BEECHCRAFT airplane. Our design enginee<s,
assemblers and inspectors have utilized their skills and
years of experience to ensure that the BEECHCRAFT
meets the high standards of quality and performance for
which BEECHCRAFT airplanes have become famous
throughout the world.
IMPORTANT NOTICE
This handbook must be read carefully by the owner and
operator in order to become familiar with the operation of
the airplane. Suggestione and recommendations have
been made within it to aid in obtaining ma×imum per-
formance without sacrificing economy. Be familiar with,
and operate the airplane in accordance with the Pilot's
Operating Handbook and FAA Approved Airplane Flight
Manual, ancVorplacards which are located in the airplane.
As afurther reminder, the owner and operator of this
airplane should also be familiar with the Federal Aviation
Regulations applicable to the operation and maintenance
of the airplane and FAR Part 91 General Operating and
Flight Rules. Further, the airplane must be operated and
maintained in accordance with FAA Airworthiness
Directives which may be issued against it.
The Federal Aviation Regulations place the responsibility
for the maintenance of this airplane on the owner and the
operator who should ensure that all maintenance is done
by qualified mechanics in conformity with all
airworthiness requirements established for this airplane.
All limits, procedures, safety practices, time limits,
servicing, and maintenance requirements contained in
February 1979 1-3

Section I BEECHCRAFT Sundowner 180
General C23 (M-1285 and After)
this handbook are considered mandatory for the continued
airworthiness of this airplane, in acondition equal to that
of its original manufacture.
Authorized BEECHCRAFT Aero or Aviation Centers and
International Distributors or Dealers can provide
recommended modification, service, and operating
procedures issued by both FAA and Beech Aircraft
Corporation, which are designed to get maximum utility
and safety from this airplane.

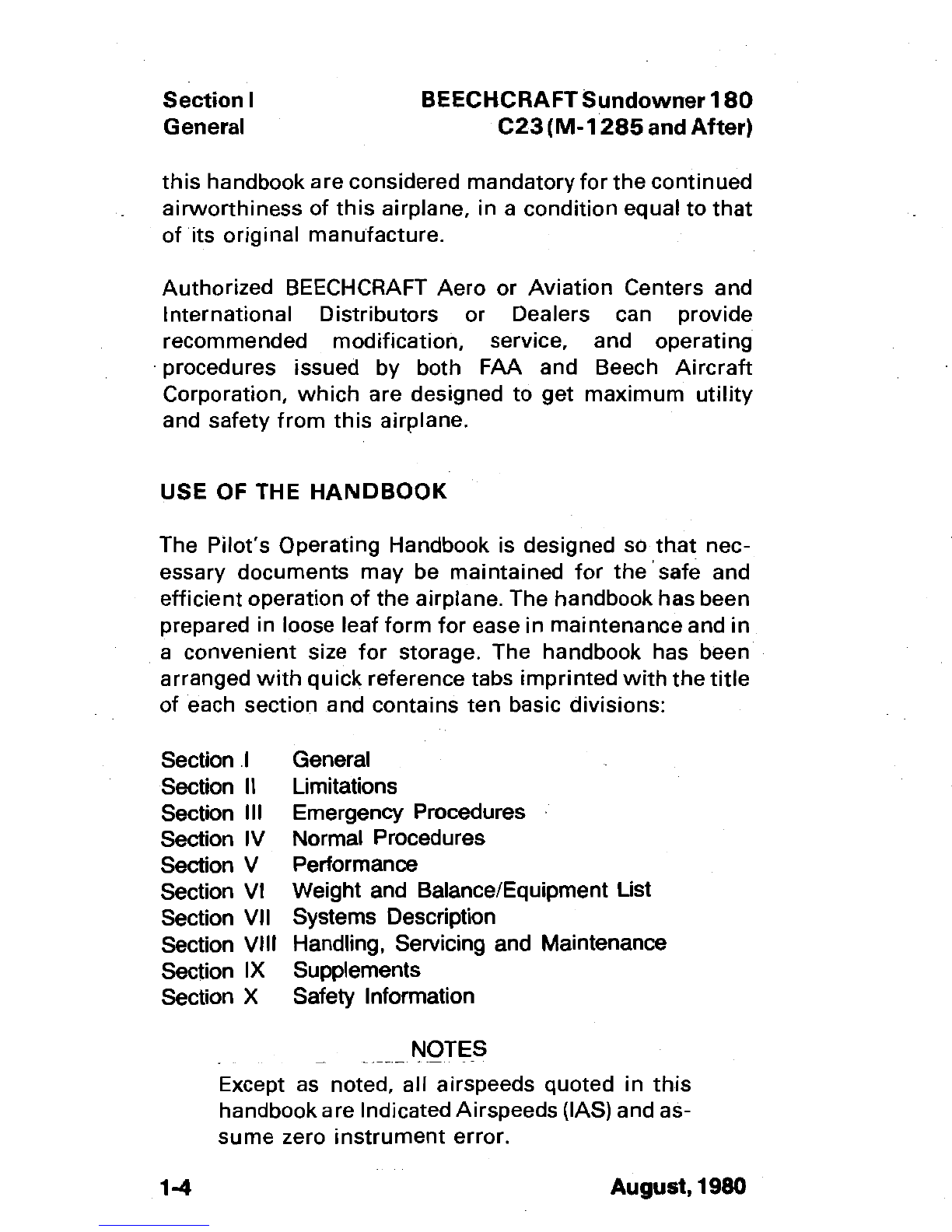

USE OF THE HANDBOOK
The Pilot's Operating Handbook is designed so that nec-
essary documents may be maintained for the safe and
efficient operation of the airplane. The handbook has been
prepared in loose leaf form for ease in maintenance and in
aconvenient size for storage. The handbook has been
arranged with quick reference tabs imprinted with thetitle
of each section and contains ten basic divisions:
Section .I General
Section II Limitations
Section III Emergency Procedures
Section IV Normal Procedures
Section VPerformance
Section VI Weight and Balance/Equipment List
Section Vil Systems Description
Section Vill Handling, Servicing and Maintenance
Section IX Supplements
Section X Safety Information
NOTES
Except as noted, all airspeeds quoted in this
handbook are Indicated Airspeeds (IAS)and as-
sume zero instrument error.
1-4 August, 1980

BEECHCRAFT Sundowner 180 Section I
C23 (M-1285 and After) General
Due to the large variety of airplane configura-
tions available through optional equipment, it
should be noted that in describing and
illustrating the handbook, optional equipment
may not be designated as such in every case.
Through variations provided by custom
designing, the illustrations in this handbook
will not be typical of every airplane.
Neither Service Publications, Reissues, nor
Revisions are automatically provided to the
holder of this handbook. For information on
how to obtain "Revision Service" applicable to
this handbook, consult any BEECHCRAFT
Aero or Aviation Center or Internationat
Distributor or Dealer or refer to the latest
revision of BEECHCRAFT Service Instructions
No. 0250-010.
Beech Aircraft Corporation expressly reserves
the right to supersede, cancel and/or declare
obsolete any part, part numbers, kits or
publication that may be referenced in this
handbook without prior notice.
The ownerloperator should always refer to all
supplements, whether STC Supplements or
Beech Supplements, for possible placards,
limitations, normal, emergency and other
operational procedures for proper operation of
the airplane with optional equipment installed.
REVISING THE HANDBOOK
Immediately following the title page is the "Log of
Revisions" page(s). The Log of Revisions pages are used
for maintaining a listing of all effective pages in the hand-
book (except the SUPPLEMENTS section), and as arecord
of revisions to these pages. In the lower right corner of the
August, 1980 1-5

SectionI BEECHCRAFTSundowner180
General C23 (M-1285 and After)
outlined portion of the Log of Revisions is abox containing
acapital letter which denotes the issue or reissue of the
handbook. This letter may be suffixed by anumber which
indicates the numerical revision. When arevision to any
information in the handbook is made, anew Log of Re-
visions will be issued. All Logs of Revisions must be re-
tained in the handbook to provide a current record of ma-
terial status until areissue is made.
WARNING
When this handbook is used for airplane
operational purpose it is the pilot's respon-
sibility to maintain it in current status.
SUPPLEMENTS REVISION RECORD
Section IX contains supplements and aLog of Supple-
ments page. On the "Log" page is a listing of the supple-
mental equipment available for installation on the BEECH-
CRAFT airplane.
Upon receipt of anew or revised supplement, compare the
"Log" page just received with the existing "Log" page in
the manual. Retain the "Log" page with the latest date on
the bottom of the page (this log will usually have the
greater number of entries) and discard the other log.
VENDOR-ISSUED STC SUPPLEMENTS
When anew airplane is delivered from the factory, the
handbook delivered with it contains either an STC
(Supplemental Type Certificate) Supplement or a Beech
Flight Manual Supplement for every installed item
requiring asupplement. Ifa new handbook for operation of
the airplane is obtained at alater date, it is the responsi-
bility of the owner/operator to ensure that all required STC
Supplements (as well as weight and balance and other
pertinent data) are transferred into the new handbook.
1-6 August, 1980
