Behringer T-47 Installation guide

Vacuum Tube Condenser Microphone
Professional, large-diaphragm, tube
condenser microphone for
unsurpassed audio quality
Hand-selected 12AX7 vacuum tube
for exceptional warmth and
vintage sound
Ideal as main and support
microphone for studio and
live applications
Cardioid pickup pattern for
outstanding sound source separation
and feedback rejection
Pressure-gradient transducer with
shock-mounted capsule
Perfect for vocals and
acoustic instruments
Switchable low-frequency roll-o
20 dB input attenuation (T-1 only)
External power supply with 30 ft.
(10 m) multi-core cable included
Heavy-duty suspension mount,
windscreen and aluminum transport
case included
Ultra-rugged construction with metal
die-cast body
High-quality components and
exceptionally rugged construction
ensure long life
Conceived and designed by
BEHRINGER Germany
The Ultimate Recording Mic?
Since the early days of recording, sound
engineers have been searching for the
best-sounding mics for recording acoustic
instruments and the human voice.
The resounding choice of professional
recordists around the globe has been
the tube condenser microphone. Why?
Because nothing compares to the sound
captured by a good tube condenser
microphone — so open, warm and full
of character.
But tube mics can wipe out a
home-recording budget faster than
you can say“phantom power supply”.
That’s why we’re so very proud to present
our new T-1 and T-47 microphones.
These mics exemplify our commitment to
quality and value — now anyone who can
aord a decent live microphone can have
a studio-grade, tube-powered condenser
mic for about the same price.
Classic Tube Sound
The sound of tubes is undeniably rich
and smooth. At the heart of each of these
mics is a hand-selected 12AX7 tube,
which has been specically designed to
give these microphones their incredible
sonic character. One advantage tube
condensers have over their solid-state
counterparts is they are not subject to
the rapid rise of odd-order harmonics,
which the ear perceives as highly
unmusical. Even when subjected to high
sound pressure levels, the T-1 and T-47
mics react in much the same way the
human ear does.
T-1 and T-47 Have a Sensitive Side
Another advantage is that tube mics
typically outperform transistor designs
when it comes to subtle signal levels,
such as environmental ambience. The T-1
and T-47 pick up every nuance of your
performance, capturing an openly
Continued on next page
TUBE CONDENSER
MICROPHONE T-47 & T-1
Condenser Microphones

Page 2 of 3
XENYX 1204USB
T-1 or T-47
Microphone
PSU-T Power
Supply/Preamp
Laptop
Firewire
Audio Interface
transparent slice of time and space
— with just the right amount of tube
warmth. Now you’ll be able to justify that
new set of strings for your acoustic guitar
(because you’ll hear the dierence), and
you’ll marvel at the sparkling highlights
coming o your wind chimes.
But I Need a Good Kick-Drum Mic
While these mics can handle input
levels as high as 130 dB, the T-1 comes
equipped with a switchable -20 dB pad for
the extremely high transients generated
by kick-drums, heavy-metal vocalists and
mortar launchers. With its 20 Hz to 20 kHz
frequency range, the T-1 can handle all
the low-frequency content you can throw
at it, and still provide all the denition
your sound source deserves.
Cardioid Polar Pattern
Both of these mics feature a tight
cardioid (heart-shaped) pattern, which
reduces the pickup of sound from the
sides and rear for improved source
isolation. The included custom shock
mount ts all standard microphone
stands and provides further isolation
from external sources of vibration, such
as sounds transmitted through oor
joists, outside trac, etc.
Dedicated Power Supply
The included BEHRINGER PSU-T
provides the supply voltage for the tube
preamplier and houses a LOW CUT
switch that can be used to reduce the
low frequency response, if so desired.
The included 7-pin multi-core cable
supplies power to the mic and routes
the audio signal to the XLR socket
on the PSU-T.
Value
When it comes to value, BEHRINGER
has always been an industry leader.
The T-1 and T-47 tube condenser
microphones take that legacy to the
next level, providing studio-grade
quality at incredibly consumer-friendly
pricing. These great sounding mics are so
aordable, you’ll want one for main your
vocals, one for backup vocals, another for
the bass rig, another for...
TUBE CONDENSER
MICROPHONE
T-47 & T-1

Page 3 of 3
©2011 Red Chip Company Ltd.Technical specifications and appearance subject to change without notice.The information contained herein is correct at the time of printing. All trademarks are the property of their respective owners. BEHRINGER accepts no liability for any loss which
may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. 985-10000-00355
For service, support or more information contact the BEHRINGER location nearest you:
Europe Tel.: [phone]
Fax: [phone]
USA/Canada Tel.: [phone]
Fax: [phone]
Singapore Tel.: [phone]
Fax: [phone]
Australia Tel.: [phone]
Fax: [phone]
Japan Tel.: [phone]
Fax: [phone]
Power
Switch
IEC
socket Fuse
holder
7-pin
connector
powers MIC
and returns
audio to
PSU-T
Ground
lift switch
eliminates
nasty ground
loops
LOW CUT
switch on
reverse side of
PSU-T reduces
frequencies
below
100 Hz by
12 db/octave

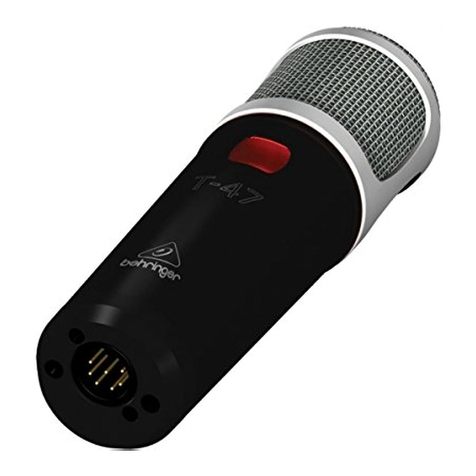

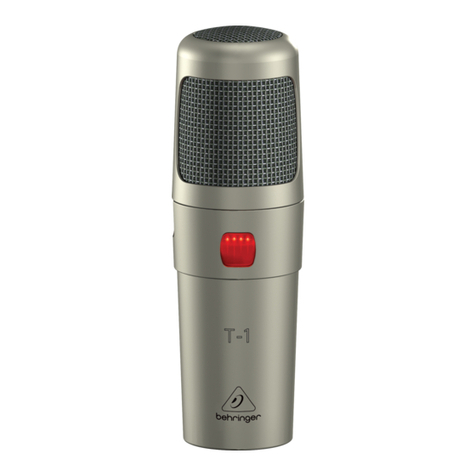

Condenser
element
Tube view
window glows
red when
12AX7 receives
power
Shock
mount
7-pin power/
audio socket
SPECIFICATIONS
Transducer type condenser, 0.63" / 16 mm
Polar pattern cardioid
Preamplier vacuum tube (12AX7)
Output (PSU-T) gold-plated balanced
XLR connector
Open circuit sensitivity -40 dBV (0 dBV = 1 V/Pa)
Frequency response 20 Hz to 20 kHz
Level attenuation -20 dB, switchable (T-1 only)
Low-cut lter 12 dB/oct. @ 100 Hz (switchable)
Max. SPL (3 % THD @ 1 kHz) 130 dB
Dynamic range 110 dB
Nominal impedance approx. 200 Ω
Load impedance >1 kΩ
Supply voltage adapter BEHRINGER PSU-T
MAINS VOLTAGE / FUSE
100-120 V~, 50/60 Hz T 250 mA H 250 V
220-230 V~, 50/60 Hz T 125 mA H 250 V
Mains connector standard IEC receptacle
DIMENSIONS/WEIGHT
Dimensions
diameter: 2.7"/68 mm
length: 8.3"/211 mm
Weight (net) 1.7 lbs / 0.77 kg
Please note these specications are preliminary and conceptual in nature,
and as such are subject to change as product development progresses.
This information is supplied for market research purposes only and is not
to be made public in any manner. This document is solely the property of
The MUSIC Group, or one of its subsidiaries, and must be surrendered upon
request of the owner.
TUBE CONDENSER
MICROPHONE
T-47 & T-1
