Behringer Minibeat BEAT800 User manual

Users manual
Version 1.0 October 2005
MINIBEAT BEAT800

2
MINIBEAT BEAT800
CAUTION: To reduce the risk of electric shock,
do not remove the top cover (or the
rear section). No user serviceable
parts inside; refer servicing to
qualified personnel.
WARNING: To reduce the risk of fire or electric
shock, do not expose this appliance
to rain and moisture. The apparatus
shall not be exposed to dripping or
splashing and no objects filled ith
liquids, such as vases, shall be
placed on the apparatus.
This symbol, herever it appears,
alerts you to the presence of
uninsulated dangerous voltage
inside the enclosurevoltage that
may be sufficient to constitute a risk
of shock.
This symbol, herever it appears,
alerts you to important operating and
maintenance instructions in the
accompanying literature. Please
read the manual.
IMPORTANT SAFETY INSTRUCTIONS
DETAILED SAFETY INSTRUCTIONS:
1) Read these instructions.
2) Keep these instructions.
3) Heed all arnings.
4) Follo all instructions.
5) Do not use this apparatus near ater.
6) Clean only ith dry cloth.
7) Do not block any ventilation openings. Install in accordance ith the manufacturers instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has t o
blades ith one ider than the other. A grounding type plug has t o blades and a third grounding prong.
The ide blade or the third prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the po er cord from being alked on or pinched particularly at plugs, convenience receptacles,
and the point here they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only ith the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold ith the
apparatus. When a cart is used, use caution hen moving the cart/apparatus combination to avoid injury
from tipping over.
13) Unplug this apparatus during lightning storms or hen unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required hen the apparatus has been
damaged in any ay, such as po er supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
15) CAUTION - These service instructions are for use by qualified service personnel only. To reduce the
risk of electric shock do not perform any servicing other than that contained in the operation instructions
unless you are qualified to do so.

3
MINIBEAT BEAT800
DEUTSCH
BEAT800
MINIBEAT
Ultra-Compact Dual Beat Counter with Integrated Phono Preamps
sUltra-compact 9.5" dual beat counter/phono preamp for studio and stage
applications
sIntelligent dual BPM counters with empo Difference indicator
sUltra-flexible Beat Assist and Sync Lock functions
s2 state-of-the-art phono preamps with line inputs to accommodate turntables,
CD players, etc.
sAccurate 6-digit LED input meters for precise level indication
sHigh-quality potentiometers and illuminated switches for long-term reliability
sUltra low-noise audio operational amplifiers offer outstanding sound
performance

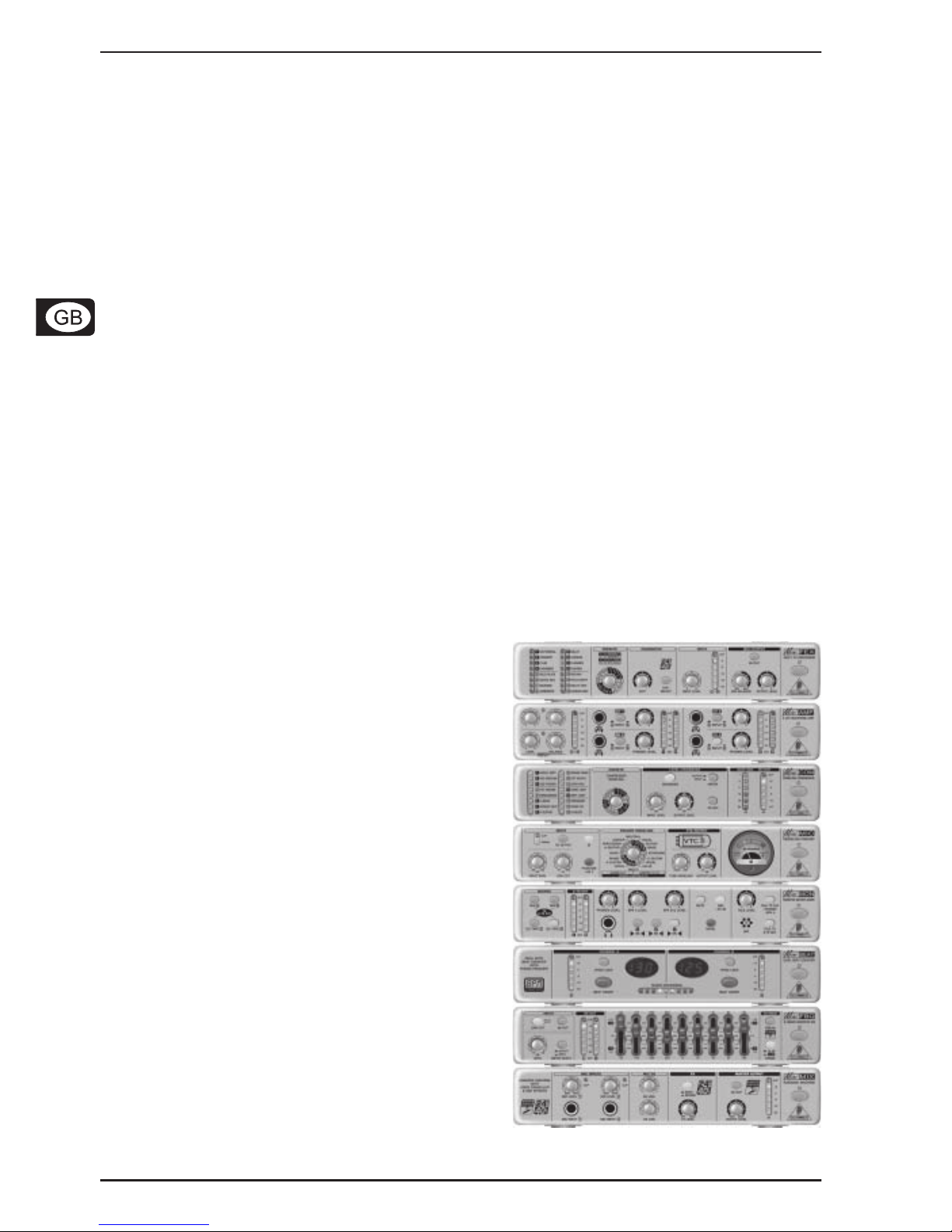

sAll Mini Series models can be stacked on top of each other to create an
ultra-compact signal processor solution
sHigh-quality components and exceptionally rugged construction ensure long
life
sConceived and designed by BEHRINGER Germany

4
MINIBEAT BEAT800
FOREWORD
Dear Customer,
welcome to the community of Mini eries users and thank
you very much for expressing your confidence in
BEHRINGER products by purchasing the BEAT 800. It is
one of my most pleasant tasks to write this letter to you,
because it is the culmination of many months of hard work
delivered by our engineering team to reach a very ambitious
goal: to design an outstanding device whose high level of
functionality will give you maximum performance.
The task to design our new MINIBEAT certainly meant a
great deal of responsibility. You, the discerning user and
musician, were the focus of our entire development efforts.
It also meant a lot of work and night shifts to accomplish
this goal. But it was fun, too. Developing a product usually
brings a lot of people together, and what a great feeling it is
when everybody who participated in such a project can be
proud of what weve achieved.
It is our philosophy to share our joy with you, because you
are the most important member of the BEHRINGER family.
With your highly competent suggestions for new products
youve greatly contributed to shaping our company and
making it successful. In return, we guarantee you uncompromising quality as well as excellent
technical and audio properties at an extremely favorable price. All of this will enable you to fully
unfold your creativity without being hampered by budget constraints.
We are often asked how we can make it to produce such high-grade devices at such unbelievably
low prices. The answer is quite simple: its you, our customers! Many satisfied customers means
large sales volumes enabling us to get better conditions of purchase for components, etc. Isnt it
only fair to pass this benefit back to you? Because we know that your success is our success, too!
I would like to thank all people whose help on Project MINIBEAT BEAT800 has made it all possible.
Everybody has made very personal contributions, starting from the designers of the unit via the
many staff members in our company to you, the user of BEHRINGER products.
My friends, its been worth the trouble!
Thank you very much,
Uli Behringer

5
MINIBEAT BEAT800
DEUTSCH
TABLE OF CONTENTS
1. INTRODUCTION ......................................................................................... 5
1.1 Before you get started .......................................................................................................... 5
1.1.1 hipment .................................................................................................................... 5
1.1.2 Initial operation ........................................................................................................... 6
1.1.3 Online registration ...................................................................................................... 6
2. CONTROL ELEMENTS AND CONNECTIONS ........................................... 6
2.1 The front ............................................................................................................................... 6
2.2 The rear ................................................................................................................................ 7
3. APPLICATION EXAMPLE ........................................................................... 8
4. SPECIFICATIONS ....................................................................................... 9
5. OTHER MINI PRODUCTS......................................................................... 10
6. WARRANTY .............................................................................................. 11
1. INTRODUCTION
Thank you for expressing your confidence in us by purchasing the MINIBEAT BEAT800.
You can always depend on this ultra-compact, dual beat counter/phono preamp. It packs 2 intelligent
BPM counters with a Tempo Difference indicator, plus it features the Beat Assist and ync Lock
functions. In addition, weve included 2 state-of-the-art phono preamps to accommodate turntables,
an accurate 6-digit LED input meter for precise level indication and illuminated switches. Ultra low-
noise audio operational amplifiers offer outstanding sound performance.
Never miss a beat with the BEHRINGER MINI BEAT!
1.1 B for you g t start d
1.1.1 Shipment
Your BEAT800 was carefully packed at the assembly plant to assure secure transport. hould the
condition of the cardboard box suggest that damage may have taken place, please inspect the unit
immediately and look for physical indications of damage.
+Damaged equipment should NEVER be sent directly to us. Please inform the dealer
from whom you acquired the unit immediately as well as the transportation company
from which you too delivery. Otherwise, all claims for replacement/repair may be
rendered invalid.
+Please always use the original pac aging to avoid damage due to storage or shipping.
+Never let unsupervised children play with the BEAT800 or with its pac aging.
+Please dispose of all pac aging materials in an environmentally friendly fashion.
1. INTRODUCTION

6
MINIBEAT BEAT800
1.1.2 Initial operation
Be sure that there is enough space around the unit for cooling. To avoid overheating, do not place
the BEAT800 on top of power amps or near radiators, etc.
+To power the BEAT800, use only the power supply unit that is delivered with your
equipment.
1.1.3 Online registration
Please do remember to register your new BEHRINGER equipment right after your purchase by
visiting www.behringer.com (alternatively www.behringer.de) and kindly read the terms and conditions
of our warranty carefully.
hould your BEHRINGER product malfunction, our goal is to have it repaired as quickly as possible.
To arrange for warranty service, please contact the retailer from whom the equipment was purchased.
hould your BEHRINGER dealer not be located in your vicinity, you may directly contact one of our
subsidiaries. Corresponding contact information is included in the original equipment packaging
(Global Contact Information/European Contact Information). hould your country not be listed, please
contact the distributor nearest you. A list of distributors can be found in the support area of our
website (www.behringer.com/support).
Registering your purchase and equipment with us helps us process your repair claims quicker and
more efficiently.
Thank you for your cooperation!
2. CONTROL ELEMENTS AND CONNECTIONS
+Please ensure that the unit is installed and operated only by people qualified to do so.
During installation and operation the user must have sufficient electrical contact to
earth. Electrostatic discharge may affect the operation of the unit.
2.1 Th front
Fig. 2.1: Front panel control elements of the BEAT800
switch
The switch turns your MINIBEAT BEAT800 on and off.
+Attention: The switch does not fully disconnect the unit from the mains. To disconnect
the unit from the mains, pull out the main cord plug or appliance coupler. When installing
the product, ensure the plug or appliance coupler is readily operable. Unplug the power
cord completely when the unit is not used for prolonged periods of time.
2. CONTROL ELEMENT AND CONNECTION

7
MINIBEAT BEAT800
DEUTSCH
LED displa
The LED display is for monitoring the input level. ix LEDs are available per channel. If the
Clip LED lights up, BEAT800 input might be distorted. In this case, reduce the input level.
Displa
The 3-digit display of the BEAT800 shows the tempos of the incoming signals, expressed in
BPM (Beats Per Minute). The left display shows the signal that enters CHANNEL A. The
tempo of the CHANNEL B signal is shown in the right display.
SYNC LOCK
everal tempo changes in a single track would produce a constant display of various BPM
values. Thats why each channel of the BEAT800 has a YNC LOCK button that you can use
to limit the range of possible tempo values. This makes sense if the counter has already
calculated a realistic value.
BEAT ASSIST
When you push the BEAT A I T button at least three times in sync with the songs tempo,
the calculated tempo will appear in the display.
+Push the BEAT ASSIST button more than 2 times in succession to automatically activate
the SYNC LOCK function.
TEMPO DIFFERENCE
This LED display shows whether or not there is a tempo difference between the two channels
of the BEAT800.
The light always moves to the side of the fastest signal. When both signals are in sync, the
green LED in the middle of the display lights up.
2.2 Th r ar
Fig. 2.2: Rear panel control elements and connectors of the BEAT800
Use the 9 V jack to connect the power supply that is delivered with the unit.
These connectors are the unbalanced cinch inputs of the BEAT800.
PHONO LINE
You can connect both line and phono signals to the MINIBEAT. The PHONO LINE switch
allows you to toggle between these two types of signals.
These connectors are the unbalanced cinch outputs of the BEAT800.
SERIAL NUMBER
2. CONTROL ELEMENT AND CONNECTION

8
MINIBEAT BEAT800
3. APPLICATION EXAMPLE
The wiring example shown below gives you an idea of how to use the BEAT800.
Fig. 3.1: Using the BEAT800 as part of a DJ set-up
3. APPLICATION EXAMPLE

9
MINIBEAT BEAT800
DEUTSCH
4. SPECIFICATIONS
INPUTS
Type RCA connectors
Impedance approx. 47 kW
Max. input level
Line 16 dBu
Max. input voltage
Phono 150 mVpp @ 1 kHz
OUTPUTS
Type RCA connectors
Impedance approx. 100 W
Max. output level 16 dBu
SYSTEM SPECIFICATIONS
Line
Frequency response <10 Hz to 200 kHz, -3 dB
Dynamic range 122 dB, 10 Hz to 20 kHz
Distortion 0,001 % typ. @ 0dBu
Gain 0 dB
Crosstalk -106 dB @ 1 kHz
ignal-to-noise ratio 106 dBu @ 0 dBu, a-weighted
Phono
Frequency response RIAA
Distortion 0,07 % typ. @ -40dBu/1kHz
Gain 40 dB
Crosstalk -65 dB @ 1 kHz
ignal-to-noise ratio 66 dBu @ 0 dBu, a-weighted
POWER SUPPLY
Mains connection external power supply, 9 V~/750 mA
Mains voltage
U A/Canada 120 V~, 60 Hz
U.K./Australia 240 V~, 50 Hz
China 220 V~, 50 Hz
Europe 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
Power consumption 10 W
DIMENSIONS/WEIGHT
Dimensions (H x W x D) approx. 1 8/9" x 9 5/9" x 4 5/7"
(approx. 47.9 mm x 242.6 mm x 120 mm)
Weight approx. 0.69 lbs.
(approx. 0.34 kg)
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be
made from time to time to e isting products without prior notice. Specifications and appearance may differ from those listed or
illustrated.
4. PECIFICATION

10
MINIBEAT BEAT800
5. OTHER MINI PRODUCTS
The MINIBEAT belongs to the MINI suite of BEHRINGER products, which can operate together and
are introduced below:
MINIFEX FEX800
Ultra-compact 9.5" stereo multi-effects processor for studio and stage applications
s16 awesome FX presets in 24-bit/48 kHz resolution including reverb, delay, chorus,
flanger, phaser, rotary speaker, pitch shifter and multi-effects
sIntuitive FX Preset control with LEDs indicating the selected program
MINIAMP AMP800
Ultra-compact 9.5" headphones amplifier system for studio and stage applications
s4 totally independent stereo high-power amplifier sections
sHighest sonic quality with virtually all types of headphones even at maximum volume
MINICOM COM800
Ultra-compact 9.5" stereo modeling compressor for studio and stage applications
s16 awesome preset models for the most typical compression applications (vocal, drums,
guitar, keyboard, etc.)
sDedicated Compressor Modeling control with LEDs indicating the selected dynamics
program
MINIMIC MIC800
Ultra-compact 9.5" microphone modeling preamp for studio and stage applications
sHigh-end preamplifier for all microphone, instrument and line-level sources. Perfectly
complements studio-grade condenser mics
sUltra-flexible Preamp Modeling allows you to quickly optimize your recordings
MINIMON MON800
Ultra-compact 9.5" monitor matrix mixer for studio
and stage applications
sDedicated input section with 4 selectable and
mixable stereo inputs
sAccurate 6-digit LED main stereo output
meters for precise level indication
MINIFBQ FBQ800
Ultra-compact 9.5" graphic equalizer for studio and
stage applications
sRevolutionary FBQ Feedback Detection
ystem instantly reveals critical frequencies
and can also be used as Audio Analyzer
sAdditional Low Cut filter removes unwanted
frequencies, e. g. floor rumble
MINIMIX MIX800
Ultra-compact 9.5" arao e machine for studio and
stage applications
sRevolutionary Voice Cancellereffectively
eliminates vocals from any stereo source while
retaining most music elements
sIntegrated digital echo/reverb processor in 24-
bit/40 kHz resolution for ultimate vocal
enhancement Fig. 5.1: MINI products stack on top of
each other
5. OTHER MINI PRODUCT

11
MINIBEAT BEAT800
DEUTSCH
6. WARRANTY
§ 1 OTHER WARRANTY RIGHTS AND NATIONAL LAW
1. This warranty does not exclude or limit the buyers statutory rights provided by national law, in
particular, any such rights against the seller that arise from a legally effective purchase contract.
2. The warranty regulations mentioned herein are applicable unless they constitute an infringement
of national warranty law.
§ 2 ONLINE REGISTRATION
Please do remember to register your new BEHRINGER equipment right after your purchase by
visiting www.behringer.com (alternatively www.behringer.de) and kindly read the terms and conditions
of our warranty carefully.
Registering your purchase and equipment with us helps us process your repair claims quicker and
more efficiently.
Thank you for your cooperation!
§ 3 WARRANTY
1. BEHRINGER (BEHRINGER International GmbH including all BEHRINGER subsidiaries listed on
the enclosed page, except BEHRINGER Japan) warrants the mechanical and electronic components
of this product to be free of defects in material and workmanship for a period of one (1) year* from
the original date of purchase, in accordance with the warranty regulations described below. If the
product shows any defects within the specified warranty period that are not excluded from this
warranty as described under § 5, BEHRINGER shall, at its discretion, either replace or repair the
product using suitable new or reconditioned parts. In the case that other parts are used which
constitute an improvement, BEHRINGER may, at its discretion, charge the customer for the additional
cost of these parts.
2. If the warranty claim proves to be justified, the product will be returned to the user freight prepaid.
3. Warranty claims other than those indicated above are expressly excluded.
§ 4 RETURN AUTHORIZATION NUMBER
1. To obtain warranty service, the buyer (or his authorized dealer) must call BEHRINGER (see
enclosed list) during normal business hours BEFORE returning the product. All inquiries must be
accompanied by a description of the problem. BEHRINGER will then issue a return authorization
number.
2. ubsequently, the product must be returned in its original shipping carton, together with the return
authorization number to the address indicated by BEHRINGER.
3. hipments without freight prepaid will not be accepted.
§ 5 WARRANTY REGULATIONS
1. Warranty services will be furnished only if the product is accompanied by a copy of the original
retail dealers invoice. Any product deemed eligible for repair or replacement under the terms of this
warranty will be repaired or replaced.
2. If the product needs to be modified or adapted in order to comply with applicable technical or
safety standards on a national or local level, in any country which is not the country for which the
product was originally developed and manufactured, this modification/adaptation shall not be
considered a defect in materials or workmanship. The warranty does not cover any such modification/
adaptation, irrespective of whether it was carried out properly or not. Under the terms of this warranty,
BEHRINGER shall not be held responsible for any cost resulting from such a modification/adaptation.
3. Free inspections and maintenance/repair work are expressly excluded from this warranty, in
particular, if caused by improper handling of the product by the user. This also applies to defects
caused by normal wear and tear, in particular, of faders, crossfaders, potentiometers, keys/buttons,
tubes, guitar strings, illuminants and similar parts.
6. WARRANTY

12
MINIBEAT BEAT800
Technical specifications and appearance subject to change without notice. The information contained
herein is correct at the time of printing. The names of companies, institutions or publications pictured
or mentioned and their respective logos are registered trademarks of their respective owners. Their
use neither constitutes a claim of the trademarks by BEHRINGER® nor affiliation of the trademark
owners with BEHRINGER®. BEHRINGER® accepts no liability for any loss which may be suffered by
any person who relies either wholly or in part upon any description, photograph or statement contained
herein. Colours and specification may vary slightly from product. Products are sold through our
authorised dealers only. Distributors and dealers are not agents of BEHRINGER® and have absolutely
no authority to bind BEHRINGER® by any express or implied undertaking or representation. No part
of this manual may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording of any kind, for any purpose, without the express
written permission of BEHRINGER pezielle tudiotechnik GmbH. BEHRINGER® is a registered
trademark.
ALL RIGHT RE ERVED. © 2005 BEHRINGER pezielle tudiotechnik GmbH,
Hanns-Martin- chleyer- tr. 36-38, 47877 Willich-Münchheide II, Germany.
Tel. [phone], Fax [phone]
4. Damages/defects caused by the following conditions are not covered by this warranty:
simproper handling, neglect or failure to operate the unit in compliance with the instructions
given in BEHRINGER user or service manuals.
sconnection or operation of the unit in any way that does not comply with the technical or safety
regulations applicable in the country where the product is used.
sdamages/defects caused by force majeure or any other condition that is beyond the control of
BEHRINGER.
5. Any repair or opening of the unit carried out by unauthorized personnel (user included) will void
the warranty.
6. If an inspection of the product by BEHRINGER shows that the defect in question is not covered by
the warranty, the inspection costs are payable by the customer.
7. Products which do not meet the terms of this warranty will be repaired exclusively at the buyers
expense. BEHRINGER will inform the buyer of any such circumstance. If the buyer fails to submit a
written repair order within 6 weeks after notification, BEHRINGER will return the unit C.O.D. with a
separate invoice for freight and packing. uch costs will also be invoiced separately when the buyer
has sent in a written repair order.
§ 6 WARRANTY TRANSFERABILITY
This warranty is extended exclusively to the original buyer (customer of retail dealer) and is not
transferable to anyone who may subsequently purchase this product. No other person (retail dealer,
etc.) shall be entitled to give any warranty promise on behalf of BEHRINGER.
§ 7 CLAIM FOR DAMAGES
Failure of BEHRINGER to provide proper warranty service shall not entitle the buyer to claim
(consequential) damages. In no event shall the liability of BEHRINGER exceed the invoiced value of
the product.
* Customers in the European Union please contact BEHRINGER Germany upport for further details.
6. WARRANTY
