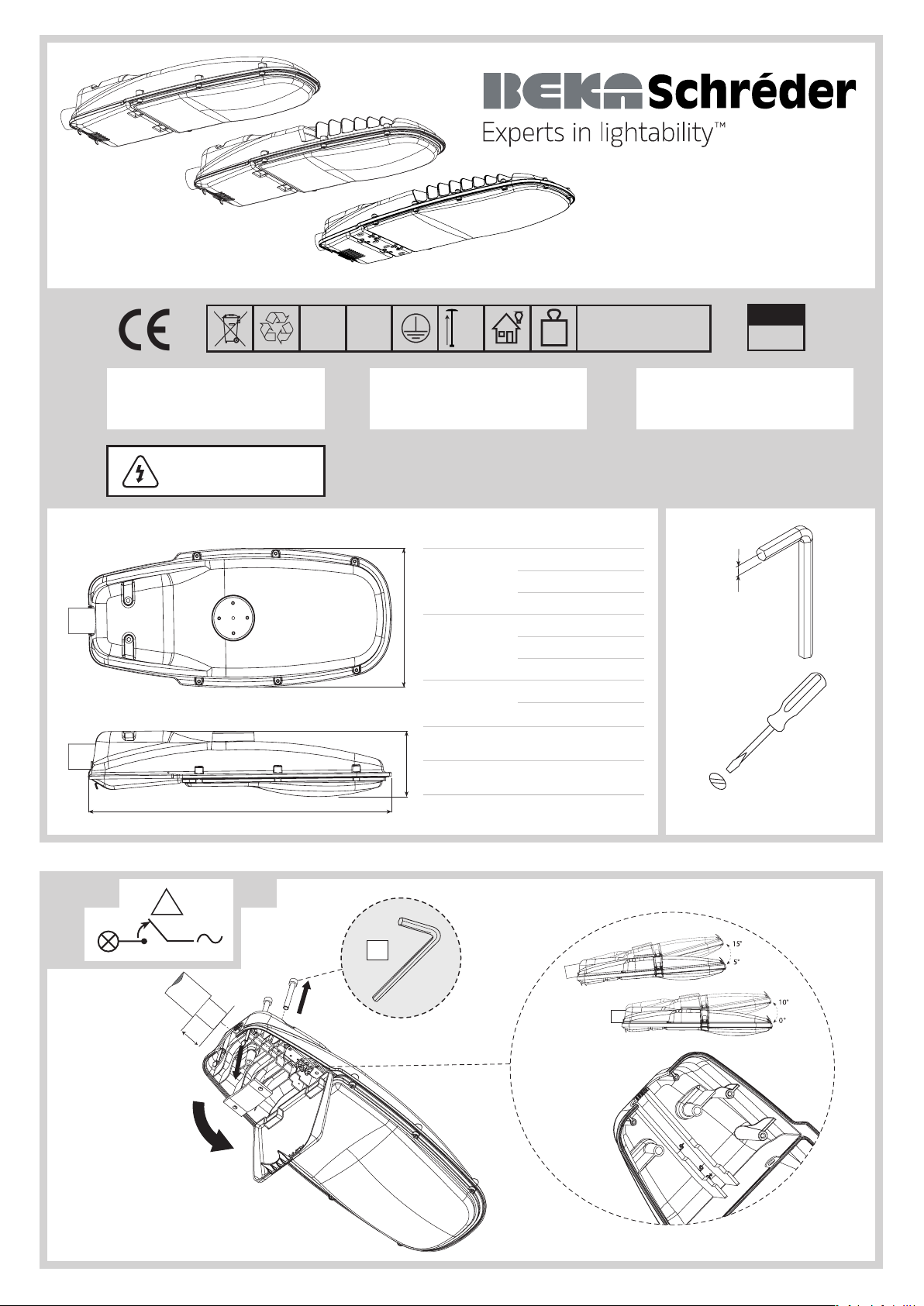

BEKA Schreder ZIYA Series User manual

ZIYA
150-305V - 50Hz
SANS
60598 IP 65 3.6kg
A
≥100mm
2x
21
Please note: Tools are not includedMounting position: Horizontal
6
4x 0.5
MH
4-8m
IK
10
ENG FRA POR
The light source tted in this luminaire shall only be
replaced by a BEKA Schréder employee or agent or a
similar qualied person. This luminaire is installed above
5 meters. The glass cover will fracture into small pieces.
La source de lumière intégrée dans ce luminaire peut
uniquement être remplacée par un employé de
BEKA Schréder, un agent ou une autre personne qualiée.
Ce luminaire est installé au dessus de 5 mètres. La
couverture en verre se fracturera en petits morceaux.
A fonte de luz montada nesta luminária só pode ser
substituída por um funcionário ou agente da BEKA Schréder
ou por prossional qualicado autorizado para o efeito. Esta
luminária está instalada acima de 5 metros. A tampa de vidro
irá fraturar em pequenos pedaços.
CAUTION, RISK OF ELECTRIC SHOCK
!
ZIYA-1
ZIYA-E
1
AxBxC (mm)
ZIYA-E – 212x500x96
ZIYA-1 – 212x500x96
ZIYA-2 - 358x641x114
Weight (kg)
ZIYA-E – 2.2
ZIYA-1 – 3.6
ZIYA-2 - 6.8
Aerodynamic
resistance
(CxS)
ZIYA-E – 0.03
ZIYA-1 – 0.03
Standard
mounting (mm)
Slip-over
side-entry Ø42
Spigot length
(mm) ≥ 125
A
B
C
ZIYA-2

Copyright © BEKA Schréder (Pty) Ltd – 13 West View Road – Olifantsfontein (South Africa) – The information, descriptions and illustrations herein are of only an indicative nature and subject to changes without notice. ZIYA_IS_03_2019
13 N.m.
2x
www.beka-schreder.co.za
3
4
5 6
Click
