Beko CHP 30100 CF User manual

Range Hood
User Manual
8650842206887
LIB0162718
CHP 30100 CF/CHP 30100 SS
EN ES FR
CHP 36100 CF/CHP 36100 SS

Please read this manual rst!
Dear Customers!
Thank you for preferring a Beko product. We hope that you get the best results from
your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well. Follow all
warnings and information in the user manual.
Rememberthatthisuser manualis also applicable forseveralothermodels. Dierences
between the models are explicitly described in the manual.
Meanings of the Symbols
Following symbols are used in the various section of this manual:
usage.
WARNING:
property.

Range Hood / User Manual 3 / 59 EN
CONTENTS
1 Read and save these
nstructons 4
1.1 Important safety Notce . . . . . . . . . . . . . . . . . . . . 4
2 Electrcal & Installaton
requrements 7
2.1 Electrcal requrements. . . . . . . . . . . . . . . . . . . . . .7
2.2 Before nstallng the hood . . . . . . . . . . . . . . . . . .7
3 Techncal specfıcatons of your
applance 8
3.1 Lst of Materals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.1 Parts suppled . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.2 Parts not suppled . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Dmensons and Clearances . . . . . . . . . . . . . . . . 9
3.3 Ductng Optons and Examples. . . . . . . . . . . . . 9
3.3.1 Ventng methods. . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Preparaton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4Installng your applance 11
4.1 Installaton - Ductng verson. . . . . . . . . . . . . . 11
4.2 İnstall hood onto wall . . . . . . . . . . . . . . . . . . . . . 11
4.2.1 Install Transton Onto Top of Hood. . . . . 11

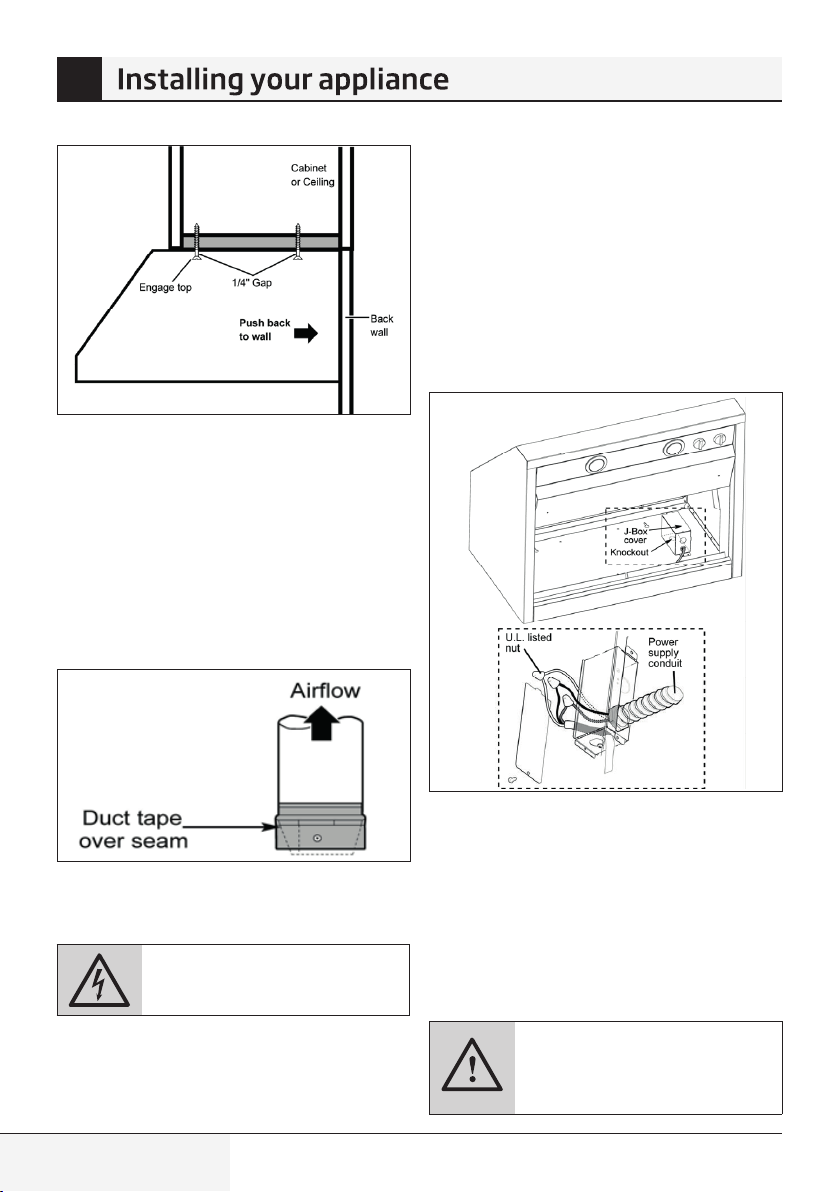

4.2.2 Hang hood on wood support. . . . . . . . . . . . 12
4.2.3 Install bottom mountng screws . . . . . . . . 12

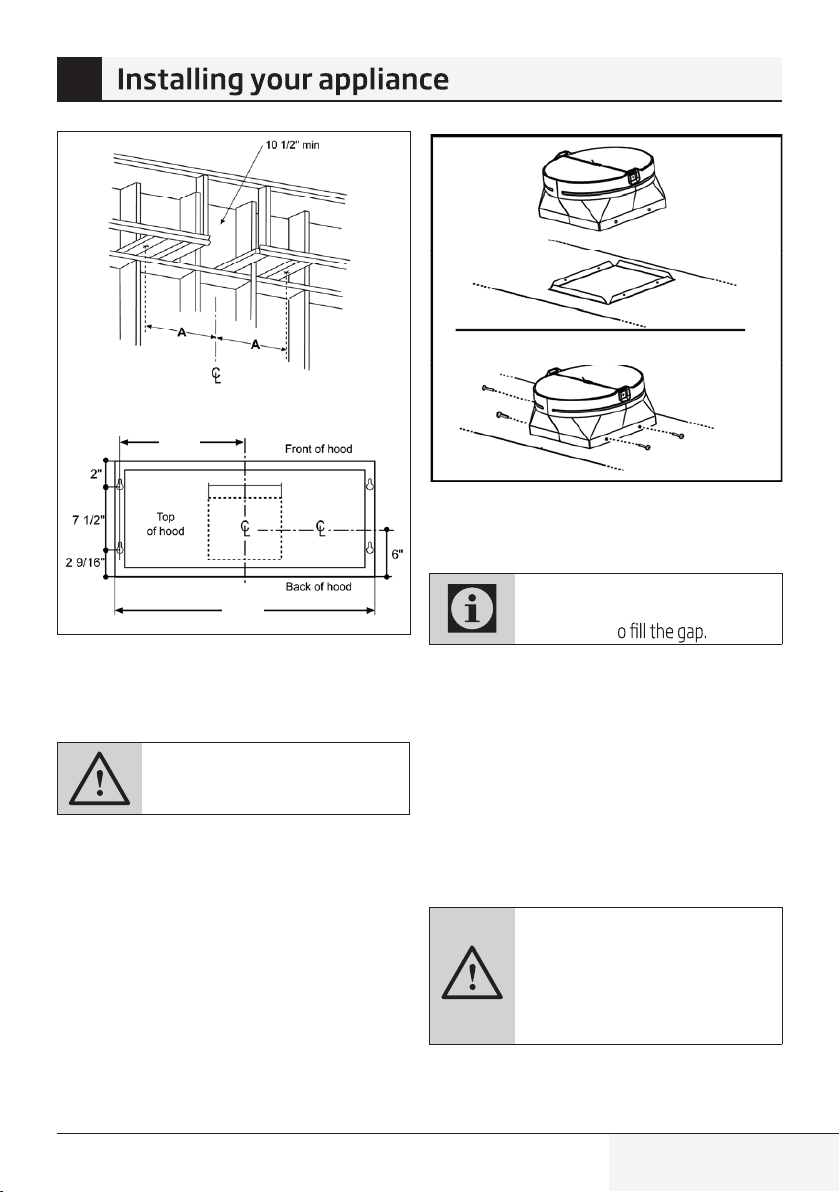

4.3 İnstall hood celng or beneath cabnets . . 12
4.3.1 Install Transton Onto Top of Hood. . . . . 13
4.3 2 Mount hood onto celng or cabnet . . . . . 13
4.3.3 Connectng the ductwork . . . . . . . . . . . . . . . 14
4.3.4 Electrcal connecton. . . . . . . . . . . . . . . . . . . . 14
4.3.5 Install Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Operatng your applance 16

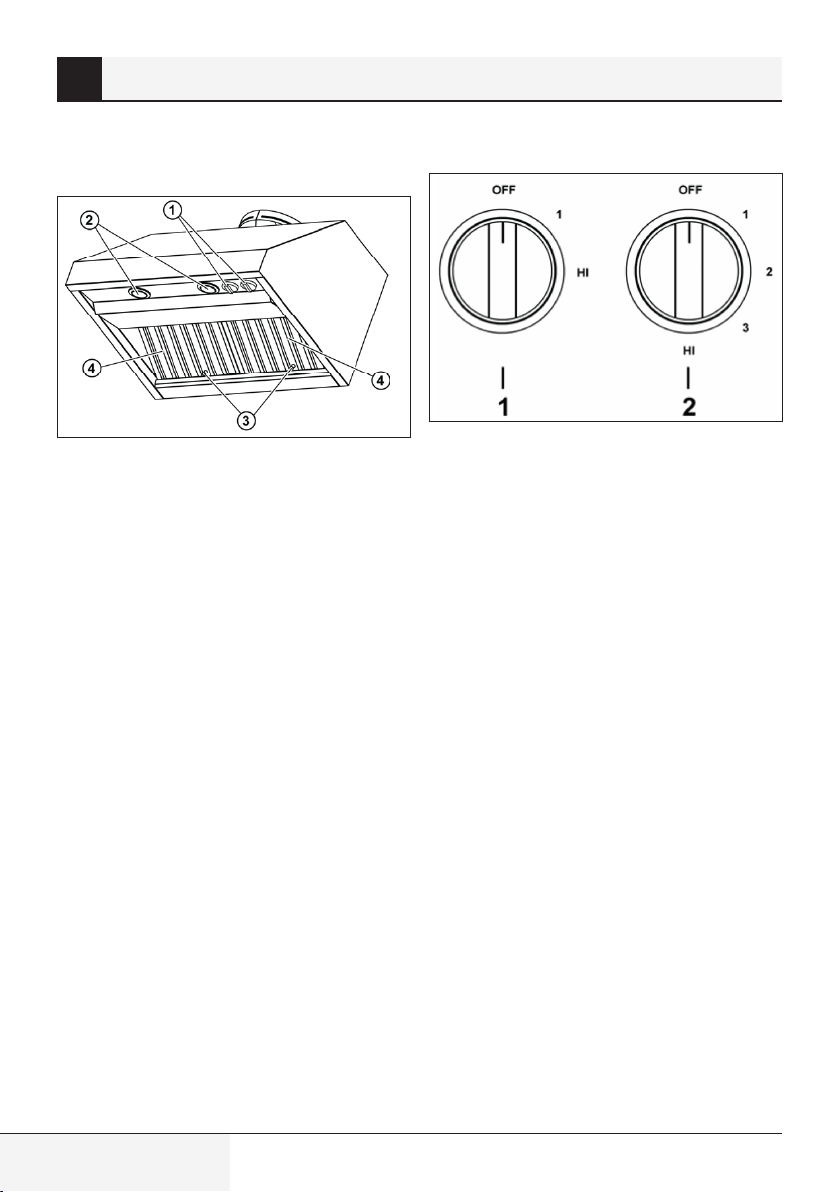

5.1 Descrpton of the hood & Controls . . . . . . . 16
5.1.1 Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.1.2 Descrpton of control panel. . . . . . . . . . . . . 16
6 Cleanng and mantenance 17
6.1 Mantenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Cleanng. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

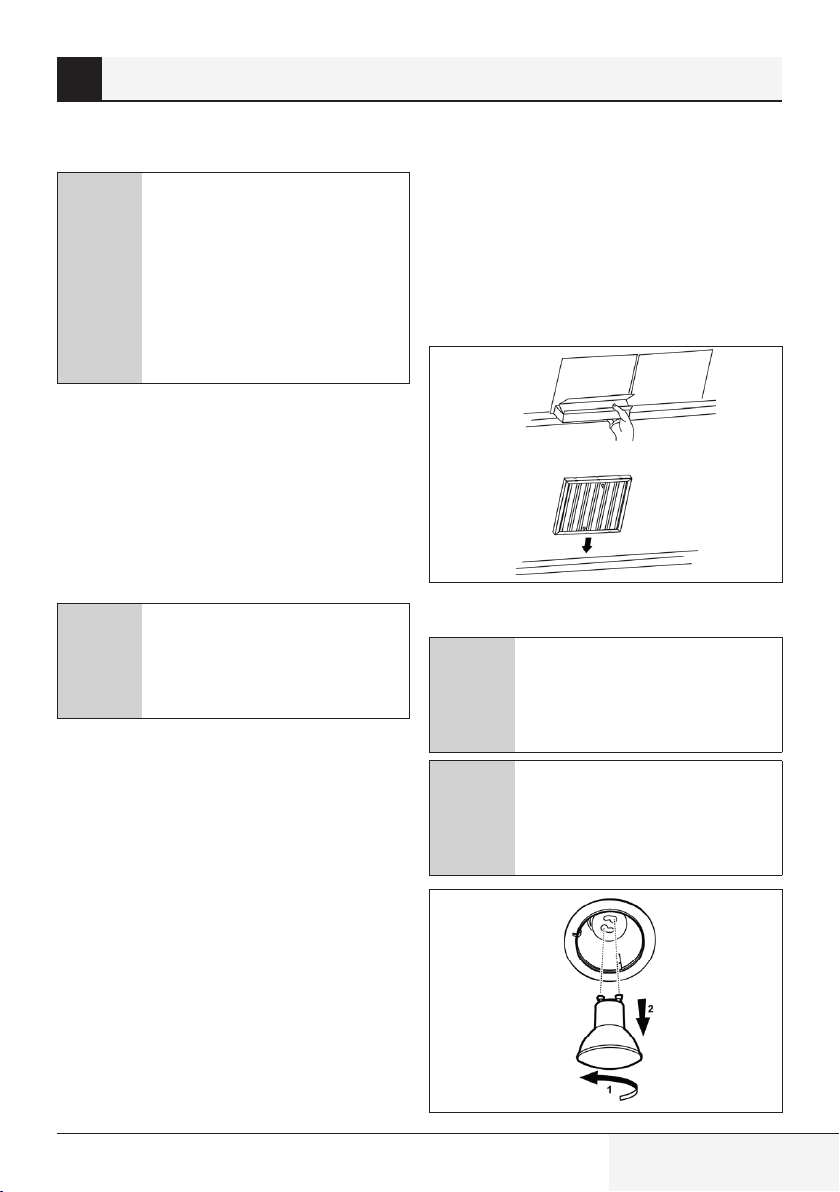

6.3 Grease Flter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3.1 Remove grease flters. . . . . . . . . . . . . . . . . . . 17
6.3.2 İnstall grease flters . . . . . . . . . . . . . . . . . . . . . 17
6.4 Replacng the lght bulb. . . . . . . . . . . . . . . . . . . 17
7 Warranty 19

4 / 59 EN Range Hood / User Manual
1 Read and save these nstructons
1.1 Important safety
Notce
Caution
For general ventilating use only. Do
not use To exhaust hazardous or
explosive Materials or vapours.
Warning
To reduce the risk of fire, electric
shock, or Injury to persons, observe
the following:
A. Use this unit only in the manner
intended by the manufacturer. If
you have questions, contact the
manufacturer.
B. Before servicing or cleaning the
unit, switch power off at service
panel and lock service panel dis-
connecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be
locked, securely fasten a prom-
inent warning device, such as a
tag, to the service panel.
C. Installation Work and
Electrical Wiring Must Be
Done By Qualified Person(s) In
Accordance With All Applicable
Codes & Standards, Including
Fire-rated Construction.
D. Sufficient air is needed for prop-
er combustion and exhaust-
ing of gases through the flue
(Chimney) of fuel burning equip-
ment to prevent back- draft-
ing. Follow the heating equip-
ment manufacturers guideline
and safety standards such as
those published by the National
Fire Protection Association
(NFPA), the American Society
for Heating, Refrigeration and
Air Conditioning Engineers
(ASHRAE), and the local code au-
thorities.
E. When cutting or drilling into wall
or ceiling, do not damage electri-
cal wiring and other hidden util-
ities.
F. Ducted systems must always be
vented to the outdoors.
Caution
To reduce risk of fire and to properly
exhaust air, be sure to duct air
outside - do not vent exhaust air
into spaces within walls, ceilings,
attics, crawl spaces, or garages.
Warning
To reduce the risk of fire, use only
metal duct work.
ınstall this hood in accordance with
all requirements specified.

Range Hood / User Manual 5 / 59 EN
1 Read and save these nstructons
Warning
To Reduce The Risk Of Fire Or
Electric Shock, Do Not Use This
Hood With Any External Solid State
Speed Control Device.
Warning
To reduce the risk of a range top
grease fire.
A. Never leave surface units un-
attended at high settings.
Boilovers cause smoking and
greasy spillovers that may ignite.
Heat oils slowly on low or medi-
um settings.
b. Always turn hood ON when cook-
ing at high heat or when flam-
being food (I.e. Crepes Suzette,
Cherries Jubilee, Peppercorn
Beef Flambe’).
c. Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on fan or filter.
d. Use proper pan size. Always use
cookware appropriate for the
size of the surface element.
Warning
To reduce the risk of injury to
persons, in the event of a range top
grease fire, observe the following:
a. Smother flames with a close-fit-
ting lid, cookie sheet, or other
metal tray, then turn off the gas
burner or the electric element.
Be careful to prevent burns. If
the flames do not go out imme-
diately, evacuate and call the fire
department.
b. Never pick up a flaming pan - you
may be burned.
c. Do not use water, including wet
dishcloths or towels - a violent
steam explosion will result.
d. Use an extinguisher only if:
1. You know you have a class ABC
extinguisher, and you already
know how to operate it.
2. The fire is small and contained
in the area where it started.
3. The fire department is being
called.
4. You can fight the fire with
your back to an exit.
aBased on “Kitchen Fire Safety
Tips” published by NFPA.
Operation
a. Always leave safety grills and
filters in place. Without these
components, operating blowers
could catch onto hair, fingers and
loose clothing.

6 / 59 EN Range Hood / User Manual
The manufacturer declines all
responsibility in the event of failure
to observe the instructions given
here for installation, maintenance
and suitable use of the product.
The manufacturer further declines
all responsibility for injury due to
negligence and the warranty of the
unit automatically expires due to
improper maintenance.
1 Read and save these nstructons

Range Hood / User Manual 7 / 59 EN
2 Electrcal & Installaton requrements
2.1 Electrical requirements
C
Observe all governing codes and
ordinances.
It is the customer’s responsibility:
To contact a qualified electrical installer. To assure
that the electrical installation is adequate and in
conformance with National Electrical Code, ANSI/
NFPA 70 — latest edition*, or CSA Standards C22.1-
94, Canadian Electrical Code, Part 1 and C22.2
No.0-M91 - latest edition** and all local codes and
ordinances.
•If codes permit and a separate ground wire
is used, it is recommended that a qualified
electrician determine that the ground path is
adequate.
•Do not ground to a gas pipe.
•Check with a qualified electrician if you are not
sure range hood is properly grounded.
•Do not have a fuse in the neutral or ground
circuit.
C
Save Installation Instructions for
electrical inspector’s use.
C
The range hood must be connected
with copper wire only.
C
Therangehoodshouldbeconnected
directly to the fused disconnect (Or
circuit breaker) box through metal
electrical conduit.
Wire sizes must conform to the requirements of
the National Electrical Code ANSI/NFPA 70 — latest
edition*, or CSA Standards C22.1-94, Canadian
Electrical Code Part 1 and C22.2 No. 0-M91 - latest
edition** and all local codes and ordinances.
A U.L.- or C.S.A.-listed conduit connector must be
provided at each end of the power supply conduit
(at the range hood and at the junction box).
Copies of the standards listed may be obtained
from:
* National Fire Protection Association
Batterymarch Park Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley
Road Cleveland, Ohio 44131-5575
2.2 Before installing the hood
1. For the most efficient air flow exhaust, use a
straight run or as few elbows as possible.
AWARNING:
Vent unit to outside
of building, only.
2. At least two people are necessary for
installation.
3. Fittings material is provided to secure the
hood to most types of walls/ceilings, consult
a Qualified Installer, check if they perfectly fit
with your cabinet/wall.
4. Do not use flex ducting.
5. COLD WEATHER installations should have an
additionalbackdraft damper installed to mini-
mize backward cold airflow and a nonmetallic
thermal break to minimizeconduction of out-
side temperatures as part of theductwork. The
damper should be on the cold air side ofthe
thermal break.The break should be as close as
possible to where theducting enters the heated
portion of the house.
6. Make up air: Local building codes may require the
use of Make-Up Air Systems when using Ducted
Ventilation Systems greater than specified CFM
of air movement. The specified CFM varies from
locale to locale. Consult your HVAC professional
for specific requirements in your area.
Removing the packaging
A
Remove carton carefully, Wear
gloves to protect against sharp
edges.
AWARNING:
Remove the protec-
tive film covering the product before
putting into operation.

8 / 59 EN Range Hood / User Manual
3
3.1 List of Materials
3.1.1 Parts supplied
Removing the packaging
Remove carton carefully, Wear
gloves to protect against sharp
edges.
WARNING: Remove the protec-
tive covering the product before
putting into operation.
•Hood canopy.
•Blower.
•Duct transition.
•Lamp already installed.
•Gr ter.
•Hardware bag with:
–Use, care and installation guide
– 2 hollow wall anchors with 2 screws to
secure hood to the wall at the bottom
– 4 Wood screws to secure the wood support
to the wall
– 4 Phillips head screws to secure the transition
to the hood outlet on the top
– 6 Phillips head screws to secure hood to the
cabinet
– 2 Safety screws and 2 lock washers to secure
the blower
– 2 Flat washers for hollow wall anchors
– Torx 20 adapter
3.1.2 Parts not supplied
Tools/Materials required
•Wire nuts
•10” rounded metal duct length to suit installation
•Measuring tape
•Pliers
•Gloves
•Knife
•Safety glasses
•Electric drill with 5/16” and 3/8” Bits
•Strain relief
•Spirit level
•Duct tape
•Screwdrivers:
– Phillips (Posidrive) # 2
–Torx # 2
•Wire cutter/stripper
•Masking tape
•Hammer
•Saw, jig saw or reciprocating saw
ducted out only
30" - 500 CFM
36" - 910 CFM
Nr.of Speeds
4
Controls
2 x 6.5 W LED
Volts
120 V
Frequency
60 Hz
Total Power
(motor + lamps)
30" - 450 W
36" - 900 W
Plug type
-
tance above
cooktop
30” (gas cooktop)

Range Hood / User Manual 9 / 59 EN
3.2 Dimensions and
Clearances
30”
18”
25”
12”
8 - 1/2”
3 3/4”
9 5/8”
CL
6”
3.3 Ducting Options and
Examples
Closely follow the instructions set out in this
manual.
All responsibility, for any eventual inconveniences,
damages or res caused by not complying with
the instructions in this manual, is declined.
3.3.1 Venting methods
Vent Exhaust Option
The hood is equipped with a transition B for
discharge of fumes to the outside (Ducting
version).
Minimum Duct Size (Ducting/Ductless version):
10” Round Pipe.
3
3.4 Preparation
Do not cut a joist or stud unless absolutely
necessary. If a joist or stud must be cut, then a
supporting frame must be constructed.
Fittings material is provided to secure the hood to
most types of walls/ceilings.
However, a technician must verify
suitability of the materials in accordance with the
type of wall/ceiling.

10 / 59 EN Range Hood / User Manual
3 Techncal specfıcatons of your applance
Before making cutouts, make sure there is proper
clearance within the ceiling or wall for exhaust
vent.
Hood installation height above cooktop is the
users preference. The lower the hood is above
the cooktop, the more efficient the capturing of
cooking odors, grease and smoke.
A
WARNING: For gas ranges
installation: mount this
hood so that the bottom
edge is at 30” (76,2 cm)
above the cooking surface.
For electric ranges instal-
lation: mount this hood so
that the bottom is not less
than 30” (76,2 cm) and not
more that 36” above the
cooking surface.
Household use. Please,
read installation manual
for specific application.
Check your ceiling height and the hood height
maximum before you select your hood.

Range Hood / User Manual 11 / 59 EN
4 Installng your applance
4.1 Installation - Ducting
version
•If possible, disconnect and move freestanding or
slide-in range from cabinet opening to provide
easier access to rear wall. Otherwise put a thick,
protective covering over countertop, cooktop or
range to protect from damage and debris. Select
a flat surface for assembling the unit. Cover that
surface with a protective covering and place all
canopy hood parts and hardware in it.
•Determine and mark the centerline on the wall
where the canopy hood will be installed.
•Select a mounting height comfortable for the
user and mark on wall.
•Tape template, matching center-line and hood
bottom.
4.2 İnstall hood onto wall
AIMPORTANT:
Framing must be
capable of supporting up to 150 lbs.
•Locate at least.2 vertical studs at the wood
support.
•Center the supplied wood support, left to right
and below the 15 3/8” marked line.
30”
•Secure the wood support to 2 or more vertical
studs, using at least 2 of the 4 supplied long
screws.
AIMPORTANT:
Screws must
penetrate at least 1 1/2” into vertical
studs. Countersink screws into
support.
C
The mounting screws must remain
in their original shipping location.
These screws are positioned to
engage the keyhole slots in the back
of the hood.
•Adjust depth of original mounting srcrews in the
wood support until they protrude 1/4” forward.
This 1/4” gap will provide clearance to hang the
hood.
4.2.1 Install Transition Onto Top
of Hood
AIMPORTANT:
Remove shipping
tape from damper and check that
damper moves freely.
•Place the transition piece over the hood exhaust
and secure with 4 screws provided.
•Use duct tape to seal the connection. Check to
be sure the damper moves freely.

12 / 59 EN Range Hood / User Manual
4 Installng your applance
4.2.2 Hang hood on wood
support
•Lift the hood and hold close to the installation
location. Route house wiring through the
knockout and into the junction box.
•Place the hood over the wood support. Be sure
the mounting screws engage the keyhole slots
in the back of the hood.
Tighten the screws.
AWARNING:
Continue to provide
additional support while the hood is
mounted with only these 2 screws.
These screws will not support the weight of the
hood. The hood could fall resulting in damage or
personal injury.
•Check to be sure the hood is level and centered.
30”
4.2.3 Install bottom mounting
screws
•Drill 1/8” pilot holes into the two lower mounting
holes. Enlarge the holes if they did not enter
studs to 3/8”. Insert anchors for wall fasteners
into bottom holes. Remove anchor screws and
add flat washers provided. Drive screws into
anchors and tighten.
•Install 4 additional screws through the back of
the hood and into the wood support.
4.3 İnstall hood ceiling or
beneath cabinets
(Skip this step if using wall mounting method)
AIMPORTANT:
Ceiling framing
must be capable of supporting up to
150 lbs.
•The ceiling should be constructed with 2x4’s.
•Determine the installation location on the wall.
•Continue the centerline forward on the bottom
of the cabinet or ceiling.
•The opening above the hood should allow for
the 10” round duct and clearance to slide the
hood back against the wall.
•The 2x4 studs must be located as shown in the
chart, Dim. A to accept monting screw.
•Drill 1/8” pilot holes into the studs at the
locations show in the illustration.

Range Hood / User Manual 13 / 59 EN
4
4.3.1 Install Transition Onto
Top of Hood
IMPORTANT: Remove shipping
tape from damper and check that
damper moves freely.
•Place the transition piece over the hood exhaust
and secure with 4 screws provided.
•Use duct tape to seal the connection. Check to
be sure the damper moves freely.
4.3 2 Mount hood onto ceiling
or cabinet
If mounting to the underside of a
cabinet with a recessed bottom,
install shims t
•Drive mounting screws into the studs until
they protrude 1/4”. The 1/4” gap will provide
clearance to engage the keyhole slots in the top
of the hood.
•Lift hood to installation position. Locate house
wiring and route trough the knockout (from the
back or top of the hood).
•Lift hood onto mounting screws. Slide back
against the rear wall.
•Tighten mounting screws.
IMPORTANT: For additional
support and to minimize vibration
during operation, the hood must be
secured to the back wall. Use wall
anchors to fasten bottom back of
hood to the wall.
14 9/16”
30”
DIM A= 14 9/16”

14 / 59 EN Range Hood / User Manual
4
4.3.3 Connecting the
ductwork
•Install ductwork, making connections in the
direction of airow as illustrated.
•Push duct over the exhaust outlet.
•Wrap all duct joints and the ange connections
with duct tape for an airtight seal.
•Make the same connection in the wall or ceiling
vent exit.
4.3.4 Electrical connection
Electrical Shock Hazard
Turn o power circuit at the service
panel before wiring this unit. 120
VAC, 15 or 20 Amp circuit required.
Electrical grounding instructions
This appliance is tted with an electrical junction
box with 3 wires, one of which (green/yellow)
serves to ground the appliance.
To protect you against electric shock, the green
and yellow wire must be connected to the
grounding wire in your home electrical system,
and it must under no circumstances be cut or
removed.
Failure to do so can result in death or electrical
shock.
Remove the knockout and the Junction box cover
and install the conduit connector (cULus listed) in
junction box.
4.3.5 Install Motor
•From the inside of the hood, slip motor into the
attachment slot on the left.
•Rotate motor upwards until it snaps into the
spring clip on the right.
•Secure the motor to the hood with the 2 machi-
ne screws and 2 lock washers.
IMPORTANT: Connector ends
are designed to mate only one way.
Match at and round connectors as
shown.

Range Hood / User Manual 15 / 59 EN
4
•Plug connector into the motor.
A. Mounting hole
B. Washer
C. Mounting screw
Fig. 1: Single motor installation (30” range hood
model only)
Install the grease ter and turn power on at
service panel.
Check operation of the hood.
If range hood does not operate:
•Check that the circuit breaker is not tripped or
the house fuse blown.
•Disconnect power supply. Check that wiring is
correct.
To get the most e nt use from your new range
hood, read the “Use and Care Information” section.
Keep your Installation Instructions and Use and
Care Guide close to range hood for easy reference.
A
C
B
Attachment
screw

16 / 59 EN Range Hood / User Manual
5 Operatng your applance
5.1 Description of the hood &
Controls
1. Blower and light controls
2. Lamp housings
3. Grease filter Handle
4. Grease filter
5.1.1 Controls
Use the high suction speed in cases of
concentrated kitchen vapours. It is recommended
that the cooker hood suction is switched on for 5
minutes prior to cooking and to leave in operation
during cooking and for another 15 minutes
approximately after terminating cooking.
5.1.2 Description of control panel
1. Light Control
– Turn the light control from OFF to HI for the
brightest light while cooking.
2. Fan Control
– Turn the fan control speed from OFF to HI as
needed.

Range Hood / User Manual 17 / 59 EN
6 Cleanng and mantenance
6.1 Maintenance
C
Before performing any maintenance
operation, isolate the hood from the
electrical supply by switching off
at the connector and removing the
connector fuse.
Or if the appliance has been con-
nected through a plug and socket,
then the plug must be removed from
the socket.
6.2 Cleaning
•The cooker hood should be cleaned regularly
(at least with the same frequency with which
you carry out maintenance of the fat filters)
internally and externally. Clean using the cloth
dampened with neutral liquid detergent. Do
not use abrasive products. DO NOT USE
ALCOHOL!
A
WARNING: Failure to carry out
the basic cleaning recommenda-
tions of the cooker hood and re-
placement of the filters may cause
fire risks.
•Therefore, we recommend oserving these
instructions.
•The manufacturer declines all responsibility for
any damage to the motor or any fire damage
linked to inappropriate maintenance or failure
to observe the above safety recommendations.
6.3 Grease Filter
Traps cooking grease particles.
This must be cleaned once a month using non
aggressive detergents, either by hand or in
the dishwasher, which must be set to a low
temperature and a short cycle. When washed in a
dishwasher, thegreasefiltermaydiscolourslightly,
but this does not affect its filtering capacity.
6.3.1 Remove grease filters
•To remove the filters, grasp the handle, push the
filter up and lift out.
6.3.2 İnstall grease filters
•Place filter drip trays into the rear of the hood.
•Insert the grease filter into opening and drop
into the trays.
6.4 Replacing the light bulb
C
Before replacing the lamps, switch
power off at service panel and
lock service panel disconnecting
means to prevent power from being
switched on accidentally.
C
Turn off the lights and fan. Allow the
lights to cool before handling. If new
lights do not operate be sure lights
are inserted correctly before calling
service.

18 / 59 EN Range Hood / User Manual
6 Cleanng and mantenance
Replace Lights
•Remove the damaged light (twist counter
clockwise) and replace with a new 120 Volts,
6.5 W, LED light made for a GU10 base,
suitable for use in open luminare.

Range Hood / User Manual 19 / 59 EN
7 Warranty
Warranty Statement For Beko Range Hoods
Beko Beko
Beko
Beko
Beko
Beko
Please visit our site www.beko.us for necessary contact number to schedule a service appointment and parts purchase.
BEKO
BEKO
otherwise
2 year* limited warranty from date of first installation Beko will repair or replace at no cost to the consumer any defective

Lea el manual del usuario antes de utilizar el aparato
Estimado cliente:
Gracias por elegir un producto Beko. Esperamos que obtenga los mejores resultados de
nuestro producto ya que ha sido fabricado con gran calidad y con tecnología de última
generación. Por tanto, le aconsejamos que lea con atención este manual del usuario
y todos los demás documentos adjuntos antes de utilizar el producto; guárdelo para
futuras consultas. Si va a entregar este producto a otra persona, proporciónele el
manual del usuario también. Siga todas las advertencias e instrucciones incluidas en
este manual.
Recuerde que este manual del usuario también es válido para otros modelos. Las
diferencias entre los modelos se señalan dentro del manual.
Explicación de los símbolos
En este manual se utilizan los siguientes símbolos:
Información importante o consejos útiles sobre
el uso.
Advertencia para situaciones de riesgo con res-
pecto a la vida y la propiedad.
Advertencia sobre posibles descargas eléctricas.
Advertencia par ntes.
