User Manual
Cooker Hood

2 / TR Davlumbaz / Kullanma Kılavuzu
CONTENTS
1 Important safety and
environmental instructions 4
1.1 General Safety ..........................................4
1.2 Compliance with the WEEE Directive and
Disposing of the Waste Product:.......................7
1.3 Compliance with RoHS Directive ................7
1.4 Package Information .................................8
2 General appearance 9
2.1 Overview ..................................................9
2.2 Technical data...........................................9
3 Operation of the appliance 10
3.1 Controlling the appliance .........................10
3.2 Efficient use in terms of energy saving ....10
3.3 Operation of the hood..............................10
3.4 Replacement of lamp ..............................11
3.5 Operation with flue connection ................11
3.6 Operation without flue connection ............11
4 Cleaning and maintenance 12
4.1 Cleaning of the grease filter.....................12
4.2 Replacement of carbon filters .................12
5 Installation of appliance 13
5.1 Position of the appliance .........................13
5.2 Installation accessories............................13
5.3 Wall mounting.........................................14
5.4 Connecting to flue...................................16
5.5 Mounting the chimney.............................17
5.6 Storage ..................................................17
5.7 Handling and transportation.....................17
6 Troubleshooting 18

Please read this user manual first!
Dear Valued Customer,
Thank you for preferring this Beko appliance. We hope that you get the best results
from your appliance which has been manufactured with high quality and state-of-
the-art technology. For this reason, please read this entire user manual and all other
accompanying documents carefully before using the appliance and keep it as a
reference for future use. If you handover the appliance to someone else, give the user
manual as well. Follow the instructions by paying attention to all the information and
warnings in the user manual.
Remember that this user manual may also apply to other models. Differences between
models are explicitly described in the manual.
Meanings of the Symbols
Following symbols are used in various sections of this user manual:
CImportant information and useful hints about
usage.
AWARNING: Warnings against dangerous situa-
tions concerning the security of life and property.
WARNING: Warning for danger of fire.
BWARNING: Warning for electric shock.
This appliance has been produced in environmentally friendly facilities without harming the nature.

4 / EN Cooker Hood / User Manual
1.1 General Safety
Important Safety Instructions
Read Carefully And Keep For
Future Reference This section
contains safety instructions that
will help protect from risk of fire,
electric shock, exposure to leak
microwave energy, personal inju-
ry or property damage. Failure to
follow these instructions shall void
any warranty.
•Beko products comply with the
applicable safety standards;
therefore, in case of any damage
on the appliance or power cable,
it should be repaired or replaced
by the dealer, service center or a
specialist and authorized service
alike to avoid any danger. Faulty
or unqualified repair work may
be dangerous and cause risk to
the user.
•This appliance is intended to be
used in household and similar
applications such as:
– Staff kitchen areas in shops,
offices and other working en-
vironments;
– Farm houses
– By clients in hotels, and other
residential type environments;
– Bed and Breakfast type envi-
ronments.
•Operate the appliance for its
intended purpose only as de-
scribed in this manual.
•The manufacturer cannot be
held liable for damages result-
ing from improper installation or
misuse of the product.
•This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental ca-
pabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved.
•Children shall not be allowed
play with the appliance. Clean-
ing and user maintenance shall
not be made by children without
supervision.
1 Important safety and environmental instructions

Cooker Hood / User Manual 5 / EN

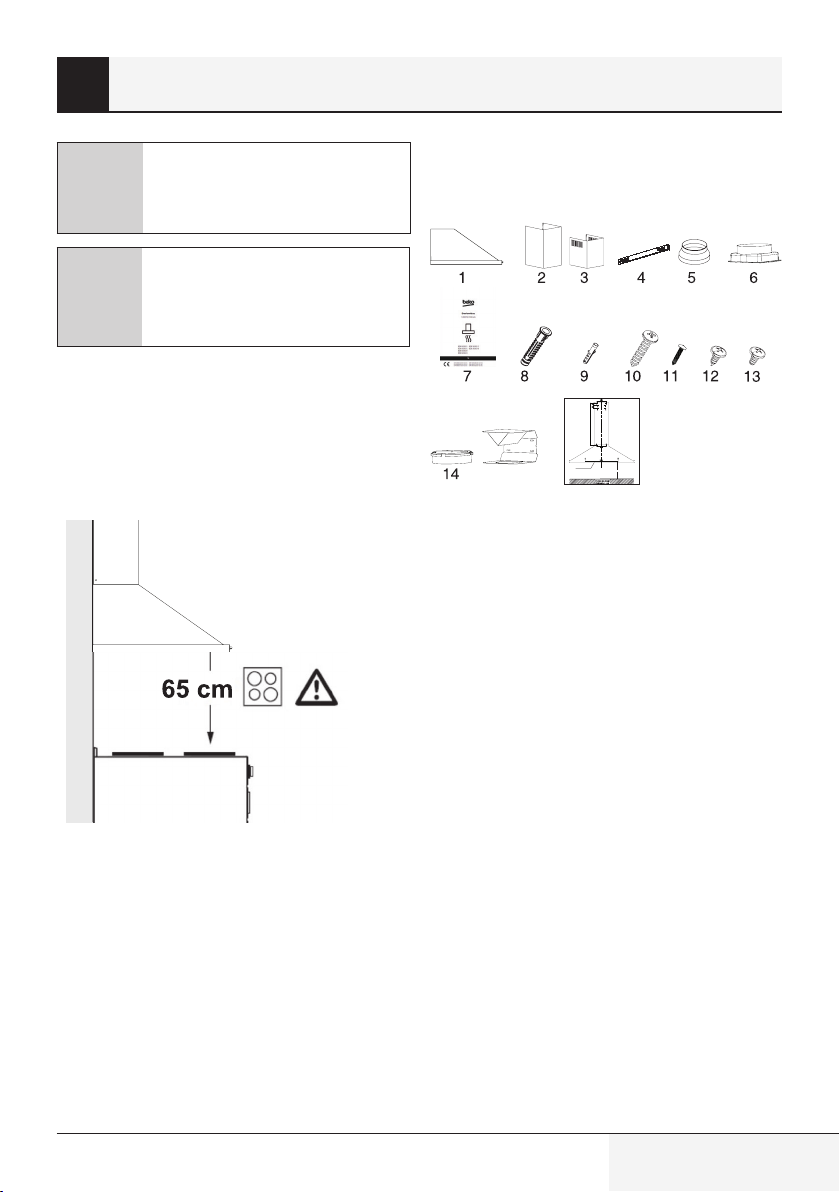

•The minimum distance between
the supporting surface for the
cooking vessels on the hob and
the lowest part of your product
must be at least 65 cm.
•If the instructions for installation
for the gas hob specify a greater
distance, this has to be taken
into account.
•Make sure that your mains
power supply complies with the
information supplied on the rat-
ing plate of the appliance.
•Never use the appliance if the
power cable or the appliance it-
self is damaged.
•Prevent damage to the power
cable by not squeezing, bending,
or rubbing it on sharp edges.
Keep the power cable away from
hot surfaces and naked flame.
•Use the appliance with a
grounded outlet only.
WARNING: Do not connect the
appliance to the mains until the
installation is fully complete.
•Place the appliance in a way so
that the plug is always accessible.
•Do not touch the lamps if they
have operated for a long time.
They can burn your hands since
they will be hot.
•Follow the regulations set out by
competent authorities on dis-
charge of the exhaust air (this
warning is not applicable for use
without flue).
•Operate your appliance after
putting a pot, pan etc. on the
hob. Otherwise, high heat may
cause deformation in some parts
of your product.
•Turn off the hob before taking
the pot, pan etc. from it.
•Do not leave hot oil on the hob.
Pans with hot oil may cause self
combustion.
•Pay attention to your curtains
and covers since oil may catch
fire while cooking food such as
fries.
•Grease filter must be cleaned
at least monthly. Carbon filter
must be replaced at least every
3 months.
1 Important safety and environmental instructions

6 / EN Cooker Hood / User Manual
•Product shall be cleaned ac-
cordance with user manual. If
cleaning was not carried out in
accordance with user manual,
there may be fire risk.
•Do not use non-fire-resistant
filtering materials instead of the
current filter.
•Only use the original parts or
parts recommended by the
manufacturer.
•Do not operate the product with-
out the filter and do not remove
the filters while the product is
running.
•In the event of be started any
flame, de-energize your product
and cooking appliances.
•In the event of be started any
flame, cover the flame and never
use water to extinguish.
•Unplug the appliance before
each cleaning and when the ap-
pliance is not in use.
•Be aware there can be health
concerns by simultaneously op-
erating vented rangehoods in an
environment shared with other
non-electric heating sources,
such as an open or combustion
fireplace or gas water heaters
for example.
•The venting action of the range-
hood can create a low pressure
(maximum allowed negative
pressure in this case is 4 Pa /
0.04 mbar) which can impede
the standard venting operation
of these other devices, such as
smoke up a chimney. As such
harmful fumes or low oxygen lev-
els can occur within these rooms.
To prevent this, it is recommended
to provide another alternate source
of ventilation to allow fresh air to
be drawn into these rooms.
•In the environment where the
appliance is being used, the ex-
haust of devices running on fuel
oil or gas, such as room heater
must be absolutely isolated or
device must be hermetical type.
•When connecting the flue, use
pipes with a diameter of 120 or
150 mm. Pipe connection must
be as short as possible and have
as few elbows as possible.
•Danger of choking! Keep all the
packaging materials away from
children.
1 Important safety and environmental instructions

Cooker Hood / User Manual 7 / EN
1 Important safety and environmental instructions
CAUTION: Accessible parts may
become hot when used with cook-
ing appliances.
•The product outlet must not be
connected to air channels that
include other smoke.
•The ventilation in the room may
be insufficient when the hood for
electric hob is used simultane-
ously with the devices operating
on gas or other fuels (this may
not apply to appliances that only
discharge the air back into the
room).
•Objects placed on the product
may fall. Do not place any ob-
jects on the product.
•Do not flambe under the your
product.
WARNING: Before installing the
Hood, remove the protective films.
•Never leave high naked flames
under the hood when it is in op-
eration
•Deep fat fryers must be contin-
uously monitored during use:
overheated oil can burst into
flames.
•Range Hoods and other cooking
fume extractors may adversely
affect the safe operation of appli-
ances burning gas or other fuels
(including those in other rooms)
due to lack of back flow of com-
bustible gases. These gases can
potentially result in carbon mon-
oxide poisoning. After installation
of a range hood or other cooking
fume extractor, the operation of
flued gas appliances should be
tested by a competent person to
ensure that back flow of com-
bustion gases do not occur
1.2 Compliance with the WEEE
Directive and Disposing of the Waste
Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic equip-
ment (WEEE).
This symbol indicates that this product
shall not be disposed with other
household wastes at the end of its ser-
vice life. Used device must be returned
to offical collection point for recycling
of electrical and electronic devices. To find these
collection systems please contact to your local au-
thorities or retailer where the product was pu-
chased. Each household performs important role
in recovering and recycling of old appliance.
Appropriate disposal of used appliance helps pre-
vent potential negative consequences for the envi-
ronment and human health.

8 / EN Cooker Hood / User Manual
1.3 Compliance with RoHS Directive
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.4 Package Information
Packaging materials of the product are
manufactured from recyclable materials
in accordance with our National
Environment Regulations. Do not dis-
pose of the packaging materials together with the
domestic or other wastes. Take them to the pack-
aging material collection points designated by the
local authorities.
1 Important safety and environmental instructions

Cooker Hood / User Manual 9 / EN
2 General appearance
2.1 Overview
1. Inner chimney
2. Outer chimney
3. Body
4. Control panel
5. Lighting
6. Grease filter
2.2 Technical data
Model BRH90CB
Supply voltage & frequency 220-240V ~ 50 Hz
Lamp power 2x3 W
Motor power 210 W
Flow rate – 3. Level 615 m³/h
Insulation class of motor Class F
Insulation class Class I
1
2
3
4
5
6
899
500
29
248
20
330
223
166.5
20
08
600
Mın848 ; Max1178

10 / EN Cooker Hood / User Manual
3 Operation of the appliance
3.1 Controlling the appliance
KEY FUNCTION
A : On / Off You may switch on and off all functions by pressing this button.
B : 1. Stage button You may press this button to operate the appliance at the 1st speed stage.
C : 2. Stage button You may press this button to operate the appliance at the 2nd speed stage.
D : 3. Stage button You may press this button to operate the appliance at the 3rd speed stage.
E : Light On / Off You can illuminate the cooking area by pressing this button. To turn of lighting press
this button again.
3.2 Efficient use in terms of energy saving
•When using your appliance, adjust the speed settings according to vapour and odour intensity, in
order to save energy.
•Use low speeds (1-2) under normal conditions, and high speed (3) for intense odour and vapour.
•The lamps on the hood are placed for illuminating the cooking area.
•Using them for environmental lighting shall cause unnecessary energy expenditure and insufficient
lighting.
3.3 Operation of the hood
•Your appliance contains a motor that has various speeds.
•For better performance, we recommend using low speeds under normal conditions and high speeds
in cases of strong odours and intense vapour.
•You can start your appliance by pressing on the desired speed setting button. (B,C,D)
•You can illuminate the cooking area by pressing the lamp. (E)

Cooker Hood / User Manual 11 / EN
3 Operation of the appliance
3.4 Replacement of lamp
MAX 3 W
Make the electrical connections of the appliance.
Your appliance uses 3W spot LED lamp. For re-
placing the lamps, push downwards on the holder
from its behind, turn it counter-clockwise, and take
it out downwards. Apply the above operation in re-
verse to install new lamps.
Bulb
Bulb power 3 W
Holder / Socket GZ 10
Bulb voltage 220 - 240 V
Size 53x50 mm
ILCOS Code DR/F3-220-240-GZ10-50-53
3.5 Operation with flue connection
•Vapour is extracted through the
flue duct, which is fastened to
the connection head on the
hood.
•The diameter of the flue duct must be the same
as the connection ring. In horizontal settings, the
pipe has to have a slight upward slope (around
10º) so that the air can exit the room easily.
3.6 Operation without flue
connection
•Air is filtered through the carbon
filter and recirculated in the
room. Carbon filter is used
when it is impossible to use a
flue in the house.
•In flueless use, remove the flaps inside the flue
adapter.
•Remove the grease filter. To install the carbon
filter, fit the filter to the tabs by centring it on
the plastic piece on both sides of the fan body.
Tighten it by turning right or left.
•Replace grease filter.

12 / EN Cooker Hood / User Manual
4 Cleaning and maintenance
CBefore cleaning and maintenance,
unplug the product or turn off the
switch.
4.1 Cleaning of the grease filter
Grease filter retains the oil particles in the air.
Grease filters may change colour after repeated
cleaning. This is normal and does not require re-
placement of filters.
•Push the grease filter lock forward.
•Then pull it slightly down and pull it out. Oth-
erwise, you can bend the filter. Wash and rinse
grease filters with liquid detergent and replace
grease filters to their sockets by by carrying out
the steps specified above in reverse order. This
filter retains the oil particles in the air.
CYou may wash your grease filters in
the dishwasher.
ACAUTION: In case of normal use,
clean your filter once in a month.
4.2 Replacement of carbon filters
Odour removing filters contain charcoal (Active
carbon). Grease filters must be installed in the
product, regardless of whether or not charcoal
filters are used.
•Remove the grease filter.
•To remove the carbon filter, remove the car-
bon filter from its housing by rotating it coun-
ter-clockwise from the tab.
•Install the new carbon filter.
•Install the grease filter.
A
CAUTION
•Carbon filter shall never be
washed.
•Replace carbon filters once every
3 months.
•You can obtain the carbon filter
from the authorized services.

Cooker Hood / User Manual 13 / EN
AWARNING: Before starting the in-
stallation, read the safety informa-
tion on User Manual.
BWARNING: Failure to install with
screws and stabilizers in accordance
with these instructions may result in
electric shock.
For the installation of the hood, please contact the
nearest Authorized Service.
It is the customer's responsibility to prepare the
location and electrical installation of the hood.
5.1 Position of the appliance
•Distance between the cooker and the cooker
hood must be considered prior to assembly. This
distance should be 65 cm.
•Distance must be measured from the surface of
grate for gas cookers,
•From surface of glass for electric cookers.
5.2 Installation accessories
15 650mm
Ürün Alt Yüzeyi
903
16
1. Product
2. Outer chimney
3. Inner chimney
4. Chimney connection plate
5. 150/120mm adapter
6. Ø150mm plastic flue
7. User manual
8. 4x Ø8mm plastic dowel
9. 6x Ø6mm plastic dowel
10.4x 4.8x50 wall mount screw
11.6x 3.9x22 chimney connection plate screw
12.4x 3.5x9.5 flue connection screw
13.2x 3.5x9.5 blunt screw
14.Ø120mm plastic flue adapter
15.Air baffle
16.Assembly template
The information required to make the location suit-
able for the installation of the hood is given below.
5 Installation of appliance

14 / EN Cooker Hood / User Manual

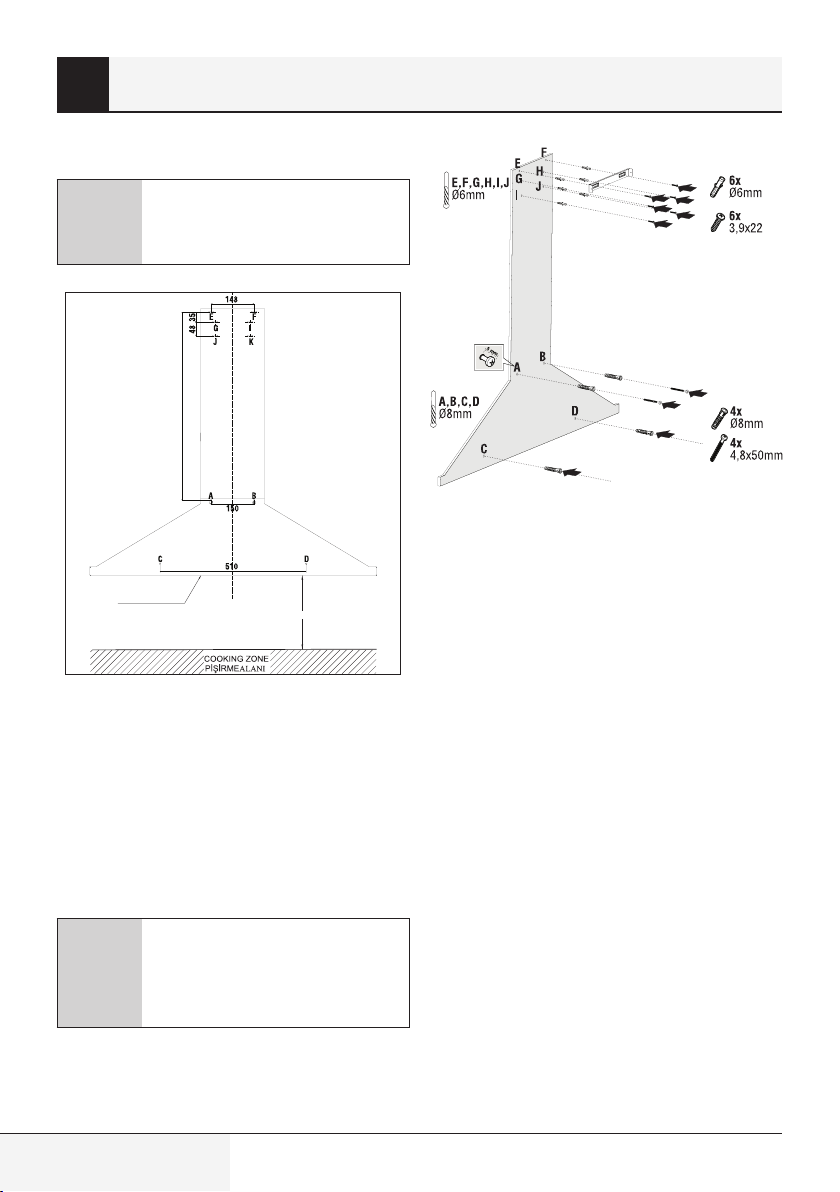

5.3 Wall mounting
AUse protective gloves and glasses
while performing drilling and cutting
operations.
650mm
Ürün Alt Yüzeyi
903
(Figure 1)
•It is important that the wall is straight, upright
and has sufficient load-bearing capacity.
•Depth of drilling holes must comply with the
length of bolts.
•The bolts and dowels provided are suitable for
brick walls. In case of other constructions (e.g.
plaster, board, porous concrete), it is necessary
to use appropriate dowels and fixing bolts.
AATTENTION: Before drilling, ensure
that there are no power, gas or wa-
ter pipes in the close proximity of the
drilling locations.
(Figure 2)
Draw a mid location line from the ceiling perpen-
dicular to the lower edge of the cooker hood.
Take the location line you drew as a reference and
mark points A,B,C,D,E,F,G,H,I,J according to the
measurements in the assembly template (Figure
1).
Drill the marked points E,F,G,H,I,J with Ø6mm drill
and insert 6 Ø6mm plastic dowels in the drilled
holes. Fix the flue connection plate to the wall with
3.9x22 screws (Figure 2).
Drill the marked points A,B,C,D with Ø8mm drill
and insert Ø8mm plastic dowels in the drilled
holes in order to fix the cooker hood body (Figure
2).
Screw 2 4.8x50 suspension screws to points A, B
with a clearance of 5 mm between the screw head
and the wall (Figure 2).
5 Installation of appliance

Cooker Hood / User Manual 15 / EN
(Figure 3)
Hold the cooker hood by its body and place it on
the suspension screws on the wall and tighten the
screws (Figure 3).
Fix the cooker hood with 4.8x50 screws through
the mounting holes (C, D) on the interior of the
cooker hood (Figure 3).
1
2
(Figure 4)
1. Air baffle
2. Ø120mm plastic flue
Fix the Ø120mm plastic flue adapter included in
assembly accessories to the air baffle in the direc-
tion of the arrow. Lock the flue adapter by turning
it in the direction of the arrow (Figure 6).
(Figure 5)
Assemble the air baffle group with 3.9 x 22 screws
from point G, H, I, J that you have already prepared
(Figure 5).
(Figure 6)
1. Aluminium air outlet pipe
Assemble the 150/120 mm flue adapter to the air
exit of the cooker hood. Assembly the air outlet
pipe (Figure 6).
5 Installation of appliance

16 / EN Cooker Hood / User Manual
A
ATTENTION: Since twists and
bends in the aluminium pipe will
lead to reduction in the air suction
power, avoid using twists and bends
as much as possible.
5.4 Connecting to flue
(Figure 7)
1. Flap pin socket
2. Flap pin
Insert the plastic pin (Figure 7/area no. 2) on the
pin socket on the motor exhaust (Figure 7/area
no.1). Then bend the flap lightly to insert the oth-
er pin on the flap and insert the other pin to its
socket.
If you are going to use the Ø 120/150 mm adapt-
er, connect one end of the pipe to this adapter, if
you are not going to use it, to the direct output on
the product. Connect the other end of the pipe to
your flue. Check that these two connections are
tight enough so they will not come out when the
appliance runs on full power. Ensure that the flaps
inside the flue work when tightened with clamp.
Connect the flue connection pipe outside the
adapter (Figure 8/a). If the connection pipe is fitted
inside the adapter, the flue flaps that prevent air
return shall remain closed and air won’t be sucked
in (Figure 8/b).
5 Installation of appliance
The length of the pipe connection as well as the
number of elbows must be as minimum as pos-
sible.
A : Flue outlet pipe
B : Flue flaps
C : Plastic flue
The flue flaps are closed then the appliance is not
operating and prevent possible outside odour and
dust from entering inside.
(a) (b)
Suitable Not suitable
(Figure 8)

Cooker Hood / User Manual 17 / EN
5.5 Mounting the chimney
1
2
3
4
4
(Figure 9)
1. Inner chimney
2. Outer chimney
3. Flue connection plate
4. 3.5x9.5 screw
Make the electrical connection of your product
before starting flue installation. Insert the flue
plates Around the body. Screw the outer flue to
the outer flue connection openings which on the
body (Figure 9). Extend the inner flue to the flue
connection plate fixed to the wall from its upper
outer edge, and screw (Figure 9).
5.6 Storage
•If you do not intend to use the appliance for a
long time, please store it carefully.
•Please make sure that the appliance is un-
plugged, cooled down and totally dry.
•Store the appliance in a cool and dry place.
•Keep the appliance out of the reach of children
5.7 Handling and transportation
•During handling and transportation, carry the
appliance in its original packaging. The packag-
ing of the appliance protects it against physical
damages.
•Do not place heavy loads on the appliance or
the packaging. The appliance may be damaged.
•Dropping the appliance will render it non-opera-
tional or cause permanent damage.
5 Installation of appliance

18 / EN Cooker Hood / User Manual
6 Troubleshooting
Troubleshooting Root Cause Help
Appliance is not working. Check your fuses. Fuse may be blown, inspect and re-
store it.
Appliance is not working. Check the electrical connection. Mains voltage shall be between 220
and 240 V.
Appliance is not working. Check the electrical connection. Check if other appliance in your
kitchen operate.
Illumination light does not operate. Check the electrical connection. Mains voltage shall be between 220
and 240 V.
Illumination light does not operate. Inspect the lamp switch. Lamp switch shall be at "on" position.
Illumination light does not operate. Inspect the lamps. The lamps of the appliance shall il-
luminate.
Air inlet of the appliance is inad-
equate.
Inspect the grease filter. Under normal operating conditions,
grease filter shall be cleaned at least
once in a month.
Air inlet of the appliance is inad-
equate.
Check the air discharge flue. The air discharge flue shall be at “on”
position.
Air inlet of the appliance is inad-
equate.
Inspect the carbon filter. The filters of the appliances with car-
bon filters shall be replaced once in
every 3 months under normal condi-
tions.

Arçelik A.Ş.
Karaağaç Caddesi No: 2-6, 34445,
Sütlüce, İstanbul, Türkiye
www.beko.com
