Hood
User Manual
HCA62320W
HCA62320B HCA62320WH HCA62320BH
01M-8851163200-4117-02
EN PL RO DE ES FR
NL CS SL SK UA

Ths product has been manufactured n envronmental frendly modern plants wthout gvng any harm to the nature.
Ths applance conforms to the
WEEE regulaton.
It does not contan PCB.
Please read this manual first!
Dear Customers!
Thank you for preferring a Beko product. We hope that you get the best results from
your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well. Follow all
warnings and information in the user manual.
Rememberthatthisuser manualis alsoapplicable forseveralothermodels. Differences
between the models are explicitly described in the manual.
Meanings of the Symbols
Following symbols are used in the various section of this manual:
C
Important information and useful hints about
usage.
AWARNING:
Warnings for dangerous situa-
tions concerning the safety of life and property.
B
Warning for electric shock.
Warning for hot surfaces.

Hood / User Manual 3 / EN
CONTENTS
ENGLISH 04-20
POLSKI 21-37
ROMÂNĂ 38-54
DEUTSCH 55-74
ESPAÑOL 75-94
FRANÇAIS 95-112
NEDERLANDS 113-131
ČESKY 132-149
SLOVENŠČINA 150-167
SLOVENSKÝ 168-185
УКРАЇНСЬКИЙ 186-208

4 / EN Hood / User Manual
1 Important safety and envronmental
nstructons
This section contains safety
instructions that will help protect
from risk of personal injury or
property damage. Failure to follow
these instructions invalidates the
granted warranty.
1.1 General safety
•Always have the installation and
repairing procedures carried out
by the Authorized Service Agent.
Manufacturing firm shall not be
held responsible for damages that
may be caused by unauthorized
persons.
•This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or
lack of experience and knowledge.
Children should be supervised to
ensure that they do not play with
the appliance.
1.1.1 Electrical safety
•Always unplug the appliance
from the mains supply during
installation, maintenance,
cleaning and repair operations.
•If the power cable is faulty,
it should be replaced by a
qualified person certified by
the manufacturer, after-sales
service or similar (preferably an
electrician) or a person described
by the importer.
•Operating voltage is 220 to 240
volts.
•If the appliance has a failure, it
should not be operated unless it is
repaired by the Authorized Service
Agent. There is the risk of electric
shock!
•Do not route power cable close
to hobs. Otherwise power cable
may cause fire since it melts down
easily.
•Never plug the hood before
installation is completed.
•In order to obtain the best
performance, external conductor
must not be longer than 4 m. It
must not contain more than 2
perpendicular (90°) angles and its
diameter must be min. ø120 mm.
•Disconnect the appliance from
mains before any intervention to
the internal parts of the appliance.
•Use the appliance with a grounded
outlet only.

Hood / User Manual 5 / EN
1 Important safety and envronmental
nstructons
1.1.2 Product safety
•You can use a pipe with a diameter
of 120 mm or 150 mm on the flue
connection of the hood.
•Do not make connections to the
flues connected with stoves,
exhaust shafts or flues with rising
flames. Observe the rules set by
authorities on the discharge of
exhaust air.
•The height between the lower
surface of the hood and upper
surface of the stove/oven should
not be less than 55 cm for gas
hobs and 45 cm for electric hobs.
•Do not operate the hood without
aluminum filters and do not
remove the filters while it is
operated.
•Never touch the hood's lamps
after they are operated for a long
time. Hot lamps may burn your
hand.
•Avoid large flames beneath the
product. Otherwise, particles on
oil filter may ignite and lead to a
fire.
•Turn on the hobs after placing
pans or pots on it. Otherwise,
rising heat may deform certain
parts of your product.
•Turn off the hobs before taking
away pans or pots.
•Avoid inflammable materials under
the hood.
•Oil may ignite while frying foods.
Therefore, be careful about cloths
and curtains.
•Neverleavethecookerunattended
when frying foods; otherwise hot
oil may cause fire.
•There is the risk of fire if your hood
is not cleaned in the specified
periods.
•Be extremely careful and wear
gloves when cleaning the hood.
•We advise you to operate the
appliance a few minutes before
starting to cook in order to
increase the suction power. Thus,
you shall have a continuous and
stable suction power when the
vapors arise.
•Operate your hood for 15 minutes
more after the end of cooking or
frying in order to remove the smell
and cooking vapor in the kitchen.
•When the hood is in use, especially
together with gas cookers,
make sure that environment is
ventilated with clean air.

6 / EN Hood / User Manual
•Pay attention not to connect
the appliance to the flues used
by non-electrical devices. (E.g.:
Heater flue).
•Simultaneous and smooth
operation of the hood and another
device that require air is only
possible when a low pressure
of 4 Pa (0.04 mbar) is reached,
and thus the reabsorption of the
gas is avoided. This can only be
achieved by means of air coming
from uncovered openings (door,
window, ventilation openings
or other technical measures).
Pay utmost attention to provide
sufficient air flow. A flue that
provides air ingress/egress is not
enough for this purpose.
1.1.3 Children's safety
•Packaging materials are dangerous
to children. Keep packaging
materials in a safe place out of
reach of children.
•Electrical appliances are
dangerous to children. Keep
children away from the product.
Do not allow children play with the
appliance.
•This appliance can be used by the
children who are at the age of 8 or
over and by the people who have
limited physical, sensory or mental
capacity or who do not have
knowledge and experience, as
long as they are supervised with
regard to safe use of the product
or they are instructed accordingly
and understand the risks of using
the product. Children should not
play with the appliance.
• CAUTION: Accessible parts may
heat up when used with a cooking
device.
1.2 Intended use
•This appliance is intended for
domestic use. It is not suitable for
commercial use and it must not be
used out of its intended use.
•The manufacturer shall not be
liable for any damage caused by
improper use or handling.
•Service life of your appliance is 10
years. This is the period required
for availability of spare parts for
proper functioning of the product.
1 Important safety and envronmental
nstructons

Hood / User Manual 7 / EN
• WARNING: Failure to fix the
screws in concordance with
the instructions provided in the
manual may lead to electrical
hazards.
1.3 Compliance with WEEE
Directive and disposing of the
waste product
This product complies with EU WEEE
Directive (2012/19/EU). This product
bears a classification symbol for waste
electrical and electronic equipment
(WEEE).
This product has been manufactured with high
quality parts and materials which can be reused
and are suitable for recycling. Do not dispose of
the waste product with normal domestic and other
wastes at the end of its service life. Take it to the
collection center for the recycling of electrical and
electronic equipment. Please consult your local
authorities to learn about these collection centers.
Complance wth RoHS
Drectve:
The product you have purchased complies with EU
RoHS Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified in the
Directive.
1.4 Package information
Package of the product is made of
recyclable materials in accordance with
our National Legislation. Do not dispose
of the packaging materials together with the
domestic or other wastes. Take them to the
packaging material collection points designated by
the local authorities.
1 Important safety and envronmental
nstructons

8 / EN Hood / User Manual
2 Techncal specfcatons of your applance
Technical data contained in this manual and
labels attached to the hood were obtained from
measurements and calculations in accordance
with the requirements of EU Regulation No.
65/2014 and 66/2014. This appliance complies
with the European Directives 2004/108/EC,
2006/95/EC, 2009/125/EC and 2011/65/EU.

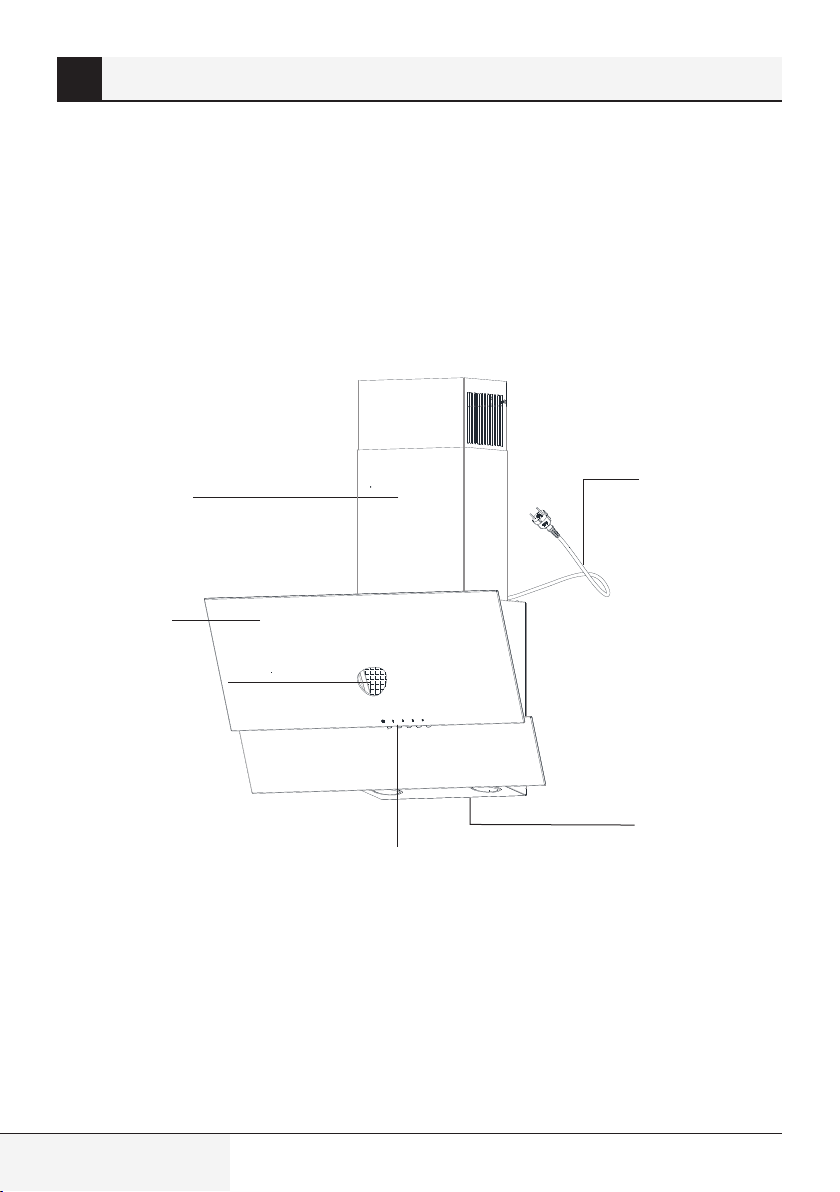

Fig.1 Explanatory figure of the kitchen hood
Power supply cord
Mechanical control
Lighting
Aluminium grease filter
Hinged flap
Chimney cover

Hood / User Manual 9 / EN
2 Techncal specfcatons of your applance
Fig.2 Dimension drawing
!"#$%&'($

10 / EN Hood / User Manual
3 Operatng your applance
The hood is designed for suction of fumes while
preparing meals. The device can be operated in
two modes:
As extractor: vapors are removed outside
the room by means of a venting pipe. The venting
pipe is not available with the device and must be
purchased separately.
A
Use the shortest vapor discharging
pipe possible.
A
The venting pipe shall have the
smoothest inner surface as possible
(it is not recommended to use pipes
of type spiro).
A
Use a pipe with as few bends as
possible (bending angles should not
be greater than 90 degrees).
A
It is not recommended to apply
section changes of the pipe (larger
to smaller e.g. air outlet Ø150 mm to
air outlet Ø120mm).
As absorber: vapors are cleaned of grease
and odors before they are returned to the room
through the grille on the upper chimney cover. If
the hood shall work as an absorber, it is necessary

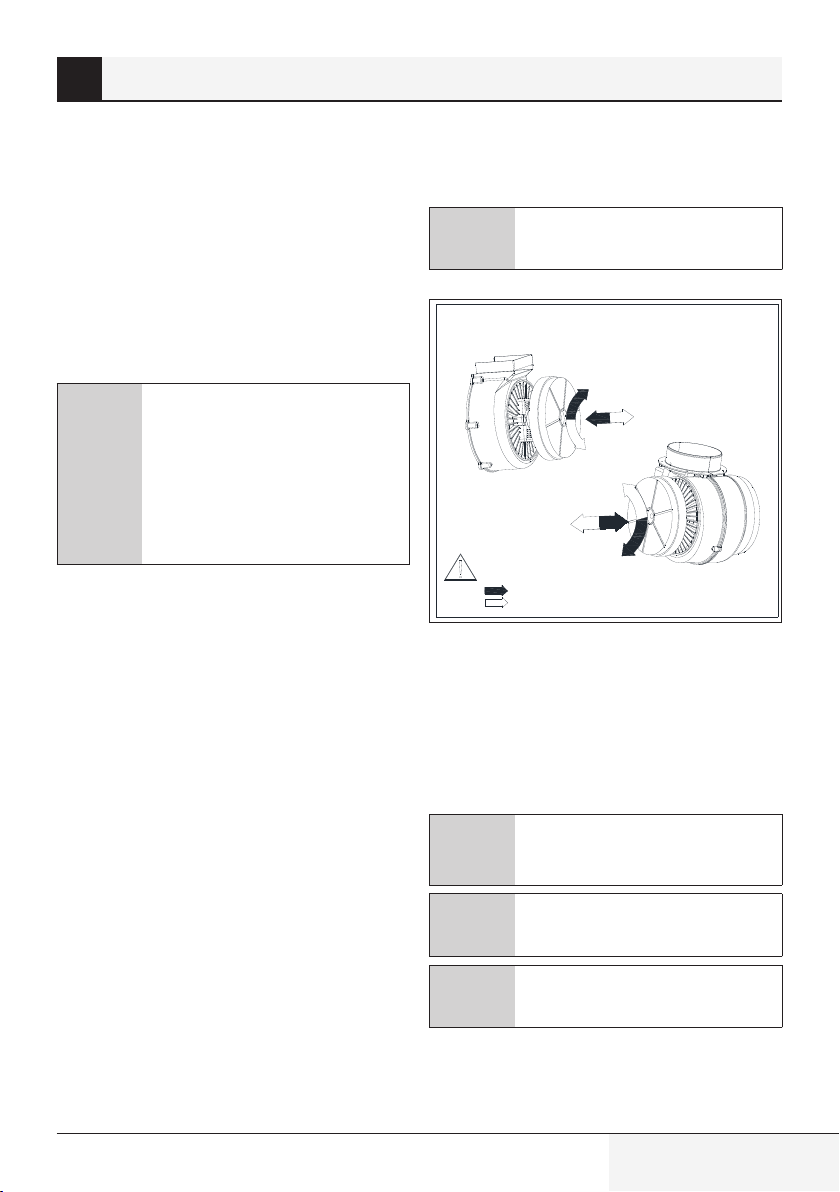

to install an active carbon filter (Fig. 10). The
carbon filter is not standard equipment; it must be
purchased from a vendor.

Hood / User Manual 11 / EN
4 Installng your applance
A
The use of screws or fasteners
incompatible with the manual may
cause electric shock.
The minimum distance of hood suspension
between the surface, on which the kitchenware
are positioned on the heating device (gas or
electric cooker), and the lowest part of the kitchen
hood (Fig. 3) must be not less than 45 cm for
cookers with electric power and not less than 55
cm for gas cookers.
If the instruction manual of the heating device
contains the requirement of a greater installation
distance of the kitchen hood than indicated above,
please follow these instructions. The installation
of the hood and the hood chimney shield is shown
in the drawings (Fig. 4 - Fig. 9)
The hood is equipped with mounting anchors
suitable for the majority of the walls and ceilings.
The general provisions on the discharge of air from
rooms have to be observed during installation.
L
Gas stove L 65cm
Electric cooker L 45cm

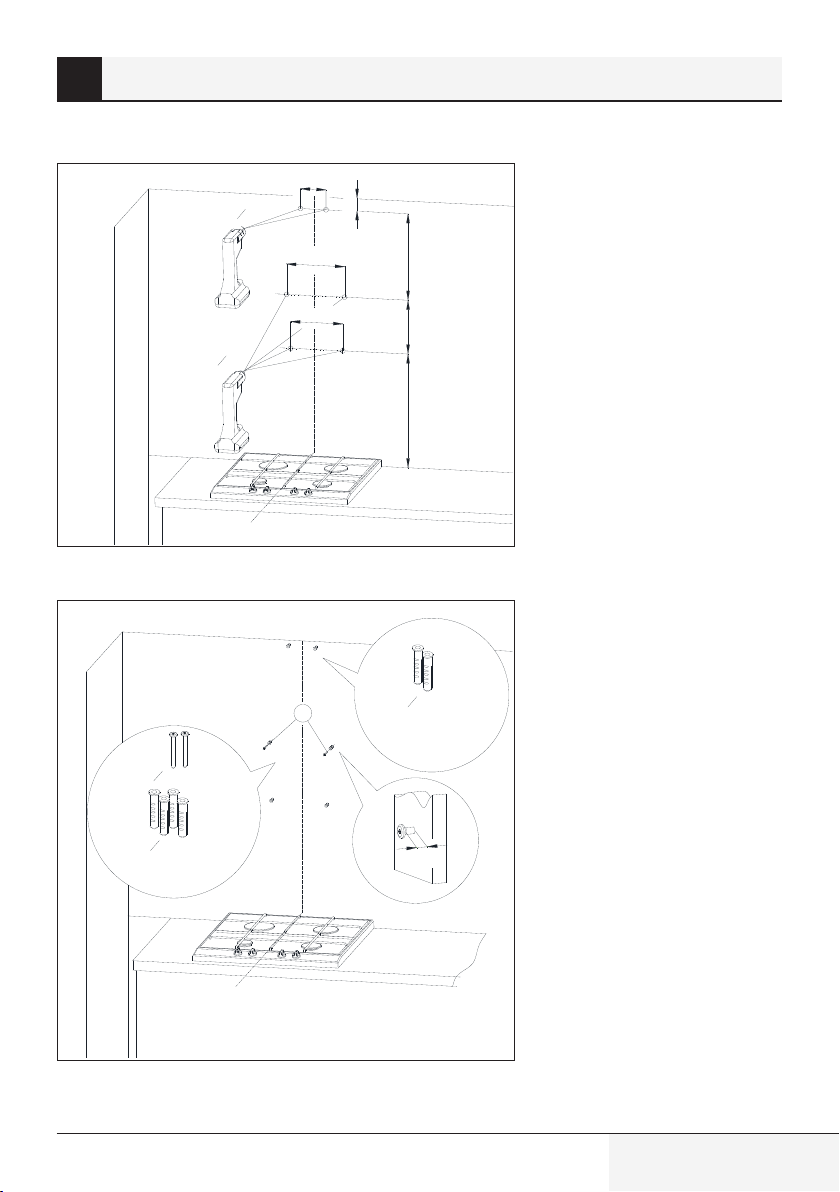

Fig. 3 Suggested distance from thekitchen cooker.
55cm

12 / EN Hood / User Manual
4 Installng your applance
Before installation, the following must be done:
•Check that the dimensions of the purchased
product are adapted to the selected target spot.
•Disconnect and remove (if possible) the
furniture located in the installation area of the
hood to get easy access to the ceiling or wall
to which the hood is to be fitted. If this is not
possible, the elements located near the working
area must be secured.
•Verify if there is a plug socket close to the hood
installation area and if it is possible to connect
the hood to the vent pipe evacuating the vapors
outside.
•Verify if the drilling spots do not cover
installation wires (electrical, hydraulic, etc.).
•Be equipped with the following tools: measuring
tape, pencil, drill/ driver, drill Ø8, screwdriver,
bubble level.
4.1 Installaton works
1. Determne the heatng element axs and
transfer t to the wall where the hood wll
be mounted on. Mark all the specfc hood
mountng ponts. Use the drll and drll holes
(Fg. 4).
2. Insert extenson bolts n the openngs. In the
two holes marked as A nsert screws (leavng
7 mm screw length on the outsde as n Fg. 5).
3. Open the hood flap and remove the grease flter
(Fg.6).
4. Screw the chmney cover cramp, hang the hood
on two loosely ftted screws (Fg. 7).
5. Place the bubble level on the ktchen hood
body. By rotatng the elements marked as A, set
the hood horzontally n accordance wth the
ndcaton of the bubble level and then tghten
the two loosely ftted screws and the two
remanng screws (Fg. 8).
6. Put the chmney cover on the body. Then gently
pull out the part of the hood that s marked as
B upwards untl you wll be able to screw t to
the cramp prevously affxed to the wall (Fg. 9).
A
The installation must be carried out
very carefully, so as not to scratch
the chimney cover and the hood.

Hood / User Manual 13 / EN
4 Installng your applance
Fig.4 Installation dimensions
245mm
4xO8
2 x O8
220mm
155mm
L+90mm 229mm max:550mm
min:30
Fig.5 Assembly of extension bolts
2 x O5 x 45mm
4 x O8 x 40mm
7mm
2 x O8 x 40mm
A

14 / EN Hood / User Manual
4 Installng your applance
225mm
4 x O8
2 x O8
220mm
142mm
L+90mm 229mm max:550mm
min:30
Fig. 4 Instalation dimensions.
2 x O5 x 45mm
4 x O8 x 40mm
7mm
2 x O8 x 40mm
Fig. 5 Assembly of extension bolts.
A

Hood / User Manual 15 / EN
4 Installng your applance
Fig. 6 Suspending the hood.
1
Fig. 7 Dismantling of aluminium grease filter.
2

16 / EN Hood / User Manual
4 Installng your applance
4.2 Electrc connecton
The mains voltage must correspond to the voltage
indicated on the rating plate affixed to the inside
of the hood. If the kitchen hood is equipped with
a plug, it should be put in a socket connector that
meets the requirements of binding regulations
and is located in an easily accessible place. If the
hood is not fitted with a plug, the installation of
the hood should be entrusted to someone with
appropriate permissions (e.g. electrician).
2 x O5 x 45mm
Fig. 8 Positioning the hood.
A
B
A
B
2 x O3,9x9,5
Be extremely careful when parting chimney cover
Fig. 9 Hood cover assembly.

Hood / User Manual 17 / EN
5 Cleanng and mantenance
Before carrying out any maintenance operations
on the appliance, remove the plug from the
wall outlet. The hood should be cleaned with
mild cleaning agents, do not use abrasives.
Regular maintenance significantly improves the
performance and durability of the hood. The hood
should be cleaned at least once a month or every
35 hours of hood operation. To clean hood DO NOT
USE ALCOHOL-BASED AGENTS. Satin items (inox)
should be cleaned with special preparations for
that purpose.
A
Failure to comply with the provisions
relating to cleaning of the device and
replacement of filters may cause fire
risks. It is therefore recommended
to comply with the guidelines given
herein. The manufacturer is not lia-
ble for any damage to the engine or
fires caused by improper use.
5.1 Grease Flter
The hood is equipped with an aluminum filter,
which retains the fat particles from cooking. The
filter can be removed by moving the locks in the
direction of the arrows (Fig. 7). The filter should
be washed by hand by immersing for 15 minutes in
water with dishwashing liquid at a temperature of
40-50°C. After 15 minutes, you can proceed with
washing and then rinsing. The filter must be dry
before being placed in the hood. The filter can also
be washed in a dishwasher. During the washing
procedure, the filter may discolor, however it does
not affect its filtering properties. If the filter is not
cleaned regularly, it reduces the performance of
the hood and could cause the risk of fire. The filter
should be cleaned at least after each 35 hours of
hood operation.
5.2 Carbon flter
The hood can be fitted with an active carbon filter.
The carbon filter is applied only in case the hood is
not connected to the vent pipe.
The filter should be placed on the turbine casing,
as shown in drawing (Fig. 10). The active carbon
filter should be replaced every 6 months.
A
Thecarbonfiltershallnotbewashed
nor regenerated.
1
2
Symbol Filter installation
Symbol Filter dismanting
1
2
1
2
1
2
When replacing the carbon filter pay attention to
the type of used turbine.
2
Fig. 10 Replacing the carbon filter.
5.3 Replacng of lghtng
Prior to any work related to the replacement of
lighting, be sure to unplug the power supply. If
the hood was previously enabled, you should wait
until the light bulbs are cooled, after which you
can proceed with the replacement. The process of
exchanging the bulbs is shown in Fig. 11.
A
Before replacing the light bulbs,
disconnect the power supply of the
hood.
A
Do not touch the light bulbs when
they are hot.
A
Be careful not to touch the replaced
light bulb directly with hands.

18 / EN Hood / User Manual
5 Cleanng and mantenance

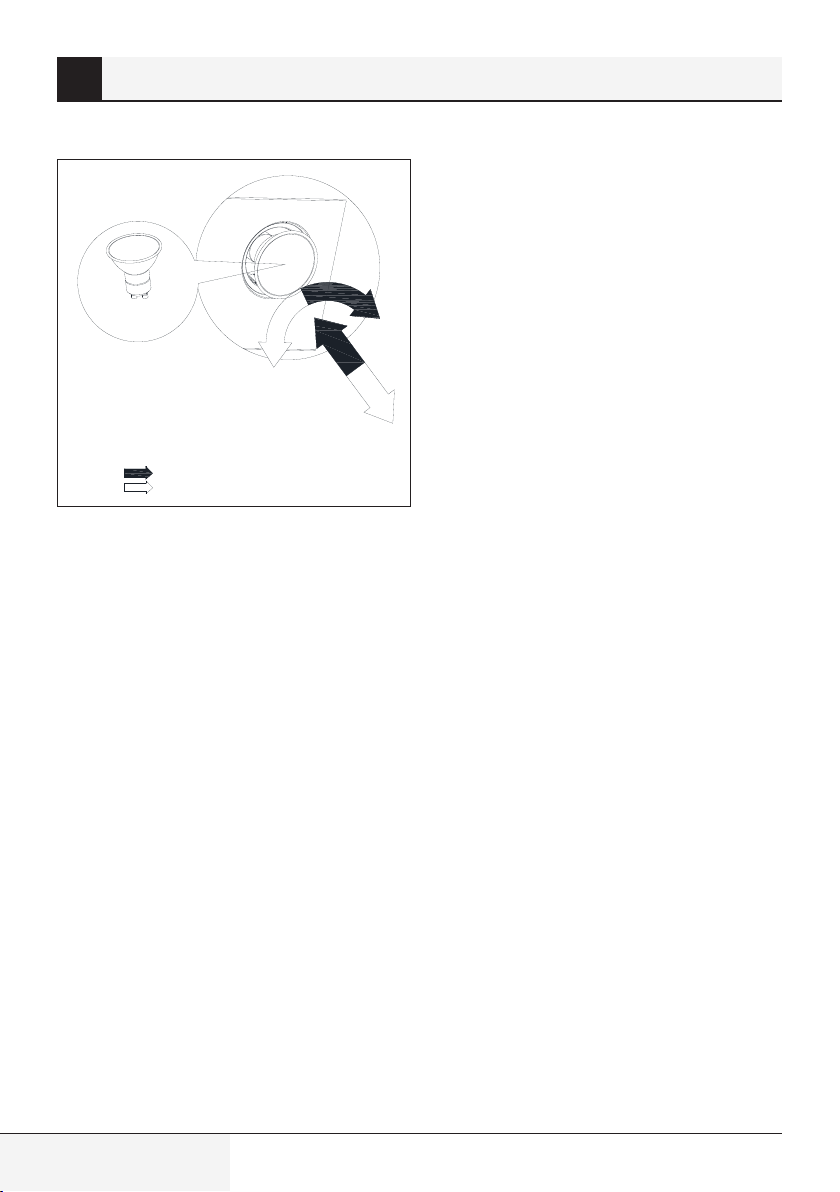

Fig.11 Replacing the lighting
GU10
1
2
1
2
Symbol
Symbol
Bulb installation
Bulb dismantling

Hood / User Manual 19 / EN
6 Control of hood operaton
6.1 Control of the hood
The hood is equipped with a mechanical control.
•Pressing the “0” - disables the turbine hood.
•Pressing the “1” - to turn the turbine hood with
a minimum speed.
•Pressing the “2” - turns the turbine hood with an
average speed.
•Pressing the “3” - turns the turbine hood at
maximum speed.
Higher speed means more air flow.
•Press the button - to turn on the lights.
Repeat pressing the button to turn off the
lighting.
6.2Methods of reducng the
effect of cookng process on
the envronment
•To reduce Energy consumption, cook with using
covers on kitchenware.
•Aluminum filters must be kept clean
(recommended length of aluminum filter
operation between cleanings is max. 35h of
hood operation).
•Take care of permeability of the ventilation
pipes.
•The operation level of the turbine when cooking
shall be always set to a minimum gear, which
will allow removing the fumes at the current
intensity of cooking.

20 / EN Hood / User Manual
7 Solvng problems
Symptoms Cause Reparng method
Durng hood operaton, the pulsatng
letter „F” s dsplayed.
After 35 hours of operaton the hood
ndcates the need for cleanng or
replacng the grease flter.
Press and hold for about 8 sec. “-” on
the touch control. The flter should be
washed n the dshwasher or replace wth
a new one.
The dsplay shows only the symbol
“-.” (mnus and dot n the rght bottom
corner), the hood does not respond to
dsablng.
The touch control has been locked
– ths feature facltates the hood
cleanng.
To dsable the lock, press and hold for
about 10 sec the feld wth the symbol of
swtchng on.
No symbol s shown on the dsplay, the
hood does not respond to pressng the
control felds.
The touch control s probably
suspended.
Dsconnect the hood from the power
supply for about 15 sec. and swtch t on
agan.
The dsplay shows the symbol of one of
the gears; the hood does not respond to
pressng the control felds.
The touch control s probably
suspended
Dsconnect the hood from the power
supply for about 15 sec. and swtch t on
agan.
The hood turbne dsconnects after 15
mn of operaton, the dsplay shows
a pulsatng dgt .e. “1.” (current gear
number and dot n the rght bottom
corner).
The automatc tme swtch of the
touch control has been actvated.
To deactvate the tme swtch, press and
hold for about 10 sec the symbol „+”or
dsable the hood.
On fourth gear the dgt “4” s pulsatng
on the dsplay, after 5mn the gear s
changed nto thrd.
The hood s equpped wth a turbo
mode, whch automatcally swtches
over nto thrd gear after 5 mn of
operaton to save energy.
The turbo gear shall be used only wth
ntensve cookng.
The hood can be operated only wth
use of the control panel, t does not
respond to the remote control.
The battery of the remote control s
empty or the dstance s too long.
Replace the battery wth a new one.
The hood has very poor vapor sucton. Probably cause s drty flters. The grease flter must be cleaned n the
dshwasher or replace wth a new one.
The carbon flter (f present) must be
replaced wth a new one.
One or more lght ponts do not
operate.
Defectve halogen/ LED bulb. The lght bulb needs to be replaced
wth a new, compatble wth the symbol
specfed n the nstructon manual for
the cooker hood.
The hood generated excessve nose
and vbraton.
Ths may be caused by an ncorrect
nstallaton of the hood to the wall
or ktchen cabnets. Not all provded
screws have been used or screws are
loosely ftted leavng clearance.
The hood must be mounted to a wall or
cabnet by usng all the ponts provded
for by the manufacturer. After adjustng
the poston of the hood horzontally and
vertcally, tghten all mountng screws.
* apples to hoods wth touch control.
If the recommendatons above do not solve the problem, contact an authorzed home applances servce enttled to repar.
Under no crcumstances s the hood user enttled to ndependent repar. A lst of servce ponts s ncluded n the warranty card
and the webste.
