BEL TET3000-12-069RA User manual

READ THIS CAREFULLY BEFORE
INSTALLATION!
VOR DER INSTALLATION BITTE FOLGENDE
SICHERHEITSHINWEISE BEACHTEN!
LEGGERE ATTENTAMENTE PRIMA
DELL’INSTALLAZIONE!
A LIRE ATTENTIVEMENT AVANT
L’INSTALLATION!
Before operating, read this document
thoroughly and retain it for future reference.
Non-respect of these instructions may reduce
performances and safety of the devices and
cause danger for people and property.
The products must be installed, operated,
serviced and maintained by qualified
personnel in compliance with applicable
standards and regulations.
Do not open the device, it does not contain
replaceable components, the tripping of the
internal fuse (if included) is caused by an
internal failure.
Do not repair or modify the device, if
malfunction or failure should occur during
operation, send unit to the factory for
inspection.
No responsibility is assumed by Bel Power
Solutions for any consequences deriving from
the use of this material.
Lesen Sie dieses Dokument vor der
Inbetriebnahme sorgfältig durch und bewahren
Sie es zum späteren Nachschlagen auf.
Die Nichtbeachtung dieser Anweisungen kann
die Funktion und Sicherheit der Geräte
beeinträchtigen und birgt Gefahren für
Personen und Eigentum.
Die Geräte müssen von qualifiziertem Personal
unter Einhaltung der geltenden Normen und
Vorschriften installiert, betrieben, gewartet und
instand gehalten werden.
Öffnen Sie das Gerät nicht, es enthält keine
austauschbaren Komponenten, das Auslösen
der internen Sicherung (falls vorhanden) ist stets
auf tiefergehende Fehler im Schaltkreis zurück
zu führen.
Reparieren oder modifizieren Sie das Gerät
nicht. Sollte während des Betriebs eine
Fehlfunktion oder ein Defekt auftreten, schicken
Sie das Gerät zur Überprüfung ins Werk.
Bel Power Solutions übernimmt keine Haftung
für die Folgen, die sich aus dem Einsatz dieses
Gerätes ergeben.
Prima dell’installazione, leggere attentamente
questo documento istruzioni e conservarle
per future consultazioni.
L’inosservanza delle presenti istruzioni può
compromettere le caratteristiche e la
sicurezza dell’apparecchio e causare pericolo
per le persone e le cose.
Il prodotto deve essere installato, utilizzato e
riparato da personale qualificato e nel
rispetto delle normative vigenti.
Non aprire il prodotto, esso non contiene
componenti sostituibili, il guasto del fusibile
interno (se previsto) è causato da un guasto
interno.
Non tentare di riparare o modificare il
prodotto, se durante il funzionamento si
verificano guasti o anomalie, inviarlo al
produttore per il controllo.
Bel Power Solutions non si assume nessuna
responsabilità per qualunque conseguenza
derivante dall’uso di questo materiale.
Lire ces instructions avant l'installation,
conserver ce manuel pour référence future.
Défaut de se conformer à ces instructions
peut affecter les caractéristiques et la
sécurité du dispositif, et causer du danger
aux personnes ou aux biens.
Les produits doivent être installés, exploités
et entretenus par du personnel qualifié et en
conformité avec les règlements.
N'ouvrez pas le produit, il ne contient
aucune pièce réparable, le déclenchement
du fusible interne (le cas échéant) est causé
par un défaut interne.
Ne pas essayer de réparer ou modifier le
produit ; si des défaillances se produisent
pendant le fonctionnement, retourner le
produit au fabricant pour inspection.
Bel Power Solutions n'assume aucune
responsabilité des conséquences
éventuelles découlant de l'utilisation des
produits.
CAUTION
ACHTUNG
ATTENZIONE
AVVERTISSEMENT
RISK OF BURNS, EXPLOSION, FIRE,
ELECTRICAL SHOCK, PERSONAL INJURY.
Never carry out work on live parts! Danger of
fatal injury!
The product’s enclosure may be hot, allow
time for cooling product before touching it.
Do not allow liquids or foreign objects to enter
into the products.
To avoid sparks, do not connect or disconnect
the device before having previously turned-off
input power and wait for internal capacitors
discharge (minimum 2 minutes).
GEFAHR VON VERBRENNUNGEN,
EXPLOSIONEN, FEUER, STROMSCHLAG,
PERSONENSCHÄDEN.
Führen Sie niemals Arbeiten an
spannungsführenden Teilen durch! Gefahr von
tödlichen Verletzungen! Das Gehäuse des
Gerätes kann heiß sein, lassen Sie Zeit zum
Abkühlen des Gerätes, bevor Sie es berühren.
Lassen Sie keine Flüssigkeiten oder
Fremdkörper in die Geräte eindringen.
Um Überschläge zu vermeiden, schließen Sie
das Gerät nicht an oder trennen Sie es nicht
ohne vorher die Eingangsspannung
abgeschaltet zu haben, und warten Sie die
Entladung der internen Kondensatoren ab
(mindestens 2 Minuten).
RISCHIO USTIONI, ESPLOSIONE,
INCENDIO, SCOSSA, LESIONI GRAVI.
Non effettuare mai operazioni sulle parti sotto
tensione! Pericolo di lesioni letali!
Il contenitore può scottare, lasciar quindi
raffreddare il dispositivo prima di toccarlo.
Non far entrare liquidi o oggetti estranei nel
dispositivo.
Per evitare scintille, non collegare o
scollegare l'apparecchiatura prima di avere
tolto tensione di ingresso e prima che sia
avvenuta la scarica dei condensatori interni
(min. 2 minuti).
RISQUE DE BRULURES, EXPLOSION,
INCENDIE, ELECTROCUTION,
DOMMAGE AUX PERSONNES.
Ne jamais effectuer des opérations sur les
parties sous tension! Danger de mort!
Le boîtier peut produire des brûlures, le
laisser refroidir avant de toucher l'appareil.
Ne faire pas pénétrer des liquides ou des
corps étrangers dans l'appareil.
Pour éviter des étincelles, ne pas connecter
ou déconnecter l'équipement jusqu'à ce
que la tension d'entrée a été supprimée et
avant qu'il n'ait eut lieu la décharge des
condensateurs internes (minimum 2
minutes).
INTENDED USE
BESTIMMUNGSGEMÄSSER BETRIEB
USO PREVISTO
UTILISATION
These are component type devices for internal
installation within system equipment. They are
isolated from hazardous voltages and with
outputs under 60 Vdc or connected to
protective earth. The devices can be used for
general applications such as ITE
network/servers, industrial and medical.
Do not use these devices in applications
where malfunction may cause injury or death.
Please see full spec of unit for further details.
Dies sind Komponenten für die interne
Installation in Systemgeräten. Sie sind gegen
gefährliche Spannungen isoliert und haben
Ausgänge unter 60 VDC oder sind mit
Schutzerde verbunden. Die Geräte können für
allgemeine Anwendungen wie ITE-Netzwerke /
Server, Industrie und Medizin verwendet
werden.
Verwenden Sie diese Geräte nicht in
Anwendungen, bei denen eine Fehlfunktion zu
Verletzungen oder zum Tod führen kann.
Weitere Informationen finden Sie in der
vollständigen Spezifikation des Geräts.
I dispositivi sono di tipo componente per
l’installazione all’interno
dell’apparecchiatura. Sono isolati da una
tensione pericolosa e hanno tensione in
uscita sotto 60Vdc o sono collegati a terra
protettiva. I dispositivi son per l’utilizzo
generale per applicazioni come rete ITE/
server, industriali e medici.
Non utilizzare in applicazioni in cui un
eventuale guasto può comportare rischio di
lesioni o di morte.
vedere le specifiche complete del dispositivo
per ulteriori dettagli
Ce sont des types de composant pour une
installation interne d'équipement de
système. Ils sont isolés des tensions
dangereuses et avec des sorties inférieures
à 60 Vdc ou connectés au terre de
protection. Les appareils peuvent être
utilisés pour des applications générales
telles que les réseaux / serveurs ITE,
industriels et médicaux.
Ne pas utiliser ces dispositifs dans une
application où un dysfonctionnement
pourrait entraîner le risque des blessures ou
de mort. Pour de plus amples informations,
se référer à la fiche technique du produit
ENVIRONMENTAL CHARACTERISTICS
UMGEBUNGSBEDINGUNGEN
CARATTERISTICHE AMBIENTALI
CARACTÉRISTIQUES
ENVIRONMENTALES
Installation in a Pollution Degree 2
environment.
Do not use in wet area or subject to moisture.
Carefully recycle the product and related
batteries according to local regulations.
Installation in einer Umgebung mit
Verschmutzungsgrad 2.
Nicht in nassen Bereichen oder unter
Feuchtigkeit verwenden.
Das Gerät und die zugehörigen Batterien sind
entsprechend den lokalen Vorschriften zu
recyceln bzw. zu entsorgen.
Usare in ambienti con Grado di Inquinamento
2.
Non far funzionare l'apparecchio in un
ambiente umido o soggetto a formazione di
condensa. Riciclare il prodotto e le batterie
collegate, nel rispetto delle normative locali
vigenti.
Utiliser les produits dans des
environnements avec degré de pollution 2.
Ne pas employer l'appareil dans un
environnement humide ou soumis à la
condensation. Recycler les produits et les
batteries, conformément à la
réglementation locale.

2
INSTALLATION INSTRUCTION
Asia-Pacific
[phone]
Europe, Middle East
[phone]
North America
[phone]
© 2020 Bel Power Solutions & Protection
BCM.00428_AC

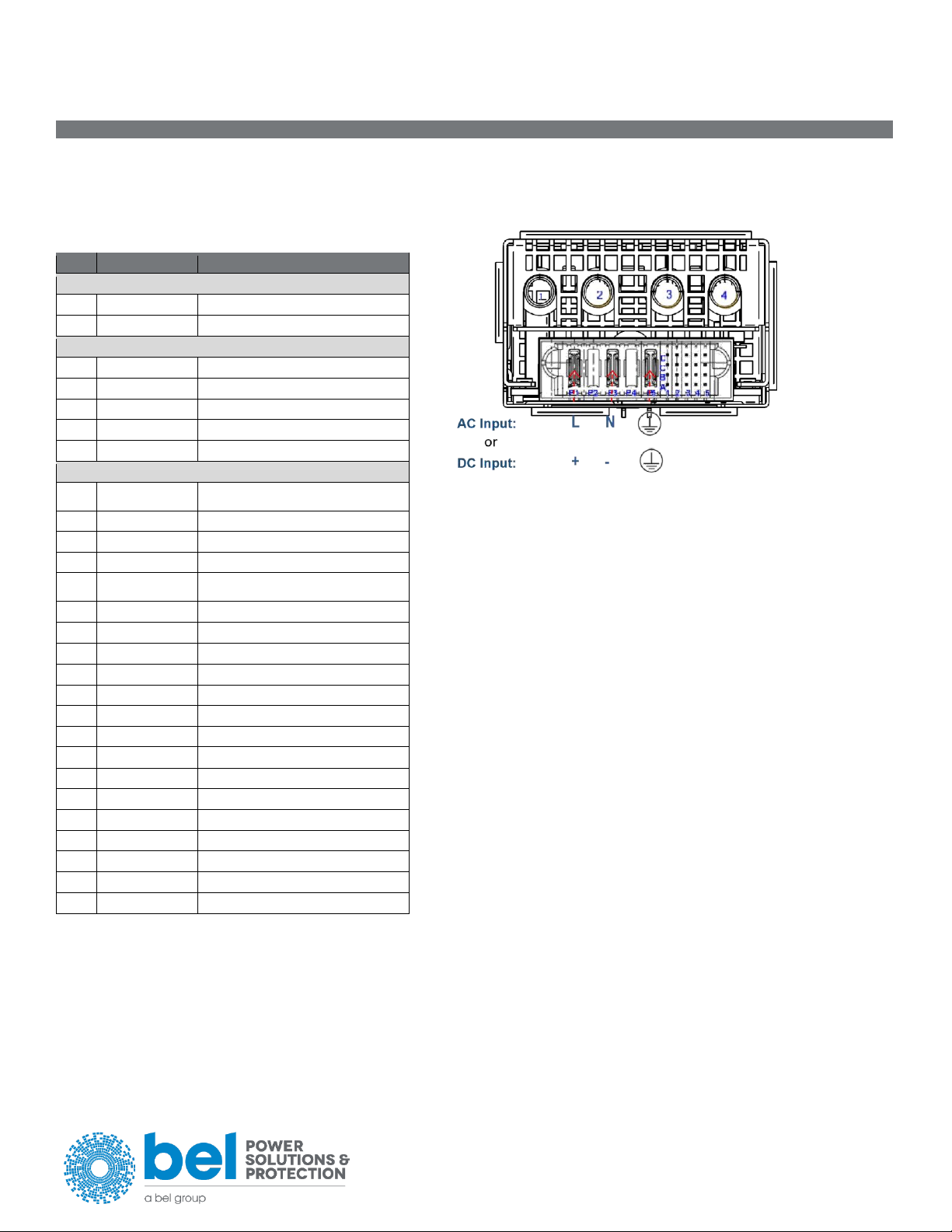

AC INPUT
100 –277 V ~, 17 –12.5 A, 50/60 Hz
240 –380 V , 13 –9 A
(Input selection is automatic; no manual change is required.)
OUTPUTS
V1 (12.3 V): see below table
Vsb (12.0 V):
MODEL
INPUT VOLTAGE
AMBIENT TEMPERATURE: 50°C
AMBIENT TEMPERATURE: 60°C
TET3000-12-069RA
100-200 VAC
81.3-244 A
65 -195.2 A
200-277 VAC, 240-380 VDC
244 A
195.2 A
AMBIENT TEMPERATURE: 45°C
TET3200-12-069RA
100-200 VAC
92-260 A
75-211 A
200-277 VAC, 240-380 VDC
260 A
211 A
CAUTION
These component level power supplies are intended exclusively for installation within other equipment by an industrial assembly operation or by professional installers.
This is a Class 1 power supply; the unit must be properly connected to earth ground in end use. A component power supply should be installed in end-use equipment
according to the requirements of the safety standard used for that equipment. This power supply is not designed to be operated outside of an enclosure which provides
a means of mechanical, electrical, and fire protection. To maintain ES1 requirements, the outputs should not be connected together in any manner which causes the total
output voltage to exceed 60 VDC.
PROTECTIVE EARTHING
The Power Supply must be properly grounded to mains protective earthing termination at end use.
WARNING
This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
声明 - 此为 A级产品，在生活环境中， 该产品可能会造成无线电干扰。 在这种情况下，可能需要用户对其干扰采取切实可行的措施。
ENVIRONMENTAL CONDITIONS
TRANSPORTATION & STORAGE:
Ambient Temperature Range: -40 °C to +70 °C
Relative Humidity Range: 5% to 95% RH Non-Condensing
Altitude: 0 to 13000 meters ASL
OPERATION
Ambient Temperature Range: -40°C to +60°C (See output table for details)
Relative Humidity Range: 7% to 93% RH Non-Condensing
Altitude: 0 to 2000 meters ASL at 0 °C to +50°C (TET3000-12-069RA)
0 to 2000 meters ASL at 0 °C to +45°C (TET3200-12-069RA)
0 to 5000 meters ASL at 0 °C to +40 °C
SAFETY APPROVALS
Approved to the latest version of the following safety standards: UL/CSA 62368-1, IEC/EN 62368-1 and IEC/EN 60950-1.
FUSING
CAUTION: DOUBLE POLE/NEUTRAL FUSING.
Fuses F300 and F301 are rated 25 A, 500 V/500 V (fast acting).
Equipment is rated higher than 16 A. Type of connection to Mains must be determine in the end use equipment.
SERVICING
In case of failure, the Power Supply must be returned to a Bel Power Solutions Authorized Service Center. There are no user serviceable parts in the Power Supply.
LIMITED WARRANTY
Bel Power Solutions warrants each power supply of its manufacture for a period of two years from the date of original shipment. This warranty applies to defects in
materials and workmanship that result in non-performance to published specifications. The product(s) must be returned to a Bel Power Solutions Authorized Service
Center for repair with a Bel Power Solutions preassigned RMA number.
Bel Power Solutions assumes no liabilities for consequential damages of any kind through the use or misuse of its products by any user. No other obligations are
expressed or implied.
Please note that the specifications, terms, and conditions stated are subject to change without notice.
NUCLEAR AND MEDICAL APPLICATIONS
Bel Power Solutions products are not designed, intended for use in, or authorized for use as critical components in life support systems, equipment used in hazardous
environments, or nuclear control systems without the express written consent of the respective divisional president of Bel Power Solutions.
TECHNICAL REVISIONS
The appearance of products, including safety agency certifications pictured on labels, may change depending on the date manufactured. Specifications are subject to
change without notice.

3
INSTALLATION INSTRUCTION
Asia-Pacific
[phone]
Europe, Middle East
[phone]
North America
[phone]
© 2020 Bel Power Solutions & Protection
BCM.00428_AC

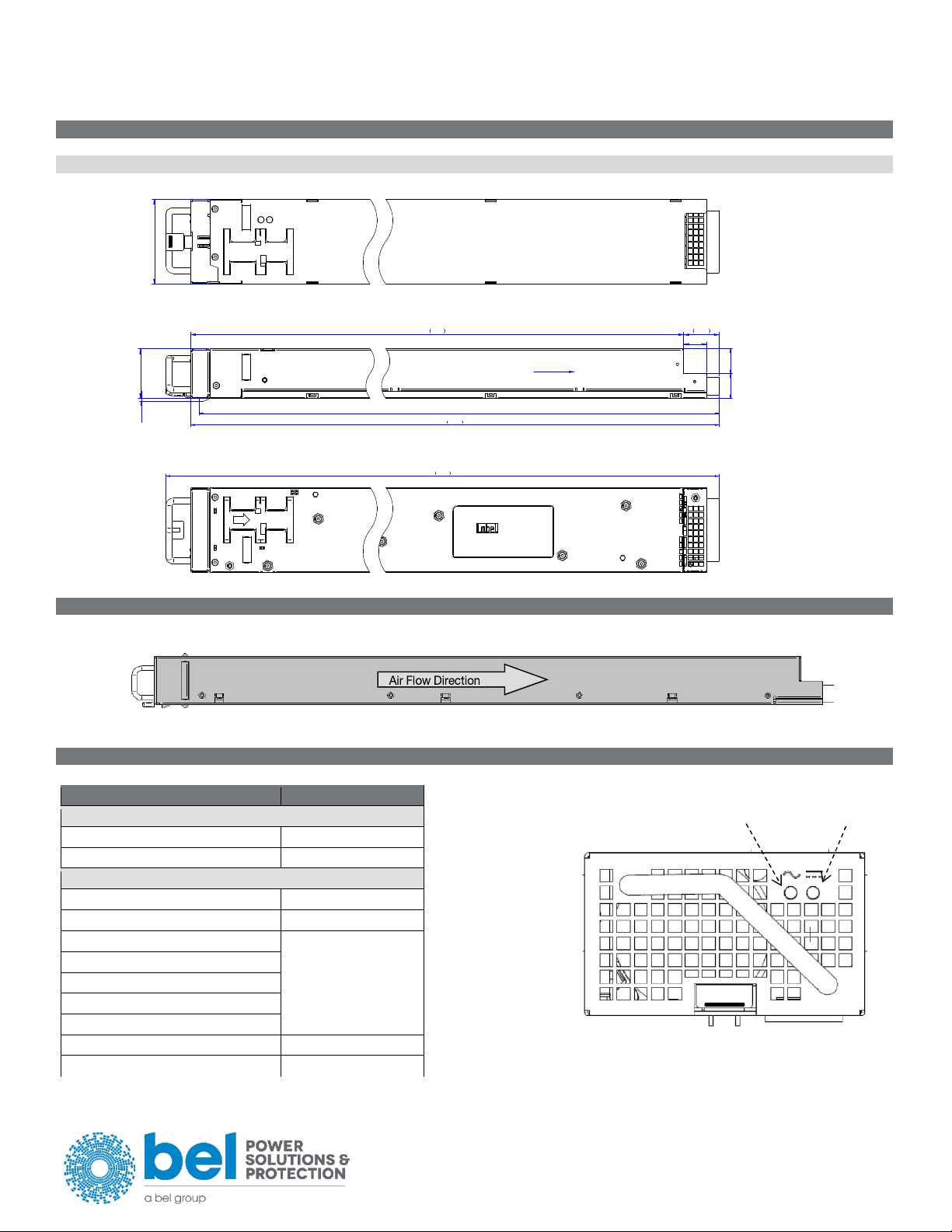

MECHANICAL SPECIFICATIONS
Overall Size:
555 x 69 x 40.5 mm (21.85 x 2.72 x 1.60 in)
Weight:
2.4 kg
69±0.5
555 18.7
28.7
40.5±0.5
AIR FLOW DIRECTION
2.50
-0.5
576.9 ±0.75
583.7
603.7
20.1520.35
AIRFLOW DIRECTION
LED INDICATORS
OPERATING CONDITION
LED SIGNALING
AC LED
AC Line within range
Solid Green
AC Line UV condition
Off
LED
Normal Operation
Solid Green
PSON_L High
Blinking Yellow (1:1)
V1 or VSB out of regulation
Solid Yellow
Over temperature shutdown
Output over voltage shutdown (V1 or VSB)
Output under voltage shutdown (V1 or VSB)
Output over current shutdown (V1 or VSB)
Over temperature warning
Blinking Yellow/Green (2:1)
Minor fan regulation error (>5%, <15%)
Blinking Yellow/Green (1:1)
AIRFLOW DIRECTION
AC LED
DC LED

4
INSTALLATION INSTRUCTION
Asia-Pacific
[phone]
Europe, Middle East
[phone]
North America
[phone]
© 2020 Bel Power Solutions & Protection
BCM.00428_AC
PIN ALLOCATION
Unit: FCI Connectors P/N 51939-768LF Note: A1 and A2 are Trailing Pin (short pins)
Counterpart: FCI Connectors P/N 51915-401LF
For Main Output Pins, see section 15 of Datasheet BCD.00833
PIN
NAME
DESCRIPTION
Output
3,4
V1
+12 VDC main output
1,2
PGND
+12 VDC main output ground
Input Pins
P1
LIVE
AC Live Pin / Positive
P2
N.C
No metal pin connection
P3
NEUTRAL
AC Neutral Pin / Negative
P4
N.C.
No metal pin connection
P5
P.E.
Protective Earth Pin
Control Pins
A1
PSKILL
Power supply kill (trailing pin): active-
low
B1
PWOK_L
Power OK signal output: active-low
C1
INOK_L
Input OK signal: active-low
D1
PSON_L
Power supply on input: active-low
A2
PRESENT_L
Power supply present (trailing pin):
active-low
B2
SGND
Signal ground1) (return)
C2
SGND
Signal ground1) (return)
D2
SGND
Signal ground1) (return)
A3
SCL
I2C clock signal line
B3
SDA
I2C data signal line
C3
SMB_ALERT_L
SMB Alert signal output: active-high
D3
ISHARE
V1 Current share bus
A4
EEPROM_WP
EEPROM write protect
B4
RESERVED
Reserved
C4
V1_SENSE_R
Main output negative sense
D4
V1_SENSE
Main output positive sense
A5
VSB
Standby positive output
B5
VSB
Standby positive output
C5
VSB_GND
Standby Ground1)
D5
VSB_GND
Standby Ground1)
1) These pins should be connected to PGND on the system.
