BEL LDN40 Series User manual

LDN40-515
INPUT:
120 –240 VAC, 0.7 - 0.4 A, 50 - 60 Hz (UL certified) or 110 –345 VDC, 0.5 - 0.2 A
OUTPUT:
5 –15 VDC, 4 - 2 A
LDN40-12D
INPUT:
120 –240 VAC, 0.7 - 0.4 A, 50 - 60 Hz (UL certified) or 110 –345 VDC, 0.5 - 0.2 A
OUTPUT:
2x 12 –16 VDC, 1 A
LDN40-12
INPUT:
120 –240 VAC, 0.9 - 0.5 A, 50 - 60 Hz (UL certified) or 110 –345 VDC, 0.6 - 0.3 A
OUTPUT:
12 –15 VDC, 3.5 - 3 A
LDN40-24
INPUT:
120 –240 VAC, 0.9 - 0.5 A, 50 - 60 Hz (UL certified) or 110 –345 VDC, 0.6 - 0.3 A
OUTPUT:
24 VDC, 2 A
MAIN FEATURES
High efficiency and extremely compact size
Plastic enclosure UL94-V0
Class II (simplified wiring)
Overload 150%
Includes (5 - 15 V) and (2x 12 - 15 V) models
Up to 50°C operating temperature with no derating
READ THIS CAREFULLY BEFORE
INSTALLATION!
LEGGERE ATTENTAMENTE PRIMA
DELL’INSTALLAZIONE!
A LIRE ATTENTIVEMENT AVANT
L’INSTALLATION!
Before operating, read this document thoroughly
and retain it for future reference.
Non-respect of these instructions may reduce
performances and safety of the devices and
cause danger for people and property.
The products must be installed, operated,
serviced and maintained by qualified personnel in
compliance with applicable standards and
regulations.
Don’t open the device, it does not contain
replaceable components, the tripping of the
internal fuse (if included) is caused by an internal
failure.
Don’t repair or modify the device, if malfunction or
failure should occur during operation, send unit to
the factory for inspection. No responsibility is
assumed by Bel Power Solutions for any
consequences deriving from the use of this
material.
Prima dell’installazione, leggere attentamente
questo documento istruzioni e conservarle per
future consultazioni.
L’inosservanza delle presenti istruzioni può
compromettere le caratteristiche e la sicurezza
dell’apparecchio e causare pericolo per le
persone e le cose.
Il prodotto deve essere installato, utilizzato e
riparato da personale qualificato e nel rispetto
delle normative vigenti.
Non aprire il prodotto, esso non contiene
componenti sostituibili, il guasto del fusibile
interno (se previsto) è causato da un guasto
interno. Non tentare di riparare o modificare il
prodotto, se durante il funzionamento si verificano
guasti o anomalie, inviarlo al produttore per il
controllo.
Bel Power Solutions non si assume nessuna
responsabilità per qualunque conseguenza
derivante dall’uso di questo materiale.
Lisez ces instructions avant l'installation,
conservez ce manuel pour référence future.
Défaut de se conformer à ces instructions peut
affecter les caractéristiques et la sécurité du
dispositif de danger et de causer aux personnes
ou aux biens.
Les produits doivent être installés, exploité et
entretenus par personnel qualifié et en conformité
avec les règlements.
N'ouvrez pas le produit, il ne contient aucune
pièce réparable, le déclenchement du fusible
interne (le cas échéant) est causé par un défaut
interne. Ne pas essayer de réparer ou modifier le
produit ; si des défaillances se produisent
pendant le fonctionnement ou les
dysfonctionnements, le retourner au fabricant
pour inspection. Bel Power Solutions n'assume
aucune responsabilité des conséquences
éventuelles découlant de l'utilisation des produits.
CAUTION
ATTENZIONE
AVVERTISSEMENT
RISK OF BURNS, EXPLOSION, FIRE,
ELECTRICAL SHOCK, PERSONAL INJURY.
Never carry out work on live parts! Danger of fatal
injury! The product’s enclosure may be hot, allow
time for cooling product before touching it. Do not
allow liquids or foreign objects to enter into the
products.
To avoid sparks, do not connect or disconnect
the device before having previously turned-off
input power and wait for internal capacitors
discharge (minimum 1 minute).
RISCHIO USTIONI, ESPLOSIONE, INCENDIO,
SCOSSA, LESIONI GRAVI.
Non effettuare mai operazioni sulle parti sotto
tensione! Pericolo di lesioni letali! Il contenitore
può scottare, lasciar quindi raffreddare il
dispositivo prima di toccarlo. Non far entrare
liquidi o oggetti estranei nel dispositivo.
Per evitare scintille, non collegare o scollegare
l'apparecchiatura prima di avere tolto tensione di
ingresso e prima che sia avvenuta la scarica dei
condensatori interni (min. 1 minuto).
RISQUE DE BRULURES, EXPLOSION,
INCENDIE, ELECTROCUTION, DOMMAGE AUX
PERSONNES.
Ne jamais effectuer des opérations sur les parties
sous tension! Danger de mort! Le récipient peut
produire des brulures, le laisser refroidir avant de
toucher l'appareil. Ne faites pas pénétrer des
liquides ou des corps étrangers dans l'appareil.
Pour éviter des étincelles, ne pas connecter ou
déconnecter l'équipement jusqu'à ce que vous
avez supprimé la tension d'entrée et avant qu'elle
n'ait lieu de décharge des condensateurs internes
(minimum 1 minute).

2
INSTALLATION INSTRUCTION
[email protected]
USER INSTRUCTIONS
1) DESCRIPTION
DIN rail mountable primary switched-mode power supply with 90 - 264 VAC (110 - 345 VDC) input, suitable for single phase mains line and DC line.
2) INSTALLATION
Use DIN-rails according to EN60715. Installation should be made vertically (see Fig.4). For better device stability fix the rail to the wall close to the point
where the device is to be mounted. In order to guarantee sufficient convection, we recommend observing a minimum distance to other modules (see
Fig.3).
The device is provided with a thermal protection; a limited air flow can cause the thermal protection tripping.
The SMPS automatically restarts after cooling. To get normal operation reduce the temperature of the air surrounding the power supply, increase the
ventilation or reduce the load (see Fig.8)
3) CONNECTIONS
The device is equipped with screw terminal blocks. To avoid sparks, do not connect or disconnect the connectors before having previously turned-off
input power and waited for internal capacitors discharge (minimum 1 minute)
In order to comply with UL certification, use appropriate copper cables of indicated cross section, designed for an operating temperatures of:
60°C for ambient up to 45°C
75°C for ambient up to 60°C
90°C for ambient up to 70°C
Strip the connecting ends of the wires according to the indication and ensure that all strands of a stranded wire enter the terminal connection (see Fig.5)
4) INPUT PROTECTION
The device input is provided with varistors against overvoltage. Input is provided with internal fuse 2AT / 250 VAC thus an external short circuit/overcurrent
protection must be provided by the end user (see Fig.6).
For operation on a single-phase system, a protection fuse on the phase must be provided.
Surge protection: it is strongly recommended to provide external surge arresters (SPD) according to local regulations.
5) AC INPUT CONNECTION
The device can be connected to single phase AC line with rated Vin 120 - 240 VAC (see Fig.7).
6) DC INPUT CONNECTION
Connect L terminal to (+) positive pole, N terminal to (-) negative pole. Rated voltage 110 –345 VDC.
The device is also suitable for photovoltaic or wind turbine applications (see Fig.7).
7) OUTPUT CONNECTION
The device is suitable for SELV and PELV circuitry.
Vout can be adjusted with a potentiometer to a wide range (see Fig.1), only on Models LDN40-515, LDN40-12 and LDN40-12D.
Check Vout before connecting the power supply to the load. With output voltage set to the max. value, the continuous [current x voltage] must not exceed
the nominal power.
8) PARALLEL CONNECTION AND REDUNDANCY
Power supplies can be connected in parallel to increase power.
Vout must be set uniformly (±100 mV) on each power supply and the wiring must be symmetrical to ensure an equal current distribution.
For redundant connection, use an external isolating device must be used (see accessory device).
9) OUTPUT PROTECTION
The device is protected against overload (OL) / short circuit (SC) / overvoltage (OV) / overtemperature (OT).
OL and SC: are controlled by a hiccup mode auto-reset protection with the following behaviour.
OL behaviour: Max. OL = In x 1.5 with constant output voltage. If the current is In x 1.5 the unit enters the OL protection and starts an ON/OFF cycle
(hiccup mode).
SC behaviour: the device supplies the indicated short circuit peak current for 30 ms if the output current exceeds In x 1.5 the device enters into a
controlled ON/OFF cycles (hiccup mode). The output voltage drops to a voltage value depending on the impedance of the failed load circuit.
Output OV circuit protection: the output is protected against potential OV due to internal malfunction or coming from the load for
Vout Vnom x 1.2 –1.3, depending on the model.
OT protection: turns off the device if the internal temperature exceeds a safe limit.
The device restarts automatically after cooling down. To recover to normal operation reduce air temperature surrounding the power supply, increase
cooling or reduce load (see Fig.8).
10) FEEDING DC MOTORS
It is possible to feed DC motors considering that when a motor starts-up under effort its consumption is much higher than the nominal current and it can
trigger overcurrent protection (see accessory device).
NOTE: motors can generate high conducted noise on the DC line. Therefore, it is not recommended to feed on the same line motors and equipment
sensitive to noise.

LDN40 Series
3
Asia-Pacific
[phone]
Europe, Middle East
[phone]
North America
[phone]
© 2016 Bel Power Solutions & Protection
BCM.00430_AA
FIG.1 - CONNECTIONS
FIG.2 - DIMENSIONS
FIG.3 - DISTANCES
Just for reference
(1) AC/DC input
(2) DC output (load)
(3) Green LED: Output OK
(4) Output voltage adjustment
(only models -515/ -12D/ -12)
Input AC Line:
L = Line (2)
N = Neutral (1)
Output:
+ = Positive DC (9)
- = Negative DC (8)
Exception NPSM40-12D
+ = Positive DC (9)
- = Negative DC (7)
┴= Common DC (8)
Dimension
W
D
H
mm (inc)
72 (2.83)
61.5 (2.42)
90 (3.54)
Distance
A
B
mm (inc)
10 (0.4)
10 (0.4)
FIG.4 - MOUNTING / DISMOUNTING INSTRUCTIONS
For DIN rail fastening according to IEC 60715 TH35-7.5(-15)
Mounting as shown in figure, with input terminals on lower side, with suitable cooling and maintaining a proper distance between adjacent devices as
specified in the Installation Instruction of each family.
MOUNTING:
1. Tilt the unit slightly backwards.
2. Fit the unit over the top edge of the rail.
3. Slide it downward until it hits the stop.
4. Press against the bottom for locking.
1
2
3
4
DISMOUNTING:
1. Pull down the slide clamp lever
2. Tilt the unit upward
3. Unhook the unit from the rail
1 & 2
3

4
INSTALLATION INSTRUCTION
[email protected]

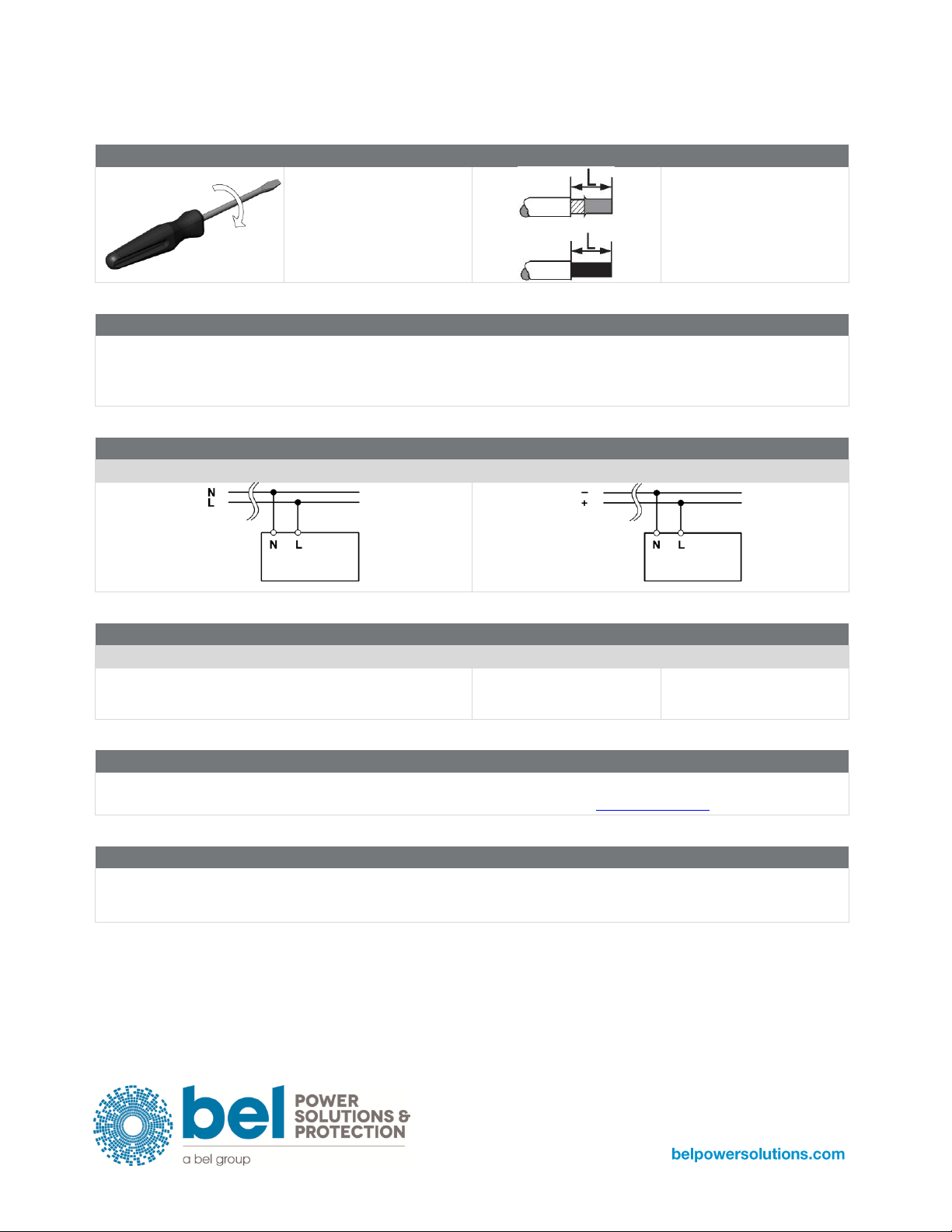

FIG.5 - RECOMMENDED CONNECTING CABLE
Recommended Tightening
torque
0.8 Nm
7.8 lbf in
Solid: 2.5 mm² / 12 AWG
Stranded:1.5 mm² / 12 AWG
L: 5.5 - 6.5 mm / 0.22 - 0.26 in
FIG.6 - INPUT PROTECTION
Fuse 6AT or MCB 6 A C curve.
For USA and Canada, use the fuse type closest to the European equivalent type.
Surge protection: it is strongly recommended to provide external surge arresters (SPD) according to local regulations.
FIG.7 - INPUT CONNECTIONS
AC LINE
DC LINE
FIG.8 - ENVIRONMENT
OPERATING TEMPERATURE
DERATING
- 40°C to + 70°C
5 - 95% r.H. non condensing
UL Certified up to 50°C
LD40-515
LDN40-12D
LDN40-12
LDN40-24
- 0.25 W / °C over 50°C
- 0.25 W / °C over 50°C
- 0.35 W / °C over 50°C
- 0.35 W / °C over 50°C
NOTES:
Data may change without prior notice in order to improve the product.
Please refer to the latest version of the Installation Instruction for each product by visiting belpowersolutions.com.
ACCESSORIES
LDX-D20 20 A Active ORing controller
LDX-L30 Sealed Lead acid Battery pack
