Belden Miranda Kaleido-X (4RU) User manual

Quick Start Guide
M809-9905-110
12 January 2014

ii
Notices
Copyright & Trademark Notice
Copyright © 2007–2014, Miranda Technologies Partnership. All rights reserved.
Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or
registered trademarks of Belden Inc. or its affiliated companies in the United States and
other jurisdictions. Miranda, Kaleido-X, iControl, and Densité are trademarks or registered
trademarks of Miranda Technologies Partnership. Belden Inc., Miranda Technologies
Partnership, and other parties may also have trademark rights in other terms used herein.
Terms and Conditions
Please read the following terms and conditions carefully. By using Kaleido-X multiviewer
documentation, you agree to the following terms and conditions.
Miranda Technologies Partnership (“Miranda”) hereby grants permission and license to
owners of Kaleido-X multiviewers to use their product manuals for their own internal
business use. Manuals for Miranda products may not be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, for
any purpose unless specifically authorized in writing by Miranda.
A Miranda manual may have been revised to reflect changes made to the product during its
manufacturing life. Thus, different versions of a manual may exist for any given product.
Care should be taken to ensure that one obtains the proper manual version for a specific
product serial number.
Information in this document is subject to change without notice and does not represent a
commitment on the part of Miranda.
Warranty information is available in the Support section of the Miranda Web site
(www.miranda.com).
Title Kaleido-X (4RU) Quick Start Guide
Part Number M809-9905-110
Revision 12 January 2014, 1:30 pm

iii
Kaleido-X (4RU)
Quick Start Guide
Safety Compliance
This equipment complies with the requirements of the following standards for
safety of information technology equipment:
– CSA-C22.2 No. 60950-1-07
– UL 60950-1 (2nd Edition)
– IEC 60950-1:2005 (2nd Edition)
Electromagnetic Compatibility
This equipment has been tested for verification of compliance with FCC Part 15,
Subpart B requirements for class A digital devices.
This equipment has been tested and found to comply with the requirements of the
EMC directive 2004/108/EC:
WARNING
An appropriately listed/certified mains supply power cord must be used
for the connection of the equipment to the mains voltage at either 120V~
or 240V~
CAUTION
This equipment is meant to be installed in a restricted access location
These servicing instructions are for use by qualified service personnel
only
To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Refer all servicing to qualified service personnel. Disconnect both power
supply units before servicing. Servicing should be done in a static-free
environment.
Battery handling
There is a danger of explosion if the battery is replaced incorrectly. Replace
the battery only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s
instructions. Before disposing of your Miranda equipment, please review the
“Disposal and Recycling Information” appendix, in the Kaleido-X (4RU)
Hardware Description & Installation Manual.
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy, and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

iv
Notices
• EN 55022 Class A Radiated and conducted emissions
• EN 61000-3-2 Limits for harmonic current emissions
• EN 61000-3-3 Limitation of voltage changes, voltage fluctuations and flicker
• EN 61000-4-2 Electrostatic discharge immunity
• EN 61000-4-3 Radiated, radio-frequency, electromagnetic field immunity
• EN 61000-4-4 Electrical fast transient/burst immunity
• EN 61000-4-5 Surge transient immunity
• EN 61000-4-6 Conducted disturbances immunity
• EN 61000-4-11 Voltage dips, short interruptions and voltage variations
immunity

1
Setting Up Your Multiviewer
Welcome to the Kaleido family of multiviewers! This Quick Start Guide is designed to help
you get your Kaleido-X (4RU) multiviewer up and running for the first time. The following
sections will guide you through the installation of a Kaleido-X (4RU) system in its default
configuration.
Summary
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Getting Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Step 1: Physical Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 2: Networking Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 3: XEdit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Step 4: System Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
RS-422 Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Introduction
Miranda's Kaleido family of multiviewers ranges from quad-splits to large-scale, multi-room
monitoring systems, with outstanding image quality and signal flexibility. The Kaleido
multiviewers are available in different models: the new Kaleido-MX, the Kaleido-IP, the
Kaleido-X (7RU), the Kaleido-X (4RU), the Kaleido-X16, and the Kaleido-XQUAD frames, as
well as the new Kaleido-Modular-X cards, and the Kaleido-Modular KMV-3901/3911 cards.
The Kaleido-X (4RU) can display 32 3Gbps, HD, SD or analog inputs any number of times, in
any size, across four displays of any resolution and orientation.
At the heart of every multiviewer system is the Kaleido-X software, which includes two
client applications:
•XAdmin is a Web client that your system administrator will use to manage the
multiviewer system.
•XEdit is a client application used to create layouts for the monitor wall, and to configure
the multiviewer, from your PC or laptop.
A Kaleido-X multiviewer system in its default configuration includes a number of layout
presets. Each preset shows the video signals from a specific input module (card). Consult
the Kaleido-X User’s Manual (on the DVD that shipped with your multiviewer) for
instructions on how to create rooms and layouts according to your specific requirements.

2
Setting Up Your Multiviewer
Introduction
Kaleido-X (4RU) system overview
Kaleido-X (4RU) Frame

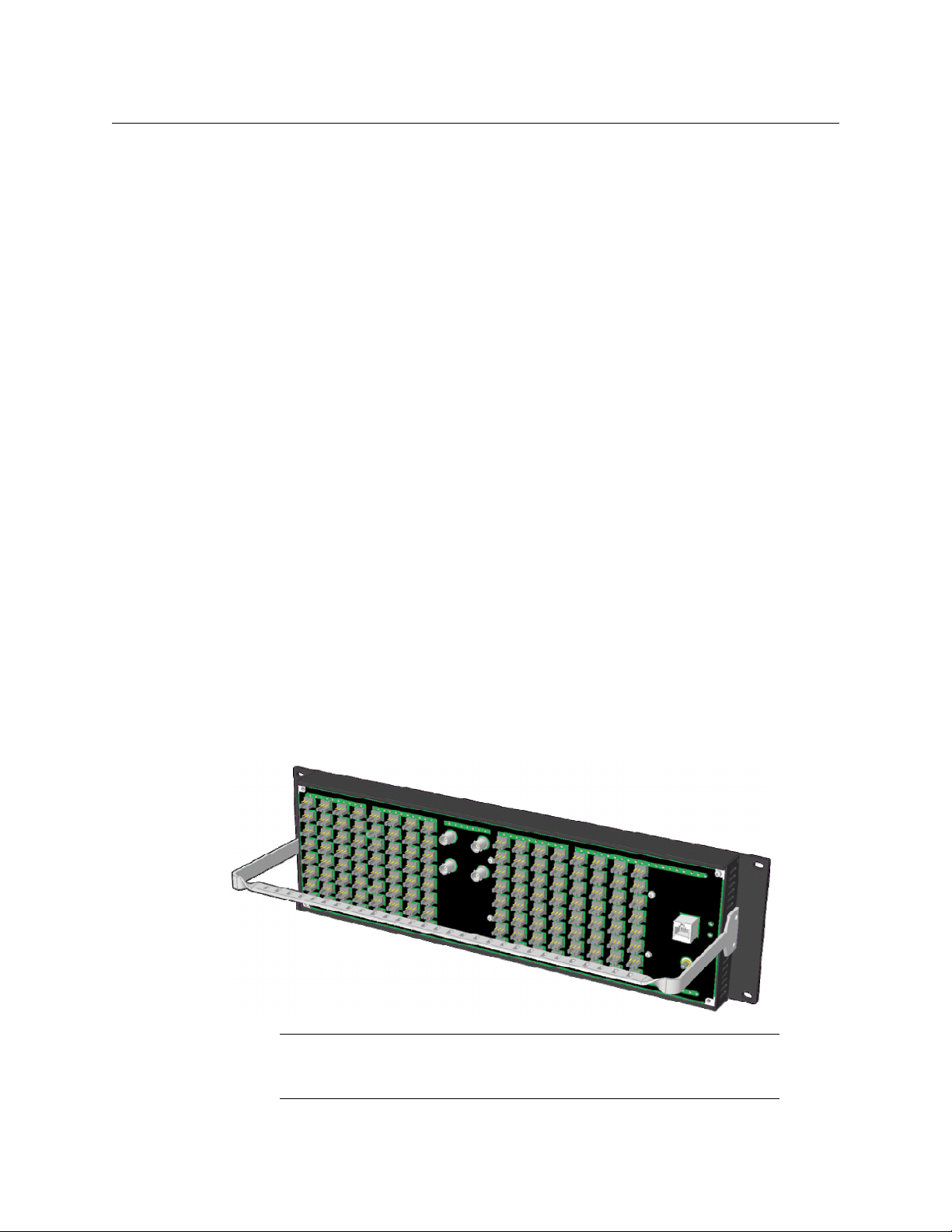

The Kaleido-X (4RU) frame is 4 RU high. It comprises an internal midplane for
interconnecting the cards. Cards are installed from the front of the frame. Each card is
associated with input and/or output connectors which are mounted on a connector panel.
These connector panels are installed from the rear of the frame, in the same horizontal
position as their associated card. The redundant power supplies are located in the lower
right-hand corner of the frame. The hinged front door gives access to the cards.
The Kaleido-X (4RU) frame comprises the following key elements:
• A rack-mountable mechanical framework
• A side-opening, removable door to cover and protect the front of the frame and the
installed cards
• A midplane board that enables inter-card communication
• Slots for installing signal processing cards that plug into the midplane
• Mounting points for rear connector panels
• Redundant power supplies
• Ventilation
The front slots and rear panel connection points are color-coded according to the type of
card that can be located in the slot. The extractor handles on the cards are color-coded to

3
Kaleido-X
Quick Start Guide
match. The cards are physically configured so they cannot be installed in the wrong type of
slot.
Location and available slots

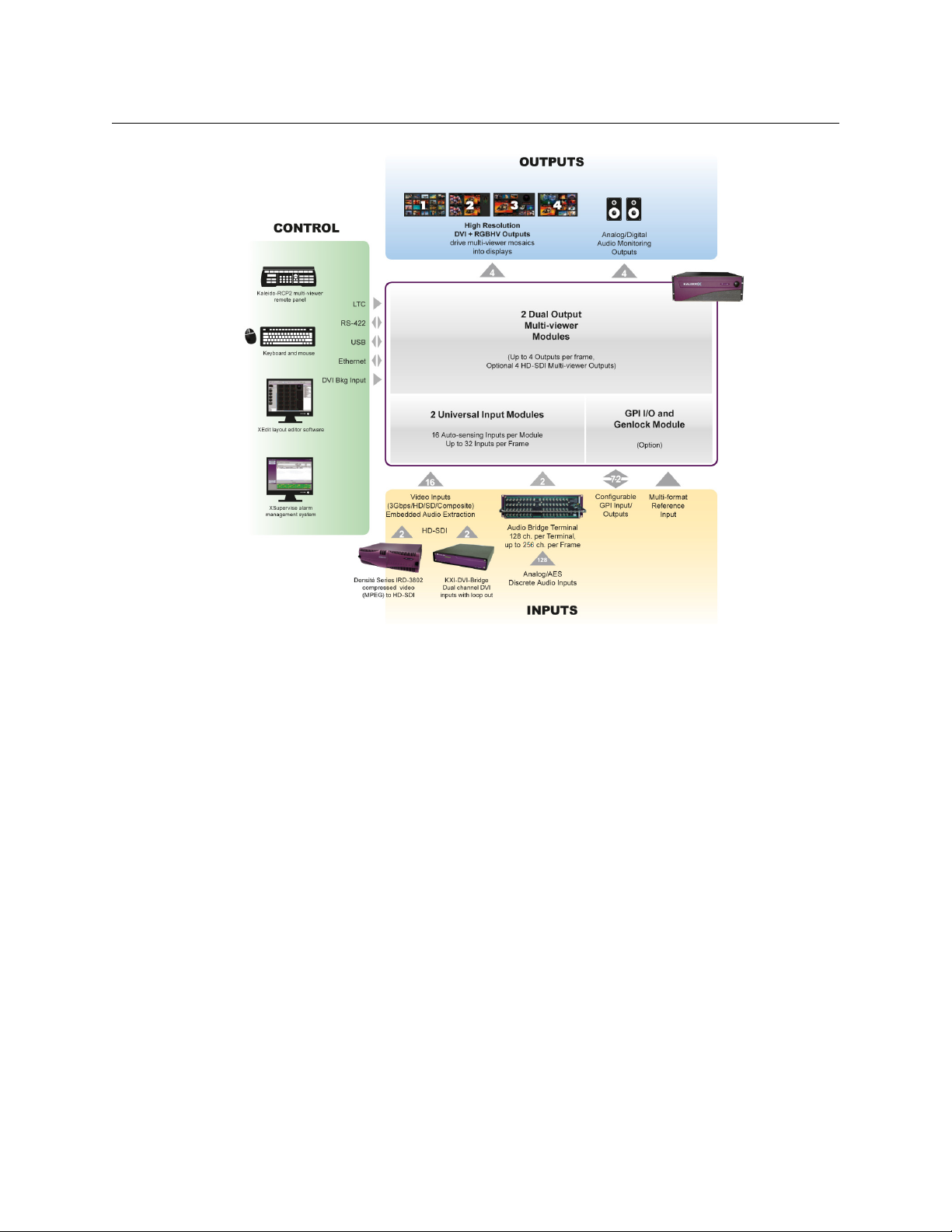

Kaleido-X (4RU) System Block Diagram
Kaleido-X (4RU) System Block Diagram
For more information about the Kaleido-X (4RU) hardware, refer to the Kaleido-X (4RU)
Hardware Description & Installation Manual.
Slots Function Color Code Card Types
1Main Grey KXA-GPI-GEN
2
3
Output A
Output B
Yellow KXO-DUAL3
KXO-DUAL
4
5
Input A
Input B
Green KXI-16HSV
KXI-16HS
KXI-16SV
6
7
Option A
Option B
Mauve (future use)

4
Setting Up Your Multiviewer
Getting Organized
Getting Organized
This section provides information about system requirements, and items shipped with your
Kaleido-X (4RU).
Required Materials
Your Kaleido-X (4RU) system package includes the following:
• A Kaleido-X (4RU) frame (enclosure) containing various input, output and option
modules (cards)
• One keyboard
•Onemouse
• Serial port adapters (one with straight cabling and one with crossover cabling—see
RS-422 Connection Diagram, on page 24) for each output module in your multiviewer:
• Two AC power cord per power supply
• The Kaleido-X (4RU) Quick Start Guide (this document)
• DVD including the Release Notes for the current version of the Kaleido-X software, the
Kaleido-X User’s Manual, database samples, Quick Start guides and hardware reference
manuals for all multiviewer models
In addition to the above, you will need the following (not supplied):
•Upto4displays
• A dedicated 100Base-T Ethernet switch with enough ports for the Kaleido-X, client PCs,
Kaleido-RCP2, and Audio Bridge Terminals
• Client PC (see below for system requirements)
Part number Adapter cabling RS-422 pinout at the DE-9P connector
1737-3000-102 Straight Controller (SMPTE master) mode
1792-3700-100 Crossover Tributary (SMPTE slave) mode
Note: In line with our commitment to environmental preservation, only the
Quick Start Guide for your multiviewer model, and some ancillary
documents (e.g. welcome letters, warranty cards) are distributed in printed
form. All manuals are available on the DVD that shipped with your
multiviewer. See the “Documentation” section of the Release Notes for a
complete list. You can obtain the latest version of the manuals, the Release
Notes, as well as software and useful data, from the Software and
documentation section of Miranda’s support portal.

5
Kaleido-X
Quick Start Guide
• Cables (to connect your multiviewer to video sources, to displays, and to the network):
System Requirements for a Client PC
A client PC running Windows XP (or Windows 7) is required to access the XAdmin Web
client, as well as to run the XEdit application.
Step 1: Physical Setup
Setting up the Kaleido-X (4RU) Hardware
To set up the Kaleido-X (4RU) hardware
1 With the Kaleido-X (4RU) frame (enclosure) installed in its designated rack position, and
before powering up the unit, verify that each card is securely seated in its slot.
The Kaleido-X has been configured to automatically detect the resolution of any
connected display. If the required information is not available, then a fall-back
resolution of 1280 × 1024 @ 60 Hz is used.
2 Connect outputs of the Kaleido-X to one or more displays that support this resolution,
and connect one or more video sources to the frame (see Cabling Diagram, on page 6).
If you wish to use a different resolution, see Changing the Output Resolution, below, for
detailed instructions.
3 Make the network and other connections as shown in the cabling diagram. Connect a
client PC, the Kaleido-RCP2, one or more Audio Bridge Terminals, and every output
module to a dedicated 100Base-T Ethernet switch. You can also connect a mouse and a
keyboard to your Kaleido-RCP2.
Cable type Purpose
CAT-5 For Ethernet connectivity
Display cables Either extension modules—for example Miranda’s
DXF-200 (part number DXF-200-A)—or DVI cables
Video cables Standard coaxial cables with BNC connectors
Note: On all Miranda multiviewers, the network adapters are set to auto-
negotiate. By default, the connection speed and duplex mode will be set
automatically based on the corresponding port settings on the switch.
Minimum configuration 1 GB of RAM
Pentium 4 at 1 GHz
Recommended At least 2 GB of RAM
Core 2 Duo at 2 GHz, or better
Hard disk At least 125 MB free

6
Setting Up Your Multiviewer
Setting up the Kaleido-X (4RU) Hardware
Cabling Diagram
Kaleido-X (4RU) cabling diagram
Notes
• The Kaleido-RCP2, and Audio Bridge Terminal (ABT) are optional devices,
and may not have been shipped with your Kaleido-X (4RU) system. For
information on these and other Kaleido-X options, please contact your
Miranda sales representative.
• You may need to upgrade your Audio Bridge Terminal and Kaleido-RCP2
devices (if available) to the latest firmware. The update files can be found
on the DVD that shipped with your multiviewer, and on Miranda’s support
portal. Please refer to the Kaleido-RCP2 Guide to Installation and Operation,
and to the Audio Bridge Terminal Guide to Installation and Operation
(available on the DVD, and from the portal) for instructions on how to
determine the firmware level, and how to perform the upgrade for these
devices.

7
Kaleido-X
Quick Start Guide
Changing the Output Resolution
To set a display’s output resolution from the monitor wall
1 Connect a mouse to an output card’s USB connector.
2 Right-click anywhere on the monitor wall, point to Monitor wall (if you clicked a
monitor), and then click Display resolution:
The Display Resolution window appears:
• If you would like the system to automatically select a resolution based on
information from the connected display, select Use detected monitor resolution.
• If you would like to manually set (and fix) the resolution, select the desired
resolution from the Default DVI resolution list:
3ClickOK.
The output resolution is adjusted accordingly.
Powering Up the Kaleido-X (4RU)
To power up the Kaleido-X
1 Plug both power cords from the Kaleido-X into a grounded power outlet.
2 Press the power switches at the back of each power supply module to the On position.
The startup sequence takes approximately four minutes, during which time some video
may appear on the displays. The startup is completed when the CPU LEDs of the output
cards (second LED from the top) are solid green.

8
Setting Up Your Multiviewer
Verifying that the Cards are Ready
Verifying that the Cards are Ready
To verify that the cards (modules) are ready
• Check the status LEDs on each card installed in the Kaleido-X frame. Make sure that
none are indicating an error condition (see table below).
Step 2: Networking Setup
For the Kaleido-X unit to join a TCP/IP network, it must be configured with an IP address, a
network mask, a gateway, and a system name. In addition, a client PC must be configured
to communicate with the Kaleido-X. You must also configure the Kaleido-RCP2 unit, and
any Audio Bridge Terminal unit you may have ordered.
The Kaleido-X is shipped with the following default settings:
Changing the IP Address of a Kaleido-X from the Monitor Wall
The IP address, system name, and other parameters can be set via a control panel on the
monitor wall.
To change the IP address of the Kaleido-X from the monitor wall
1 Connect a mouse to the USB connector of an output card.
2 Connect a USB keyboard to the USB connector of an output card.
3 Right-click anywhere on the monitor wall, point to Monitor wall (if you clicked a
monitor), and then click System configuration.
The System Configuration window appears.
4ClicktheEthernet tab.
CPU LED Color Card Status Action Required
Solid green Ready None
Red Fault Verify that the card is securely seated in the proper
slot in the frame. If status remains unchanged,
remove the card, reseat it and then reboot.
Flashing green Rebooting Wait for card to reboot before starting operations.
Frame IP address 10.0.3.70
Network mask 255.255.0.0
Gateway 10.0.0.1
Output A 10.0.3.69
Output B 10.0.3.68
Note: If the IP address of the Kaleido-X has been changed (i.e. it no longer
corresponds to the as-shipped configuration), it is still possible to determine
the IP address. To determine the IP address of your Kaleido-X, see Finding
the System IP Address, System Name, and Application Version, on page 9.

9
Kaleido-X
Quick Start Guide
5 Type the required Frame IP address, network mask, and gateway address in the
appropriate boxes.
6 Type the required addresses for all outputs.
7ClickOK.
8 When prompted to restart the system to apply your changes, click Yes.
The new configuration will become effective once the system restart has completed.
Finding the System IP Address, System Name, and Application Version
To find the system IP address, system name and application version
1 Connect a mouse to the front USB connector of an output card.
2 Right-click anywhere on the monitor wall. On the shortcut menu, point to Monitor wall
(if you clicked a monitor), and then click Show dashboard to display the dashboard
associated with the current head. A small window appears, revealing the frame IP
address and the system version. Take note of these values — they will be used later in
the configuration process.
Display from card output (partial view) showing dashboard at the bottom right
Enlarged view of dashboard.
Application version
Frame IP address
System name Room name

10
Setting Up Your Multiviewer
Using the Kaleido-RCP2 with Default Settings
Using the Kaleido-RCP2 with Default Settings
To start using the Kaleido-RCP2 with its default settings
1 Physically connect the Kaleido-RCP2 unit to the network using an Ethernet cable.
By default, the Kaleido-RCP2 is shipped with DHCP enabled, so it will automatically be
assigned an IP address by a DHCP server. If no DHCP server can be found, the Kaleido-
RCP2 will fall back to its default static IP address, subnet mask, and gateway settings:
2 On the Kaleido-RCP2 unit, press the ENTER button and hold it until the ESC button
lights up.
The following message appears on the LCD display:
Configuration
ROOM SELECTION
3 Press ENTER again to obtain the room list from the multiviewers that are currently
available on the network.
The message ROOM Select followed by the name of the first room available appears on
the LCD display.
4Pressthe2key (to move up in the list) or the 8key (to move down the list) until the
name of the room you wish to access is displayed.
5 When the desired room name is visible, press ENTER, and then press ESC to exit the
configuration menu.
6 Press the LOGIN button.
The following message appears on the LCD display:
LOGIN Position
Admin
Default IP address 10.0.3.191
Default subnet mask 255.255.0.0
Default gateway 0.0.0.0
Notes
• If you need to operate with a fixed IP address, you must use the Kaleido-
RCP2’s configuration menu to disable DHCP and set up the correct IP
address, Network Mask, and Gateway (see the “Enabling or Disabling
DHCP” and “Setting an IP Address, Subnet Mask and Gateway” sections in
the “Peripheral Equipment” chapter of the Kaleido-X (4RU) Hardware
Description & Installation Manual).
• To access rooms located in other subnets, the Kaleido-RCP2 must be
configured with the appropriate unicast IP addresses (see the “Configuring
Unicast IP Addresses” section in the “Peripheral Equipment” chapter of the
Kaleido-X (4RU) Hardware Description & Installation Manual).
Note: By default, the two head (DVI/VGA) outputs from each of the Output
A and B cards are assigned to ROOM1 and ROOM2 respectively.

11
Kaleido-X
Quick Start Guide
7 Press ENTER to log on to your system as “Admin”.
A message prompting you for a password appears on the LCD display.
8 Press ENTER again (by default, there is no password).
The message “Access granted” will appear on the LCD display if the login is successful. If
a mouse is connected to the Kaleido-RCP2, then you should be able to see and move
the mouse pointer on the monitor Press any of the LAYOUT PRESETS buttons to load a
predefined layout on the monitor wall.
wall.
If your system was configured prior to shipment, then a layout will appear on all
displays. Otherwise, a gray screen will appear with the following message in the
middle:
“No layout has been assigned to this room. Please load a layout.”
Loading a Layout
To load a layout on the monitor wall
1 Connect a mouse to the Kaleido-RCP2.
2 If you have not already done so, log on to the Kaleido-X from the Kaleido-RCP2. See
Using the Kaleido-RCP2 with Default Settings on page 10.
3 Right-click anywhere on the monitor wall, point to Monitor wall (if you clicked a
monitor), and then click Load layout on the shortcut menu.

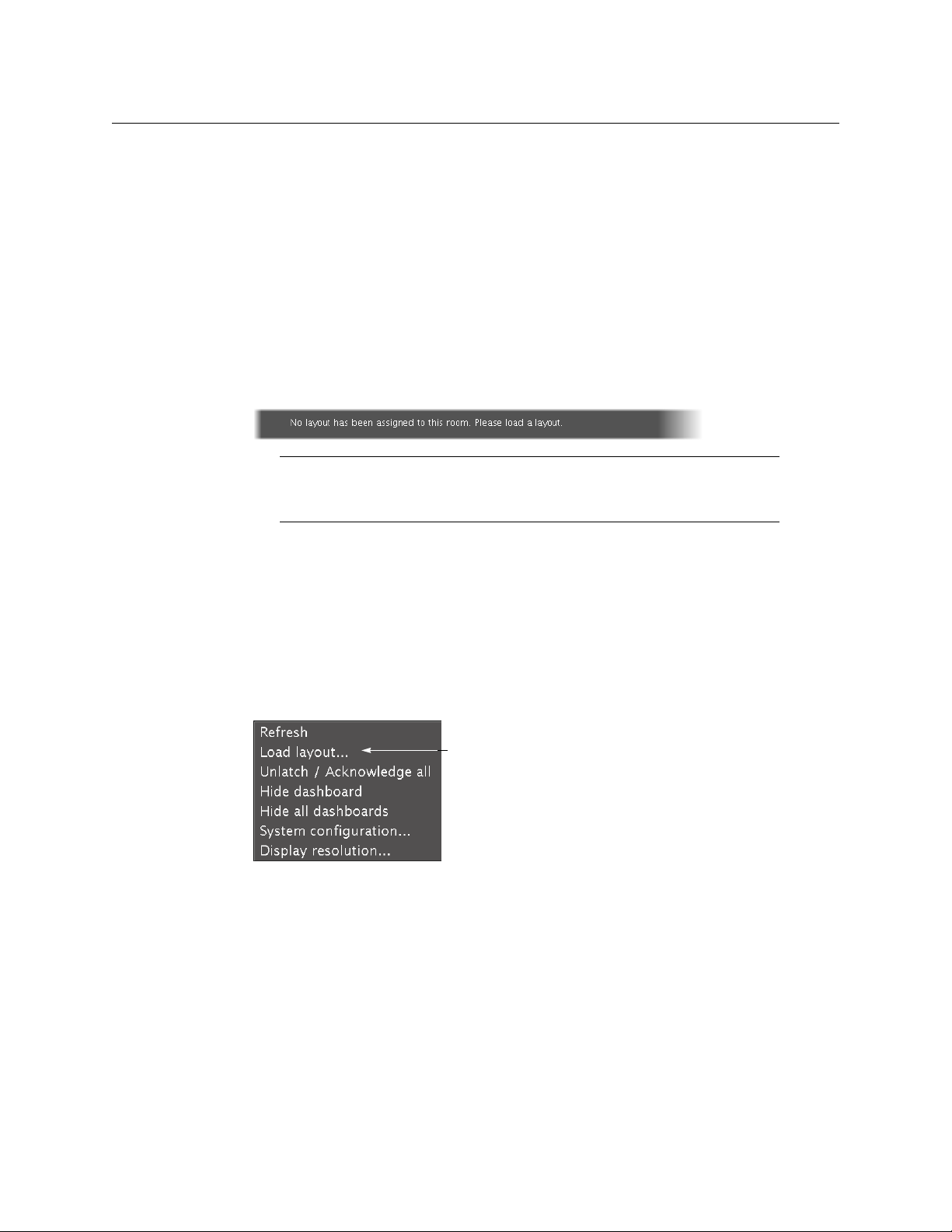

Monitor wall shortcut menu
A layout browser appears on the displays associated with the current room. By default,
each room is associated with one output card. Each default layout is pre-configured to
show 16 video streams for each input card.
Note: To access other layouts, press the LOAD button. To assign a layout to
a preset button, press and hold the button for more than six seconds while
the desired layout is showing on the monitor wall.

12
Setting Up Your Multiviewer
Configuring a Client PC

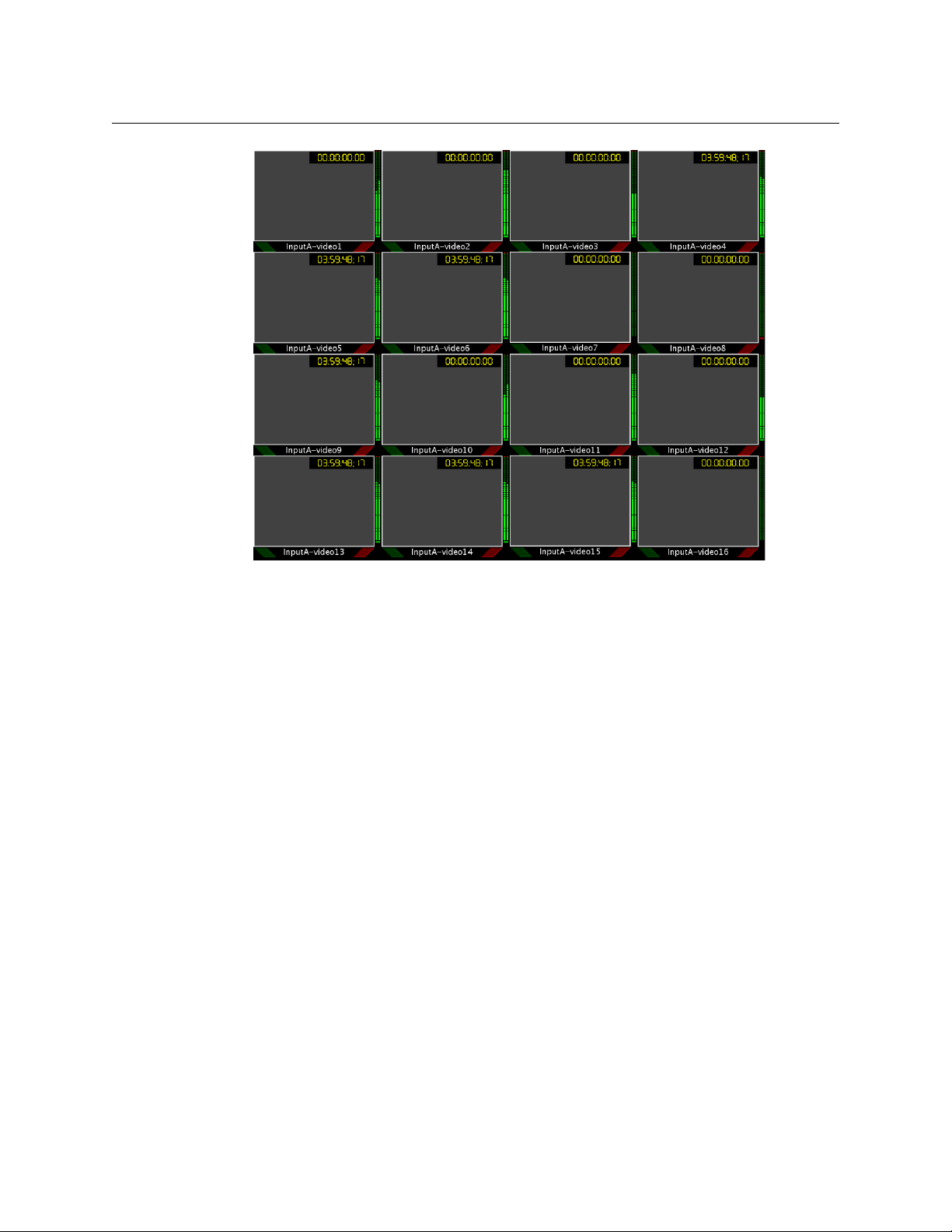

Example of a default layout showing 16 video streams
4 Choose a layout from the layout window on the monitor wall.
The video source should appear on the room displays.
Configuring a Client PC
The client PC that you will use to communicate with the Kaleido-X (via XAdmin and XEdit)
and the Kaleido-X itself must have IP addresses within the same subnet. The following
procedure applies to a typical Windows 7 system. For Windows XP, see Changing an IP
Address on Windows XP, on page 14.
Changing an IP Address on Windows 7
To change the IP address of a client PC that has Windows 7
1ClicktheStart button, and then click Control Panel. In the search box, type “adapter”,
and then, under Network and Sharing Center, click View network connections.
2InNetwork Connections, right-click Local Area Connection, and then click Properties.
If the system prompts you for an administrator password or confirmation, type the
password or provide confirmation.
The Local Area Connection Properties window opens.

13
Kaleido-X
Quick Start Guide
3OntheNetworking tab, under This connection uses the following items, click
Internet Protocol Version 4 (TCP/IPv4), and then click Properties.
The Internet Protocol Version 4 (TCP/IPv4) Properties window opens.
4OntheGeneral tab, click Use the following IP address.
5 Type an IP address in the same range as the default IP address of the multiviewer. For
example, if the IP address of the multiviewer is 10.0.3.70, then the IP address of your
client PC could be 10.0.3.123. If you are unsure, contact your network administrator.
6 Type a subnet mask in the same range as that of the multiviewer.
7ClickOK.
8InLocal Area Connection Properties, click Close.

14
Setting Up Your Multiviewer
Configuring an Audio Bridge Terminal
Changing an IP Address on Windows XP
To change the IP address of a client PC that has Windows XP
1 On the Windows XP Start menu, point to Control Panel, right-click Network
Connections, and then click Open on the shortcut menu.
2InNetwork Connections, right-click Local Area Connection, and then click Properties
on the shortcut menu.
3InLocal Area connection Properties, select Internet Protocol (TCP/IP) from the list on
the General tab, and then click Properties.
The Internet Protocol (TCP/IP) Properties window opens.
4OntheGeneral tab, click Use the following IP address.
5 Type an IP address in the same range as the default IP address of the Kaleido-X frame.
For example, if the IP address of the Kaleido-X frame is 10.0.3.70, then the IP address of
your client PC could be 10.0.3.123. If you are unsure, contact your network
administrator.
6 Type a subnet mask in the same range as that of the Kaleido-X.
7ClickOK.
8InLocal Area Connection Properties, click Close.

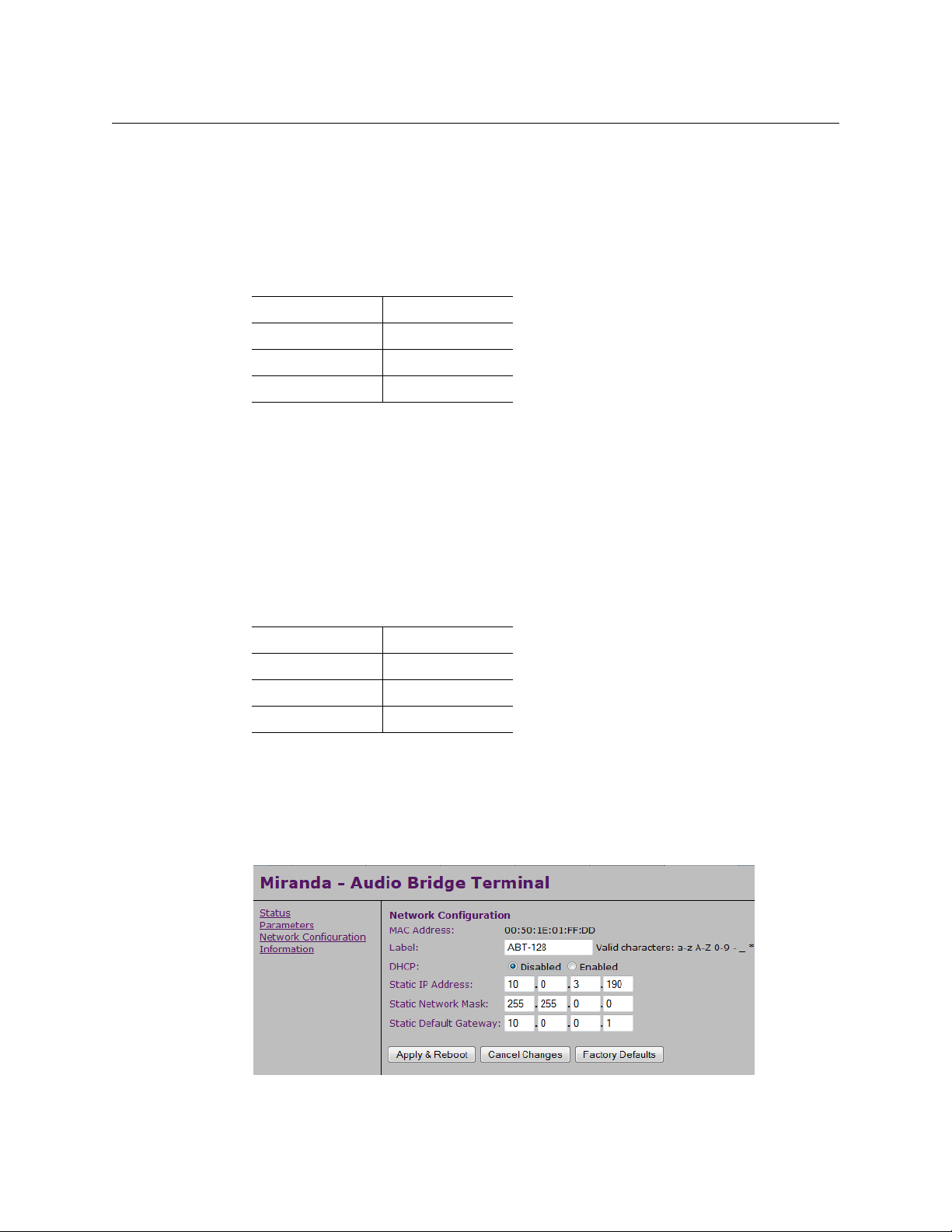

Configuring an Audio Bridge Terminal
The optional Audio Bridge Terminal (ABT) is an external audio multiplexer/serializer for the
Kaleido-X. The Kaleido-X supports audio channel inputs from the ABT-64 or ABT-128 series
of Audio Bridge Terminal panels through up to two SDTI inputs. The ABT-64 supports
64 channels and the ABT-128 supports 128 channels.
There is not enough space on the Kaleido-X rear panels to also include discrete audio
connectors. An ABT provides connector space for multiple audio signal inputs, and
multiplexes all the audio signals into combined serial feeds on coaxial cables that connect
to the KXI cards.
Note: The ABT is powered through the RJ-45 Ethernet connector. There is
no power ON/OFF button, so the device is ON whenever a powered Ethernet
cable (PoE) is connected.

15
Kaleido-X
Quick Start Guide
For more information about the ABT, refer to the Audio Bridge Terminal Guide to
Installation and Operation, available on the DVD that shipped with your system.
To configure the IP address and other network settings of the ABT
1 Connect a PC to a switch.
2 Referring to Configuring a Client PC, on page 12, configure the PC with the following
network settings:
3 Apply power to the Audio Bridge Terminal and make sure it is connected to the same
switch as the PC.
• If the switch is Power over Ethernet (PoE) enabled, simply connect it to the unit
using an Ethernet cable.
• If not, PoE mid-span (inserter) equipment must be placed between the switch and
the Audio Bridge Terminal.
4 Press the RESET button (located on the right-hand side of the ABT rear panel beside the
ETHERNET/POWER RJ-45 connector) for at least 1 second.
The Audio Bridge Terminal will reboot with the following static network configuration:
5 Using a Web browser on the PC, connect to the ABT using the following address:
10.0.3.190.
The home page of the ABT’s built-in Web server is displayed.
6ClickNetwork Configuration (in the navigation pane).
The Network Configuration page is displayed.
DHCP OFF
Static IP address 10.0.0.1
Subnet mask 255.255.0.0
Default gateway 10.0.0.1
DHCP OFF
Static IP address 10.0.3.190
Subnet mask 255.255.0.0
Default gateway 10.0.0.1

16
Setting Up Your Multiviewer
Configuring an Audio Bridge Terminal
7 Change the ABT’s network settings, as necessary, and then click Apply & Reboot.
Step 3: XEdit Installation
XEdit is a client application used to create layouts for the monitor wall, and to configure
your multiviewer system, from your PC or laptop. When the computer with XEdit is
connected to the Kaleido-X through a TCP/IP network, you can use XEdit to modify layouts
and settings directly on the Kaleido-X, or you can work locally on the computer and then
export your changes to the Kaleido-X.
To install XEdit from your multiviewer’s home page
1 From a workstation on the same subnet as the multiviewer, open a Web browser
window and type the multiviewer’s IP address in the address bar.

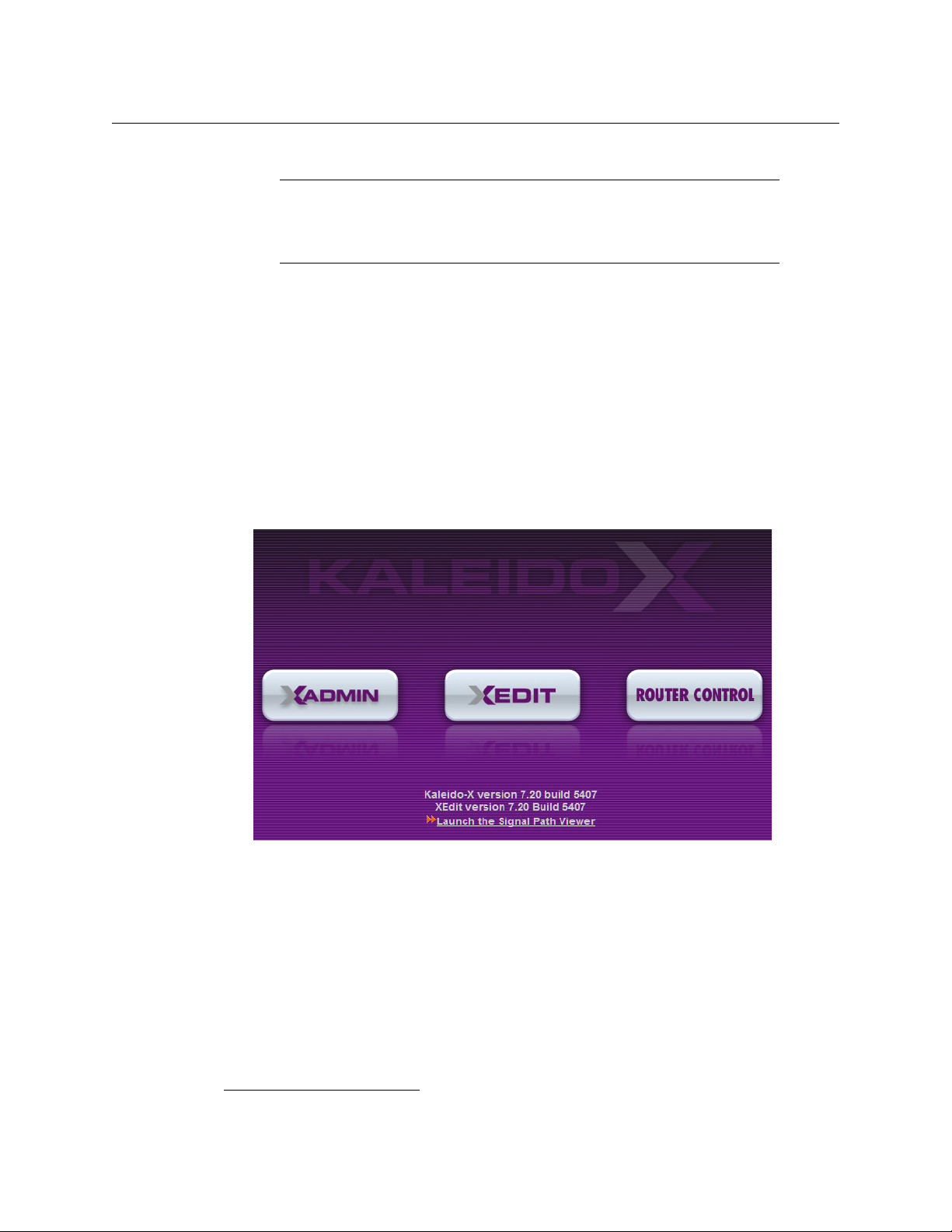

The Kaleido-X home page appears.
2ClicktheXEdit button.
The browser prompts you to save an executable file to your hard drive (Kaleido-
windows32-online.exe1). This file is an online installer, which will download XEdit and
other companion elements from your multiviewer, and install them. Some browsers
may allow you to run the file directly. Depending on your browser’s security features,
warnings may appear, which you may safely dismiss.
3 Unless your browser let you run the file (and you chose to do so), navigate to the
location were you saved the installer file and open it.
A security warning appears.
Note: If you purchased more than one Audio Bridge Terminal unit, keep in
mind that they all ship with the same default static IP address. Make sure to
assign each of them a different static IP address before connecting them to
the network, if DHCP is not used.
1.Installers for Linux or Mac OS X are not yet available.
