Hi-Speed USB 2.0 Multi
Media Reader & Writer
F5U249ea
User Manual
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESPAÑOL
ITALIANO
Transfer photos, music, and files
from your PDA, MP3, digital camera,
and more

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
1 Introduction ............................................................................................1
Features ...................................................................................................2
System Requirements ..............................................................................2
Package Contents .....................................................................................2
Media Insertion .........................................................................................3
2 Installation Procedure for Windows ...............................................4
Windows 98 SE, Me, 2000, XP, Vista .......................................................4
3 Safe Removal of Media Cards and Readers ...................................6
4 Uninstalling your Media Reader & Writer ......................................7
5 Installation Procedure for Mac OS ...................................................8
Mac OS 9.0–9.x .......................................................................................8
Mac OS X v10.1.2 and above ....................................................................9
6 Accessing Files and Data .................................................................10
7 Safe Removal of Digital Flash Media Cards .................................10
8 Uninstalling your Media Reader & Writer ....................................11
Mac OS 9.0–9.x and Mac OS X v10.1.2 and above ................................11
9 Information .........................................................................................12
Table of Contents

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
Introduction
EN 1
Congratulations
Thank you for purchasing the Belkin USB 2.0 All-in-1 Media Reader & Writer.
This quality product provides compatibility with the following popular flash
memory formats.
• CompactFlash® Type I and Type II / CompactFlash® Extreme Card
• IBM® Microdrive™
• SmartMedia™
• SmartMedia™ RAM Card
• Secure Digital / Mini SD* / SDHC
• MultiMediaCard / RSMMC (Reduced Size MultiMediaCard)* / High Speed
MultiMedia Card
• XD Picture Card
• Memory Stick® / Memory Stick Duo™*,
• Memory Stick Pro™ / Memory Stick Pro Duo™*,
• Memory Stick MagicGate™ / Memory Stick MagicGate Duo™*
(non-secure mode only)
• MultiMedia Card 4.0
• Memory Stick MagicGate Pro™*
• Memory Stick Select Function card
• High Speed Memory Stick
• Memory Stick Ultra II
*Requires use of adapter included with media card
Please visit our website www.belkin.com for the most updated
compatibility list.
1

Introduction
1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
1
2 EN
In addition to Media Readers, Belkin manufactures an entire line of USB and
PC accessories. Please visit belkin.com for details.
Features
• Easy transfer of data between slots
• Quick and easy access to digital photos, MP3s,
and other digital files
• Doubles as a removable media storage device
• Bus-powered—no power supply required
• Plug-and-Play, hot swap capability
• Drag-and-drop file transfer
• Custom drive icon support using the included driver
• Belkin Lifetime Warranty
System Requirements
• Computer with available USB port
(USB 2.0 port for Hi-Speed mode)
• Windows® 98 SE, Me, 2000, XP or Vista
• Mac OS® 9.x or Mac OS X v10.1.2 or higher
(Custom icons not supported in OS 10)
Package Contents
• Belkin Hi-Speed USB 2.0 All-in-1
Media Reader & Writer
• User Manual
• Installation CD

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
1
Introduction
EN 3

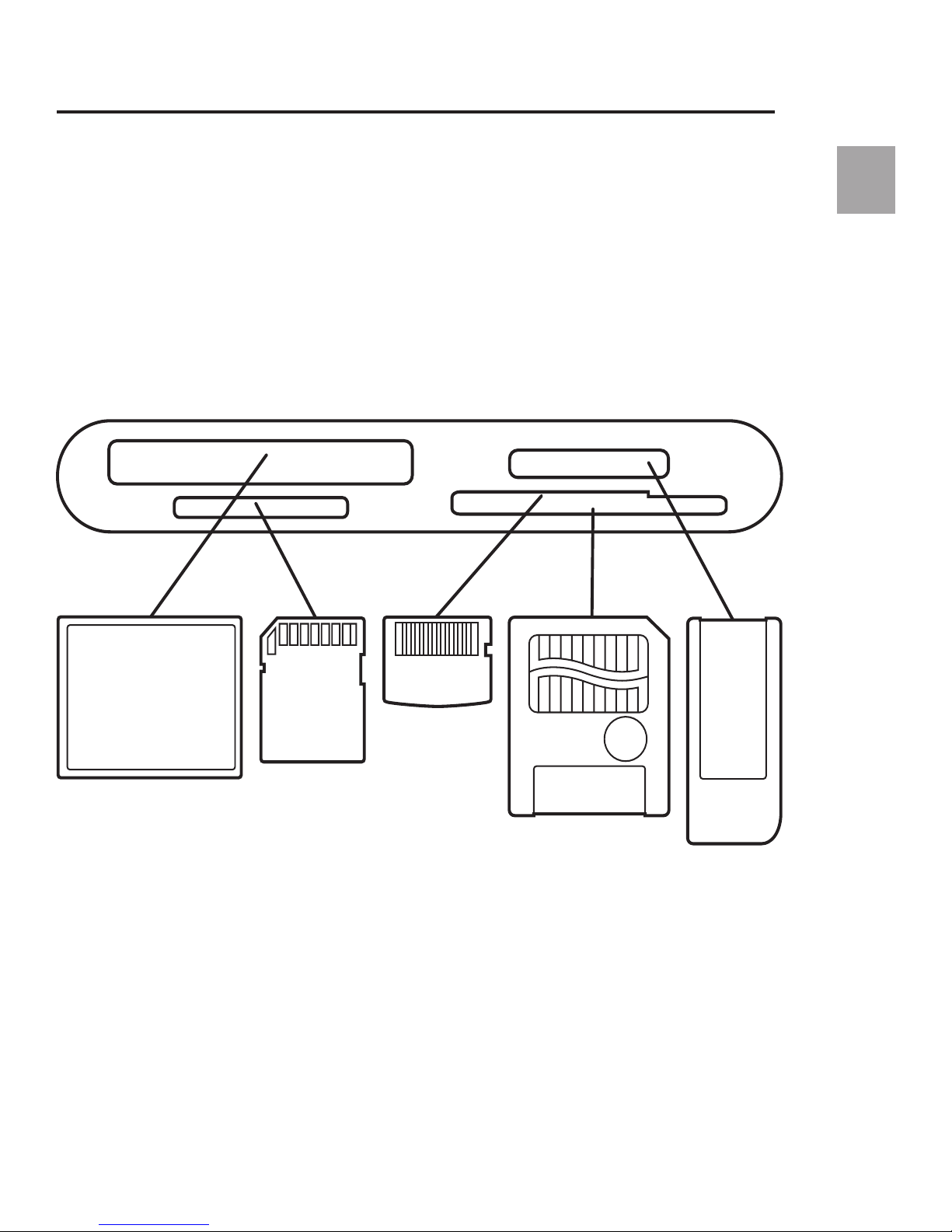

Media Insertion
To prevent damage to your Media Reader and/or media card, it is important
that the media card be correctly inserted into the Reader. See the drawings
below, which illustrate the proper orientation for insertion of your media card.
Important Note: The All-in-1 Reader & Writer uses a combination slot
designed to accommodate both xD Picture Card and SmartMedia card
formats. Only a single card may be plugged into the combination slot
at any time.
CompactFlash MultiMedia
Card
xD
Card
SmartMedia
Memory
Stick

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
4 EN
IMPORTANT NOTE: DO NOT PLUG MEDIA READER INTO
COMPUTER UNTIL INSTRUCTED TO DO SO
Windows 98 SE, Me, 2000, XP, Vista
1. Insert the Belkin Driver Installation CD.
a. After a few moments, the setup application will appear on your
computer screen.
b. If the setup application does not appear, double-click “My Computer”
then click on your CD-ROM drive icon. This will load the setup
application’s main page.
2. Click the “Install Driver” button.
3. The “InstallShield Wizard” will now start. Click “Next” on each of the
screens that are displayed, then click “Finish”. You should now restart to
complete the driver installation process.
Important Operating System Notes:
a) Windows Me, XP and Vista offer native support for mass-storage
devices. It is not necessary to install the Belkin driver in order to use
the All-in-1 Media Reader. However, if you wish to take advantage of
the custom drive icons, the driver must be installed. Note: Custom
Icon support is currently unavailable for Vista.
b) Windows 2000 also offers native support for mass-storage devices,
but in versions prior to Service Pack 3, does not support “multi-
LUN” devices. If the Belkin driver is not installed in Windows 2000
versions prior to Service Pack 3, only the CompactFlash slot will be
available. Furthermore, if you wish to take advantage of the custom
drive icons, the driver must be installed.
c) Windows 98 SE does not support mass-storage devices; therefore,
2
Installation Procedure for Windows

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
EN 5
the Belkin driver must always be installed.
4. After Windows restarts, connect the Media Reader’s USB plug to the
USB port on your PC or USB hub and follow the on-screen instructions to
complete the installation.
5. The Media Reader will be recognized as four individual removable disk
drives. To access the new drive(s), click the “My Computer” icon found on
your Windows desktop display. When the “My Computer” window opens, you
will see a customized disk drive icon representing each of the four slots.
2
Installation Procedure for Windows

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
6 EN
(See Operating System notes above regarding custom icon support)
All versions of Windows
1. Do not remove your media card from the Reader
while data is being read or written to the card.
Doing so could corrupt the media card resulting in a loss of data.
The correct way to remove the card is to go to “My Computer”,
right-click on the drive and select “Eject” from the list. Depending
on your operating system, this feature may not give you a prompt
that says it was done. After clicking on eject, you can remove the
card without corrupting the files on the card.
2. To safely remove a Media Reader from your computer, click on the
“Unplug or Eject Hardware” button found in the right-hand corner of the
Windows taskbar.
Failure to follow this step could result in the loss
or corruption of data stored on your media card.
Safe Removal of Media Cards and Readers
3

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
EN 7
All versions of Windows
1. To uninstall the Belkin Media Reader & Writer driver, click the “Start”
Button, select “Settings”, select “Control Panel”, then select “Add/
Remove Programs”. Choose “Belkin F5U249 Driver and Icon”,
then click “Remove”.
Note:
This procedure is only necessary
if the Belkin driver has been installed.
2. You may also perform the uninstall from Windows Device Manager.
(To uninstall from Windows Device Manager, the Media Reader must be
plugged into your computer.) Right-click on “My Computer”, then select
“Properties”, then “Device Manager”. Click on the (+) sign next to
“Disk Drives”. Select the Media Reader from the list of drives, then click
on “Remove”. Now unplug the Media Reader from the USB port on your
4
Uninstalling your Media Reader & Writer

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
8 EN
computer or hub.
Mac OS 9.0–9.x
1. Insert the Belkin Media Reader Installer CD.
2. Double-click on the “USB Media Reader” CD-ROM drive icon that
appears on your desktop. Then click on “Belkin installer 0.6”.
3. Follow the on-screen instructions to complete driver installation.
4. Connect the Media Reader’s USB plug to an available USB port on your
Mac® computer or USB hub, and insert your media card.
5. Once a media card is inserted, it will appear on your desktop as a
standard Mac OS disk drive. A custom drive icon will appear for each
slot according to the media type. The drive icon will appear only when a
media card is inserted into its slot.
Important Note: The All-in-1 Hi-Speed USB 2.0 Reader & Writer uses
a combination slot designed to accommodate both xD Picture Card and
SmartMedia card formats. When an xD Picture Card is inserted into the
slot, it will be displayed on your Mac OS desktop as a SmartMedia card.
5
Installation Procedure for Mac OS®

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
EN 9
Only a single card may be plugged into the combination slot at any time.
Mac OS X v10.1.2 and above
1. Mac OS X v10.1.2 and above offers native support for mass-storage
devices. To install the Media Reader, simply plug it into an available
USB port on your Mac computer or USB hub. No further user
intervention is required.
Note: Custom icon support is currently unavailable for any version of OS 10.
2. Once a media card is inserted, it will appear on your desktop as a
standard Mac OS disk drive. A drive icon will appear for each slot, but
only when a media card is in the slot.
5
Installation Procedure for Mac OS®

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
10 EN
1. Double-click the drive icon assigned to your Media Reader. A window will
open displaying the contents of the currently installed media card.
2. To move files to and from the disk, simply drag the file to the alternate
location or use other file transfer methods that are standard in your
computer’s operating system.
1. Mac OS offers two methods of safely removing media cards
from your Media Reader.
a. Click on the Media Reader drive icon then choose “Special”
from the command bar on the top of your computer screen.
Select “Eject” from the drop-down list.
or:
b. Click on the Media Reader drive icon and drag the icon
to the Mac OS trash can.
6
7
Accessing Files and Data
Safe Removal of Digital Flash Media Cards

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
EN 11
Mac OS 9.0–9.x and Mac OS X v10.1.2 and above
The Belkin Media Reader utilizes mass-storage drivers that are included in
Mac OS 9.0–9.x, and OS X v10.1.2 and above. There is no need to uninstall
drivers when the Readers are removed from your Mac computer.
8
Uninstalling your Media Reader & Writer

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
12 EN
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220,
declare under our sole responsibility that the product:
F5U249ea to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
CE Declaration of Conformity
We, Belkin Corporation, declare under our sole responsibility that the F5U249ea, to which
this declaration relates, is in conformity with Generic Emissions Standard EN 55022:1998
Class B, EN50081-1 and with Generic Immunity Standard EN50082-1 1992.
Manufacturer's Lifetime Warranty
Belkin Corporation warrants this product against defects in materials and workmanship
for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace
the product at no charge provided it is returned during the warranty period, with
transportation charges prepaid, to the authorized Belkin dealer from whom you
purchased the product. Proof of purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse,
misuse, or misapplication; if the product has been modified without the written
permission of Belkin; or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL
OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY
DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension,
or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER
LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR
DATA STORED IN OR USED WITH BELKIN PRODUCTS.
9
Information

EN 13

Please visit our website www.belkin.com
for technical support or further information.
Disposal of Waste Equipment by Users in
Private Households in the European Union:
For more information, go to
www.belkin.com/environmental
© 2007 Belkin International, Inc.
All rights reserved. All trade names are registered trademarks of respective manufacturers listed.
Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
Belkin Ltd.
Express Business Park, Shipton Way,
Rushden NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax
Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax
Belkin SAS
130, rue de Silly
92100 Boulogne-Billancourt, France
[phone]
[phone] fax
Belkin Iberia
Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes, Spain
[phone]
[phone] fax
Belkin Nordic
Knarrarnäsgatan 7
164 40 Kista, Sweden
[phone]
[phone] fax
P74547en-B

Lecteur/Enregistreur
Multimédia Multi USB 2.0
Haut Débit
F5U249ea
Manuel de l’utilisateur
Transférez photos, musique et fichiers
à partir de votre PDA, lecteur de
MP3, caméra numérique,
et plus encore !
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESPAÑOL
ITALIANO

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
1 Introduction................................................................ ......................... 17
Caractéristiques .................................................................. ..................18
Configuration requise ............................................. ...............................18
Contenu de l’emballage ................................................... ...................... 18
Insertion du support ....................................................... .......................19
2 Installation sous Windows.......................... ......................................20
Windows 98 SE, Me, 2000, XP, Vista............................... ......................20
3 Retrait sans danger
des cartes et des lecteurs multimédia............... ............................22
4 Désinstallation du lecteur/enregistreur multimédia................. ..23
5 Installation sous Mac OS............................. ......................................24
Mac OS 9.0–9.x ...................................................... ..............................24
Mac OS X v10.1.2 et supérieur................................. ..............................25
6 Accès aux fichiers et aux données ......................................... ........26
7 Retrait sans danger des cartes multimédia Digital Flash............ 26
8 Désinstallation du lecteur/enregistreur multimédia................. ..27
Mac OS 9.0–9.x et Mac OS X v10.1.2 et supérieur ................................27
9 Information.............................................................. ...........................28
Table des Matières

1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
Introduction
FR 17
Félicitations
Merci d’avoir choisi le Lecteur/Enregistreur Multimédia USB 2.0 Haut Débit
de Belkin. Ce produit de qualité prend en charge les cartes mémoires
courantes suivantes.
• CompactFlash® Type I et Type II / CompactFlash® Extreme Card
• IBM® Microdrive™
• SmartMedia™
• SmartMedia™ RAM Card
• Secure Digital / Mini SD* / SDHC
• MultiMediaCard/RSMMC (Reduced Size MultiMediaCard)* / High Speed
MultiMedia Card
• XD Picture Card
• Memory Stick® / Memory Stick Duo™*,
• Memory Stick Pro™ / Memory Stick Pro Duo™*,
• Memory Stick MagicGate™ / Memory Stick MagicGate Duo™* (uniquement
en mode non sécurisé)
• MultiMedia Card 4.0
• Memory Stick MagicGate Pro™*
• Memory Stick Select Function card
• High Speed Memory Stick
• Memory Stick Ultra II
* Nécessite l’utilisation d’un adaptateur, fourni avec la carte multimédia
Veuillez visiter notre site Web pour une liste de compatibilité.
www.belkin.com
1

Introduction
1
___
2
___
3
___
4
___
5
___
6
___
7
___
8
___
9
1
18 FR
Outre les lecteurs multimédia, Belkin propose toute une gamme d’accessoires
USB et PC. Visitez le site belkin.com pour de plus amples informations.
Caractéristiques
• Transfert facile des données entre les emplacements
• Accès simple et rapide aux photos, MP3 et autres fichiers numériques
• Sert de dispositif de stockage multimédia amovible
• Alimentation par le bus : aucun bloc d’alimentation n’est requis
• Branchement à chaud Plug-and-Play
• Transfert de fichiers par glisser-déplacer
• Prise en charge d’icône personnalisée avec utilisation du pilote inclus
• Garantie à vie du produit de Belkin
Configuration Requise
• Ordinateur possédant un port USB libre
(USB 2.0 pour mode Haut Débit)
• Windows® 98 SE, 2000, Me, XP ou Vista
• Mac OS® 9.x ou Mac OS X v10.1.2 ou ultérieur
(icônes personnalisées non disponibles sous Mac OS 10)
Contenu de l’emballage
• Lecteur/Enregistreur USB 2.0 Haut Débit de Belkin
• Manuel de l’Utilisateur
• Logiciel d’installation sur CD-ROM
