Congratulations and thank you for purchasing the Bluetooth
Hands-Free Headset and Audio Adapter from Belkin. The
Headset features breakthrough Bluetooth technology that
lets you create efficient wireless communications with your
cell phone. Please review this manual carefully to ensure
that you get the most from your product.
Product Features
The Bluetooth Hands-Free Headset and Audio Adapter is
compliant with Bluetooth standard version 1.1 and provides:
• Support for the Headset and Hands-Free Profile
• Compatibility with Bluetooth technology-enabled phones
as well as with phones that are NOT enabled with
Bluetooth technology
• A moldable ear hook, providing a comfortable fit with
SoftHold™ technology
1
Introduction
section
1
2
3
4
5
6
7
8
Introduction

3
Introduction
section
1
2
3
4
5
6
7
8
Introduction
Belkin Part # Brand Models
F8V9020-CNCT Nokia®2270, 3300*, 3570,
3585, 3585i, 3586i,
5100, 6100, 6200,
6800, 7210
F8V904-CNCT Nokia 5100, 6100, 7100
F8V9003-CNCT Nokia 1200, 2200, 3300,
3500, 3600, 6500,
8200, 8300, 8800
F8V9032-CNCT Samsung®SGH-N625, SGH-
S100, SGH-S105,
SGH-V200, SGH-
V205
F8V9031-CNCT Samsung SGH-Q105, SGH-
R225, SGH-R225m
• Built-in security: up to 128-bit encryption
and authentication
Compatibility

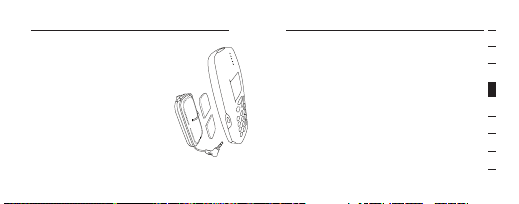

For phones not enabled with Bluetooth technology
The Bluetooth Hands-Free Headset works with phones that
are not Bluetooth technology-enabled using the Audio
Adapter that plugs directly into your mobile phone with a
2.5mm jack.
Belkin offers adapters for phones that do not have 2.5mm
jacks, so that you can easily connect them as well. Check
our hands-free connector chart on the next page to find the
Belkin Adapter designed for your phone—or check with your
phone manufacturer to determine the type of hands-free
connector that is built into your phone.
2

Introduction
5
Introduction
section
1
2
3
4
5
6
7
8
For phones that are enabled with Bluetooth
technology
Compatible with phones enabled with Bluetooth v1.1,
including, but not limited to:
• Sony Ericsson Z600, T610, T616, T618, T68i
• Nokia 3650, 3600, 6310, 6310i, 8910, 8910i, 6600, N-Gage™
• Siemens S55, S56
F8V9030-CNCT Siemens®A56, C56, CT56,
S56
F8V9004-CNCT Ericsson®A2218z, R300d,
R300LX, R300z,
R380 world, T28
world, T28z, T39m,
T60c, T60d, T60LX,
T66
F8V9004-CNCT Sony Ericsson®P800, T61c, T61d,
T61LX, T61z, T62u,
T68i, T68m, T200,
T300, T306, T310,
T316, T601
F8V9003-CNCT Handspring™/Palm™180, 270, 300; Palm
Tungsten™ W
4

Introduction
7
Introduction
section
1
2
3
4
5
6
7
8
Specifications
Model: F8T062
Bluetooth Compliance: Version 1.1
Operating Frequency: 2.4–2.4835GHz
Spread Spectrum: FHSS (Frequency Hopping
Spread Spectrum)
Modulation: GFSK (Gussian Frequency
Shift Keying)
RF Output: 0 dBm, Class 2
Sensitivity: < 0.1% BER at -81 dBm
Frequency Stability: +/- 10PPM
Operation Range: 10m (33 ft.)*
Design: Left and right ear
Battery: Rechargeable lithium polymer
battery
Package Contents
• Bluetooth Hands-Free Headset
• Bluetooth 2.5mm Audio Adapter (for non-Bluetooth
phones)
• Desktop charger
• SoftHold moldable ear hook with 3 interchangeable earplugs
• 5V DC, 300mA power supply
•Audio Adapter charging cable
•Audio Adapter adhesive strip
• User Manual
• Registration Card
6

9
Introduction
section
1
2
3
4
5
6
7
8
Introduction
Controls: Multifunction volume control
and answer/hook toggle
button*
Antenna: Integrated, 0 +/- adbi
LED Indicator: Power/Pairing
Charger: 5.0V DC, 300mA
Typical Power Consumption: TX: 150mA, Rx 80mA
Dimensions: Headset: 58mm (L) x 24mm (W)
x 12mm (H)
Audio Adapter: 56mm (L) x
37mm (W) x 9mm (H)
Weight: Headset: 0.7oz.
Audio Adapter: 0.5oz.
Operating Temperature: 0–70 degrees Celsius
Storage Temperature: -30–80 degrees Celsius
*10m range is dependent upon environment, number of
users, and other wireless devices within immediate proximity.
Specifications are subject to change without notice.
Supported Profiles
The services supported by your Headset are defined as
“Profiles”. Available Profiles include:
• Hands-Free
• Headset
8
*Works with cell phones enabled
with Bluetooth technology

1
2
3
4
5
6
7
8
Getting to Know your Hands-Free Headset and
Audio Adapter
Status Indicators
Headset LED Status
5 quick blue flashes Headset is being
turned on
5 quick red flashes Headset is being
turned off
Continues blue/red flashing Headset is in
pairing mode
Flashes blue once every 3 seconds Headset paired
but not active
3 quick blue flashes every 3 seconds Headset paired
and active
LED Window
Tog gle*:
- On-Off
- Volume up-down
- Pairing
SoftHoldTM Ear Hook
Power Jack
Multifunction
Button
2.5mm Plug
Getting to Know your Hands-Free Headset and
Audio Adapter
10 11
section
*Works with cell phones enabled
with Bluetooth technology

Warning: The Bluetooth Hands-Free Headset
and charger feature built-in magnets that allow
them to dock with each other. Keep magnets
at least two feet away from computer hard
drives, and other magnetic storage media,
monitors, televisions, VCRs, videotapes,
cameras, camera film, credit cards, etc., to
avoid data loss.
Charge your Headset and Adapter
Your Bluetooth Hands-Free Headset and Audio Adapter
are equipped with rechargeable lithium-polymer batteries,
which must be charged prior to use.
Audio Adapter LED Status
Red and blue on Adapter is being
turned on or off
Continues blue/red flashing Adapter is in
pairing mode
Flashes blue once every 8 seconds Adapter paired
but not active
1 quick blue flash every second Adapter paired
and active
Getting to Know your Hands-Free Headset and
Audio Adapter
12 13
Before you Begin
section
1
2
3
4
5
6
7
8

15
Before you Begin
section
1
2
3
4
5
6
7
8

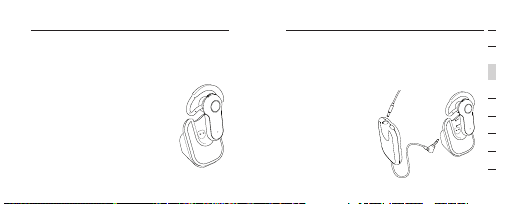

Charging your Audio Adapter:
1. Using the Audio Adapter charging cable, plug the
larger end to the Audio Adapter and the other end
to the power adapter into the desktop charger
(smaller DC jack).
2. The Adapter charging indicator on the charger will
illuminate red.
Charge the Adapter for
approximately two hours or
until the red charger
indicator light goes out.
Note: The red indicator
light will be on while the
Audio Adapter is charging
and will turn off when
charging is complete.
Charging your Headset:
1. Plug one end of the power adapter into the desktop
charger and the other end into an available 110V AC
electrical outlet.
2. Insert the Headset into the desktop charger.
The charging indicator on the
charger will illuminate red.
3. Charge the Headset until the red
charger indicator light goes out
(approximately two hours).
Note: The red indicator light will be on
while the Headset is charging and will turn
off when charging is complete.
14
