Slim design. Knockout performance.
19-INCH WIDESCREEN
RACK CONSOLE
Slim design.
Knockout
performance.
RACK CONSOLE

THE CHALLENGE
IT administrators responsible for installations are often understaffed and overworked, and many operate within the
confines of a strict budget. In order to service their systems, these administrators have often relied on large, less-efficient
consoles with limited features, cumbersome configurations, and difficult installation processes.
THE SOLUTION

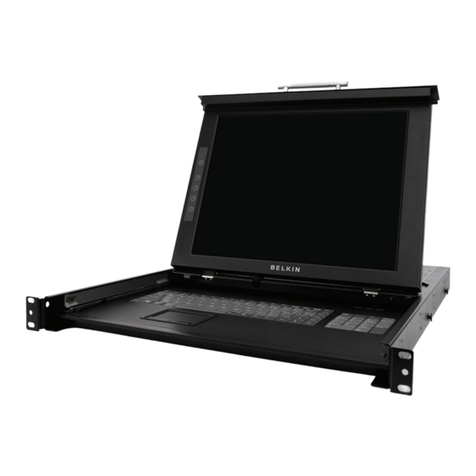

The Belkin 19-inch Widescreen Rack Console offers
an innovative new design that simplifies your IT duties
at every turn. The often-cumbersome installation
process has been reduced to a hassle-free, one-person
job—simply slide it in, and you’re done. Belkin 19-inch
Widescreen Rack Consoles are lighter and slimmer
than ever before, and deliver simplified deployment,
instant access, and reduced energy usage. And
with the ultra-slim 19-inch widescreen display, you’ll
enjoy a more comfortable viewing area while saving
valuable rack space. Belkin 19-inch Widescreen Rack
Consoles are just another way Belkin enables you
to successfully simplify your IT responsibilities.
COMPACT DESIGN
Server room closets tend to be limited on space—that’s
why our newest rackmount console solution is lighter,
slimmer, and more integrated than ever before. Belkin
19-inch Widescreen Rack Consoles accommodate your
keyboard, touchpad monitor, and KVM switch within
a 1U rack, saving you valuable rack space for your other
IT equipment.
ENHANCED VIEWING AREA
The Belkin 19-inch Widescreen Rack Console helps
IT administrators view more and do more, improving
efficiency and productivity. Its high-resolution LCD
provides a clear, wide viewing area ideal for performing
several tasks simultaneously, including:
•Viewing multiple applications at once
•Servicing multiple virtual servers
•Viewing multiple documents side by side
•Using applications that require a larger viewing space
Product designed in California.
Slim, Sleek Design
Widescreen

Belkin is committed to delivering environmentally friendly,
user-friendly IT products—and the newest addition to
the lineup, the Belkin 19-inch Widescreen Rack-Mount
Console, is no exception. It allows you to lessen your
impact on both the environment and your energy bill.
ENERGY REDUCTION
HASSLE-FREE INSTALLATION
You can trust Belkin to help you get your job done—faster
and simpler. Belkin 19-inch Widescreen Rack Consoles
install in a fraction of the time and effort as other rackmount
consoles, thanks to hassle-free innovations such as screw-
less rail design, adjustable rails, and a lighter, slimmer
build. It’s also compatible with multiple cabinet and system
configurations, and does not require a bracket configuration.
Belkin’s high-performance rails do not require any additional
release springs, providing IT administrators with a truly
hassle-free operation.
TROUBLE-FREE ACCESS
Belkin 19-inch Widescreen Rack Consoles are designed
to make your day-to-day tasks easier. Features such as
a user-friendly interface and automatic locks rather than
manual triggers for tucking the product away work together
to ensure an easier, more comfortable IT experience. You’ll
also experience seamless access through an easy-to-grip
handle that fits virtually anyone.
Efficient Energy Use
Simple, Functional Access

TAA Products
Part Number Product Description Supported CPUs KVM Compatibility
F1DC101H 19-inch Widescreen LCD Rack Console 1 Yes
F1DC108H 19-inch Widescreen LCD Rack Console with 8-Port KVM 8 Built in
F1DC116H 19-inch Widescreen LCD Rack Console with 16-Port KVM 16 Built in
KVM Cables
Part Number Product Description
F1D9400-06 OmniView Dual-Port Cable, PS/2 & VGA (6 ft.)
F1D9400-10 OmniView Dual-Port Cable, PS/2 & VGA
F1D9400-15 OmniView Dual-Port Cable, PS/2 & VGA
F1D9400-25 OmniView Dual-Port Cable, PS/2 & VGA
F1D9401-06 OmniView Dual-Port Cable, USB & VGA (6 ft.)
Belkin 19-inch Widescreen
Rack Console Lineup
Part Number Product Description Supported CPUs KVM Compatibility
F1DC101H 19-inch Widescreen LCD Rack Console 1 Yes
F1DC108H 19-inch Widescreen LCD Rack Console with 8-Port KVM 8 Built in
F1DC116H 19-inch Widescreen LCD Rack Console with 16-Port KVM 16 Built in
Part Number Product Description
F1D9401-12 OmniView Dual-Port Cable, USB & VGA (12 ft.)
F1D108-CBL OmniView PRO Series Daisy-Chain Cable (2 ft.)
F1D108-CBL-06 OmniView PRO Series Daisy-Chain Cable (6 ft.)
F1D108-CBL-10 OmniView PRO Series Daisy-Chain Cable (10 ft.)
F1D108-CBL-15 OmniView PRO Series Daisy-Chain Cable (15 ft.)
