Belkin F8E857 User manual

P74816ea
Optical Ergo Mouse
© 2005 Belkin Corporation. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed.
Belkin Ltd.
Express Business Park • Shipton Way
Rushden • NN10 6GL • United Kingdom
Tel: [phone]
Fax: [phone]
Belkin B.V.
Starparc Building • Boeing Avenue 333
1119 PH Schiphol-Rijk • The Netherlands
Tel: [phone]
Fax: [phone]
Belkin GmbH
Hanebergstrasse 2
80637 Munich • Germany
Tel: [phone]
Fax: [phone]
Belkin SAS
5 Rue du Petit Robinson • 3ème étage
78350 Jouy en Josas • France
Tel: [phone]
Fax: [phone]
Belkin Tech Support
Europe: 00 800 223 55 460
P74816ea_F8E857ea.indb 1 15/6/05 5:56:30 pm

Optical Ergo Mouse
User Manual
Navigate and input data, with
comfort and control
F8E857ea
EN
___
FR
___
DE
___
NL
___
ES
___
IT
P74816ea_F8E857ea.indb 2 15/6/05 5:56:34 pm

EN
___
FR
___
DE
___
NL
___
ES
___
IT
1
15
29
43
57
71
P74816ea_F8E857ea.indb 3 15/6/05 5:56:34 pm

F8E857ea
P74816ea_F8E857ea.indb 4 15/6/05 5:56:38 pm

Optical Ergo Mouse
User Manual
Navigate and input data, with
comfort and control
F8E857ea
EN
___
FR
___
DE
___
NL
___
ES
___
IT
P74816ea_F8E857ea.indb 1 15/6/05 5:56:39 pm

1
2
3
4
5
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
System Requirements . . . . . . . . . . . . . . . . . . . . . . .4
Packaging Includes . . . . . . . . . . . . . . . . . . . . . . . . .4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting the USB Mouse . . . . . . . . . . . . . . . . . . .6
Connecting the PS/2 Mouse . . . . . . . . . . . . . . . . . . .7
3 Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . .8
Software Features . . . . . . . . . . . . . . . . . . . . . . . . . .9
Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
P74816ea_F8E857ea.indb 2 15/6/05 5:56:40 pm

3
1
2
3
4
5
Introduction
Congratulations and thank you for purchasing the Optical
Ergo Mouse from Belkin. You are about to experience a
whole new world of computing convenience with superior
input features and navigating accuracy. The Mouse provides
five customizable buttons, including the convenient scroll
wheel, to make repetitive tasks simpler than ever.
Please review this User Manual thoroughly to ensure
your safe, long-term use of the Mouse, and for help
in getting the most from its advanced features.
1
P74816ea_F8E857ea.indb 3 15/6/05 5:56:40 pm

4
1
2
3
4
5
Introduction
System Requirements
• Windows® 98 SE, Me, 2000, or XP
Mac OS 10.x and higher
• CD-ROM drive
• 5MB of available disk space
• USB or PS/2 port
Packaging Includes
• Optical Ergo Mouse
• Software CD
• User Manual
• PS/2 Adapter
Overview
Before starting the installation of the hardware and
software for the Mouse, please remove any drivers or
software from any mice that were previously installed on
your computer. This is to avoid any conflicts they may
create, which could result in an improper installation
of your Mouse. Please consult the documents that
came with your previous mouse for proper instructions
on how to uninstall the software and drivers.
1
P74816ea_F8E857ea.indb 4 15/6/05 5:56:40 pm

5
1
2
3
4
5
Hardware Installation
Important: Before connecting your Mouse or installing
software, be sure to identify the type of mouse port you are
using (USB or PS/2). Refer to the diagrams below if you have
difficulty determining which kind of port your Mouse uses.
PS/2 PortUSB Port
2
Important: Do not install the software until the
Mouse is connected to your computer. If you
have not yet connected the Mouse, please follow
the Hardware Installation instructions.
Note: Your Mouse is functional without installing the
software provided. However, we recommend software
installation because the software allows you to program the
Mouse buttons for various functions, adding personalized
efficiency and enjoyment to your computing experience.
P74816ea_F8E857ea.indb 5 15/6/05 5:56:40 pm

6
1
2
3
4
5
Hardware Installation
Connecting the USB Mouse
USB in Windows 98 SE, Me, 2000, and XP
1. Make sure your computer is turned
on before installing the Mouse.
2. Connect the mouse to an available
USB port on your computer.
3. A New Hardware Wizard will start automatically.
Note: Windows 98 SE may require you to insert
your Windows 98 SE Installation CD into your
computer’s CD-ROM drive to complete the install.
4. When your Mouse is properly connected and
functioning as a standard mouse, you can start the
software installation for the extra button features.
2
P74816ea_F8E857ea.indb 6 15/6/05 5:56:41 pm

7
1
2
3
4
5
Hardware Installation
Connecting the PS/2 Mouse
PS/2 in Windows 98 SE, Me, 2000, and XP
1. Turn off your computer.
2. Insert the cable with the connector to the
PS/2 (6-pin) mouse port on your computer.
3. Turn the computer on.
4. When the computer finishes starting
up, it will automatically detect the
Mouse and make it function.
5. When your Mouse is properly connected,
you can start the software installation.
2
P74816ea_F8E857ea.indb 7 15/6/05 5:56:41 pm

8
1
2
3
4
5
Software Installation
Important: Do not install the software until the
Mouse is connected and properly functioning to your
computer. If you have not yet connected the Mouse,
please follow the Hardware Installation instructions.
1. Insert the included installation CD into your
CD-ROM drive. After a few moments, the
main menu will start automatically.
2. Select “Install Driver” and the
computer will begin installation.
3. Follow the on-screen instructions
to complete the installation.
Note: If the computer does not automatically
detect the CD, do the following:
1. Click the “Start” button and select “Run”.
2. From the run dialog box, enter “<driver>:\
Setup” and click “OK”. (“<driver>” being the
letter of the drive that identifies your CD-ROM
driver under “My Computer”. For example, if
the CD is in driver D, enter “D:\Setup”.)
3. Follow the on-screen installation instructions.
3
P74816ea_F8E857ea.indb 8 15/6/05 5:56:41 pm

9
1
2
3
4
5
Software Installation
Software Features
Your Mouse’s software enables a variety of exciting
features and functions that will help you to increase
your productivity with your new Mouse.
In order to control the Mouse’s high-end features, you will
need to access your Mouse’s Properties dialog box, either
through the Control Panel or through your Mouse’s software.
Through your Mouse’s Properties dialog box, you
will find and control the following features:
Please note that only the scroll wheel, fourth, and fifth
buttons are programmable through the software.
Button Functions
Left Button Primary Mouse Button
(standard click-and-drag action)
Middle or Wheel Button Quick/Auto Scroll
Right Button Context Menu
Fourth Button IE Back (if available)
Fifth Button IE Forward (if available)
3
P74816ea_F8E857ea.indb 9 15/6/05 5:56:41 pm

10
1
2
3
4
5
Troubleshooting
If you are having any problems with the
installation or operation of your Mouse, please
review the following section. If the problem is
not referred to below, or the suggested solutions
do not solve the problem, please contact our
technical support staff at 00 800 223 55 460.
Why isn’t my pointer moving smoothly?
The Mouse works well on a wide variety of surfaces,
especially those with textured and/or patterned features.
Problems will arise, however, if you attempt to use the
Mouse on mirrors, glass, or on some half-tone-printed
surfaces.
Why don’t the scroll functions
work with my notebook?
Check to be sure that you have disabled your notebook’s
trackball, touch pad, or J-key in the BIOS; then, enable
the external port so that all your Mouse’s functions will
be available.
4
P74816ea_F8E857ea.indb 10 15/6/05 5:56:41 pm

11
1
2
3
4
5
Troubleshooting
My USB Mouse was not detected by
the system and won’t work. Why?
Please do the following:
1. Make sure your USB Mouse is completely
plugged into the USB port.
2. Check the functioning of your system’s USB
port in the Device Manager page of System
Properties. If there is a circled exclamation point
through the USB port’s icon, the USB controller
has some problem. Please try to uninstall and
then reinstall the USB driver, or contact your PC
manufacturer’s technical support department.
3. Check the version of your operating
system. If you are not running Windows
98 SE, Me, 2000, or XP, please update
your operating system to one of these, so
that the USB device can be enabled.
4. Make sure that the USB port is
enabled in the BIOS setup.
4
P74816ea_F8E857ea.indb 11 15/6/05 5:56:41 pm

12
1
2
3
4
5
Information
Belkin Corporation Limited Lifetime Product Warranty*
Belkin Corporation warrants this product against defects in materials and
workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair
or replace the product at no charge provided it is returned during the warranty
period, with transportation charges prepaid, to the authorized Belkin dealer from
whom you purchased the product. Proof of purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse,
misuse, or misapplication; if the product has been modified without the written
permission of Belkin; or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL
OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY
DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER
LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM
OR DATA STORED IN, OR USED WITH, BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or consequential
damages or exclusions of implied warranties, so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights that vary from state to state.
*Batteries not included under warranty.
5
P74816ea_F8E857ea.indb 12 15/6/05 5:56:42 pm

13
1
2
3
4
5
P74816ea_F8E857ea.indb 13 15/6/05 5:56:42 pm

P74816ea
Optical Ergo Mouse
© 2005 Belkin Corporation. All rights reserved. All trade names are
registered trademarks of respective manufacturers listed.
Belkin Ltd.
Express Business Park • Shipton Way
Rushden • NN10 6GL • United Kingdom
Tel: [phone]
Fax: [phone]
Belkin B.V.
Starparc Building • Boeing Avenue 333
1119 PH Schiphol-Rijk • The Netherlands
Tel: [phone]
Fax: [phone]
Belkin GmbH
Hanebergstrasse 2
80637 Munich • Germany
Tel: [phone]
Fax: [phone]
Belkin SAS
5 Rue du Petit Robinson • 3ème étage
78350 Jouy en Josas • France
Tel: [phone]
Fax: [phone]
Belkin Tech Support
Europe: 00 800 223 55 460
P74816ea_F8E857ea.indb 14 15/6/05 5:56:42 pm

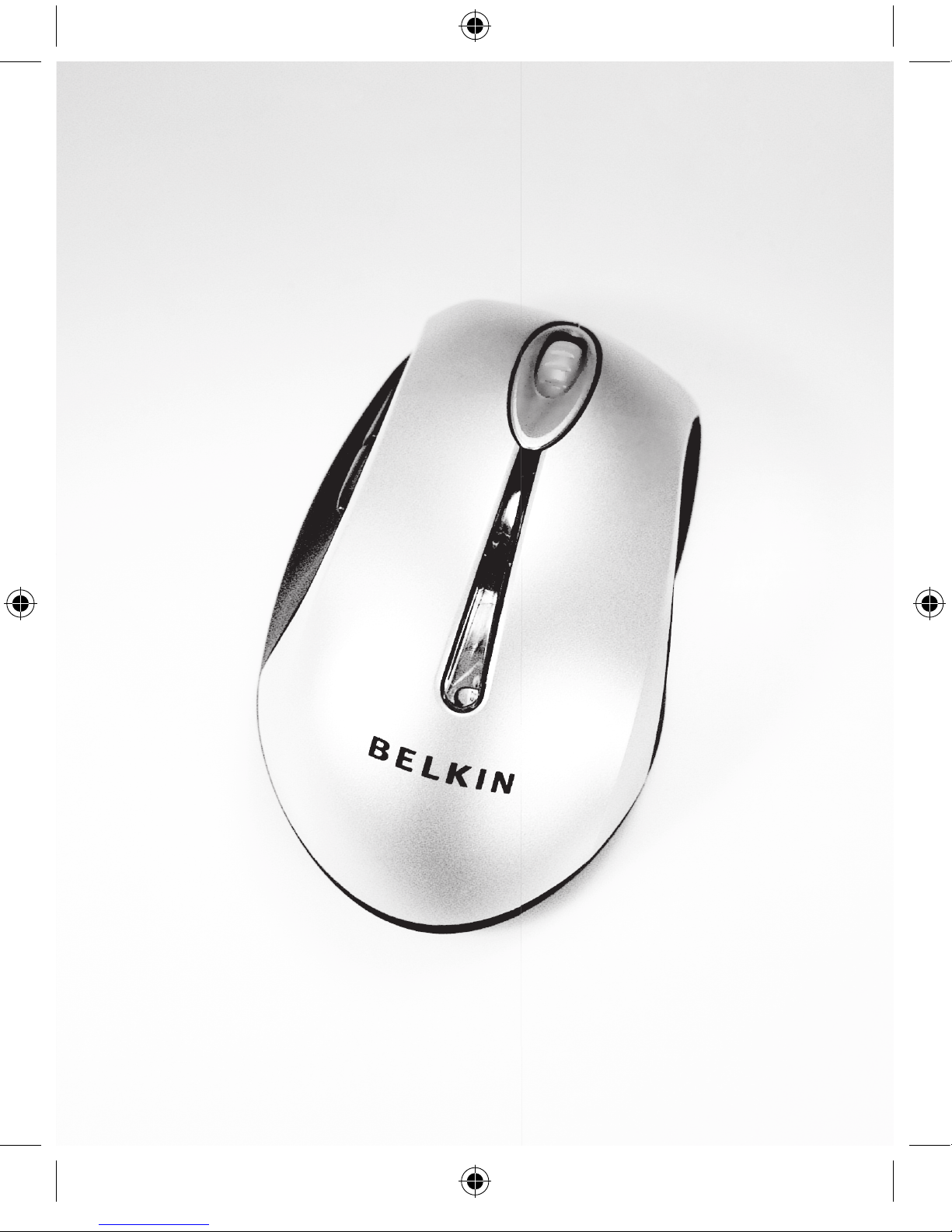

Souris optique ergo
Manuel de
l’utilisateur
Navigation et saisie de
données en tout confort
F8E857ea
EN
___
FR
___
DE
___
NL
___
ES
___
IT
P74816ea_F8E857ea.indb 15 15/6/05 5:56:43 pm

1
2
3
4
5
Table des Matières
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Configuration Requise . . . . . . . . . . . . . . . . . . . . . .20
Contenu de l’emballage . . . . . . . . . . . . . . . . . . . . .20
Présentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
2 Installation du matériel . . . . . . . . . . . . . . . . . . . . . . .21
Branchement de la souris USB . . . . . . . . . . . . . . .22
Branchement de la souris PS/2 . . . . . . . . . . . . . . .23
3 Installation du logiciel . . . . . . . . . . . . . . . . . . . . . . . .24
Fonctionnalités du logiciel . . . . . . . . . . . . . . . . . . .25
Fonctions des boutons . . . . . . . . . . . . . . . . . . . . . .25
4 Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
5 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
P74816ea_F8E857ea.indb 16 15/6/05 5:56:43 pm
