Belkin N1 WIRELESS NOTEBOOK CARD F5D8011 User manual

F5D8011_v3000 manual - revised by JOy
Page 1 of 43
F5D8011
Belkin
N1 Wireless Notebook Card
User Manual
F5D8011
P75172
sc-OK
Table of Contents
1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Benefits of a Home Network………………………………………………1
Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . 1
Placement of your Wireless Networking Hardware for
Optimal Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Applications and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Installing and Setting up the Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 1: Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Step 2: Insert …………………………………… 10
Step 3: Configure. . . . . . . . . . . . . . . . . 12
4 Using the Belkin Wireless Networking Utility.. . . . . 14
Accessing the Belkin Wireless Networking Utility from the Windows System
Tray….14
Network Status………15
Available Networks…………..15
Network Status and Solution Tips…………….16
Setting Wireless Network Profiles . . . . . . . . . . . . . . . . . . . . . 17
Securing your Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Configuring your Card to use Security…………………………..22
5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Introduction
Thank you for purchasing the Belkin N1 Wireless Notebook Card. Now you can
take advantage of this great new technology and gain the freedom to network

F5D8011_v3000 manual - revised by JOy Page 2 of 43
your home and office computers wirelessly. This Card allows you to connect a
notebook computer to your network. Please be sure to read through this User
Manual completely, and pay special attention to the section entitled “Placement
of your Wireless Networking Hardware for Optimal Performance”.
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email,
and chat
Advantages of a Wireless Network
• Mobility –you’ll no longer need a dedicated “computer room”—now you can
work on a networked laptop or desktop computer anywhere within your wireless
range
• Easy installation – Belkin Easy Installation Wizards make setup simple
• Flexibility – set up and access printers, computers, and other networking
devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products let you expand
your network to include devices such as printers and gaming consoles
• No cabling required – you can spare the expense and hassle of retrofitting
Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products
Placement of your Wireless Networking Hardware for Optimal Performance
Your wireless connection will be stronger the closer your computer is to your
wireless router (or access point). Typical indoor operating range for your wireless
devices is between 100 and 200 feet. In the same way, your wireless connection
and performance will degrade somewhat as the distance between your wireless
router (or access point) and connected devices increases. This may or may not
be noticeable to you. As you move farther from your wireless router (or access
point), connection speed may decrease. Factors that can weaken signals simply

F5D8011_v3000 manual - revised by JOy Page 3 of 43
by getting in the way of your network’s radio waves are metal appliances or
obstructions, and walls.
If you have concerns about your network’s performance that might be related to
range or obstruction factors, try moving the computer to a position between five
and 10 feet from the wireless router (or access point) in order to see if distance is
the problem. If difficulties persist even at close range, please contact Belkin
Technical Support.
Note: While some of the items listed below can affect network performance, they
will not prohibit your wireless network from functioning; if you are concerned that
your network is not operating at its maximum effectiveness, this checklist may
help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection point of your
network, as close as possible to the center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless clients,” (i.e.
computers enabled by Belkin Wireless Notebook Cards, Wireless Desktop Cards,
and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) antennas are parallel to
each other, and are positioned vertically (toward the ceiling). If your wireless
router (or access point) itself is positioned vertically, point the antennas as much
as possible in an upward direction.
• In multistory homes, place the wireless router (or access point) on a floor that is
as close to the center of the home as possible. This may mean placing the
wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a cordless 2.4GHz
phone.
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that may emit
radio “noise”, such as microwave ovens. Other objects that can inhibit wireless
communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets

F5D8011_v3000 manual - revised by JOy Page 4 of 43
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such
as these are not blocking the signal’s path between your computers and wireless
router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending to the
above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router (or access point)
and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that operates on the
2.4GHz band (check manufacturer’s information). If this fixes the problem, your
phone may be interfering.
• If your phone supports channel selection, change the channel on the phone to
the farthest channel from your wireless network as possible. For example,
change the phone to channel 1 and move your wireless router (or access point)
to channel 11. (Your channel selection will vary depending on your region.) See
your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment
buildings or office complexes, there may be wireless networks nearby that can
conflict with yours. Use the Site Survey capabilities of your Belkin Wireless
Networking Utility to locate any other wireless networks, and move your wireless
router (or access point) and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels in order to find the
clearest connection and avoid interference from neighboring cordless phones or
other wireless devices.
For more Belkin wireless networking products, use the detailed Site Survey and
wireless channel information included in your User Manual.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and are used
where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect remotely to
an office network

F5D8011_v3000 manual - revised by JOy Page 5 of 43
• The “Bring Your Own Access” program from America Online (AOL), which lets
you use AOL through broadband provided by another cable or DSL service
• Most online banking websites
• Many commercial websites that require a user name and password to access
your account
Secure connections can be interrupted by a computer’s power management
setting, which causes it to “go to sleep.” The simplest solution to avoid this is to
simply reconnect by re-running the VPN or AOL software, or by re-logging into
the secure website.
A second alternative is to change your computer’s power management settings
so it does not go to sleep; however, this may not be appropriate for portable
computers. To change your power management setting in Windows, see the
“Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and AOL,
please review steps 1–4 in the previous pages to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible area with your
wireless router. Should you need to cover an even wider area, we suggest the
Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our website at
www.belkin.com/networking or call Belkin Technical Support.
Overview
Product Features
The Card complies with the IEEE draft-802.11n specification to communicate
with other draft-802.11n-compliant wireless devices at up to 300Mbps*. The Card
is also compatible with 802.11g devices at 54Mbps as well as 802.11b products
at 11Mbps. The Card operates on the same 2.4GHz frequency band as
802.11b/g Wi-Fi
®
products.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated easy-to-use Belkin Wireless Networking Utility
• CardBus interface, for operation in virtually any notebook computer
• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy), or 128-bit encryption
• Wireless access to networked resources
• Data rate of up to 300Mbps* (draft 802.11n), 54Mbps (802.11g), or 11Mbps
(802.11b)
• Easy installation and use

F5D8011_v3000 manual - revised by JOy Page of 43
• LED power and network link/activity indicators
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking without cables
• Connection rates of up to 300Mbps*
Provides immediate high-speed wireless connectivity at home, work, and hotspot
locations without compromising the use of existing 802.11b/g products
• Compatibility with 802.11b/g products
The Card is backward-compatible with existing Wi-Fi (IEEE 802.11b/g) products •
Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open areas where
wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO users need
Product Specifications
Host Interface: 32-bit CardBus
Operating Temperature: 32–140 degrees F (0–60 degrees C)
Storage Temperature: -4–176 degrees F (-20–80 degrees C)
Humidity: Max. 90% (non-condensing)
Typical Operating Range: Up to 1,000 ft. (304.8m)**
*NOTE: The standard transmission rate—300Mbps—is the physical data rate.
Actual data throughput will be lower.
**Wireless performance
may vary depending on the
networking environment.
(Insert image of F5D8011 v1000 with blue LEDs)
(a) Power LED
Lights up when the Card is powered up
(b) Link/Activity LED
Lights up when the Card is connected; flashes when wireless activity is detected
(c) Card Connector

F5D8011_v3000 manual - revised by JOy Page 7 of 43
Part of the Card that fits into your computer’s CardBus slot
System Requirements
• PC-compatible laptop with one available CardBus slot
• Windows® 2000 or XP
Package Contents
• N1 Wireless Notebook Card
• Quick Installation Guide
• Installation Software CD
• User Manual
3 Installing and Setting up the Card
1. Install
IMPORTANT: Install the software before inserting the Card.
1.1Insert the Installation Software CD into your CD-ROM drive.
1.2The Belkin Wireless Card Installer screen will automatically appear. (This may
take 15–20 seconds.) Click “Install Software” or “Next” to start the installation.

F5D8011_v3000 manual - revised by JOy Page 8 of 43
[Insert 8011_installer.tif – to be updated 5/5]
Note: If the Belkin Wireless Card Installer screen does not appear within 20
seconds, access your CD-ROM by double-clicking on the “My Computer” icon;
then double-click on the CD-ROM drive into which the installation CD has been
placed. Double-click on the icon named “Setup.exe”.
1.3The InstallShield Wizard will now start. Click “Next” to continue.
[insert 8011_Install_1.tif]
1.4 Select a different destination folder for the software installation, or simply
click “Next”.
[insert 8011_Install_2.tif]

F5D8011_v3000 manual - revised by JOy Page 9 of 43

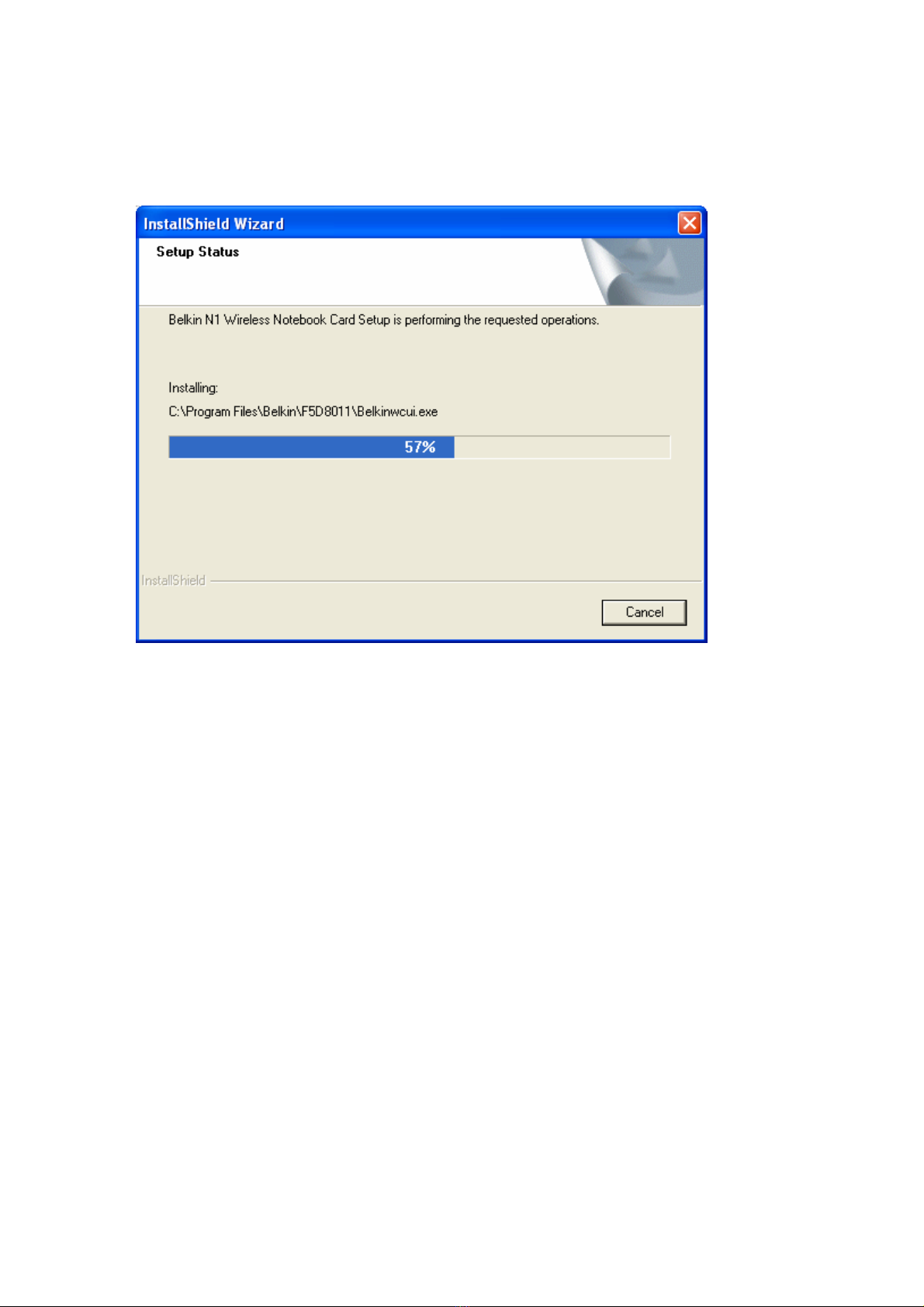

1.5The first in a series of progress-monitoring screens will let you know where
you are in the setup process.

F5D8011_v3000 manual - revised by JOy Page 10 of 43
[insert
8011_Install_3.tif]
1.6You might see a screen similar to this one. This DOES NOT mean there is a
problem. Our software has been fully tested and is compatible with this
operating system. Select “Continue Anyway” and follow the on-screen
instructions.
[insert 8011_install_4_WHQL_Warning.tif]

F5D8011_v3000 manual - revised by JOy Page 11 of 43
2. Insert
Insert the Card into your Computer
(Please insert image of CardBus insert into laptop)
2.1After the software installation is finished, the message “Please plug in your
Notebook Card now” will appear. Insert your Card.
[insert 8011_install_5_Insert_Card.tif]

F5D8011_v3000 manual - revised by JOy Page 12 of 43

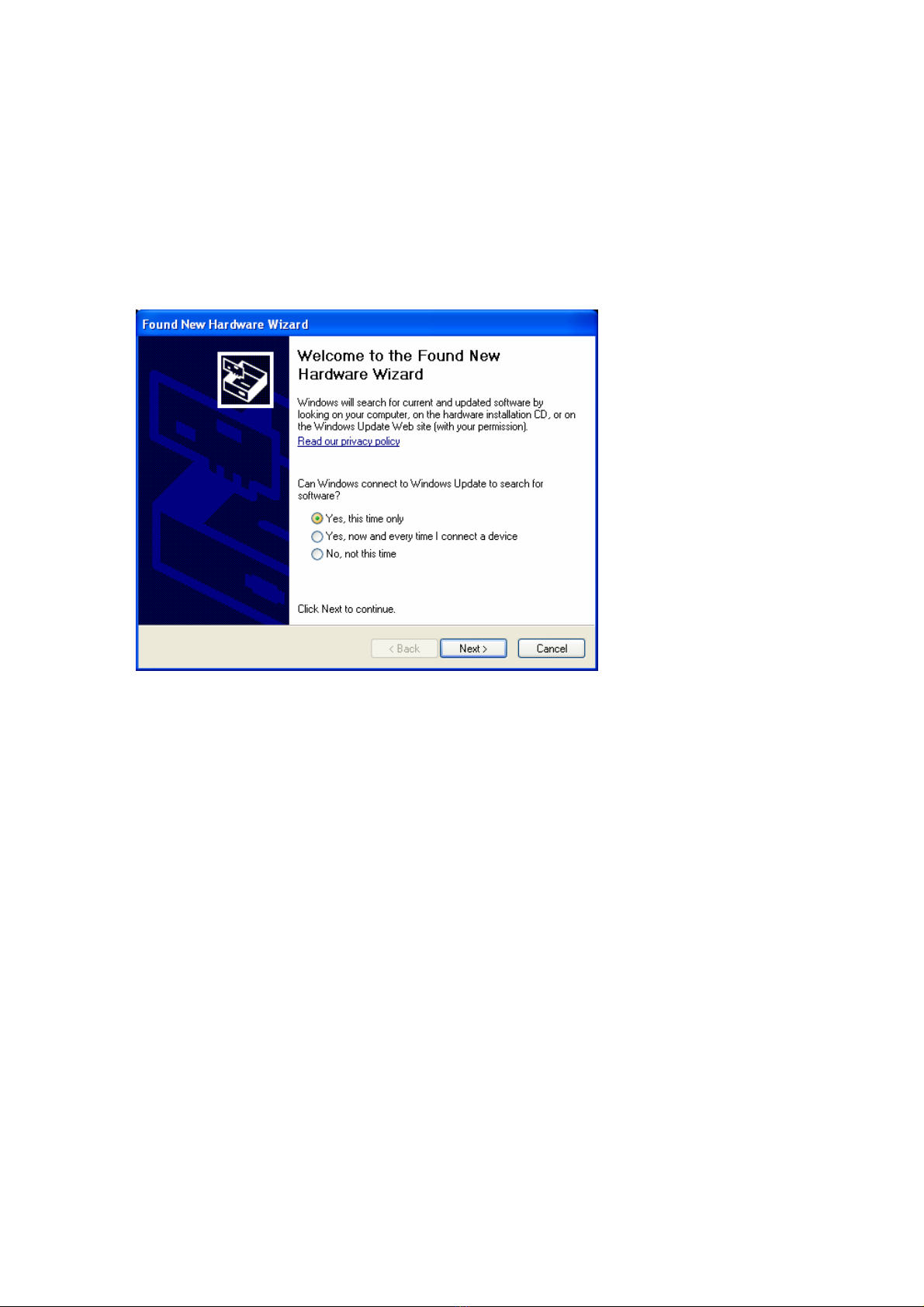

2.2The Found New Hardware Wizard will appear. (This may take 3–15 seconds.)
Select “Yes, this time only” and click “Next” to install the hardware.
[insert 8011_install_6_New_HW.tif]
2.3 Select “Install the software automatically” and click “Next” to install the
hardware.
[insert 8011_install_6_New_HW_Auto.tif]

F5D8011_v3000 manual - revised by JOy Page 13 of 43

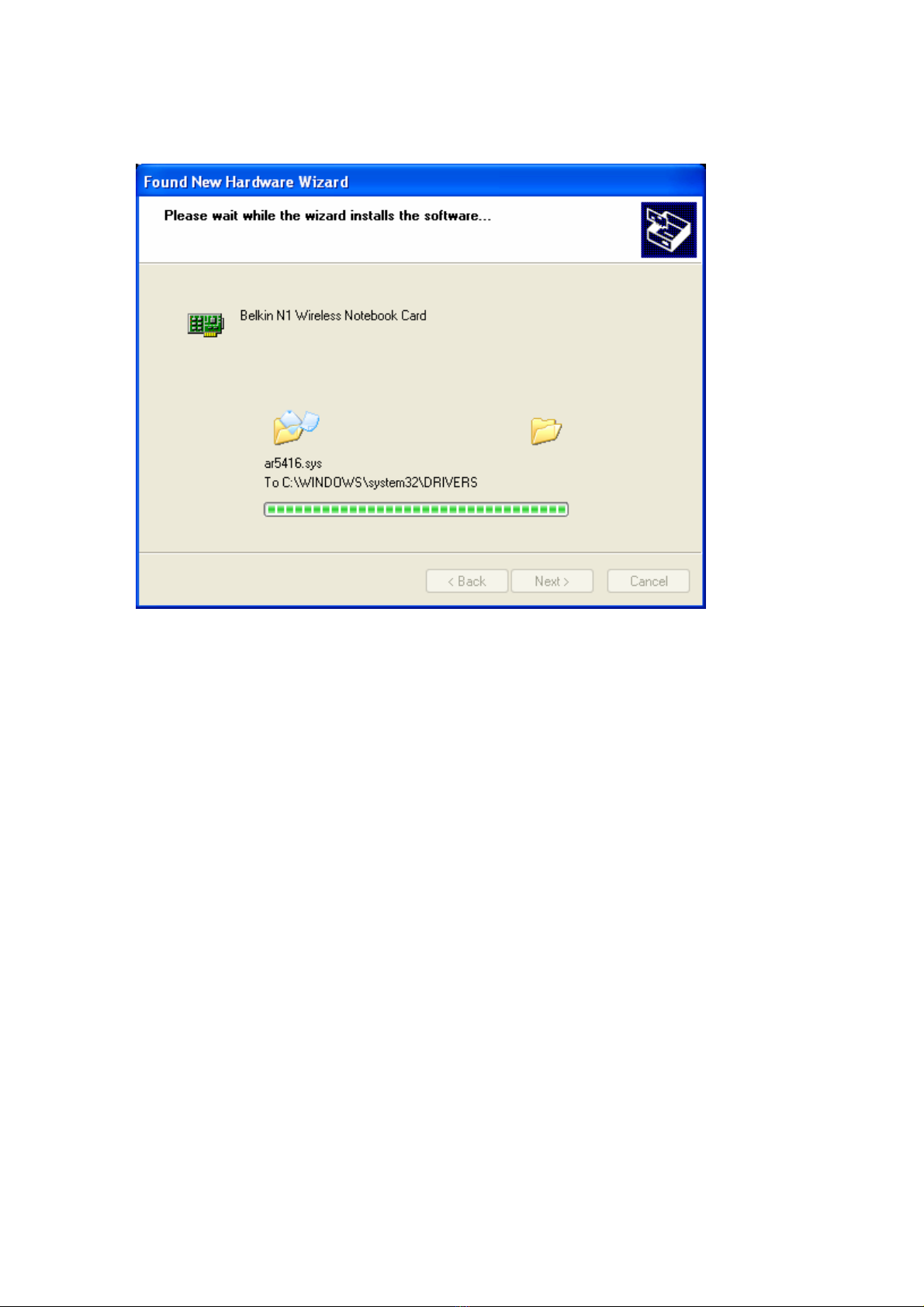

2.4 The Wizard will now install your software.
[insert 8011_install_7_New_HW_Install.tif]

F5D8011_v3000 manual - revised by JOy Page 14 of 43

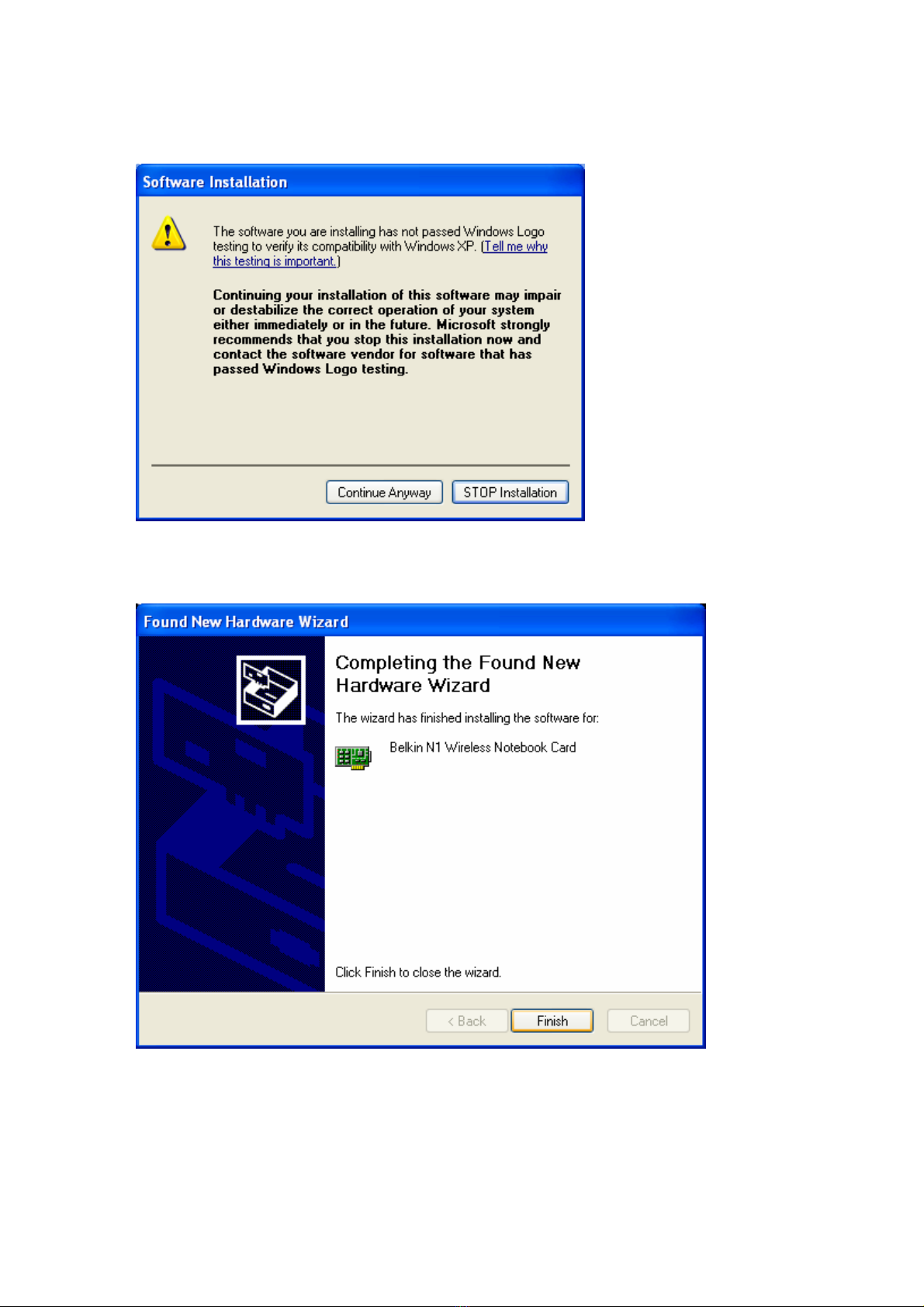

2.5You might see a screen similar to this one. This DOES NOT mean there is a
problem. Our software has been fully tested and is compatible with this
operating system. Select “Continue Anyway” and follow the on-screen
instructions.
[insert 8011_install_4_WHQL_Warning.tif]

F5D8011_v3000 manual - revised by JOy Page 15 of 43
2.4 The installation is now complete. Click “Finish” to exit.
[Insert 8011_install_10_New_HW_Done.tif]

F5D8011_v3000 manual - revised by JOy Page 1 of 43
3. Configure
Use the Belkin Wireless Networking Utility
3.1 After restarting your computer, double-click the Belkin Wireless Networking
Utility icon on the desktop screen.
[KEEP THE ICON]

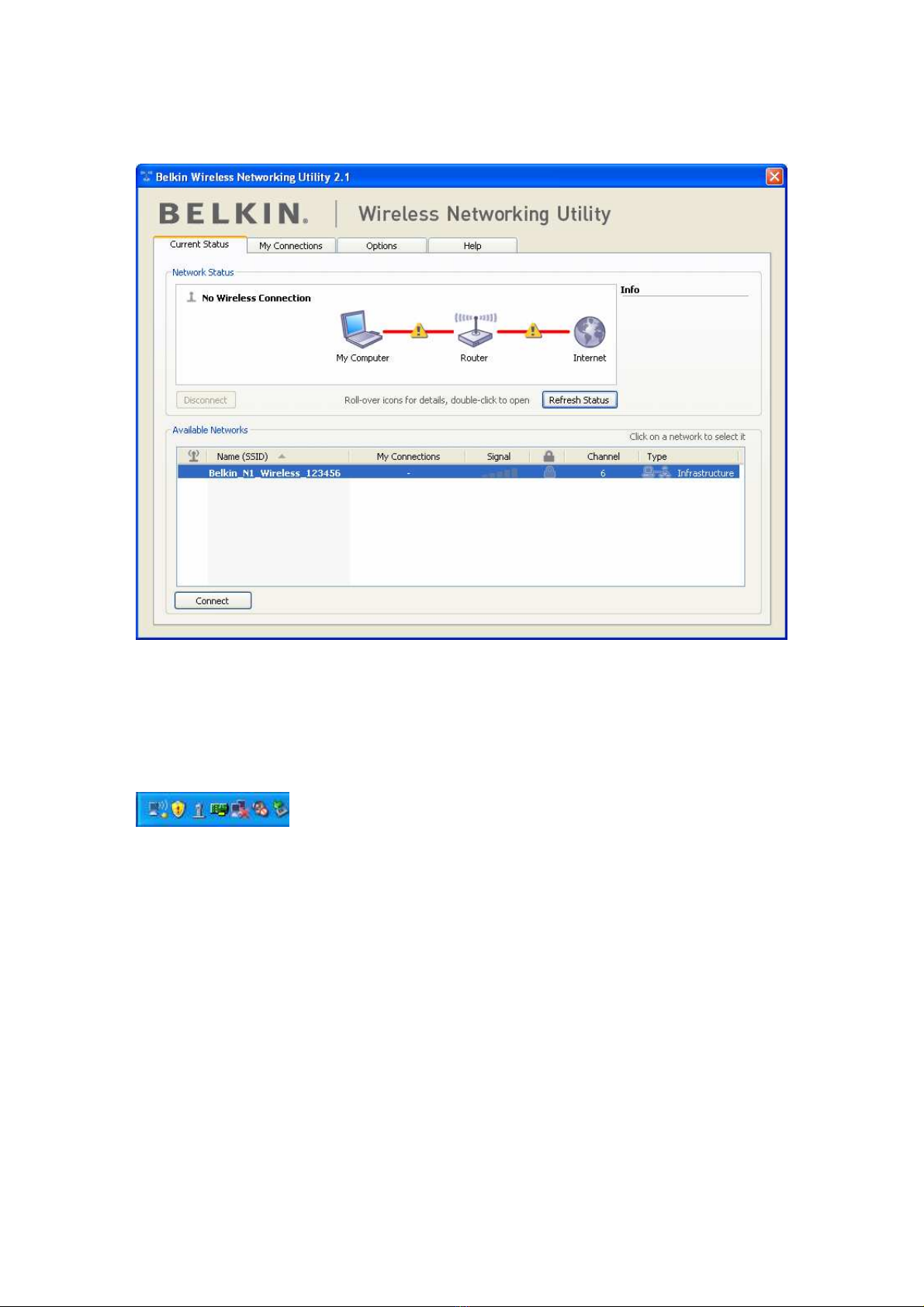

3.2 The Belkin Wireless Networking Utility screen will appear.
[insert 8011_WNU_Current_Status.tif]
3.3 Select a network to connect to from the “Available Networks” list and click
“Connect”.
[insert 8011_WNU_Current_Status_Connect.tif]

F5D8011_v3000 manual - revised by JOy Page 17 of 43
Note: In order to see your available networks, you must be near a working
wireless router or access point.
3.4 The Belkin Wireless Networking Utility icon can also be found on the system
tray.
[KEEP]
Note: Double-clicking on the Belkin Wireless Networking Utility icon on the
system tray will bring up the “Utility” screen.
Installation is now complete.
Using the Belkin Wireless Networking Utility
After successfully installing the Belkin Wireless Networking Utility (WNU), configurations for
wireless connection and security are just a few easy clicks away.
Accessing the Belkin Wireless Networking Utility from the Windows System Tray
To access the WNU, simply place your mouse pointer and right-click over the WNU icon on the
Windows task tray.

F5D8011_v3000 manual - revised by JOy Page 18 of 43
[KEEP] [KEEP]
If the icon is not present, click on “Start > Programs > Belkin > Belkin Wireless Utility”.
[insert 8011_WNU_Current_Status_Connected.tif]
The WNU’s default screen is the “Current Status” tab. The “Current Status” tab displays the
current Network Status and Available Networks.
Network Status
This window displays the connectivity status of the current network. It even displays connectivity
between the computer and router, and router and Internet. In the event of a connectivity problem,
this window can be used to determine the problem’s source (e.g. computer, router, or
Internet/modem).
Available Networks

F5D8011_v3000 manual - revised by JOy Page 19 of 43
This window displays the available networks at the current location as well as their SSID, Signal
Strength, Security Type, Channel, and Network Type.

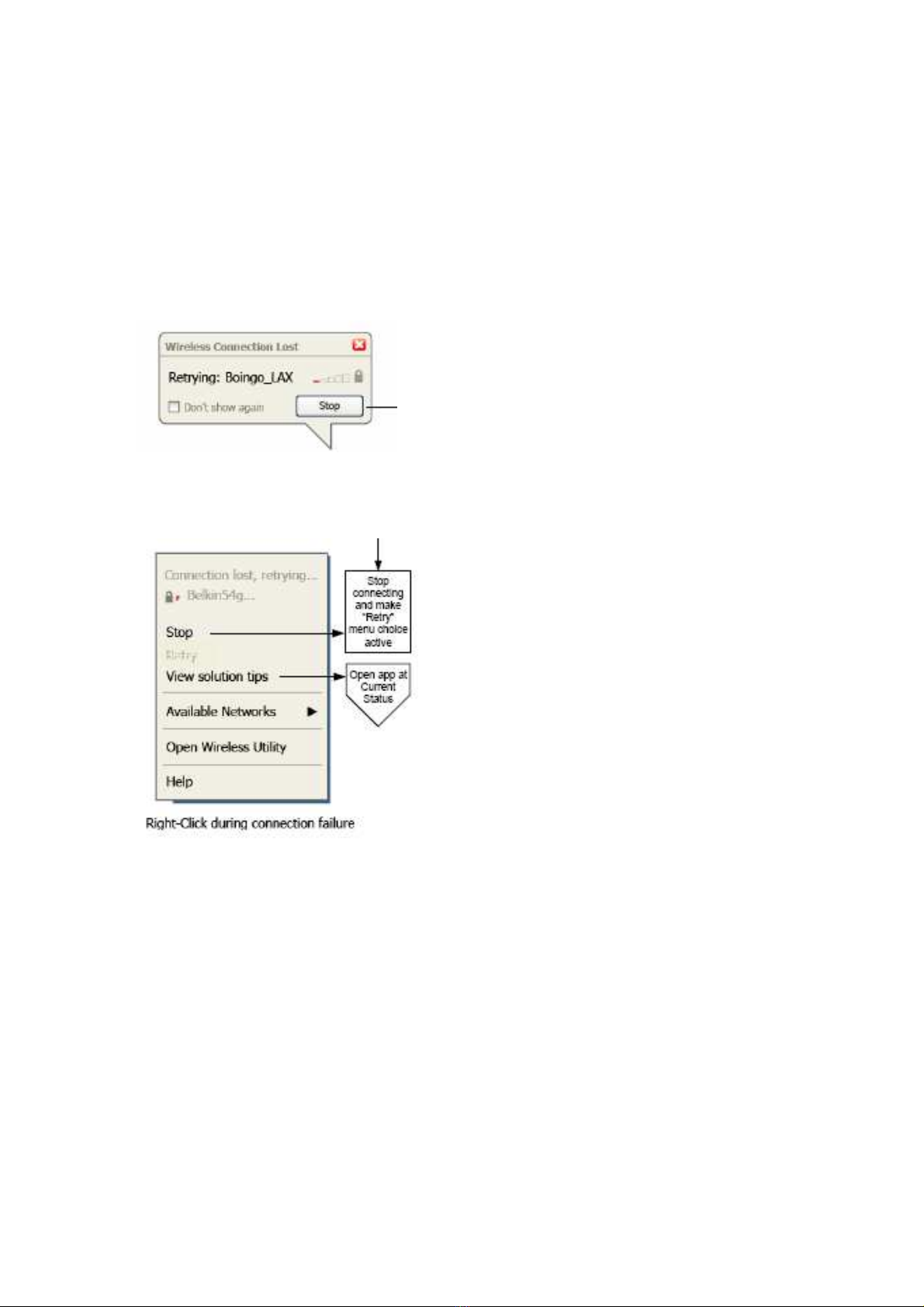

Lost Wireless Connection
If the current wireless connection is lost, a window will pop up and the WNU will attempt to
reconnect.
Connection Failure
Other options will appear during attempts to reconnect. To stop connecting, click “Stop” and to
reattempt connection, click “Retry”.
Network Status and Solution Tips
To further understand the current Network Status, click “Open Wireless Utility”. The default
screen will be the “Current Status” tab and the “Network Status” section determines which
connections are good and/or faulty.
[insert 8011_WNU_Current_Status_Connected.tif, pls circle the “Info” box and message]

F5D8011_v3000 manual - revised by JOy Page 20 of 43
The WNU also features a “Solution Tips” section that provides troubleshooting guidelines.
Setting Wireless Network Profiles
The “My Connections” tab on the WNU allows you to add, edit, and delete connection profiles. It
also displays signal strength, security, and network type.
[insert 8011_WNU_My_Connections.tif]
