OmniGuardTM UPS Power Management Software
1
Version 1.4
20th March 2003
OmniGuardTM UPS
Power Management Software
User Manual
P74265

OmniGuardTM UPS Power Management Software
2
1.0 Introduction...............................................................................3
2.0 Installation................................................................................3
2.1 System Requirements.........................................................3
2.2.1 Computer interface connection......................................4
3.0 Installation Procedure for Windows Versions ..........................5
4.0 Starting OmniGuardTM services..............................................11
5.0 Useful Tips..............................................................................43
6.0 OmniGuardTM Software for Linux and Solaris Installation
Procedure ......................................................................................45
7.0 HP Openview Configuration for receiving Traps...................54
Recommended format setting: Received event $E. $# args:
$* ..........................................................................................57
Configure the SNMP Configuration in HP...........................58

OmniGuardTM UPS Power Management Software
3
1.0 Introduction
OmniGuardTM Power Management Software is a UPS environment control management
application for Windows 95/98/ME, Windows NT, 2000, Linux and Solaris operating
systems. OmniGuardTM Power Management Software monitors the UPS connected to the
hostsystemthrough a RS 232 serial cable with any remote system connected to this host
through the Internet.
Through the system’s web browser, the user can monitor and change the host system’s
IP, Date, and System Name. Also the provision for PPP configuration isprovided through
which the users in the remote system can connect/disconnect the dial-up connection. The
software upgrade operation can be carried out from the remote system through the
software upgrade option. These are the operations carried out in the host system/server
where the UPS is connected physically.
The environment control screen displays the meter readings from the UPS. Logs are
maintained for the UPS readings, and can later be viewed in a structured format. The
duration in which the logs are recorded is user defined. The events are graphed for such
parameters like Input voltage, Input frequency, Output Voltage, Output frequency and
several other variables.
The user can configure the UPS for scheduled parameters like alarms, shutdown types, shutdown
duration, restart duration etc. Specific and general schedules can be configured and monitored for
all such events.
2.0 Installation
2.1 System Requirements
1. To use OmniGuardTM
Power Management Software, your system must be
running one of the following operating systems.
?? Windows 95/98/ME/Windows NT/2000™
?? Linux™
?? Solaris™

OmniGuardTM UPS Power Management Software
4
-Pentium Processor
-64 MB RAM
-10 GB Hard Disk
2. OmniGuardTM
software requires one dedicated RS-232 serial port on your
server, for communication with the UPS.
2.2 Installing the UPS
Please refer to the Belkin OmniGuardTMRackmount UPS user manual.
2.2.1Computer interface connection
Connect the interface cable to a 9-pin computer interface port on the rear side of the UPS.
Connect the other end of the cable to the server that will be monitoring/controlling the
UPS.
CAUTION!Connect the interface cable from the server to
the 9-pin communication port on the rear panel of the UPS
first, before set up the software.
CAUTION!It is an option for the installation of software,
UPS works fine without the installation of the software.

OmniGuardTM UPS Power Management Software
5
3.0 Installation Procedure for Windows
Versions
NOTE: Please check for the free drive space of at least
100MB, before proceeding with installation. Otherwise the
installation will not be complete.
NOTE: Please login the OS as administrator to install the
OmniGuardTM software.
The following steps are required to install the Windows™ basedsoftware.
1. Insert the CD to the CD-RPM on the server and select the install OmniGuardTM
software for Windows

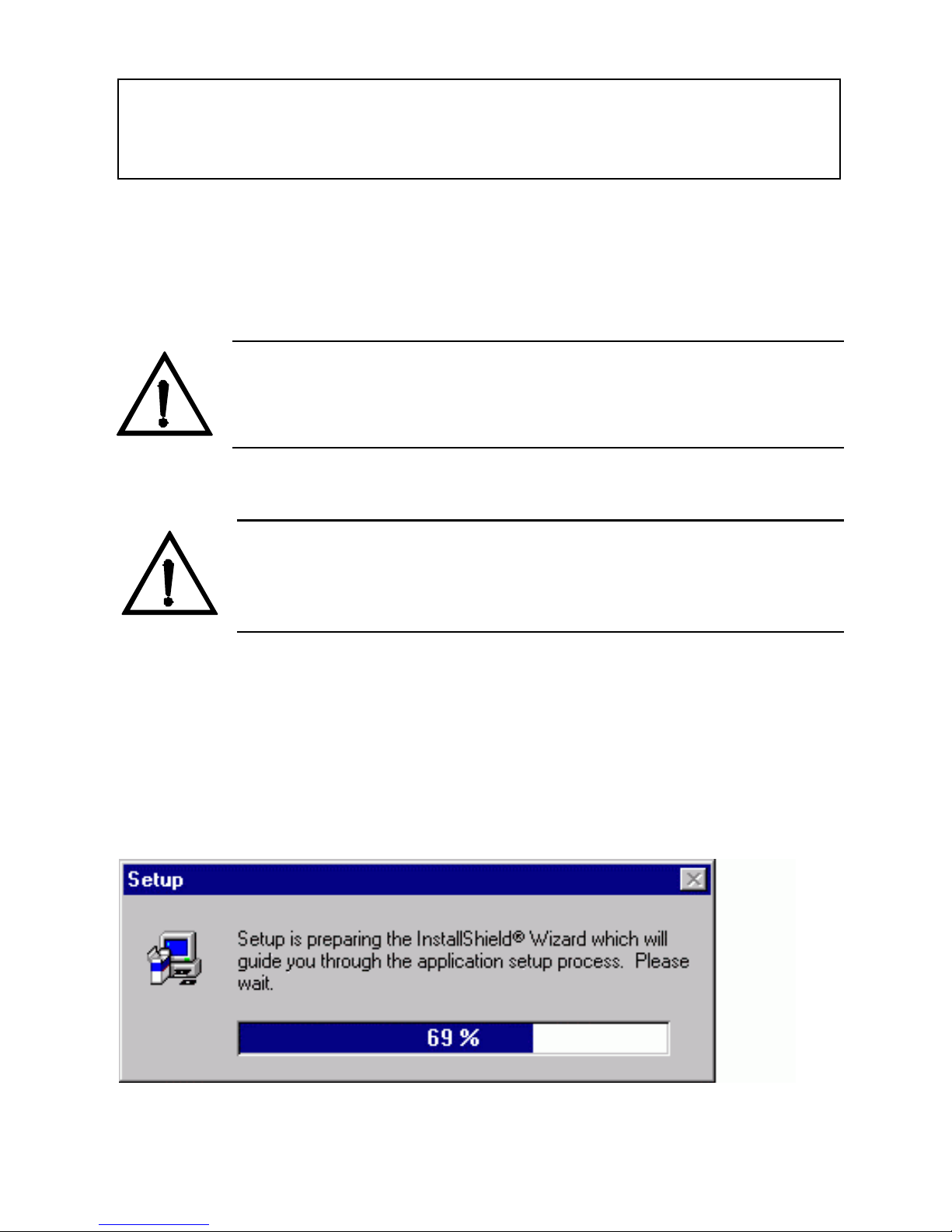

You will get a Setup progress bar as seen below

OmniGuardTM UPS Power Management Software
6

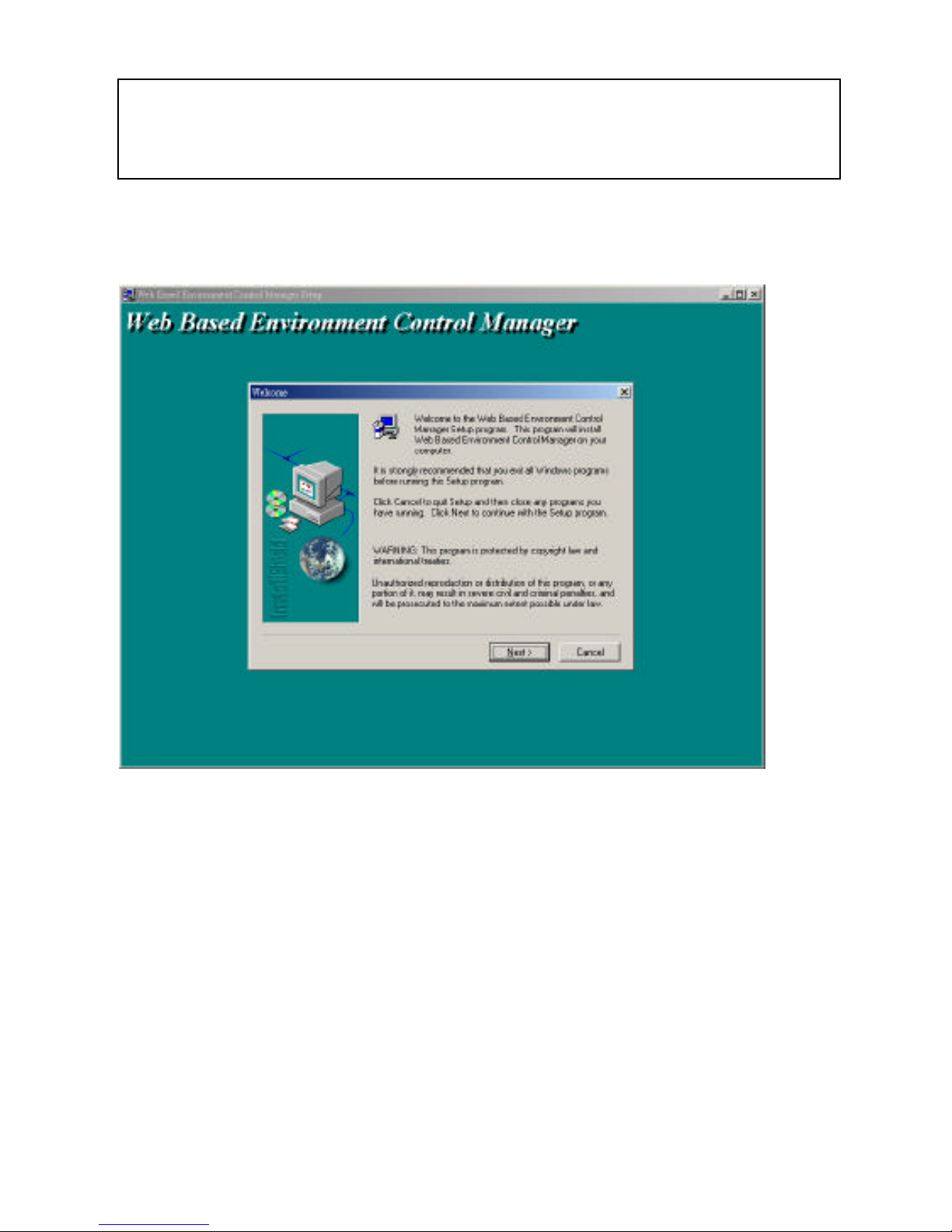

After that, you will see a Welcome Screen.
Note:Click Cancel to Exit Setup, in case a stoppage is required.
?? Clicking the Next button will take you to the Software License Agreement
as seen below.

OmniGuardTM UPS Power Management Software
7
Read the license carefully and click on “Yes” to move to the next step.
Note:By not accepting the license, it will take you to Exit Setup Screen, to terminate the
currently running setup. For example,

OmniGuardTM UPS Power Management Software
8
After accepting the license, it will ask you to enter user information as seen below, please
enter your name, company and Serial number and Press Next to proceed.
Note:You may find the serial number on the first page of the Hardware Manual or
on the CD sleeve.
Now, choosethe proper destination folder and Click Next.

OmniGuardTM UPS Power Management Software
9
Select Program folder name, default is Web Based Environment Control Manager
This shall add an icon with the named program above into a folder under Start
Menu/Programs.
Clicking next will start the installation of the software, as per specified details. You will see
a progress bar as show below.
Please wait until setup finishes installingfiles.

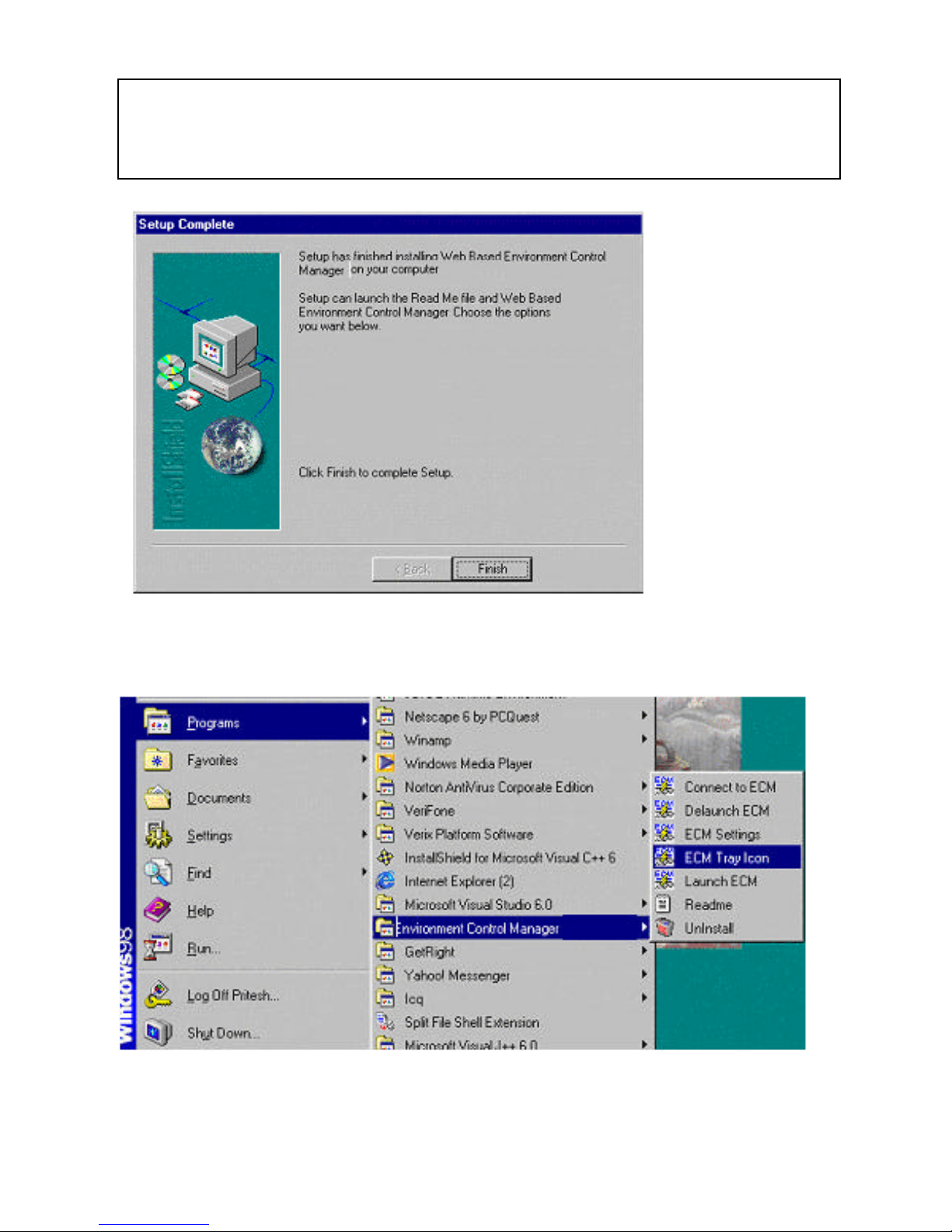

Once installation is over, you will see the screen below. Click Finish to end the installation.

OmniGuardTM UPS Power Management Software
10
.
Please check to ensure you are getting the iconsunder the Start Menu as below:

OmniGuardTM UPS Power Management Software
11
4.0 Starting OmniGuardTM services
The OmniGuardTM Software is installed in the host machine/server where the UPS is
connected and the following services have to run in the system for the proper functionality
of the software. Once the services are started, the device will be capable of being
monitored from any remote machine through a web browser.
Step 1:

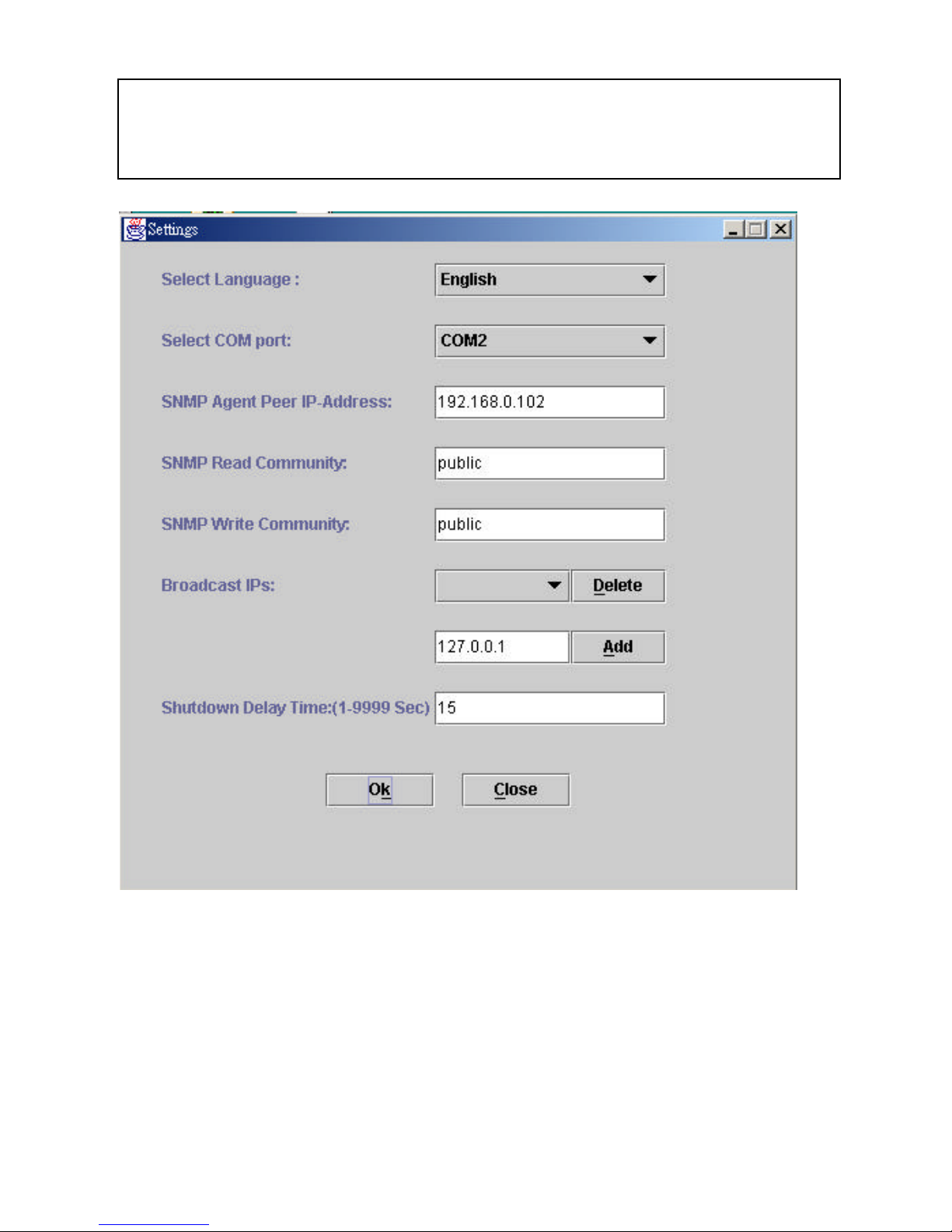

Select Settings Icon from startup menu that will get you to below screen. Change required
data here as per your pc configuration, such as COM port where the UPS is connected
and Press OK to save the data.
Note: Any changes in Settings below, must be followed by re-launching the application
again to make changes take effect, otherwise select OK in COM port will not be altered.

OmniGuardTM UPS Power Management Software
12
The following parameters are configured via the above Settings screen.
?? Language selection
Multilanguage Feature:

OmniGuardTM UPS Power Management Software
13
This feature provides user to select different language as per the choices given in the
ECM Settings Screen.
User needs to configure ECM Setting screen, by selecting proper language at
installation time.
In case user needs to change the language setting, after installation, he needs to re-
launch the ECM.
Pointsto bedonemanually forMultilanguage to work
Copying required language fonts
For all windows OS, copyfonts in to respected fonts directory for that OS
1. Say for Win NT, copy fonts into Winnt/Fonts directory
2. For Red Hat 8 Linux, copy fonts to /usr/X1186/lib/X11/fonts
3. For Solaris Intel 8, copy fonts to /usr/openwin/lib/X11/fonts
OmniGuardTM software isstructured this way for multi language feature:
1. In Windows OS: Program Files/Web Based Environment Control
Manager/Apache Group/Apache/Language
2. In Red Hat 8 Linux OS: /usr/local/apache/Language
3. In Solaris Intel 8 OS: /usr/local/apache/Language
Thefollowing parameters are configured via the above Settings screen.
?? COM port of UPS
NOTE: Please make sure which com port that server
using to connect com port on the UPS.
?? SNMP Agent Peer IP Address: Indicate that server IP address.
?? SNMP Read Community
?? SNMP Write Community
?? Broadcast IP Address (for all clients that want to broadcast messages and set the
shutdown messages, these changes need to be done here, and it will be amended in
the list.

OmniGuardTM UPS Power Management Software
14
CAUTION! The OmniGuardTM broadcast function must
be enabled in the same time. Then the shutdown message
just can be sent out to the client station. Please check the
“Broadcast”page in the manual to enable this function.
?? Shutdown Delay Time: When AC fails, the PC client shutdowns delay time.
Step 2:
Once the initial settings are done, you can launch the application.
Select the Launch Application option that will start the SNMP service and establishes the
connection between the UPS and the system, also start other required programs like
“Apache server”. You shall see minimized DOS prompts to check that all applications are
started.
Broadcast receiver
Sub Manager
Apache Web Server
NOTE!When launching first time, features in the Pop-Up
Setting Screen will be added. So if any user forgets to open
the Settings Screen, changes can be made here for
required parameters. This screen will be launched the very
first time, there after it will not be launched.
Close the screen, if settings are already established.
NOTE!For Windows 2000™, please stop the Windows’
SNMP service, by going to below pathway. Go to control
panel/administrative tool/services and select SNMP service
and Stop the service, before launching the above

OmniGuardTM UPS Power Management Software
15
application, otherwise our SNMP agent and the Windows’
SNMP service will conflict as they try to utilize the same
port.
Step 3:
Now you can open the browser and set the host system’s IP for viewing, monitoring and
control of the UPS functions and details of the OmniGuardTM Power Management
Software.
Step 4:
When you want to close the OmniGuardTM software, you may just click the “De-launch
ECM”.
This feature is available under both the Start Menu and the Tray Icon option.
Uninstall OmniGuardTM Software:
Select the UnInstall option from the program menu to remove all the installed files and
registrysettings.
Note:Please close all the running applications before un-installing the OmniGuardTM
software.
You will see the screen below, press “ok” to end the un-installation process.

OmniGuardTM UPS Power Management Software
16
Learning to use OmniGuardTM Software:
With the successful installation of the software and the startup of all the specified services,
the browser will open with the host system’s IP, and the following Login Screen will be
displayed.

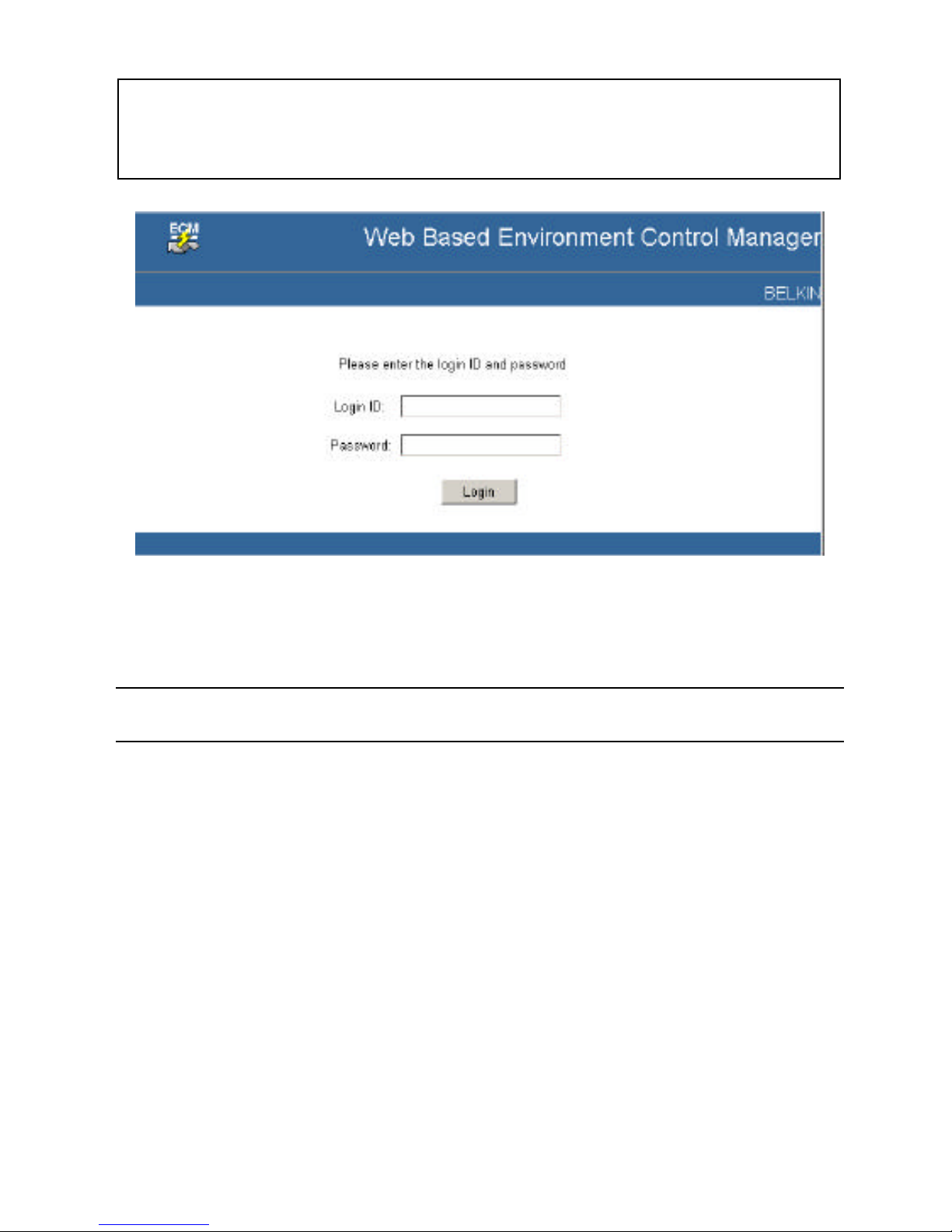

Login Screen:

OmniGuardTM UPS Power Management Software
17
Enter authorized login name and password here, to proceed further. After that you will see
screen below if UPS is connected to the serial port.
NOTE!Both of the default login ID and Password are “admin”

OmniGuardTM UPS Power Management Software
18
Web Configuration
It consists of 3 categories.
1. Server: Including the general network information about the server which installed
the OmniGuardTM Software.
Sys. Information User can set the information to support MIB II to
define the System Group.
Network Show the Server network information.
PPP Configuration Show the Server Dial-up information.
Date Show server date.
Administrator Set the administrator’s login name and password.
Save & Restart Restart the server.
Logout Close the browser.
2. Client: Show the device type.
3. UPS: Including all detail information about OmniGuardTM UPS.
Meter
The UPS input and output information.

OmniGuardTM UPS Power Management Software
19
If the UPS is not connected physically to the COM port, then you will see the screen below
showing the Device Not Found message.
The input voltage, Output Voltage, Battery charge level, Input frequency, Output Source,
Output Load, Output power and the battery Temperature are displayed. These are
information details, which are returned by the UPS. The values displayed ensure the
proper connection is being established between the UPS and the host system. The details
are logged in the data log.

OmniGuardTM UPS Power Management Software
20

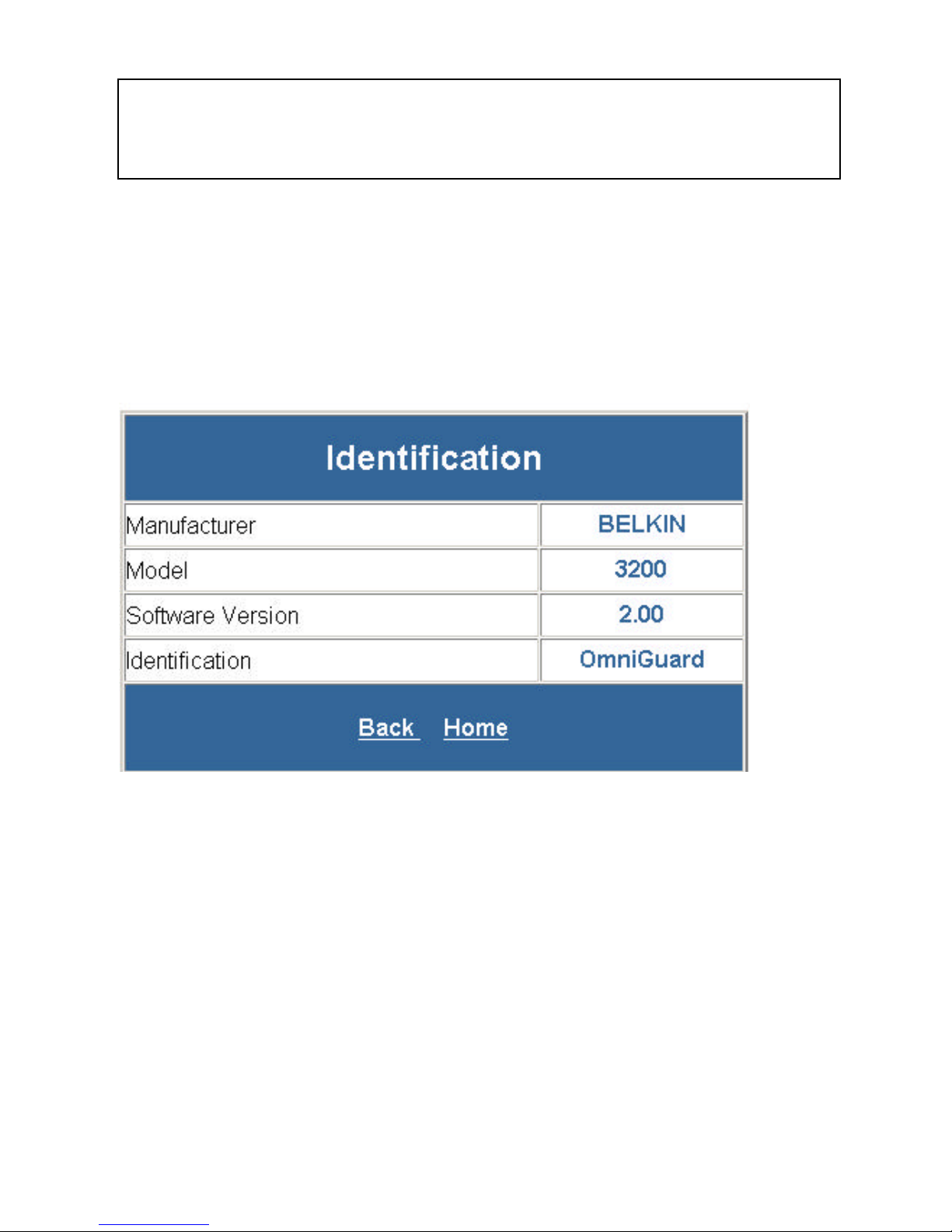

Identification
The UPS identification details like manufacturer, model, software version and the
Identification are displayed below.
