User Manual
TuneBase™ FM for iPod

Introduction
Introduction | 01
iPod
Version of Firmware
iPod touch
1.1
iPod nano 3rd generation (video)
1.0.1
iPod classic
1.0.1
iPod nano 2nd generation
1.1.3
iPod with video
1.2.1 and above
iPod nano 1st generation:
1.3.1 and above
iPod with color display
1.2.1 and above
iPod 4
th
generation
3.1.1 and above
iPod mini
1.4.1 and above
Note:
iPod 3
rd
generation is not supported.
T
o check the firmware version of your iPod, select “Settings” and then select “About”.
To check the firmware version of your iPod, select “Settings” and then select “About”. T
Your version is listed under “Version”. If your firmware is out of date, you can use iTunes to
automatically update your iPod. See http://www.apple.com/ipod/download.
Your TuneBase FM can be used to charge, hold, power, and play your iPod as you drive. This
User Manual explains how you can use your TuneBase FM to get the most from your iPod,
virtually anywhere you go.
iPod Models You Can Use with Your TuneBase FM
Your TuneBase FM can be used with the following iPod models:

What’s in the Box
What’s in the Box | 02
TuneBase FM
Fit Ring
Adapter Sleeves
Spacer Pads

Setup Instructions
Setup Instructions | 03
Your TuneBase FM for iPod includes seven adapter sleeves and five spacer pads for all
supported iPod models.
1.

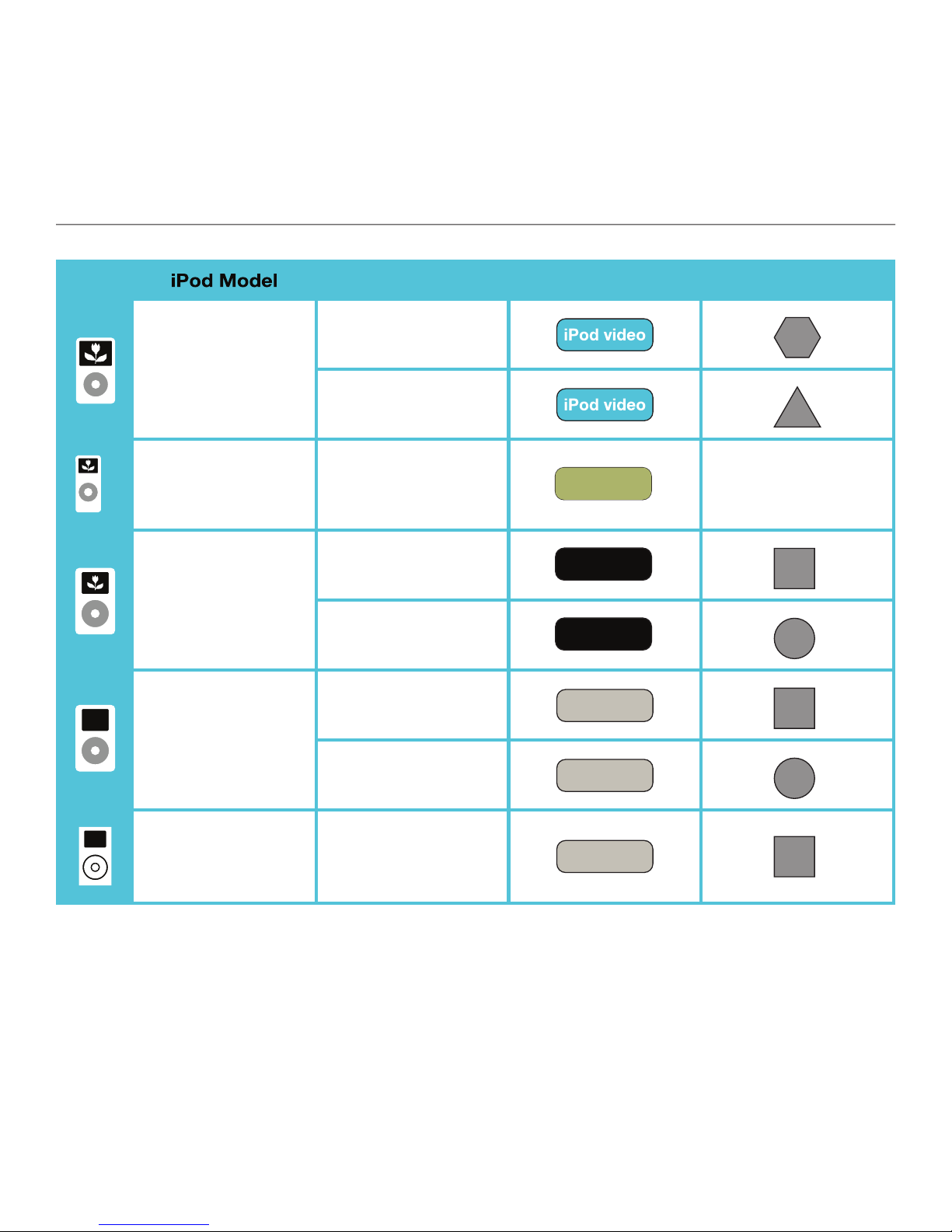

Select the correct sleeve and pad for your model of iPod from the chart below.
iPod Model
Capacity
Sleeve
Pad
iPod touch
8GB/16GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess
iPod nano
3rd generation
(video)
4GB/8GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess
none
iPod classic
80GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess
160GB
PMS Red032CPMS 355CPMS 646C
Stickers for TuneBaseFM2 cradles
BelkinIDG 09/11/02007 ods
v.1.2
scale 1:1
Please ensure correct sizing for cradle’s sticker recess




















 






iPod nano
2nd generation
2GB/4GB/8GB

none

Setup Instructions
Setup Instructions | 04
iPod Model
Capacity
Sleeve
Pad




















 






iPod
with video
30GB
60GB/80GB




















 






iPod nano
1st generation
1GB/2GB/4GB

none




















 






iPod with
color display
20GB/30GB

40GB/60GB





















 






iPod
4th generation
20GB

40GB





















 






iPod mini 1st
generation
4GB/6GB


Setup Instructions
Setup Instructions | 05
2.

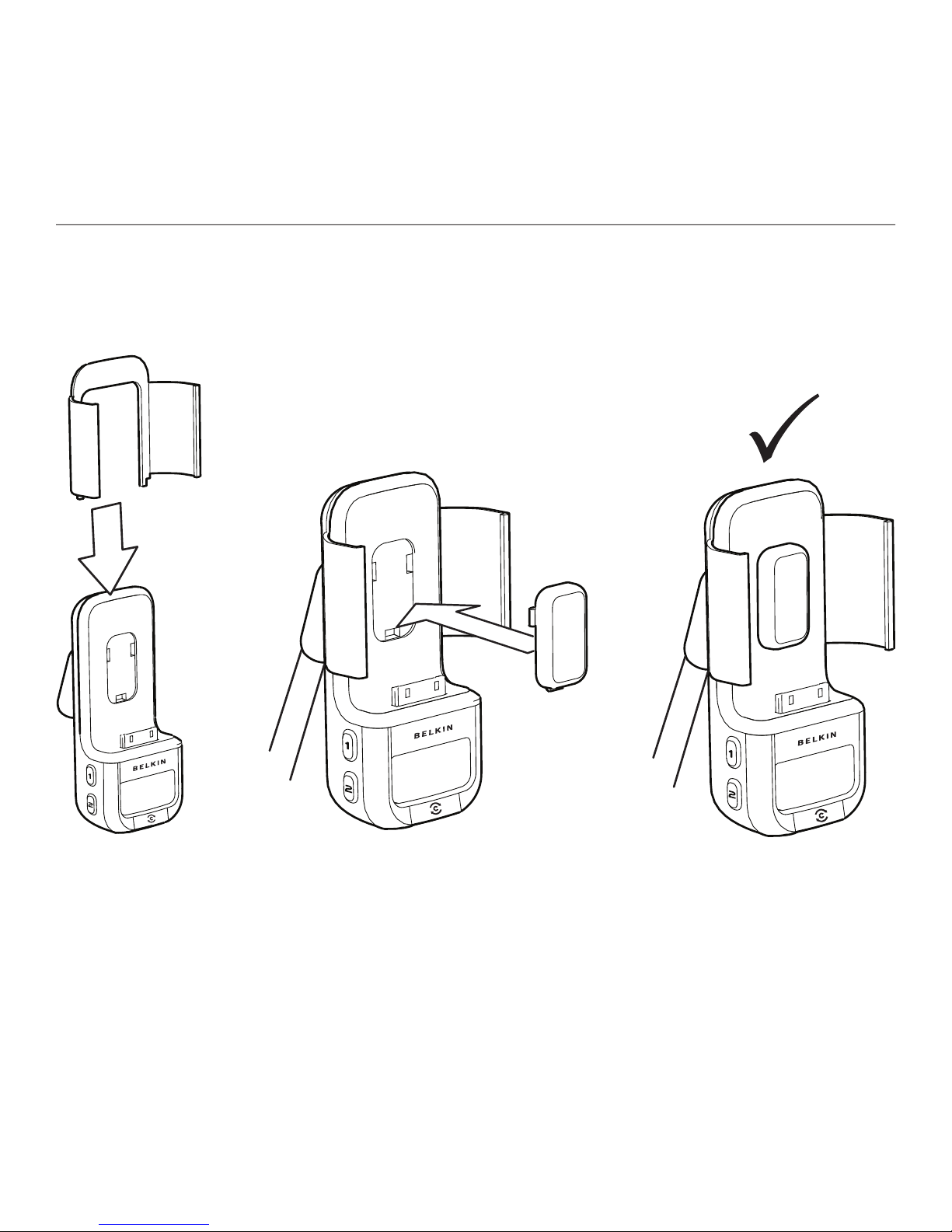

Carefully slide the sleeve into the top of the cradle and attach the spacer pad to the back
of the cradle.

Setup Instructions
Setup Instructions | 06
3.
Turn down your stereo volume.
4.
Connect your TuneBase FM to the cigarette lighter adapter or power outlet in your vehicle.
The LED on your TuneBase FM indicates proper connection.
Warning
: Be careful when rotating the connector in the cigarette lighter adapter or power
outlet. If you experience resistance, unplug the connector and reinsert it in the desired
position. Failure to do so may damage the cigarette lighter adapter or power outlet.
Note:
Cigarette lighter adapters vary in size in different vehicles. In some cases, the fit can be
improved by pressing the collar (included with your TuneBase FM) into the power outlet before
inserting the connector. However, the collar will not usually be needed.
A.
Be sure to position the ring securely around the metal contact to ensure
proper electrical connection.
B.
Power source (cigarette lighter adapter or power outlet)
C.
Fit ring
D.
Connector
5.
Bend the flexible neck to your desired position.
6.
Carefully slide your iPod into the cradle at the top of your
TuneBase FM. The iPod will power on if the vehicle’s
battery is on.
Warning
: To avoid damaging your iPod, please remove
your iPod from your TuneBase FM’s cradle before
disconnecting your TuneBase FM from the power outlet.
Note:
Your iPod will automatically pause if your TuneBase
FM is removed from the cigarette lighter or if the vehicle is
turned off.
(A)
(B)
(D)
(C)

Basic Controls
Basic Controls | 07
Using Your TuneBase FM
Your TuneBase FM will automatically turn on when your iPod is connected and power is
available, and it will automatically turn off when your iPod is removed or if power
becomes unavailable.
Using ClearScan to Find the Best FM Frequency (recommended)
Your TuneBase FM uses ClearScan technology to scan for the clearest FM frequencies in
your area. If you hear any interference:
1.
Press the “ClearScan” button. TuneBase FM will display the words “tune to” followed
by a clear frequency. It will then start transmitting on this new frequency.
2.
Tune the stereo to the frequency on your TuneBase FM display.
3.
If you hear interference on the new frequency,
just press the “ClearScan” button again and
tune your stereo to the new frequency.
Note:
If you immediately press the ClearScan
button when you turn on your TuneBase FM,
it may take up to 30 seconds for ClearScan to
locate the best frequency.

Using the TuneBase FM
Using the TuneBase FM
|
08
Manually Selecting an FM Frequency
If you want to use a specific frequency, you can manually select it on your TuneBase FM.
1.
Tune your stereo to a frequency with a weak signal. If possible, try to find a frequency that
is not broadcasting a radio station. To identify the best available frequencies in your area,
visit www.belkin.com/mybestfm.
2.
Press the
+
or
—
button on your TuneBase FM to select the same frequency. Pressing
and holding either button will provide faster tuning.
Storing a Preset Frequency
When you find a clear FM frequency, you can store it for later use. You can store two radio
frequencies using the 1 and 2 preset buttons.
1.
If you are not currently on the frequency you want to store, use the
+
or
–
buttons to
select the frequency.
2.
To select a preset frequency, press the 1 or 2 preset button. Your TuneBase FM will
change to the preset frequency.
Selecting a Preset Frequency
Press the 1 or 2 preset button. Your TuneBase FM will change to the preset frequency.
Using the Audio-Out Jack and a Cassette Adapter
Your TuneBase FM is equipped with a 3.5mm audio-out jack. If you cannot find a clear FM
frequency, you can connect the 3.5mm audio-out jack on your TuneBase FM directly to your
stereo (if line-in is available) or to a cassette adapter.
