Belling BBC178IB User manual

Beverage Cooler
Instruction Manual
BBC178IB
NOTE: Thank you for your purchase and use our beverage
cooler ！

Content
Safety instructions & warnings…………………………………………………………………1-2
Description of the appliance……………………………………………………………………3-4
Installation & operation…………………………………………………………………………5-7
Troubleshooting……………………………………………………………………………………8
Maintenance and cleaning………………………………………………………………………9
Technical parameters……………………………………………………………………………10

1
Safety instructions & warnings
Your safety is of the utmost importance to our company. Please make sure that
you read this instruction booklet before attempting to install or use this
appliance. If you are unsure of any of the information contained in this booklet,
please contact the Technical Department.
●This appliance can be used by children
aged from 8 years and above and
persons with reduced physical,sensory
or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
●Children should be supervised to
ensure that they do not play with the
appliance.
●This appliance is intended for
HOUSEHOLD USE ONLY and not for
commercial or industrial use.
●Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
●Do not use mechanical devices or other
means to accelerate the defrosting
process, other than those
recommended by the manufacturer.
●Do not damage the refrigerant circuit.
●Do not use electrical appliances inside
the storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
●Make sure that the appliance is
connected to power supply in
accordance with the rating label.
●Use an independent grounded socket
with 10A or higher,do not connect to
transformer or socket with multiple
outlets.
●Make sure socket is grounded properly
and do not modify power cord & plug.
●Connect power plug with socket firmly in
case of possible risk of fire.
●Plug should be within reach for easy
disconnection after the appliance
positioned in case of accidents
occurred.
●Do not store or burn gasoline or other
inflammables near the appliance in
case of possible fire.
●Do not store inflammables, explosives,
acid & alkaline liquids etc.in the
compartment of the appliance.
●Do not operate other appliances in the
compartment.
Child Safety
●Do not allow child play inside the
appliance in case of entrapment.

2
●Do not allow child hang on the door to
play in case of falling of the appliance.
●Do not allow child reach into
compressor compartment or touch
metal components at rear of the
appliance in case of possible injury.
Keep away from water
●Do not spray water on the appliance or
wash the appliance by pouring or filling
water in case of invalid insulation and
possible electric shock.
Be careful of freezing
●Do not touch surface of the liner inside
the compartment, especially with wet
hand, in case of frozen injury while the
appliance is in operation.
Modification on the appliance
not allowed
●Do not reconstruct the appliance by
yourself which might cause damages to
the appliance.
Unplug the appliance under
certain conditions
●Unplug the appliance before cleaning &
maintenance.
●Unplug the appliance when power cut
occurred.
Disposal of the appliance
●Please adhere to local regulations
regarding disposal of the appliance for
its flammable refrigerant and gases.
●Before you scrap the appliance, please
take off the doors to prevent children
being trapped.
●Send the appliance to the designated
disposal location.
Do not damage the power cord
●Do not disconnect the appliance by
pulling power cord rather than pulling
the plug.
●Do not set the appliance above the
power cord or step on the cord
intentionally.
●Put the power cord at right place when
moving the appliance.
When the power cord is damaged
●Do not use damaged power cord, and
get it replaced immediately by
manufacturer service agent or by
qualified electrician.
●If needed, extend the power cord with
cord of 0.75mm2 or bigger by qualified
electrician.

3
Description of the appliance
Accessories & name
Note: Shelves, door frame, handle and other accessories could be different according
to different models and configuration. All photos in this manual are for reference. The
appliance you buy might not be exactly the same as shown here. Please refer to the
actual product.
Accessories list
Reversing the door of beverage cooler
Our beverage cooler is delivered with the door opening from left to right. To reverse
the opening direction:
1. Housin
g
2. Display panel
3. Glass Shelf
4. Cover board
5. Grill
6. Adjustable foot 7. Lower hinge
9. Door
11. Top
recessed handle
10. Door seal
12. Upper hinge
8. Bottom
recessed handle
1. 3 pcs of glass shelves (already installed in the appliance)
2. 1 pc of instruction manual
3. 1 pc of left top hinge & 1 pc of left lower hinge (door reversing kit)
4. 1 pc of Belling Warranty Document
5. 1 pc of Belling Registration Car
d

4
Open the door at 90 degrees and keep it steady.
Unscrew the two screws from the right lower hinge①②[Figure 1].
Pull the door outwards slowly [follow the arrow direction in Figure 2] to get off the⑤
lower hinge and continue to pull the door downwards slowly until getting o②⑤ ff
from the top right hinge , and take off the lower hinge plate from the door axis④③
hole[Figure 2].
Screw top right hinge & right lower hinge off from the cabinet④② ⑥and keep them
in the polybag for needs if you want to change back left opening door in the
future.[Figure 3]
Install the top left hinge⑦& left lower hinge⑧to the left side of the cabinet.(⑦&⑧
delivered in a separated polybag inside the packing carton).[Figure 4]
Turn the door 18⑤0 degrees upside down and insert the lower hinge plate to the③
bottom door axis hole. Fit the top door axis hole to the top left hinge⑦and put
lower hinge plate slowly on the left lower hinge③⑧and keep the door steady.
Screw up the left lower hinge with the plate. Door reversing is finished.

5
Installation & operation
Position
Do not lean the appliance over 45°when moving it to position.
The appliance must be put on flat,firm & dry floor or similar noncombustible pad;
do not use the package foam pad.
酒柜结构及安装示意图
Do not put the appliance in a wet place.
Do not use the appliance in a frozen place.
Do not use the appliance outdoor.
The appliance is designed to either build under the counter
or stand alone on the floor.
Demonstration for building under the counter:
Beverage cans can be stored when it feels cool inside, and only after the appliance
has been on around 1 hour.

6
Start operation
1. Cleaning the compartment
Before powering on, clean inside of the appliance and check the drainage pipe in good
connection.（For details, please refer to the “Maintenance and cleaning”）
2. Placement
Before powering on, level the appliance on the firm & dry floor for at least 30 minutes.
3. Power on
The appliance start operation and it will cool down inside after 1 hour, otherwise you
should check the power connection.
Control panel
All keys will be invalid if in lock mode. Please unlock first.
ON/OFF
1. Hold down the on/off key for 3 seconds to power down, unit will go into stand-
by mode.
2. Hold downthe on/off key again 3 seconds to return unit back to normal working
operation.
Light
Press the key, turn on or turn off the LED lights inside. In stand-by mode, this
key is invalid.
UP
Press the key once, LED display will begin flashing showing current set
temperature. Continue pressing to adjust set temperature, one press increases
1℃. Flashing will cease after 5 seconds of no activity and new set temperature
will be saved. LED display will return to show actual temperature inside.
Down
Press the key once, LED display will begin flashing showing current set
temperature. Continue pressing to adjust set temperature, one press reduce 1℃.
Flashing will cease after 5 seconds of no activity and new set temperature will be
saved. LED display will return to show actual temperature inside.
Child Lock（Combination key）
1. Lock：Hold down both keys at the same time for 3 seconds to lock.
2. Unlock：Hold down both keys at the same time for 3 seconds to unlock.
Fahrenheit/Celsius display interchange

7
Switch temperature display between Fahrenheit and Celsius by pressing both keys.
Attention
1. The cooling temperature could be set from 0-10℃.
2. Alarm sound: when a system malfunction occurs and alarm sounds, press any
key on the control panel to cancel the alarm sound.
3. Temperature sensor failure:
If a temperature sensor failures occur, error code displays. E1 for open circuit;
E2 for short circuit..
Beverage storage
This appliance is equipped with glass shelves to store your beverages.
3 glass shelves loading capacity: 161 cans. (standard can with Φ66x123H’mm’)
Loading capacity will vary in terms of different way of cans arrangement or
different can sizes.
Each shelf can pull out partly to store cans easily.
Open the door wide before pulling out shelves.
If the beverage cooler it not in use for long periods of time, it is recommended to
power it off, clean it carefully, and open the door for ventilation

8
Troubleshooting
The appliance is makes
lots of noise? zPlease adjust the front foot, keep the appliance leveling.
zPlease keep a bit of space between appliance and
walls.
Liquid flowing sound
inside the cabinet? zThis is normal because of the refrigerant working inside.
The appliance does not
start？zMake sure the appliance is connected to the power
properly.
zMake sure switch on the power.
zThe compressor re-starts after 5 minutes for a
power cut.
Compressor runs
continuously? zIf no cold air is being produced, call the after-sale service.
Door does not seal
tightly？zAfter a long period of use, the door seal might get
stiff & distorted partially.
1. Heat the door sea slightly with heat gun or with
or hot towel.
2. The door seal will soften and then close the
door.
The appliance does not
cool sufficiently? zPlease adjust temperature setting. zKeep the appliance away from sunlight or heat.
zPlease do not open the door frequently.
Unpleasant smells inside
cabinet？zA little bit of plastic smell for newly purchased
appliance is normal and will disappear after a short
time.
zClean the compartment and ventilate it for a few
hours.
Condensate on the glass
door？zPlease do not open the door frequently or for a
long time.
zPlease do not set the temperature too low.
zHigh ambient temperature and humidity would
cause condensate.
The light is not working？zCheck the power supply first.
zCall the retailer’s after-sale service if the light is
broken.

9
Maintenance and cleaning
Cleaning

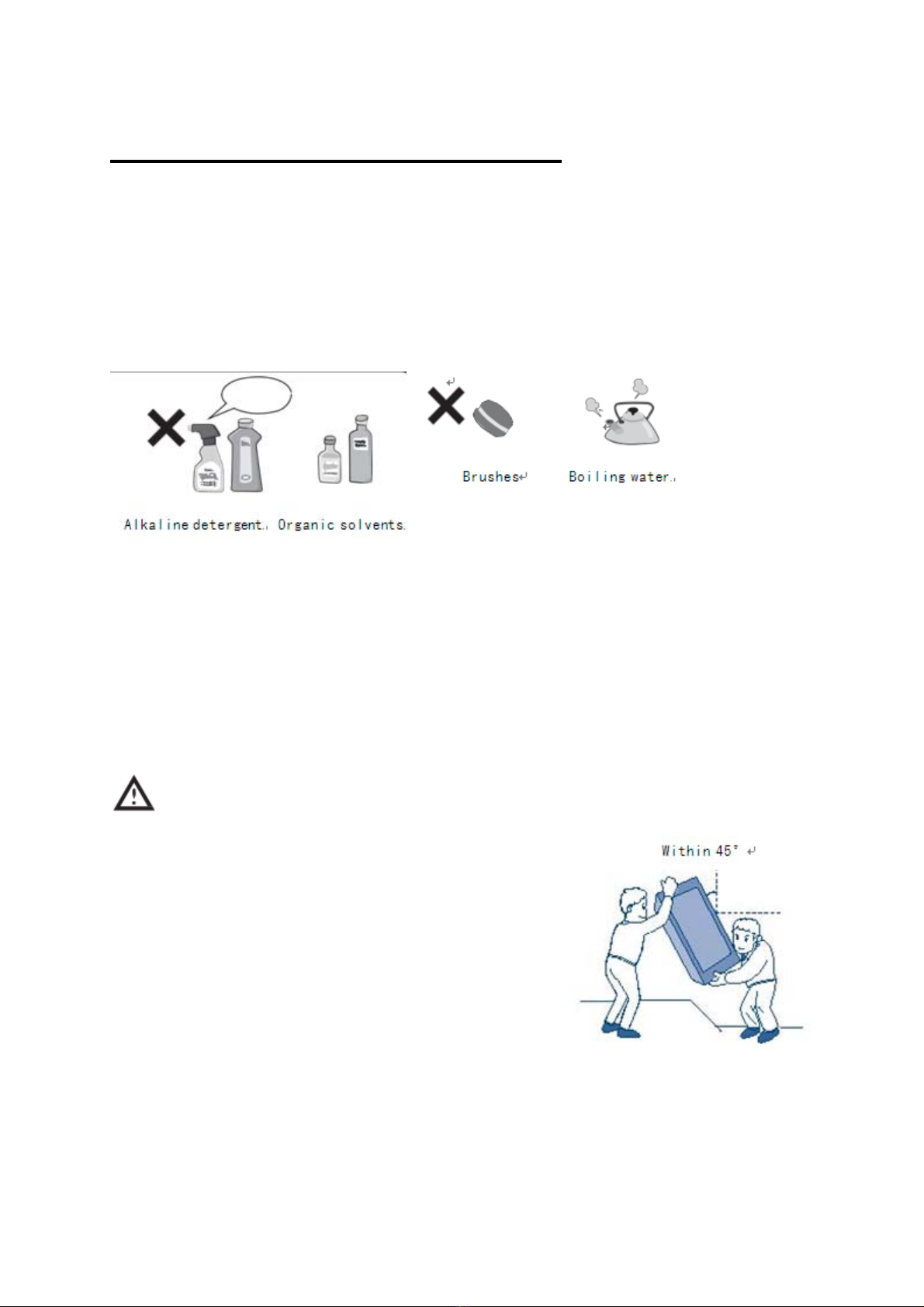

¾Disconnect the appliance before cleaning.
¾Clean the appliance with soft cloth or sponge by water.
¾Do not use organic solvents, alkaline detergent, boiling water, washing powder or
acid liquid etc.
¾Do not flush the compartment of the appliance.
The below items will damage the surface of beverage cooler:
Power cut
Most power cuts could be resolved within a short time. To protect your beverage
during a power cut, avoid opening the door as much as possible. During very long
power cuts, take the necessary measures to protect your beverage.
Out of service for long time
Remove all beverage from the appliance, unplug the appliance, thoroughly clean the
inside and outside of the appliance, store the appliance properly.
If the appliance is disconnected or if there is a power cut, you must wait at
least five minutes before re-starting.
Moving the appliance
¾Cut off the power supply and unplug the
appliance.
¾Remove all beverage from the appliance.
¾When moving the appliance, do not lean the
appliance over 45°.

10
Technical parameters
Product model BBC178IB
Voltage/frequency 220-240V～/50Hz
Refrigerant/weight R600a/35g
Effective volume 135 L
Loading capacity 178 cans
Net weight 43kg
Unit dimension
(WxDxH) 595 x570x820mm
Packing dimension
(WxDxH) 660x625x880 mm
Remarks＞
1. The Net weight includes shelves and the Unit dimension is without handle on the
door.
2. The manufacturer reserves all the rights to change the above parameters without
prior notice. Please refer to the nameplate of your appliance.
3. Loading capacity will vary in terms of different way of cans arrangement or
different can sizes.
