Belling BI 60 G Instruction Manual

Belling BI 60 G

The appliance must be installed (and serviced) by a GAS SAFE registered approved installer
or a person competent to ensure that the installation is in accordance with “The Gas Safety
(Installation and Use) Regulations 1994”, and the “The Gas Safety (Installation and Use)
(Amendment) Regulations 1996”. Failure to comply with these Regulations is a criminal
offence.
If you smell gas:
Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Helpline at TRANSCO on: 0800 111999
IMPORTANT NOTICE
Please note the cooling fan fitted to this appliance is an integral part of its safety
and functionality.
When the appliance is installed care must be taken that the cooling fans
performance is not impeded by any objects coming into contact with it.
(Installation pipes, leads etc)
Care must also be taken that there is sufficient air flow at the rear of the appliance
for the cooling fan to run at its optimum efficiency. (Particularly Built In appliances)
See clearance dimensions in the installation section of the booklet.
During use the Appliance must never be disconnected from the Mains supply as
this will seriously affect the safety and performance of the appliance, particularly
in relation to surface temperatures becoming hot and gas operated parts not
working efficiently.
The cooling fan is designed to run on after the control knob has been switched off
to keep the front of the appliance and the controls cool until the appliance has
naturally cooled itself.

UserSection.......................................3-23
Introduction.................................................2
BeSafe-NotSorry............................................5
UsingtheGrill...............................................6
UsingtheOven ..............................................8
Ovenignition................................................9
Ovenbakingguide...........................................10
Roastingguide..............................................11
Slow cooking, Frozen & Chilled food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
RoastingTurkey .............................................13
TraditionalFruitcakes.........................................13
Automaticcooking ...........................................14
Programmer/clock ..........................................15
Cleaning..................................................19
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 28
Regulations & Standards, Ventilation requirements . . . . . . . . . . . . . . . . . . . . . 22
Step1:Prepareinstallation.....................................23
Step2:Connecttogassupply...................................25
Step 3: Connect to electricity supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Step 4: Secure appliance into housing unit . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Step5:Commissioning........................................28
TechnicalData .......................................29
Belling Customer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Page
Please keep this handbook for future reference, or for anyone else
who may use this appliance.
1
Contents

We hope that the following
information will help you to familiarise
yourself with the features of the
appliance, and to use it successfully
and safely.
Our policy is one of constant
development and improvement. Strict
accuracy of illustrations and specifications
is not guaranteed. Modification to
design and materials may be
necessary subsequent to publication.
This appliance must be installed in
accordance with the regulations in
force and only in a well ventilated
space. Read the instructions before
using or installing this appliance.
Your 1st Year Guarantee
To fulfil the conditions of your guarantee,
this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
Please note that the guarantee, and
Service availability, only apply to the
UK and Republic of Ireland.
Gas & Electrical connection
Please refer to installation instructions
for the Gas & Electrical Safety Regulations
and the Ventilation Requirements.
In your own interest, and that of safety,
it is the law that all gas appliances be
installed by a competent person who
will ensure that the installation is in
accordance with “The Gas Safety
(Installation & Use) Regulations”, & the
“The Gas Safety (Installation & Use)
(Amendment) Regulations. Failure to
comply with these Regulations is a
criminal offence.
Gas Safe registered installers
undertake to work to satisfactory
standards.
Disconnection of gas and electric
appliances should always be carried
out by competent persons.
Warning: This appliance must be
earthed.
In the event of a power cut
1. Switch off the electricity to the
appliance at the socket.
2. When the power returns, see the
‘Programmer / Clock’ section to
‘Set the time of day’.
The Gas Consumer Council (GCC) is
an independent organisation which
protects the interests of gas users. If
you need advice, you will find the
telephone number in your local
telephone directory under Gas.
2
Introduction

The cooling fan
The cooling fan helps to keep the
exterior cool during normal use.
When a burner is operated, you
should hear the cooling fan switch on
automatically and be able to feel air
evacuating from the appliance vents
just below the fascia. The cooling fan
will continue to operate for
approximately 10 minutes after
turning off the burners. This is normal.
If there is no such indication that the
fan is operating, the appliance will
require servicing. DO NOT USE THE
APPLIANCE UNTIL IT HAS BEEN
SERVICED. Switch the appliance off
at the mains and contact Customer
Care.
For your safety
This appliance has a built in safety
device to isolate the gas and electric
supplies to various components in the
event of fan failure.
If the programmer/clock and lights do
not function, and the ignition system
stops working, the safety device has
operated. Within an hour, the safety
device will reset itself and the programmer
/clock display will flash. Reset the time
of day as detailed in this handbook.
If when a burner control is turned on,
the fan does not operate in the normal
way, then the appliance will require
servicing. DO NOT USE THE APPLIANCE
UNTIL IT HAS BEEN SERVICED.
Switch the appliance off at the mains
and contact Customer Care.
Continued use of the appliance
without it being serviced could result in
excessive temperatures being
generated, which in turn could reduce
the life of certain components.
Ventilation
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is well
ventilated; keep natural ventilation holes
open or install a mechanical ventilation
device (mechanical ventilator).
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening a window, or more
effective ventilation, for example
increasing the level of mechanical
ventilation where present.
This appliance is not connected to a
combustion products evacuation
device. It must be installed and
connected in accordance with current
installation regulations. Particular
attention must be given to the relevant
regulations regarding ventilation.
3
Introduction

Glass door panels
To meet the relevant Standards of
Domestic cooking appliances, all the
glass panels on this appliance are
toughened to meet the fragmentation
requirements of BS3193. This ensures
that, in the unlikely event that a panel
breaks, it does so into small fragments
to minimise the risk of injury.
Please take care when handling, using
or cleaning all glass panels as any
damage to the surfaces or edges may
result in the glass breaking without
warning or apparent cause at a later
date. Should any glass panel be
damaged, we strongly recommend
that it is replaced immediately.
Before using the appliance for
the first time, remove any protective
polythene film and wash the oven
shelves in hot soapy water to remove
their protective covering of oil. Even
so, when you first switch on the oven
or grill you may notice a smell and
some smoke.
Condensation
When hot and cold air meet,
condensation forms. The outer door is air
cooled and the inner door gets hot, so some
condensation might form; this is normal
and will disappear within 10 - 15 minutes.
To replace an oven light bulb
WARNING - switch off the electricity
supply to the appliance at the socket,
to avoid the risk of electric shock.
Wait until the oven is cool, then
remove the oven shelves.
The oven light is at the rear of the oven
cavity.
Unscrew the lens cover (turn anticlock-
wise). Unscrew the bulb and replace.
Replace lens cover.
Please note that the oven light bulb is
not covered by guarantee.
Environmental Protection
We are committed to protecting the
environment and operate an
Environmental Management System
which complies with BS EN ISO
14001.
Disposal of packaging
!All our packaging materials are
recyclable and environmentally
friendly.
!Please help us to protect our
environment by disposing of all
packaging in an environmentally
friendly manner.
!Please contact your local authority
for the nearest recycling centre.
Caution: Packaging materials can
pose a risk of suffocation - keep away
from children.
4
Introduction

When you are cooking, keep
children away from the vicinity
of the appliance.
This product is designed as a domestic
cooking appliance for the preparation
and cooking of domestic food
products, and should not be used for
any other purpose.
!Remove all packaging from the
appliance before using for the
first time.
!Make sure you read and
understand the instructions before
using the appliance.
!Keep electrical leads short so they
do not drape over the appliance
or the edge of the worktop.
!Keep all flammable materials (such
as curtains, furnishings & clothing)
away from the appliance.
!Parts of the appliance may be hot
during or immediately after use. Allow
sufficient time for the appliance to
cool after switching off.
!Do not drape tea towels over the
flue vents or doors, as this creates
a fire hazard.
!Do not use aluminium foil to cover
the grill pan, or put items wrapped
in foil under the grill, as this
creates a fire hazard.
!Never use the appliance for
heating a room.
!Do not use the oven with the door
inner glass panel removed (glass
oven doors only).
!Always use oven gloves when
removing hot food / dishes from
the oven or grill. The oven / grill
and utensils will be very hot when
in use.
!When opening the appliance
door, take care to avoid skin
contact with any steam which may
escape from the cooking.
!Do not use foil on oven shelves or
allow it to block the oven flue, as
this creates a fire hazard, and
prevents heat circulation.
!When cooking heavy items - eg;
turkeys - do not pull the oven shelf
out with the item still on the shelf.
!Switch off the electricity supply
before replacing the oven light bulb
to avoid the risk of an electric shock.
All installation, servicing and
maintenance work must be carried out
by a competent person who will
comply with current Regulations,
Standards and Requirements.
Warning: This appliance must be
earthed.
When you have finished
cooking check that all controls
are in the off position.
As with all gas appliances, it is
recommended that your appliance is
serviced regularly.
5
Be Safe - Not Sorry

Caution: Accessible parts may
be hot when the grill is used,
young children should be kept
away.
Grill operation
Important: The door must be fully
open when the grill is used.
Open the door.
Push in and turn the control knob
clockwise to the grill position.
To switch off, turn the control knob
anti-clockwise to return it to the “"” off
position.
Aluminium foil
Never cover the grill pan or grill trivet
with cooking foil, or allow fat to build
up in the grill pan, as this creates a
fire hazard.

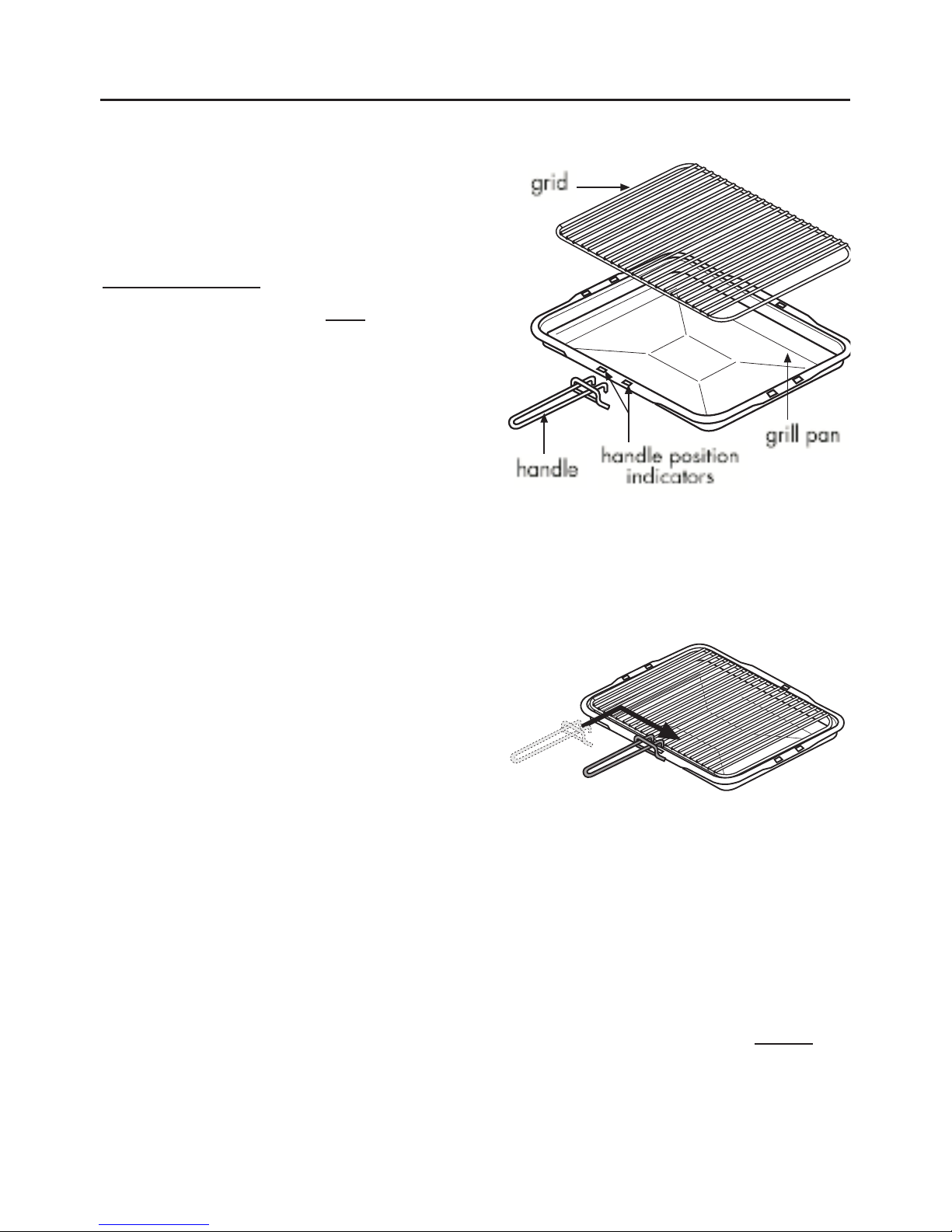

Detachable grill pan handle
Place the handle over the edge of the
grill pan, at the narrow side edges.
Slide the handle to the centre, and
locate between the handle position
indicators.
The handle should be removed from
the pan during grilling, to prevent
overheating.
The handle is designed for removing /
inserting the grill pan under the grill
when grilling.
If cleaning the grill pan when it is hot,
use oven gloves to move it. Do not use
the handle to pour hot fats from the
grill pan.
Food for grilling should be positioned
centrally on the trivet.
6
Using the Grill

Using the grill
Push the grill pan towards the back of
the shelf, to position it under the grill.
Variation in grilling can be achieved
by moving the grill pan up or down.
The speed of grilling can also be
controlled by selecting a higher or
lower shelf position.
Always use the top shelf position for
fast toasting.
For toasting, and for grilling foods
such as bacon, sausages or steaks,
use a higher shelf position.
For thicker foods such as chops or
chicken joint pieces, use a middle to
low shelf position.
The grill trivet, inside the grill pan, can
be inverted to give a high or low
position, or it may be removed.
When you have finished grilling,
check that the control knob is
returned to the off position.
7
Using the Grill

8
Using the Oven
When you are cooking, keep
children away from the vicinity
of the oven.
Notes
In the event of the flame being
accidentally extinguished, the flame
will automatically re-light, owing to
the automatic re-ignition system.
If it is found over a period of time that
the oven becomes hotter when used at
a particular gas mark, the thermostat
may need to be replaced.
As part of the cooking process, hot air
is expelled through a vent at the top of
the oven(s). When opening the oven
door, care should be taken to avoid
any possible contact with potentially
hot air, since this may cause
discomfort to people with sensitive
skin. We recommend that you hold the
underneath of the oven door handle.
Oven furniture
Oven shelves
The oven shelf must be positioned
towards the rear of the oven, with the
upstand facing upwards.
Position baking trays and roasting tins
on the middle of the shelves, and leave
one clear shelf position between
shelves, to allow for circulation of heat.
Baking tray and roasting tins
For best cooked results and even
browning, the maximum size baking
trays and roasting tins that should be
used are as follows;
Baking tray 350mm x 280mm
This size of baking tray will hold up to
16 small cakes.
Roasting tin 370mm x 320mm
We recommend that you use good
quality cookware. Poor quality trays
and tins may warp when heated,
leading to uneven baking results.
Preheating
The oven must be preheated for 15
minutes when reheating frozen or
chilled food, and we recommend
preheating for yeast mixtures, batters,
soufflés and whisked sponges.
If you are not preheating the oven, the
cooking times in the Baking Guide
may need to be extended, as they are
based on a preheated oven.

Oven ignition
Ignition
Push in and turn the main oven control
knob anti clockwise to the ‘FULL ON’
position (gas mark 9). The ignition
system will spark automatically. Push
in the control knob to ignite the gas.
The sparking will stop. If after 15
seconds, the burner has not lit, turn off
the oven and leave the compartment
door open. Wait at least one minute
before a further attempt to ignite the
burner.
Do not hold the control knob in for
more than 15 seconds.
Turn the control knob clockwise to the
required setting.
To turn off, return the control knob to
the “off” position.
Zones of heat
The temperature at the centre of the
oven corresponds with the selected
Gas Mark and is slightly higher
towards the top of the oven and
slightly lower towards the oven base.
These zones of heat can be useful as
different dishes requiring different
temperatures may be cooked at the
same time - eg; the temperature at the
oven base is suitable for cooking baked
vegetables, baked fruit, milk pudding,
etc, and for warming bread rolls, soup,
coffee, or ovenproof plates and dishes.
Baking guide - hints
To protect a very rich fruit cake during
cooking, tie 2 layers of brown paper
around the tin.
Cooking times for pastry dishes
depend on the size and type of
cooking dish and also the filling.
When cooking 2 trays of items,
remove the top item when it is cooked
and raise the lower item to the higher
shelf to finish cooking, or where
additional browning of the base is
required - eg; pies and pastries -
interchange part way through cooking.
9
Using the Oven

Dish Recommended Shelf Approximate
gas mark position cooking times
Scones 7 top to middle 8 - 15 mins
Meringues “S” (slow setting) middle to bottom 2 - 3 hours
Cakes
Small cakes 5 middle to top 15 - 25 mins
Whisked sponge 5 middle to top 20 - 25 mins
Swiss roll 6 middle to top 10 - 12 mins
Victoria sandwich 4 middle to top 20 - 30 mins
(2 x 180mm / 7”)
Genoese sponge 4 middle 20 - 30 mins
Madeira (180mm / 7”) 3 middle to top 1 - 11⁄4hours
Gingerbread 3 middle to top 1 - 11⁄4hours
Semi rich fruit cake 2 or 3 middle to top 21⁄2- 3 hours
(205mm / 8”)
Christmas cake 1 or 2 middle to bottom depends on recipe
Dundee cake (205mm/8”) 3 middle to bottom 2 - 21⁄2hours
Pastry
Flaky / Puff 7 middle to top 15 - 45 mins
Shortcrust 6 middle to top 15 - 45 mins
Choux 6 middle to top 15 - 45 mins
Plate tarts 6 middle to top 30 - 45 mins
Biscuits
Nut brownies 6 middle to bottom 15 - 20 mins
Brandy snaps 4 middle to top 7 - 18 mins
Flapjacks 4 middle to top 20 - 40 mins
Ginger nuts 4 middle to top 10 - 20 mins
Puddings (1l/ 2 pint dish)
Rice pudding 2 middle to top 2 - 21⁄2hours
Baked custard 3 middle to top 1 - 11⁄4hours
Bread and butter 3 middle to top 3⁄4- 11⁄4hours
Hot soufflé 4 middle to top 35 - 50 mins
Fruit crumble 6 middle to top 1⁄2- 1 hours
10
Using the Oven
Baking guide

Roasting guide
The times given in the roasting guide
are only approximate, because the
size and age of the bird will influence
cooking times as will the shape of a
joint and the proportion of the bone.
Frozen meat should be thoroughly
thawed before cooking. For large
joints it is advisable to thaw overnight.
Frozen poultry should be thoroughly
thawed before cooking. The time
required depends on the size of the
bird - eg; a large Turkey may take up
to 48 hours to thaw.
Use of a trivet with a roasting tin will
reduce fat splashing and will help to keep
the oven interior clean. Alternatively,
to help reduce fat splashing, potatoes
or other vegetables can be roasted
around the meat / poultry.
Notes:
!When cooking stuffed meat or
poultry calculate the cooking time
from the total weight of the meat
plus the stuffing.
!For joints cooked in foil or covered
roasters, and for lidded casseroles,
add 5 minutes per 450 g (1lb) to
the calculated cooking time.
!Smaller joints weighing less than
1.25kg (21⁄2lb) may require 5
minutes per 450g (1lb) extra
cooking time.
!Position the oven shelf so that the
meat or poultry will be in the
centre of the oven.
!It is recommended that the appliance
is cleaned after open roasting.
11
Cook in oven at gas mark 5 Approximate cooking time
(preheated oven)
Beef Rare 20 minutes per 450g (1lb), plus 20 minutes
Medium 25 minutes per 450g (1lb), plus 20 minutes
Well done 30 minutes per 450g (1lb), plus 30 minutes
Lamb Medium 25 minutes per 450g (1lb), plus 35 minutes
Well done 30 minutes per 450g (1lb), plus 30 minutes
Pork 35 minutes per 450g (1lb), plus 35 minutes
Poultry 20 minutes per 450g (1lb), plus 20 minutes
Using the Oven

Cooking frozen & chilled foods
!Preheat the oven.
!When cooking frozen or chilled foods,
please follow the manufacturer’s
instructions. If cooking more than
one tray or item, cooking times
may need to be increased.
!Please ensure that foods are
piping hot before consumption.
!Always use the temperature
setting stated on food packaging
when cooking convenience food.
!Never overload the tray - eg; oven
chips should be placed onto the
baking tray in one even layer for
satisfactory cooking.
!Follow the cooking times given on
packaging but remember they are
only intended as a guide and do
not take individual preferences
into account.
!Always cook frozen convenience
foods straight from the freezer
unless packaging advises otherwise.
Slow cooking
!Make sure that frozen foods are
thoroughly THAWED before cooking.
!Do not slow cook joints of meat
or poultry weighing more than
21⁄4kg / 41⁄2lb.
!For roasting joints of meat or
poultry and for pot roasts preheat
the oven to Gas Mark 6 and cook
for 30 minutes, then adjust the
oven control to ‘S’ slow cook
setting for the remainder of the
cooking time.
!Always use the top half of the oven
when slow cooking.
!Slow cooking times will be about
three times as long as conventional
cooking times.
12
Using the Oven

Traditional fruit cakes
It should be remembered that ovens
can vary over time, therefore cooking
times can vary, making it difficult to be
precise when baking fruit cakes.
It is necessary, therefore, to test the
cake before removal from the oven.
Use a fine warmed skewer inserted
into the centre of the cake. If the
skewer comes out clean, then the cake
is cooked.
!Do not attempt to make Christmas
cakes larger than the oven can
cope with; you should allow at
least 25mm (1 inch) space
between the oven walls and the tin.
!Always follow the temperatures
recommended in the recipe.
!To protect a very rich fruit cake
during cooking, tin, or tie 2 layers
of brown paper around the tin.
!We recommend that the cake tin is
not stood on layers of brown
paper, as this can hinder effective
circulation of air.
!Do not use soft tub margarine for
rich fruit cakes unless specified in
the recipe.
!Always use the correct size and
shape of tin for the recipe quantities.
Roast Turkey
Roasting Turkey perfectly involves
cooking two different types of meat -
the delicate light breast meat, which
must not be allowed to dry out, and
the darker leg meat, which takes
longer to cook.
The Turkey must be roasted long
enough for the legs to cook, so
frequent basting is necessary. The
breast meat can be covered once
browned.
!Turkey should be roasted at
gas mark 4 for 20 minutes per
1lb, plus 20 minutes unless
packaging advises otherwise.
!The Turkey can be open roasted,
breast side down, for half of the
cook time, and then turned over for
the remainder of the cooking time.
!If the Turkey is stuffed, add 5
minutes per lb to the cooking time.
!If roasting Turkey covered with
foil, add 5 minutes per 1lb to the
cooking time.
To test if the Turkey is cooked, push a
fine skewer into the thickest part of the
thigh. If the juices run clear, the
Turkey is cooked. If the juices are still
pink, the Turkey will need longer
cooking.
13
Using the Oven

Using the Oven
14
Semi-Automatic cooking in the
main oven
The semi-automatic cooking facility is
controlled by the programmer (see
‘Programmer/Clock’ section) and
allows for the finish time to be set. If
you know the cooking time of the dish
that you are cooking, you can set this
and the oven will automatically turn off
when this time is reached.
Do:
!Cover dishes with lids or foil to
keep the food moist, prevent the
transfer of odours and protect from
possible contamination; the food
can be uncovered towards the end
of cooking to crisp and brown.
Do not:
!Do not put food items (intended for
automatic cooking) into a warm
oven. Allow the oven to cool
before setting to automatic
cooking.
!Do not over-fill dishes containing
liquids as they might boil over.
!Never leave food in the oven to
cool slowly after cooking; serve
immediately or refrigerate.
Important: Food is more susceptible
to the growth of food poisoning
organisms in warm conditions. If the
weather is hot, either take care to
ensure that food is not left standing in
a warm oven, or avoid using the
automatic cooking facility.

15
Programmer / Clock
The clock on this product has two
modes of operation, fully automatic or
semi-automatic. This product is
intended for use on the semi automatic
mode only. If for some reason this
mode has not already been pre-set,
the following procedure should be
used to set it to this mode:-
1. Turn the power off to the appliance
for 30 seconds or more , then turn the
power on.
2. Within the first 6 seconds of turning
the power on, press the plus
button for 1 second.
3. The operating mode “P2” can then
be selected using the plus or minus
buttons.
4. The clock has now been set to semi-
automatic mode, any power fail
situations will not change the selected
mode.

Programmer / Clock
16
The programmer buttons
minus
plus
The ‘function’ button in the centre is
used for setting the minute minder and
setting up the automatic cooking. See
below for details.
To set the time of day
When the power is turned on to the
appliance, the time of day starts from
0.00.
Press and release the (minus) and
(plus) buttons simultaneously. Set the
time of day, eg 2.00 with the and
buttons while the ‘dot’ beween the
hours and minutes is flashing.
To select an alarm tone
Press and hold the (minus) button to
listen to the first tone. Release the
button and press it again to listen to
the second tone, etc. Releasing the
button after the tone has sounded
will automatically select that tone.
Setting the minute minder
Press and release the function button.
The minute minder bell symbol will
appear and flash on the display. Use
the plus and minus buttons to set the
required alarm time. After setting,
the display will revert to show the
time of day and the bell symbol will
stop flashing. Pressing the function
button will display the minutes
remaining. If the time has counted
down to the last minue, the remaining
seconds are shown. The tone will
sound at the end of the time set. To
cancel the tone, press the function
button.

Programmer / Clock
Semi-automatic cooking
There are two types of semi automatic
cooking available on this appliance.
The oven must be switched on, and in
use to use either of these functions
successfully.
The Duration method allows you to set
the oven for a specific length of time.
If a dish needs 2 hours to cook, then it
is possible for you to set the oven to
turn off 2 hours later. This allows you
to be sure that your food will be
cooked for a set length of time and no
longer.
The End Time method allows you to
enter a specific time when you would
like the oven to switch off. If you wish
to leave the oven unattended, then it
offers peace of mind that the oven will
have turned itself off at the set time.
However, once the program is set then
it cannot be adjusted. Extra time
cannot be added, nor can the end
time be extended.
To cancel the semi automatic
programs, press both the Plus and
Minus buttons together. This can be
done at any time during the cooking
process. Then if necessary, re
program.
For the instructions on how to use both
of these functions, please see the
following pages.
17

Programmer / Clock
18
Programmer / Clock
1. The Duration method
2.
3.
4. The End Time method
5.
6.
Semi-automatic cooking
The Duration method
#Press the Function button twice,(1)
which will skip past the Minute
Minder.
#The LED display will flash the word
‘dur’, (2) and the ‘A’ will flash on the
left hand side of the display.
#Use the Plus and Minus buttons to set
the length of time you want to cook
for.(3) This must be done within 5
seconds or the time of day will show
again.
Once this is done the oven will
automatically switch off once the time
has elapsed, and the alarm will
sound.
To switch off the alarm, press any
button. To view any remaining time
press the function button twice
The End Time method
#Press the Function button three times,
which will skip past the Minute Minder
and the Duration programmer. (4)
#The LED display will flash the word
‘End’ and the ‘A’ will flash on the left
hand side of the display. (5)
#Use the Plus and Minus buttons to
select the time the oven is required to
turn off. (6)
Once this is done the oven will turn
itself off at the time you have selected.
To switch off the alarm, press any
button.
Function
Function
Function
Function
