Belling D841 User guide

600mm wide
Freestanding Dual Fuel cooker
Electric Double Oven and Grill with Gas Hotplate
User, Installation & Servicing Instructions
D841
08 27117 00 - D841 18/6/04 11:07 am Page 1

The Gas Consumer Council (GCC) is an independent organisation which protects the
interests of gas users. If you need advice, you will find the telephone number in your local
telephone directory under Gas.
The appliance must be installed (and serviced) by a Corgi registered approved
installer or a person competent to ensure that the installation is in accordance
with “The Gas Safety (Installation and Use) Regulations 1994”, and the “The
Gas Safety (Installation and Use) (Amendment) Regulations 1996”. Failure to
comply with these Regulations is a criminal offence.
If you smell gas:
Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Helpline at TRANSCO on: 0800 111999
In the Republic of Ireland, call the Bord Gaìs emergency line on
1850 205050 or contact your local gas supplier.
08 27117 00 - D841 18/6/04 11:07 am Page 2

User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 21
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Be Safe - Not Sorry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Using the Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Using the Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using the Ovens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Top Oven Baking Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Oven Furniture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Slow Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cooking with a Fanned Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Defrosting and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Conversion Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Main Oven Baking Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Traditional Fruit Cakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Roast Turkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Roasting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 26
Regulations & standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Ventilation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Clearances & dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Stability bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Connect to electricity supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Connect to the gas supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Belling Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
1
Please keep this handbook for future reference, or for anyone else
who may use the appliance.
Contents
08 27117 00 - D841 18/6/04 11:07 am Page 3

Thank you for choosing a
Belling appliance
We hope that the following information
will help you to familiarise yourself
with the features of the appliance, and
to use it successfully and safely.
Our policy is one of constant development
& improvement. Strict accuracy of
illustrations and specifications is not
guaranteed. Modification to design
and materials may be necessary
subsequent to publication.
This appliance must be installed in
accordance with the regulations in
force, and only in a well ventilated
space. Read the instructions before
installing or using this appliance.
Your new appliance is designed to be
installed flush to base units.
Your 1st Year Guarantee
To fulfil the conditions of your guarantee,
this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
Please note that the guarantee, and
Service availability, only apply to the
UK and Republic of Ireland.
Before using the appliance for the
first time, remove any protective polythene
film and wash the oven shelves and
furniture in hot soapy water, to remove
their protective coating of oil. Even so,
when you first turn on the oven or grill you
may notice a smell and some smoke.
Gas & Electrical connection
Please refer to installation instructions
for the Gas & Electrical Safety Regulations
and the Ventilation Requirements.
In your own interest, and that of safety,
it is the law that all gas appliances be
installed by competent persons, to ensure
that the installation is in accordance
with “The Gas Safety (Installation and
Use) Regulations”, and the “The Gas
Safety (Installation and Use)
(Amendment) Regulations”. Failure to
comply with these Regulations is a
criminal offence.
Corgi registered installers undertake to
work to satisfactory standards.
Disconnection of gas and electric
appliances should always be carried
out by competent persons.
Warning: This appliance must be
earthed.
Moving the cooker
Do not attempt to move the cooker by
pulling on the doors or handles. Open
the door and grasp the frame of the
cooker, taking care that the door does
not shut on your fingers.
Take care to avoid damage to soft or
uneven floor coverings when moving
the appliance. Some cushioned vinyl
floor coverings may not be designed
to withstand sliding appliances without
marking or damage.
2
Introduction
08 27117 00 - D841 18/6/04 11:07 am Page 4

Ventilation
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is well
ventilated: keep natural ventilation
holes open or install a mechanical
ventilation device (mechanical extractor
hood). Prolonged intensive use of the
appliance may call for additional
ventilation, for example, opening of a
window, or more effective ventilation,
for example increasing the level of
mechanical ventilation where present.
If the ignition fails:
l Check there is a spark when the
ignition button is depressed. If
there is no spark, check that the
electricity supply is switched on at
the cooker control box.
l Check that the gas supply is
switched on.
Stability bracket
If the cooker is to be fitted with a
flexible inlet connection, a stability
bracket should also be fitted to engage
in the back of the cooker. Make sure
this is re-engaged whenever you move
the cooker for cleaning.
The cooling fan
When the appliance is switched on,
you may hear the cooling fan come
on. This keeps the facia and control
knobs cool during grilling / cooking
and will continue to operate for a
period of time after the appliance has
been switched off.
Should any fault occur with the
cooling fan, the appliance will require
servicing. Contact Customer Care.
3
Introduction
08 27117 00 - D841 18/6/04 11:07 am Page 5

Environmental Protection
We are committed to protecting the
environment and operate an
Environmental Management System
which complies with BS EN ISO
14001.
Disposal of packaging
•All our packaging materials are
recyclable and environmentally
friendly.
• Please help us to protect our
environment by disposing of all
packaging in an environmentally
friendly manner.
•Please contact your local authority
for the nearest recycling centre.
Caution: Packaging materials can
pose a risk of suffocation - keep away
from children.
4
Introduction
08 27117 00 - D841 18/6/04 11:07 am Page 6

When you are cooking, keep
children away from the vicinity
of the appliance.
This product is designed as a domestic
cooking appliance for the preparation
and cooking of domestic food
products, and should not be used for
any other purpose.
lRemove all packaging, protective
films and oils from the appliance
before using for the first time.
lMake sure you read and
understand the instructions before
using the appliance.
lKeep electrical leads short so they
do not drape over the appliance
or the edge of the worktop.
lKeep all flammable materials (such
as curtains, furnishings & clothing)
away from the appliance.
lParts of the appliance may be hot
during or immediately after use.
Care should be taken to avoid
touching heating elements inside
the oven. Allow sufficient time
for the appliance to cool after
switching off.
lNever use the appliance for
heating a room.
lDo not drape tea towels over the
flue vents or doors as this creates
a fire hazard.
lWhen opening the appliance
door, take care to avoid skin
contact with any steam which may
escape from the cooking.
lDo not use aluminium foil to cover
the grill pan, or put items wrapped
in foil under the grill as this creates
a fire hazard. The high reflectivity
can also damage the element.
lUse oven gloves when removing
hot food / food from the oven or
grill. The oven / grill and utensils
will be very hot when in use.
lDo not use foil on oven shelves, or
allow it to block the oven flue, as
this creates a fire hazard, and
prevents heat circulation.
lWhen cooking heavy items - eg;
turkeys - do not pull the oven shelf
out with the item still on the shelf.
Warning: This appliance must be
earthed.
When you have finished
cooking check that all controls
are in the off position.
5
Be Safe - Not Sorry
08 27117 00 - D841 18/6/04 11:07 am Page 7

Ignition
Push in and turn the selected control
knob anticlockwise to the ‘full on’ position
and press the ignition switch, or hold
a lighted match or taper to the burner,
until the burner lights. Turn the control
knob to the required setting.

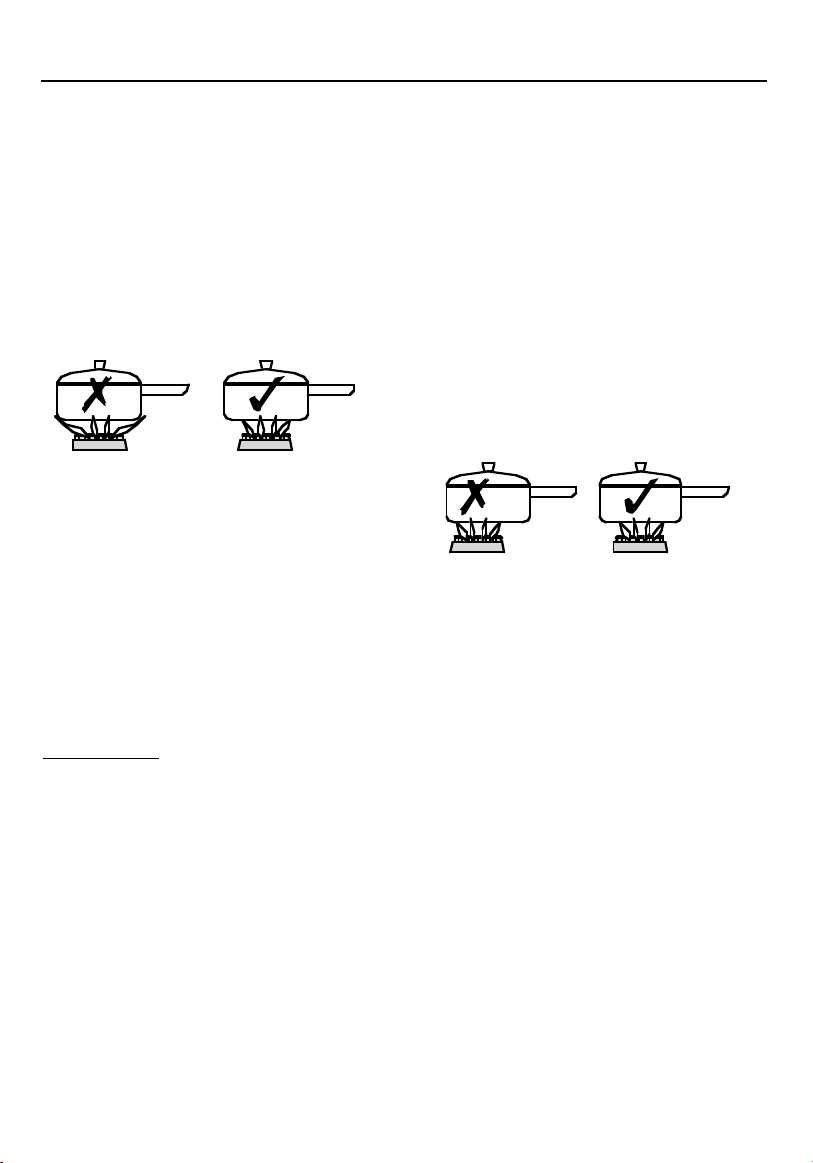

Adjust the burner flame so that it does
not extend over the pan base.
To turn off, push in the control knob
and turn clockwise until the dot on the
control knob is below the dot on the
facia panel.
To simmer
The simmer position is marked by the
small flame symbol.
Once lit turn the selected control knob
a n t i c l o c k w i s e past the large flame
symbol (FULL ON) to the small flame
symbol.
You may hear a slight popping noise
when the hob burners are operating
and this is quite normal, but if anything
about the cooker appears unusual,
such as change in flame appearance,
or the operation of controls - seek
expert advice.
Pans
For optimum safety and performance, we
recommend the use of flat bottomed pans
with a base diameter of minimum 100mm
(4”) and maximum 250mm (10”).
Do not use double pans, rim based
pans, old misshapen pans or any pan
which is unstable when placed on a
flat surface.
Position pans over the centre of the
burners, resting on the pan supports.
If positioned off centre, smaller pans
may be unstable.
When cooking with fat or oil, never
leave unattended.
Turn pan handles to a safe position,
so they are out of reach of children,
not overhanging the appliance, and
cannot be caught accidentally.
Commercial simmering aids should
not be used as they create excessive
temperatures that can damage the
surface and may cause a hazard.
Pan supports
Always make sure the pan supports
are replaced correctly, and located in
the hob spillage well.
6
Using the Hob
08 27117 00 - D841 18/6/04 11:07 am Page 8

7
To save gas
lUse the size of pan most suited to
the size of the burner - ie; larger
pans on the larger burners, smaller
pans on the smaller burners.
lAdjust the flames so that they do
not lick up the sides of the pan.
lPut lids on saucepans and only heat
the amount of liquid you need.
lWhen liquids boil, reduce the control
setting to maintain a simmer.
lConsider the use of a pressure
cooker for the cooking of a
complete meal.
lPotatoes and vegetables will cook
quicker if chopped into smaller
pieces.
The fold down lid
Caution: Glass lids may shatter when
heated. Turn off all the burners before
shutting the lid.
When opening and closing the lid, use
the cooler outer sides of the lid.
The lid must be opened fully, so there
is no danger of it closing while the hob
is being used.
The appliance is fitted with a switch-
back system, which will automatically
turn off the hotplate controls if they are
inadvertently left on as the lid is closed.
The lid is not intended to be used as a
work surface, as it becomes hot when
any part of the cooker is in use, and
the surface may be scratched if items
with rough or sharp surfaces are
placed on it.
Using the Hob
08 27117 00 - D841 18/6/04 11:07 am Page 9

8
Using the Grill
Caution: Accessible parts may
be hot when grill is used, young
children should be kept away.
To switch on the grill
Open the top oven / grill door.
Turn the top oven control anti clock-
wise to the grill symbol.
The grill door must be fully open when
the grill is used.
To switch off, return the control knob to
the ‘off’ position.
Preheating
Always preheat the grill for about
3 minutes for best cooked results.
The cooling fan
When the grill is switched on, you will
hear the cooling fan come on - this
keeps the fascia and control knobs of
the appliance cool during grilling
only. The fan will continue to operate
for a period after the grill control has
been switched off.
Detachable grill pan handle
Place the handle over the edge of the
grill pan, at the narrow side edges.
Slide the handle to the centre, and
locate between the handle position
indicators.
The handle should be removed from
the pan during grilling, to prevent
overheating.
The handle is designed for removing /
inserting the grill pan under the grill
when grilling.
If cleaning the grill pan when it is hot,
use oven gloves to move it. Do not use
the handle to pour hot fats from the
grill pan.
Food for grilling should be positioned
centrally on the trivet.
handle
grill pan
trivet
handle position
indicators
08 27117 00 - D841 18/6/04 11:07 am Page 10
