45cm Combi Steam Microwave Oven
INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.

CONTENTS
WARNINGS AND PRECAUTIONS 1
PARTS AND ACCESSORIES 3
INSTALLATION 4
OPERATION 6
Before First Use 6
Controls 7
Utensils and Materials 16
Automatic Program Index 17
CLEANING AND MAINTENANCE 20
Cleaning 20
Maintenance 20
Disposal 21
TECHNICAL & REFERENCE DATA 22
Model Specications 22
Warranty 22
www.belling.com.au
www.belling.co.nz

1
IMPORTANT INFORMATION
To reduce the risk of injury to users, re, electric shock or exposure
to excessive microwave oven energy when using your appliance,
follow the caution warnings listed below. Please retain this manual for
product warranty and for future reference.
CAUTION
• Install or locate this oven only in accordance with the installation instructions
provided.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a swimming pool.
• Accessible parts may become hot during use. Keep cord away from heated
surfaces, and do not cover any vents on the oven. Do not let cord hang over
edge of table or counter. Keep the appliance and its cord out of the reach of
children.
• Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy.
• Do not tamper with the safety interlocks as this can lead to damage.
• Do not place any object between the oven front face and the door or allow soil
or cleaner residue to accumulate on sealing surfaces.
• If the door or door seals are damaged, the oven must not be operated until it
has been repaired by a service agent.
• If the power cord is damaged, it must be replaced by an authorised service
agent in order to avoid a hazard.
• It is hazardous for anyone other than an qualied service agent to carry out
any service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
• Liquids and other foods must not be heated in sealed containers since they are
liable to explode.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
WARNINGS & PRECAUTIONS

2
• Children should be supervised to ensure that they do not play with the
appliance.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
• Only use utensils suitable for use in microwave ovens when using the
microwave function (see page 16).
• The oven should be cleaned regularly and any food deposits should be
removed.
• When heating food in plastic or paper containers, monitor with caution due to
the possibility of ignition.
• If smoke is emitted, switch off or unplug the appliance and keep the door
closed.
• Do not overcook food.
• Do not run the appliance without any food inside.
• Do not use the oven cavity for storage purposes.
• The microwave oven function is intended for heating food and beverages.
Drying of food or clothing and heating of warming pads, slippers, sponges and
similar may lead to risk of injury or re.
• Remove wire twist-ties and metal handles from paper or plastic containers/
bags before placing them in the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of
the surface that could adversely affect the life of the appliance and possibly
result in a hazardous situation.
•Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
IMPORTANT
Do not disassemble this appliance. Touching of the internal
components by an unqualied person is dangerous and could cause
serious injury.
WARNINGS & PRECAUTIONS

3
1. Control panel
2. Grill element
3. Light
4. Level
5. Door glass
6. Hinge
7. Grill rack
8. Glass pan
9. Water tank for the steam function
PARTS AND ACCESSORIES
9
7
8
1
2
3
4
5
6

4
INSTALLATION
• This appliance is NOT intended for use in commercial environments.
• Please observe the installation instructions provided and note that this
appliance should only be installed by a qualied technician. Incomplete or
improper installation could lead to safety issues and make your warranty void.
• The tter is liable for any damage resulting from incorrect installation.
• This appliance is only intended to be fully tted in a kitchen.
• This appliance is not designed to be used as a tabletop appliance or inside a
cupboard.

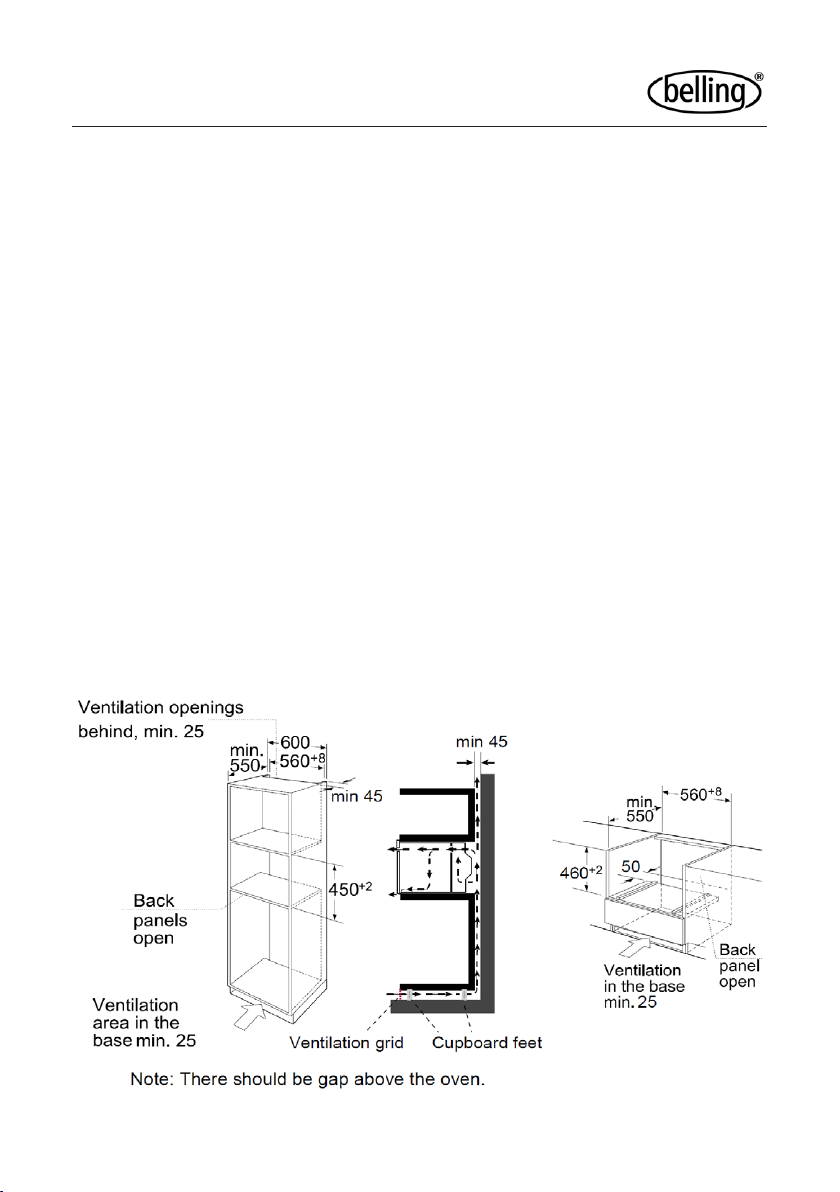

• The tted cabinet must not have a back wall behind the appliance. A gap of at
least 45mm must be maintained between the wall and the base/back panel of
the unit. There must also be a ventilation opening of 25cm2on the front of the
tted cabinet - to achieve this, cut back the base panel or t a ventilation grille.
• Ventilation slots and intakes must not be covered.
• The unit into which the appliance is tted must be heat-resistant up to 90°C.
• Do not hold or carry the appliance by the door handle. The door handle cannot
hold the weight of the appliance and may break off.
cm2
cm2
cm2

5
INSTALLATION

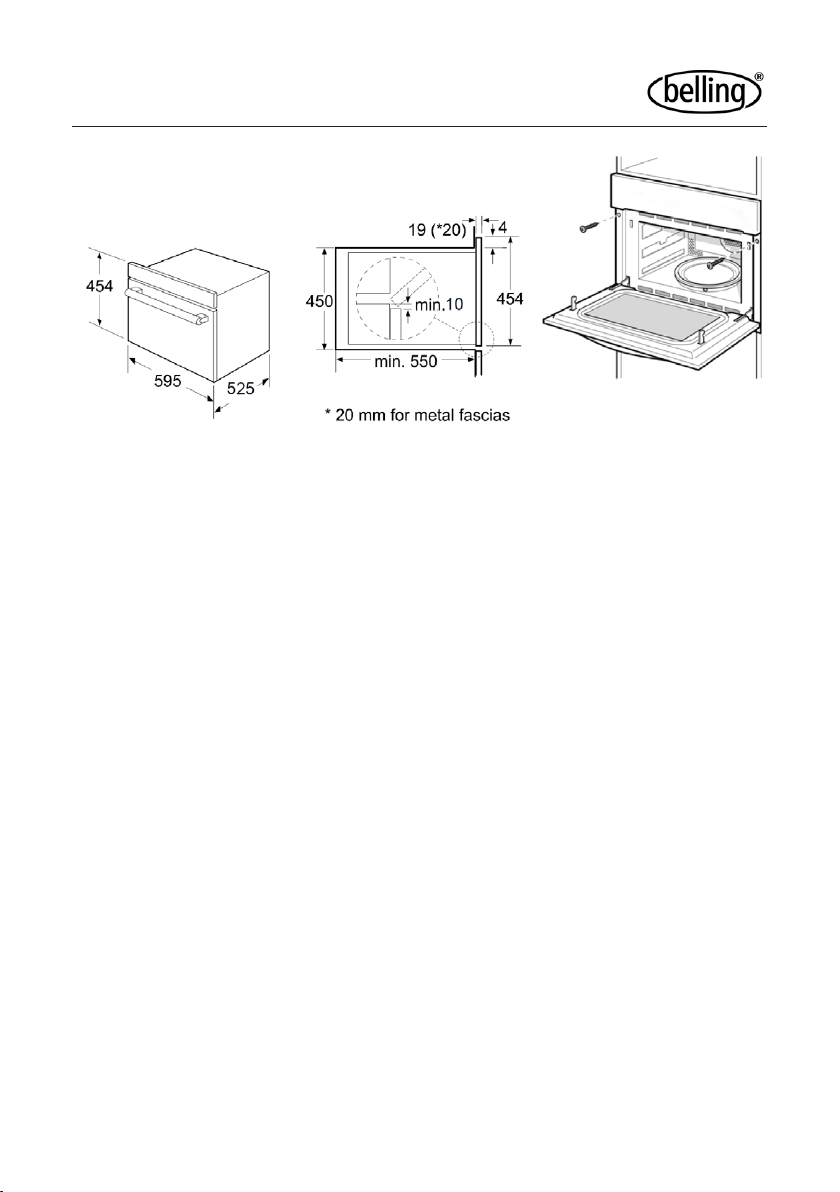

1. Fully insert the appliance and centre it. Do not kink the connecting cable.
2. Open the door and fasten the oven with supplied screws.
3. The gap between the worktop and the appliance must not be closed by
additional battens.
IMPORTANT
In case a new socket is needed, installation and cable connection must only be
done by a qualied electrician. Adapters, multi-way strips and extensions cords
must not be used. Overloading can result in re.
Connect the wires of the mains power cord in accordance with the following colour
coding: Green and yellow Earth wire (E)
Blue Neutral wire (N)
Brown Live (L)
Do not connect the appliance using a 13 A plug or protect it with a 13 A fuse. Only
use a fuse that is rated 16 A or higher. The appliance must be disconnected from
the power supply during all installation work. When the appliance is installed,
protection must be provided against accidental contact in the future.
This appliance must be grounded. Improper use of grounding can result in electric
shock. Consult a qualied professional if doubt exists as to whether the appliance is
properly grounded.

6
BEFORE FIRST USE
• Please read these instructions carefully before use and keep them for
future reference.
• Check your local main voltage whether it is the same as stated on the
appliance.
• Remove any protective lms from the appliance surfaces and all
materials from the carton and oven cavity.
1. Remove all accessories and wash out the cavity.
2. New appliances typically smell when rst used. ‘Burn’ the appliance off
by touching to turn the appliance on. The main menu will appear in
the display.
3. Touch to choose the convection function.
4. Recommended temperature will be highlighted. Raise the temperature to
the maximum by touching and then touch the
5. Touch to start the oven, heat the empty oven for at least an hour.
Make sure that the room is well ventilated, close the doors to the other
rooms to avoid odours pervading the house.
6. Let the appliance cool down to room temperature. Make a solution of
detergent mixed with hot water to clean inside the microwave oven, then
wipe dry with a clean soft cloth. Keep the door open until the oven cavity
is completely dry.
OPERATION

7
CONTROLS
OPERATION
Steam oven + Combi oven mode
Microwave + Convection cooking
Setting clock or adjusting time
Change default settings
Release water tank
Automatic programs/defrosting/cleaning oven
Adjust times, temperature and modes Stop
Start
The display will change symbols to show which function is selected.
The button goes through multiple functions in the following order:
• Microwave
• Convection/Fanned oven
• Fanned Grill
• Grill
• Microwave + Convection/Fanned oven
• Microwave + Fanned Grill
You can nd a step to step
guide for using each of these
functions on page 8 - 11
The button goes through steam and steam combination functions in
the following order:
• Steam
• Steam + Microwave
• Steam + Convection/Fanned oven
You can nd a step to step
guide for using each of these
functions on page 12 - 13
The button goes through other functions in the following order:
• Defrost
• Automatic Programs (Steam and non-steam)
• Clean
You can nd a step to step
guide for using each of these
functions on page 14 - 15

8
OPERATION
2. Microwave Cooking
Touch the once, the appliance will enter the microwave mode. You will notice
the screen showing the default power 900W and default time of 10:00 minutes.
To change the wattage, touch the and when the 900 is ashing touch the
to lower the wattage. (Minimum of 100 watts)
To change the time, touch the and when the 10:00 minutes is ashing,
touch or to give desired time. Touch the to start.
If at any time an error has been made, simply touch the (stop) and start again.
Microwave Power 100% 80% 50% 30% 20%
Display 900W 700W 450W 300W 100W
Power Level Food
900W Boiling water, reheating. Cooking chicken, sh, veggies.
700W Reheating. Cooking mushrooms and shell sh.
Cooking dishes containing eggs and cheese.
450W Cooking rice, soup
300W Defrosting. Melting chocolate and butter
100W Defrosting sensitive/delicate foods. Defrosting irregularly-shaped foods. Softening
ice cream. Allowing dough to rise.
1. Clock Setting
When the oven is initially connected, “00:00” will blink and the buzzer will ring once.
To set the time press or to adjust the blinking numbers. When adjusting
the minutes you can short press the or to adjust in 1 min increments,
or press and hold the buttons to adjust in 10 min increments.
After you have reached the correct time, press to set.
Note: To change the set time, you have to press and hold the button for 3
seconds. The actual time disappears and then the time will blink in the display.
Repeat the previous instruction to set the time.

9
OPERATION
4. Fanned Grill
Touch the three times to get into fanned grill mode, the screen will show the
default temperature of 180°C and default time of 10:00 minutes.
To adjust the temperature, touch the and when 180°C is ashing, use the
or to increase or decrease the temperature. The default temperature is
180°C but the temperature can be set from 35 - 180°C.
To change the time, touch the and when the 10:00 minutes is ashing, touch
or to give desired time. Touch the to start. The max time is 5 hours.
5. Grill
Touch the four times to get into the grill function, the screen will show the
default grilling level of 3 and default time of 10:00 minutes.
To adjust the level of grilling, touch the and when the 3 is ashing, use the
to decrease the grilling level to either 1 or 2.
To change the time, touch the and when the 10:00 minutes is ashing, touch
or to give desired time. Touch the to start. The max time is 90 mins.
3. Convection Oven Cooking
Touch the twice to get into convection cooking mode, the screen will show
the default oven temperature of 180°C and default time of 10:00 minutes.
To adjust the temperature, touch the and when 180°C is ashing, use the
or to increase or decrease the temperature. The default temperature is
180°C but the temperature can be set from 50 - 230°C.
To change the time, touch the and when the 10:00 minutes is ashing, touch
or to give desired time. Touch the to start. The max time is 5 hours.

10
7. Microwave + Fanned Grill
Touch the six times to get into microwave + fanned grill combination mode,
the screen will show the default oven temperature of 180°C, default power of
300W and default time of 10:00 minutes.
To adjust the temperature, touch the and when 180°C is ashing, use
to decrease the temperature to 100 - 180°C.
To change the wattage, touch the again and when the 300 is ashing touch
or to increase or decrease the wattage to 100W - 700W.
To change the time, touch the and when the 10:00 minutes is ashing, touch
or to give desired time. Touch the to start. The max time is 90 mins.
OPERATION
6. Microwave + Convection/Fanned oven
Touch the ve times to get into microwave + convection combination mode,
the screen will show the default oven temperature of 180°C, default power of
300W and default time of 10:00 minutes.
To adjust the temperature, touch the and when 180°C is ashing, use the
or to increase or decrease the temperature to 50 - 230°C.
To change the wattage, touch the again and when the 300 is ashing touch
or to increase or decrease the wattage to 100W - 700W.
To change the time, touch the and when the 10:00 minutes is ashing, touch
or to give desired time. Touch the to start. The max time is 90 mins.

11
9. Preheating Function
The preheating function can be activated after you have set any of the following
functions: Convection/Fanned oven, Fanned Grill, Microwave + Fanned Grill,
Microwave + Convection/Fanned oven
Touch the and the preheat icon ( ) will appear in the display. Ensure you
have selected your desired temperature correctly.
Touch the to start preheating. When the right temperature has been reached
the buzzer will ring 3 times. You can stop the preheating by opening the oven door
or touching the
This function will only work if you have chosen one of the modes listed above.
During the preheating, the microwave function is switched off. During preheating,
don’t put the food in the oven. Only when the temperature is reached, can you put
in the food to start cooking.
OPERATION
8. Microwave + Grill
Touch the seven times to get into the microwave + grill function, the screen
will show the default grilling level of 3, default power of 300W and default time of
10:00 minutes.
To adjust the level of grilling, touch the and when the 3 is ashing, use the
to decrease the grilling level to either 1 or 2.
To change the wattage, touch the again and when the 300 is ashing touch
or to increase or decrease the wattage to 100W - 700W.
To change the time, touch the and when the 10:00 minutes is ashing, touch
or to give desired time. Touch the to start. The max time is 90 mins.

12
OPERATION
Touch the once, the appliance will enter the steam mode. You will notice the
screen showing the default steam level 100 (this is displayed as a temperature but
it is a percentage) and default time of 10:00 minutes. The current water level will
also be displayed.
To change the steam level, touch the and when the 100° is ashing touch
the to decrease the steam level to anywhere between 50 - 100.
To change the time, touch the and when the 10:00 minutes is ashing,
touch or to give desired time. Touch the to start. The maximum time
is 90 mins.
If at any time an error has been made, simply touch the (stop) and start again.
10. Steam Cooking Function
Before starting the steam cooking function, please clean the water tank.
During the steam cooking function, if the tank is short on water a buzzer will ring
while the screen icon will show water status is low to remind you to add water. To
add water touch the to release the water tank. Fill the tank with water and place
it back into the appliance and cooking will resume.
After the steam cooking function is nished, the water in the boiler will be
withdrawn back to the water tank. This process can last for about 1 minute. During
this process if the water tank is full, the buzzer will beep 10 times to remind you to
empty the tank. After the water tank has been emptied the system will continue to
withdraw water. After steam cooking, please remove the water from the water tank.

13
OPERATION
12. Steam + Convection/Fanned oven
Touch the three times to get into the steam + convection/fanned oven
function, the screen will show the default steam level of 30°, default temperature of
180°C and default time of 10:00 minutes.
To change the temperature, touch the and when the 180°C is ashing touch
the to increase the temperature to 180 - 220°C.
To change the steam level, touch the again and when the 30° is ashing
touch the to decrease the steam level to either 10 or 20.
To change the time, touch the and when the 10:00 minutes is ashing,
touch or to give desired time. Touch the to start. The maximum time
is 90 mins.
11. Steam + Microwave
Touch the twice to get into the steam + microwave function, the screen will
show the default power of 300W, default steam level of 30° and default time of
10:00 minutes.
To change the wattage, touch the and when the 300W is ashing touch the
or to increase or decrease the power to 100W - 900W.
To change the steam level, touch the again and when the 30° is ashing
touch the or to increase or decrease the steam level. The steam level that
can be chosen depends on the microwave power (see table below).
To change the time, touch the and when the 10:00 minutes is ashing,
touch or to give desired time. Touch the to start. The maximum time
depends on the power of the microwave chosen, up to 30 minutes for 900W and
up to 90 minutes for lower wattage powers.
Power Level 100W 300W 450W 700W 900W
Steam Ratio Up to 30 Up to 60 Up to 70 Up to 70 Up to 100

14
OPERATION
14. Automatic Program Mode
There are auto cooking programs for both steam and non-steam cooking. Steam is
S01-S40, and non-steam is P01-P40. There are 40 pre-programmed functions for
each.
Touch the twice, the appliance will enter the non-steam automatic program
mode. You will notice the screen showing the rst automatic program P01, weight
and time. If you touch the once more you will enter the steam automatic
program mode and the screen will display the rst automatic program S01.
To change the program, touch the and use the or to select.
In this function the time to cook is determined by the weight. To change the weight,
touch the again and use the or to select the weight. Touch the to
start the program.
For all preprogrammed functions, please refer to the Automatic Program Index on
page 17.
13. Defrost
Touch the once, the appliance will enter the defrost mode. You will notice the
screen showing the defrost icon , the default defrost mode (D01), weight and
time.
To conrm the defrost mode, touch the
Touch the or to select the weight. Touch to start defrosting.
15. Cleaning
For best cleaning results, we recommend that you use detergent sodium citrate to
descale. Follow the manufacturer’s instructions on the packaging. It is suggested
that the descaling function should be used after the steam function has been run
for 20 hours.

15
OPERATION
16. Reset / Child safety lock
To reset, while inputting functions, programs, times, temperatures etc. touch the
To lock, press and hold for 3 seconds, there will be a long beep to inform
you that you have entered the child safety lock state and you will notice a on
the screen. To unlock, press and hold for 3 seconds again and there will be
another beep to indicate the child safety lock has been released and the will
disappear.
15. Cleaning (cont’d)
Power up the system, touch the to release and remove the water tank, ll
1000ml of fresh water into the water tank, adding a pack of descaling agent.
Touch the four times to enter the cleaning function. You will notice the screen
displays CLE, the time of 20:00 and current water level.
Touch to start the program.
Once to cleaning program is nished wait 1 minute, take out the water tank and
clean. Fill the water tank with fresh water and repeat the cleaning program.
Note: This appliance should not be
shut down during the program. If it does shut down
before the end of the program the cleaning program
must be selected and started again.
17. Display Functionality
Whilst choosing settings, the oven will conrm an option automatically if you do not
touch a button for 10 seconds. (Excluding when you initially set the clock on rst use.)
When the appliance is in the setting or paused state, including the auto menu and
defrost program, if there is no operation in 5 minutes it will turn itself off.
The oven light will be on at all times that the door is open or the oven is paused.
If the oven door is opened during the cooking process you must touch the to
continue cooking.
The can be touched in any state to release the water tank.

16
OPERATION
UTENSILS AND MATERIALS
Materials you CAN use in the oven when using the microwave function
Utensils Remarks
Dinnerware Microwave-safe only. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags Do not close with metal tie. Make slits to allow steam to escape.
Paper plates/cups Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision
for short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Some plastic containers soften, as the food
inside gets hot. “Boiling bags” and tightly closed plastic bags should be
slit, pierced or vented as directed by manufacturer.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.
Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Materials to be AVOIDED in the oven when using the microwave function
Utensils Remarks
Aluminium foil May cause arcing and could cause a re in the oven.
Aluminium tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal/metal trimmed utensils Metal shields food from microwave energy. Trims may cause arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper bags May cause a re in the oven.
Plastic foam May melt or contaminate the liquid inside when exposed to high temp.
Wood Will dry out and may split or crack.
Please follow manufacturer’s instructions for all materials and utensils.

17
OPERATION
AUTOMATIC PROGRAM INDEX
Steam Programs
Display Food Item Weight Options Function Powers
S01 Trout 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S02 Salmon Fillet 200 / 300 / 400 / 500 / 600 Steam 100% + 100W
S03 Pike perch 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S04 Prawns 200 / 300 / 400 / 500 / 600 Steam 100%
S05 Halibut Fillet 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S06 Cockles 200 / 300 / 400 / 500 / 600 Steam 100% + 100W
S07 Cod Fillet 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S08 Herring 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S09 Tuna Fillet 200 / 300 / 400 / 500 / 600 Steam 100% + 100W
S10 Crab 2 / 3 / 4 / 5 / 6 Steam 100% + 300W
S11 Chicken leg 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S12 Chicken breast 200 / 300 / 400 / 500 / 600 / 700 / 800 Steam 100% + 300W
S13 Meatball 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S14 Turkey escalope 400 / 500 / 600 / 700 / 800 Steam 100% + 300W
S15 Pork Filet, whole 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S16 Sausages 200 / 300 / 400 / 500 / 600 Steam 100% + 100W
S17 Poached Eggs 1 / 3 Steam 100%
S18 Eggs, hard 1 / 3 Steam 100%
S19 Eggs, soft 1 / 3 Steam 100%
S20 Brown rice + water 200g + 400ml / 400g + 800ml Steam 100% + 450W /
Steam 100% + 300W
S21 Rice + water 200g + 300ml / 400g + 600ml Steam 100% + 450W /
Steam 100% + 300W
S22 Eggplant / Aubergine 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S23 Beans 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S24 Broccoli 200 / 300 / 400 / 500 / 600 Steam 100%
S25 Cauliower 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S26 Peas 200 / 300 / 400 / 500 / 600 Steam 100% + 300W

18
Display Food Item Weight Options Function Powers
S27 Potatoes with skin
(whole, small)
1 / 2 / 3 / 4 Steam 100% + 300W
S28 Potatoes with skin
(whole, big)
1 / 2 / 3 / 4 Steam 100%
S29 Potatoes without skin
(pieces)
200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S30 Carrots 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S31 Corn cobs 2 / 3 / 4 / 5 / 6 Steam 100% + 300W
S32 Capsicum / Bell
Peppers
200 / 300 / 400 / 500 / 600 Steam 100%
S33 Hot Peppers 200 / 300 / 400 / 500 / 600 Steam 100%
S34 Mushrooms 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S35 Leeks 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S36 Brussels Sprouts 200 / 300 / 400 / 500 / 600 Steam 100%
S37 Celery 200 / 300 / 400 / 500 / 600 / 700 / 800 Steam 100% + 300W
S38 Asparagus 200 / 300 / 400 / 500 / 600 Steam 100% + 100W
S39 Spinach 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
S40 Zucchini / Courgette 200 / 300 / 400 / 500 / 600 Steam 100% + 300W
OPERATION
Non-steam Programs
Display Food Item Weight Options Function Powers
P01 Melted Chocolate 100 / 150 / 200 450W
P02 Melted Butter 100 / 150 / 200 450W
P03 Sweet Potato 200 / 400 / 600 100W + 220°C
P04 Chicken Whole 800 / 1000 / 1200 100W + 220°C
P05 Chicken Leg 200 / 300 / 400 / 500 / 600 / 700 / 800 450W + 220°C
P06 Chicken Wings 200 / 300 / 400 / 500 / 600 / 700 / 800 300W + 220°C
P07 Fish Whole 1 / 2 / 3 100W + 220°C
P08 Fish Steak 200 / 300 / 400 / 500 / 600 100W + 220°C
P09 Fresh Pizza 200 / 300 / 400 / 500 / 600 Preheat / 200°C
P10 Frozen Pizza 200 / 300 / 400 100W + 220°C
P11 Cake 400 / 500 / 600 Preheat / 150°C
P12 Roast Pork 400 / 500 / 600 / 700 / 800 / 900 / 1000 450W + 220°C
