Bellini BDRA603TBX2 Installation instructions

INSTALLATION & OPERATION
INSTRUCTIONS
60cm/90cm Black Fascia Canopy
Range hood Model No.
BDRA603TBX2 FINELINE: 5102976
BDRA603TBX2-F FINELINE: 0220236
BDRA903TBX2 FINELINE: 5102977
BDRA903TBX2-F FINELINE: 0220233
GSM Retail Australia Pty Ltd ABN: 53 007 582475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZwww.belliniappliances.com.au
Model: BDRA603TBX2FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2FINELINE5102977:,BDRA903TBX2-F FINELINE:0220233
60cm/90cm Black Fascia Canopy Range hood V3 Sep20

Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please contact
1300 373 199
GSM Retail Australia Pty Ltd ABN: 53 007 582475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZwww.belliniappliances.com.au
Model: BDRA603TBX2FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2FINELINE5102977:,BDRA903TBX2-F FINELINE:0220233
60cm/90cm Black Fascia Canopy Range hood

Content
Safety instructions----------------------------- 2
Product description---------------------------- 4
Installation----------------------------------------6
Start using your Range hood-----------------11
Maintenance and cleaning -------------------12
Warranty------------------------------------------ 13
GSM Retail Australia Pty Ltd ABN: 53 007 582475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZwww.belliniappliances.com.au
Model: BDRA603TBX2FINELINE: 5102976, BDRA603TBX2-F FINEL0220236INE: , BDRA903TBX2FINELINE5102977:,BDRA903TBX2-F FINELINE:0220233
60cm/90cm Black Fascia Canopy Range hood

2
Safety instructions
This manual explains the proper inst allation and use of your range hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept
in a safe place for future reference. In case of failure, only the Authorised
Technical Service may repair this range hood. Otherwise the guarantee will be null
and void. All Bellini Appliances are for domestic use only.
Never to do:
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
zNever carry out flamable cooking under the
appliance
zThe exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
zDo not leave lit gas burners exposed due to the risk
of fire.
zThis range hood is not recommended for
barbecues.
Always to do:
zPackaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
zYoung children should be supervised to
ensure that they do not play with the
appliance.
zEnsure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
zGrease filters must be removed every four
weeks (maximum) for cleaning to reduce the
risk of fire.
zThere must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
zAlways cover lit gas burners with pots or pans
when range hood is in use.
zAlways switch off gas burners before you
remove pots or pans.
zIf the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
zPlug must be accessible after installation.

3
Safety instructions
Never to do:
zThis range hood cannot be installed for outdoor use.
zIt is prohibited to fit the range hood over a solid fuel
stove
zThis appliance must not be connected to a chimney
or vent flue which is in use.
zThis appliance is not to be vented into the roof
cavity, must exit into open air.
zExhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
zThis appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
zAttention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
zThis appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
zBefore connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
This product must not be disposed together
with domestic waste. This product has to be
disposed at an authorised place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural
resources, and make sure the product is disposed in an
environmental friendly and healthy way.

4
BDRA603TBX2/-F, BDRA903TBX2/-F
Component list:
1. Upper decorative chimney bracket
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)
6. Hood mount bracket
7. Main body
8. Grease mesh filter*
Technical data:
Power supply: 220 – 240v, 50Hz
Lights: 1x1.5W LED Light
Motor: 190W
Length of power cord: 1.5m Air
outlet diameter: 150mm
* for BDRA603TBX2, BDRA603TBX2-F, 2 filters; for BDRA903TBX2, BDRA903TBX2-F, 3 filters
* Maximum extension of upper and lower chimney is 780mm

5
Operation Mode
Your range hood can be operated in two optional modes, choose the m ode suitable for your kitchen before
installation.
Air Extraction
Air Recirculation
To outside
To inside
For air extraction mode, a ducting kit is re quired, the air
is drawn in and cleaned by the grease filters and
directed outside.
Ducting must be vented to outside atmosphere.
For air recirculation mode, charcoal filter is a must to
eliminate cooking smells.
The air is drawn in and cleaned first by the grease filters
and then charcoal filter. The cleaned air is then
re-circulated back into kitchen through grilles on the
upper decorative chimney.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 www.belliniappliances.com.au

6
Installation
Dimensions:
BDRA603TBX2, BDRA603TBX2-F Width=600
BDRA903TBX2, BDRA903TBX2-F Width=900

7
Installation:
Warning:
Check that the installatio n complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
•Keep exhaust duct short and straight
•Do not reduce the size or restrict exhaust duct
•When using flexible duct always install the duct pulled taut to minimize pressure loss
•Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal
line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of
600mm & 650mm to the gas cook top and a maximum height of 750mm (refer to table below).
Dimension 170mm
Dimension 30-465mm
Dimension 115mm Dimension 115mm Dimension 242mm
Dimension 256mm Dimension 80mm
Horizontal line Hood Base
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
Vertical centre line
Top of hob/Trivet
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
3x8mm holes for
Hood mount bracket
2x8mm holes for Upper
chimney retaining
bracket
2x8mm holes for Lower
chimney retaining
bracket
Dimension 190mm
Dimension 128mm
8

9
Use 2 x ST4x8mm screws to attach lower and upper chimney together, do not fasten screws
too much, make sure upper decorative chimney can be telescopically adjusted after assembled
4.Fit the flexible exhaust pipe onto outlet with the 153mm end, use a strap to tighten the pipe.
*If you choose air extraction mode, please install the flexible exhaust pipe, if you choose air recirculation
mode, no need to install the flexible exhaust pipe, please skip this step and jump to step 5
5. Remove the grease mesh filter and install active charcoal filter (Not Supplied) onto motor chamber refer
below drawing.
*If you choose air extraction mode, please skip this step and jump to step 6, if you choose air recirculation
mode, we strongly recommend to use a charcoal filter (Not Supplied). Charcoal Filters are available at
your local Bunnings Part Number: CF110 Fineline:5102399
6.Secure the hood mount bracket onto wall with 3 x ST4 x 40mm screws, making sure screws are securely
tightened.Secure the upper chimney bracket onto wall with 2 x ST4 x 30mm screws.
Remove all blue protective film on chimney and cooker hood, the installation is now finished.
Based on above drawing and dimension to drill holes(8mm diameter) and hammer dry
wall anchor plugs into holes.
2.
3.

7. Hang on the hood onto the hook of the hood mount bracket, make sure the mount slot on cooker hood
completely slide into hooks.
*Above photo is just for reference only, actual product could be varies…
8. Fasten the 2pcs anti-tilt ST4x30mm screws onto wall to ensure horizontality of rangehood. You can find out
screw holes inside hood near the motor chamber.
9. Plug in the main power supply.
10. Attach the chimney onto the rangehood, secure the lower chiney onto the wall with 2 x ST4x40mm screws.
11. Extend the upper decorative chimney to desired height and fix it with the upper decorative
chiney bracket by 2pcs ST4 x 8mm screws.
Remove all blue protective film on chimney and rangehood, the installation is now finished.
12.
10

11
Start using your range hood
BDRA603TBX2, BDRA603TBX2-F, BDRA903TBX2, BDRA903TBX2-F
On/Off button - Turn on/off unit, Speed increase/decrease
Light button - Turn on/off light
Digital display
1 – Low fan speed; 2- Medium speed ; 3 - High speed.
Timer - Range Hood Auto shut-off
1. With the Range Hood operating , by pressing the "Timer" button the appliance goes into 9 minute
Auto shut-off mode.
The LED display will show count down time remaining status in full minutes from 9-8-7......-1-0 ,and
at reaching 0 will shut-off the Range Hood and light (If light On was also selected ).
You can do this nearing the completion of cooking process or post cooking process to remove any
remaining smells/condensation and not forget to turn it off for extended periods of time.
2.Repeated pressing will cycle appliance between Timer On or Off mode.
Timer can only be activated / deactivated if Range Hood fan is already operating.

12

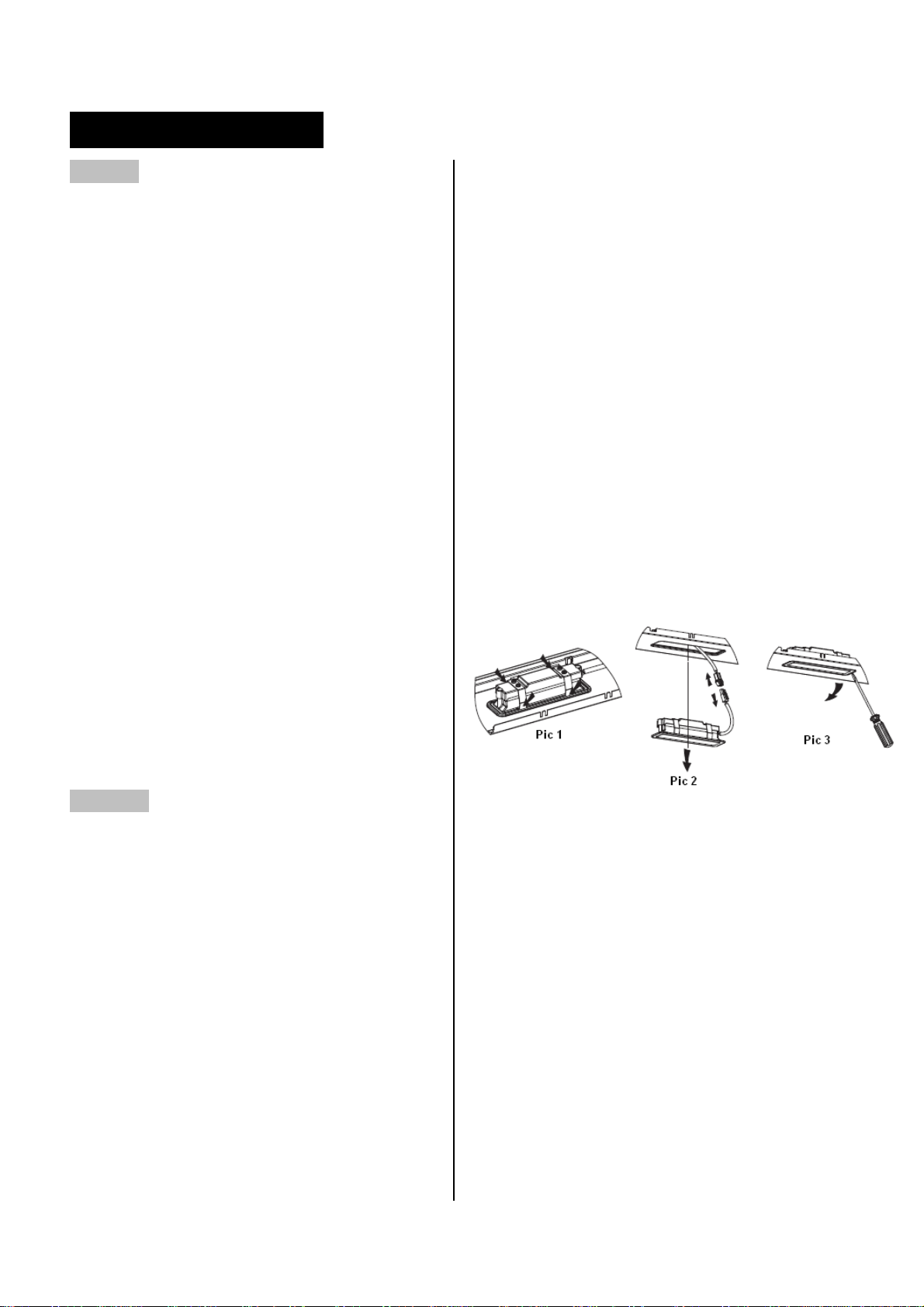

Maintenance and cleaning
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the main
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow below instruction to
ensure the best possible result without damage.
GENERAL
Cleaning and maintenance should be carried out with
the appliance cold especially when cleaning
Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces
STAINLESS STEEL
The stainless steel must be clea ned regularly (e.g.
weekly) to ensure long life expectancy.
Dry with a clean soft clot h. A speci alized stainless
steel cleaning fluid may be used.
NOTE: Ensure that wipin g is done al ong with the
grain of the stainless steel to preve nt any
unsightly scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm
soapy water. Ensure the cloth is clean and well wrung
before cleaning. Use a dry soft cloth to remove any
excess moisture left after cleaning.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any printing
of artwork on the control panel and will void
manufactures warrantee
GREASE MESH FILTERS
The mesh filters can be cleaned either by hand or in
the dishwasher. After cleaning ensure that the filters
are completely dry before refitting.
- By hand: Soak in warm water and a neutral
washing up liquid. For stubborn grease stains use a
soft nylon brush or sponge to help remove these
stains. (Leave to dry naturally out of direct sun light)
- In a dishwasher: Ensure that placement of the
filters is made so as to not impede the function of the
spray arm. Washing the filters in a dishwasher may
cause discoloration of the aluminum inner mesh over
time although it will not affect their performance.
Filters should be washed separately to crockery and
kitchen utensils. It is advisable not to use rinse aid.
REPLACE LED LIGHT
1. Switch the unit off and unplug the appliance.
2.Remove the grease filter...
3. Use a tool or the hand to press the spring splinterof
both sides of LED light to the inside, until the light is pressed
out, see pic 1.
4. Then slightly pull the light connecting wire out, and dismantle
the terminal of the light connecting wire. See pic 2.
5. Use the reverse steps to install the light back.
Important
When handling WKHOLJKW, make sure it is completely co ol
down before any direct contact to hands.

WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and
Consumer Act2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose
Park SA5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a “consumer” as that term isdefined in Section 3 of the Australian Consumer
Law as the original purchaser of a Belliniproduct;
1.1.4 Consumer Guarantees means the guarantees under the Australian ConsumerLaw;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any
Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which
is installed in a domestic household area.
*The in Home warranty does not apply to Commercial and or industrial usage. *Please See 1.7.7 for additional
information
1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and
continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within theWarrantyPeriod a manufacturing defect is discovered in the Bellini product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini
product free of charge. A replacement Bellini product may differ from the original product purchased bythe
Consumer.
1.7 This warranty will not apply to any Bellini product:
1.7.1 Installed by any person other than a qualified tradesperson;or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage;or
1.7.3 Operated in any way contrary to any operating or maintenance instructions;or
1.7.4 Improperly handled, installed or maintained;or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly bypower surges, electrical storm damage or connection to incorrect
power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/ shop environments, hotel/
motel or other similar accommodation or rental type properties including Bed and Breakfast
establishments.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER
MUST CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912
(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE
The Australian Consumer Law requires the inclusion of the following
statement with this warranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order toobtain
the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not
cover the cost of transport of the Bellini product for service nor the service agent’s traveling costs to and
from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept anyresponsibilityfor loss or damage of the Bellini product prior to it being received bythe Company or
its serviceagent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the
Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product)
and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the
Bellini product in accordance with thiswarranty.
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice isproof of date of purchase. Ifyou are unable to establish the date of purchase, or if
the fault isnot covered by this warranty, or if the product isfound to be in working order, you will be required to bear
all service call charges.
GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications
without incurring obligation.
Whilst every effort ismade to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for anyerrors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made
which render the contents of this packaging slightly different to that shown.
FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA)
OR 0800 764 912 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST
AUTHORISED SERVICE CENTRE
