Bellini BRA603CPX Installation instructions

GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0508123108 NZwww.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
INSTALLATION & OPERATION
INSTRUCTIONS
60cm/90cm Canopy Range hood
Model No.
BRA603CPX
BRA603CPX-F FINELINE: 0220602 NZ ONLY
BRA903CPX
BRA903CPX-F FINELINE: 5102529 AUS & NZ
V.7OCT17

GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0508123108 NZwww.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZBRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please contact
1300 373 199

GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0508123108 NZwww.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZAus BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
Content
Safety instructions----------------------------- 2
Product description---------------------------- 4
Installation----------------------------------------6
Start using your Range hood-----------------12
Maintenance and cleaning -------------------13
Warranty------------------------------------------ 14

2
Safety instructions
This manual explains the proper installation and use of your range hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept
in a safe place for future reference. In case of failure, only the Authorised Technical
Service may repair this range hood. Otherwise the guarantee will be null and void. All
Bellini Appliances are for domestic use only.
Never to do:
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
zNever carry out flamable cooking under the
appliance
zThe exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
zDo not leave lit gas burners exposed due to the risk
of fire.
zThis range hood is not recommended for
barbecues.
Always to do:
zPackaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
zYoung children should be supervised to
ensure that they do not play with the
appliance.
zEnsure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
zGrease filters must be removed every four
weeks (maximum) for cleaning to reduce the
risk of fire.
zThere must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
zAlways cover lit gas burners with pots or pans
when range hood is in use.
zAlways switch off gas burners before you
remove pots or pans.
zIf the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
zPlug must be accessible after installation.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

3
Safety instructions
Never to do:
zThis range hood cannot be installed for outdoor use.
zIt is prohibited to fit the range hood over a solid fuel
stove
zThis appliance must not be connected to a chimney
or vent flue which is in use.
zThis appliance is not to be vented into the roof
cavity, must exit into open air.
zExhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
zThis appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
zAttention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
zThis appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
zBefore connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
This product must not be disposed together
with domestic waste. This product has to be
disposed at an authorised place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural
resources, and make sure the product is disposed in an
environmental friendly and healthy way.

4
BRA603CPX,BRA603CPX-F,BRA903CPX,BRA903CPX-F

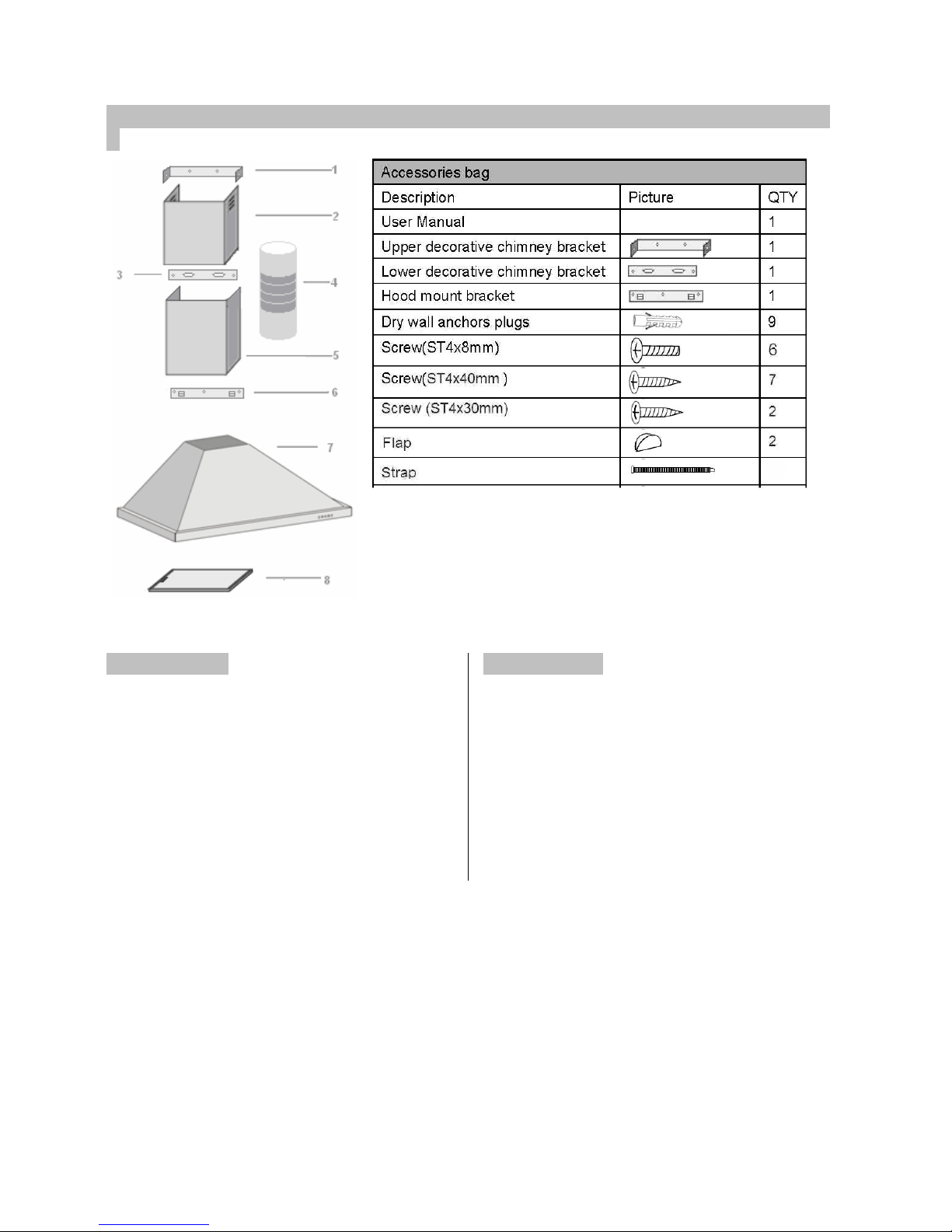

Component list:
1. Upper decorative chimney bracket*
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)*
6. Hood mount bracket
7. Main body
8. Grease mesh filter
Technical data:
Power supply: 220 – 240v, 50Hz
Lights: 2x20w Halogen lamp
Motor: 190W
Length of power cord: 1.5m
Air outlet diameter: 150mm
*Maximum extension of upper and lower chimney is 780mm
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
1

5

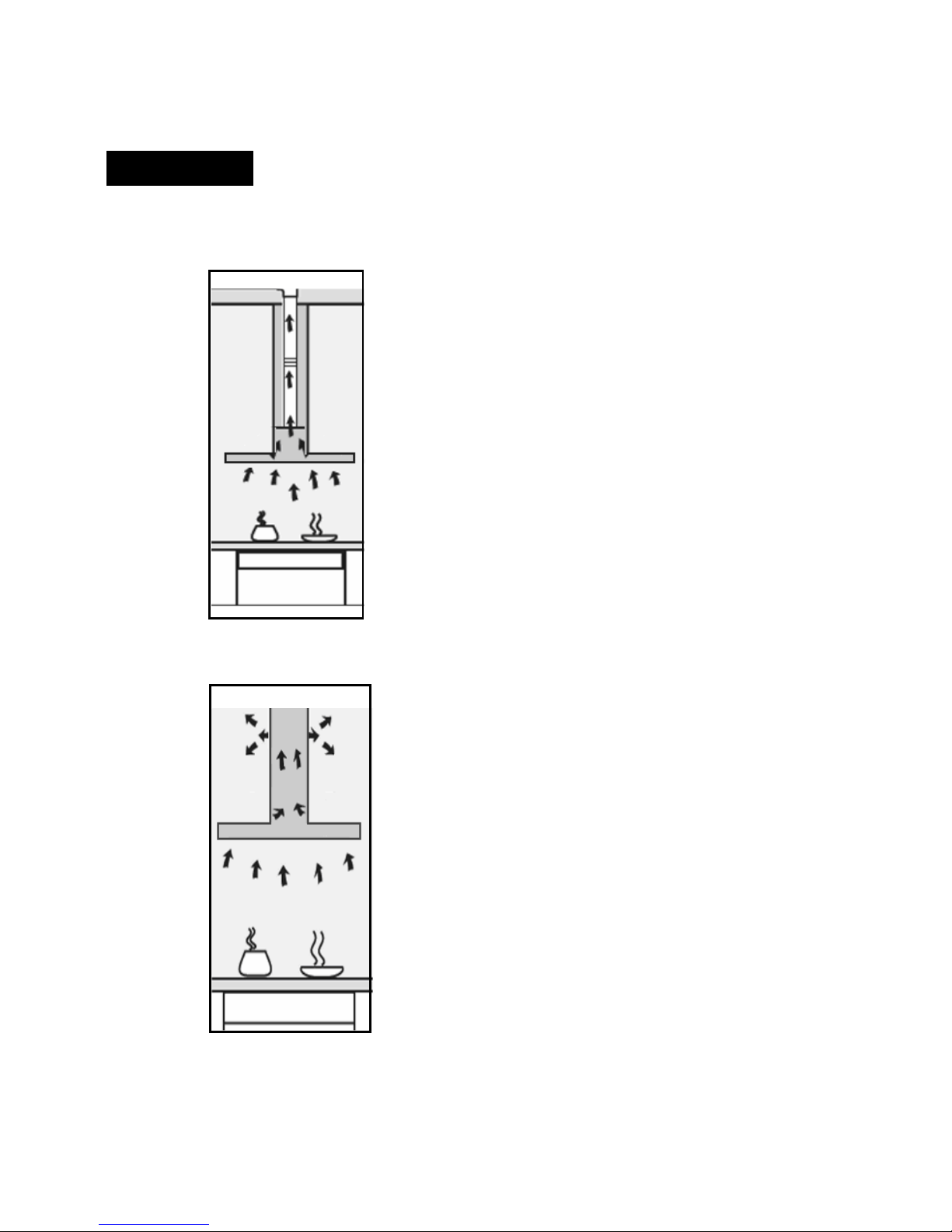

Operation Mode
Your range hood can be operated in two optional modes, choose the m ode suitable for your kitchen before
installation.
Air Extraction
Air Recirculation
To outside
To inside
For air extraction mode, a ducting kit is re quired, the air
is drawn in and cleaned by the grease filters and
directed outside.
Ducting must be vented to outside atmosphere.
For air recirculation mode, charcoal filter is a must to
eliminate cooking smells.
The air is drawn in and cleaned first by the grease filters
and then charcoal filter. The cleaned air is then
re-circulated back into kitchen through grilles on the
upper decorative chimney.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

6
Installation
Dimensions:
BRA603CPX, BRA603CPX-F, Width=600;
BRA903CPX, BRA903CPX-F, Width=900
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

7
Installation:
Warning:
Check that the installatio n complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
•Keep exhaust duct short and straight
•Do not reduce the size or restrict exhaust duct
•When using flexible duct always install the duct pulled taut to minimize pressure loss
•Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

8
1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal
line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of
600mm & 650mm to the gas cook top and a maximum height of 750mm (refer to table below).
Dimension 100mm
Dimension 30-365mm
Dimension 100mm Dimension 100mm Dimension 236mm
Dimension 300mm Dimension 88mm
Horizontal line Hood Base
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
Vertical centre line
Top of hob
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
3x8mm holes for
Hood mount bracket
2x8mm holes for Upper
chimney retaining
bracket
2x8mm holes for Lower
chimney retaining
bracket
Dimension 106mm
Dimension 359mm
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

9
2. Based on above drawing and dimension to drill holes(8mm diameter) and hammer dry wall anchor plugs into
holes

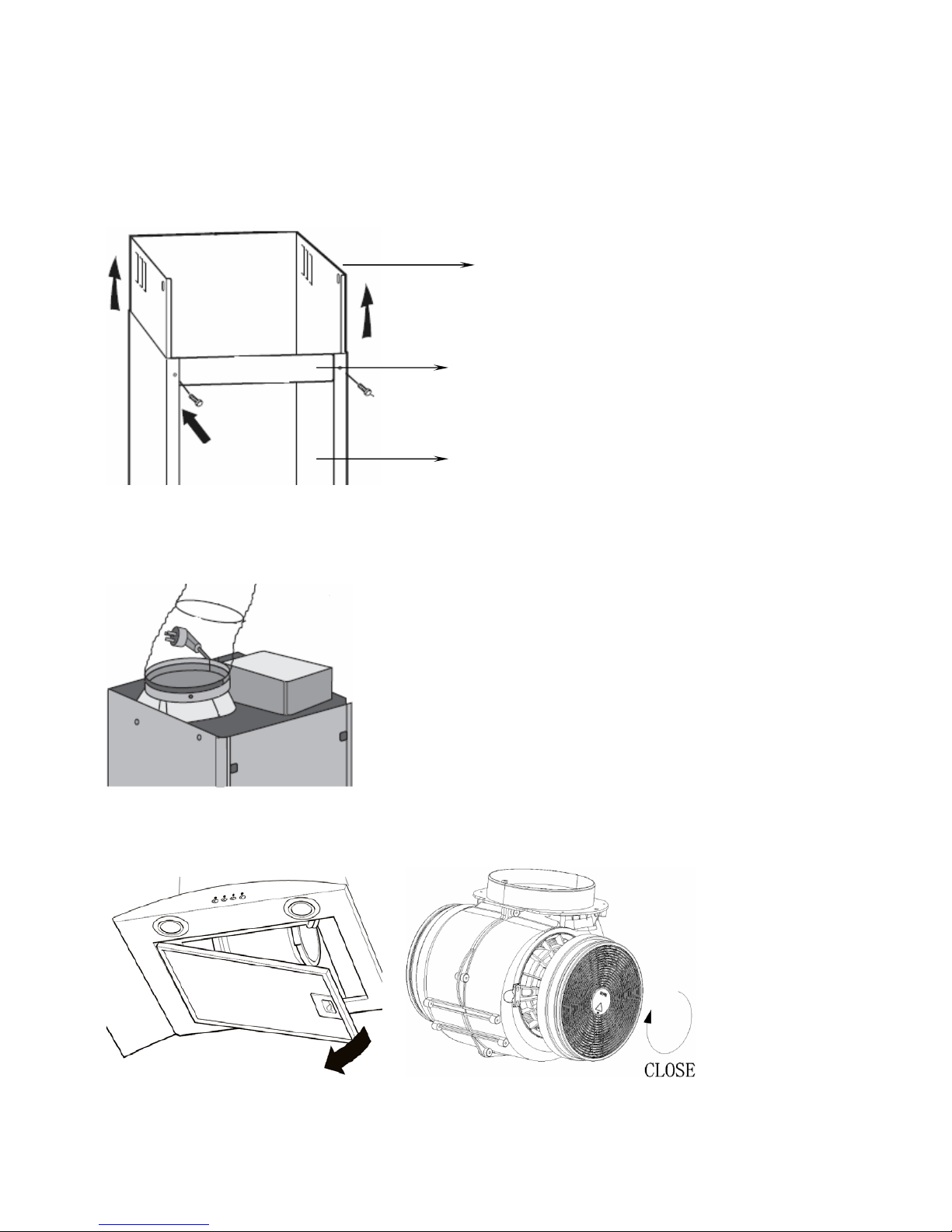

3. Use 2pcs ST4x8mm screws to attach lower and upper chimney together, do not fasten screws too much, make
sure upper decorative chimney can be telescopically adjusted after assembled.
4. Fit the flexible exhaust pipe onto outlet with the 153mm end. Use a strap to tighten the pipe.
* If choose air extraction mode, please install the flexible exhaust pipe; if choose air recirculation mode, no
need to install the flexible exhaust pipe, please skip this step and jump to step 5 directly
5. Remove grease mesh filter and install active charcoal filter onto motor chamber according to below drawing.
* If choose air extraction mode, please skip this step and jump to step 6 directly. if choose air recirculation
mode, we strongly recommend you have charcoal filter installed.
6. Secure the hood mount bracket onto wall with 3 x ST4x40mm screws, making sure screws are securely
tightened. Secure the upper chimney bracket onto wall with 2 x ST4x30mm screws.
Upper decorative chimney (Inner)
Lower Chimney bracket
Lower decorative chimney (Outer)
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
Charcoal Filters are available at your local Bunnings
Part Number: CF110 Fineline:5102399

10

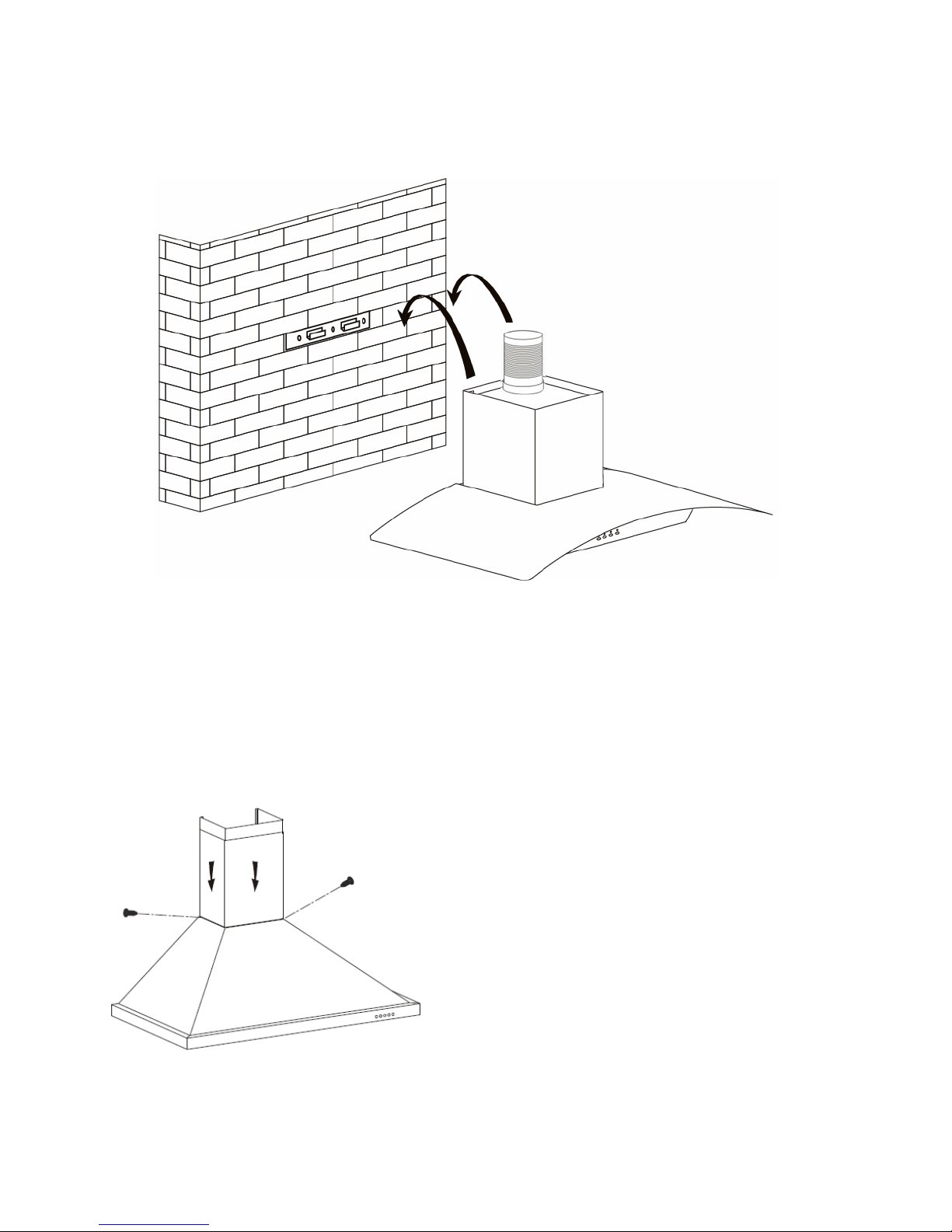

7. Hang on the hood onto the hook of the hood mount bracket, make sure the mount slot on cooker hood
completely slide into hooks.
*Above photo is just for reference only, actual product could be varies…
8. Fasten the 2pcs anti-tilt ST4x30mm screws onto wall to ensure horizontality of cooker hood. You can find out
screw holes inside hood near the motor chamber.
9. Plug in the main power supply.
10. Fasten the Lower decorative chimney bracket to the lower chimney with 2 x ST4x8mm screws, put the
chimney in position..
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

11
11.
12.Extend the upper decorative chimney to desired height and fix it with the upper decorative chimney bracket
by 2pcs ST4x8mm screws.
13.Remove all blue protective film on chimney and cooker hood, the installation is now finished.
Secure the lower chimney bracket onto wall with 2 x ST4x40mm screws.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

12

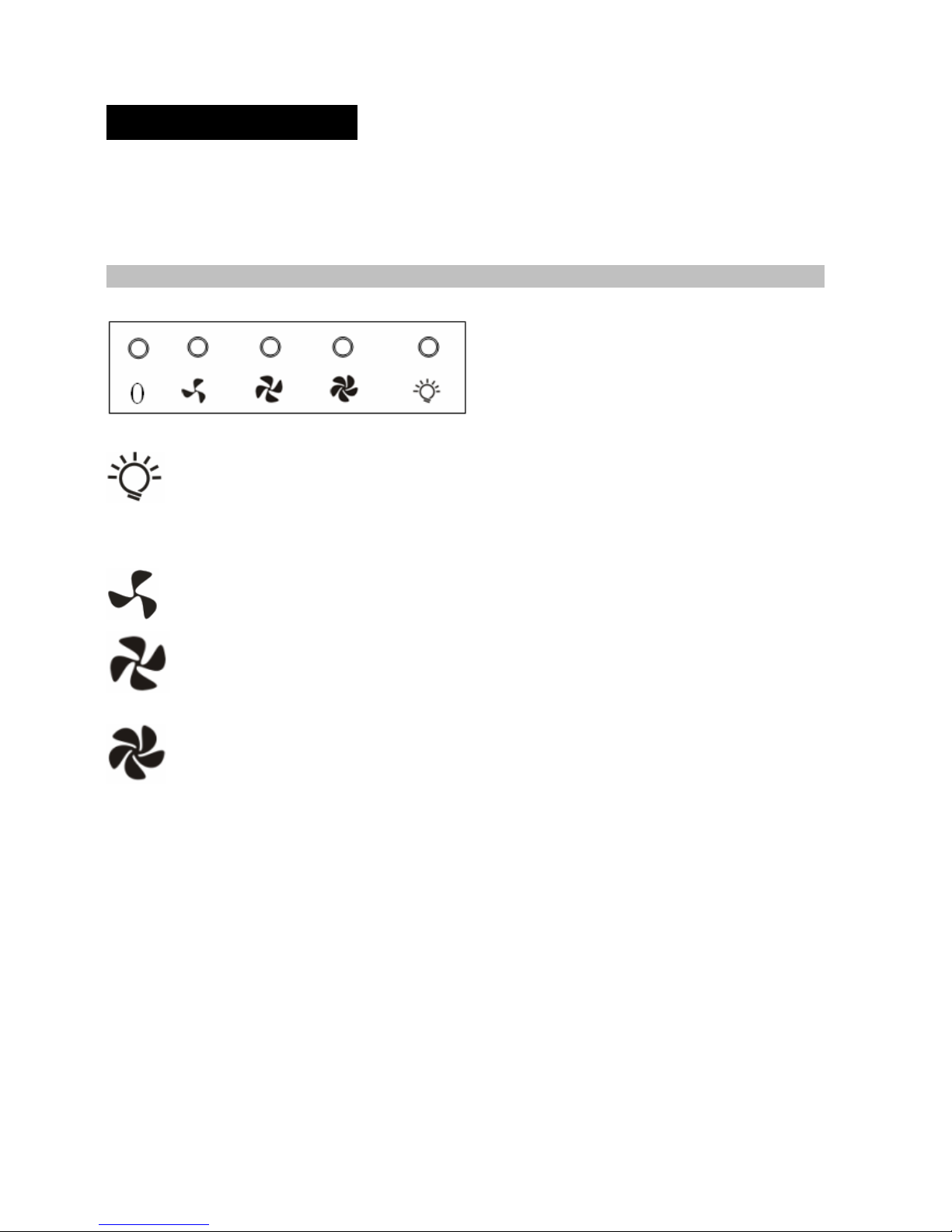

Start using your range hood
BRA603CPX, BRA603CPX-F, BRA903CPX, BRA903CPX-F
Lamp – Turn on/off light; 0On/Off – Turn on/off unit
Speed –select speed to suit cooking conditions
Low – light frying/boiling. Depress this button to enter into low speed and again to turn off motor.
Medium – frying/wok cooking/heavy boiling. Depress this button to enter into medium speed and again
to turn off motor
High – grilling, intensive frying and wok cooking. Depress this button to enter into high speed and again
to turn off motor
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

13
Maintenance and cleaning
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the main
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow below instruction to
ensure the best possible result without damage.
GENERAL
Cleaning and maintenance should be carried out with
the appliance cold especially when cleaning
Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces
STAINLESS STEEL
The stainless steel must be clea ned regularly (e.g.
weekly) to ensure long life expectancy.
Dry with a clean soft clot h. A speci alized stainless
steel cleaning fluid may be used.
NOTE: Ensure that wipin g is done al ong with the
grain of the stainless steel to preve nt any
unsightly scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm
soapy water. Ensure the cloth is clean and well wrung
before cleaning. Use a dry soft cloth to remove any
excess moisture left after cleaning.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any printing
of artwork on the control panel and will void
manufactures warrantee
GREASE MESH FILTERS
The mesh filters can be cleaned either by hand or in
the dishwasher. After cleaning ensure that the filters
are completely dry before refitting.
- By hand: Soak in warm water and a neutral
washing up liquid. For stubborn grease stains use a
soft nylon brush or sponge to help remove these
stains. (Leave to dry naturally out of direct sun light)
- In a dishwasher: Ensure that placement of the
filters is made so as to not impede the function of the
spray arm. Washing the filters in a dishwasher may
cause discoloration of the aluminum inner mesh over
time although it will not affect their performance.
Filters should be washed separately to crockery and
kitchen utensils. It is advisable not to use rinse aid.
Replace Halogen(Max 20W) lamp
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

14
WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Sch edule 2 of the Com petition and
Consumer Act 2010;
1.1.2 Company means GSM S ales Pty Lt d ABN 53 00 7 682 47 5 of 142-144 Fullarton Road, Rose
Park SA 5067. Tel [phone] AUS or 0508 123 108 NZ Email [email protected];
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer
Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any Consumer
Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is
installed in a residential property.
1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues
for the benefit only of the Consumer until the expiry of three (3) years (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini
product free of charge. A replacement Bellini product may differ from the original product purchased by the
Consumer.
1.7 This warranty will not apply to any Bellini product:
1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect
power supply
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE
CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108
(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE
TheAustralianConsumerLawrequirestheinclusionofthefollowingstatement
withthiswarranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood

15
1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain
the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover
the cost of transport of the Bellini product for service nor the service agent’s travelling costs to and from your
home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company
or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the
Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product)
and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the
Bellini product in accordance with this warranty.
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase,
or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required
to bear all service call charges.
GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without
incurring obligation.
Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have bee n made
which render the contents of this packaging slightly different to that shown.
FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA)
OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST
AUTHORISED SERVICE CENTRE
GSM Sales Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au
Model: BRA603CPX-F FINELINE: 220602 NZ BRA903CPX-F FINELINE: 5102529 AUS&NZ 60cm/90cm Canopy Range hood
