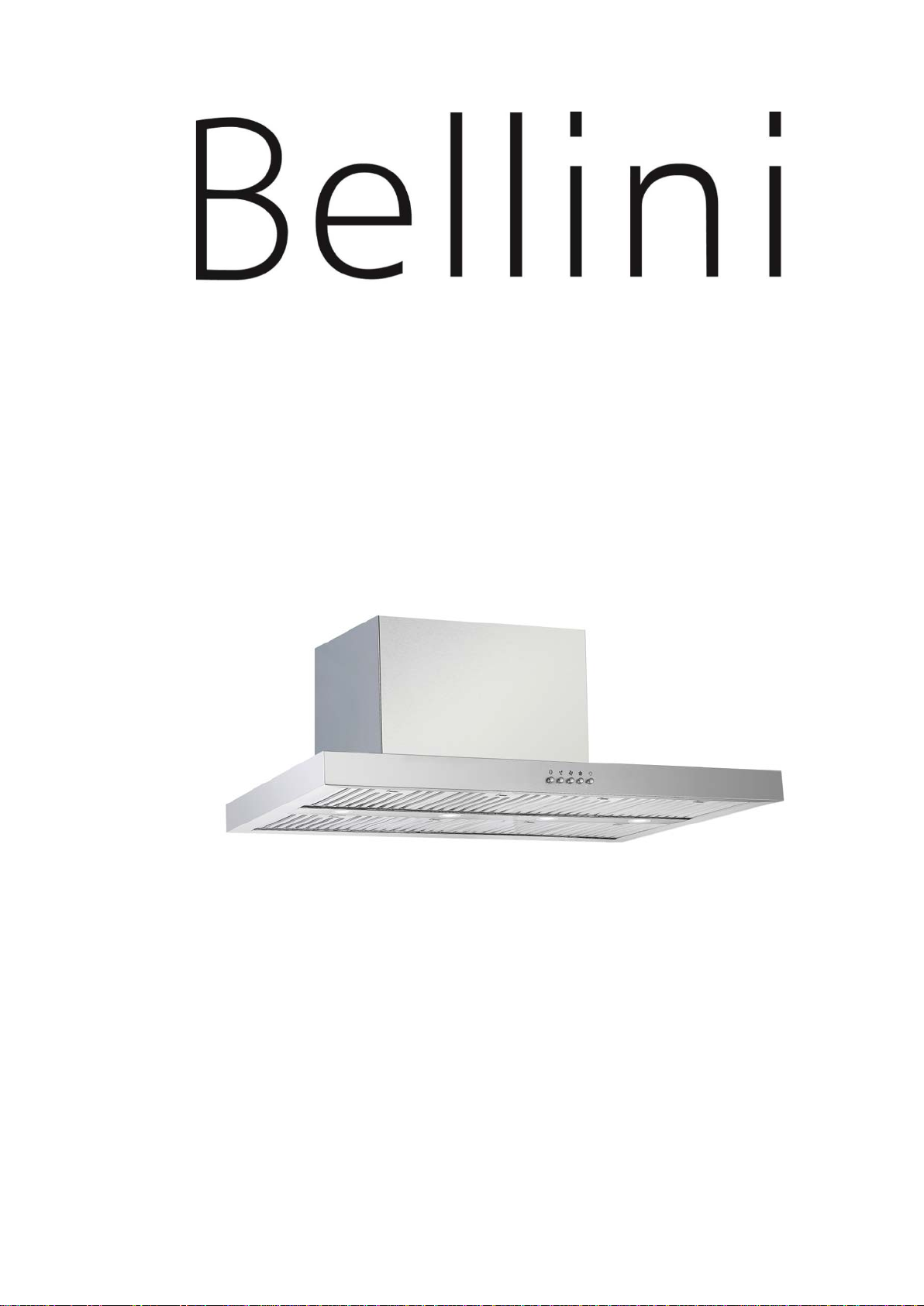

Bellini BBQRA123X Installation instructions

GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZ www.belliniappliances.com.au
Model: BBQRA123X Fineline: 5103011 120cm BBQ Rangehood
INSTALLATION & OPERATION
INSTRUCTIONS
120cm BBQ Range hood
Model No.
BBQRA123X FINELINE: 5103011 AUS Only
V10 Sep20

Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please contact
1300 373 199
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZ www.belliniappliances.com.au
Model: BBQRA123X Fineline: 5103011 120cm BBQ Rangehood

Content
Safety instructions----------------------------- 2
Product description---------------------------- 4
Installation----------------------------------------5
Start using your Range hood-----------------8
Maintenance and cleaning -------------------9
Warranty------------------------------------------10
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust OR0800 764 912 NZ www.belliniappliances.com.au
Model: BBQRA123X Fineline: 5103011 120cm BBQ Rangehood

2
Safety instructions
This manual explains the proper installation and use of your rang e hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept
in a safe place for future reference. In case of failure, only the Authorised Technical
Service may repair this range hood. Otherwise the guarantee will be null and void.
All Bellini Appliances are for domestic use only.
Never to do:
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Never carry out flamable cooking under the
appliance
The exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
Do not leave lit gas burners exposed due to the risk
of fire.
Always to do:
Packaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
Young children should be supervised to
ensure that they do not play with the
appliance.
Ensure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
Filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of
fire.
There must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
Always cover lit gas burners with pots or pans
when range hood is in use.
Always switch off gas burners before you
remove pots or pans.
If the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
Plug must be accessible after installation.

3

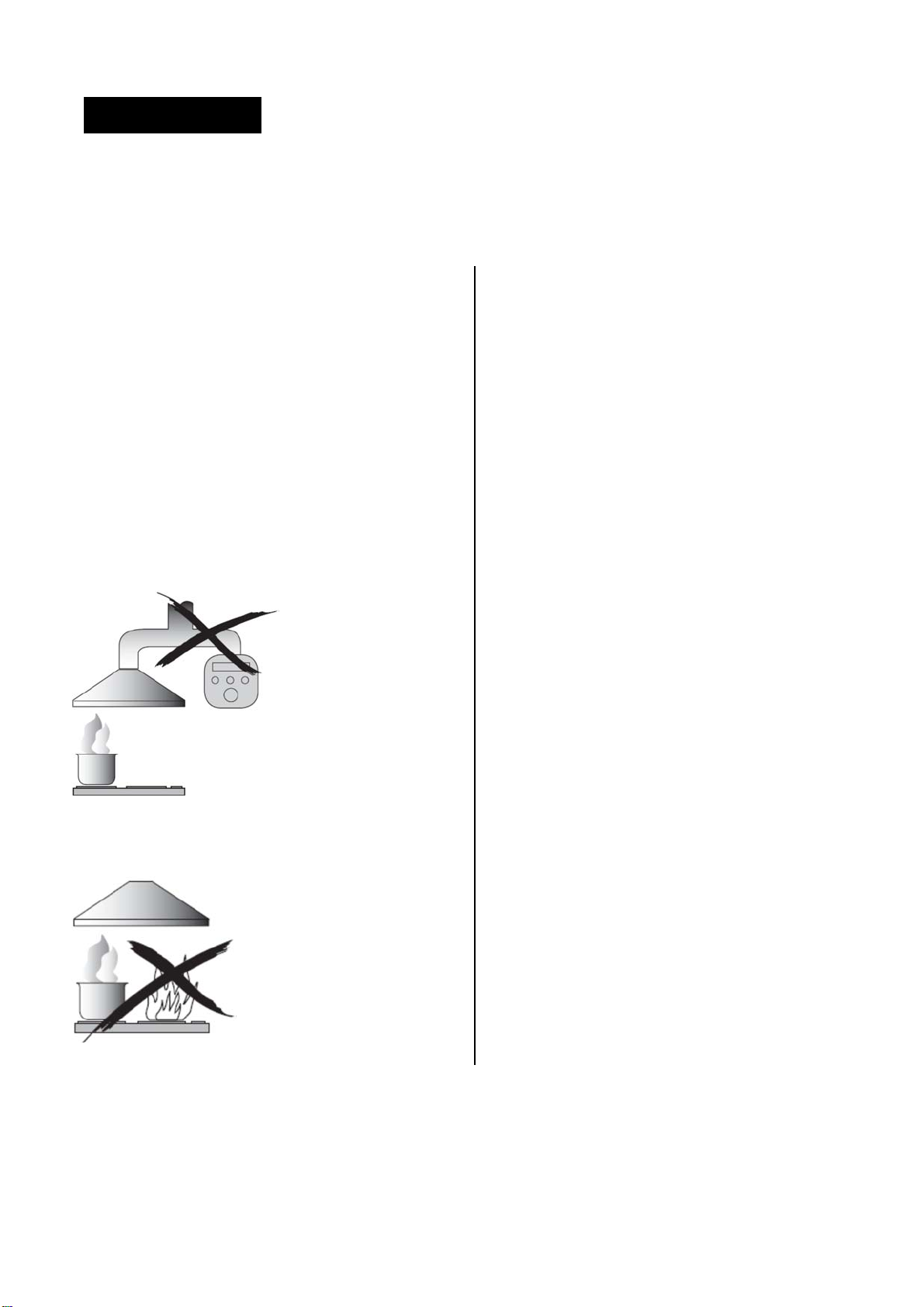

Safety instructions
Never to do:
It is prohibited to fit the range hood over a solid fuel
stove
This appliance must not be connected to a chimney
or vent flue which is in use.
This appliance is not to be vented into the roof
cavity, must exit into open air.
Exhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
This appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
Attention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
This appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
Before connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.
This product must not be disposed together
with domestic waste. This product has to be
disposed at an authorised place for recycling
of electrical and electronic appliances.
By collecting and recycling waste, you help save natural
resources, and make sure the product is disposed in an
environmental friendly and healthy way.

4

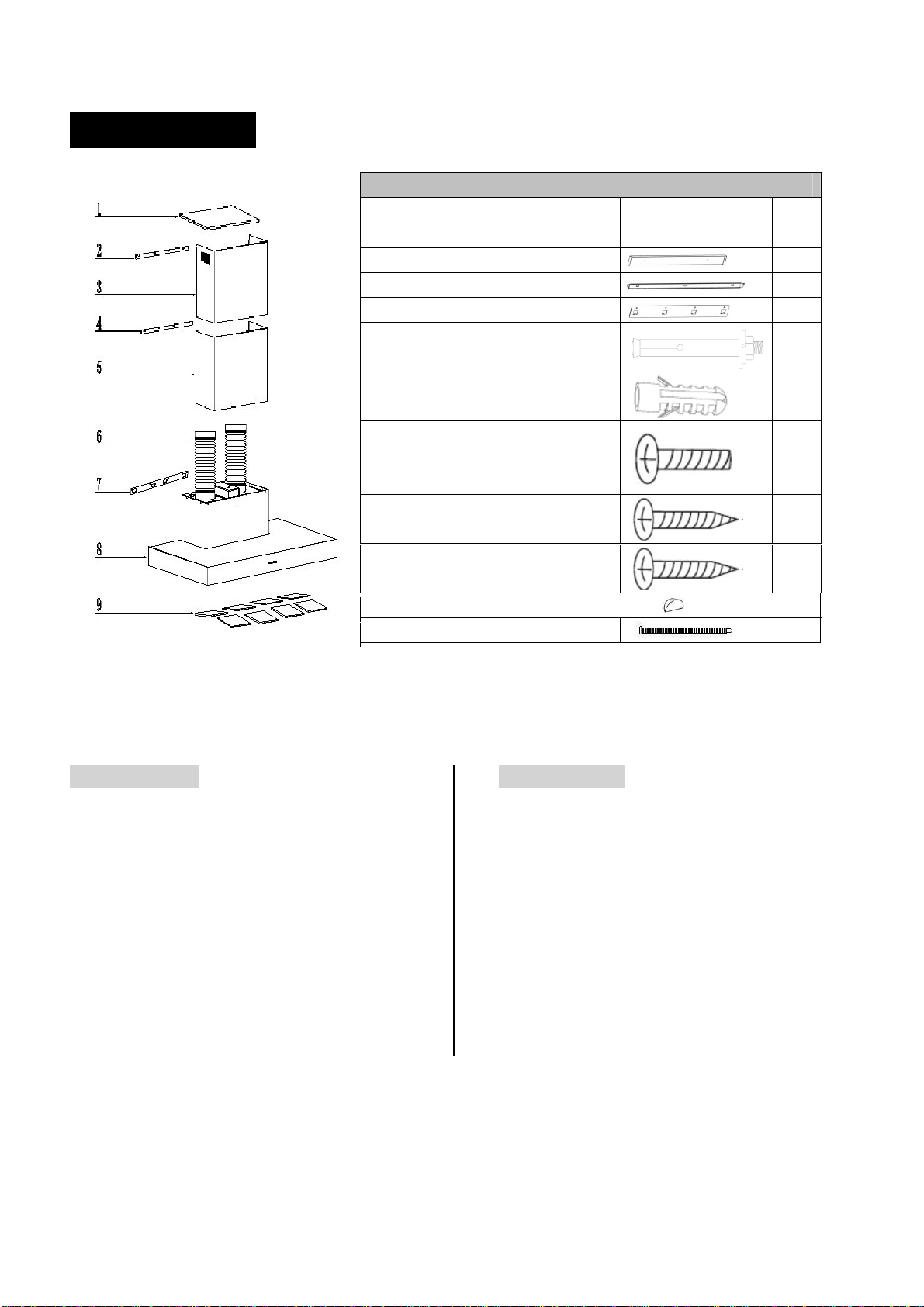

Product description
Component list:
1. Chimney cover
2. Upper chimney retaining bracket
3. Upper decorative chimney (Inner)
4. Lower chimney retaining bracket
5. Lower decorative chimney (outer)
6. Flexible exhaust duct
7. Hood mount bracket
8. Main body
9. Baffle filter
Technical data:
Power supply: 220 – 240v,
50Hz Motor: 2 x 380W
Lights: 4 x 2W LED lamp
Length of power cord: 1.5m
Air outlet diameter: 150mm
Accessories
Description Picture QTY
User Manual 1
Upper chimney retaining bracket 1
Lower chimney retaining bracket 1
Hood mount bracket 1
Dynabolts (6 mm x 60mm) 4
Dry wall anchors plugs 7
Screw (ST4x8mm)
4
Screw (ST4x30mm) 2
Screw (ST4x40mm) 5
Flap
Strap
4
2

5
Installation and start using your range hood

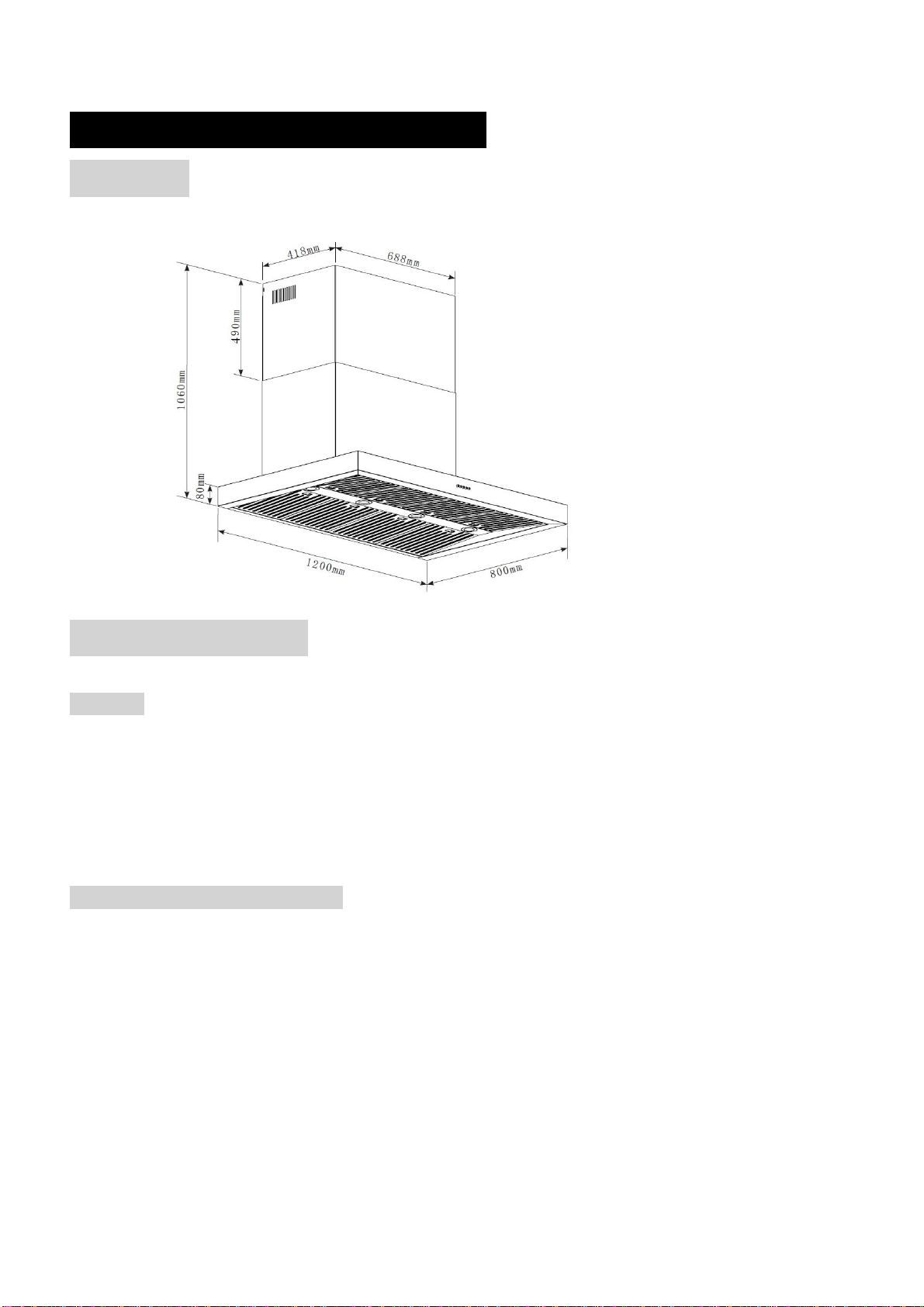

Dimensions:
Installation Procedures:
Warning:
Check that the installatio n complies with the standa rds of local b uilding, gas and electrical authorities. Before
connecting to the mains supply ensure the mains vo ltage corresponds to the voltage on the applian ce rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
Keep exhaust duct short and straight
Do not reduce the size or restrict exhaust duct
When using flexible duct always install the duct pulled taut to minimize pressure loss
Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhau st duct ing sele cted for installati on compli es with relevant standards and is fire
retardant.

6
1. Using a spirit level, mark a vertical line on the wall (Central to the cook top installed below) to indicate the
centre location of the hood and a horizontal line where the hood base will be positioned. Drill holes as per
below drawing and insert dry wall anchor plugs into holes.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum
of 650mm & 700mm for the gas cook top and a maximum height of 800mm (refer to table below).
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
Hood base Horizontal line
Vertical centre line
Top of hob
Minimum:
Electric and 650mm
Gas 700mm
Maximum:
800mm
312mm
195mm
4 x 6mm hol es for
mount bracket
3x4mm holes for
Lower chimney
retaining bracket
195mm 195mm
249mm
275mm
275mm

2. Once the installation height of hook,inside chimney bracket and safety hole is fixed according to the pic 1,
drill 6 φ11mm holes on the wall.
600
195
450
200
19 5
19 5
275 275
. Insert 7 pcs wall plugs into the holes of inside and outside chimney brackets as well as the safety hole.
Put 4 pcs M6*60 screws into the corresponding 4 holes for the hook and fix it on the wall.
Then use 2
pcs ST4*40mm screws to install the inside chimney bracket on the wall.
. Open and take down the 8 filters in order following the 3 steps
Hang the cooker hood on the hook.
Fasten ST4*30mm screws to the two safety holes on the cavity and fix the cooker hood. Note: The two
safety vents are positioned on the back housing, with diameter of 6mm. See pic 5.
Lay the expansion pipe to the two blower outlet, and fix the expansion pipe with a cable tie. See pic 6.
Put the inside chimney into the outside chimney,and hang the outside chimney bracket to the hole of
outside chimney. See pic 7.
Fix the outside chimney bracket on the wall with 3 pcs ST4*40 screws. See pic 8.
.
3
4
5.
6.
7.
8.
9.
pic 9
pic 8
pic 7
pic 6
pic 5
pic 4
See pic .
4
See
pic
pic
3
3.
pic pic 2
1
See pic .
2

8

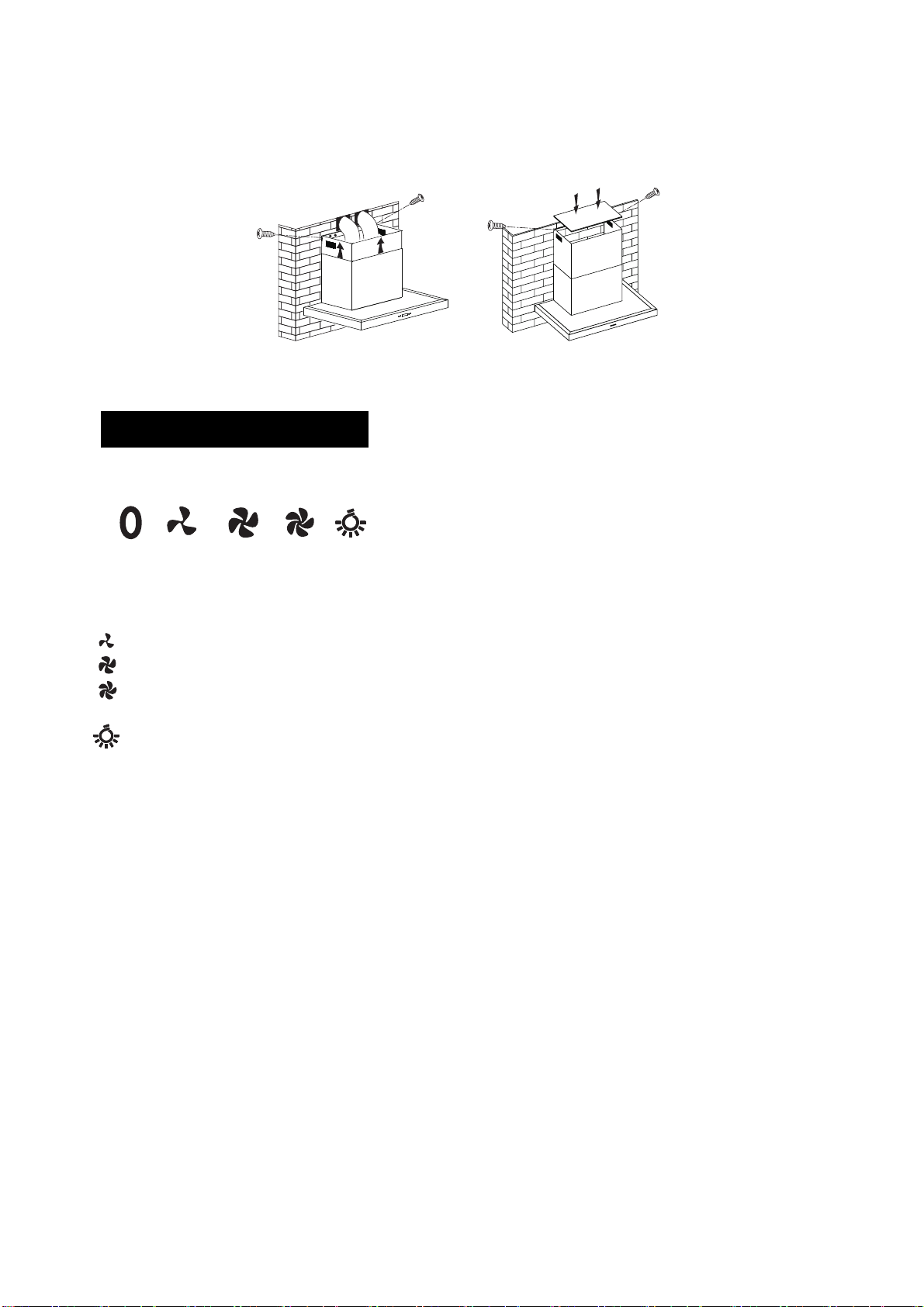

Start using your range hood
O – off button, used for turning off the fans.
Speed –select speed to suit cooking conditions
Low – light frying/boiling
Medium – frying/wok cooking/heavy boiling
High – grilling, intensive frying and wok cooking
Lamp – Turn on/off light
10.Put the chimney on the cooker hood and be sure that the inside chimney can be adjusted the height in
it freely. Then lead the expansion pipe to outside. See pic 9.
11. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it with
2 pcs ST4*8mm screws. See pic 10.
12. Install the inside chimney cover to the top of inside chimney with 2 pcs ST4*8mm screws. See pic 11.
pic 10 pic 11

Maintenance and cleaning
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the main
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage.
GENERAL
Cleaning and maintenance should be carried out with
the appliance cold especially when cleaning
Avoid leavin g alkali ne o r acid substances (l emon
juice, vinegar etc.) on the surfaces
STAINLESS STEEL
The stainl ess steel must be clea ned regula rly (e.g.
weekly) to ensure long life expectancy.
Dry with a clean soft clot h. A speci alized stainless
steel cleaning fluid may be used.
NOTE: Ensu re that wipin g is done al ong with the
grain of the stainless ste el to preve nt any
unsightly crisscross scratching pattern s from
appearing.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any printing
of artwork on the control panel and will void
manufactures warrantee
GREASE MESH FILTERS
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm
soapy water. Ensure the cloth is clean and well wrung
before cleaning. Use a dry soft cloth to remove any
excess moisture left after cleaning.
The mesh filters can be cleaned by hand.Soak them
for about 3 minute in water with a mild detergent and then
brush it gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it . (Leave to dry
naturally out of direct sun light)
Filters should be washed separately to crockery and
kitchen utensils.It is advisable not to use rinse aid.

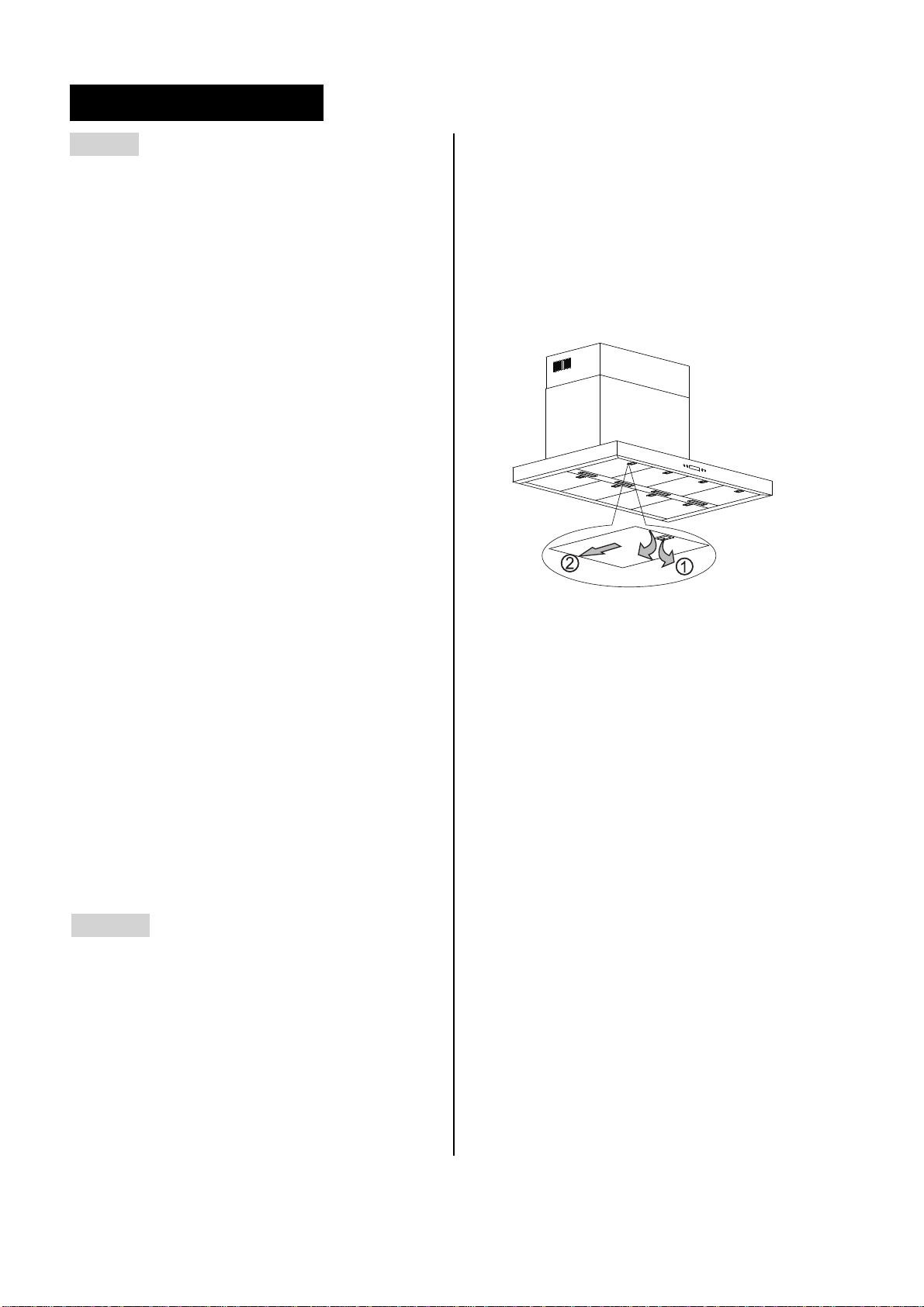

INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps:
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
③

/(' /,*+7$66(0%/<RE3/$&(0(17

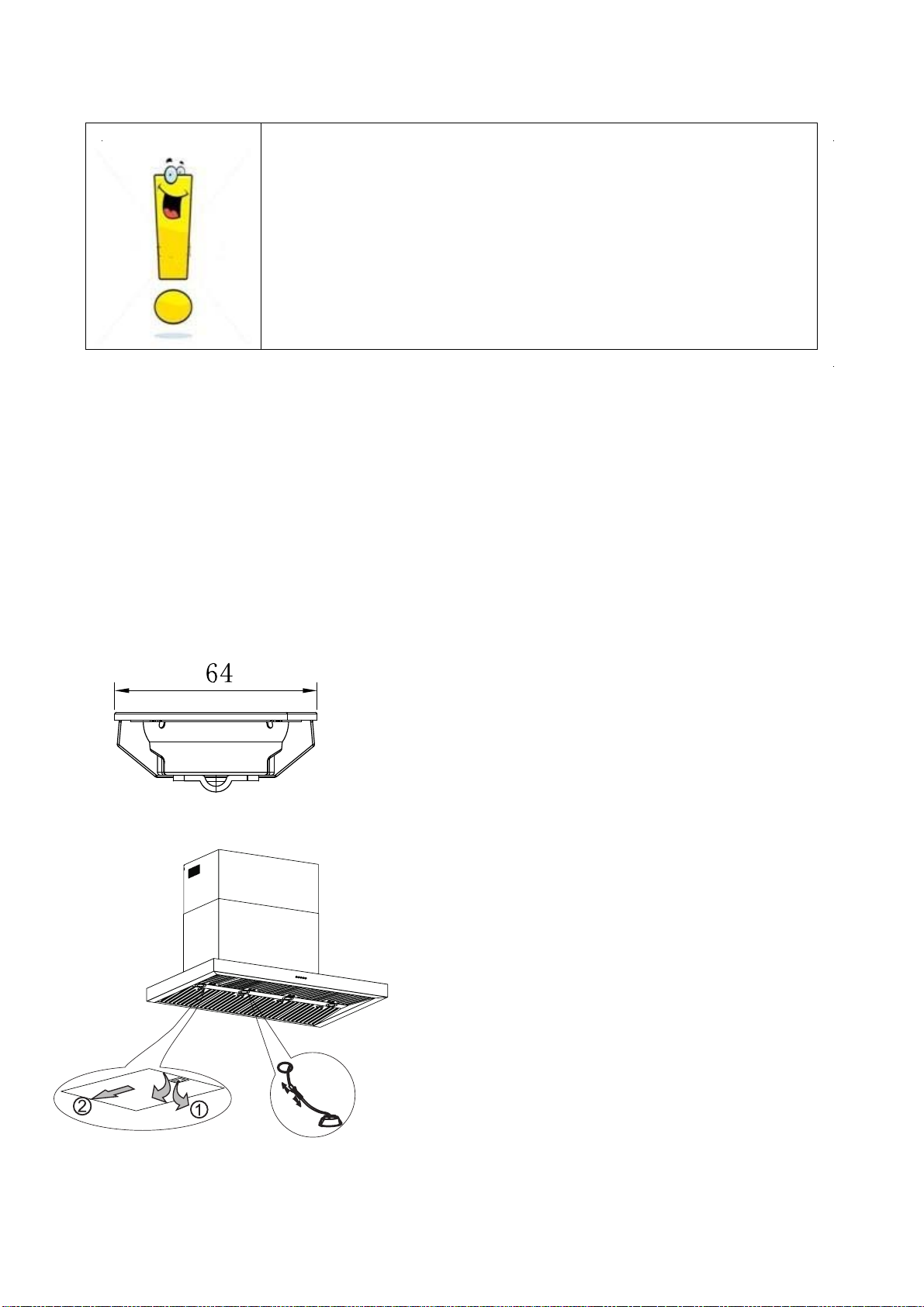

Important : The LED light must be replaced by the manufacturer,
its service agent or similarly qualified persons.
Alwaysswitch off the electricity supply before
carrying out any operations on the appliance. When
handling the light, make sure it has completely
cooled down before any direct contact to hands.
When handling the light hold with a cloth or gloves
to ensure perspiration does not come in contact
with the light as this can reduce the life of the light.
Note:
Before changing the lights, make sure that the appliance is turned off and unplugged.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
Follow the steps 1, 2, and 3 to open and remove the three filters,and then unplug the
light cord to replace the LED light.
•ILCOS D code for this lamp is: DBR-2/65-H-64
– LED modules –round lamp
– Max wattage: 4×2W
– Voltage range: AC 110-240V
– Dimensions:
③
10

WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and
Consumer Act 2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose
Park SA 5067. Telephone [phone]. Email [e-mail];
1.1.3
Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer
Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any
Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which
is installed in a domestic household area.
*The in Home warranty does not apply to Commercial and or industrial usage. *Please See 1.7.7 for additional
information
1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and
continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini
product free of charge. A replacement Bellini product may differ from the original product purchased by the
Consumer.
1.7 This warranty will not apply to any Bellini product:
1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect
power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/ shop environments, hotel/
motel or other similar accommodation or rental type properties including Bed and Breakfast
establishments.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER
MUST CALL 1300 373 199 (AUSTRALIA) OR0800 764 912
(NEW ZEALAND) TOCONNECT TOTHE NEAREST AUTHORISED CENTRE
The Australian Consumer Law requires the inclusion of the following
statement with this warranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain
the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not
cover the cost of transport of the Bellini product for service nor the service agent’s traveling costs to and
from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or
its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the
Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product)
and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the
Bellini product in accordance with this warranty.
DO NOTSEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if
the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear
all service call charges.
GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications
without incurring obligation.
Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made
which render the contents of this packaging slightly different to that shown.
FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA)
OR 0800 764 912 (NEW ZEALAND) TOCONNECT YOU TO THE NEAREST
AUTHORISED SERVICE CENTRE
