Bellini BBQR123X User manual

1
啊哈
Installation and User manual
Content
Safety instructions---------------------------------- 2
Product description--------------------------------- 4
Installation & start using--------------------------- 6
Maintenance and cleaning------------------------9
Warranty-----------------------------------------------10
20130917 issue 1
BBQ Range Hood
For warranty service call 1300 373 199(Australia)
or 0508 123108(New Zealand) to connect you to
the nearest authorised service centre BBQR123X
BBQR123X-F

2
Safety instructions
This manual explains the proper installation and use of your range hood, please read it
carefully before using even if you are familiar with the product. The manual should be kept
in a safe place for future reference.
Never to do:
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
and mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
zNever carry out flamable cooking under the
appliance

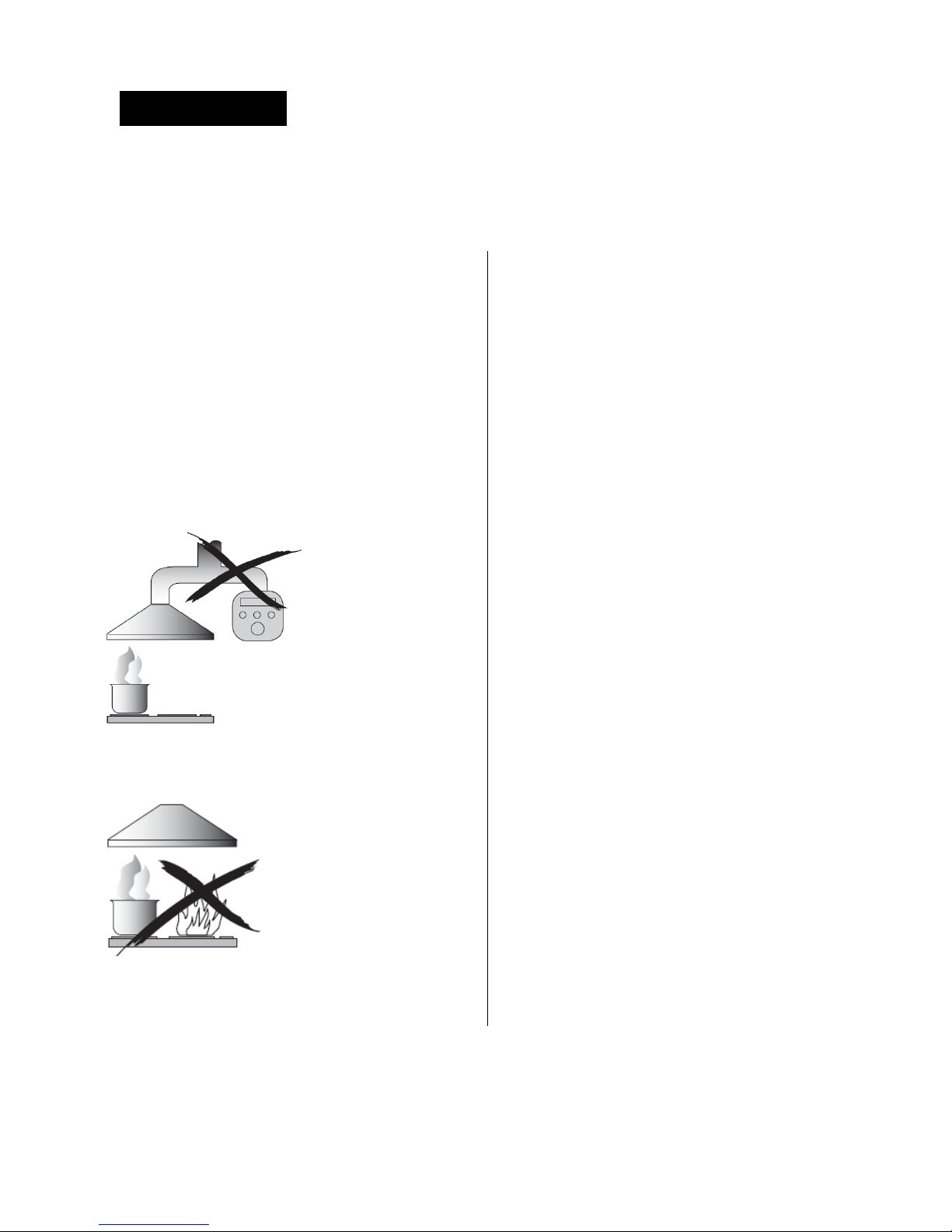

zThe exhaust from the range hood must not be
discharged into any heating flue, which may carry
combustion products from other sources.
zDo not leave lit gas burners exposed due to the risk
of fire.
Always to do:
zPackaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
zYoung children should be supervised to
ensure that they do not play with the
appliance.
zEnsure the range hood is switched off before
carrying out maintenance, to avoid any
possibility of electric shock.
zFilters must be removed every four weeks
(maximum) for cleaning to reduce the risk of
fire.
zThere must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels.
zAlways cover lit gas burners with pots or pans
when range hood is in use.
zAlways switch off gas burners before you
remove pots or pans.
zIf the supply cord is damaged, the cord must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard
zPlug must be accessible after installation.

3
Safety instructions
Never to do:
zIt is prohibited to fit the range hood over a solid fuel
stove
zThis appliance must not be connected to a chimney
or vent flue which is in use.
zThis appliance is not to be vented into the roof
cavity, must exit into open air.
zExhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the purpose.
zThis appliance should not be connected to ducting
which ventilates rooms with fire places.
Always to do:
zAttention should be given to ensure that any
applicable regulations concerning discharge
of exhaust air are fulfilled.
zThis appliance should be installed and
maintained by a suitably qualified and
competent person in accordance with the
relevant safety regulations.
zBefore connecting the appliance to the mains
supply, ensure that the voltage and frequency
details on the rating plate are consistent with
the source of supply.

4
Product description
Component list:
1. Chimney cover
2. Upper chimney retaining bracket
3. Upper decorative chimney (Inner)
4. Lower chimney retaining bracket
5. Lower decorative chimney (outer)
6. Flexible exhaust duct
7. Hood mount bracket
8. Main body
9. Baffle filter
Technical data:
Power supply: 220 – 240v, 50Hz
Motor: 2 x 320W
Lights: 6x1.5W LED lamp
Length of power cord: 1.5m
Air outlet diameter: 150mm
Accessories
Description Picture QTY
User Manual 1
Upper chimney retaining bracket 1
Lower chimney retaining bracket 1
Hood mount bracket 1
Dry wall anchors plugs
12
Screw (ST4x8mm)
4
Screw (ST4x30mm)
12

5
Installation and start using your range hood
Dimensions:
Installation Procedures:
Warning:
Check that the installation complies with the standards of local building, gas and electrical authorities. Before
connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating
plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from the range
hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction
•Keep exhaust duct short and straight
•Do not reduce the size or restrict exhaust duct
•When using flexible duct always install the duct pulled taut to minimize pressure loss
•Failure to observe these basic instructions will reduce the performance and increase noise levels of the
range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire
retardant.

6
1. Using a spirit level, mark a vertical line on the wall (Central to the cook top installed below) to indicate the
centre location of the hood and a horizontal line where the hood base will be positioned. Drill holes as per
below drawing and insert dry wall anchor plugs into holes.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of
600mm & 650mm to the gas cook top and a maximum height of 750mm (refer to table below).
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
Hood baseHorizontal line
Vertical centre line
Top of hob
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
350mm
329mm
170mm
153mm 153mm 153mm
4x8mm holes for Hood
mount bracket
4x8mm holes for
Upper chimney
retaining bracket
170mm170mm

7
2. Fasten Hood mount bracket by 4pcs ST4x30mm screws.
3. Hang on the main body of range hood.
4. Fit the outlet and flexible exhaust duct onto outlet
5. Slide out Upper Decorative Chimney to desired height.

8
6. Fasten Upper chimney retaining bracket by 4 pcs ST4x30mm screws, then fasten 2 pcs ST4x8mm screws at
side to fix Upper Decorative Chimney.
7. Remove all blue protective film on chimney and cooker hood, the installation is now finished.
Start using your range hood
O – off button, used for turning off the fans.
Speed –select speed to suit cooking conditions, increase digit in timer setting
1Low –light frying/boiling
2Medium –frying/wok cooking/heavy boiling
3High –grilling, intensive frying and wok cooking
Lamp – Turn on/off light, decrease digit in timer setting

9
Maintenance and cleaning
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the main
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage.
GENERAL
Cleaning and maintenance should be carried out with
the appliance cold especially when cleaning
Avoid leaving alkaline or acid substances (lemon
juice, vinegar etc.) on the surfaces
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.
weekly) to ensure long life expectancy.
Dry with a clean soft cloth. A specialized stainless
steel cleaning fluid may be used.
NOTE: Ensure that wiping is done along with the
grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from
appearing.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any printing
of artwork on the control panel and will void
manufactures warrantee
FILTERS
The baffle filters can be cleaned either by hand or in
the dishwasher. After cleaning ensure that the filters
are completely dry before refitting.
- By hand: Soak in warm water and a neutral
washing up liquid. For stubborn grease stains use a
soft nylon brush or sponge to help remove these
stains. (Leave to dry naturally out of direct sun light)
- In a dishwasher: Ensure that placement of the
filters is made so as to not impede the function of the
spray arm. Filters should be washed separately to
crockery and kitchen utensils. it is advisable not to
use rinse aid.
Replace Lamp
Switch the unit off and unplug the appliance.
Remove the lamp cover by undo the 2 screws.
Undo the incandescent bulb and replace with the
same type and rated bulb/lamp
The range hood takes 6 x 1.5W, LED lights
Important
When handling globes hold with a cloth or gloves to
ensure perspiration does not come in contact with the
globe as this can reduce the life of the globe.

10
WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and
Consumer Act 2010;
1.1.2 Company means GSM Sales Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose
Park SA 5067. Telephone [phone]. Email [email protected];
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer
Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any
Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which
is installed in a residential property.
1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues
for the benefit only of the Consumer until the expiry of two (2) years (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini
product free of charge. A replacement Bellini product may differ from the original product purchased by the
Consumer.
1.7 This warranty will not apply to any Bellini product:
1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect
power supply
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE
CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108
(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE
TheAustralianConsumerLawrequirestheinclusionofthefollowingstatement
withthiswarranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.

11
1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain
the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not
cover the cost of transport of the Bellini product for service nor the service agent’s traveling costs to and
from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company
or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the
Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product)
and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace
the Bellini product in accordance with this warranty.
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase,
or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required
to bear all service call charges.
GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without
incurring obligation.
Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made
which render the contents of this packaging slightly different to that shown.
FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA)
OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST
AUTHORISED SERVICE CENTRE
